Atmel ATtiny84A Datasheet

Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execu tion
– 32 x 8 General Purpose Working Registers
– Fully Static Operation

• High Endurance, Non-volatile Memory Segments

– 2K/4K/8K Bytes of In-System, Self-programmable Flash Program Memory

• Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes of In-System Programmable EEPROM

• Endurance: 100,000 Write/Erase Cycles
– 128/256/512 Bytes of Internal SRAM
– Data Retention: 20 years at 85°C / 100 years at 25°C
– Programming Lock for Self-programming Flash & EEPROM Data Security

• Peripheral Features

– One 8-bit and One 16-bit Timer/Counter with Two PWM Channels, Each
– 10-bit ADC

• 8 Single-ended Channels

• 12 Differential ADC Channel Pairs with Programmable Gain (1x / 20x)
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
– Universal Serial Interface

• Special Microcontroller Features

– debugWIRE On-chip Debug System
– In-System Programmable via SPI Port
– Internal and External Interrupt Sources

• Pin Change Interrupt on 12 Pins
– Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes
– Enhanced Power-on Reset Circuit
– Programmable Brown-out Detection Circuit with Software Disable Function
– Internal Calibrated Oscillator
– On-chip Temperature Sensor

• I/O and Packages

– Available in 20-pin QFN/MLF/VQ FN, 14-p in SOIC, 14-p in PDIP and 15-ball UFBGA
– Twelve Programmable I/O Lines

• Operating Voltage:

– 1.8 – 5.5V

• Speed Grade:

– 0 – 4 MHz @ 1.8 – 5.5V
– 0 – 10 MHz @ 2.7 – 5.5V
– 0 – 20 MHz @ 4.5 – 5.5V

• Industrial Temperature Range: -40°C to +85°C

• Low Power Consumption

– Active Mode:

• 210 µA at 1.8V and 1 MHz
–Idle Mode:

• 33 µA at 1.8V and 1 MHz
– Power-down Mode:

• 0.1 µA at 1.8V and 25°C

®

8-bit Microcontroller

8-bit
Microcontroller
with 2K/4K/8K
Bytes In-System
Programmable
Flash

ATtiny24A
ATtiny44A
ATtiny84A

Summary

Rev. 8183FS–AVR–06/12

1. Pin Configurations

Figure 1-1. Pinout of ATtiny24A/44A/84A

PDIP/SOIC

VCC

(PCINT8/XTAL1/CLKI) PB0

(PCINT9/XTAL2) PB1

(PCINT11/RESET/dW) PB3

(PCINT10/INT0/OC0A/CKOUT) PB2

(PCINT7/ICP/OC0B/ADC7) PA7

(PCINT6/OC1A/SDA/MOSI/DI/ADC6) PA6

(ADC4/USCK/SCL/T1/PCINT4) PA4

(ADC3/T0/PCINT3) PA3
(ADC2/AIN1/PCINT2) PA2
(ADC1/AIN0/PCINT1) PA1

(ADC0/AREF/PCINT0) PA0

NOTE
Bottom pad should be
soldered to ground.
DNC: Do Not Connect

1
2
3
4
5
6
7

14
13
12
11
10

9
8

QFN/MLF/VQFN

PA 5

DNC

DNC

DNC

PA 6

2019181716

1
2
3
4
5

678910

DNC

DNC

GND

VCC

15
14
13
12
11

DNC

GND
PA0 (ADC0/AREF/PCINT0)
PA1 (ADC1/AIN0/PCINT1)
PA2 (ADC2/AIN1/PCINT2)
PA3 (ADC3/T0/PCINT3)
PA4 (ADC4/USCK/SCL/T1/PCINT4)
PA5 (ADC5/DO/MISO/OC1B/PCINT5)

Pin 16: PA6 (PCINT6/OC1A/SDA/MOSI/DI/ADC6)
Pin 20: PA5 (ADC5/DO/MISO/OC1B/PCINT5)

PA7 (PCINT7/ICP/OC0B/ADC7)
PB2 (PCINT10/INT0/OC0A/CKOUT)
PB3 (PCINT11/RESET/dW)
PB1 (PCINT9/XTAL2)
PB0 (PCINT8/XTAL1/CLKI)

Table 1-1. UFBGA - Pinout ATtiny24A/44A/84A (top view)

1234

A
B PA4 PA7 PB1 PB3
C PA3 PA2 PA1 PB0
D PA0 GND GND VCC

2

ATtiny24A/44A/84A

PA5 PA6 PB2

8183FS–AVR–06/12

1.1 Pin Descriptions

1.1.1 VCC

Supply voltage.

1.1.2 GND

Ground.

1.1.3 Port B (PB3:PB0)

Port B is a 4-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The
Port B output buffers have symmetrical drive characteristics with both high sink and source
capability except PB3 which has the RESET
RESET pin, program (‘0’) RSTDISBL fuse. As inputs, Port B pins tha t are externally pulled low
will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a
reset condition becomes active, even if the cloc k is not runn in g.

Port B also serves the functions of various special features of the ATtiny24A/44A/84A as listed
in Section 10.2 “Alternate Port Functions” on page 58.

1.1.4 RESET

Reset input. A low level on this pin for longer than the minimum pulse length will generate a
reset, even if the clock is not running and provided the reset pin has not been disabled. Th e min­imum pulse length is given in Table 20-4 on page 176. Shorter pulses are not guaranteed to
generate a reset.

ATtiny24A/44A/84A

capability. To use pin PB3 as an I/O pin, instead of

The reset pin can also be used as a (weak) I/O pin.

1.1.5 Port A (PA7:PA0)

Port A is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The
Port A output buffers have symmetrical drive characteristics with both high sink and source
capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up
resistors are activated. The Port A pins are tri-stated when a reset co ndition becomes active,
even if the clock is not running.

Port A has alternate functions as analog inputs for the ADC, analog comparator, timer/counter,
SPI and pin change interrupt as described in “Alternate Port Functions” on page 58.

8183FS–AVR–06/12

3

2. Overview

ATtiny24A/44A/84A are low-power CMOS 8-bit microcontrollers based on the AVR enhanced
RISC architecture. By executing powerful instructions in a single clock cycle, the
ATtiny24A/44A/84A achieves throughputs approaching 1 MIPS per MHz allowing the system
designer to optimize power consumption versus processing speed.

Figure 2-1. Block Diagram

VCC

GND

PROGRAM
COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

PROGRAMMING

LOGIC

STACK

POINTER

SRAM

GENERAL

PURPOSE

REGISTERS

X
Y
Z

ALU

STATUS

REGISTER

ISP INTERFACE

8-BIT DATABUS

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CONTROL

REGISTER

MCU STATUS

REGISTER

TIMER/

COUNTER0

TIMER/

COUNTER1

INTERRUPT

UNIT

EEPROM

INTERNAL
CALIBRATED
OSCILLATOR

TIMING AND

CONTROL

OSCILLATORS

ADC

DATA REGISTER

PORT B

PORT B DRIVERS

PB[3:0]

DATA DIR.

REG.PORT B

PA[7:0]

DATA DIR.

REG.PORT A

DATA REGISTER

+

_

PORT A

ANALOG

COMPARATOR

PORT A DRIVERS

The AVR core combines a rich instruction set with 32 general purpose working registers. All 32
registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent
registers to be accessed in one single instruction executed in one clock cycle. The resulting
architecture is more code efficient while achieving throughputs up to ten times faster than con­ventional CISC microcontrollers.

4

ATtiny24A/44A/84A

8183FS–AVR–06/12

ATtiny24A/44A/84A

The ATtiny24A/44A/84A provides the following features: 2K/4K/8K byte of In-System Program­mable Flash, 128/256/512 bytes EEPROM, 128/256/512 bytes SRAM, 12 general purpose I/O
lines, 32 general purpose working registers, an 8-bit Timer/Counter with two PWM channels, a
16-bit timer/counter with two PWM channels, Internal and External Interrupts, a 8-channel 10-bit
ADC, programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, a programmable
Watchdog Timer with internal oscillator, internal calibrated oscillator, and four software select­able power saving modes. Idle mode stops the CPU while allowing the SRAM, Timer/Counter,
ADC, Analog Comparator, and Interrupt system to continue functioning. ADC Noise Reduction
mode minimizes switching noise during ADC conversions by stopping the CPU and all I/O mod­ules except the ADC. In Power-down mode registers keep their contents and all chip functions
are disbaled until the next interrupt or hardware reset. In Standby mode, the crystal/resonator
oscillator is running while the rest of the device is sleeping, allowing very fast start-up combined
with low power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The on­chip ISP Flash allows the Program memory to be re-programmed in-system through an SPI
serial interface, by a conventional non-volatile memory programmer or by an on-chip boo t code
running on the AVR core.

The ATtiny24A/44A/84A AVR is supported w ith a full suit e of progra m and s ystem de velopmen t
tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators and Evaluation
kits.

8183FS–AVR–06/12

5

3. General Information

3.1 Resources

A comprehensive set of drivers, application notes, data sheets and descriptions on development
tools are available for download at http://www.atmel.com/avr.

3.2 Code Examples

This documentation contains simple code examples tha t briefly sh ow how to use var ious par ts of
the device. These code examples assume that the part specific header file is included b efore
compilation. Be aware that not all C compiler vendors include bit definitions in the header files
and interrupt handling in C is compiler dependent. Plea se con firm with th e C com piler d ocumen­tation for more details.

For I/O Registers located in the extended I/O map, “IN”, “OUT”, “SBIS”, “SBIC”, “CBI”, and “SBI”
instructions must be replaced with instructions that allow access to extended I/O. Typically, this
means “LDS” and “STS” combined with “SBRS”, “SBRC”, “SBR”, and “CBR”. Note that not all
AVR devices include an extended I/O map.

3.3 Capacitive Touch Sensing

Atmel QTouch Library provides a simple to use solution for touch sensitive interfaces on Atmel
AVR microcontrollers. The QTouch Library includes support for QTouch
tion methods.

®

and QMatrix® acquisi-

3.4 Data Retention

3.5 Disclaimer

Touch sensing is easily added to any application by linking the QTouch Library and using the
Application Programming Interface (API) of the library to define the touch ch annels and senso rs.
The application then calls the API to retrieve channel information and determine the state of the
touch sensor.

The QTouch Library is free and can be downloaded from the Atmel website. For more informa­tion and details of implementation, refer to the QTouch Library User Guide – also available from
the Atmel website.

Reliability Qualification results show that the projected data retention failure rate is much less
than 1 PPM over 20 years at 85°C or 100 years at 25°C.

Typical values contained in this datasheet are based on simulations and characterization of
other AVR microcontrollers manufactured on the same process technology. Min and Max values
will be available after the device has been characterized.

6

ATtiny24A/44A/84A

8183FS–AVR–06/12

ATtiny24A/44A/84A

4. Register Summary

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

0x3F (0x5F) SREG I T H S V N Z C Page 14

0x3E (0x5E) SPH – – – – – – SP9 SP8 Page 13
0x3D (0x5D) SPL SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 Page 13
0x3C (0x5C) OCR0B
0x3B (0x5B) GIMSK – INT0 PCIE1
0x3A (0x5A) GIFR – INTF0 PCIF1

0x39 (0x59) TIMSK0 – – – – – OCIE0B OCIE0A TOIE0 Page 83

0x38 (0x58) TIFR0 – – – – – OCF0B OCF0A TOV0 Page 84

0x37 (0x57) SPMCSR – – RSIG CTPB RFLB PGWRT PGERS SPMEN Page 156

0x36 (0x56) OCR0A

0x35 (0x55) MCUCR BODS PUD SE SM1 SM0 BODSE ISC01 ISC00 Pages 36, 50, 66

0x34 (0x54) MCUSR – – – – WDRF BORF EXTRF PORF Page 44

0x33 (0x53) TCCR0B FOC0A FOC0B – – WGM02 CS02 CS01 CS00 Page 82

0x32 (0x52) TCNT0 Timer/Counter0 Page 83

0x31 (0x51) OSCCALCAL7CAL6CAL5CAL4CAL3CAL2CAL1CAL0 Page 31

0x30 (0x50) TCCR0A COM 0A1 COM0A0 COM0B1 COM0B0 – – WGM01 WGM00 Page 79
0x2F (0x4F) TCCR1A COM1A1 COM1A0 COM1B1 COM1B0 – – WGM11 WGM10 Page 106
0x2E (0x4E) TCCR1B ICNC1 ICES1 – WGM13 WGM12 CS12 CS11 CS10 Page 108
0x2D (0x4D) TCNT1H Timer/Counter1 – Counter Register High Byte Page 110
0x2C (0x4C) TCNT1L Timer/Counter1 – Counter Register Low Byte Page 110
0x2B (0x4B) OCR1AH Timer/Counter1 – Compare Register A High Byte Page 110
0x2A (0x4A) OCR1AL Timer/Counter1 – Compare Register A Low Byte Page 110

0x29 (0x49) OCR1BH Timer/Counter1 – Compare Register B High Byte Page 110

0x28 (0x48) OCR1BL Timer/Counter1 – Compare Register B Low Byte Page 110

0x27 (0x47) DWDR DWDR[7:0] Page 151

0x26 (0x46) CLKPR CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 Page 31

0x25 (0x45) ICR1H Timer/Counter1 - Input Capture Register High Byte Page 111

0x24 (0x44) ICR1L Timer/Counter1 - Input Capture Register Low Byte Page 111

0x23 (0x43) GTCCR TSM – – – – – – PSR10 Page 114

0x22 (0x42) TCCR1C FOC1A FOC1B – – – – – – Page 109

0x21 (0x41) WDTCSR WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 Page 44

0x20 (0x40) PCMSK1 – – – – PCINT11 PCINT10 PCINT9 PCINT8 Page 51
0x1F (0x3F) EEARH – – – – – – –EEAR8 Page 20
0x1E (0x3E) EEARL EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 Page 21
0x1D (0x3D) EEDR EEPROM Data Register Page 21
0x1C (0x3C) EECR – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE Page 23
0x1B (0x3B) PORTA PORTA7 PORTA6 PORTA5 PORTA4 PORTA3 PORTA2 PORTA1 PORTA0 Page 66
0x1A (0x3A) DDRA DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0 Page 66

0x19 (0x39) PINA PINA7 PINA6 PINA5 PINA4 PINA3 PINA2 PINA1 PINA0 Page 67

0x18 (0x38) PORTB – – – – PORTB3 PORTB2 PORTB1 PORTB0 Page 67

0x17 (0x37) DDRB

0x16 (0x36) PINB – – – – PINB3 PINB2 PINB1 PINB0 Page 67

0x15 (0x35) GPIOR2 General Purpose I/O Register 2 Page 22

0x14 (0x34) GPIOR1 General Purpose I/O Register 1 Page 23

0x13 (0x33) GPIOR0 General Purpose I/O Register 0 Page 23

0x12 (0x32) PCMSK0 PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 Page 52
0x11 (0x31)) Reserved

0x10 (0x30) USIBR USI Buffer Register Page 127
0x0F (0x2F) USIDR USI Data Register Page 126
0x0E (0x2E) USISR USISIF USIOIF USIPF USIDC USICNT3 USICNT2 USICNT1 USICNT0 Page 125
0x0D (0x2D) USICR USISIE USIOIE USIWM1 USIWM0 USICS1 USICS0 USICLK USITC Page 123
0x0C (0x2C) TIMSK1
0x0B (0x2B) TIFR1
0x0A (0x2A) Reserved

0x09 (0x29) Reserved –

0x08 (0x28) ACSR ACD ACBG

0x07 (0x27) ADMUX REFS1 REFS0 MUX5 MUX4 MUX3 MUX2

0x06 (0x26) ADCSRA ADEN ADSC

0x05 (0x25) ADCH ADC Data Register High Byte Page 148

0x04 (0x24) ADCL ADC Data Register Low Byte Page 148

0x03 (0x23) ADCSRB BIN ACME –ADLAR– ADTS2 ADTS1 ADTS0 Pages 130, 148

0x02 (0x22) Reserved

0x01 (0x21) DIDR0 ADC7D ADC6D ADC5D ADC4D ADC3D ADC2D ADC1D ADC0D Pages 131, 149

0x00 (0x20) PRR

– – – – DDB3 DDB2 DDB1 DDB0 Page 67

– –ICIE1– – OCIE1B OCIE1A TOIE1 Page 111
– –ICF1– – OCF1B OCF1A TOV1 Page 112

– – – – PRTIM1 PRTIM0 PRUSI PRADC Page 37

Timer/Counter0 – Output Compare Register B

Timer/Counter0 – Output Compare Register A

ACO ACI ACIE ACIC ACIS1 ACIS0 Page 129

ADATE ADIF ADIE ADPS2 ADPS1 ADPS0 Page 146

PCIE0
PCIF0

– – – – Page 50
– – – – Page 51

–

–

MUX1 MUX0 Page 144

–

Page 83

Page 83

8183FS–AVR–06/12

7

Note: 1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses

should never be written.

2. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these
registers, the value of single bits can be checked by using the SBIS and SBIC instructions.

3. Some of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI
instructions will only operation the specified bit, and can therefore be used on registers containing such Status Flags. The
CBI and SBI instructions work with registers 0x00 to 0x1F only.

8

ATtiny24A/44A/84A

8183FS–AVR–06/12

ATtiny24A/44A/84A

5. Instruction Set Summary

Mnemonics Operands Description Operation Flags #Clocks

ARITHMETIC AND LOGIC INSTRUCTIONS

ADD Rd, Rr Add two Registers Rd ← Rd + Rr Z,C,N,V,H 1
ADC Rd, Rr Add with Carry two Registers Rd ← Rd + Rr + C Z,C,N,V,H 1
ADIW Rdl,K Add Immediate to Word Rdh:Rdl ← Rdh:Rdl + K Z,C,N,V,S 2
SUB Rd, Rr Subtract two Registers Rd ← Rd - Rr Z,C,N,V,H 1
SUBI Rd, K Subtract Constant from Register Rd ← Rd - K Z,C,N,V,H 1
SBC Rd, Rr Subtract with Carry two Registers Rd ← Rd - Rr - C Z,C,N,V,H 1
SBCI Rd, K Subtract with Carry Constant from Reg. Rd ← Rd - K - C Z,C,N,V,H 1
SBIW Rdl,K Subtract Immediate from Word Rdh:Rdl ← Rdh:Rdl - K Z,C,N,V,S 2
AND Rd, Rr Logical AND Registers Rd ← Rd • Rr Z,N, V 1
ANDI Rd, K Logical AND Register and Constant Rd ← Rd • K Z,N,V 1
OR Rd, Rr Logical OR Registers Rd ← Rd v Rr Z,N,V 1
ORI Rd, K Logical OR Register and Constant Rd ← Rd v K Z,N,V 1
EOR Rd, Rr Exclusive OR Registers Rd ← Rd ⊕ Rr Z,N,V 1
COM Rd One’s Complement Rd ← 0xFF − Rd Z,C,N,V 1
NEG Rd Two’s Complement Rd ← 0x00 − Rd Z,C,N,V,H 1
SBR Rd,K Set Bit(s) in Register Rd ← Rd v K Z,N,V 1
CBR Rd,K Clear Bit(s) in Register Rd ← Rd • (0xFF - K) Z,N,V 1
INC Rd Increment Rd ← Rd + 1 Z,N,V 1
DEC Rd Decrement Rd ← Rd − 1 Z,N,V 1
TST Rd Test for Zero or Minus Rd ← Rd • Rd Z,N,V 1
CLR Rd Clear Register Rd ← Rd ⊕ Rd Z,N,V 1
SER Rd Set Register Rd ← 0xFF None 1

BRANCH INSTRUCTIONS

RJMP k Relative Jump PC ← PC + k + 1 None 2
IJMP Indirect Jump to (Z) PC ← Z None 2
RCALL k Rel ative Subroutine Call PC ← PC + k + 1 None 3
ICALL Indirect Call to (Z) PC ← ZNone3
RET Subroutine Return PC ← STACK None 4
RETI Interrupt Return PC ← STACK I 4
CPSE Rd,Rr Compare, Skip if Equal if (Rd = Rr) PC ← PC + 2 or 3 None 1/2/3
CP Rd,Rr Compare Rd − Rr Z, N,V,C,H 1
CPC Rd,Rr Compare with Carry Rd − Rr − C Z, N,V,C,H 1
CPI Rd,K Compare Register with Immediate Rd − K Z, N,V,C,H 1
SBRC Rr, b Skip if Bit in Register Cleared if (Rr(b)=0) PC ← PC + 2 or 3 None 1/2/3
SBRS Rr, b Skip if Bit in Register is Set if (Rr(b)=1) PC ← PC + 2 or 3 None 1/2/3
SBIC P, b Skip if Bit in I/O Register Cleared if (P(b)=0) PC ← PC + 2 or 3 None 1/2/3
SBIS P, b Skip if Bit in I/O Register is Set if (P(b)=1) PC ← PC + 2 or 3 None 1/2/3
BRBS s, k Branch if Status Flag Set if (SREG(s) = 1) then PC←PC+k + 1 None 1/2
BRBC s, k Branch if Status Flag Cleared if (SREG(s) = 0) then PC←PC+k + 1 None 1/2
BREQ k Branch if Equal if (Z = 1) then PC ← PC + k + 1 None 1/2
BRNE k Branch if Not Equal if (Z = 0) then PC ← PC + k + 1 None 1/2
BRCS k Branch if Carry Set if (C = 1) then PC ← PC + k + 1 None 1/2
BRCC k Branch if Carry Cleared if (C = 0) then PC ← PC + k + 1 None 1/2
BRSH k Branch if Same or Higher if (C = 0) then PC ← PC + k + 1 None 1/2
BRLO k Branch if Lower if (C = 1) then PC ← PC + k + 1 None 1/2
BRMI k Branch if Minus if (N = 1) then PC ← PC + k + 1 None 1/2
BRPL k Branch if Plus if (N = 0) then PC ← PC + k + 1 None 1/2
BRGE k Branch if Greater or Equal, Signed if (N ⊕ V= 0) then PC ← PC + k + 1 None 1/2
BRLT k Branch if Less Than Zero, Signed if (N ⊕ V= 1) then PC ← PC + k + 1 None 1/2
BRHS k Branch if Half Carry Flag Set if (H = 1) then PC ← PC + k + 1 None 1/2
BRHC k Branch if Half Carry Flag Cleared if (H = 0) then PC ← PC + k + 1 None 1/2
BRTS k Branch if T Flag Set if (T = 1) then PC ← PC + k + 1 None 1/2
BRTC k Branch if T Flag Cleared if (T = 0) then PC ← PC + k + 1 None 1/2
BRVS k Branch if Overflow Flag is Set if (V = 1) then PC ← PC + k + 1 None 1/2
BRVC k Branch if Overflow Flag is Cleared if (V = 0) then PC ← PC + k + 1 None 1/2
BRIE k Branch if Interrupt Enabled if ( I = 1) then PC ← PC + k + 1 None 1/2
BRID k Branch if Interrupt Disabled if ( I = 0) then PC ← PC + k + 1 None 1/2

BIT AND BIT-TEST INSTRUCTIONS

SBI P,b Set Bit in I/O Register I/O(P,b) ← 1None2
CBI P,b Clear Bit in I/O Register I/O(P,b) ← 0None2
LSL Rd Logical Shift Left Rd(n+1) ← Rd(n), Rd(0)
LSR Rd Logical Shift Right Rd(n) ← Rd(n+1), Rd(7) ← 0 Z,C,N,V 1
ROL Rd Rotate Left Through Carry Rd(0)←C,Rd(n+1)← Rd(n),C←Rd(7) Z,C,N,V 1

← 0 Z,C,N,V 1

8183FS–AVR–06/12

9

Mnemonics Operands Description Operation Flags #Clocks

ROR Rd Rotate Right Through Carry Rd(7)←C,Rd(n)← Rd(n+1),C←Rd(0) Z,C,N,V 1
ASR Rd Arithmetic Shift Right Rd(n) ← Rd(n+1), n=0..6 Z,C,N,V 1
SWAP Rd Swap Nibbles Rd(3..0)←Rd(7..4),Rd(7..4)←Rd(3..0) None 1
BSET s Flag Set SREG(s) ← 1 SREG(s) 1
BCLR s Flag Clear SREG(s) ← 0 SREG(s) 1
BST Rr, b Bit Store from Register to T T ← Rr(b) T 1
BLD Rd, b Bit load from T to Register Rd(b) ← TNone1
SEC Set Carry C ← 1C1
CLC Clear Carry C ← 0 C 1
SEN Set Negative Flag N ← 1N1
CLN Clear Negative Flag N ← 0 N 1
SEZ Set Zero Flag Z ← 1Z1
CLZ Clear Zero Flag Z ← 0 Z 1
SEI Global Interrupt Enable I ← 1I1
CLI Global Interrupt Disable I ← 0 I 1
SES Set Signed Test Flag S ← 1S1
CLS Clear Signed Test Flag S ← 0 S 1
SEV Set Twos Complement Overflow. V ← 1V1
CLV Clear Twos Complement Overflow V ← 0 V 1
SET Set T in SREG T ← 1T1
CLT Clear T in SREG T ← 0 T 1
SEH Set Half Carry Flag in SREG H ← 1H1
CLH Clear Half Carry Flag in SREG H ← 0 H

DATA TRANSFER INSTRUCTIONS

MOV Rd, Rr Move Between Registers Rd ← Rr None 1
MOVW Rd, Rr Copy Register Word
LDI Rd, K Load Immediate Rd ← KNone1
LD Rd, X Load Indirect Rd ← (X) None 2
LD Rd, X+ Load Indirect and Post-Inc. Rd ← (X), X ← X + 1 None 2
LD Rd, - X Load Indirect and Pre-Dec. X ← X - 1, Rd ← (X) None 2
LD Rd, Y Load Indirect Rd ← (Y) None 2
LD Rd, Y+ Load Indirect and Post-Inc. Rd ← (Y), Y ← Y + 1 None 2
LD Rd, - Y Load Indirect and Pre-Dec. Y ← Y - 1, Rd ← (Y) None 2
LDD Rd,Y+q Load Indirect with Displacement Rd ← (Y + q) None 2
LD Rd, Z Load Indirect Rd ← (Z) None 2
LD Rd, Z+ Load Indirect and Post-Inc. Rd ← (Z), Z ← Z+1 None 2
LD Rd, -Z Load Indirect and Pre-Dec. Z ← Z - 1, Rd ← (Z) None 2
LDD Rd, Z+q Load Indirect with Displacement Rd ← (Z + q) None 2
LDS Rd, k Load Direct from SRAM Rd ← (k) None 2
ST X, Rr Store Indirect (X) ← Rr None 2
ST X+, Rr Store Indirect and Post-Inc. (X) ← Rr, X ← X + 1 None 2
ST - X, Rr Store Indirect and Pre-Dec. X ← X - 1, (X) ← Rr None 2
ST Y, Rr Store Indirect (Y) ← Rr None 2
ST Y+, Rr Store Indirect and Post-Inc. (Y) ← Rr, Y ← Y + 1 None 2
ST - Y, Rr Store Indirect and Pre-Dec. Y ← Y - 1, (Y) ← Rr None 2
STD Y+q,Rr Store Indirect with Displacement (Y + q) ← Rr None 2
ST Z, Rr Store Indirect (Z) ← Rr None 2
ST Z+, Rr Store Indirect and Post-Inc. (Z) ← Rr, Z ← Z + 1 None 2
ST -Z, Rr Store Indirect and Pre-Dec. Z ← Z - 1, (Z) ← Rr None 2
STD Z+q,Rr Store Indirect with Displacement (Z + q) ← Rr None 2
STS k, Rr Store Direct to SRAM (k) ← Rr None 2
LPM Load Program Memory R0 ← (Z) None 3
LPM Rd, Z Load Program Memory Rd ← (Z) None 3
LPM Rd, Z+ Load Program Memory and Post-Inc Rd ← (Z), Z ← Z+1 None 3
SPM Store Program Memory (z) ← R1:R0 None
IN Rd, P In Port Rd ← PNone1
OUT P, Rr Out Port P ← Rr None 1
PUSH Rr Push Register on Stack STACK ← Rr None 2
POP Rd Pop Register from Stack Rd ← STACK None 2

MCU CONTROL INSTRUCTIONS

NOP No Operation None 1
SLEEP Sleep (see specific descr. for Sleep function) None 1
WDR Watchdog Reset (see specific descr. for WDR/Timer) None 1
BREAK Break For On-chip Debug Only None N/A

Rd+1:Rd ← Rr+1:Rr

None 1

1

10

ATtiny24A/44A/84A

8183FS–AVR–06/12

6. Ordering Information

6.1 ATtiny24A

Speed (MHz)

(1)

Supply Voltage (V) Temperature Range Package

ATtiny24A/44A/84A

(2)

14S1

14P3 ATtiny24A-PU

Ordering Code

ATtiny24A-SSU
ATtiny24A-SSUR

(3)

Industrial

(-40°C to +85°C)

(5)

20 1.8 – 5.5V

Industrial

(-40°C to +105°C)

Industrial

(-40°C to +125°C)

(6)

(7)

Notes: 1. For speed vs. supply voltage, see section 20.3 “Speed” on page 174.

2. All packages are Pb-free, halide-free and fully green and they comply with the European directive for Restriction of Hazard­ous Substances (RoHS)

3. Code indicators:

– H: NiPdAu lead finish
– F, N, U: matte tin
– R: tape & reel

4. Topside marking for ATtiny24A: T24 / Axx / manufacturing data

5. Also supplied in wafer form. Contact your local Atmel sales office for ordering information and minimum quantities.

6. For typical and electrical characteristics, see “Appendix A – ATtiny24A/44A Specification at 105°C”.

7. For typical and electrical characteristics, see “Appendix B – ATtiny24A/44A/84A Specification at 125°C”.

15CC1

20M1

20M2

14S1

14S1

20M1

20M2

ATtiny24A-CCU
ATtiny24A-CCUR
ATtiny24A-MU
ATtiny24A-MUR
ATtiny24A-MMH
ATtiny24A-MMHR
ATtiny24A-SSN
ATtiny24A-SSNR
ATtiny24A-SSF
ATtiny24A-SSFR
ATtiny24A-MF
ATtiny24A-MFR
ATtiny24A-MM8
ATtiny24A-MM8R

(4)

(4)

Package Type
14S1
14P3
15CC1

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)
15-ball (4 x 4 Array), 0.65 mm Pitch, 3.0 x 3.0 x 0.6 mm, Ultra Thin, Fine-Pitch Ball Grid Array Package (UFBGA)

20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No Lead / Micro Lead Frame Package (QFN/MLF)
20M2 20-pad, 3 x 3 x 0.85 mm Body, Very Thin Quad Flat No Lead Package (VQFN)

8183FS–AVR–06/12

11

6.2 ATtiny44A

Speed (MHz)

Notes: 1. For speed vs. supply voltage, see section 20.3 “Speed” on page 174.

2. All packages are Pb-free, halide-free and fully green and they comply with the European directive for Restriction of Hazard-

3. Code indicators:

4. Topside marking for ATtiny44A:

5. These devices can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering informa-

6. For typical and electrical characteristics, see “Appendix A – ATtiny24A/44A Specification at 105°C”.

7. For typical and electrical characteristics, see “Appendix B – ATtiny24A/44A/84A Specification at 125°C”.

(1)

Supply Voltage (V) Temperature Range Package

20 1.8 – 5.5V

ous Substances (RoHS).

– H: NiPdAu lead finish
– F, N, U: matte tin
– R: tape & reel

– 1st Line: T44
– 2nd Line: Axx
– 3rd Line: manufacturing data

tion and minimum quantities.

Industrial

(-40°C to +85°C)

Industrial

(-40°C to +105°C)

Industrial

(-40°C to +125°C)

(5)

(6)

(7)

(2)

Ordering Code

ATtiny44A-SSU

14S1

ATtiny44A-SSUR

14P3 ATtiny44A-PU

ATtiny44A-CCU

15CC1

ATtiny44A-CCUR
ATtiny44A-MU

20M1

ATtiny44A-MUR
ATtiny44A-MMH

20M2

ATtiny44A-MMHR
ATtiny44A-SSN

14S1

ATtiny44A-SSNR
ATtiny44A-SSF

14S1

ATtiny44A-SSFR
ATtiny44A-MF

20M1

ATtiny44A-MFR

(3)

(4)

(4)

Package Type
14S1
14P3
15CC1

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)
15-ball (4 x 4 Array), 0.65 mm Pitch, 3.0 x 3.0 x 0.6 mm, Ultra Thin, Fine-Pitch Ball Grid Array Package (UFBGA)

20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No Lead / Micro Lead Frame Package (QFN/MLF)
20M2 20-pad, 3 x 3 x 0.85 mm Body, Very Thin Quad Flat No Lead Package (VQFN)

12

ATtiny24A/44A/84A

8183FS–AVR–06/12

6.3 ATtiny84A

Speed (MHz)

Notes: 1. For speed vs. supply voltage, see section 20.3 “Speed” on page 174.

2. All packages are Pb-free, halide-free and fully green and they comply with the European directive for Restriction of Hazard-

3. Code indicators:

4. Topside marking for ATtiny84A:

5. These devices can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering informa-

6. For typical and electrical characteristics, see “Appendix A – ATtiny24A/44A Specification at 105°C”.

7. For typical and electrical characteristics, see “Appendix B – ATtiny24A/44A/84A Specification at 125°C”.

(1)

Supply Voltage (V) Temperature Range Package

20 1.8 – 5.5V

ous Substances (RoHS).

– H: NiPdAu lead finish
– F, N, U: matte tin
– R: tape & reel

– 1st Line: T84
– 2nd Line: Axx
– 3rd Line: manufacturing data

tion and minimum quantities.

Industrial

(-40°C to +85°C)

Industrial

(-40°C to +125°C)

(5)

(7)

ATtiny24A/44A/84A

(2)

14S1

14P3 ATtiny84A-PU

15CC1

20M1

20M2

14S1

Ordering Code

ATtiny84A-SSU
ATtiny84A-SSUR

ATtiny84A-CCU
ATtiny84A-CCUR
ATtiny84A-MU
ATtiny84A-MUR
ATtiny84A-MMH
ATtiny84A-MMHR
ATtiny84A-SSF
ATtiny84A-SSFR

(4)

(3)

(4)

Package Type
14S1
14P3
15CC1

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)
15-ball (4 x 4 Array), 0.65 mm Pitch, 3.0 x 3.0 x 0.6 mm, Ultra Thin, Fine-Pitch Ball Grid Array Package (UFBGA)

20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No Lead / Micro Lead Frame Package (QFN/MLF)
20M2 20-pad, 3 x 3 x 0.85 mm Body, Very Thin Quad Flat No Lead Package (VQFN)

8183FS–AVR–06/12

13

7. Packaging Information

2325 Orchard Parkway
San Jose, CA 95131

TITLE

DRAWING NO.

R

REV.

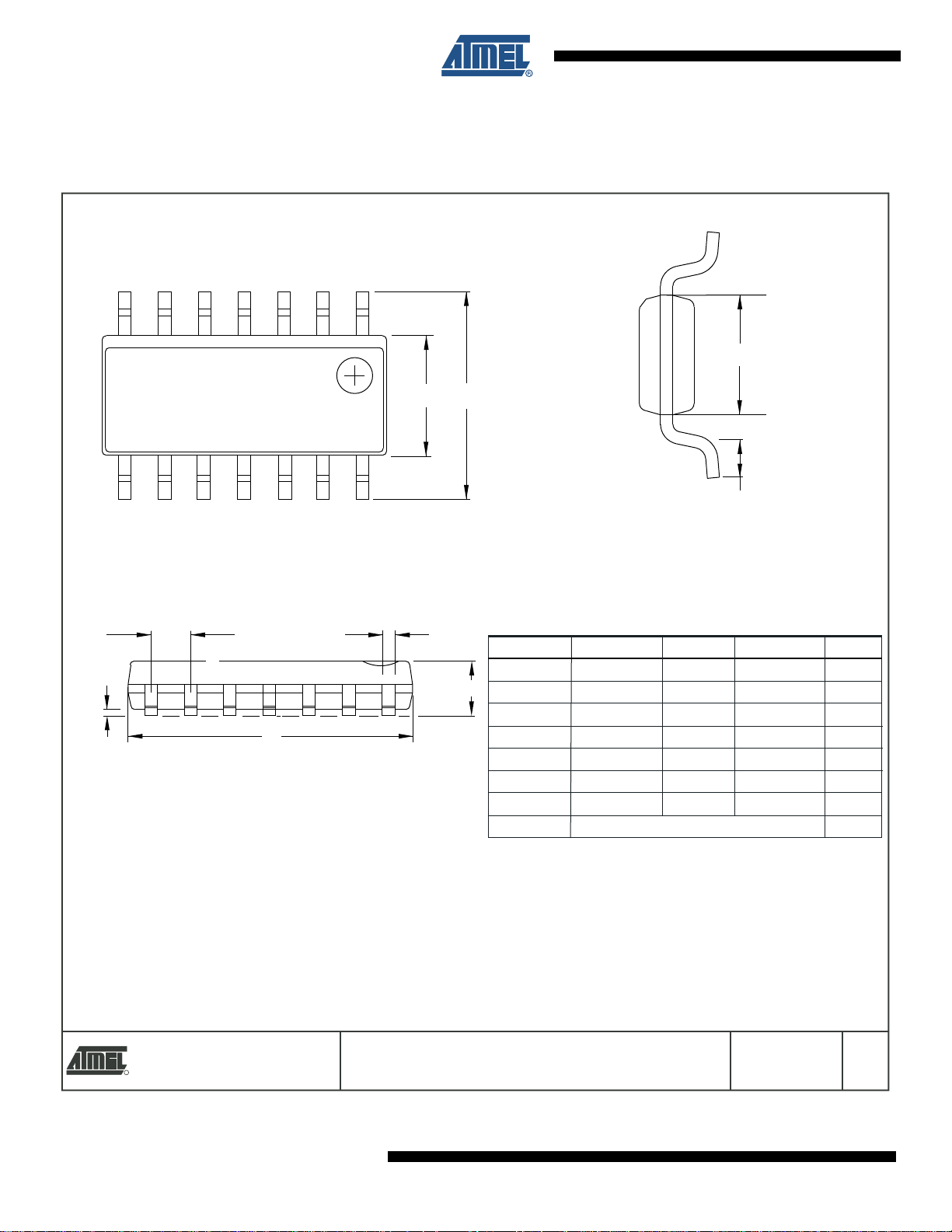

14S1, 14-lead, 0.150" Wide Body, Plastic Gull

Wing Small Outline Package (SOIC)

2/5/02

14S1

A

A1

E

L

Side View

Top View

End View

H

E

b

N

1

e

A

D

COMMON DIMENSIONS

(Unit of Measure = mm/inches)

SYMBOL

MIN

NOM

MAX

NOTE

Notes: 1. This drawing is for general information only; refer to JEDEC Drawing MS-012, Variation AB for additional information.

2. Dimension D does not include mold Flash, protrusions or gate burrs. Mold Flash, protrusion and gate burrs shall not

exceed 0.15 mm (0.006") per side.

3. Dimension E does not include inter-lead Flash or protrusion. Inter-lead flash and protrusions shall not exceed 0.25 mm

(0.010") per side.

4. L is the length of the terminal for soldering to a substrate.

5. The lead width B, as measured 0.36 mm (0.014") or greater above the seating plane, shall not exceed a maximum value

of 0.61 mm (0.024") per side.

A 1.35/0.0532 – 1.75/0.0688
A1 0.1/.0040 – 0.25/0.0098
b 0.33/0.0130 – 0.5/0.0200 5
D 8.55/0.3367 – 8.74/0.3444 2
E3.8/0.1497 – 3.99/0.1574 3
H5.8/0.2284 – 6.19/0.2440

L 0.41/0.0160 – 1.27/0.0500 4

e 1.27/0.050 BSC

7.1 14S1

14

ATtiny24A/44A/84A

8183FS–AVR–06/12

7.2 14P3

ATtiny24A/44A/84A

D

PIN

1

A

SEATING PLANE

L

B1

B

e

E

C

eC

eB

Notes: 1. This package conforms to JEDEC reference MS-001, Variation AA.

2. Dimensions D and E1 do not include mold Flash or Protrusion.
Mold Flash or Protrusion shall not exceed 0.25 mm (0.010").

A1

E1

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A – – 5.334

A1 0.381 – –

D 18.669 – 19.685 Note 2

E 7.620 – 8.255

E1 6.096 – 7.112 Note 2

B 0.356 – 0.559

B1 1.143 – 1.778

L 2.921 – 3.810

C 0.203 – 0.356

eB – – 10.922

eC 0.000 – 1.524

e 2.540 TYP

MIN

NOM

MAX

NOTE

2325 Orchard Parkway

R

San Jose, CA 95131

8183FS–AVR–06/12

TITLE

14P3, 14-lead (0.300"/7.62 mm Wide) Plastic Dual

Inline Package (PDIP)

2010-10-20

DRAWING NO.

14P3

REV.

B

15

7.3 15CC1

TITLE

DRAWING NO.GPC

REV.

Package Drawing Contact:
[e-mail]

R

C

CBC

15CC1, 15-ball (4 x 4 Array), 3.0 x 3.0 x 0.6 mm
package, ball pitch 0.65 mm,
Ultra thin, Fine-Pitch Ball Grid Array Package (UFBGA)

15CC1

07/06/10

A – – 0.60

A1 0.12 – –

A2 0.38 REF

b 0.25 0.30 0.35 1

b1 0.25 – – 2

D 2.90 3.00 3.10

D1 1.95 BSC

E 2.90 3.00 3.10

E1 1.95 BSC

e 0.65 BSC

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

NOM

MAX

NOTE

TOP VIEW

123 4

A

B

C

D

E

D

15-Øb

D

C

B

A

Pin#1 ID

0.08

A1

A

D1

E1

A2

A1 BALL CORNER

e

123 4

SIDE VIEW

b1

BOTTOM VIEW

e

Note1:

Dimension “b” is measured at the maximum ball dia. in a plane parallel

to the seating plane.

Note2:

Dimension “b1” is the solderable surface defined by the opening of the

solder resist layer.

16

ATtiny24A/44A/84A

8183FS–AVR–06/12

7.4 20M1

1

2

ATtiny24A/44A/84A

D

Pin 1 ID

3

E

TOP VIEW

D2

1

Pin #1

Notch

(0.20 R)

2

3

E2

b

L

e

BOTTOM VIE W

Reference JEDEC Standard MO-220, Fig. 1 (SAW Singulation) WGGD-5.

Note:

SIDE VIEW

A2

A1

A

0.08

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A 0.70 0.75 0.80

A1 – 0.01 0.05

A2 0.20 REF

b 0.18 0.23 0.30

D 4.00 BSC

D2 2.45 2.60 2.75

E 4.00 BSC

E2 2.45 2.60 2.75

e 0.50 BSC

L 0.35 0.40 0.55

MIN

NOM

C

MAX

NOTE

2325 Orchard Parkway

R

San Jose, CA 95131

8183FS–AVR–06/12

TITLE

20M1, 20-pad, 4 x 4 x 0.8 mm Body, Lead Pitch 0.50 mm,

2.6 mm Exposed Pad, Micro Lead Frame Package (MLF)

DRAWING NO.

20M1

10/27/04

REV.

B

17

7.5 20M2

TITLE

DRAWING NO. GPC

REV.

Package Drawing Contact:
[e-mail]

20M2 ZFC B

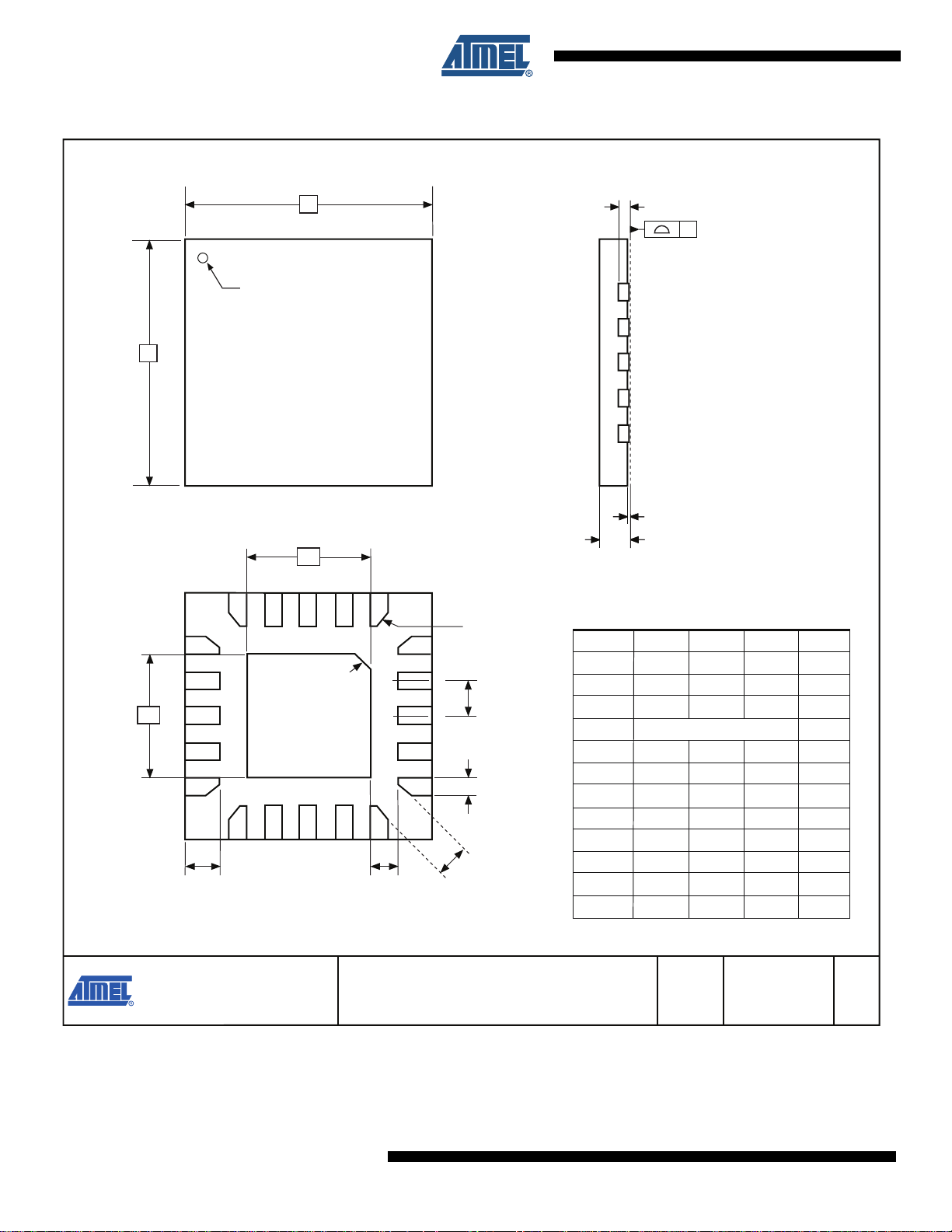

20M2, 20-pad, 3 x 3 x 0.85 mm Body, Lead Pitch 0.45 mm,

1.55 x 1.55 mm Exposed Pad, Thermally Enhanced
Plastic Very Thin Quad Flat No Lead Package (VQFN)

10/24/08

15

14

13

12

11

1

2

3

4

5

16 17 18 19 20

10 9 8 7 6

D2

E2

e

b

K

L

Pin #1 Chamfer

(C 0.3)

D

E

SIDE VIEW

A1

y

Pin 1 ID

BOTTOM VIEW

TOP VIEW

A1

A

C

C0.18 (8X)

0.3 Ref (4x)

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

NOM

MAX

NOTE

A 0.75 0.80 0.85

A1 0.00 0.02 0.05

b 0.17 0.22 0.27

C 0.152

D 2.90 3.00 3.10

D2 1.40 1.55 1.70

E 2.90 3.00 3.10

E2 1.40 1.55 1.70

e – 0.45 –

L 0.35 0.40 0.45

K 0.20 – –

y 0.00 – 0.08

18

ATtiny24A/44A/84A

8183FS–AVR–06/12

8. Errata

8.1 ATtiny24A

8.1.1 Rev. H

8.1.2 Rev. G

8.1.3 Rev. F

8.2 ATtiny44A

8.2.1 Rev. G

ATtiny24A/44A/84A

The revision letters in this section refer to the revision of the corresponding ATtiny24A/44A/84A
device.

No known errata.

Not sampled.

Not sampled.

No known errata. Yield improvement.

8.2.2 Rev. F

8.2.3 Rev. E

8.3 ATtiny84A

8.3.1 Rev. C

No known errata.

Not sampled.

No known errata.

8183FS–AVR–06/12

19

9. Datasheet Revision History

9.1 Rev. 8183F – 06/12

1. Updated:
– Table 16-1 on page 138

– Figure 16-7 on page 137
– “Ordering Information” on page 11

9.2 Rev. 8183E – 01/12

1. Updated:
– Production status for ATtiny24A and ATtiny84A
– “Start Condition Detector” on page 122

– “Ordering Information” on page 11, 12, and 13

9.3 Rev. 8183D – 04/11

1. Added errata for ATtiny44A rev. G in Section 8. “Errata” on page 19

9.4 Rev. 8183C – 03/11

1. Added:
– ATtiny84A, including typical characteristics plots

– Section 3.3 “Capacitive Touch Sensing” on page 6
– Table 6-8, “Capacitance of Low-Frequency Crystal Oscillator,” on page 28
– Analog Comparator Offset plots for ATtiny24A (Figure 21.2.10 on page 208) and

ATtiny44A (Figure 21.3.11 on page 236)

– Extended temperature part numbers in Section 6. “Ordering Information” on page 11

2. Updated:
– Bit syntax throughout the datasheet, e.g. from CS02:0 to CS0[2:0]

– Section 6.4 “Clock Output Buffer” on page 30, changed CLKO to CKOUT
– Table 16-4, “Single-Ended Input channel Selections,” on page 145, added note for

Internal 1.1V Reference

– Table 19-16, “High-voltage Serial Programming Instruction Set for

ATtiny24A/44A/84A,” on page 170, adju ste d note s

– Table 20-1, “DC Characteristics. TA = -40°C to +85°C,” on page 173, adjusted notes

9.5 Rev. 8183B – 03/10

1. Updated template.

2. Added UFBGA package (15CC1) in: “Features” on page 1, “Pin Configurations” on

3. Separated typical characteristic plots, added Section 21.2 “ATtiny24A” on page 183.

4. Updated sections:

20

ATtiny24A/44A/84A

page 2, Section 6. “Ordering Information” on page 11, and Section 7.3 “15CC1” on
page 16.

– Section 14.5.4 “USIBR – USI Buffer Register” on page 127, header updated

8183FS–AVR–06/12

5. Updated Figures:

6. Updated Tables:

9.6 Rev. 8183A – 12/08

1. Initial revision. Created from document 8006H.

2. Updated "Ordering Information" on page 19 and page 19. Pb-plated packages are no

3. Updated data sheet template.

4. Removed all references to 8K device.

5. Updated characteristic plots of section “Typical Characteristics”, starting on page 182.

6. Added characteristic plots:

7. Updated sections:

8. Updated Figures:

9. Update Tables:

ATtiny24A/44A/84A

– Section 6. “Ordering Information” on page 11, added tape & reel and topside

marking, updated notes

– Figure 4-1 “Block Diagram of the AVR Architecture” on page 7
– Figure 8-1 “Reset Logic” on page 38
– Figure 14-1 “Universal Serial Interface, Block Diagram” on page 116, USIDB ->

USIBR

– Figure 19-5 “High-voltage Serial Programming Waveforms” on page 169

– Table 19-11, “Minimum Wait Delay Before Writing the Next Flash or EEPROM

Location,” on page 164, updated value for t

longer offered and there are no separate ordering codes for commercial operation
range, the only available option now is industrial. Also, updated some order codes to
reflect changes in leadframe composition and added VQFN package option.

– “Bandgap Voltage vs. Supply Voltage” on page 233
– “Bandgap Voltage vs. Temperature” on page 233

– “Features” on page 1
– “Power Reduction Register” on page 35
– “Analog Comparator” on page 128
– “Features” on page 132
– “Operation” on page 133
– “Starting a Conversion” on page 134
– “ADC Voltage Reference” on page 139
– “Speed” on page 174

– “Program Memory Map” on page 15
– “Data Memory Map” on page 16

– “Device Signature Bytes” on page 161
– “DC Characteristics. TA = -40°C to +85°C” on page 173
– “Additional Current Consumption for the different I/O modules (absolute values)” on

page 182

– “Additional Current Consumption (percentage) in Active and Idle mode” on page 183

WD_ERASE

8183FS–AVR–06/12

21

Headquarters International

Atmel Corporation

2325 Orchard Parkway
San Jose, CA 95131
USA
Tel: [phone]
Fax: [phone]

Atmel Asia Limited

Unit 01-5 & 16, 19F
BEA Tower, Millennium City 5
418 Kwun Tong Road
Kwun Tong, Kowloon
HONG KONG
Tel: [phone]
Fax: [phone]

Product Contact

Web Site

www.atmel.com

Literature Requests

www.atmel.com/literature

Atmel Munich GmbH

Business Campus
Parkring 4
D-85748 Garching b. Munich
GERMANY
Tel: [phone]
Fax: [phone]

Technical Support

[e-mail]

Atmel Japan

9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
JAPAN
Tel: [phone]
Fax: [phone]

Sales Contact

www.atmel.com/contacts

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY
WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHA NTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, C ONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN­TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT
OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no

representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. A tmel does not make any commitment to update the inform ation contained herein. Unless specifically provided
otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warra nted for use
as components in applications intended to support or sustain life.

© 2012 Atmel Corporation. All rights reserved.

®

, logo and combinations thereof, and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms

Atmel
and product names may be trademarks of others.

8183FS–AVR–06/12
