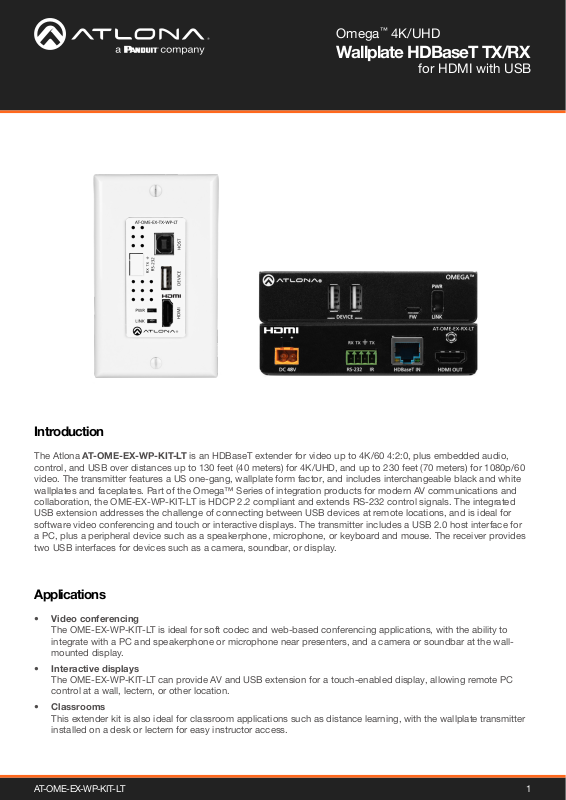

Page 1
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
Introduction

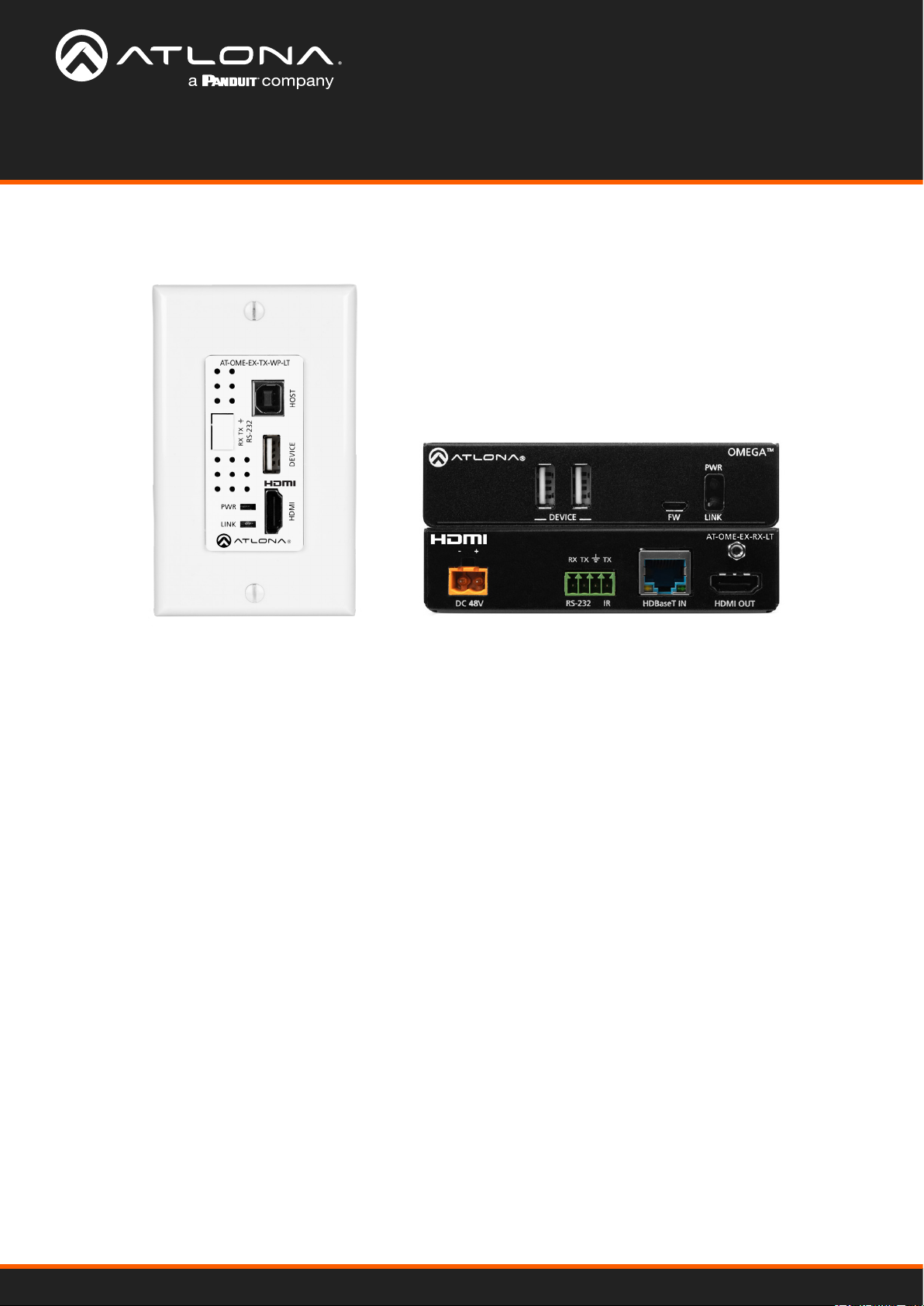

The Atlona AT-OME-EX-WP-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio,
control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60
video. The transmitter features a US one-gang, wallplate form factor, and includes interchangeable black and white
wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and
collaboration, the OME-EX-WP-KIT-LT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated
USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for
software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for
a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The receiver provides
two USB interfaces for devices such as a camera, soundbar, or display.
Applications
• Video conferencing
The OME-EX-WP-KIT-LT is ideal for soft codec and web-based conferencing applications, with the ability to
integrate with a PC and speakerphone or microphone near presenters, and a camera or soundbar at the wallmounted display.
• Interactive displays
The OME-EX-WP-KIT-LT can provide AV and USB extension for a touch-enabled display, allowing remote PC
control at a wall, lectern, or other location.
• Classrooms
This extender kit is also ideal for classroom applications such as distance learning, with the wallplate transmitter
installed on a desk or lectern for easy instructor access.
AT-OME-EX-WP-KIT-LT
1
Page 2
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
Key Features
Video, audio, power, and data over category cable utilizing HDBaseT technology
• Extends up to 230 feet (70 meters) @ 1080p, or up to 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable.
• Uses easy-to-integrate category cable for low-cost, reliable system installation.
USB 2.0 interfacing and extension up to 230 feet (70 meters)
• Transmitter features USB type B interface for connection to a host PC, plus a USB type A port for a peripheral
device such as a microphone or speakerphone. Receiver features two USB type A ports for peripheral devices
such as a camera or display.
• Provides an ideal USB integration solution for software video conferencing and other applications.
US one-gang enclosure for wallplate openings –interchangeable black or white trim kits
• Allows inconspicuous installation on a wall, in furniture, or in a table or oor box. Includes black and white
wallplates and faceplates.
• Meets end user requirements for conveniently accessible yet discreet AV connectivity.
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
• Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4.
• Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players.
HDCP 2.2 compliant
• Adheres to latest specication for High-bandwidth Digital Content Protection.
• Allows protected content stream to pass between authenticated devices.
(1)
Transmitter powered by receiver over HDBaseT
• Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT.
• Allows convenient transmitter installation at a table or other remote location, without the need for local AC power.
HDBaseT link status testing
• Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the
receiver.
• Provides real-time link status, plus detailed HDBaseT and HDMI signal information. Quick, easy verication or
troubleshooting of RJ-45 termination or twisted pair cable quality.
Award-winning 10 year limited product warranty
• Ensures long-term product reliability and performance in residential and commercial systems.
• Specify, purchase, and install with condence.
AT-OME-EX-WP-KIT-LT
2
Page 3
AT-OME-EX-TX-WP-LT Specications
Video
Signal Input - HDMI
Output - HDBaseT
Copy Protection HDCP 2.2
Pixel Clock 300 MHz
UHD/HD/SD 4096×2160 (DCI) @ 60
3840×2160 (UHD) @ 60
30 Hz
VESA
All resolutions are 60Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
2560×2048
2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1600×900
1440×900
1400×1050
(2)
/30/24 Hz
(2)
/50/24/25/
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
1920x1080p @ 23.98/24/25/29.97/
30/50/59.94/60 Hz
1920x1080i @ 25/29.97/30 Hz,
1280x720p @ 30/50/59.94/60 Hz
1366×768
1360×768
1280×1024
1280×800
1280×768
1152×768
1024×768
800×600
640×480
Audio
HDMI / HDBaseT
Pass-Through Formats
Bit Depth Up to 24 bits
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN/OUT 15 5 30 10
CAT5e 115 35 200 60
CAT6/6a/7 130 40 230 70
USB
(1)
Signal
Maximum Data Rate 120 Mbps
Control
RS-232 Pass-through from control system to sink device
CEC Support Yes
PCM 2.0
LPCM 5.1
LPCM 7.1
2.0
Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Dolby® Digital
Dolby Digital Plus™
Dolby TrueHD
Dolby Atmos®
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
AT-OME-EX-WP-KIT-LT
3
Page 4
Buttons and Indicators
Indicators:
PWR
LINK
Connectors
HDMI IN 1 x Type A, 19-pin female
HDBaseT OUT 1 x RJ45
HOST 1 x USB Type A
DEVICE 1 USB Type B
RS-232 1 x 3-pin captive screw
FW 1 x Type micro-USB
Environmental
Operating Temperature +32° to +122° F
Storage Temperature -4° to +140° F
Operating Humidity (RH) +20 to +90%, non-condensing
1 x LED, green
1 x LED, yellow
0° to +50° C
-20° to +60° C
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
Power
Consumption 11.18 W (includes 2.5 W for USB, powered by RX)
USB Power 2.5 W USB device interface
Dimensions
Unit (H x W x D) 4.07 in x 1.80 in x 2.63 in
103.50 mm x 45.80 mm x 67.00 mm
Weight Pounds Kilograms
Device 0.40 0.18
Certication
Device CE, RoHS, FCC
Compliance
NDAA-899 Yes
AT-OME-EX-WP-KIT-LT
4
Page 5
AT-OME-EX-RX-LT Specications
Video
Signal Input - HDBaseT
Output - HDMIT
Copy Protection HDCP 2.2
Pixel Clock 300 MHz
UHD/HD/SD 4096×2160 (DCI) @ 60
3840×2160 (UHD) @ 60
30 Hz
VESA
All resolutions are 60Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
2560×2048
2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1600×900
1440×900
1400×1050
(2)
/30/24 Hz
(2)
/50/24/25/
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
1920x1080p @ 23.98/24/25/29.97/
30/50/59.94/60 Hz
1920x1080i @ 25/29.97/30 Hz,
1280x720p @ 30/50/59.94/60 Hz
1366×768
1360×768
1280×1024
1280×800
1280×768
1152×768
1024×768
800×600
640×480
Audio
HDMI / HDBaseT
Pass-Through Formats
Bit Depth Up to 24 bits
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN/OUT 15 5 30 10
CAT5e 115 35 200 60
CAT6/6a/7 130 40 230 70
USB
Signal 2.0
Maximum Data Rate 120 Mbps
Control
RS-232 Pass-through from control system to sink device
IR Pass-through from control system to sink device
CEC Support Yes
PCM 2.0
LPCM 5.1
LPCM 7.1
Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Dolby® Digital
Dolby Digital Plus™
Dolby TrueHD
Dolby Atmos®
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
AT-OME-EX-WP-KIT-LT
5
Page 6
Buttons and Indicators
Indicators:
PWR
LINK
Connectors
HDMI IN N/A
HDMI OUT 1 x Type A, 19-pin female
HDBaseT IN 1 x RJ45
HDBaseT OUT N/A
DEVICE 2 x USB Type A
HOST N/A
RS-232 / IR 1 x 4-pin captive screw
FW 1 x Type micro-USB
DC 48V 1 x 2-pin captive screw
1 x LED, green
1 x LED, yellow
(1 x RS-232, 1 x IR)
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
for HDMI with USB
Environmental Fahrenheit Celsius
Operating Temperature 0 to +122 -18 to +50
Storage Temperature -4 to +140 -20 to +60
Operating Humidity (RH) 20% to 90%, non-condensing
Power
Consumption 18.67 W
USB Power 2.5 W per USB device interface
External Power Supply 100 - 240 V AC, 50/60 Hz
Output: 48 V / 0.83 A DC
Dimensions (H x W x D) Inches Millimeters
Unit 1.02 x 4.29 x 5.00 26 x 109 x 127
Power Supply
(AT-PS-48083-D3)
Weight Pounds Kilograms
Device 0.89 0.41
Certication
Device CE, RoHS, FCC
Power Supply CE, FCC, cULus
1.42 x 1.81 x 4.41 36 x 46 x 112
Compliance
NDAA-899 Yes
AT-OME-EX-WP-KIT-LT
6
Page 7
Omega™ 4K/UHD
Wallplate HDBaseT TX/RX
Accessories
SKU Description
AT-LC-H2H-1M LinkConnect HDMI to HDMI 1 Meter Cable
AT-LC-H2H-2M LinkConnect HDMI to HDMI 2 Meter Cable
AT-LC-H2H-3M LinkConnect HDMI to HDMI 3 Meter Cable
Footnotes
(1) Maximum 120 Mbps data rate supported over HDBaseT.
(2) Only supports 4:2:0.
for HDMI with USB
AT-OME-EX-WP-KIT-LT
7
