Atlona AT HD V14SS User Manual

User Manual

AtlonA

1x4 HDMITM Splitter with CAT5/6 Outputs

and 1xLocal HDMITM Output

(SENDER ONLY)

AT-HD-V14SS

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

TABLE OF CONTENTS

1. INTRODUCTION ................................................ 3

2. FEATURES ................................................ 3

3. PACKAGE CONTENTS ................................................ 4

4. SPECIFICATIONS ................................................ 5

5. PANEL DESCRIPTIONS ................................................ 6

5.1. Front Panel ................................................ 6

5.2. Rear Panel ................................................ 6

5.3. Top Panel ................................................ 7

6. INSTALLATION ................................................ 8

7. CONNECTION DIAGRAM ................................................ 8

8. EDID LEARNING ................................................ 9

9. NOTICE ................................................ 9

10. PERFORMANCE GUIDE ................................................ 10

11. RJ45 / CAT5 REFERENCE ................................................ 10

12. ATLONA PRODUCT REGISTRATION ................................................ 10

13. SAFETY INFORMATION ................................................ 11

14. WARRANTY ................................................ 12

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

2

INTRODUCTION:

Atlona Technologies AT-HD-V14SS 1x4 HDMITM Splitter with CAT5/6 Outputs and 1x Local HDMITM Output
(SENDER ONLY) is the perfect solution for those who want to display a single source on 4 or more displays using
a Single Twisted Pair Cat5 or Cat6 Cable. AT-HD-V14SS is capable of HDTV resolutions up to: 1080p@110ft and
1080i@200ft.

Note:
A receiver unit (Balun) is required for each display and sold separately (Model: AT-HDRS or AT-HD15SRS).

FEATURES:

• HDMITM over Single Cat5/6 (High Resolution Audio and Video)

• HDMITM 1.3c and HDCP compliant

• 1080p@110ft (35m) and 1080i@200ft (60m)

• Supports 5.1 and 7.1 Digital Audio

• Silicon Image Chip-Sets allow 99.99% compatibility with all the AV gear (we only use Best)

• Built-In HDMITM Repeater to avoid any signal loss if long input cable is used

• One Local HDMI
HD19SS

• Built-in EDID manager for fast common setting among displays.

• Supports default HDMITM EDID and records the EDID of selected display

• Extends up to 60m (200ft) (1080i) of output single CAT5 or Cat6 cable

• Extends up to 35m (110ft) (1080p) of output single CAT5 or Cat6 cable

• Wall-Mountable

• Easy installation

The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission
distances require low skew cables (<25ns/100m) for best performance.

TM

output for monitoring or cascading to another AT-HD14SS, AT-HD-V14SS, AT-HD50SS, AT-

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

3

PACKAGE CONTENTS:

• 1x AT-HD-V14SS unit

• 1x 5V DC locking power supply unit (110/240v universal)

• 1x User's manual

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

4

SPECIFICATIONS:

Model Name AT-HD-V14SS AT-HDRS AT-HD15SRS
Technical

Role of usage 1x4 Splitter / Sender Long range receiver Short range receiver

TM

HDMI

compliance HDMITM 1.3c
HDCP compliance Yes
Video bandwidth Single-link 225MHz (6.75Gbps)
Video support 480i / 480p / 720p / 1080i / 1080p60 12-bit

Transmission

Full HD (1080p): 110ft (35m) [CAT5/6]

HD (720p/1080i): 200ft (60m) [CAT5/6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization N/A 8-level digital None
Input TMDS signal 1.2 Volts (peak-to-peak)
Input DDC signal 5 Volts (peak-to-peak, TTL)

ESD protection
Input 1x HDMI

Output 1x HDMI

[1] Human body – ±19kV (air-gap discharge) & ±12kV (contact discharge)
[2] Core chipset – ±8kV

TM

TM

+ 4x RJ45 1x HDMI

1x RJ45 1x RJ45

TM

1x HDMI

TM

HDMITM connector Type A (19-pin female) Type A (19-pin female) Type A (19-pin male)
RJ45 connector WE/SS 8P8C with 2 LED indicators

Mechanical

Housing Metal enclosure Metal enclosure Plastic molding

Dimensions
[L x W x H]

Weight

Model

Package

4.3” x 7.6” x 1.1”

(110 x 194 x 27mm)

1’1” x 7.9” x 3.7”

(330 x 200 x 95mm)
Model 1.3 lbs (588g) 5oz (154g) 1oz (22g)
Package 2.2 lbs (985g) 1 lb (453g) 3oz (90g)

3.2” x 2.4” x 1”

(80 x 60 x 25mm)

10.6” x 6.9” x 3.2”

(270 x 175 x 80mm)

1.8” x1” x 0.8”

(45 x 25 x 20mm)

6.7” x 4.5” x 1.6”

(170 x 115 x 40mm)

Fixedness Wall-mount with ears Wall-mount case Direct plug-in
Power supply 5V DC 5V DC None
Power consumption 10 Watts (max) 1 Watt (max) 0.5 Watt (max)
Operation temperature 32~104°F (0~40°C)
Storage temperature -4~140°F (-20~60°C)
Relative humidity 20~90% RH (no condensation)

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

5

PANEL DESCRIPTIONS:

5.1. Front Panel

3D2D

Multi-CH

2-CH

Bitstream

1080i

1080p

720p

Default EDID

EDID

LEARNING

AT-HD-V14SS

POWER

SIGNAL

POWER: bright - power on; dark - power off.
SIGNAL: bright - HDMITM source signal is detected; dark - no HDMITM signal.

1x4 HDMI v1.3 Distribution Amplifier
with CAT5/6 Outs and 1 x Local HDMI Out

AT-HD-V14SS

5.2. Rear Panel

with CAT5/6 Outs and 1 x Local HDMI Out
1x4 HDMI v1.3 Distribution Amplifier

HDMI INPUT HDMI OUTPUT

+5V DC: Connect to 5V DC power supply unit
HDMI INPUT: Connect to one HDMITM source device
HDMI OUTPUT: Connect to one HDMITM display or cascade to AT-HD14SS, AT-HD19SS, AT-HD50SS or AT-HD-

CAT5/6/7 OUTPUT 1 - 4: Link to each HDMITM display via a CAT5/6 cable with a Receiver Unit AT-HDRS or AT-

V14SS

HD15SRS

CAT5/6/7 OUTPUT 1CAT5/6/7 OUTPUT 2CAT5/6/7 OUTPUT 3CAT5/6/7 OUTPUT

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

AT-HD-V14SS

LEARNING

EDID

Default EDID

720p

1080p

1080i

Bitstream

2-CH

Multi-CH

3D2D

4

6

5.3. Top Panel

3D2D

Multi-CH

2-CH

Bitstream

1080i

720p

EDID

LEARNING

1080p

Default EDID

1x4 HDMI Distribution Amplifier
with CAT5/6 Outs and 1 x Local HDMI Out

AT-HD-V14SS

EDID LEARNING vs. Default EDID: When the DIP switch is set to Default EDID, users can adjust desired EDID

2D vs. 3D: Choose between 2D or 3D source content
2-CH vs. Multi-CH Bitstream: Choose between stereo audio or surround sound multi-channel audio source content
1080i / 720p vs. 1080p: Choose between HD 1080i / 720p or Full HD 1080p source content

setting for the default EDID profile. When the DIP switch is set to EDID
LEARNING, the AT-HD-V14SS will learn the EDID from the device connected
to the HDMITM output port. Please see EDID LEARNING section for detail
information.

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

7

INSTALLATION:

1. Turn off all devices, including the displays.

2. Connect the HDMI

3. Connect to each Receiver Unit (AT-HDRS or AT-HD15SRS) with a CAT5/6 cable via RJ45 ports.

4. Connect a HDMITM displays to each HDMITM OUTPUT on each Receiver Unit with a HDMITM cable.

5. Plug in the 5V DC power supply units to the locking power jacks on the Receiver Units and the AT-HD-V14SS.

6. Connect one HDMITM display or cascading device to the HDMITM OUTPUT port with a HDMITM cable.

7. Turn on all devices.

8. If you see fl ickering or blinking image on the display, adjust the rotary control switch on the Receiver Unit (AT-HDRS)
to improve the cable skew. 0 stands for the strongest HDMITM signal level for longest possible transmission length
while 7 stands for the weakest HDMI
7 to 0 to fi nd the optimal setting for the HDMITM over CAT5 transmission.

TM

source to the HDMITM INPUT on the AT-HD-V14SS.

TM

signal level for short transmission length. Try adjusting the signal level from

CONNECTION DIAGRAM:

HDMI source

HDTV

AT-HD15SRS AT-HD15SRS

HDMI Cable

HDTV1

HDMI cable

HDMI Cable

CAT5 cable up to 25m (80ft)

HDMI Cable

HDTV2 HDTV3

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

AT-HD-V14SS

CAT5 cable up to 60m (200ft)

AT-HDRS AT-HDRS

HDMI Cable HDMI Cable

HDTV4

8

EDID LEARNING:

1. To learn EDID from desired HDMITM display, connect the display to the HDMITM output port that needs to provide
the EDID information for the AT-HD-V14SS to learn from.

2. Dial the DIP switch from Default EDID to EDID LEARNING and stay at the Learn EDID position.

3. The SIGNAL (green LED) will blink for a few seconds then stop to indicate the EDID learning is complete.

4. Do not dial the DIP switch back to Default EDID as doing so will reset the EDID profi le.

5. To learn the EDID from another device, please repeat step 1 to 3.

NOTICE:

1. When adjusting the signal level on the receiver unit, please dial the rotary control switch on the Receiver Unit (AT­HDRS) from 0 to 7 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate
signal level setting may cause overpowering issue that would shorten the product life signifi cantly!

2. If the DVI or HDMITM device requires the EDID information, please use AT-DVISync or AT-HDSync EDID Reader/
Writer to retrieve and provide DVI or HDMITM display EDID information.

3. All HDMITM over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and
ASTRODESIGN Video Signal Generator VG-859C.

4. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI
type of HDMITM display. The testing result shows solid UTP cables (usually in the form of 1,000ft bulk cables) can
transmit a lot longer signals than stranded UTP cables (usually in the form of fi xed length patch cords). Shielded
STP cables are better suited than unshielded UTP cables. A solid UTP Cat-5e cable shows longer transmission
range than stranded STP Cat-6 cable. For long extension applications, solid UTP/STP cables are the only viable
choice.

5. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended.

6. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can use double
shielded STP cables to improve EMI problems, which is worsen in long transmission.

7. Because the quality of the category cables has the major effect on how long the transmission limit can achieve
and how good is the received picture quality, the actual transmission range is subject to one's choice of Cat-5/5e/6
cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is recommended.

8. If your HDMI
can produce better transmission performance among all HDMI

TM

display has multiple HDMITM inputs, it is found that the fi rst HDMITM input [HDMITM input 1] generally

TM

inputs.

TM

sources, and the

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

9

PERFORMANCE GUIDE:

Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e CAT6

Solid

Stranded

Unshielded (UTP)
Shielded (STP)
Unshielded (UTP)
Shielded (STP)

  

  





Termination Please use EIA/TIA-568-B termination (T568B) at any time

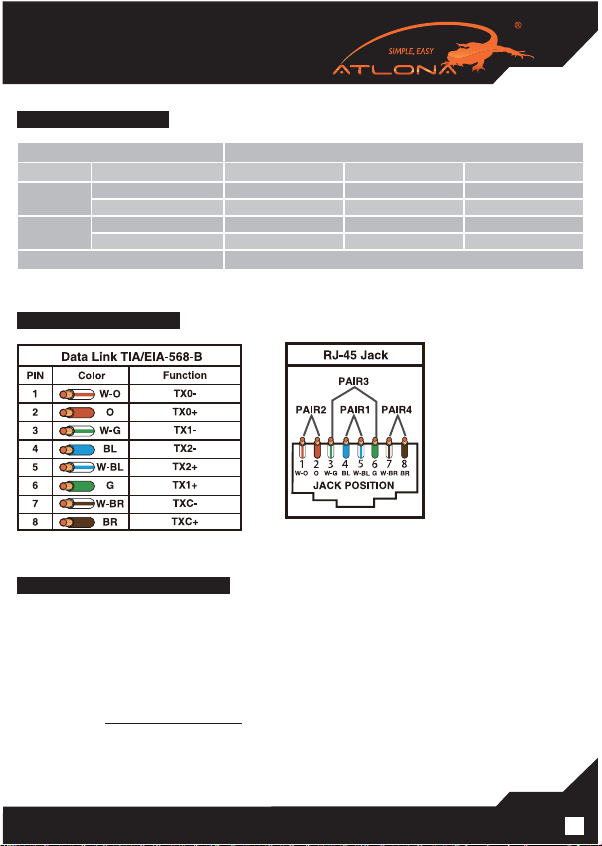

RJ45 / CAT5 REFERENCE:

ATLONA PRODUCT REGISTRATION:

Thank you for purchasing this Atlona product — we hope you'll enjoy it.

W

e also hope that you'll take a few moments to register your new purchase. Registration creates an ownership record if your
product is lost or stolen and helps ensure you'll receive notifi cation of performance issues and fi rmware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of
course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.

To register go to www.atlona.com/registration

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

10

SAFETY INFORMATION:

Safeguards

To reduce the risk of electric shock, do not
expose this product to rain or moisture.

If the wall plug does not fi t into your local power
socket, hire an electrician to replace your
obsolete socket.

Do not modify the wall plug.
Doing so will void the warranty and safety

features.
This equipment should be installed near the

socket outlet and the device should be easily
accessible in case it requires disconnection.

Precautions

FCC Regulations state that any unauthorized
changes or modifications to this equipment
not expressly approved by the manufacturer
could void the user's authority to operate this
equipment.

Operate this product using only the included
external power supply. Use of other power
supplies could impair performance, damage the
product or cause fi res.

In the event of an electrostatic discharge, this
device may automatically turn off. If this occurs,
unplug the device, and plug it back in.

Protect and route power cords so they will not
be stepped on or pinched by anything placed on
or against them. Be especially careful of plug­ins, or cord exit points from this product.

Avoid excessive humidity, sudden temperature
changes or temperature extremes.

Keep this product away from wet locations such
as bathtubs, sinks, laundries, wet basements
and swimming pools.

Use only accessories recommended by ATLONA
to avoid fi re, shock or other hazards.

Unplug the product before cleaning. Use a
damp cloth for cleaning. Do not use cleaning
fl uid or aerosols, which could enter the unit and
cause damage, fire or electrical shock. Some
substances may also mar the finish of the
product.

Never open or remove unit panels or make
any adjustments not described in this manual.
Attempting to do so could expose you to dan­gerous electrical shock or other hazards. It may
also cause damage to your AT-HD-V14SS.
Opening the product will void the warranty.

Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA directly.

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

11

WARRANTY:

1. LIMITED WARRANTY

Technologies warrants that (a) its products (the "Product") will perform substantially in accordance with the

Atlona
accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions
do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' option,
either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty
and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the
Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of
the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE
PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC LEGAL
RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES
OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL,
INCIDENTAL, CONSEQUEN-TIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT
OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES' AND ITS SUPPLIERS' ENTIRE
LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY
YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

www.atlona.com| toll free: 1-877-536-3976

For International: 1-408-962-0515

12
