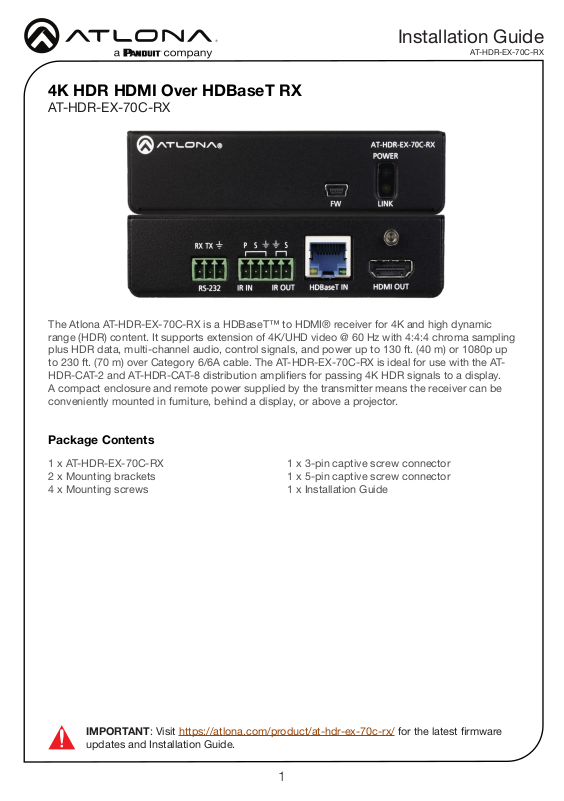

Installation Guide

AT-HDR-EX-70C-RX

4K HDR HDMI Over HDBaseT RX

AT-HDR-EX-70C-RX

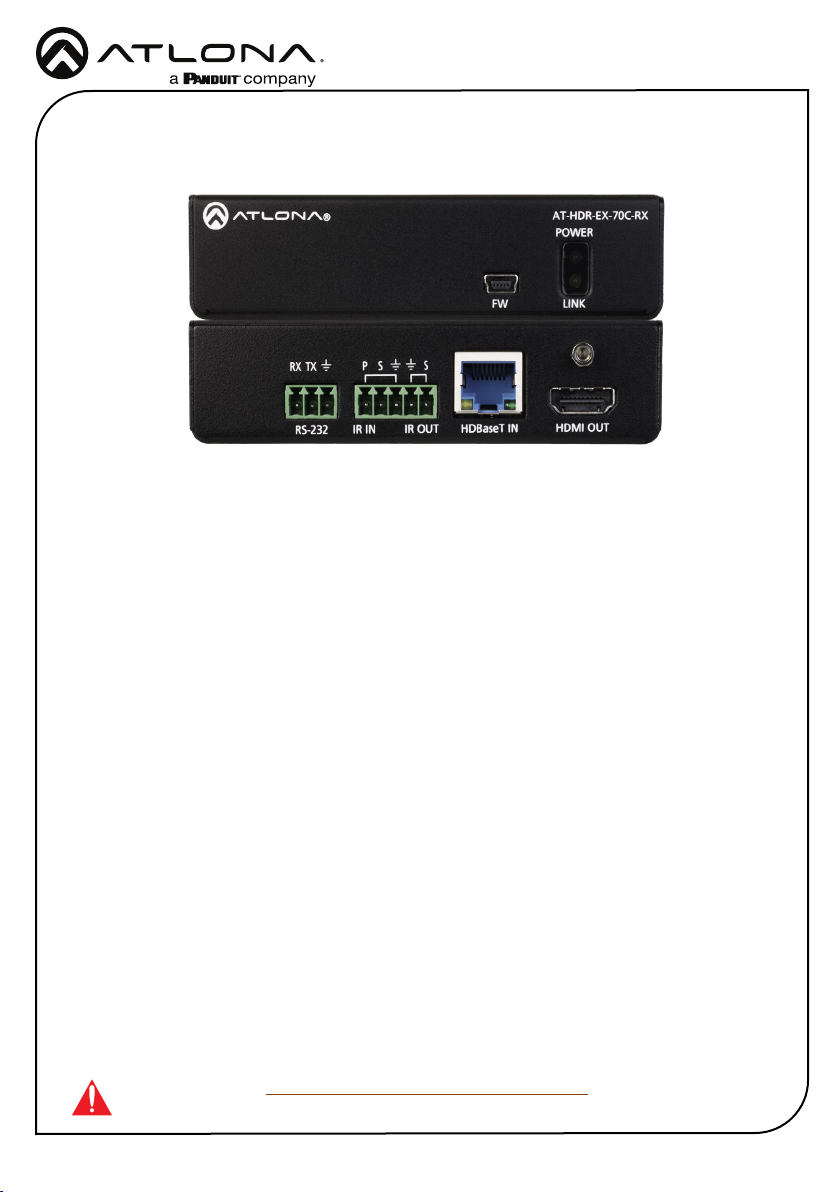

The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The AT-HDR-EX-70C-RX is ideal for use with the AT-

HDR-CAT-2 and AT-HDR-CAT-8 distribution ampliers for passing 4K HDR signals to a display.

A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

Package Contents

1 x AT-HDR-EX-70C-RX 2 x Mounting brackets 4 x Mounting screws

IMPORTANT: Visit https://atlona.com/product/at-hdr-ex-70c-rx/ for the latest rmware updates and Installation Guide.

1 x 3-pin captive screw connector 1 x 5-pin captive screw connector 1 x Installation Guide

Page 2

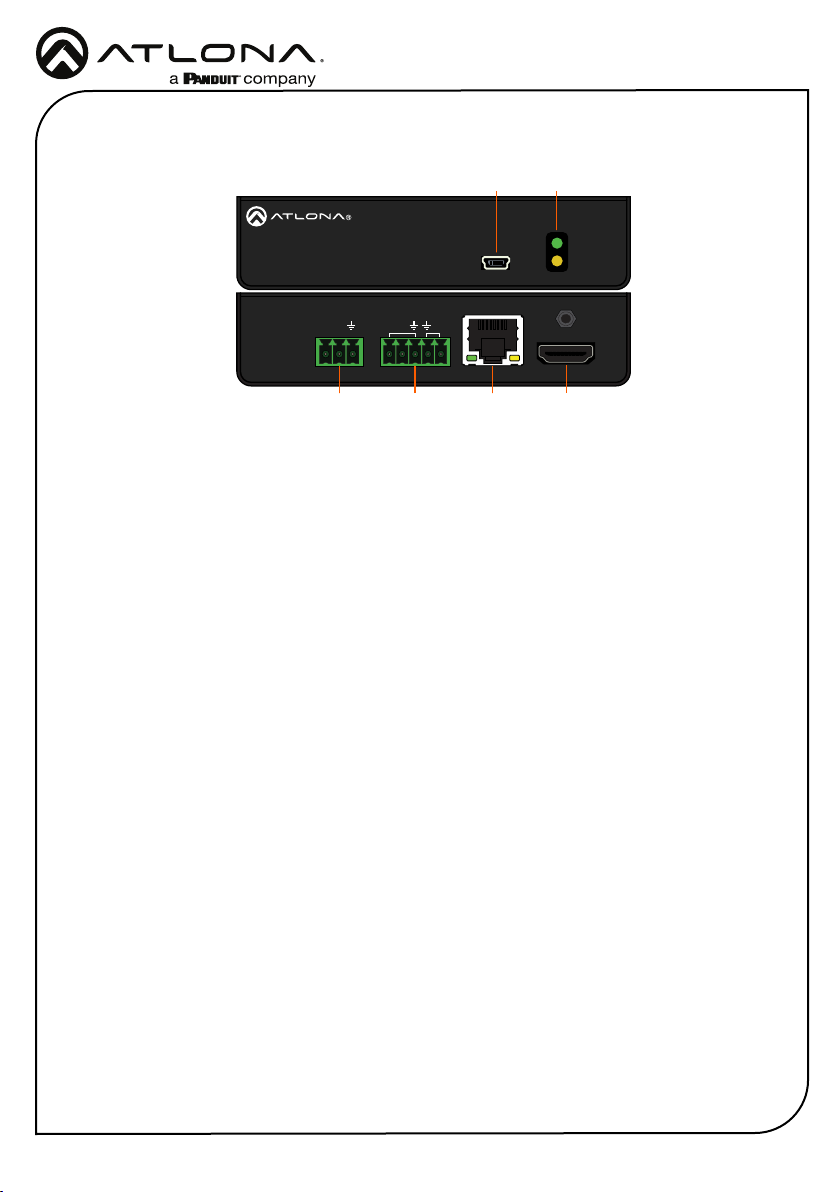

Panel Descriptions

Installation Guide

AT-HDR-EX-70C-RX

POWER

LINKFW

RX TX

1 FW

Connect a mini-USB to USB-A type cable from this port to a computer, to update

the rmware.

2 POWER and LINK LEDs

The power LED will illuminate green when receiving power. The link LED will glow yellow when signal is being sent/received between the transmitter and the receiver.

3 RS-232

Bidirectional control port, used for pass through of commands to or from the transmitter.

RS-232

IR IN

3 4

IR OUT

4 IR

Connect an IR receiver to the IR IN port or an IR emitter to the IR OUT port.

5 HDBaseT IN

Connect an HDBaseT cable from this port to the HDBaseT OUT port on the ATHDR-CAT (available in -2, 4, 4ED, or -8).

6 HDMI OUT

Connect an HDMI cable from this port to an HDMI display.

HDBaseT IN

HDMI OUT

Page 3

GND

GND RX

GNDRX TX

Installation Guide

AT-HDR-EX-70C-RX

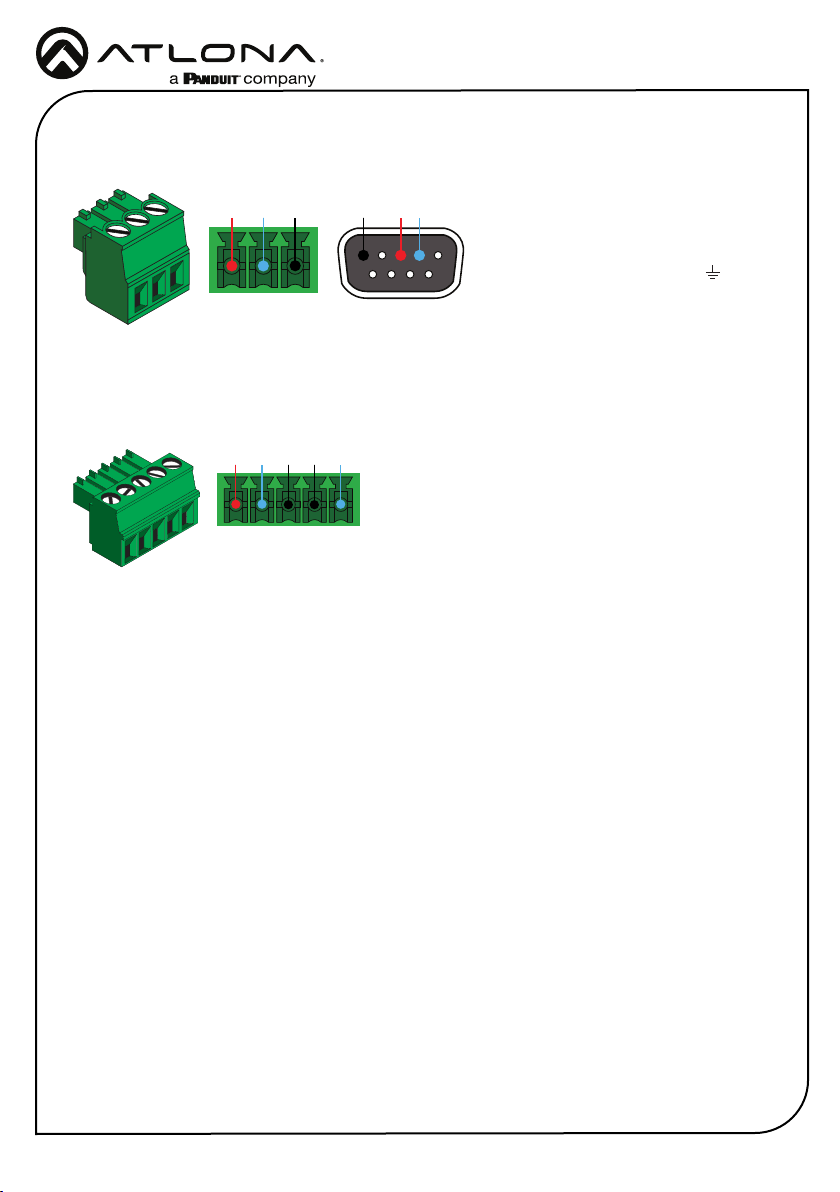

RS-232

A 3-pin captive screw connector for RS-232 has been included.

Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground).

Two captive screw connectors for IR have been included. A 3-pin connector is included for the receiver.

IR IN is connected by a power, ground, and signal wire. Use a 12V IR receiver with it (e.g. AT-IR-CS-RX

purchasable through atlona.com).

IR IN

IR OUT

IR OUT is connected by a ground and signal wire.

Connect an IR emitter (not included) here.

Page 4

Installation Guide

AT-HDR-EX-70C-RX

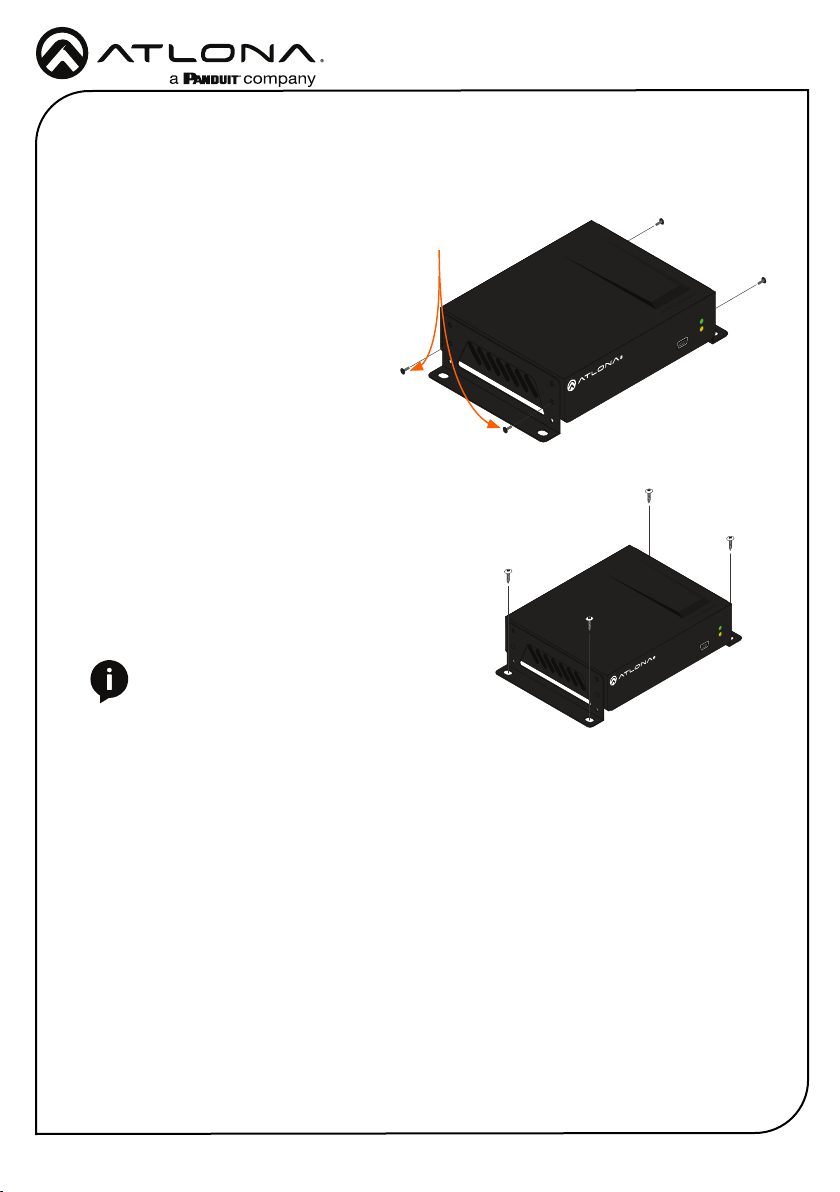

Mounting Instructions

The AT-HDR-EX-70C-RX includes two mounting brackets and four mounting screws, which can

be used to attach the units to any at surface.

1. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.

2. Use the enclosure screws to secure the mounting bracket to the enclosure.

3. Repeat the above steps to attach the second mounting bracket to the opposite side of the unit.

4. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.

NOTE: Mounting brackets can also be inverted

to mount the unit under a table or other at

surface.

Included screws

AT-HDR-EX-70C-RX

POWER

LINK

AT-HDR-EX-70C-RX

POWER

LINK

Page 5

Installation Guide

AT-HDR-EX-70C-RX

Installation

1. Connect an HDR display to the HDMI OUT port on the receiver.

2. Connect an HDBaseT cable, from the HDBaseT OUT port on the AT-HDR-CAT, to the HDBaseT IN port on the receiver (the unit will receive power from the HDR-CAT over HDBaseT).

3. *Optional* Connect an RS-232 cable from the RS-232 port to a control system or display.

4. *Optional* Connect an IR receiver to the IR IN port of the receiver.

5. *Optional* Connect an IR emitter to the IR OUT port of the receiver.

Cable Recommendation Guidelines

Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.

Core Shielding CAT5e CAT 6 CAT6a CAT 7

Solid UTP (unshielded) N/A

STP (shielded)

Performance Rating (MHz) 350 500 600 800

IMPORTANT: Stranded or patch cables are not recommended due to performance issues.

Cable* Max. Distance @ 4K Max. Distance @ 1080p

CAT5e / CAT6 115 feet (35 meters) 200 feet (60 meters)

CAT6a / CAT7 130 feet (40 meters) 230 feet (70 meters)

*Atlona recommends TIA/EIA 568-B termination for optimal performance.

Page 6

Installation Guide

AT-HDR-EX-70C-RX

Updating Firmware (manually)

1. Download the rmware .zip le from the rmware tab located at https://atlona.com/product/

at-hdr-ex-70c-rx/.

2. Unzip the .bin le to an easy to locate area of the local PC.

3. Connect the unit’s Utility mini USB port to a PC using a mini USB to USB A cable.

4. The PC should automatically detect the 70C and display the autorun options.

5. Select the view les in folder option. A new window will open.

6. If there are any les inside the folder, delete them, otherwise drag and drop the .bin le into

the folder. While the rmware loads to the unit, the green power LED on the front panel will ash.

7. Once the green LED goes solid, disconnect the unit from the PC. The rmware update is nished.

Page 7

Notes

Installation Guide

AT-HDR-EX-70C-RX

Page 8

Installation Guide

AT-HDR-EX-70C-RX

Warranty

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/.

English Declaration of Conformity

The English version can be found under the resources tab at:

https://atlona.com/product/at-hdr-ex-70c-rx/.

Chinese Declaration of Conformity 中国RoHS合格声明

由SKU列出於:

https://atlona.com/about-us/china-rohs/.
