Installation Guide
AT-AVA-EX70-2PS-KIT
4K/UHD HDMI Over HDBaseT TX/RX Kit
AT-AVA-EX70-2PS-KIT

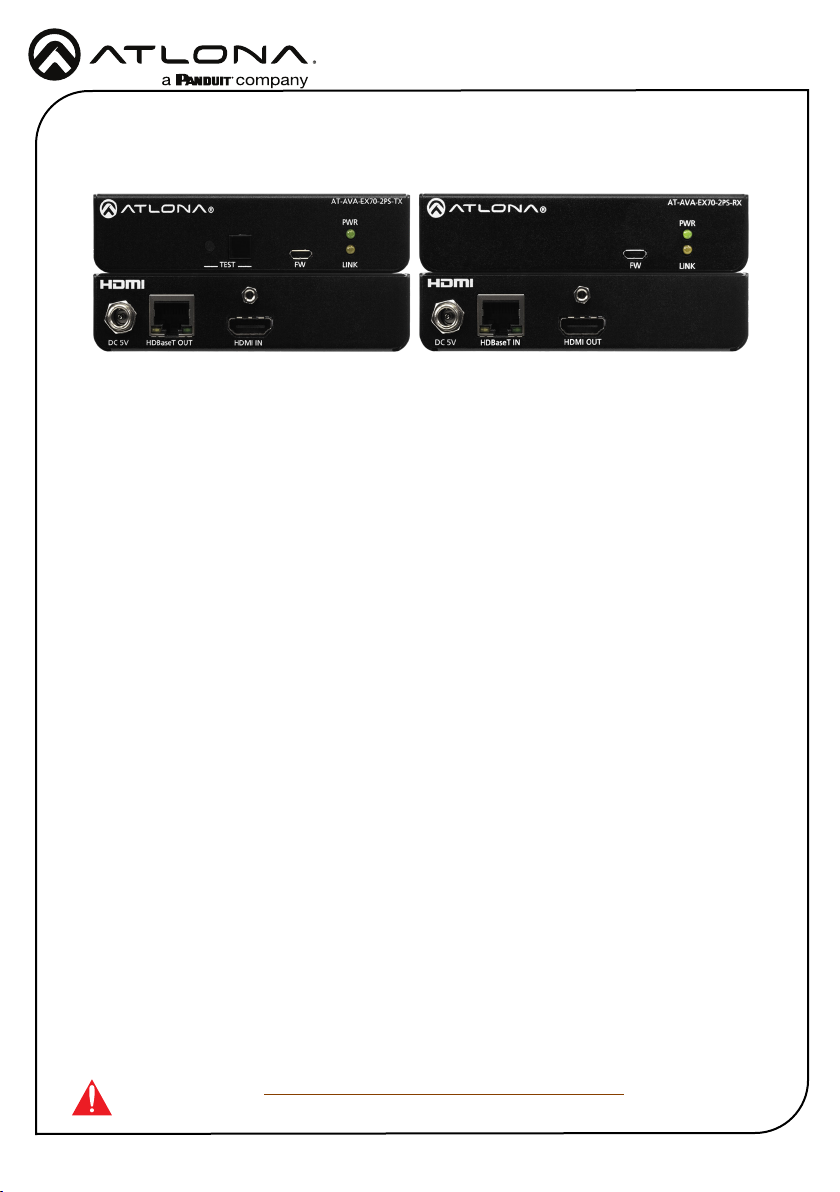

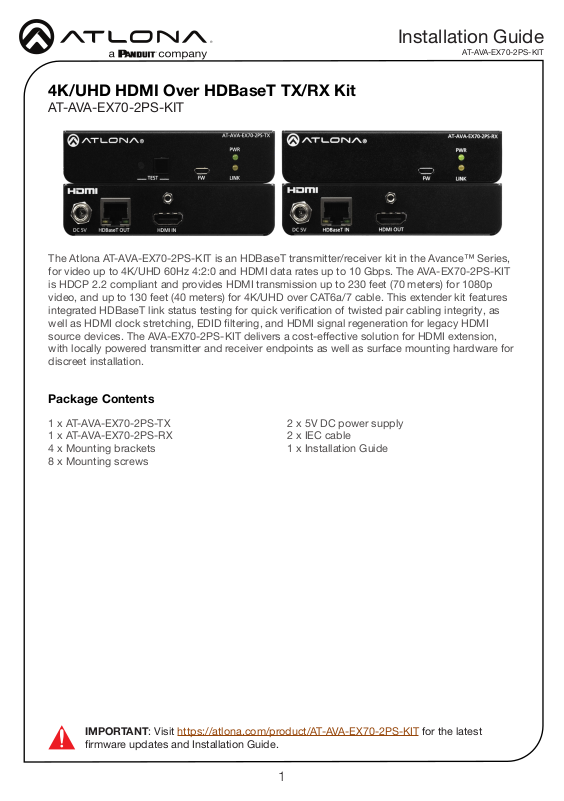

The Atlona AT-AVA-EX70-2PS-KIT is an HDBaseT transmitter/receiver kit in the Avance™ Series,
for video up to 4K/UHD 60Hz 4:2:0 and HDMI data rates up to 10 Gbps. The AVA-EX70-2PS-KIT
is HDCP 2.2 compliant and provides HDMI transmission up to 230 feet (70 meters) for 1080p
video, and up to 130 feet (40 meters) for 4K/UHD over CAT6a/7 cable. This extender kit features
integrated HDBaseT link status testing for quick verication of twisted pair cabling integrity, as
well as HDMI clock stretching, EDID ltering, and HDMI signal regeneration for legacy HDMI
source devices. The AVA-EX70-2PS-KIT delivers a cost-eective solution for HDMI extension,
with locally powered transmitter and receiver endpoints as well as surface mounting hardware for
discreet installation.
Package Contents
1 x AT-AVA-EX70-2PS-TX
1 x AT-AVA-EX70-2PS-RX
4 x Mounting brackets
8 x Mounting screws
IMPORTANT: Visit https://atlona.com/product/AT-AVA-EX70-2PS-KIT for the latest
rmware updates and Installation Guide.
2 x 5V DC power supply
2 x IEC cable
1 x Installation Guide
1
Page 2
HDMI OUT
AT-AVA-EX70-2PS-RX
PWR
LINKFW
HDMI IN
AT-AVA-EX70-2PS-TX
PWR
LINKFW
TEST

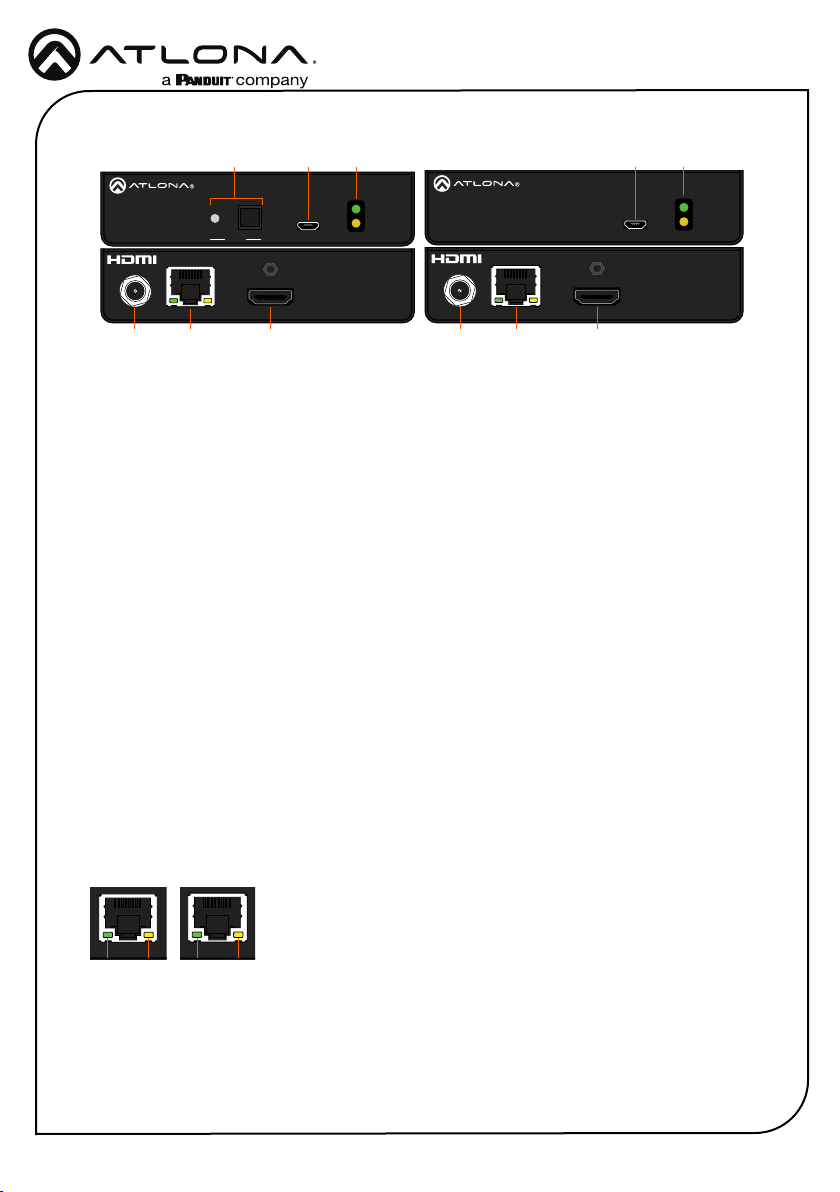

Panel Descriptions
21
3
AT-AVA-EX70-2PS-TX
PWR
Installation Guide
AT-AVA-EX70-2PS-KIT
8
7
AT-AVA-EX70-2PS-RX
PWR
TEST
DC 5V HDBaseT OUT
5
4
HDMI IN
6
1 TEST
Quick and easy test for category cables.
Use the button to start the test and the
LED to determine pass or fail.
2 FW
Connect a micro-USB to USB-A type
cable from this port to a computer, to
update the rmware.
3 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
4 DC 5V
Connect the included power supply to this
port.
5 HDBaseT OUT
Connect an HDBaseT cable from this port
to the HDBaseT IN port on the receiver.
6 HDMI IN
Connect an HDMI cable from a source to
this port. e.g. HDR BluRay Player
LINKFW
DC 5V HDBaseT IN
9
10 11
HDMI OUT
LINKFW
7 FW
Not used at this time.
8 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
9 DC 5V
Connect the included power supply to this
port.
10 HDBaseT IN
Connect an HDBaseT cable from this
port to the HDBaseT OUT port on the
transmitter.
11 HDMI OUT
Connect an HDMI cable from this port to
an HDMI display.
HDBaseT LED Descriptions
HDBaseT OUT
a a
a Green LED
When a category cable is connected
and receiving signal this LED will be
illuminated. If no cable or signal is being
received, the LED will be o.
HDBaseT IN
b b
b Yellow LED
This LED displays the status of the
HDBaseT rmware. When the LED is
blinking slowly, the rmware is good. If
the LED is blinking rapidly or o, there
is no rmware or the rmware has been
corrupted.
2
Page 3
Installation Guide
AT-AVA-EX70-2PS-KIT
Mounting Instructions
The AT-AVA-EX70-2PS-KIT includes two mounting brackets and four mounting screws each,
which can be used to attach the units to any at surface.

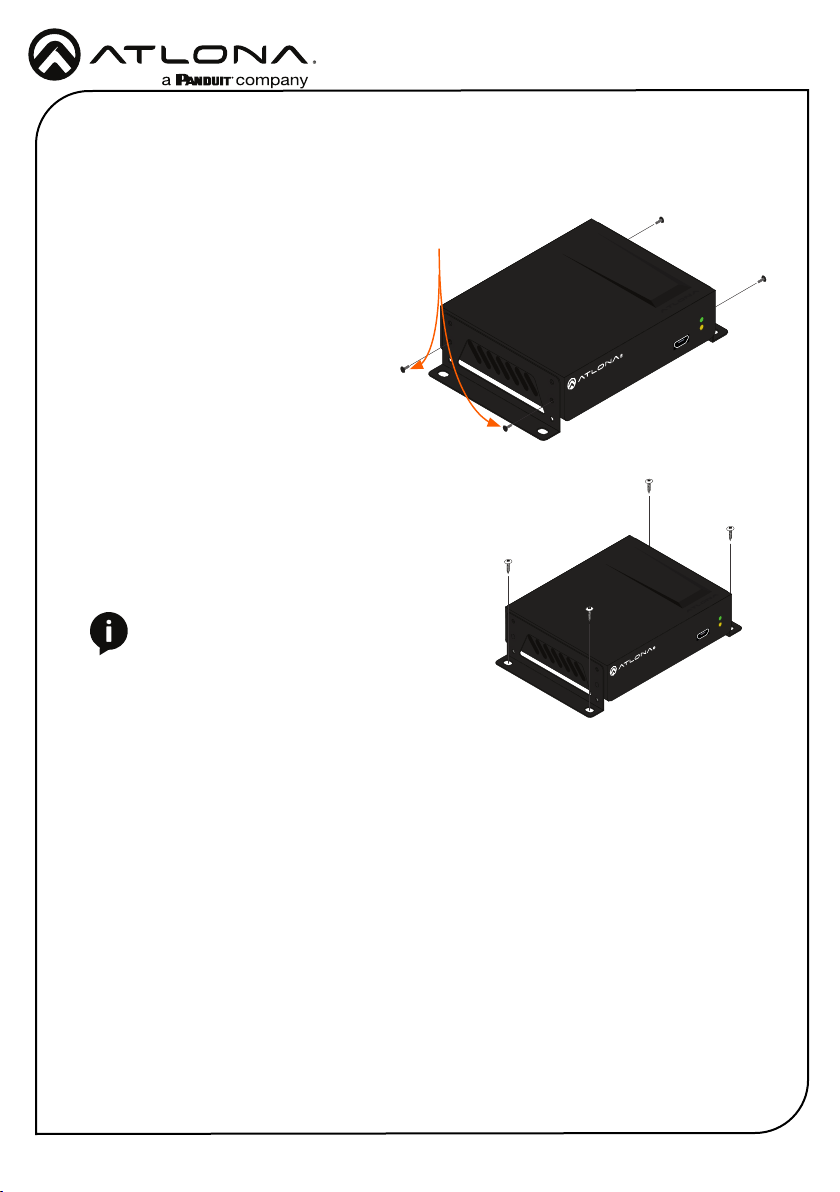

1. Position one of the mounting brackets,
as shown below, aligning the holes on
the side of the enclosure with one set of
holes on the mounting bracket.
2. Use the enclosure screws to secure the
mounting bracket to the enclosure.
3. Repeat the above steps to attach
the second mounting bracket to the
opposite side of the unit.
4. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall
surface, a #6 drywall screw is recommended.
NOTE: Mounting brackets can also be inverted
to mount the unit under a table or other at
surface.
Included screws
POWER
AT-AVA-EX70-2PS-RX
LINK
FW
AT-AVA-EX70-2PS-RX
FW
POWER
LINK
Installation
1. Connect a source to the HDMI IN port on the transmitter.
2. Connect a display to the HDMI OUT port on the receiver.
3. Connect an category cable, from the HDBaseT OUT port on the transmitter, to the
HDBaseT IN port on the receiver.
4. Connect the included 5V power supplies into the transmitter and receiver.
5. Connect power supply to an AC outlet.
3
Page 4
Installation Guide
AT-AVA-EX70-2PS-TX
PWR
LINKFW
AT-AVA-EX70-2PS-KIT
Cable Recommendation Guidelines
Refer to the tables below for recommended cabling when using Altona products with HDBaseT.
The green bars indicate the signal quality when using each type of cable. Higher-quality signals
are represented by more bars.

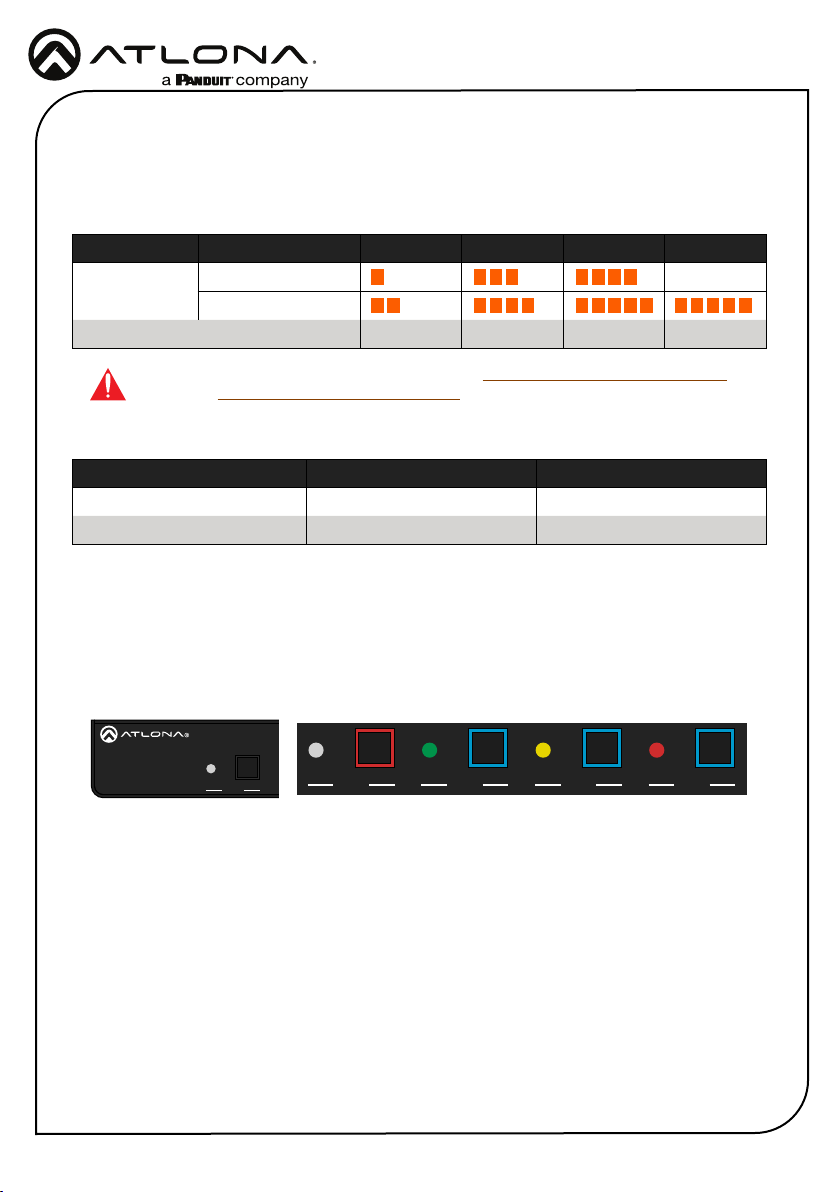

Core Shielding CAT5e CAT 6 CAT6a CAT 7
Solid UTP (unshielded) N/A
STP (shielded)
Performance Rating (MHz) 350 500 600 800
IMPORTANT: It is recommended to use UTP6A (https://atlona.com/product/utp6a/)
and STP6X (https://atlona.com/product/stp6x/) if a stranded/patch cable is needed.
These cables have been tested and approved to work with these extenders for full
functionality.
Cable* Max. Distance @ 4K Max. Distance @ 1080p
CAT5e/6 115 feet (35 meters) 200 feet (60 meters)
CAT6a/7 130 feet (40 meters) 230 feet (70 meters)
*Atlona recommends TIA/EIA 568-B termination for optimal performance.
TEST
The transmitter has the ability to test the HDBaseT cable quality through the front panel. Press
the test button on the front panel of the transmitter to start the test, the LED will display the
testing results.
TEST
Button:
• Blue Blinking: The test is running properly
and the button will blink 10 times during
the testing process.
• Red Light: There is no signal for the test
to check.
TEST TEST TEST TEST
LED:
• No Light: There is no HDBaseT cable
plugged in.
• Blinking: There is no HDBaseT signal
coming through.
• Solid Green: The HDBaseT cable is good.
• Solid Yellow: One or two HDBaseT pairs
are not working, reterminate the cable.
• Solid Red: Multiple pairs are not working.
Reterminate the cable and if the LED turns
yellow or red again, replace the cable.
4
Page 5
Installation Guide
AT-AVA-EX70-2PS-KIT
Updating Firmware
1. Download the rmware .zip le from the rmware tab located at https://atlona.com/product/
AT-AVA-EX70-2PS-KIT.
2. Unzip the .bin le to an easy to locate area of the local PC.
3. Connect the transmitter’s FW micro USB port to a PC using a micro USB to USB A cable
(purchased separately).
4. The PC should automatically detect the unit and display the autorun options. Select the
view les in folder option. A new window will open.
5. If there are any les inside the folder, delete them, otherwise drag and drop the .bin le into
the folder. While the rmware loads to the unit, the green power LED on the front panel will
ash. This process can take up to 5 minutes to complete.
6. Once the green LED goes solid, disconnect the unit from the PC. The rmware update is
nished.
NOTE: Only the transmitter will be used for updating rmware. The receiver will be
updated once it has been connected to the transmitter if it is not connected at the
time of the rmware update.
5
Page 6
Notes
Installation Guide
AT-AVA-EX70-2PS-KIT
6
Page 7
Notes
Installation Guide
AT-AVA-EX70-2PS-KIT
7
Page 8
Installation Guide
AT-AVA-EX70-2PS-KIT
Warranty
To view the product warranty, use the following link or QR code:
https://atlona.com/warranty/.
