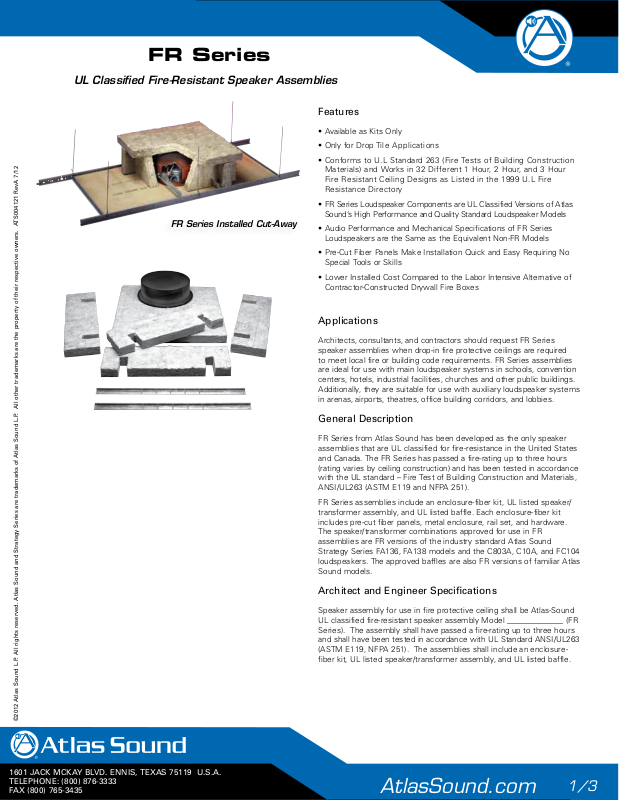

Atlas IED C10AT72FRK, FA138T87FRK, FA136T87FRK User Manual
FR Series
UL Classified Fire-Resistant Speaker Assemblies
Features
• Available as Kits Only
• Only for Drop Tile Applications
• Conforms to U.L Standard 263 (Fire Tests of Building Construction
Materials) and Works in 32 Different 1 Hour, 2 Hour, and 3 Hour
Fire Resistant Ceiling Designs as Listed in the 1999 U.L Fire
Resistance Directory
• FR Series Loudspeaker Components are UL Classified Versions of Atlas
FR Series Installed Cut-Away
Sound’s High Performance and Quality Standard Loudspeaker Models
• Audio Performance and Mechanical Specifications of FR Series
Loudspeakers are the Same as the Equivalent Non-FR Models
• Pre-Cut Fiber Panels Make Installation Quick and Easy Requiring No
Special Tools or Skills
• Lower Installed Cost Compared to the Labor Intensive Alternative of
Contractor-Constructed Drywall Fire Boxes
Applications
Architects, consultants, and contractors should request FR Series
speaker assemblies when drop-in fire protective ceilings are required
to meet local fire or building code requirements. FR Series assemblies
are ideal for use with main loudspeaker systems in schools, convention
centers, hotels, industrial facilities, churches and other public buildings.
Additionally, they are suitable for use with auxiliary loudspeaker systems
in arenas, airports, theatres, office building corridors, and lobbies.
General Description
FR Series from Atlas Sound has been developed as the only speaker
assemblies that are UL classified for fire-resistance in the United States
and Canada. The FR Series has passed a fire-rating up to three hours
(rating varies by ceiling construction) and has been tested in accordance
with the UL standard – Fire Test of Building Construction and Materials,
ANSI/UL263 (ASTM E119 and NFPA 251).
FR Series assemblies include an enclosure-fiber kit, UL listed speaker/
transformer assembly, and UL listed baffle. Each enclosure-fiber kit
includes pre-cut fiber panels, metal enclosure, rail set, and hardware.
The speaker/transformer combinations approved for use in FR
assemblies are FR versions of the industry standard Atlas Sound
Strategy Series FA136, FA138 models and the C803A, C10A, and FC104
loudspeakers. The approved baffles are also FR versions of familiar Atlas
Sound models.
Architect and Engineer Specifications
Speaker assembly for use in fire protective ceiling shall be Atlas-Sound
UL classified fire-resistant speaker assembly Model ______________ (FR
Series). The assembly shall have passed a fire-rating up to three hours
and shall have been tested in accordance with UL Standard ANSI/UL263
(ASTM E119, NFPA 251). The assemblies shall include an enclosurefiber kit, UL listed speaker/transformer assembly, and UL listed baffle.
©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004121 RevA 7/12
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
AtlasSound.com
1/3
* Cannot Be Ordered Separately*
Choose from 5 FR Series speaker assembly kits.
Each enclosure-fiber kit shall include pre-cut fiber panels, metal
enclosure, rail set and hardware. Dimensions of the assembled
fiber kit shall be ___________________.
Specifications
FC104T72FRK
Includes:
Speaker FC104T72FR
Baffle 51-4FR
Enclosure/
Fiber Kit 96-4FR
UL 263
C10AT72FRK
Includes:
Speaker C10AT72FR
Baffle 51-8FR
Enclosure/
Fiber Kit 95-8FR
UL 263
FC104T72FRK
C10AT72FRK
C803AT87FRK
Includes:
Speaker C803AT87FR
Baffle 51-8FR
Enclosure/
Fiber Kit 95-8FR
UL 263
FA136T87FRK
Includes:
Speaker FA136T87FR
Baffle FA720-6FR
Enclosure/
Fiber Kit FA97-6FR
UL 263
FA138T87FRK
Includes:
Speaker FA138T87FR
Baffle FA720-8FR
Enclosure/
Fiber Kit FA97-8FR
©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004121 RevA 7/12
UL 263
C803AT87FRK
FA136T87FRK
FA138T87FRK
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
AtlasSound.com
2/3
