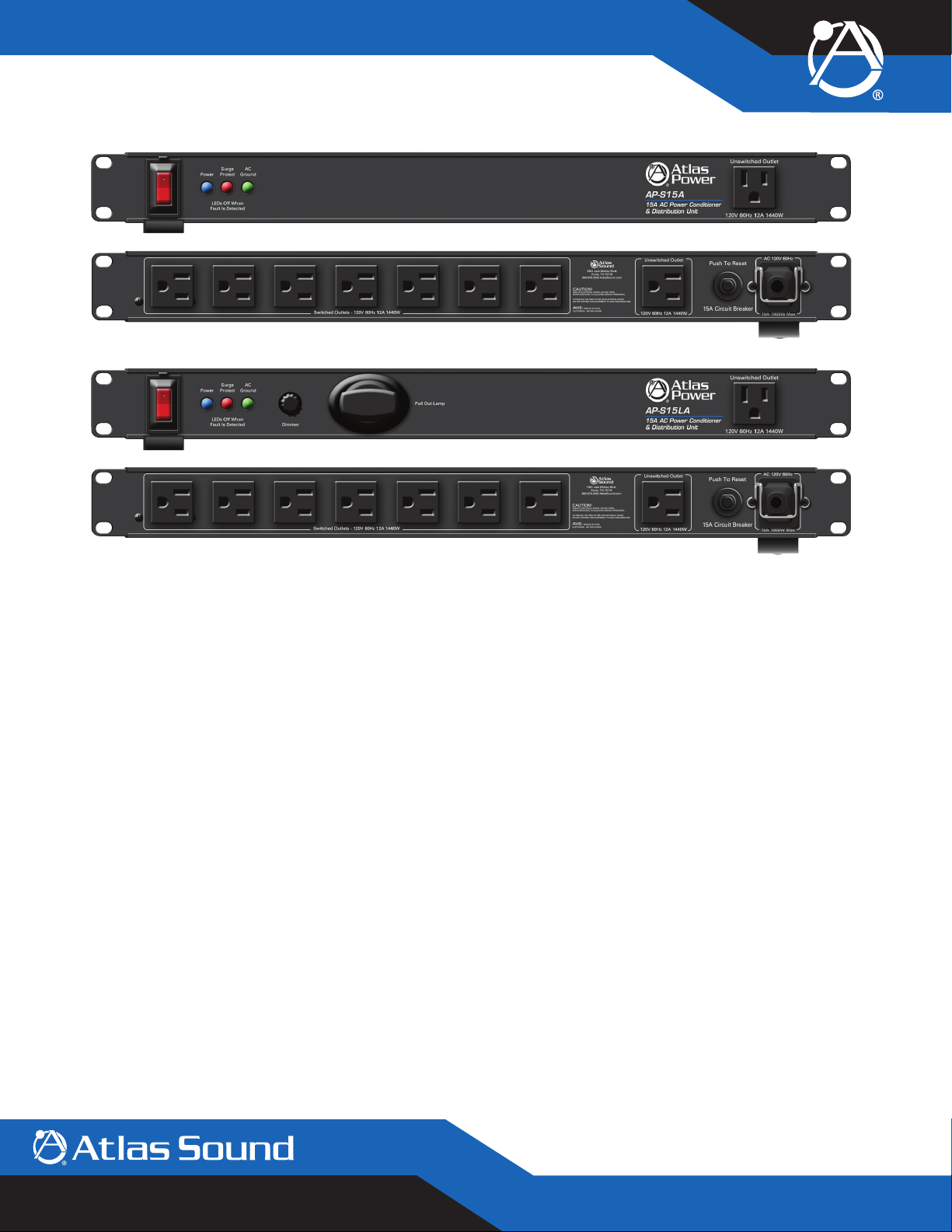

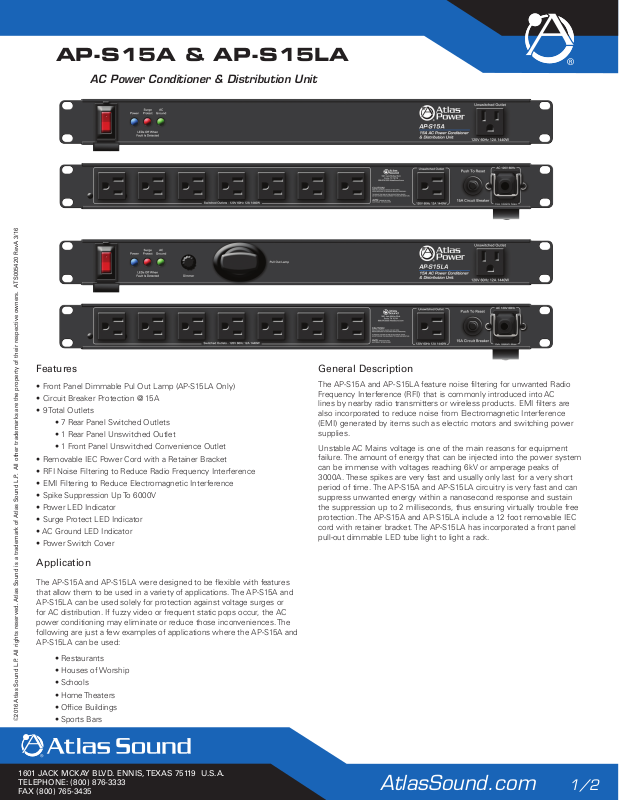

AP-S15A & AP-S15LA
AC Power Conditioner & Distribution Unit
Features
• Front Panel Dimmable Pul Out Lamp (AP-S15LA Only)
• Circuit Breaker Protection @ 15A
• 9 Total Outlets
• 7 Rear Panel Switched Outlets
• 1 Rear Panel Unswitched Outlet
• 1 Front Panel Unswitched Convenience Outlet
• Removable IEC Power Cord with a Retainer Bracket
• RFI Noise Filtering to Reduce Radio Frequency Interference
• EMI Filtering to Reduce Electromagnetic Interference
• Spike Suppression Up To 6000V
• Power LED Indicator
• Surge Protect LED Indicator
• AC Ground LED Indicator
• Power Switch Cover
Application
The AP-S15A and AP-S15LA were designed to be flexible with features
that allow them to be used in a variety of applications. The AP-S15A and
AP-S15LA can be used solely for protection against voltage surges or
for AC distribution. If fuzzy video or frequent static pops occur, the AC
power conditioning may eliminate or reduce those inconveniences. The
following are just a few examples of applications where the AP-S15A and
AP-S15LA can be used:
• Restaurants
• Houses of Worship
• Schools
• Home Theaters
• Office Buildings
©2016 Atlas Sound L.P. All rights reserved. Atlas Sound is a trademark of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS0 05420 RevA 3/16
• Sports Bars
General Description
The AP-S15A and AP-S15LA feature noise filtering for unwanted Radio
Frequency Interference (RFI) that is commonly introduced into AC
lines by nearby radio transmitters or wireless products. EMI filters are
also incorporated to reduce noise from Electromagnetic Interference
(EMI) generated by items such as electric motors and switching power
supplies.
Unstable AC Mains voltage is one of the main reasons for equipment
failure. The amount of energy that can be injected into the power system
can be immense with voltages reaching 6kV or amperage peaks of
3000A. These spikes are very fast and usually only last for a very short
period of time. The AP-S15A and AP-S15LA circuitry is very fast and can
suppress unwanted energy within a nanosecond response and sustain
the suppression up to 2 milliseconds, thus ensuring virtually trouble free
protection. The AP-S15A and AP-S15LA include a 12 foot removable IEC
cord with retainer bracket. The AP-S15LA has incorporated a front panel
pull-out dimmable LED tube light to light a rack.
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
AtlasSound.com
1/2
Specications
Type Power
Load Rating
Safety Listings
Power Conditioner & Suppressor
15A
UL 60065 Standard
In the Box
Manual
IEC Power Cord 14 Gauge 12ft (4M)
IEC Power Cord Retainer Bracket
Front Panel
Outlets
Activation Switch
Indicators
Light (AP-S15LA Only)
1 Unswitched
Rocker with Security Cover
Power, Surge Protect, AC
Ground Pull Out Lamp with
Dimmer
Rear Panel
AC Outlets
8 Outlets Total, 1 Unswitched &
AC Mains IEC Power Socket
Circuit Breaker
7 Switched
15A 1800W
15A Resettable
Technical Data
Max AC Mains Current
Operating Voltage
Power Consumption
Noise Attenuation RFI
Min. Spike Clamping Voltage
Max. Spike Clamping Voltage
Max. Spike Clamping Resp. Time 1 nanosecond
Spike Clamping Voltage @ 100A 1250Vp for 20μs
Maximum Surge Current 6,500A
Energy Rating @ 2ms 200 Joules
Temperature Range 5° – 35°C
Humidity Range 5% to 95% Relative Humidity
15A AC Mains Breaker
102VAC - 132VAC
6 Watts
10dB @ 10kHz / 40dB @ 100kHz /
100dB @ 10MHz
460VRMS @ 3,000A
6000V
Architect and Engineer Specications
AP-S15A
Power conditioner shall be Atlas Sound model AP-S15A. Power
conditioner shall have 9 total outlets: 8 rear panel outlets (7 switched
and 1 unswitched) and 1 front panel, unswitched outlet. Power
conditioner shall include Radio Frequency Interference (RFI) and
Electromagnetic Interference (EMI) filtering to reduce noise in AC lines.
Power conditioner shall have circuit breaker protection at 15A. Front
panel shall include Power, Surge Protect, and AC Ground LED indicators
and protective cover over power switch. Finish shall be textured black
epoxy and dimensions shall be 19"W x 5"D x 1.75"H (482.6mm x 127mm
x 44.5mm) to mount into 1RU of space.
AP-S15LA
Power conditioner shall be Atlas Sound model AP-S15LA. Power
conditioner shall have 9 total outlets: 8 rear panel outlets (7 switched
and 1 unswitched) and 1 front panel, unswitched outlet. Power
conditioner shall include Radio Frequency Interference (RFI) and
Electromagnetic Interference (EMI) filtering to reduce noise in AC lines.
Power conditioner shall have circuit breaker protection at 15A. Front
panel shall include pull out dimmable LED light, Power, Surge Protect,
and AC Ground LED indicators, and protective cover over power switch.
Finish shall be textured black epoxy and dimensions shall be 19"W x 5"D
x 1.75"H (482.6mm x 127mm x 44.5mm) to mount into 1RU of space.
Mechanical
Chassis Finish Black
Mounting Rack Mount, 1 RU, 19"
Height 1.75" (1RU, 44.5mm)
Width 19" (482.6mm)
Depth 5" (127mm)
Weight 5 lbs (2.27kg)
