Atlas IRENE-5HLK, IRENE-3HLK User Manual

IRENE-HLK
60", 52" or 42" CEILING FAN
READ AND SAVE THESE INSTRUCTIONS
IRENE-3HLK
IRENE-5HLK
FAN RATING AC 120V. 60Hz
QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.
* Fan should be assembled and mounted by two people.
For Damp Location
TABLE OF CONTENTS
Tools and Materials Required.........................................................................................
Package Contents .........................................................................................................
Safety Rules...................................................................................................................
Mounting Options...........................................................................................................
Hanging the Fan ............................................................................................................
Make the Electric Connections.......................................................................................
Finishing the Installation.................................................................................................
Attaching the Fan Blades...............................................................................................

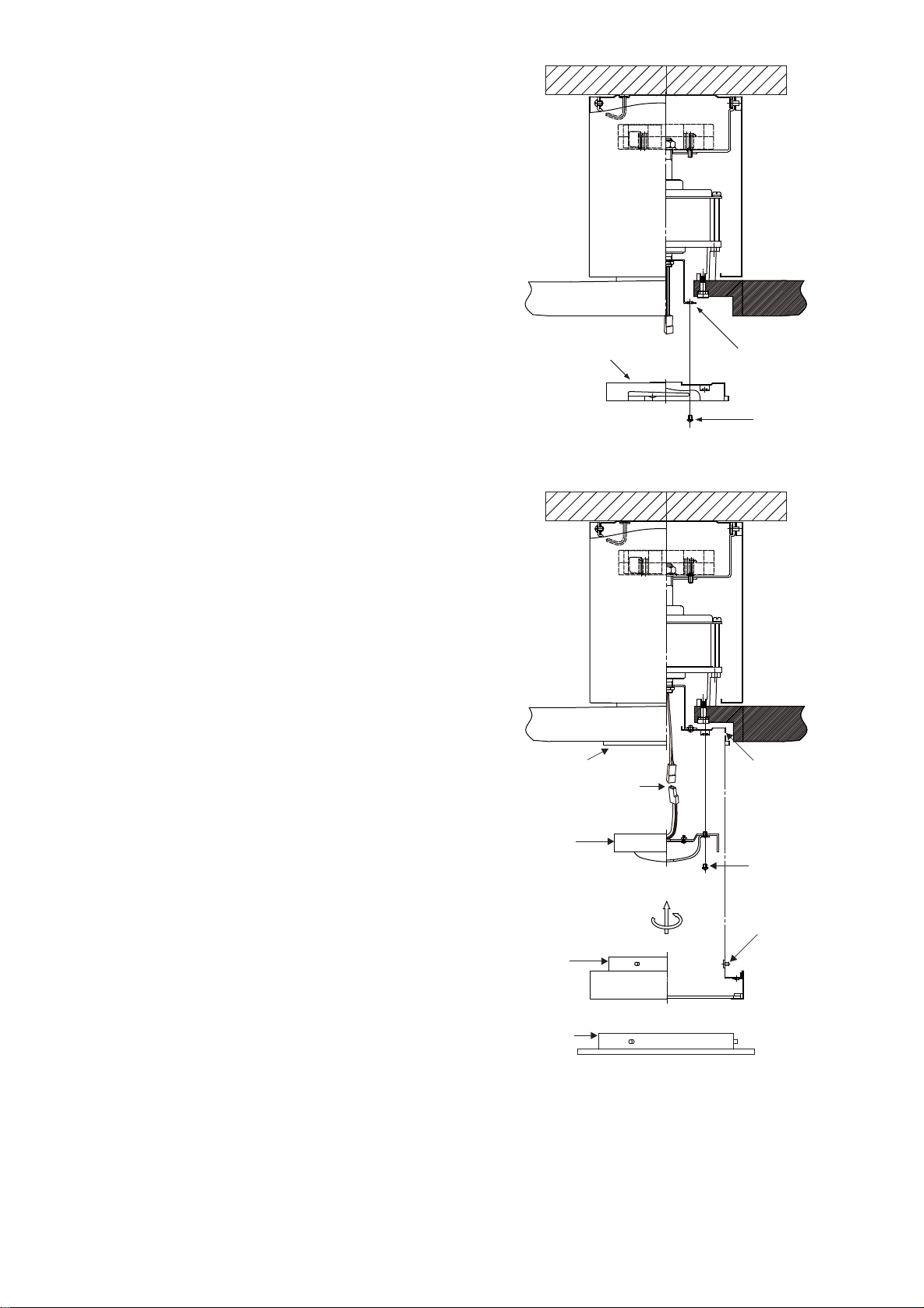

Attaching the Mounting Plate.........................................................................................
Installing the Light Kit.....................................................................................................
Programming Your Fan and Operating the Remote Control and Wall Control............
Operating Your Fan .....................................................................................................
Care of Your Fan...........................................................................................................
Troubleshooting............................................................................................................
10
12 12
1 1 2 3 4 5 7 8 9 9
11
1. TOOLS AND MATERIALS REQUIRED
Philips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
2. PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
a-1. Blade set (3) (for Irene-3H) a-2. Blade set (5) (for Irene-5H) b. Mounting bracket (preassembled with fan motor assembly) c. Fan motor assembly d. Fan housing e. Mounting plate f. 16W LED light kit g. Glass shade assembly h. Additional metal light cover i. Hand held transmitter+holder+2 mounting screws j. Wall transmitter incl. 2 mounting screws and 3 wire nuts k. Wall plate incl. 1 face plate and 2 mounting screws l. 12V batteries (2) m. Package hardware
1) Mounting hardware:
wood screws (2), screws (2), lock washers (2), washers (2), star washers (2), wire nuts (3)
2) Blade attachment hardware:
screws (11), lock washers (11), flat washers (11)
c
a-1
d
e
f
g
h
i
a-2
Please do not use any electric or battery powered tools in the assembly and installation of this or any Matthews Fan Company product.
j
k
b
l
m
1
3. SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device.
4. WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box Marked Acceptable for Fan Support of 15.9 kg (35 lbs) or less And Use Mounting Screws Provided With The Outlet Box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced, consult a qualified electrician if in doubt.
5. The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor.
6. To operate the reverse function on this fan,
press the reverse button while the fan is running.
7. Avoid placing objects in the path of the
blades.
8. To avoid personal injury or damage to the
fan and other items, be cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
10. After marking electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment
-grounding conductor on one side of the outlet box.
11. Electrical diagrams are reference only. Light kit that are not packed with the fan must be UL Listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the Instructions packaged with the light kits and switches for proper assembly.
12. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
2
4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs). Do not use plastic outlet boxes.
Figures 1 and 2 are examples of different ways to mount the outlet box.
To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 3.
Outlet box
Figure 1
Outlet box
Figure 2
Outlet box
Figure 3
3
