A high-performance

speaker for today’s

ﬂ at screen televisions

The FS-3200 LR and FS-3200 C speakers

form the heart of a home theater loudspeaker

system to compliment today’s latest Flat Screen

televisions. Their overall size, thin depth and

The FS-3200 LR and C speakers have two rear-panel controls—a 3-position HF Energy

switch and a 2-position Boundary Compensation switch—to optimize the speakers’

performance regardless of their location or placement. These controls allow the FS-

3200 LR and C to always sound their best, regardless of room acoustics or

position.

With the FS-3200 series, Atlantic Technology has raised the

standards for ﬂ at-screen speakers in terms of acoustic

performance, mounting ﬂ exibility, listening room

sound adjustment, and intelligent,

consumer-friendly design.

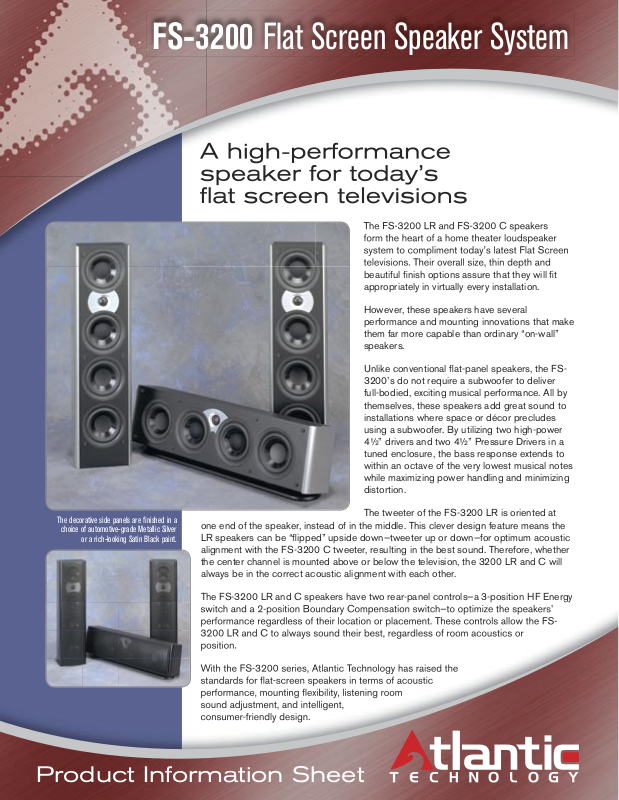

FS-3200 Flat Screen Speaker System

A high-performance speaker for today’s ﬂ at screen televisions

The FS-3200 LR and FS-3200 C speakers form the heart of a home theater loudspeaker system to compliment today’s latest Flat Screen televisions. Their overall size, thin depth and beautiful ﬁ nish options assure that they will ﬁ t appropriately in virtually every installation.

However, these speakers have several performance and mounting innovations that make them far more capable than ordinary “on-wall” speakers.

The decorative side panels are ﬁ nished in a

choice of automotive-grade Metallic Silver

or a rich-looking Satin Black paint.

Unlike conventional ﬂ at-panel speakers, the FS3200’s do not require a subwoofer to deliver full-bodied, exciting musical performance. All by themselves, these speakers add great sound to installations where space or décor precludes using a subwoofer. By utilizing two high-power 4½” drivers and two 4½” Pressure Drivers in a tuned enclosure, the bass response extends to within an octave of the very lowest musical notes while maximizing power handling and minimizing distortion.

The tweeter of the FS-3200 LR is oriented at one end of the speaker, instead of in the middle. This clever design feature means the LR speakers can be “ﬂ ipped” upside down—tweeter up or down—for optimum acoustic alignment with the FS-3200 C tweeter, resulting in the best sound. Therefore, whether the center channel is mounted above or below the television, the 3200 LR and C will always be in the correct acoustic alignment with each other.

The FS-3200 LR and C speakers have two rear-panel controls—a 3-position HF Energy switch and a 2-position Boundary Compensation switch—to optimize the speakers’ performance regardless of their location or placement. These controls allow the FS- 3200 LR and C to always sound their best, regardless of room acoustics or position.

With the FS-3200 series, Atlantic Technology has raised the standards for ﬂ at-screen speakers in terms of acoustic performance, mounting ﬂ exibility, listening room sound adjustment, and intelligent, consumer-friendly design.

Product Information Sheet

Wall mount option

1. “Straight Ahead” wall bracket holds the speaker

½” off the wall pointing straight ahead.

2. “Angled” wall bracket—toes the LR

speaker in towards the listening area OR

FS-3200 Flat Screen Speaker System

Mounting Options

Four mounting options, included with speakers:

1. “Straight Ahead” wall bracket holds the speaker ½” off the wall pointing straight ahead.

2. “Angled” wall bracket—toes the LR speaker in towards the listening area OR angles the Center speaker up or down, depending on whether it’s mounted above or below the video display.

Boundary Compensation and High

Frequency Energy switches

An optional sand-ﬁ llable ﬂ oorstand

transforms FS-3200 LR into sleek

freestanding column speaker,

perfectly complimenting table-

mounted video displays.

4. Two-way keyhole mount (on the rear of the speaker), so the LR speaker can be mounted “tweeter up” or “tweeter down,” to align with the Center’s tweeter.

3. Atlantic’s exclusive center channel rocker base, so FS3200C can also be used as freestanding speaker on TV or on a shelf in addition to wall mounting.

Speciﬁ cations

FS-3200 LR FS-3200 C Type 2-way M-T-M array 2-way M-T-M array

with Bass Pressure Drivers with Bass Pressure Drivers Drivers Woofer (2) 4 ½” (115mm) GLH§ (2) 4 ½” (115mm) GLH Pressure Drivers (2) 4 ½” (115mm) GLH§ (2) 4 ½” (115mm) GLH Tweeter (1) 1" (25mm) soft dome (1) 1" (25mm) soft dome

Frequency Response 75Hz – 20kHz ±3dB 75Hz – 20kHz ±3dB Nominal Impedance 8 Ohms 8 Ohms Crossover Frequency 3.75kHz, 3rd order 3.5kHz, 3rd order Sensitivity 89dB 89dB Recommended Power 10 – 140 Watts RMS 10 – 140 Watts RMS Magnetic Shielding Yes Yes Dimensions w/ grilles 6.5 x 25 x 5" 25 x 6.5 x 5"* (W x H x D) 165 x 635 x 127mm 635 x 165 x 127mm Net Weight 16lbs; 7.3kg each 16.5lbs; 7.5kg w/base

Graphite Loaded Homopolymer

*Height without base.

Atlantic Technology is a registered trademark of Atlantic Technology

International. Speciﬁ cations subject to change without notice.
