Item # 36835513
Metro TV stand
Fits PLASMA or LCD TV’s that measure 37 to 42 inches. If parts are missing, DO NOT
to the store.
call 1-800-747-2660 or mail customer_relations@atlantic-inc.com.
To order missing / replacement parts or assembly assistance please
-1-
return
Assembly Tips:
Become familiar with the instructions and all parts.
Make sure that all parts are in the box and in good condition.
Assemble the product on the open flat carton or a rug to protect the product and
your floor.
Some heavy products need a second person to assist in the assembly.
Use of power tools is not recommended.
It is strongly recommended that at least two people carry out the assembly.
Assemble the product close to a wall.
With each step, first insert and hand-tighten all bolts and screws by hand. After ALL
BOLTS are slightly screwed in, fully tighten bolts with Phillips screwdriver in sequential
pattern (clockwise or counter clockwise).
!
Never let children climb on furniture or play with furniture.
Do not sit or stand on furniture.
Do not place a TV that is heavier than the recommended load rating on the
furniture surface.
Do not overload shelves.
Use care when moving furniture. Furniture can tip over if moved improperly.
Only move furniture when it is empty of TV or other electronic components.
Improper handling can result in cuts and lacerations.
Do not install on sloping surface.
Caution:
Care Instructions:
Use electrostatic dust cloths to clean furniture.
Do not set hot or cold containers directly on the furniture surface.
-2-
Part List
Item
A
B
C
D
Components parts list
Qty
1
1
2
4
Item
H
J
K
L
M
N
O
Components parts list
Qty
4
2
2
2
4
2
6
G
E
1
2F
1
P
Q
R
S
T1
Tool needed (not included)
2
8
8
1
-3-
H
1
H L P
A
H x 4
L x 2
P x 2
1.
Fasten screw (H) to the top board (A).
screw (L).
L
P
Fasten glass supporter (P) to the back board (B) with
B
-4-
2
J
x 2
J K
A
J
K
B
2. Attach back board (B) to the top boards (A) with screws (J), and cam locks(K). Turn cam lock(K)
clockwise to secure.
K
x 2
-5-
3
D
D x 4
C x 2
A
H
3.

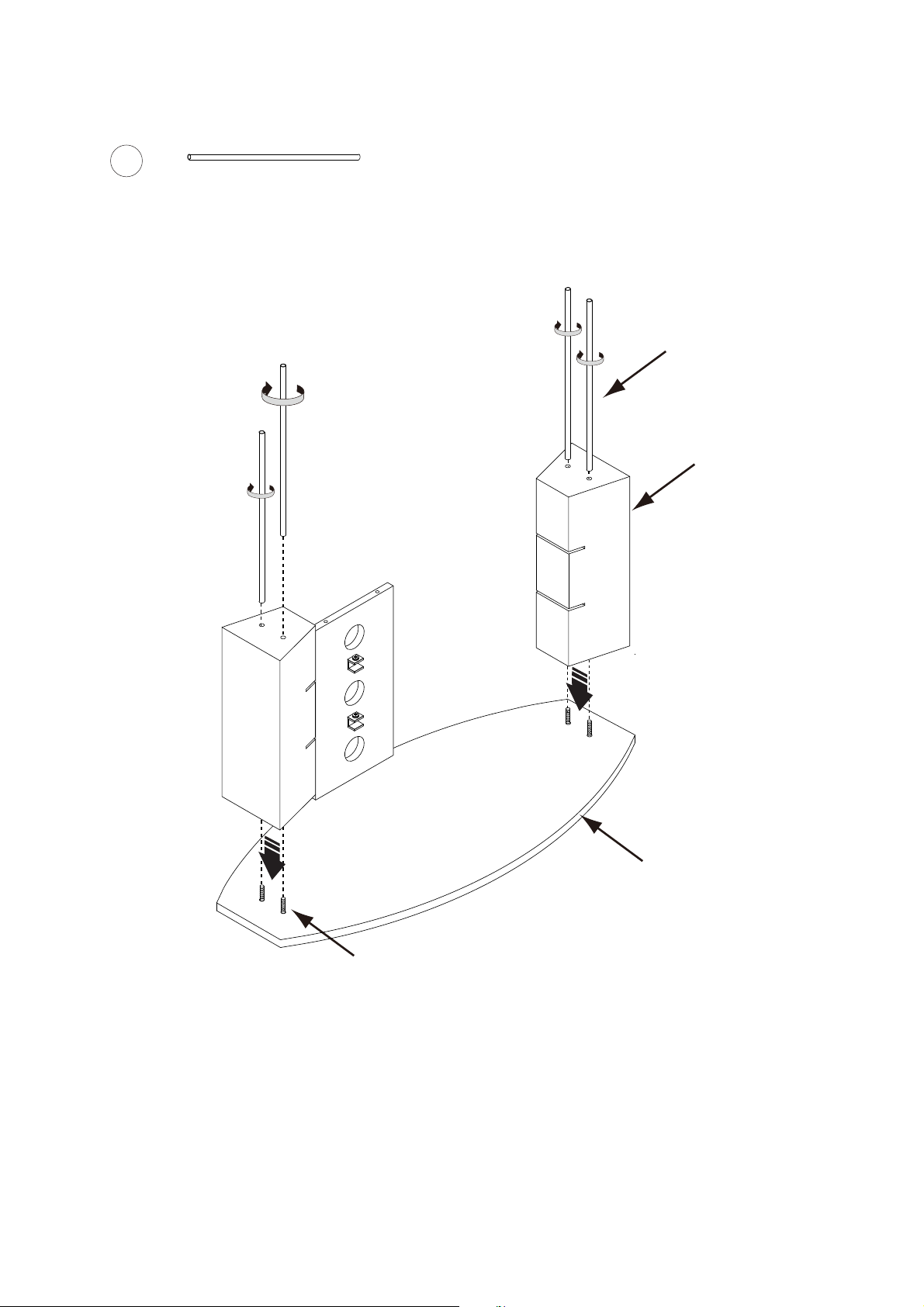

Fasten tube (D) to the top board (A) with screw (H) and turn
side column (C) on the top board (A).Insert tubes(D)through side colums(C) and rotate
clockwise to secure.
-6-
clockwise to secure. Then
put the
4
N M O S T
S
E
M
D
N
O x 6
T
M
N
x 6
x 2
B
4.

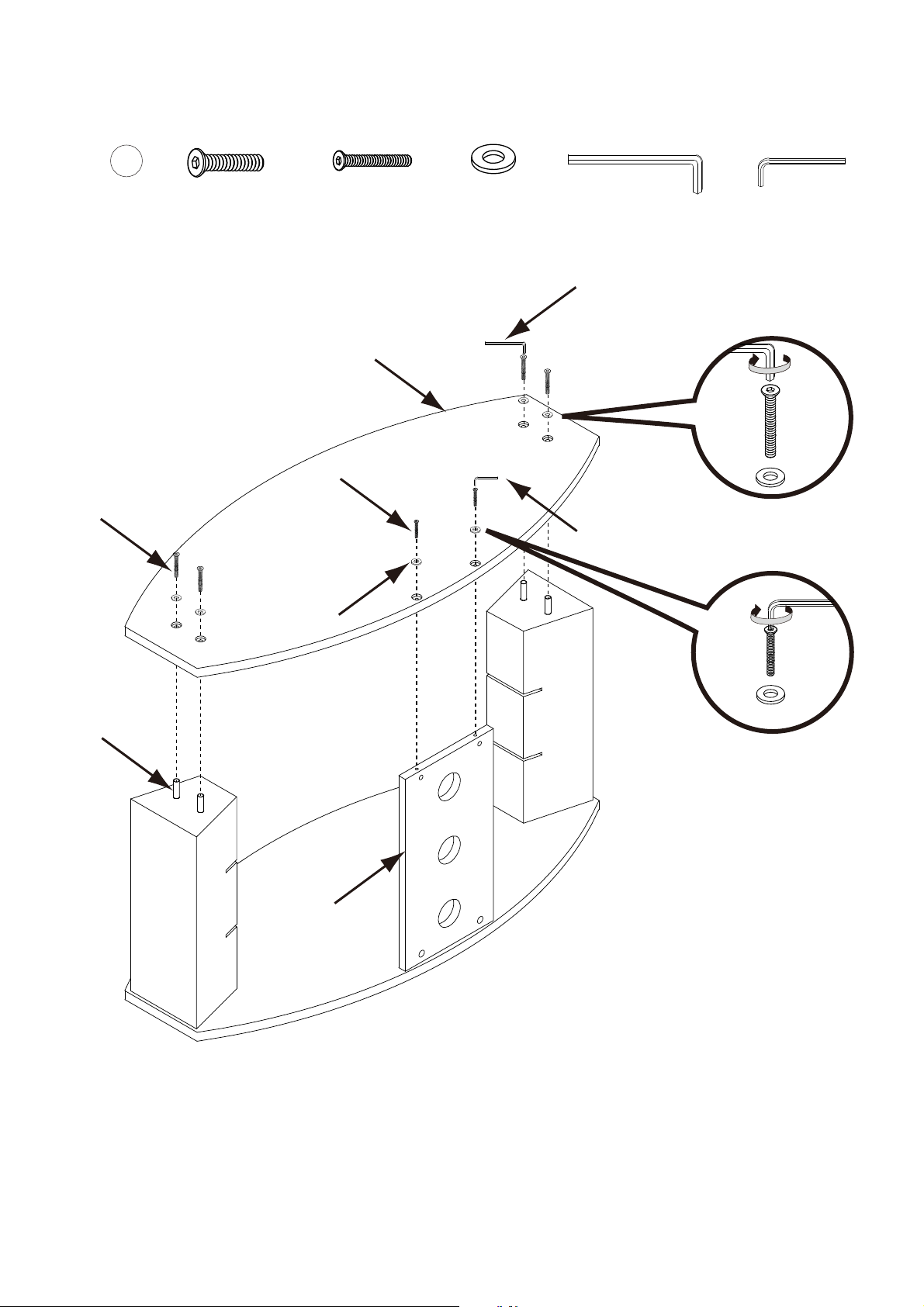

Fasten bottom board (E) to the tube (D) with screw (M) and washer (O), then secure to the
back board (B) with screw (N) and washer(O).
-7-
5
Q
Q x 8
E

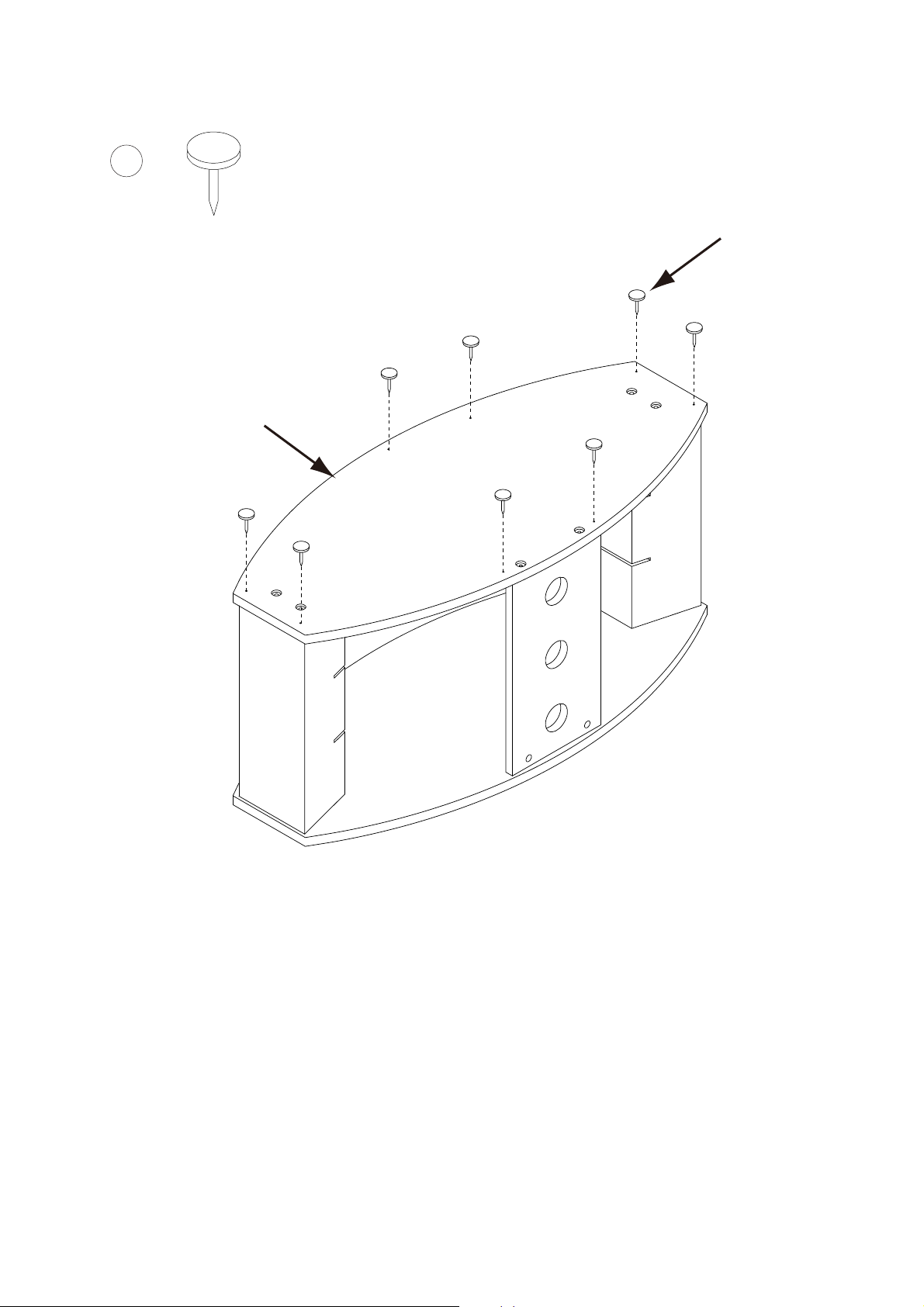

5. Place feet (Q) on bottom board (E).
-8-
6
R
A
R
C
F x 2
B
P
6, Place glass shelves(F) through slot in side columns (C) until they stop at back board (B) and rest in
glass supporter (P). Place the glass protector (R) on the top board (A).
-9-
7
G
R

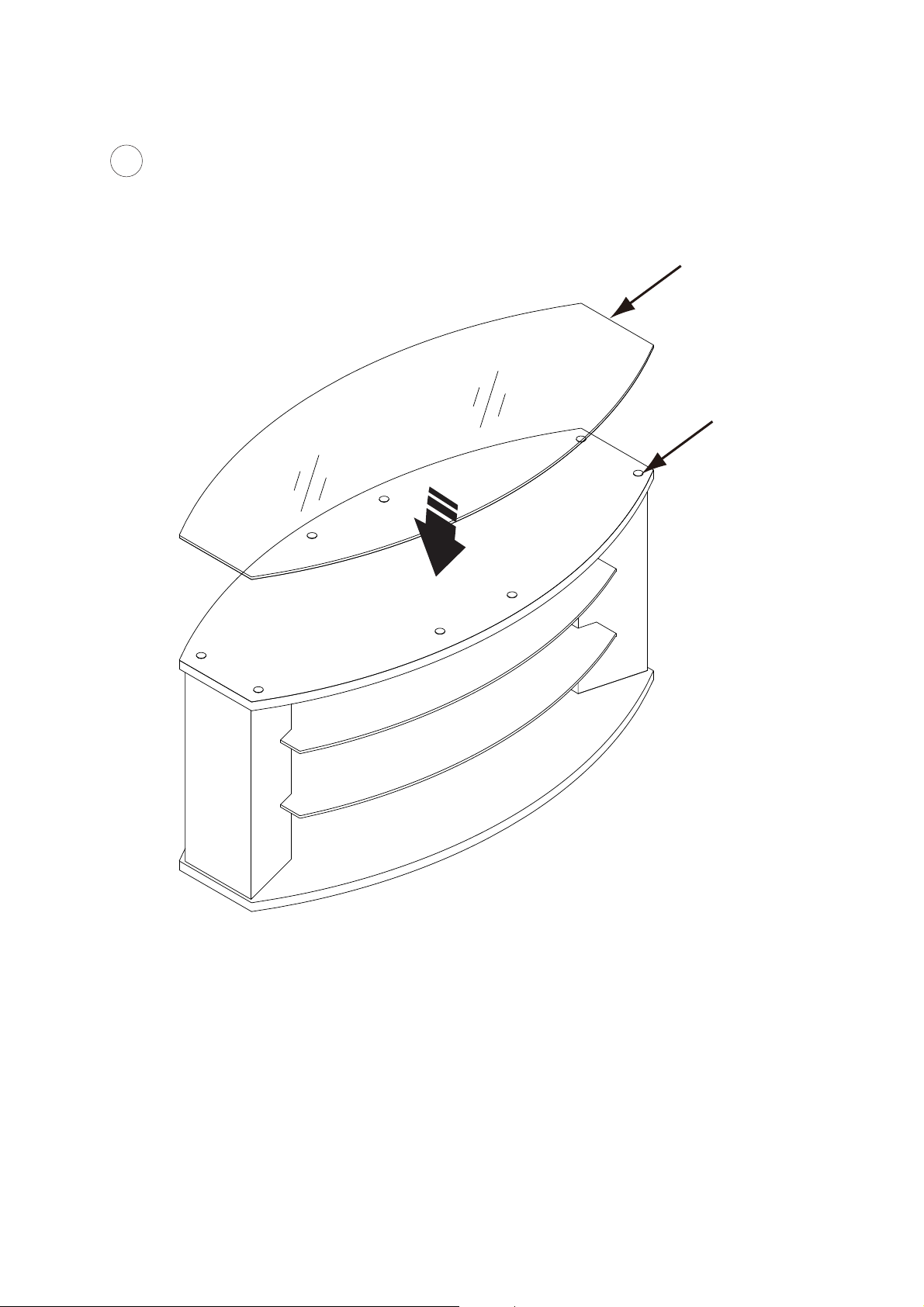

7. Place the top glass (G) on the glass protector(R).
-10-

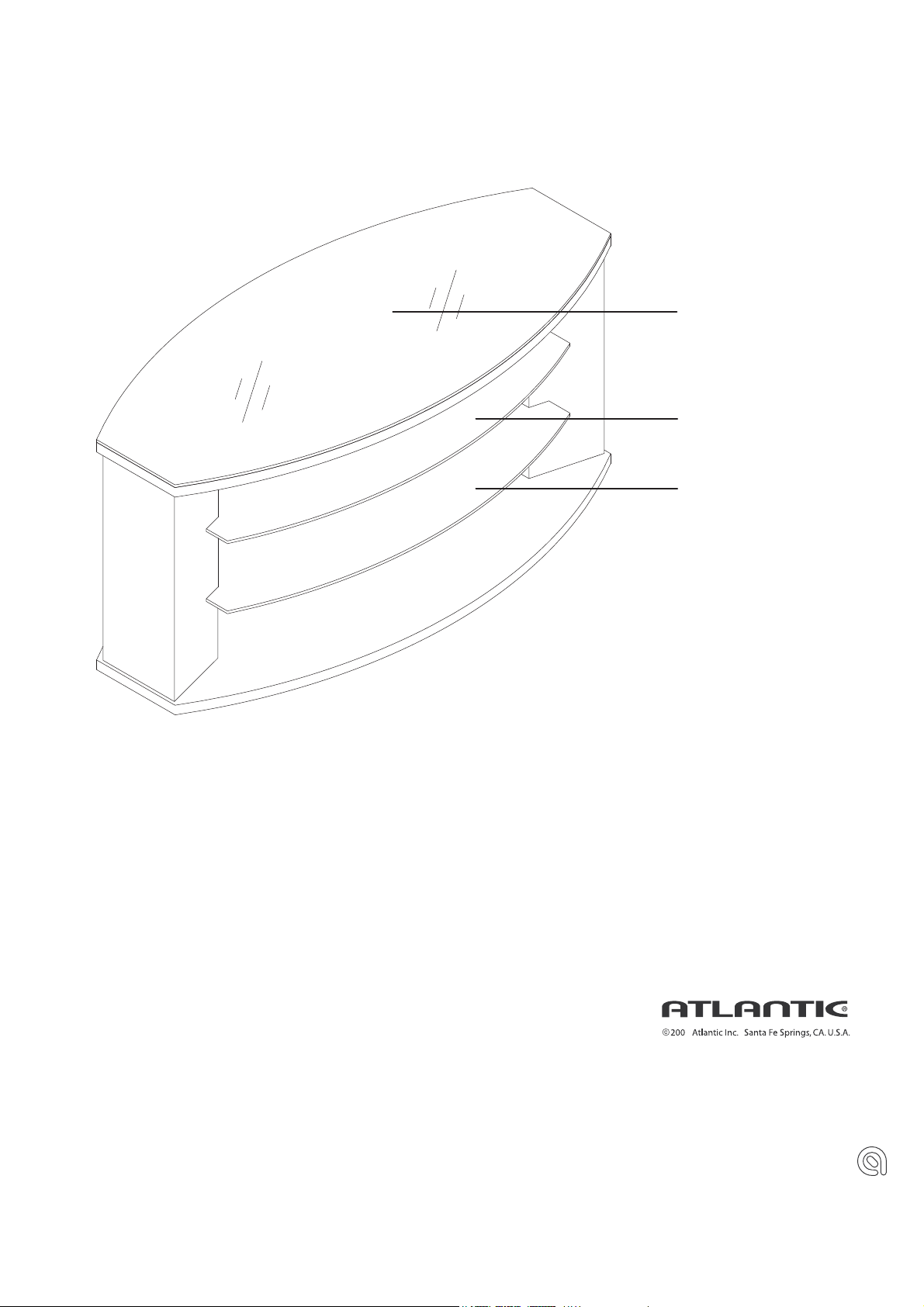

Max 100lbs
Holds PLASMA or LCD TV’s
that measure
37 to 42 inches
Max 65lbs
Max 65lbs
