ATID AT570 Users Manual
User Reference Guide (Rev1.1)
AT570
Windows CE® .NET Ruggedized PDA
ATID Co., Ltd.
PDF created with pdfFactory Pro trial version www.pdffactory.com
ATID Co., Ltd.
#1210, Byuksan/Gyungln Digital Valley II, #481-10,
Gasan-Dong, Gumchon-Gu, Seoul, Korea
Telephone: +82-2-544-1436
Fax: +82-2-2113-0040
www.atid1.com
Copyright ○c2006 ATID Co., Ltd. An Unpublished Work – All right reserved. No part of the
contents of this documentation or the procedures described there in may be reproduced or
transmitted in any form or by any means without prior written permission of ATID Co., Ltd.. or
its wholly owned subsidiaries ("ATID ").
Owners of ATID products are hereby granted a non-exclusive, revocable license to reproduce
and transmit this documentation for the purchaser's own internal business purposes.
Purchaser shall not remove or alter any proprietary notices, including copyright notices,
contained in this documentation and shall ensure that all notices appear on any reproductions
of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by
contacting ATID Customer Administration. Electronic versions may either be downloadable from
the ATID web site (www.atid1.com) or provided on appropriate media. If you visit our web site
and would like to make comments or suggestions about this or other ATID publications, please
let us know via the “ Contact ATID ” page.
Disclaimer
Reasonable measures have been taken to ensure that the information included in this manual is
complete and accurate. However, ATID reserves the right to change any specification at
anytime without prior notice.
ATID is a registered trademark of ATID Co., Ltd..
The ATID logo is a trademark of ATID . All other trademarks and trade names referred to herein
are property of their respective owners.
AT570 is a registered trademark of ATID Co., Ltd.. and of its wholly owned subsidiaries.
Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® NT, and Windows® XP
are registered trademarks of Microsoft Corporation.
2
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
Contents
Before You Begin....................................................................................6
Chap1. Using AT-570..............................................................................7
1. Introducing..........................................................................................7
1.1 Features...........................................................................................................................7
1.2 View of the PDA #1.........................................................................................................8
1.3 View of the PDA #2.........................................................................................................9
1.4 Table 1 Features Function/Description.........................................................................10
2. Power................................................................................................12
2.1 Power ON/OFF...............................................................................................................12
2.1.1 Power ON.............................................................................................................12
2.1.2 Power OFF...........................................................................................................12
2.1.3 What is idle mode?..............................................................................................12
2.1.4 Suspend mode ....................................................................................................13
2.2 Battery............................................................................................................................13
2.2.1 Checking Battery Power......................................................................................13
2.2.2 Very Low Battery Status ......................................................................................13
2.3 Removing and installing the battery..............................................................................13
2.3.1 Removing the battery ..........................................................................................13
2.3.2 Installing the battery............................................................................................13
2.4 Battery discharging........................................................................................................13
2.5 Recharging the battery..................................................................................................13
2.5.1 Using the adapter................................................................................................13
2.5.2 Using the Dock....................................................................................................14
2.6 Backup Battery ..............................................................................................................15
2.7 Disposal of the spent battery........................................................................................15
3. Setting up the AT-570.......................................................................16
3.1 Power On.......................................................................................................................16
3.2 Power Off.......................................................................................................................16
3.3 Adjusting the Brightness................................................................................................16
3.4 Calibrating the screen ...................................................................................................17
3.5 Adjusting the Volume.....................................................................................................17
3.6 Setting up the Date and Time .......................................................................................18
3.7 Power Configuration......................................................................................................18
3.8 Schemes Tab.................................................................................................................18
3.9 Memory Allocation .........................................................................................................19
4. Resetting the PDA............................................................................20
4.1 Warm Reset....................................................................................................................20
4.2 Hard Reset (cold reset).................................................................................................20

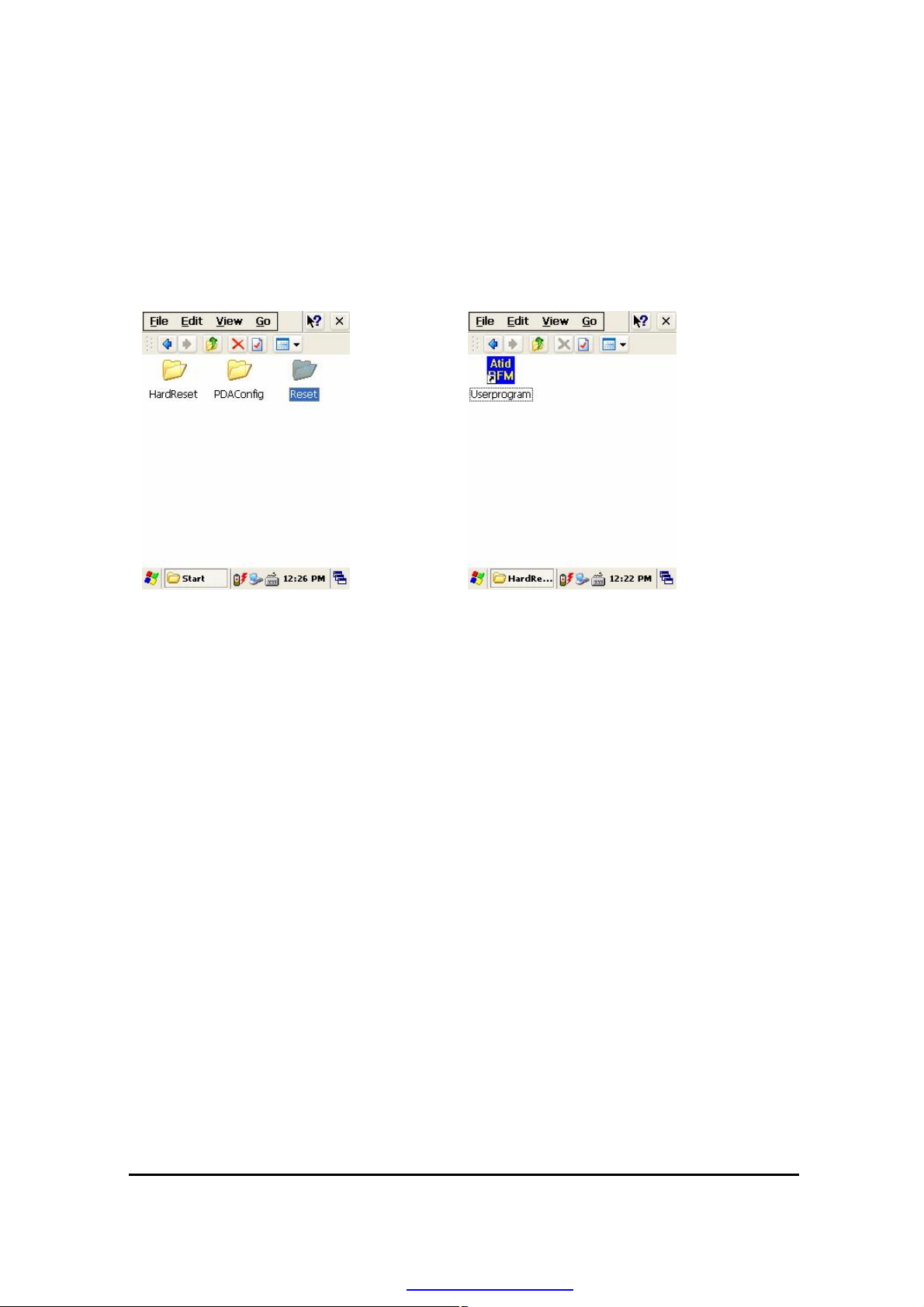

5. Flash Disk.........................................................................................21
5.1 Making user’ s program replayed automatically after a hard-reset............................21
5.1.1 Re-executing a program directly after finishing a hard-reset........................21
5.1.2 Re-executing a program directly after a warm-reset.....................................23

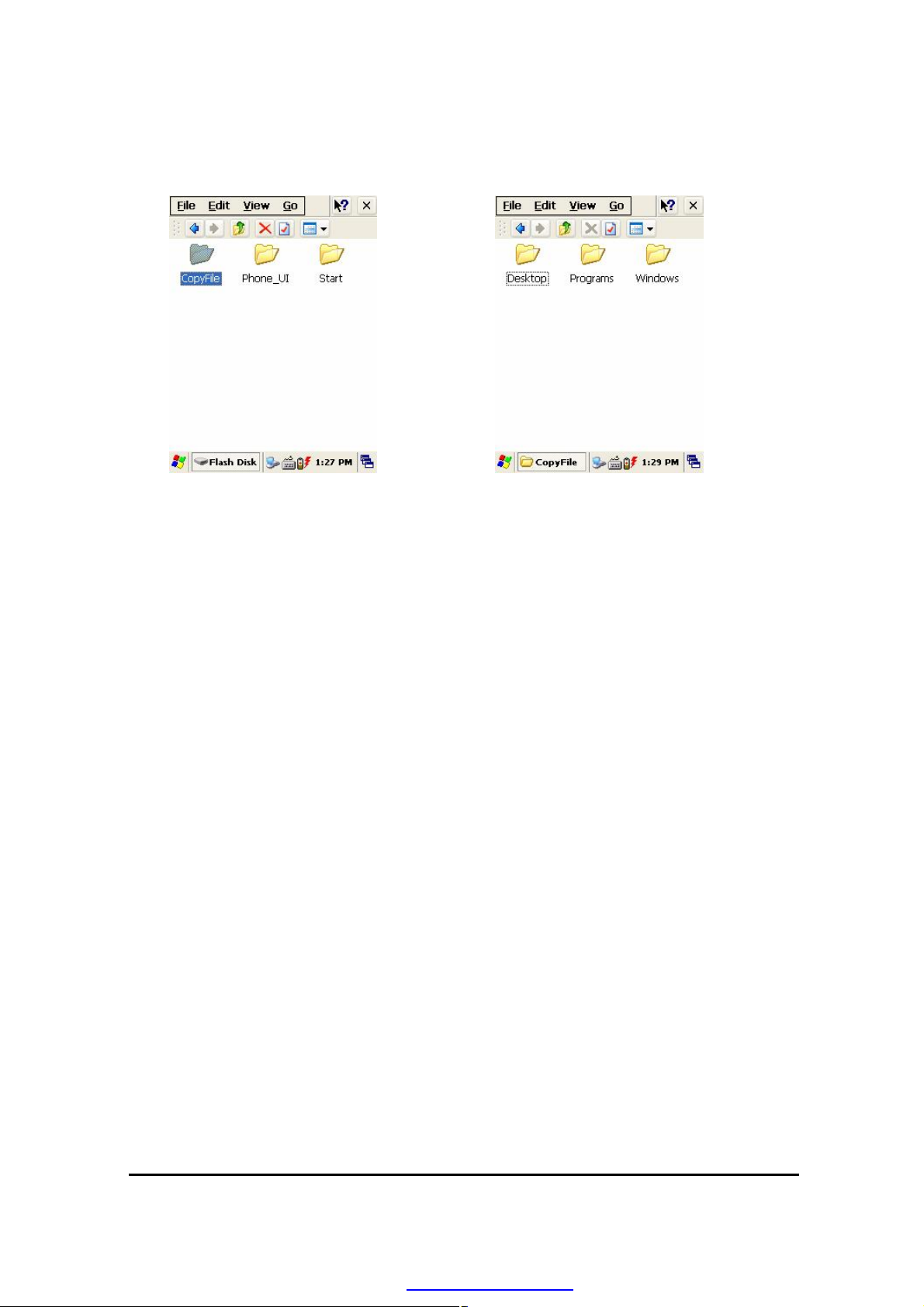

5.2 Restoring programs to the former place.......................................................................23
Quick Reference Guide
3
PDF created with pdfFactory Pro trial version www.pdffactory.com
6. Registry Backup................................................................................26
7. Using the keypad..............................................................................28
7.1 Change current character..............................................................................................28
7.2 Inputting the data ..........................................................................................................28
7.3 Setting device though the <Fn> key .............................................................................29
8. Using the stylus................................................................................29
9. Using the Hand-strap and Gun hand-held.......................................30
Chap 2. Windows Program...................................................................31
1. Basic Information..............................................................................31
1.1 Task Bar and Command Bar.........................................................................................31
1.2 Pop-up Menus...............................................................................................................32
2. Executing a Program........................................................................32
3. Entering information.........................................................................32

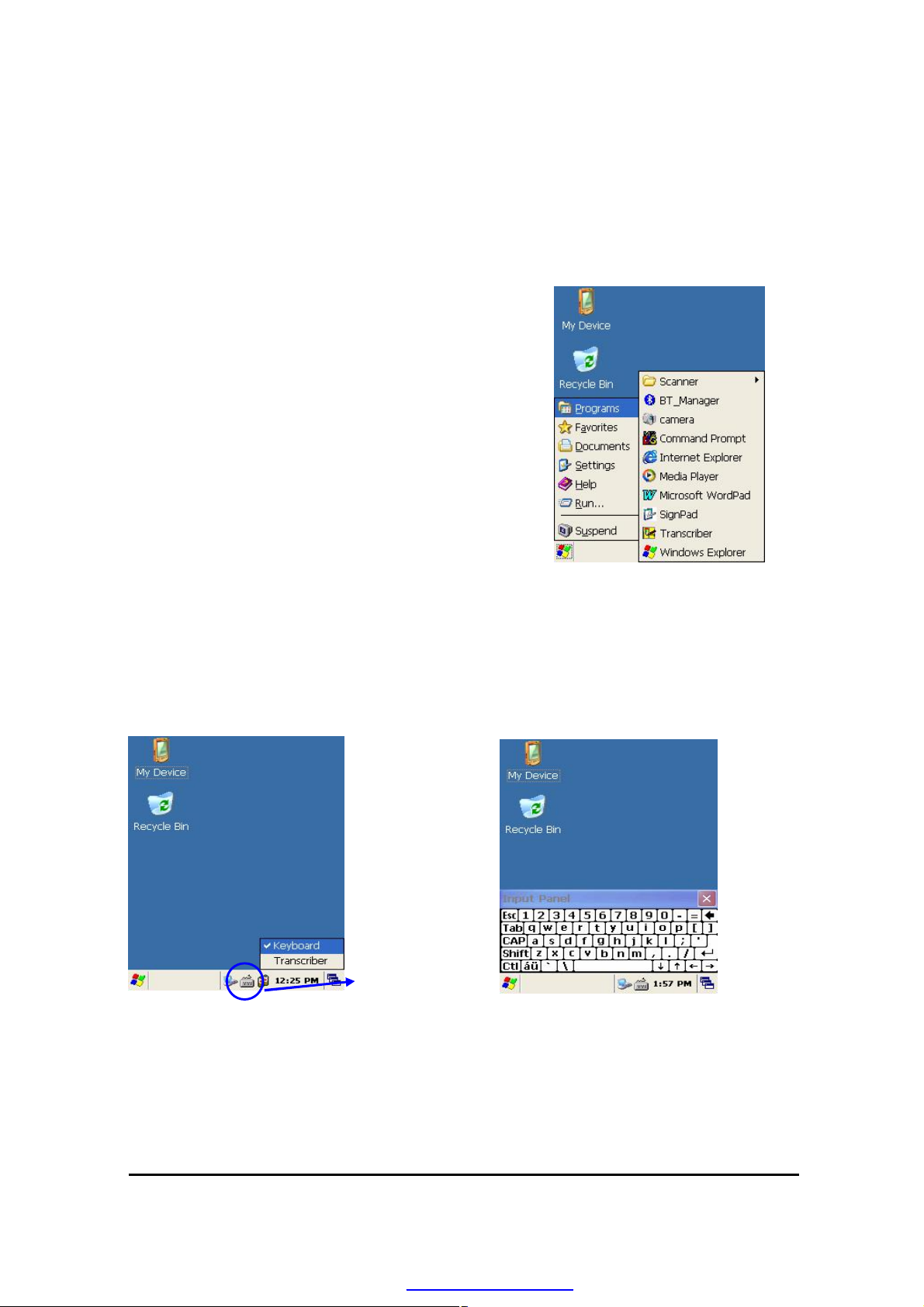

3.1 Using the Onscreen keypad..........................................................................................32
3.2 Using the Transcriber....................................................................................................33
4. Customizing Your AT-570.................................................................34
4.1 Adjust settings...............................................................................................................34
4.2 Adding or Removing the Programs ...............................................................................34
4.3 Adding the Programs Using ActiveSync.......................................................................34
4.4 Removing the Programs................................................................................................35
5. Microsoft ActiveSync........................................................................35
5.1 Using Microsoft ActiveSync...........................................................................................35
5.2 Installing Microsoft ActiveSync on your desktop..........................................................35
5.3 Setting up a Partnership................................................................................................36
5.4 Transferring Files...........................................................................................................36
6. Microsoft WordPad...........................................................................36
7. Window Media Player.......................................................................37
8. Internet Explorer...............................................................................37
9. Context Sensitive Help.....................................................................38
Chap 3. Optional Module (Version 1.1)................................................39

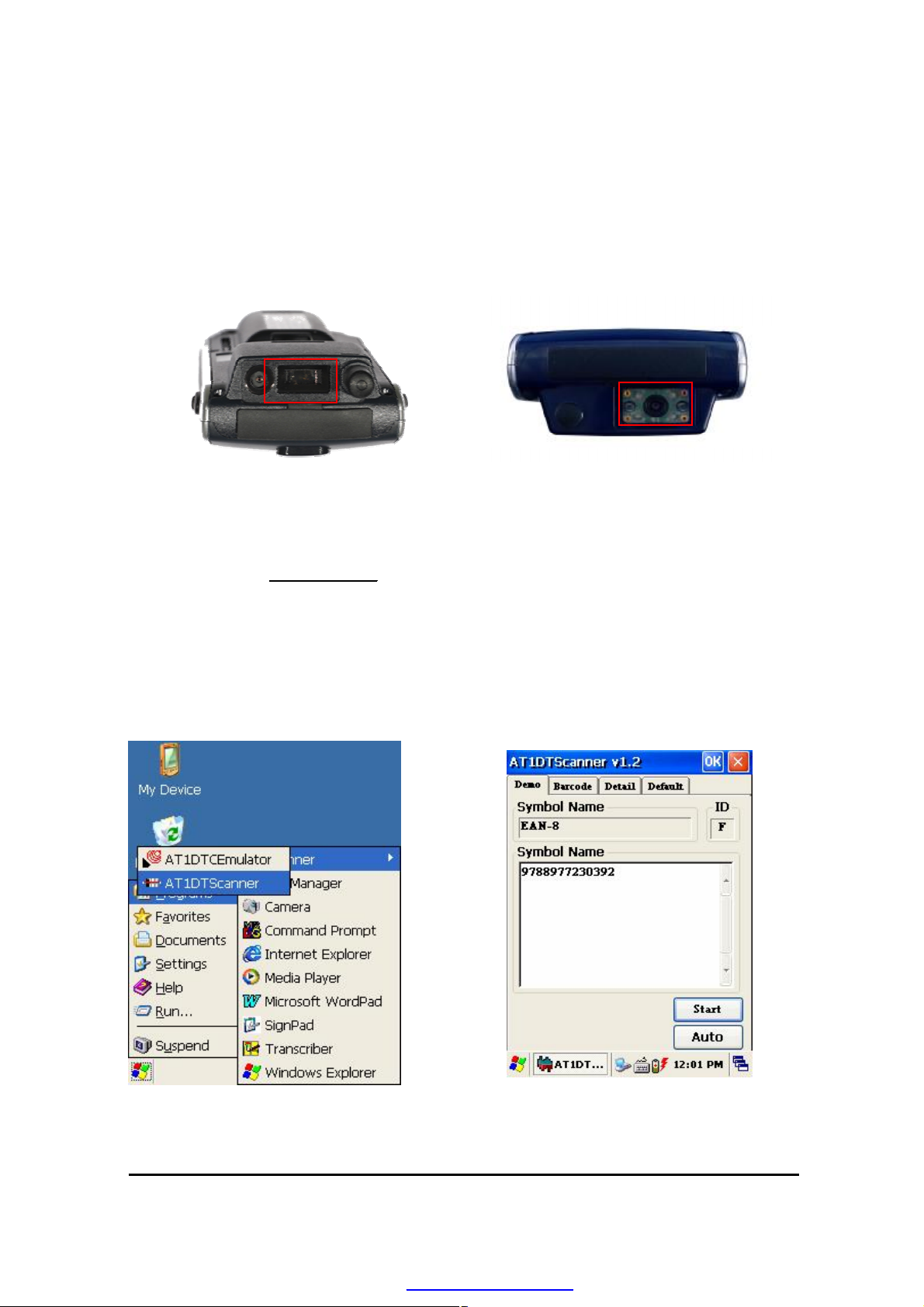

1. 1D barcode Scanner.........................................................................40
1.1 1DScanner(Demo program) ..........................................................................................40

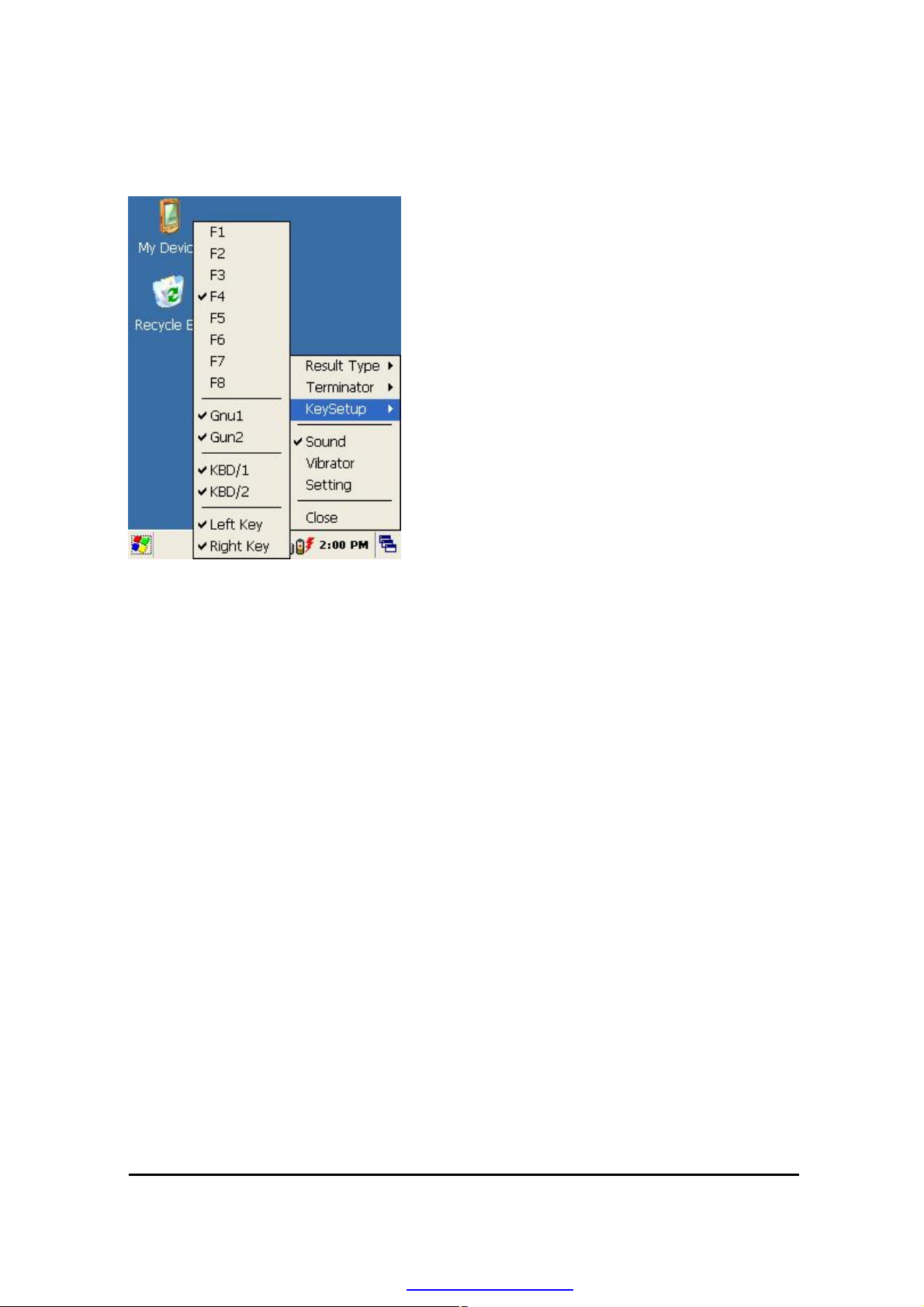

1.2 Setting up the AT1DEmulator........................................................................................43
1.3 Setting up the 1D Barcode Symbology.........................................................................45
2. 2D barcode Scanner.........................................................................47

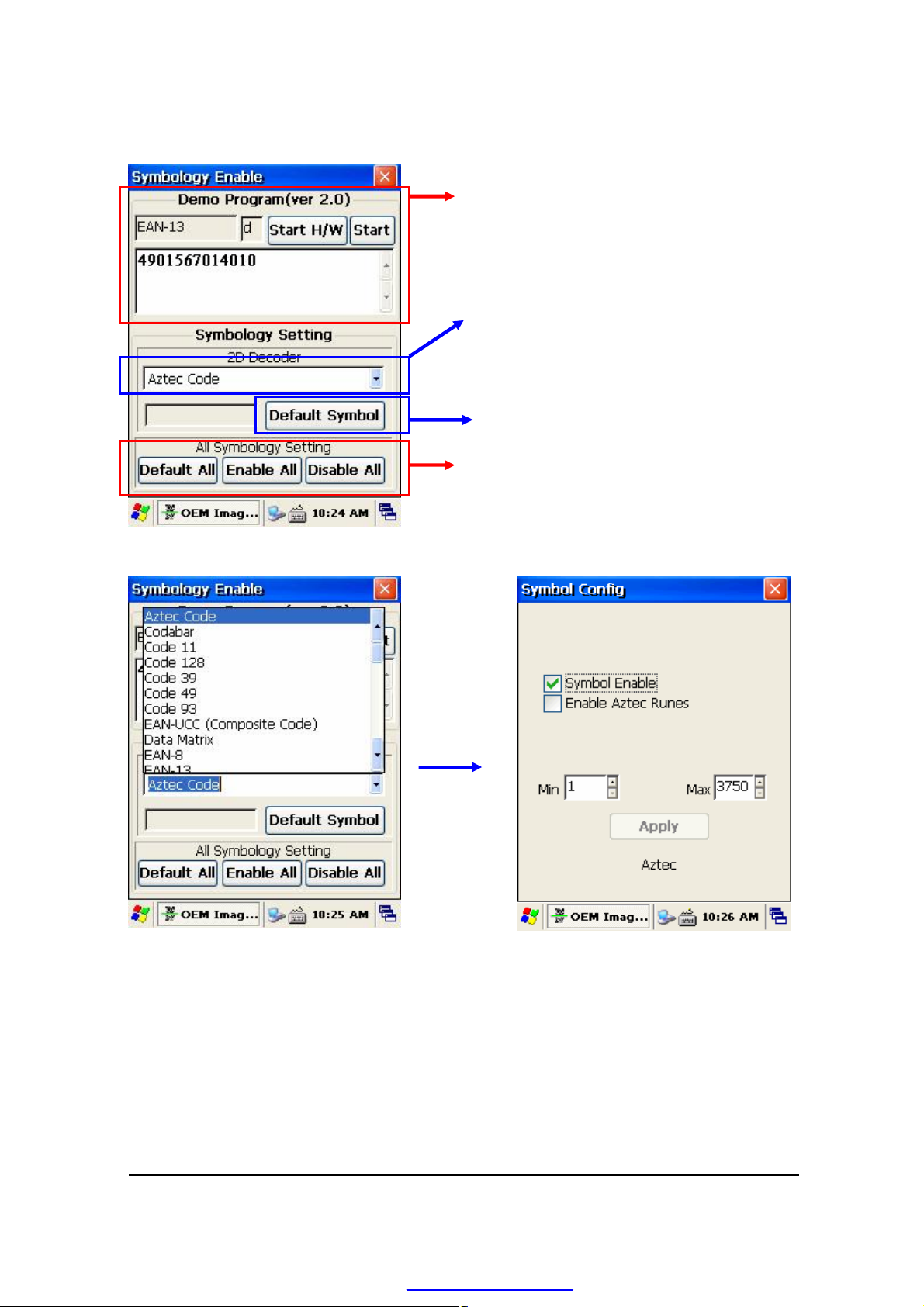

2.1 Reading 2D barcode & Symbology Setting...................................................................47
2.2 Setting the AT2DEmulator .............................................................................................49

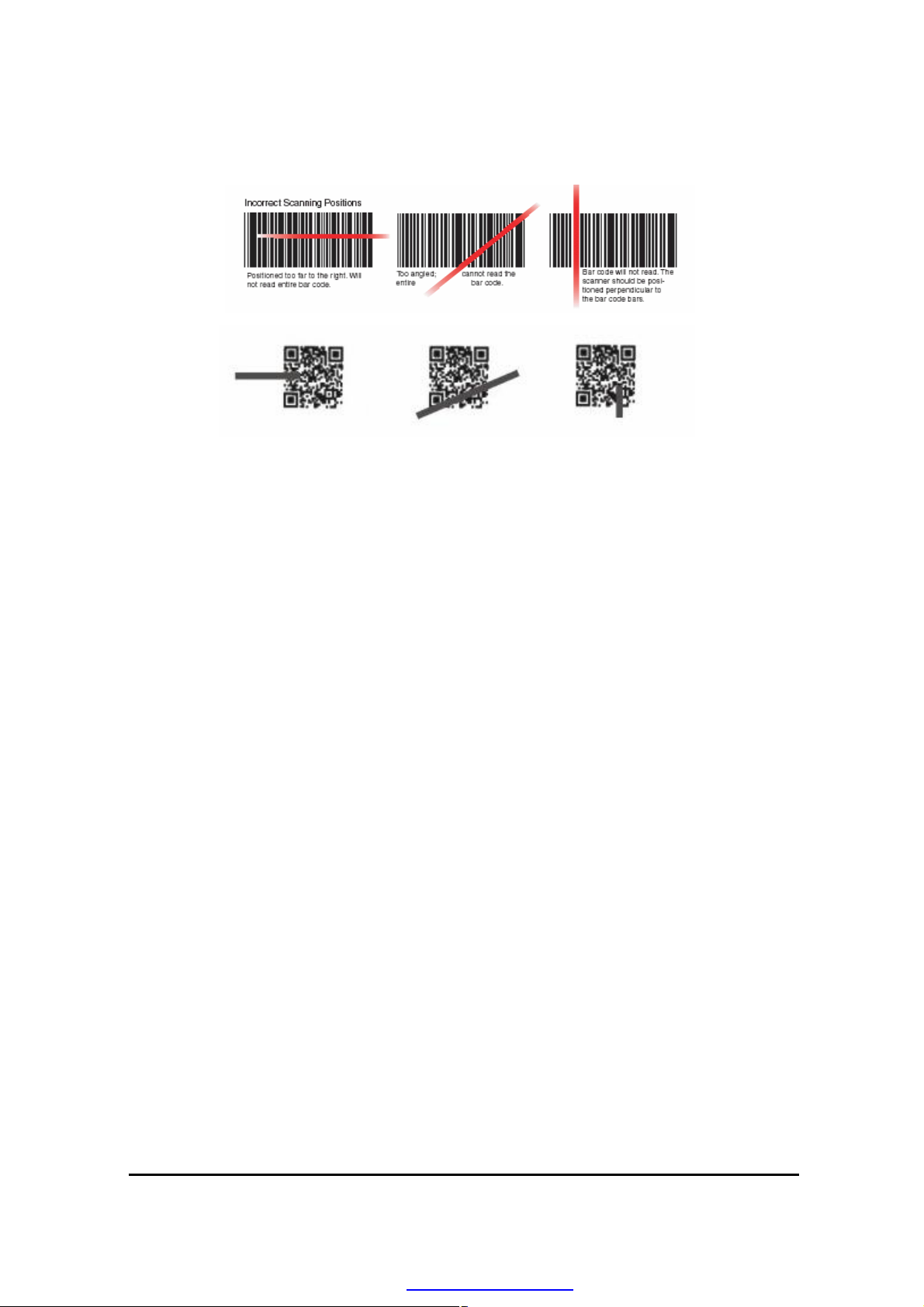

2.3 Scanning Barcode.........................................................................................................51
3. Wireless LAN....................................................................................53

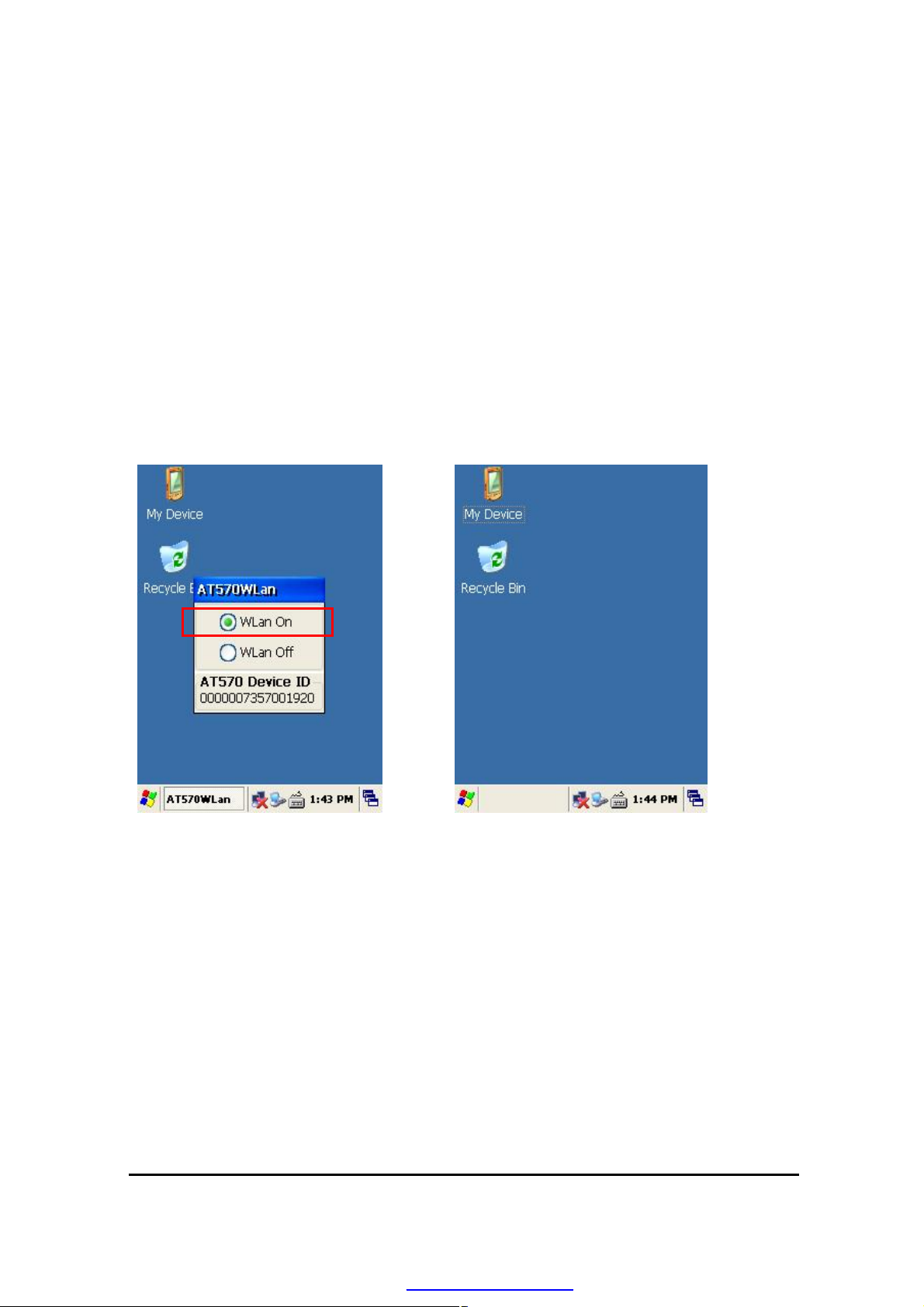

3.1 Power on Wireless LAN .................................................................................................53
3.2 IP Information ................................................................................................................54

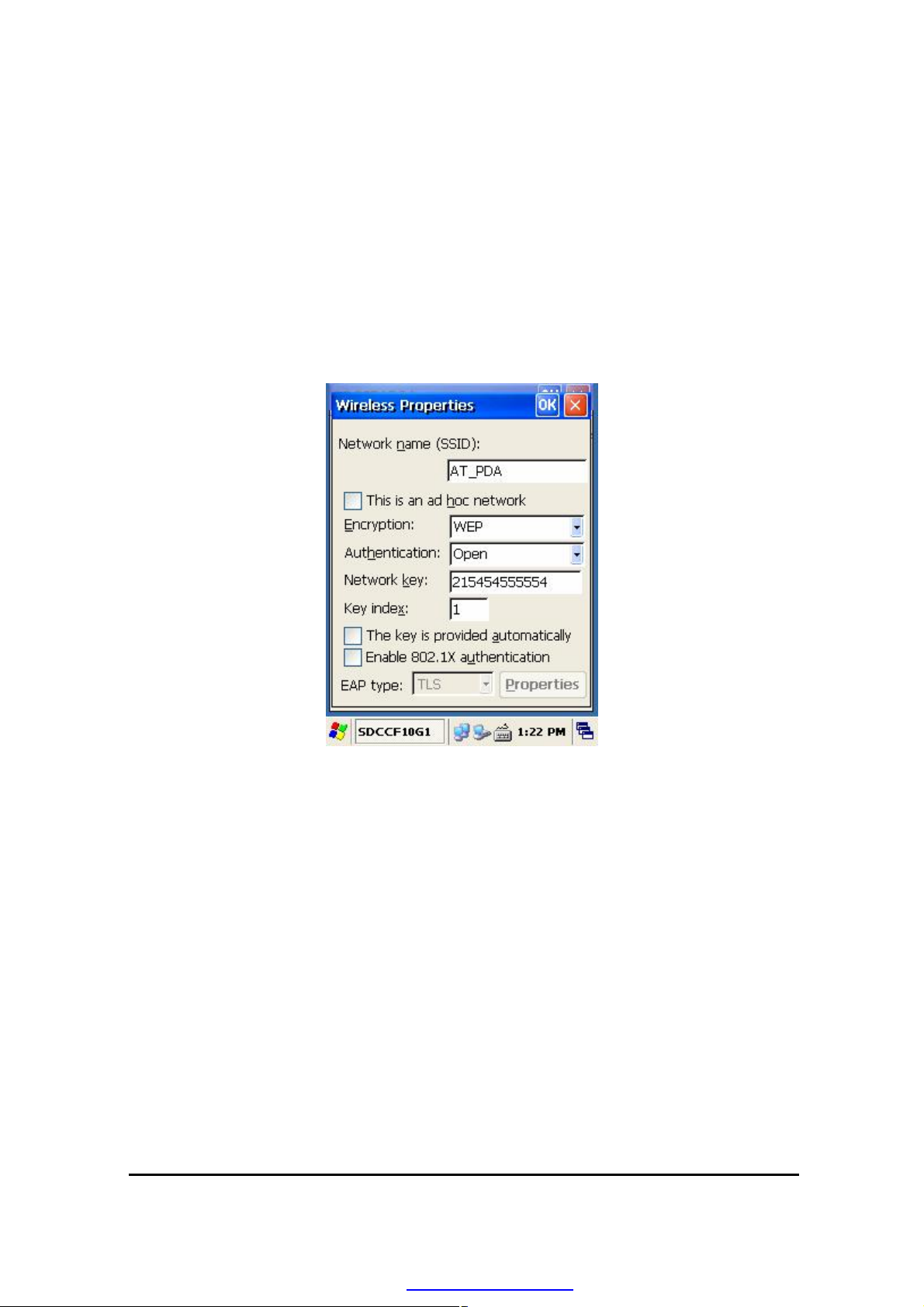

3.3 Setting manually ............................................................................................................55
3.4 Power Off Wireless Off..................................................................................................55
4. GSM/GPRS......................................................................................56
4
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
4.1 Executing Phone UI.......................................................................................................56
4.2 Phone Screen ................................................................................................................56
5. Using Camera...................................................................................58
5.1 To use your Camera: .....................................................................................................58
Quick Reference Guide
5
PDF created with pdfFactory Pro trial version www.pdffactory.com
Before You Begin
This section provides you with safety information, technical support information, and sources
for additional product information
Who should read this manual?
This manual is written for the person who is responsible for installing, configuring, and
maintaining the AT-570.
This manual provides you with information about the features of the AT570, and how to install,
configure, operate, and maintain it.
Before you work with the AT570, you should be familiar with your network and general
networking terms, such as IP address.
Safety information
Your safety is extremely important. Read and follow all warnings and cautions in this
document before you handle and operate ATID equipment. You can be seriously injured, and
equipment and data can be damaged if you do not follow the safety warnings and cautions.
WARNING
A warning alerts you to an operating procedure, practice, condition, or statement that must
be strictly observed to avoid serious injury to the person who working on the equipment
CAUTION
A caution alerts you to an operating procedure, practice, condition, or statement that must be
strictly observed to prevent equipment damage or destruction, or corruption or loss of data.
NOTICE
A notice makes you have more information while you use AT-570
6
AT570 User Reference
PDF created with pdfFactory Pro trial version www.pdffactory.com
Chap1. Using AT-570
4
2
6
3 2 5
1
This chapter introduces the AT570 Mobile Computer to enhance wireless connectivity needs
and contains hardware and software configuration to assist you in making the most out of
your AT570.
1. Introducing
The ATID AT570 mobile computer is a small, ergonomically designed mobile computer built
on the Microsoft window CE NET 5.0 operating system. The PDA uses an Intel® Bulverde
CPU and a 3.5” VGA, color Touch screen display. The PDA supports wireless LAN 802.11b/g
(embedded module) for communication.
1.1 Features
Remove all the items from the packing box, and check to make sure all the parts are present:
Figure 1. In the Packing box
1. AT570 PDA
2. Power Adaptor
3. Lithium Ion Battery Pack
4. Synchronization Cable
5. Stylus
6. Hand strap
Quick Reference Guide
7
PDF created with pdfFactory Pro trial version www.pdffactory.com
1.2 View of the PDA #1
1. LCD/Touc
h-
11. Speaker
6. Power LED/Alarm
14. KBD Key
4. WLAN ON/OFF
10. Antenna for
2. Scan key
5. Secure Digital
21. MIC
Refer to Table 1 for a list and description of the illustrated features.
screen (Display)
12. Power Key
Indicator
16. Key Pad
Figure 2. Front View
(Left & Right)
GSM/GPRS and
CDMA
17. Ear Jack
Figure 3. Side view
13.Navigation Key
15. Reset Key
22. Low
Battery LED
Alarm
8
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
1.3 View of the PDA #2
7. DC Power
Adaptor
8. USB/Serial
Port
19. Hand strap
Holder
3. Scan Window
23. Camera
Synchronization
18. Battery
Compartment
Figure 4. Top view
9. USB Host Port
Figure 5. Bottom view
20. Stylus
Figure 6. Rear view
9
Quick Reference Guide
PDF created with pdfFactory Pro trial version www.pdffactory.com
1.4 Table 1 Features Function/Description
Features Function/Description
LCD touch screen displays information and data.
1.LCD/Touchscreen
2.Scan key
(Left and Right)
3.Scan Window
4. 22.WLAN
ON/OFF display
light
5.Secure Digital
(SD) Slot
6.Power LED /
Alarm Indicator
7.DC Power
Adaptor Port
8.USB/Serial
Synchronization
Port
9.USB Host Port
10.Anttena Antenna for CDMA, GSM/GPRS etc.
11.Speaker
12.Power/ Key
13.Navigation Key
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
You can see the results of your work trough the LCD touch screen. The AT570 has a stylus
you can use to select items and inter information.
Caution: Do not use a pen, pencil, or other sharp object on the AT570’ s touch screen. Use
only the supplied stylus or plastic-tipped pens intended for use with a touch-screen
sensitive display.
Use either the right or left <Scan> button to activate the scanner and read a bar code. The
scanner starts to read the bar code. The scanner automatically turns off either when the
barcode is read, when you release the scan button, or after 10 seconds, which ever comes
first.
The scanning beam is emitted from this aperture. Aim the scanning beam at the bar code
you wish to scan.
Refer to "Scanning Bar Codes" on page 23 for more information.
It makes you know that the WLAN is on or off.
The secure digital card slot accepts a secure digital storage card. Refer to the iPC320
Product Reference
Guide for installation instructions.
When the battery pack is installed in the PDA and charging in the Dock, this LED is Red.
When the battery is completely charged, the LED changes to Green. When the LED flashes
blue, it indicates a low battery. Some applications use a blue LED to indicate an Alarm or
Error.
Connect the external power adaptor to this port to charge the battery. You must charge the
batteries for thirteen (13) hours prior to first use. Charge the battery completely.
Subsequent charge cycles require four (4) hours.
To synchronize data between a PC and the PDA, connect the USB or Serial cable with
Desktop and the PDA.
You must download and install Microsoft ActiveSync 3.7 or higher in the PC. Download
ActiveSync from the Microsoft Web site at www.microsoft.com.
The USB Host port can be used with a USB keyboard, mouse, compact flash card, and/or
Ethernet connection. When using the dock, you can use standard a USB host port to
connect USB peripherals.
The USB Host Port supports only peripherals with low power consumption.
The speaker emits the sounds from *.WAV and other media files. It can also be set to emit
beeps or tones to indicate errors or good reads when bar code scanning and inputting data
using the keypad or stylus.
Press the Power/Backlight key briefly to turn the unit on. The Backlight comes on
automatically.
Press this key again briefly to turn the unit off.
Press the edge of the 4-way navigation rocker key to move the cursor or highlighted text
entry during a menu/list selection.
• The <Up> arrow moves the cursor up one line.
• The <Right> arrow moves the cursor to the right one character.
• The <Down> arrow moves the cursor down one line.
• The <Left> arrow moves the cursor to the left one character.
10
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
Features Function/Description
14.KBD key
15.Reset Key
16.Keypad
17.Ear Port
18.Battery
Compartment.
19.Handstrap
20.Stylus
21.MIC Use it, when you are calling trough GSM
22. Low Battery
LED
For more information on each of these features, please contact Q&A of ATID Home (www.ATID1.com).
KBD key executes input panel (SIP)
Press again, input panel (SIP) disappears
Use (R/S) button located on the Keypad of PDA to perform a soft and hard reset.
Please refer to the section 4 – Resetting the PDA.
Use the alpha-numeric, function, and navigation keys on the keypad to enter numbers,
letters, symbols and navigate. For details on each key in the keypad, please refer to the
section 7 - Using the Keypad.
Connect the Ear/Microphone to listen to audio files using the media player, or communicate
with others using an application such as GSM.
Insert battery charged fully in this compartment.
The PDA comes with the hand strap, which is easily removable to access features and can
be replaced by an ergonmically designed handle.
Use the stylus for navigation, on the soft input panel (SIP), and to select items on the touch
screen. It is a good idea to replace the stylus in the holder after each use so you don’ t lose
or misplace it.
The battery becomes red and blinks automatically, when it is in the “ low Battery Status”
Quick Reference Guide
11
PDF created with pdfFactory Pro trial version www.pdffactory.com
2. Power
This section introduces the power system of AT570 such as power switch and battery.
2.1 Power ON/OFF
2.1.1 Power ON
1. Press power key, the AT570 and the backlight will be on.
2. To save power and prolong the battery, the screen gets to be off, when the AT570
goes into idle mode. And it is easy to resume activity. Just tap the screen or press
any key on the keypad.
2.1.2 Power OFF
1. Press power key, you actually suspend the AT570 and turn off the display and
backlight.
2. The other method: Tap start > Suspend
2.1.3 What is idle mode?
It is the period that computer goes on without any activity for a long time, but it doesn’ t
have influence on data
You can set up the idle mode and the PDA will go into the idle mode automatically after the
interval that you set goes to the end. It helps you prolong your battery life. If you want to
restart your AT-570 while the PDA goes into idle time, tap anywhere on the screen.
To change the time into idle mode
Tap Start > Setting > Control Panel > Power
Figure 1. Setting Idle time
12
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
2.1.4 Suspend mode
1. When you do not use AT-570 for a long time, make your AT-570 go into the suspend
mode for saving power.
2. If you want to restart your AT-570, press power key.
2.2 Battery
AT570 uses replaceable 4400 mAh, Li-ion batteries.
If the battery continues to drop to the “ Low Battery Status” , the battery status LED
becomes red and blinks. You need to recharge the battery.
2.2.1 Checking Battery Power
You can check the battery status by using the power applet.
Tap Start > Settings] > Control panel > Power
The power control panel applet displays a battery power gauge.
2.2.2 Very Low Battery Status
To prevent the AT570 from being discharged completely, your AT-570 will be suspended,
when the battery continues to get low. You need to recharge your battery before the battery
continues to drop.
2.3 Removing and installing the battery
2.3.1 Removing the battery
At first, pull out the hand scrap and then press the battery latch to the above until the battery
is released from the AT570, then lift it out.
2.3.2 Installing the battery
Insert the bottom of battery into the sunken place located in battery compartment, and press
the battery latch to the above until the battery is installed completely.
2.4 Battery discharging
Several factors determine the life of your battery such as extreme temperatures, input devices,
and your usage, but generally you can use AT-570 for 6~12hours.
If the AT-570 is not on external power and battery pack is removed, it will enter suspend
mode.
2.5 Recharging the battery
Use the adapter provided from ATID to recharge your battery.
Caution
Your AT-570 can be damaged, in case of using the adapter that is not provided from ATID.
2.5.1 Using the adapter
The charge/operating power can be applied to AT-570 by using DC adapter.
1. Connect the adapter to the power cord.
2. Connect the DC power jack to the AT-570.
3. When the battery is charging, the LED becomes red.
Quick Reference Guide
13
PDF created with pdfFactory Pro trial version www.pdffactory.com
Figure 2. Using the adapter to recharge
2.5.2 Using the Dock
The Dock is for charging AT570, and the dock is one of which also can act as a
communication port.
Figure 3. Using the Dock to recharge
CAUTION
Make sure the AT570 is firmly seated in the dock, charger, or power adaptor.
If it is not firmly seated, battery charging and communication with the Host PC will NOT be
initiated.
14
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
2.6 Backup Battery
The backup battery in the PDA is a 200mAh rechargeable battery that holds system data at
least 2 hours without main battery.
CAUTION
If you remove the battery or the battery completely discharges, there is a two(2)hour window
in which to insert a charged battery before the backup battery completely discharges and the
contents of the RAM memory are lost. It is a good idea to keep your data and applications in
Flask Disk for that reason. Refer to “ Flash Disk” for more information.
If both the battery pack and the backup battery are allowed to discharge completely, you
must recharge both batteries for thirteen (13) hours.
The backup battery is charged off the battery pack, so it is important to keep the battery pack
with at least a minimal charge so the unit can maintain date, time, data, and other settings.
2.7 Disposal of the spent battery
When the battery reaches the end of its useful life, the spent battery must be disposed by a
qualified recycler or material handler
Warning
Do not mix the spent battery with the solid waste stream and keep away from children.
Quick Reference Guide
15
PDF created with pdfFactory Pro trial version www.pdffactory.com
3. Setting up the AT-570
This section describes the basic information for setting your AT-570.
3.1 Power On
Press the Power key briefly to turn on the PDA. The Backlight comes on automatically. Press
this key again briefly to turn off the PDA. To turn off the Backlight while the PDA goes on,
press and hold the key for at least a second. This key acts to toggle the Backlight function off
and on.
Desktop: The figure at the right shows the
desktop display, or main screen.
3.2 Power Off
To turn the PDA off, press the Power key again.
This action suspends the device, but does not
actually turn it off. All running applications remain as
you left them until you press the Power key
again to resume operation of the device.
Figure 1. Background Screen
3.3 Adjusting the Brightness
The AT-570 manufactured at the factory keeps 80% brightness, but because of several
reasons such as dark environment or user’ s condition of eyesight, and above all, the
illumination consumes much power, so that the users want to adjust the backlight.
To adjust backlight:
Tap Start > Settings > control panel > backlight
Level: you can adjust the brightness
Backlight: you can adjust the entry time into idle
mode when use AT-570 with battery power
or external power.
Figure 2. Adjusting Brightness
16
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
3.4 Calibrating the screen
According to user’ s personal treatment, and activity, applications installed in the AT-570
need to be set up after purchasing it.
Calibrating the Touch Screen
Thought the screen is already calibrated, but if you
have feeling that your screen isn’ t responding
properly to your tap, you can recalibrate it again.
To recalibrate the screen
Tap start > Settings > Control panel > Stylus
> Calibration > Recalibration
Press and briefly hold stylus on the center
of target, and repeat 5 times as the target
moves around the screen. The screen counts
30 seconds after calibrating, and you can
finish the recalibration to touch screen
wherever you want. If you did not have any action, the
screen will automatically finish the recalibration of itself.
Figure 3. Recalibrating
3.5 Adjusting the Volume
Volume & Sounds
Your AT-570 manufactured at factory is set at the maximum volume, so you can adjust the
volume if you need suitable sound.
To adjust Volume & Sounds
Tap Start > Settings > Volume & Sounds
Volume tap: tap to adjust Volume
Sounds tab: tap to set the imitated sounds
Figure 4. Adjusting volume
Quick Reference Guide
17
PDF created with pdfFactory Pro trial version www.pdffactory.com
3.6 Setting up the Date and Time
Date & time
You can set the current time located at the bottom
of screen.
Tap Start > Settings > Control Panel
> Date & Time
Year: Select the year, then the spin control appears.
Try to set the year though the navigation key or
up/down button.
Month: Select the month directly, then the full months
of one year appear. Try to select the correct month.
You can also select the month though the left/right key.
Day: Just tap a day in the calendar.
Time: you can set the time though the up/down button.
Figure 5. Date/Time
If you set the time zone one time, you can set the correct local time easily by changing the
location into where you are.
3.7 Power Configuration
To adjust power management settings,
Tap Start > Settings > Control Panel > Power
Use this control panel to check the charge on the
battery or to change the Power settings.
Battery Tab
Battery tap: It shows the power remained in the main
battery and the backup battery.
To exit, press OK from the command bar, or press
the <Enter> key on the keypad.
Figure 6. Battery status
3.8 Schemes Tab
It allows you to determine the entry time of user’ s idle
mode, system idle mode, and suspend mode while
you use either main battery or AC power. This will
helps you to save more power, if you have to move
repeatedly on your work.
To exit, press OK from the command bar, or press the
<Enter> key on the keypad.
Figure 7 . Schemes Tap
18
PDF created with pdfFactory Pro trial version www.pdffactory.com
AT570 User Reference
