USER MANUAL

ATEQ D520

Version 1.32

Reference: UM-22100H-U

Page 2

Page 3

REVISION OF THE D520 USER MANUAL

Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice.

Edition/

Revision

Reference

Date

(week/year)

Chapters updated

First edition UM-22100A-U 22/2003 -----

Second edition UM-22100B-U 10/2004

ll chapters. Evolution of the programme from the 1.00 to 1.10 version. Integration of two capillaries. Addition of the "Single CAL" and "No negative" functions, version "High precision".

Third edition UM-22100C-U 41/2004

Evolution of the program version from the

1.10 to the 1.20. Add "High precision" function, electronic regulator instruction recover function and pressure filtering.

Fourth edition UM-22100D-U 08/2005

Evolution to the 1.21 version: gas version (option).

Fifth edition UM-22100E-U 38/2009

Evolutions to the 1.32 version, add the "Sequence" function, add bar code option and add flow regulation function.

Sixth edition UM-22100F-U 47/2009

Preamble: add 1 l/h and 80 l/h capillary, correction of the principle scheme for the indirect measurement (recovery).

Seventh edition UM-22100H-U 02/2012

Chapter 4: modification of the sequences management and up dating the bar code function. H indices to be the same as the French version.

Page 4

Page 5

Recommendations for leak testing

instruments

0039/Ret-U

Precautions for the test environment

• Keep the test area as clean as possible.

Precautions for the operators

• ATEQ recommends that the operators using the instruments should have a suitable qualification and training with respect to the work bench requirements.

General precautions

• Read the user manual before using the instrument,

• all electrical connections to the instrument must be equipped with a safety

system (fuse, circuit breaker…) appropriate to its needs and complying with the standards,

• to avoid electromagnetic interference, the cable connections to the instrument should be less than two meters in length,

• it is essential that the electrical main is earthed,

• disconnect the electrical connections to the equipment before maintenance,

• cut the air supply for any kinds of operation on the pneumatic assembly,

• do not open the instrument when it is powered up,

• avoid water spillage near of the instrument,

• ATEQ is at your disposal for any further information concerning the use of the

instrument under maximum safety conditions.

We would like to bring to your attention that ATEQ will not be held responsible for any accident connected to the improper use of the instrument, to the work bench or to the lack of compliance with safety rules.

ATEQ Company is free from any responsibility for any adjustment of its instrument which would not have been done by its own technicians.

The ATEQ cannot be held responsible if the instrument (program, mechanics or electronics) has been modified without prior written consent.

Page 6

Page 7

SAV-Uc/0650

ATEQ, THE ASSURANCE OF A COMPETENT AFTER SALES

SERVICE

 THE ATEQ AFTER SALES SERVICE IS :

• a team of qualified technicians,

• a permanent telephone assistance,

• agencies close to you for faster reaction,

• a stock of spare parts available immediately,

• a car fleet for rapid intervention,

• a commitment to quality ...

 THE OVERHAUL ATEQ carries out the overhaul of your instruments at interesting prices. The overhaul corresponds to the maintenance of the instrument (checking, cleaning, replacing of used parts) as part of preventive maintenance. Preventive maintenance is the best way to guarantee reliability and efficiency. It allows the maintenance of a group of instruments in good operational order and prevent eventual break-downs.

 MAINTENANCE KITS The ATEQ After Sales Service proposes, two kits destined for the preventive maintenance of the pneumatic circuits of instruments.

 CALIBRATION This may be carried out on site or in our offices. ATEQ is attached to the COFRAC and delivers a certificate following a calibration.

 TRAINING COURSES In the framework of partnership with our customers, ATEQ offers two types of training in order to optimise the usage and knowledge of our instruments. They are aimed at different levels of technician:

• method / control training,

• maintenance / upkeep training.

 A TARGETED TECHNICAL DOCUMENTATION A number of technical documents are at your disposal to allow you to intervene rapidly in the event minor breakdowns:

• problem sheets describing and offering solutions to the main pneumatic and electronic problems,

• several maintenance manuals.

 A QUALITY GUARANTEE The instruments are guaranteed for parts and labour in our offices:

• 2 years for leak detection equipment,

• 1 year for electrical tests to norms instruments,

• 1 year for the accessories.

Our After Sales Service is capable of rapidly answering all your needs and queries.

We strongly recommend to send the instrument

back to ATEQ once a year for re-calibration

Page 8

Page 9

0650/PREFd-U

PREFACE

Dear Customer,

You have just purchased an ATEQ instrument, we thank you for the trust you have placed on our brand. This instrument has been designed to ensure a long and unparalleled life expectancy, and we are convinced that it will give you complete satisfaction during many long years of operation.

In order to maximise the life expectancy and reliability of your ATEQ instrument, we recommend that you install this instrument on a secured workbench and advise you to consult this manual in order to familiarise yourself with the functions and capabilities of the instrument.

Our ATEQ After Sales Service centre can give you recommendations based on your specific operation requirements.

ATEQ

Page 10

Page 11

Table of contents

UM-22100H-U User manual ATEQ D520 Page 1/122

TABLE OF CONTENTS

PREAMBLE 5

1. DEFINITION OF THE ATEQ D520 ......................................................................................................5

2. CHARACTERISTCS OF THE MEASUREMENT ................................................................................6

2.1. Pressure drop measurement........................................................................................................6

2.2. Test pressure measurement ........................................................................................................6

2.3. Mechanical pressure regulation ...................................................................................................6

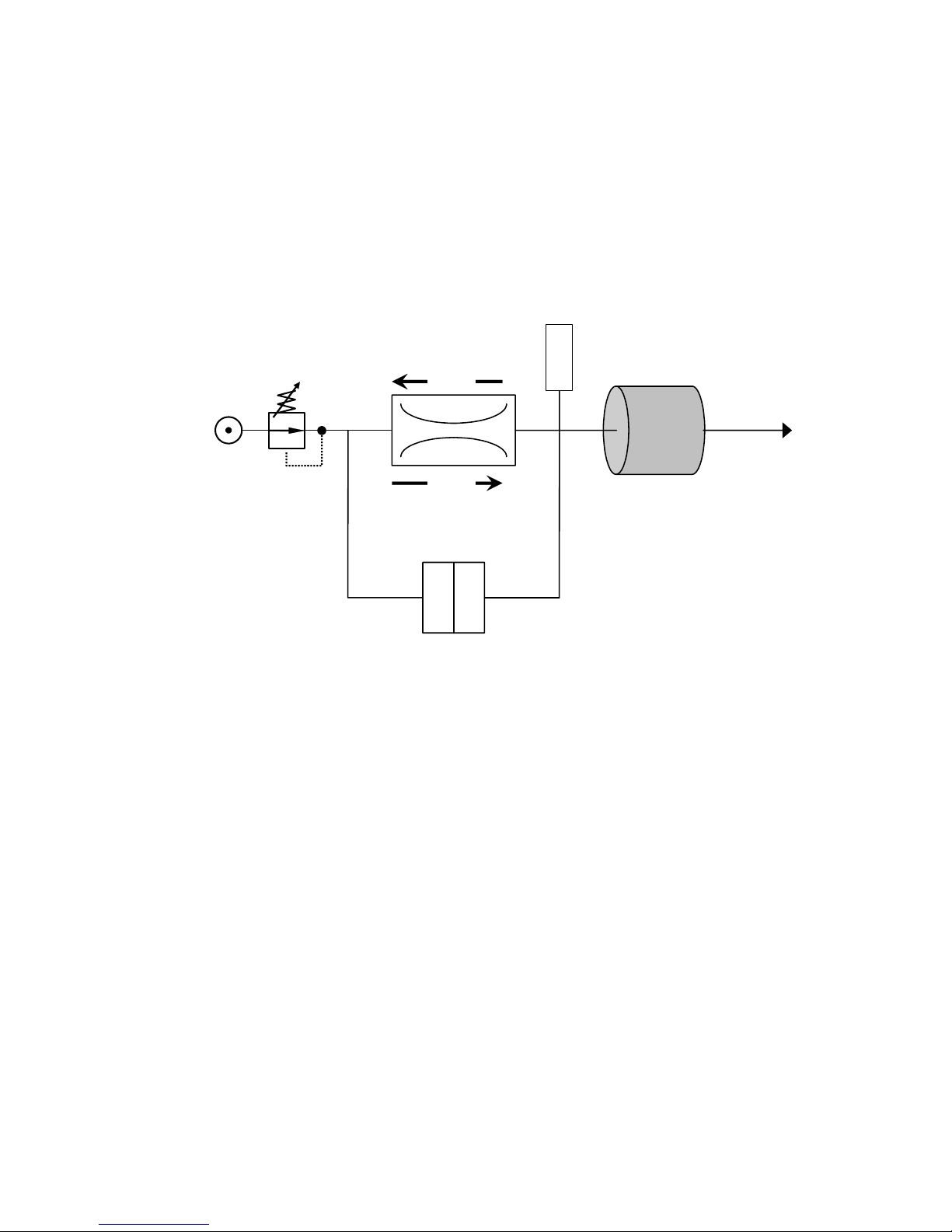

3. THE DIFFERENT MEASUREMENT PRINCIPLES.............................................................................7

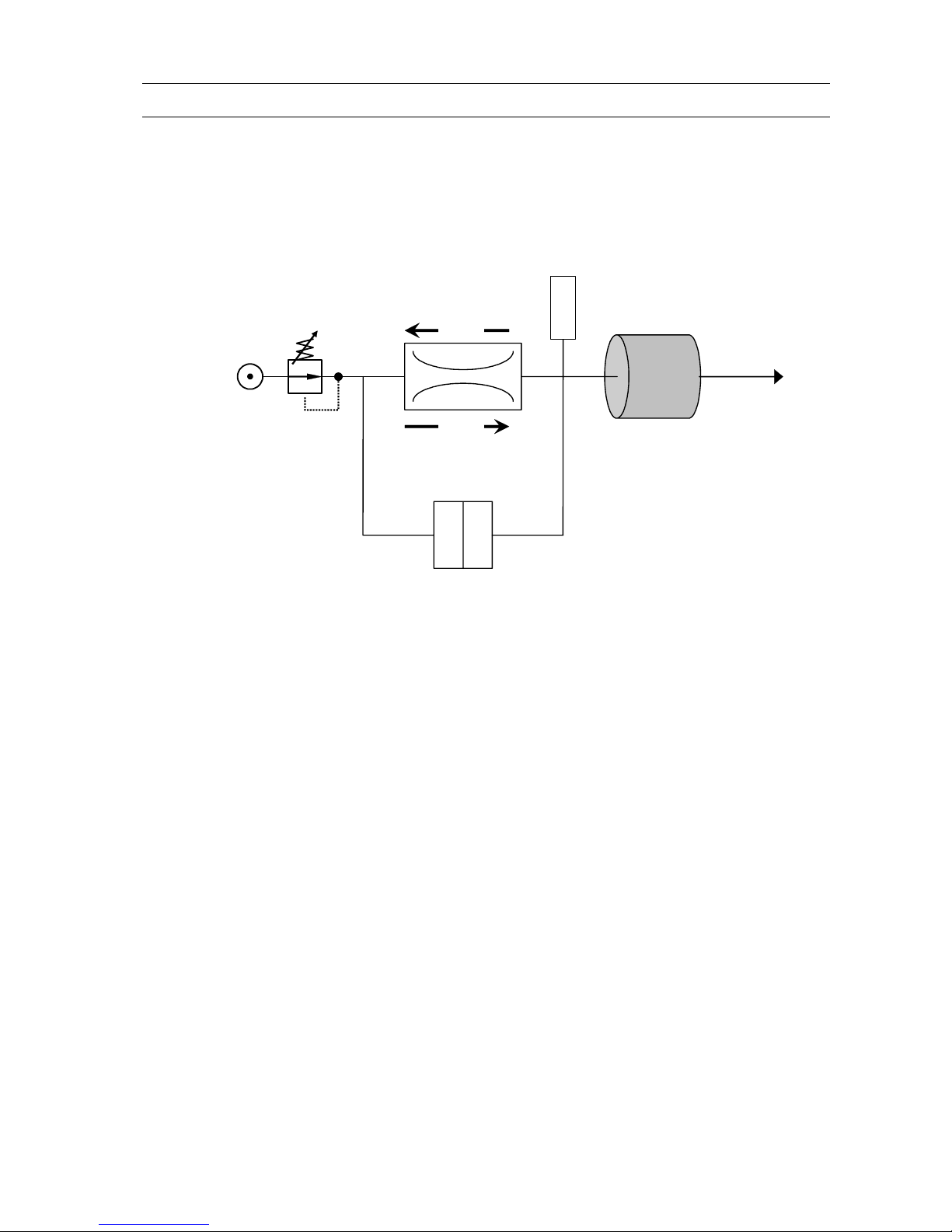

3.1. Direct measurement.....................................................................................................................7

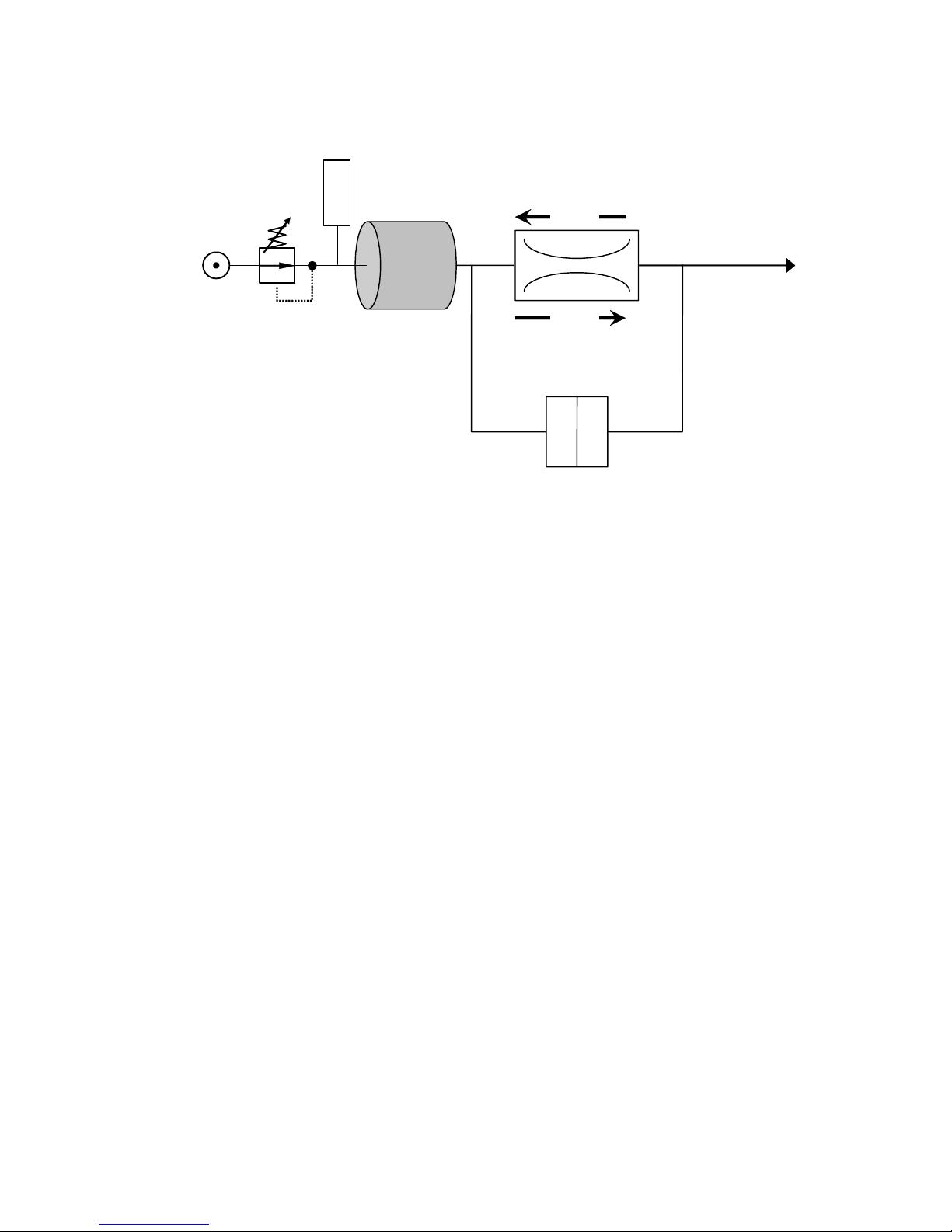

3.2. Indirect measurement (or recovery mode)...................................................................................8

4. PRESSURE, TEMPERATURE & VISCOSITY EFFECT ON THE MEASUREMENT .........................9

4.1. Pressure variation ........................................................................................................................9

4.2. Viscosity and temperature variation.............................................................................................9

5. CALIBRATION...................................................................................................................................10

5.1. Factory calibration......................................................................................................................10

5.2. Manual calibration ......................................................................................................................10

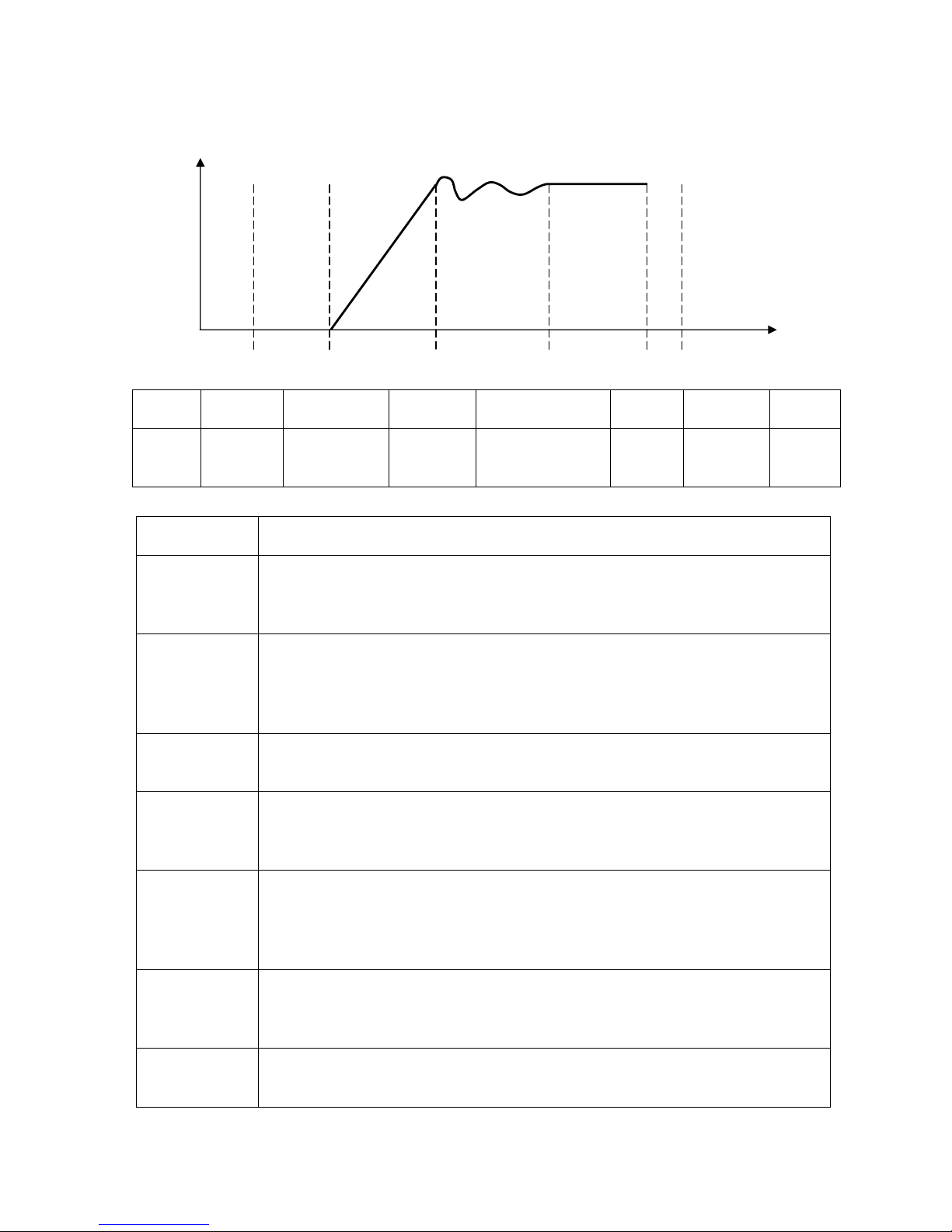

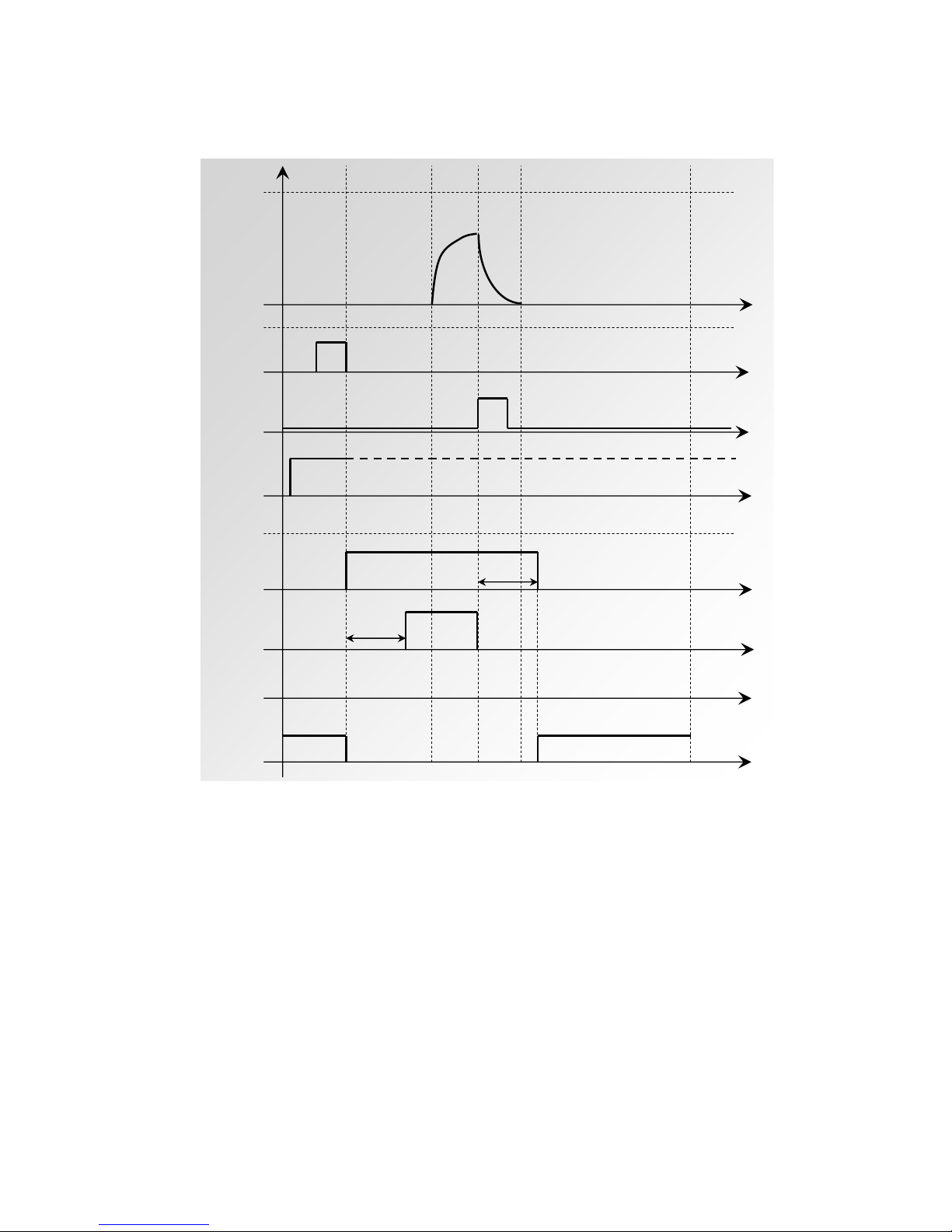

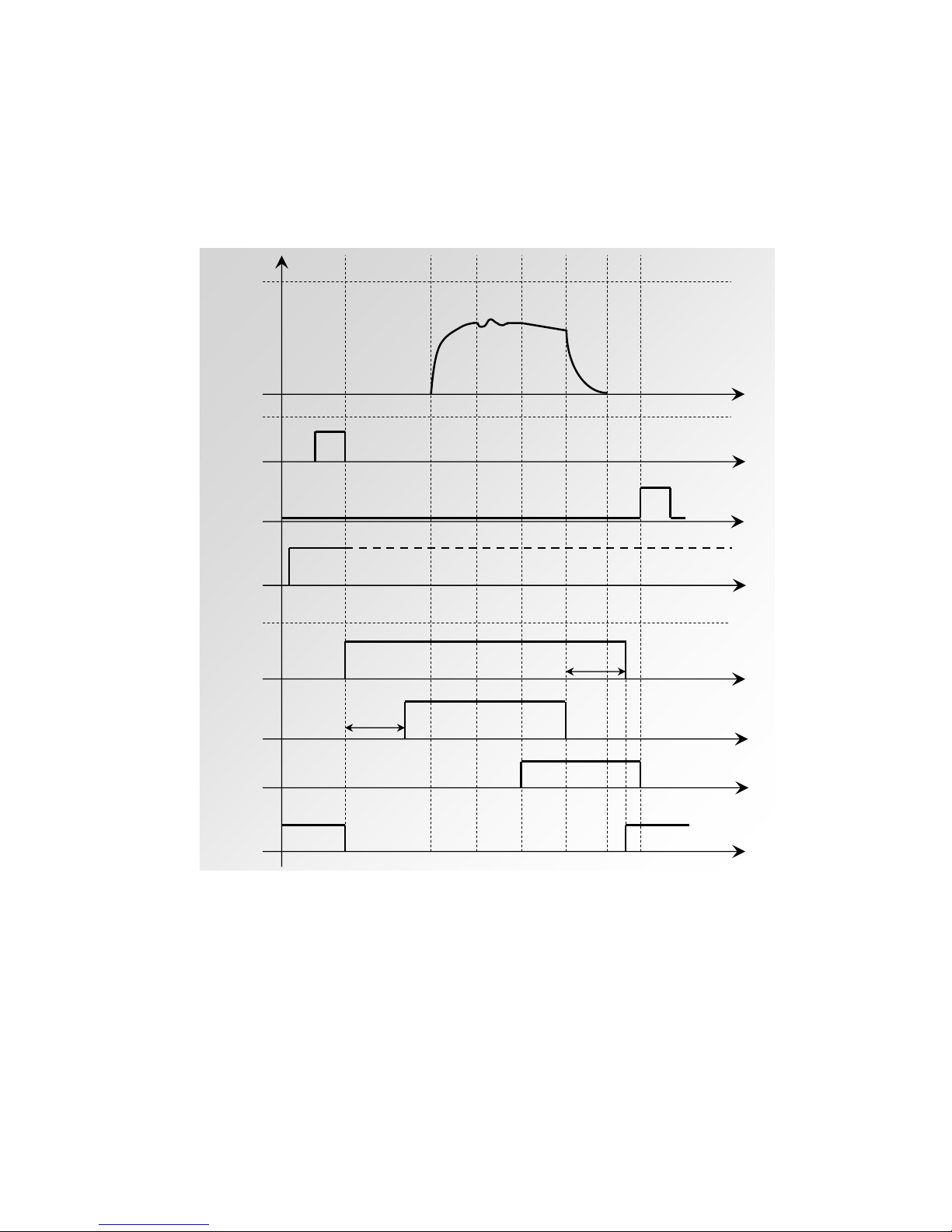

6. PRINCIPLE OF A CYCLE .................................................................................................................11

7. PRESENTATION OF THE SYMBOLS ..............................................................................................12

Chapter 1 INSTALLATION OF THE INSTRUMENT

1. PRESENTATION OF THE ATEQ D520 ............................................................................................15

2. INSTALLATION OF THE INSTRUMENT ..........................................................................................16

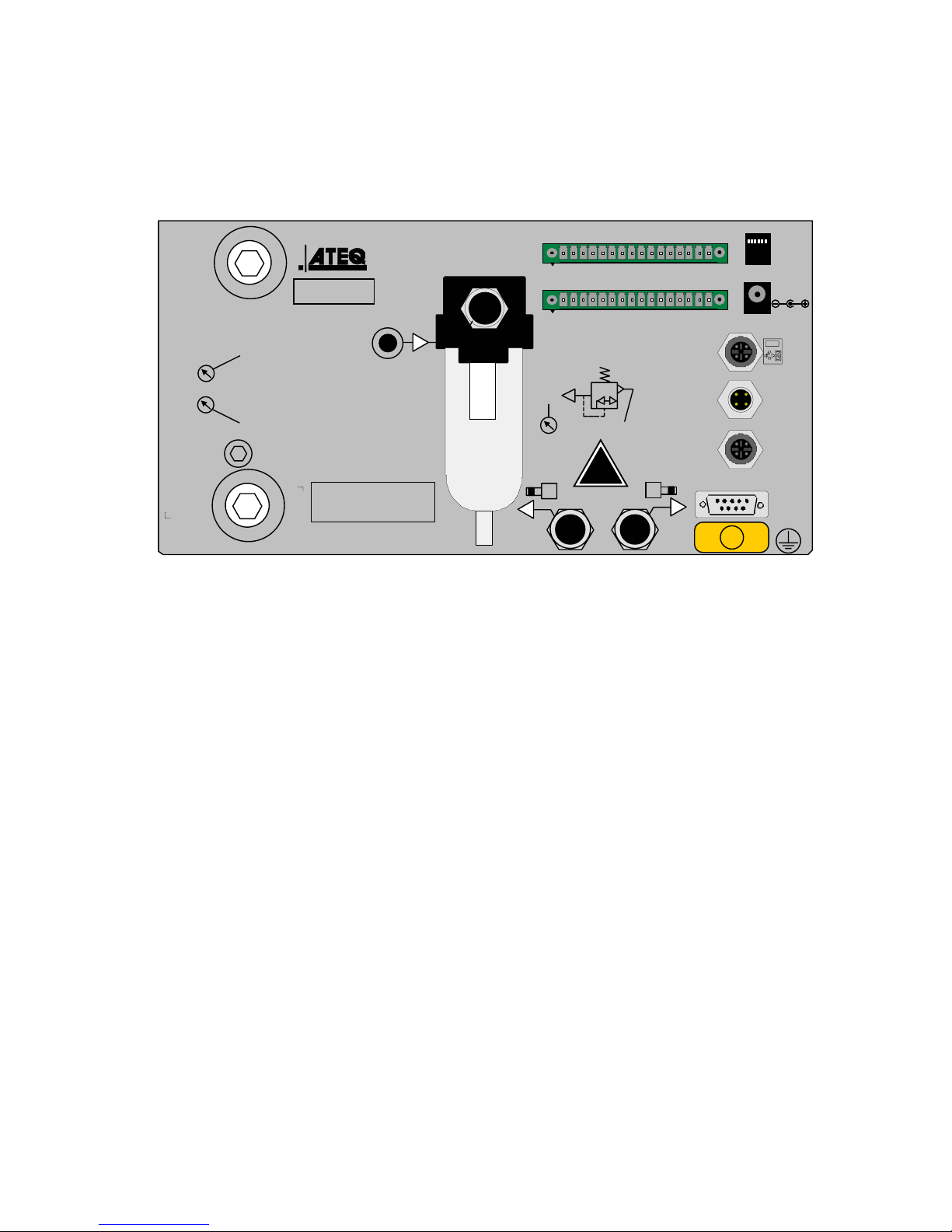

2.1. Presentation of the connectors on the case of the D520...........................................................16

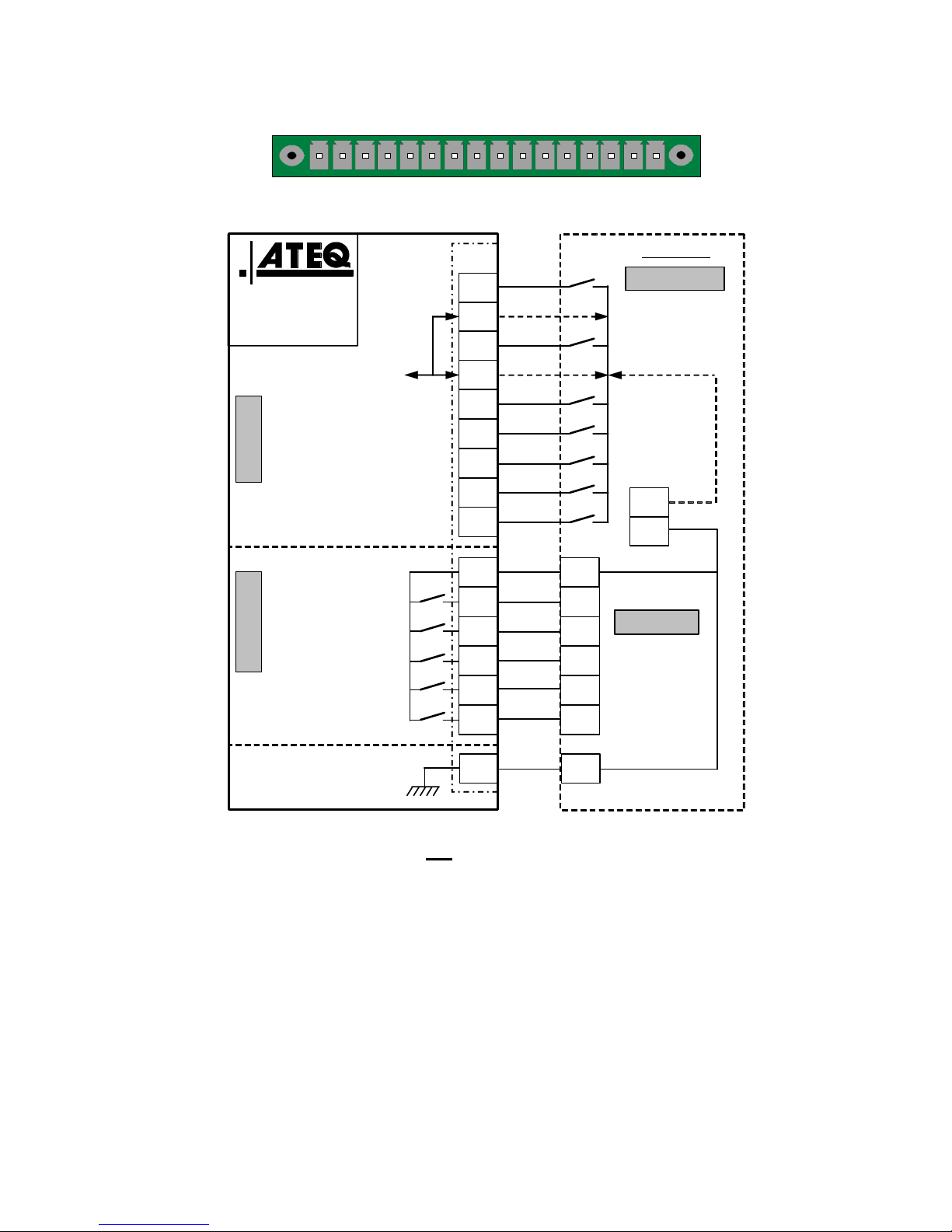

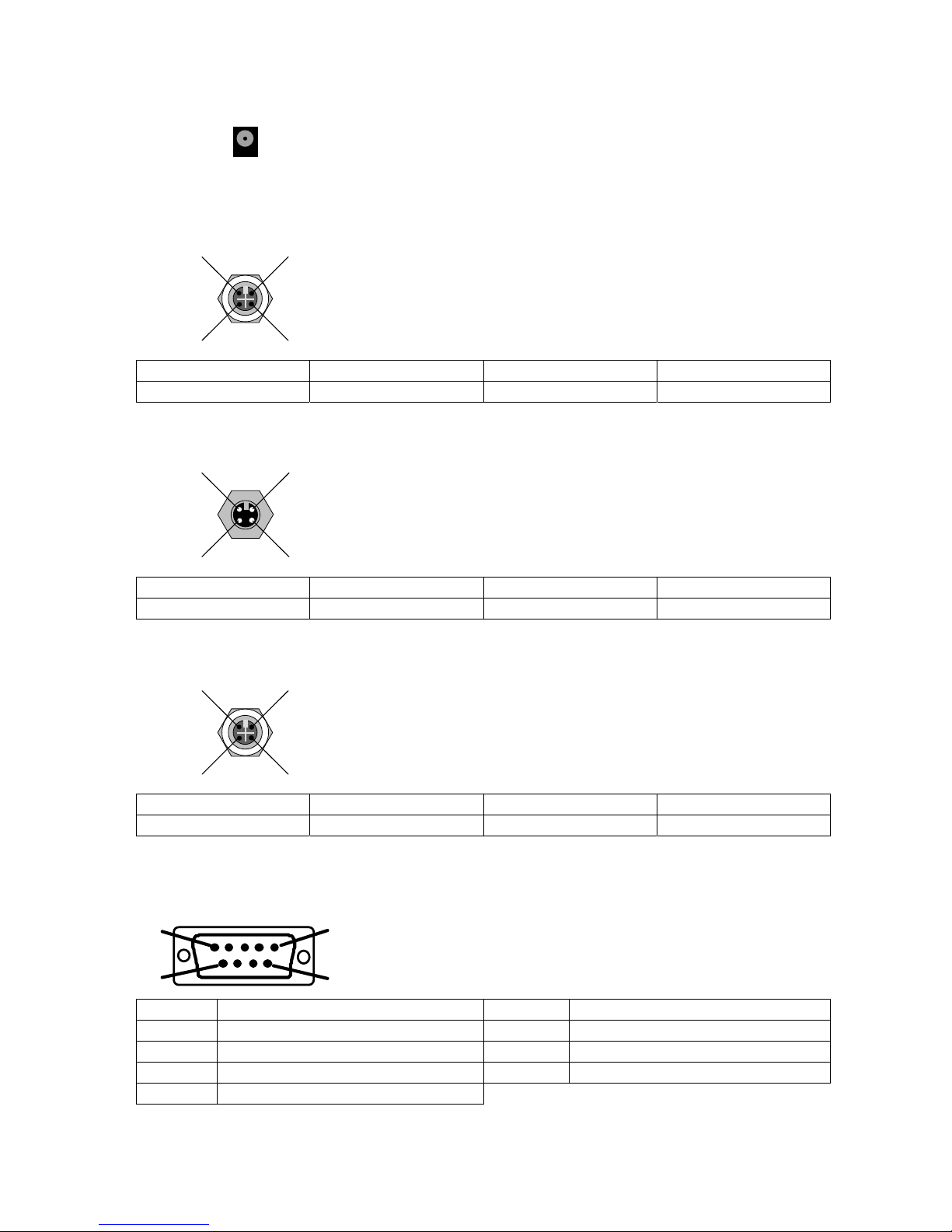

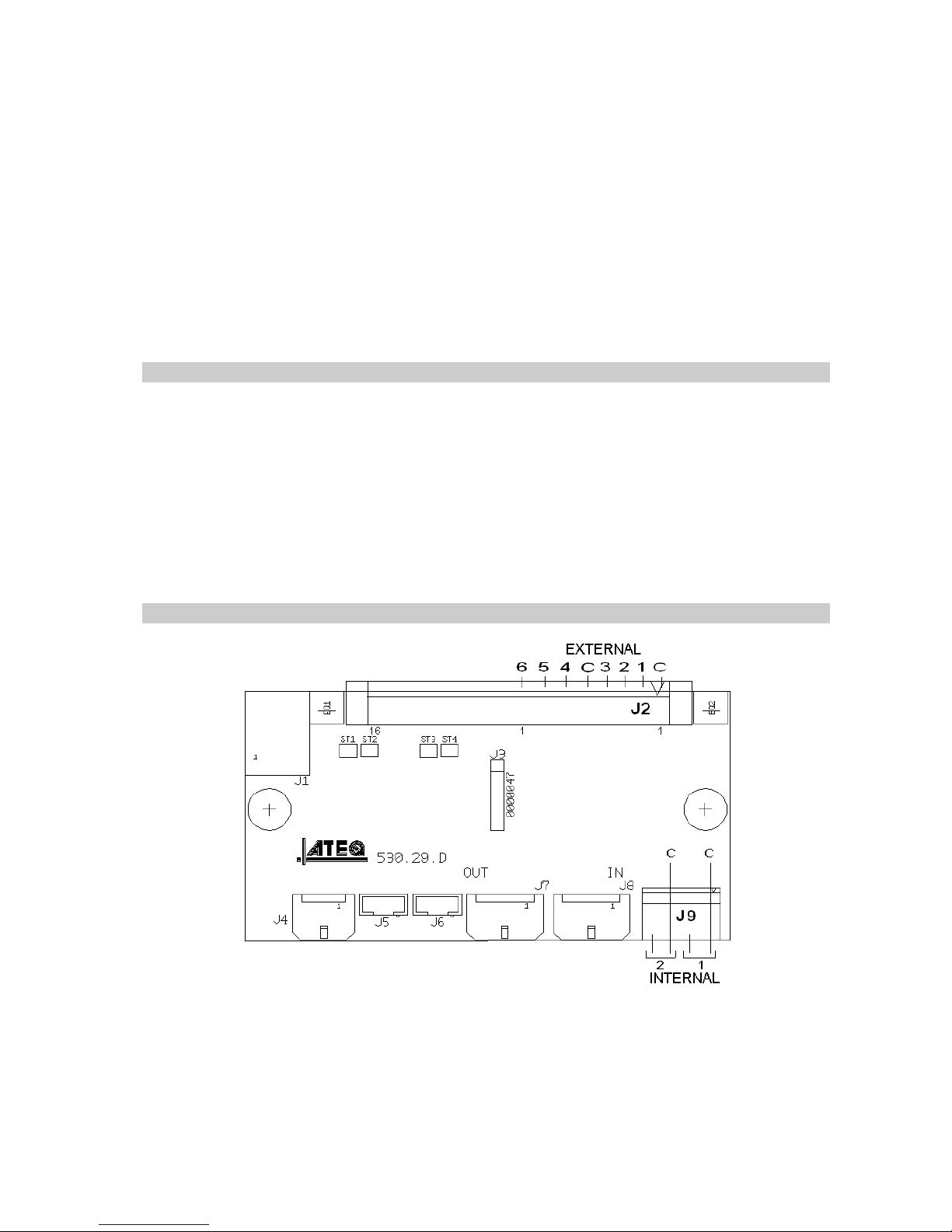

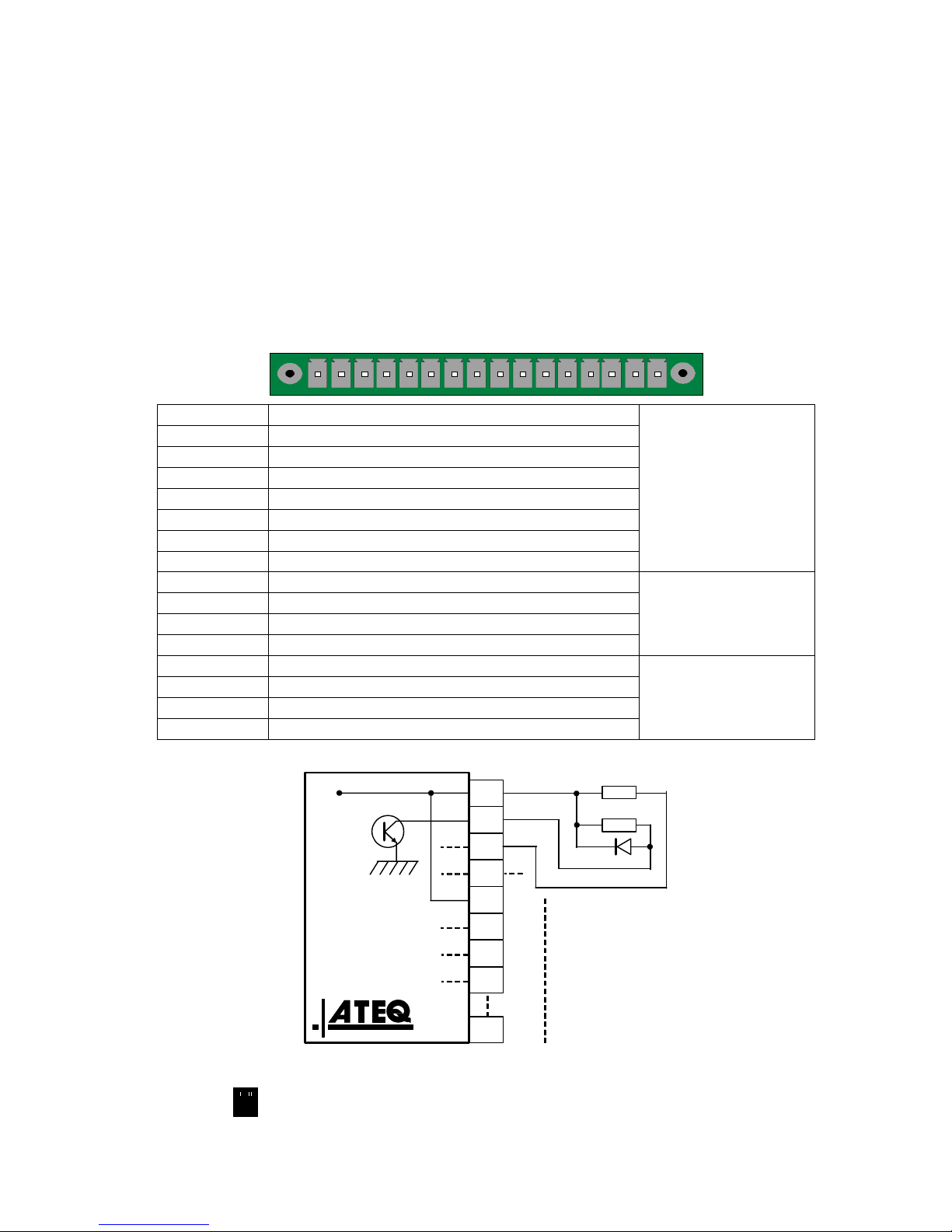

2.2. Connector details .......................................................................................................................17

Chapter 2 USER INTERFACES

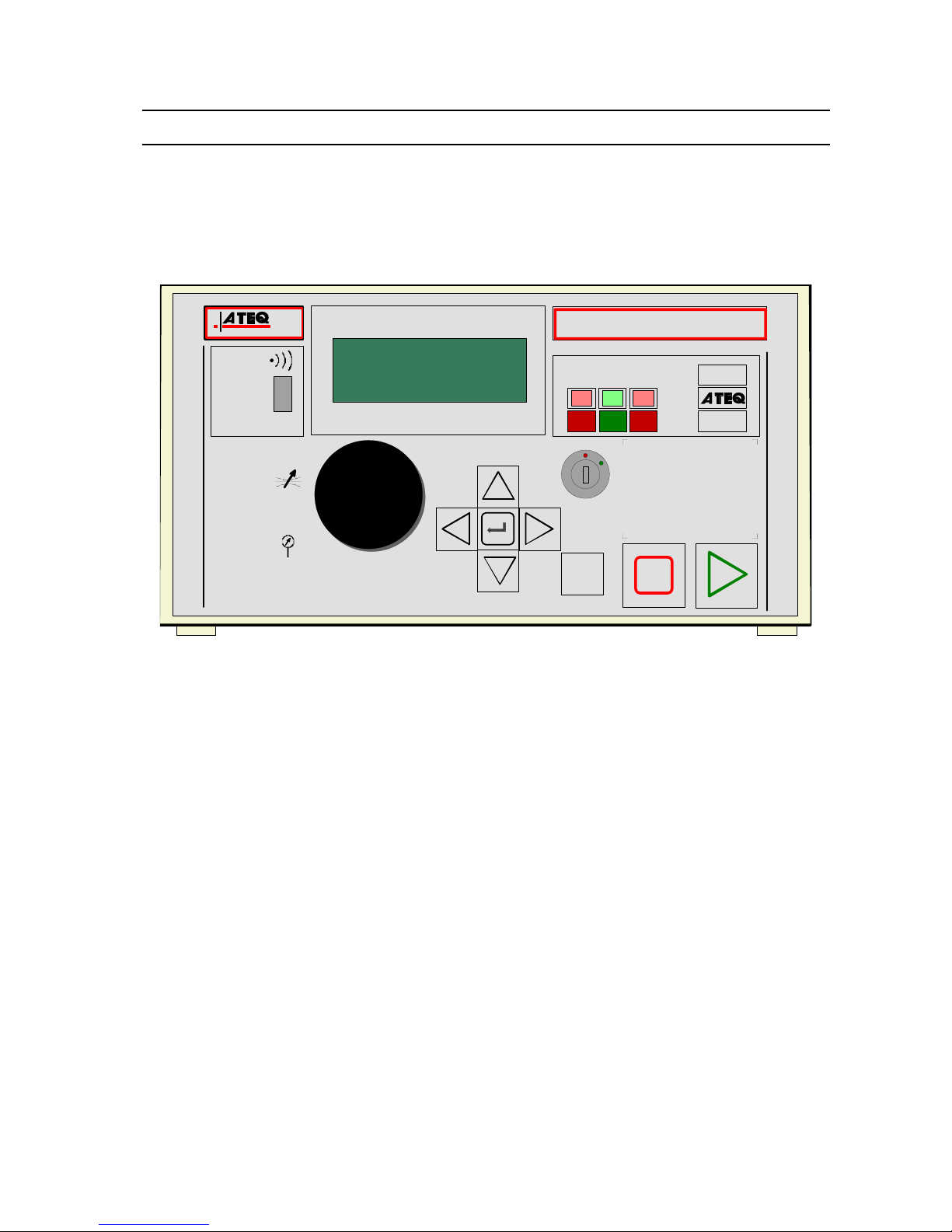

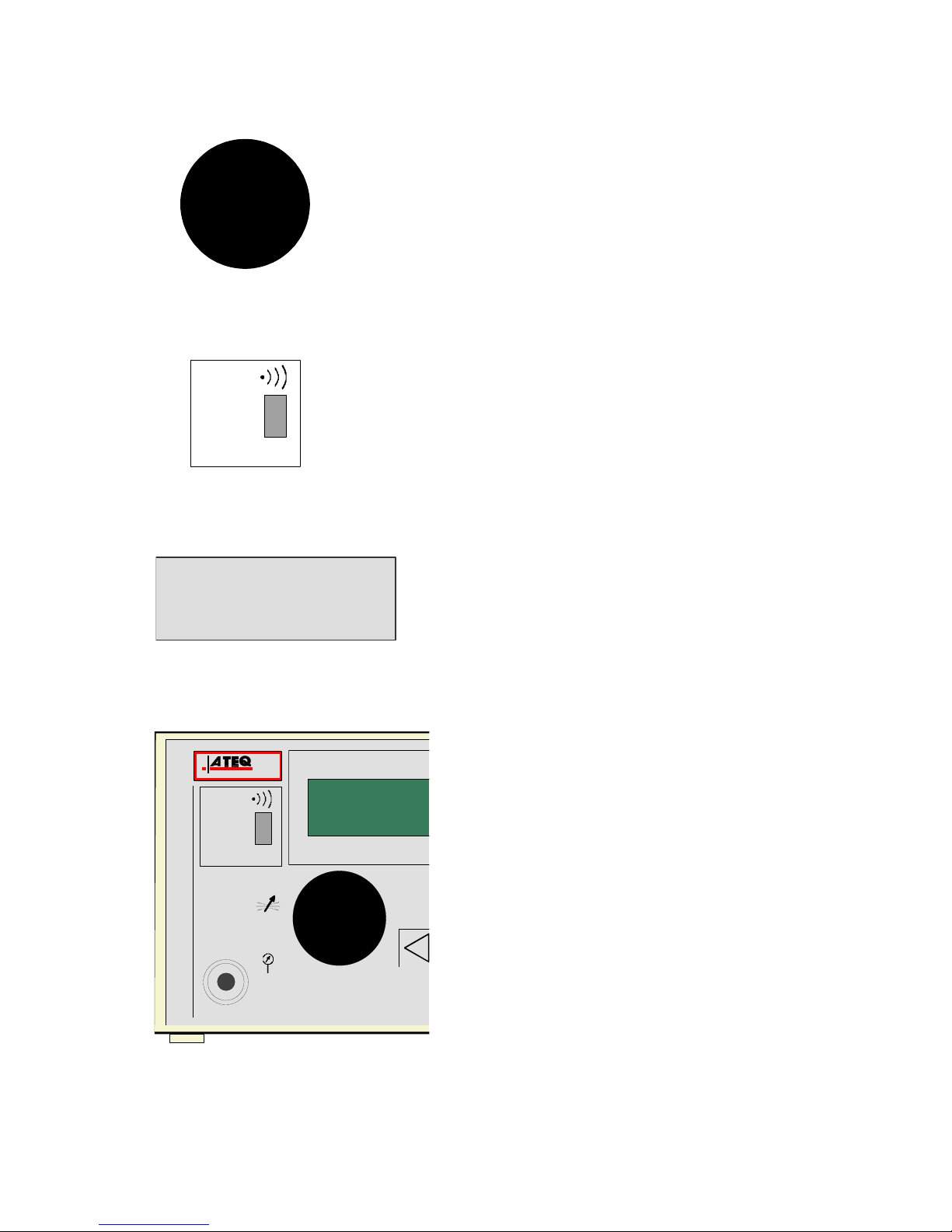

1. PRESENTATION OF THE FRONT PANEL OF THE D520 ..............................................................27

2. PRESENTATION OF THE KEYBOARD KEYS ................................................................................28

2.1. Navigation keys..........................................................................................................................28

2.2. Cycle keys ..................................................................................................................................29

3. KEY LOCK.........................................................................................................................................29

4. REGULATOR.....................................................................................................................................30

5. INFRA-RED INTERFACE ..................................................................................................................30

6. 4 LINE LCD DISPLAY .......................................................................................................................30

7. QUICK CONNECTOR........................................................................................................................30

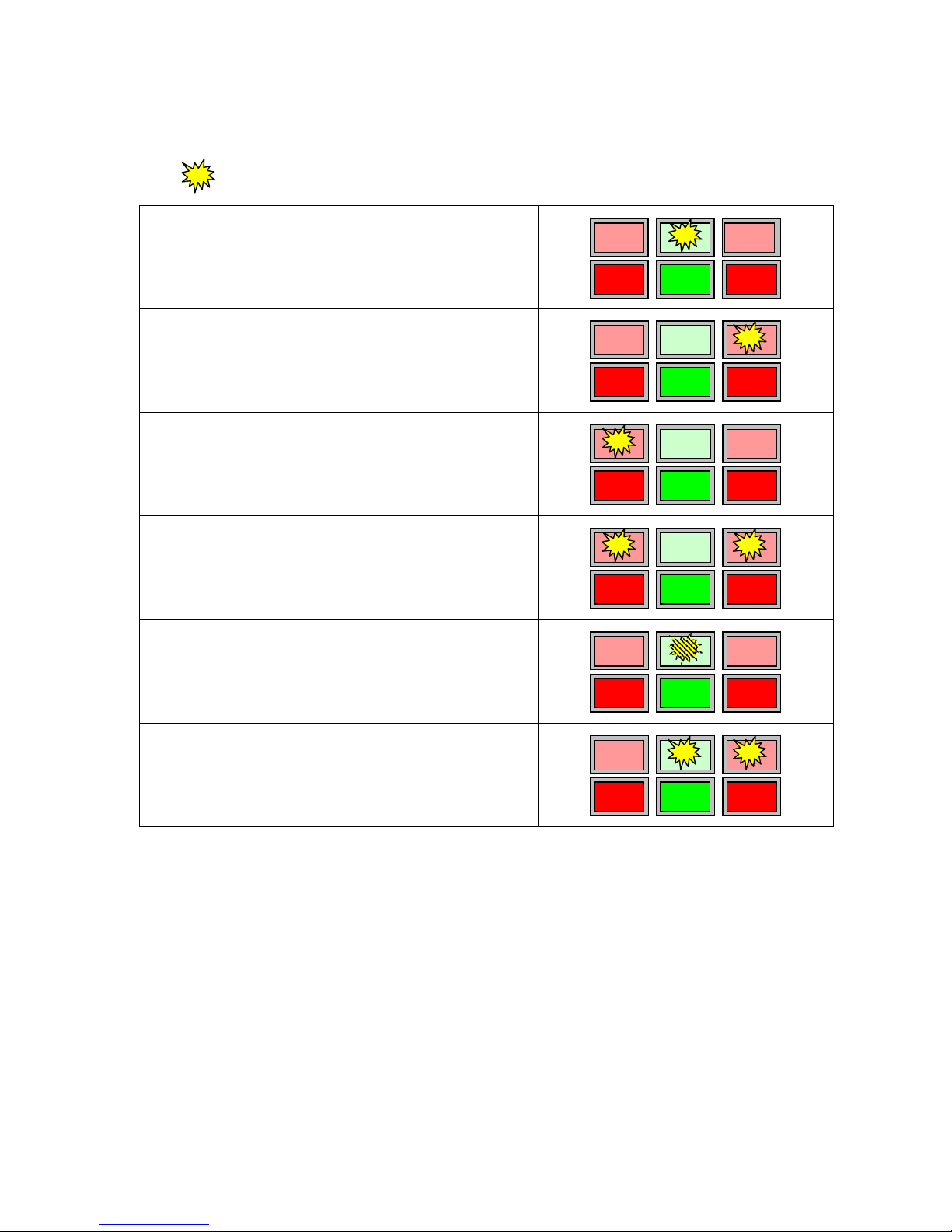

8. FUNCTIONNALITY OF THE INDICATORS ......................................................................................31

Chapter 3 STARTUP AND ADJUSTMENTS

1. POWERING UP THE ATEQ D520 ....................................................................................................33

2. CREATION OF A TEST PROGRAM.................................................................................................34

2.1. Choice of the program number ..................................................................................................34

2.2. Selection of the test type............................................................................................................35

2.3. Adjustment of the parameters ....................................................................................................36

3. COPYING A TEST PROGRAM .........................................................................................................40

4. DELETING A PROGRAM OR THE NAME OF A PROGRAM..........................................................42

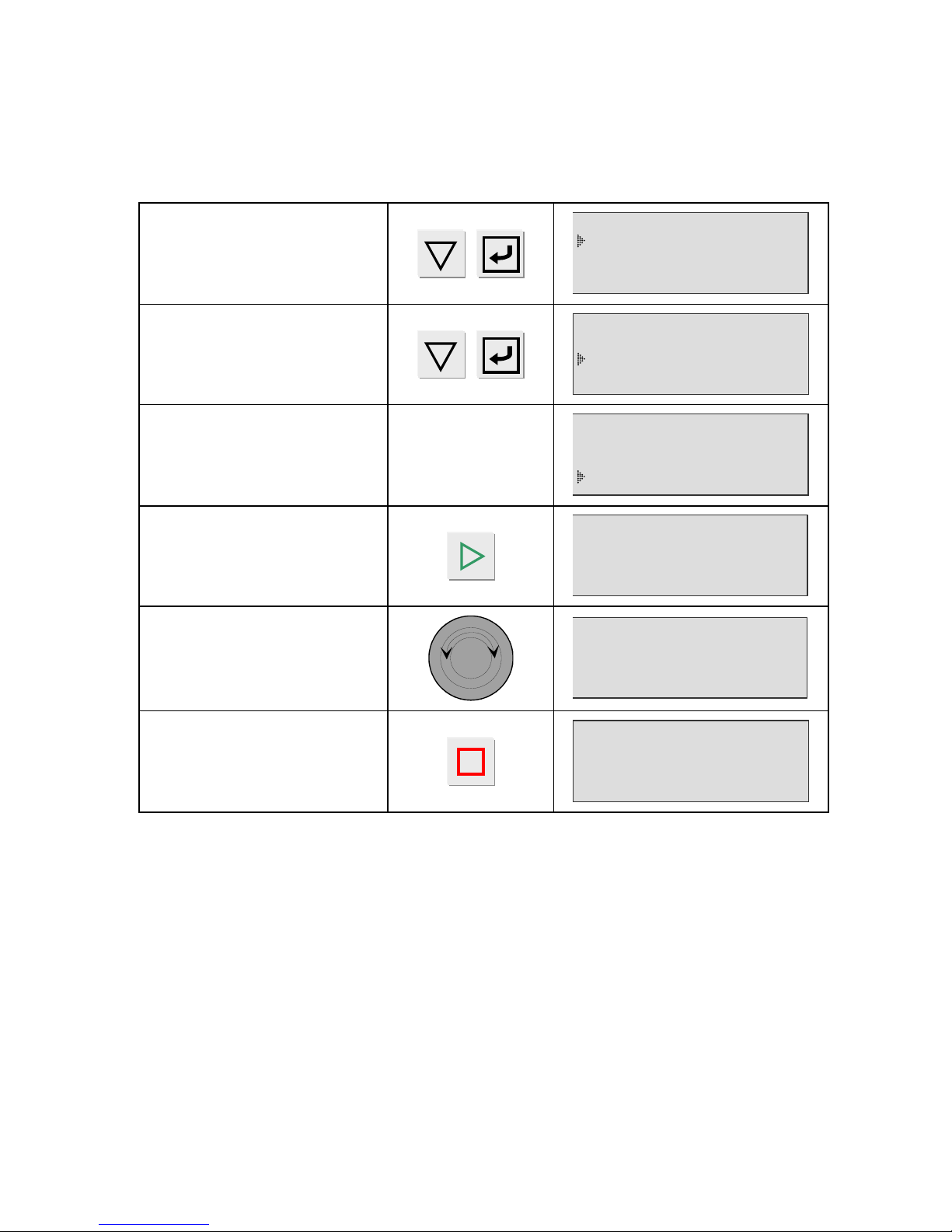

5. LAUNCHING OF A CYCLE...............................................................................................................43

5.1. Choice of the program number to be launched..........................................................................43

5.2. Setting the test pressure ............................................................................................................44

6. STARTING A MEASUREMENT CYCLE...........................................................................................45

7. STOPPING A CYCLE ........................................................................................................................45

Page 12

Table of contents

UM-22100H-U User manual ATEQ D520 Page 2/122

Chapter 4 FUNCTIONS OF THE INSTRUMENT

1. MENU STRUCTURE..........................................................................................................................47

1.1. Main menu..................................................................................................................................47

1.2. "FUNCTIONS" menu when activated.........................................................................................52

2. CONFIGURATION MENU .................................................................................................................55

2.1. Extended menus ........................................................................................................................55

2.2. Automatic save...........................................................................................................................72

2.3. Program sequences ...................................................................................................................73

2.4. Ready status ..............................................................................................................................76

2.5. Reference cal .............................................................................................................................76

2.6. Bar Graph...................................................................................................................................76

2.7. Hour............................................................................................................................................77

2.8. Regulator learning......................................................................................................................77

2.9. RS232 ........................................................................................................................................78

2.10. RS485 ......................................................................................................................................81

2.11. Modbus.....................................................................................................................................81

2.12. Security ....................................................................................................................................81

2.13. Lighting the screen...................................................................................................................82

2.14. Bar code option ........................................................................................................................83

2.15. I/O configuration.......................................................................................................................86

2.16. Remote control.........................................................................................................................87

3. SPECIAL CYCLES MENU.................................................................................................................88

3.1. Special cycles available .............................................................................................................88

3.2. Regulator....................................................................................................................................89

3.3. Calculation of the automatic thresholds .....................................................................................90

3.4. Infinite fill ....................................................................................................................................91

3.5. Piezo reset (auto zero)...............................................................................................................92

3.6. Manual calibration ......................................................................................................................93

3.7. ATR learning ..............................................................................................................................96

4. SERVICE MENU ................................................................................................................................97

4.1. Servicing of the parameters .......................................................................................................97

4.2. Servicing of the sensors.............................................................................................................98

5. RESULTS MENU ...............................................................................................................................99

6. LANGUAGE MENU ...........................................................................................................................99

7. STAND-BY MENU .............................................................................................................................99

7.1. Standby using the menu ..........................................................................................................100

Chapter 5 ACCESSORIES

1. ACCESSORIES SUPPLIED WITH THE INSTRUMENT.................................................................101

1.1. Power supply............................................................................................................................101

2. OPTIONAL ACCESSORIES............................................................................................................102

2.1. Flow master leaks ....................................................................................................................102

2.2. Needle valve and leak flow calibrator ......................................................................................103

2.3. Automatic connectors with expandable joints ..........................................................................104

2.4. Filtration kit ...............................................................................................................................104

2.5. Remote controls .......................................................................................................................105

2.6. Remote front panel RC5 ..........................................................................................................106

2.7. Intelligent remote control..........................................................................................................108

2.8. External cutting valve ...............................................................................................................110

Chapter 6 ERROR MESSAGES

ERROR MESSAGES ..................................................................................................111

Page 13

Table of contents

UM-22100H-U User manual ATEQ D520 Page 3/122

Chapter 7 OPERATIONAL PROBLEMS

1. PHENOMENON NOTED..................................................................................................................113

1.1. Condition of the machine's seals .............................................................................................113

1.2. Damaged instrument seals ......................................................................................................113

1.3. Bumper pad..............................................................................................................................113

1.4. Pneumatic Link.........................................................................................................................113

1.5. Environment .............................................................................................................................114

1.6. Calibration ................................................................................................................................114

1.7. Concerns about reliability of the instrument’s circuits..............................................................114

Appendices ATEQ D520

1. TECHNICAL CHARACTERISTICS OF THE D520 .........................................................................115

2. DIMENSIONS OF THE D520...........................................................................................................116

3. CONVERSION TABLE ....................................................................................................................117

4. PARAMETERS SAVED...................................................................................................................118

5. VALVE CODES USED IN YOUR APPLICATION...........................................................................119

6. PERSONAL NOTES ........................................................................................................................120

Index 121

Page 14

Table of contents

UM-22100H-U User manual ATEQ D520 Page 4/122

Page 15

Preamble

UM-22100H-U User manual ATEQ D520 Page 5/122

PREAMBLE

1. DEFINITION OF THE ATEQ D520

The ATEQ D520 is a flow meter which measures a drop in pressure with a differential sensor (transducer) which is placed at the extremities of a calibrated flow tube.

Test part

Air pressure

supply

Absolute pressure

sensor

Caloibrated flow tube

Regulator

Atmosphere

Differential

pressure sensor

Flow

When fluid (gas) moves through a calibrated flow tube (laminar flow), a drop in pressure occurs, the value of which is proportional to flow.

∆P = 8µLQ/πR

µ: viscosity of the fluid

L: length of the calibrated flow tube

R: radius of the calibrated flow tube

Q: flow

∆P: drop in pressure in the calibrated flow tube

Page 16

Preamble

UM-22100H-U User manual ATEQ D520 Page 6/122

2. CHARACTERISTCS OF THE MEASUREMENT

2.1. PRESSURE DROP MEASUREMENT

RANGE L/H ACCURACY

MAXIMUM

RESOLUTION L/H

1 +/- (2,5% of the flow + 0,001 l/h) 0,001

5 +/- (2,5% of the flow + 0,005 l/h) 0,001

30 +/- (2,5% of the flow + 0,03 l/h) 0,01

80 +/- (2,5% of the flow + 0,08 l/h) 0,01

150 +/- (2,5% of the flow + 0,150 l/h) 0,1

500 +/- (2,5% of the flow + 0,5 l/h) 0,1

1500 +/- (2,5% of the flow + 1,5 l/h) 1

4000 +/- (2,5% of the flow + 4 l/h) 1

10000 +/- (2,5% of the flow + 10 l/h) 1

(20° / 1013 mbar)

2.2. TEST PRESSURE MEASUREMENT

RANGE ACCURACY

MAXIMUM

RESOLUTION

PE = 7.5 kPa

(PE < 75 mbar)

+/- (1,5% of the pressure + 0,2 hPa)

PE < 30 kPa

(PE < 0,3 bar)

+/- (1,5% of the pressure + 1 hPa)

30 kPa ≤ PE ≤ 100 kPa

(0,3 bar ≤ PE ≤ 1 bar)

+/- (1,5% of the pressure + 3 hPa)

100 kPa < PE ≤ 500 kPa

(1 bar < PE ≤ 5 bar)

+/- (1,5% of the pressure + 7.5 hPa)

0,1 % PE

2.3. MECHANICAL PRESSURE REGULATION

- 600 kPa to -10 kPa / 800 Pa to 6 kPa / 500 Pa to 14 kPa / 6 kPa to 100 kPa / 5 kPa to 210 kPa / 10 kPa to 350 kPa.

Page 17

Preamble

UM-22100H-U User manual ATEQ D520 Page 7/122

3. THE DIFFERENT MEASUREMENT PRINCIPLES

There exists two measurement principles, they are: direct measurement and the indirect measurement (also known as with recovery or under bell).

The instrument can work in depressurisation (optional) both in direct and indirect measurement.

3.1. DIRECT MEASUREMENT

Test part

Air pressure

supply

Absolute pressure

sensor

Calibrated flow tube

Regulator

Atmosphere

Differential

pressure sensor

Flow

As shown in the diagram above the test pressure is applied directly to the test part input after having flowed through the calibrated flow tube.

Once the test part is filled, the ATEQ D520 measures the drop in pressure at the extremities of the calibrated flow tube with a differential sensor.

Page 18

Preamble

UM-22100H-U User manual ATEQ D520 Page 8/122

3.2. INDIRECT MEASUREMENT (OR RECOVERY MODE)

Test part

Air supply

Absolute pressure

sensor

Calibrated flow tube

Regulator

Atmosphere

Differential

pressure sensor

Flow

The calibrated flow tube is placed following the output of the test part. The output of the calibrated flow tube is to the atmosphere.

Depending on the part type, it may be possible to use a bell (ex: shower head where it is impossible to recover the flow other than through the use of a bell). This method can only be used if the recovery of the flow is easy.

The indirect measurement allows a considerable gain in time as the flow which arrives in the calibrated flow tube is already stabilised.

Page 19

Preamble

UM-22100H-U User manual ATEQ D520 Page 9/122

4. PRESSURE, TEMPERATURE & VISCOSITY EFFECT ON THE MEASUREMENT

4.1. PRESSURE VARIATION

As shown in the direct measurement diagram, the test part is in series in the test circuit, the test pressure set by the regulator is not entirely restored at the input of the test part due to pressure losses caused by the calibrated flow tube. Additionally the output pressure of the regulator changes depending on the flows.

The results are always expressed as a function of the test pressure. That is why a silicium sensor constantly monitors the real test pressure applied to the part. Depending on the pressure value read the

ATEQ D520 applies a correction factor which allows a

constant compensation for the pressure drops in the test circuit.

Note that the further the test part is from the cell, the higher the pressure drop is. This should be avoided (possibility of pressure measurement on the part).

4.2. VISCOSITY AND TEMPERATURE VARIATION

The viscosity of a gas is directly linked to its temperature. The higher the temperature is, the greater the viscosity. The law of “Poiseuille” shows that when the viscosity increases, the pressure drop increases.

These two parameters, temperature and viscosity have an influence on the accuracy of the measurement. A correction is applied depending on the real temperature of the gas flowing through the system.

Variations in the temperature of the parts during the test and in relation to each other should be avoided by the "High precision" mode (optional):

An automatic acquisition cycle on a known master value is realised before each test cycle, it allows calculating the test part value with the current atmospherics conditions.

Page 20

Preamble

UM-22100H-U User manual ATEQ D520 Page 10/122

5. CALIBRATION

There exist 2 different types of calibration.

5.1. FACTORY CALIBRATION

The factory calibration is set in the instrument.

Display

Calibrated flow

tube

1000

1000 l/h

Master leak

1000 l/h

Note: this calibration does not take into account tube lengths, seal jig restrictions, ...

5.2. MANUAL CALIBRATION

It is possible that the unit the instrument is delivered in or some external elements (seals, pipes...) result in the factory calibration being unsatisfactory.

In this case a manual calibration taking into account the previously stated elements, can be carried out by the operator. For this calibration, the calibrated master leak should be used in the same conditions as the parts to be measured (diameter, length of the pipes).

Page 21

Preamble

UM-22100H-U User manual ATEQ D520 Page 11/122

6. PRINCIPLE OF A CYCLE

FILL STABILISATION TEST COUPLING

RESET*

The measurement cycle is made of 4 phases:

1 2 3 4 5 1'

Start

(Reset)* Coupling Fill Stabilisation Test (Reset)*

Cycle

end

Start

Start of the cycle.

(Reset)*

Reset of the pressure sensor to correct the eventual drifts, this phase can be placed at the start or at the end of a cycle depending on the requirement of the operator. Parameter to be set.

The

coupling

time

Time during which the sealing jig of the parts is put in place before the part is filled. The instrument can be fitted with the automatic connector option (this option adds a valve). This valve which is piloted throughout the cycle time allows a control of the jig setup.

The fill time

This is the time during which the part is pressurised until the compensation flow is obtained.

The

stabilisation

time

This is the time during which the flow value stabilises.

The test time

The differential pressure sensor measures the pressure difference on the extremities of the calibrated flow tube. The signal is treated by the electronics which display the result and indicate whether a part is good or bad.

(Reset)*

Pressure sensor reset to correct eventual drifts. This phase can be placed at the start of the cycle or at the end of the cycle depending on the requirement of the operator. Parameter to be set.

End of

Cycle

The instrument stops the measurement and sends an end of cycle signal.

Page 22

Preamble

UM-22100H-U User manual ATEQ D520 Page 12/122

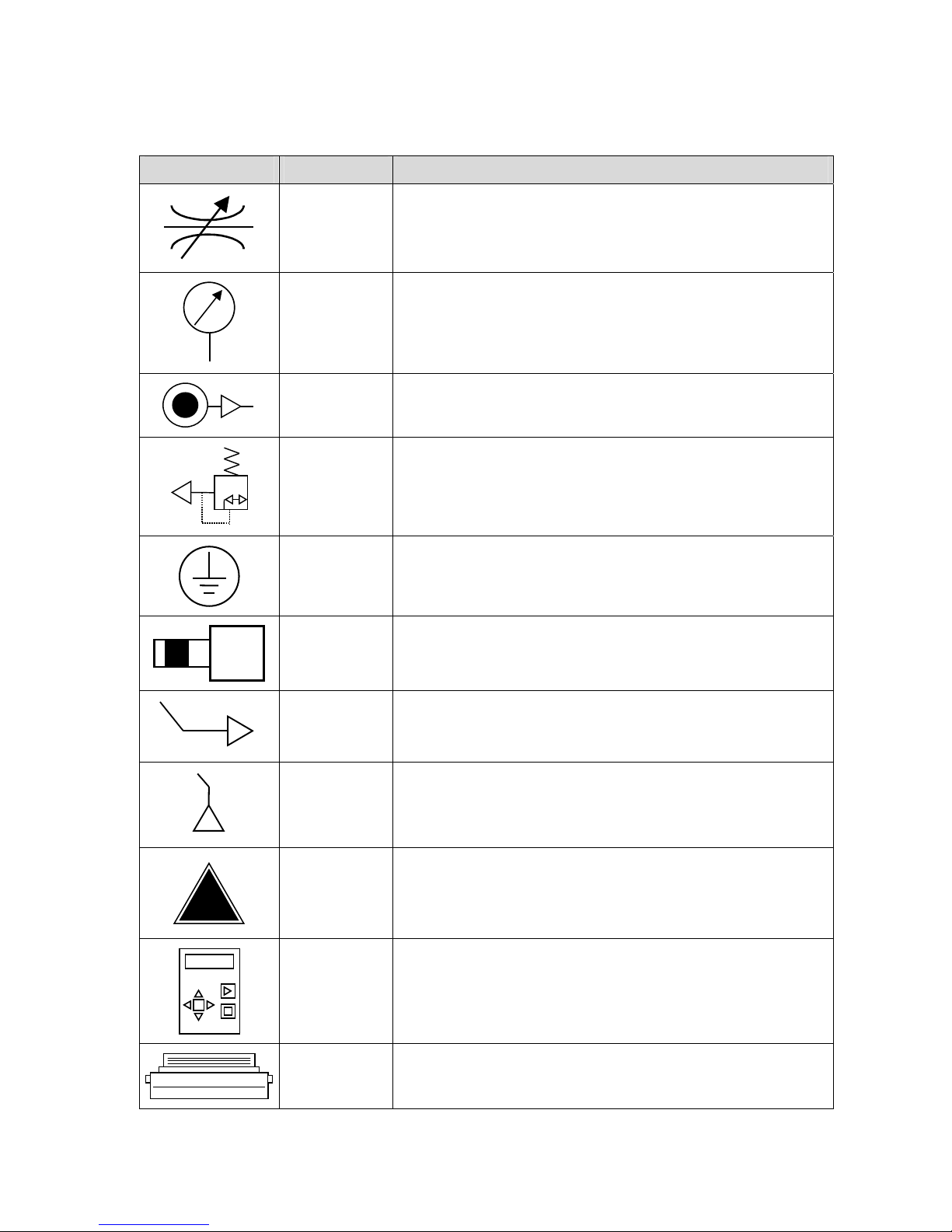

7. PRESENTATION OF THE SYMBOLS

Symbol Name Function

Adjust leak

connector

Pneumatic connector for the plugging of a calibrated leak (ruby kind) or an adjustable leak.

Pressure

connector

Pneumatic connector for the plugging of a manometer for an external checking of the pressure.

Pressure

supply

of the air supply from the 6 bar network.

Test circuit

supply

Pneumatic connector (according to option) for the plugging of a supplementary pneumatic supply, used in case of test pressure greater than 8 bar.

Ground

connector

Connector for the electric plugging to the ground.

Automatic connector

Pneumatic connector for the driving of an external logic or pneumatic components (pneumatic sealing connector).

Connector Connector for pneumatic output.

Connector Connector for pneumatic input.

Warning!

Read and respect the instructions of the user manual, before plugging and using the instrument.

Remote

control

Connector for a remote control.

Printer Connector for printer plugging.

Page 23

Preamble

UM-22100H-U User manual ATEQ D520 Page 13/122

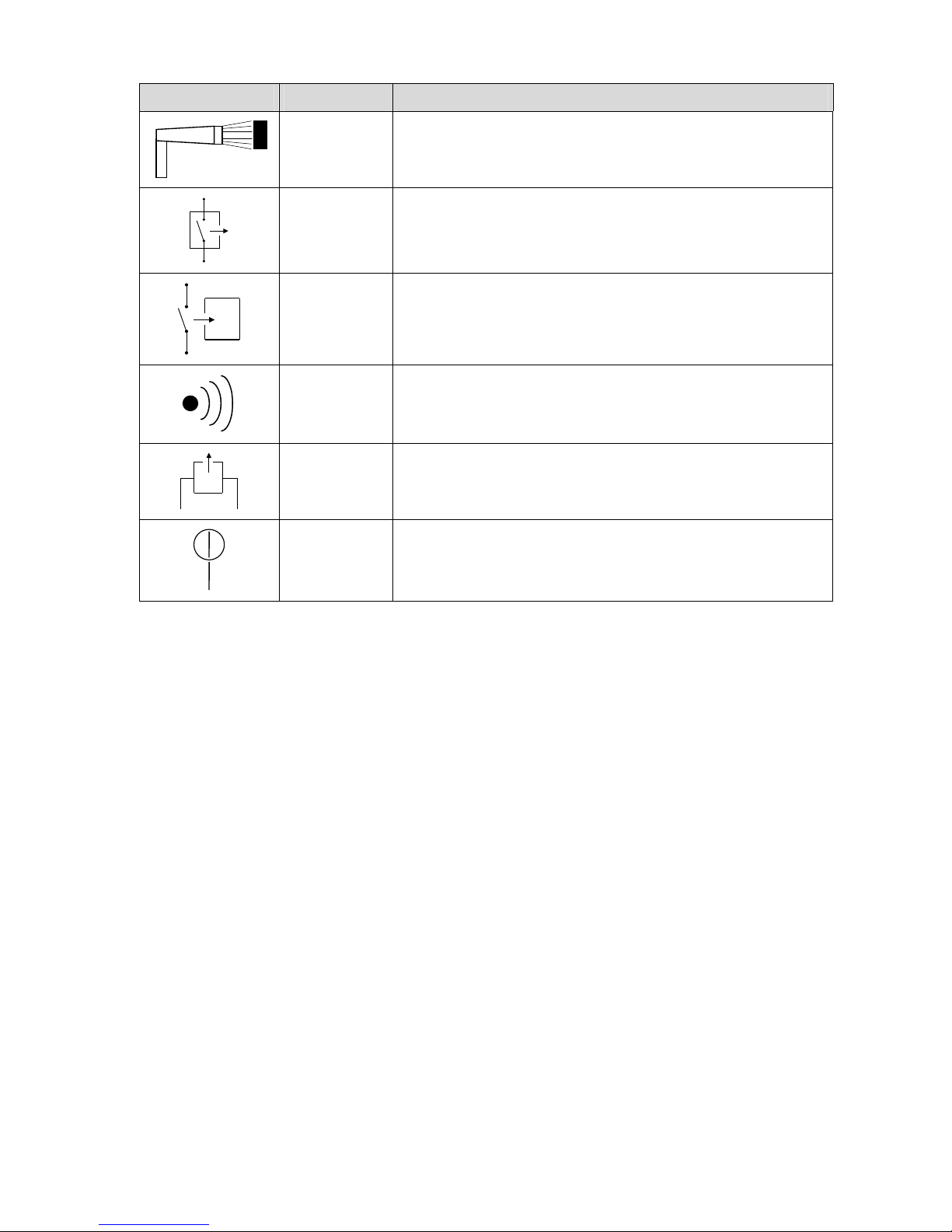

Symbol Name Function

Bar code

reader

Connector for bar code reader plugging.

Output Dry contact output.

Input Dry contact input.

Infrared link

Infrared link, at this place there's the receiver and transmitter of the infrared link.

Analogue

output

Analogue output.

Analogue

input

Analogue input for the temperature sensor.

Page 24

Preamble

UM-22100H-U User manual ATEQ D520 Page 14/122

Page 25

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 15/122

Chapter 1

INSTALLATION OF THE INSTRUMENT

1. PRESENTATION OF THE ATEQ D520

www.ateq.com

D520

The ATEQ D520 is presented in a painted and formed metal case which rests on four rubber feet. The upper cover is linked to the structure with 2 screws.

The format of the case has been reduced to allow easy insertion of the instrument.

The instrument is delivered with an external 24 V DC power supply.

Page 26

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 16/122

2. INSTALLATION OF THE INSTRUMENT

2.1. PRESENTATION OF THE CONNECTORS ON THE CASE OF THE D520

2 A

24 V ===

MADE BY ATEQ

www.ateq.com

I I I I I I I I I I I I I I I I ► O1 O2 O3 ►O4 O5 O6 T1 T2 T3 T4 S1 S2 S3 S4 24 V === 24 V ===

I I I I I I I I I I I I I I I I ► I1 I2 I3 ► I4 I5 I6 I7 ►O1 O2 O3 O4 O5 ► 24 V === 24 V === C 0V

I (Output) : 100 mA

I (Output) : 200 mA

NET

RS485

ENTREE/IN

RS485

SORTIE/OUT

RS232

485

ATM

SERVICE

TEST

Page 27

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 17/122

2.2. CONNECTOR DETAILS

2.2.1. Electrical connectors

The ATEQ D520 operates under a power of 24V DC with either :

9 the transformer delivered with the instrument,

9 or through the network cable when the instrument is a slave.

2.2.1. 1) J1 connector (Output codes / Analogue outputs / Temperature sensors)

1 2 3 4 5 6 7 8 9 10111213141516

Pin 1 COMMON (outputs 1, 2, 3) + 24 V DC Pin 2 Output n°1, open collector Pin 3 Output n°2, open collector Pin 4 Output n°3, open collector Pin 5 COMMON (outputs 4, 5, 6) + 24 V DC Pin 6 Output n°4, open collector Pin 7 Output n°5, open collector Pin 8 Output n°6, open collector

OUTPUT CODES

24V DC 100mA Max

outputs

Pin 9 12V DC Sensor power supply (2 mA max) Pin 10 0V Sensor power supply Pin 11 Sensor input n°1 Pin 12 Sensor input n°2

TEMPERATURE

SENSOR

Pin 13 Analogue output n°1 Pin 14 COMMUN (analogue output 1) Pin 15 Analogue output n°2 Pin 16 COMMUN (analogue output 2)

ANALOGUE

OUTPUTS

24 V DC

0,1 A max

Charge / Load

Obligatory

diode for an

inductive load.

2.2.1. 2) J2 connector

Telephone network socket. Not used.

Page 28

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 18/122

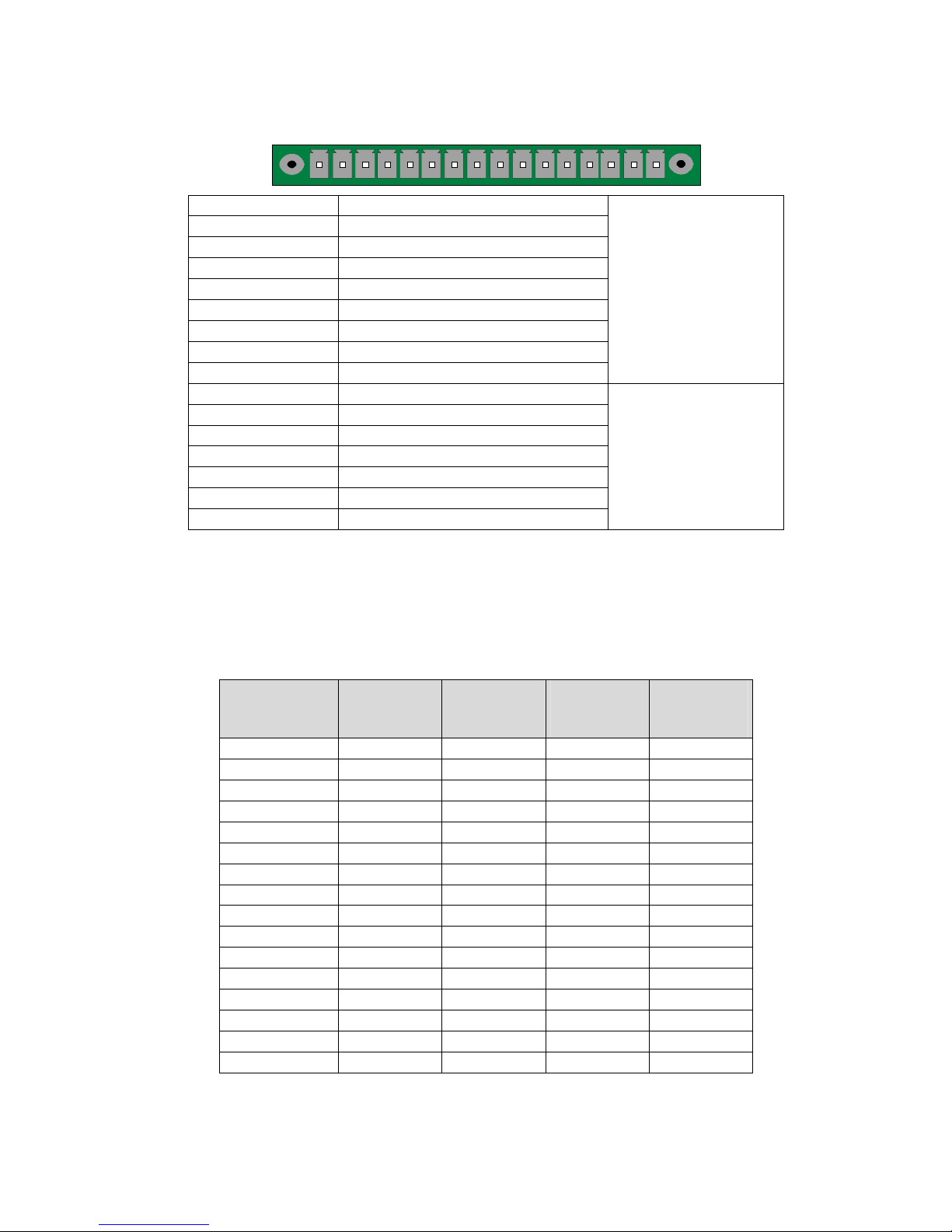

2.2.1. 3) J3 connector (Inputs/Outputs All or Nothing)

1 2 3 4 5 6 7 8 9 10111213141516

Pin 1 RESET input (input 1) Pin 2 Common (+ 24 V) Pin 3 START input (input 2) Pin 4 Common (+ 24 V) Pin 5 Input 3 (program selection) Pin 6 Input 4 (program selection) Pin 7 Input 5 (program selection) Pin 8 Input 6 (program selection) Pin 9 Input 7 (programmable input)

INPUTS

(Activation by

24 V DC)

Pin 10 Common floating outputs Pin 11 Good part output Pin 12 High bad part output Pin 13 Low bad part output Pin 14 Warning output Pin 15 End of cycle output Pin 16 0 V

DRY CONTACT

OUTPUTS

60V AC / DC Max

200mA Max

2.2.1. 4) Activation of a program on the J3 connector inputs

To activate a program on the J3 connector inputs, it is necessary to select pins 5 to 8 (one or more at a time). Binary weighting n + 1.

Combinations of the pins to be activated to select the programs

Program

number

Pin 5

(input 3)

Pin 6

(input 4)

Pin 7

(input 5)

Pin 8

(input 6)

1 0 0 0 0 2 1 0 0 0 3 0 1 0 0 4 1 1 0 0 5 0 0 1 0 6 1 0 1 0 7 0 1 1 0 8 1 1 1 0

9 0 0 0 1 10 1 0 0 1 11 0 1 0 1 12 1 1 0 1 13 0 0 1 1 14 1 0 1 1 15 0 1 1 1 16 1 1 1 1

Page 29

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 19/122

2.2.1. 5) J3 connector (Inputs/Outputs All or Nothing)

programmable input

Input 7 can be programmed in the CONFIGURATION/INPUT 7 menu.

The functions programmable on this input are all the special cycles, which are :

9 Program selection,

9 Regulator adjustment request,

9 Infinite fill request,

9 Piezo reset request,

9 Manual differential reset request,

9 Calibration learning request,

9 Calibration check request,

9 ATR learning request,

9 Reference adjustment request.

Some possibilities only appear if the function is used.

Page 30

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 20/122

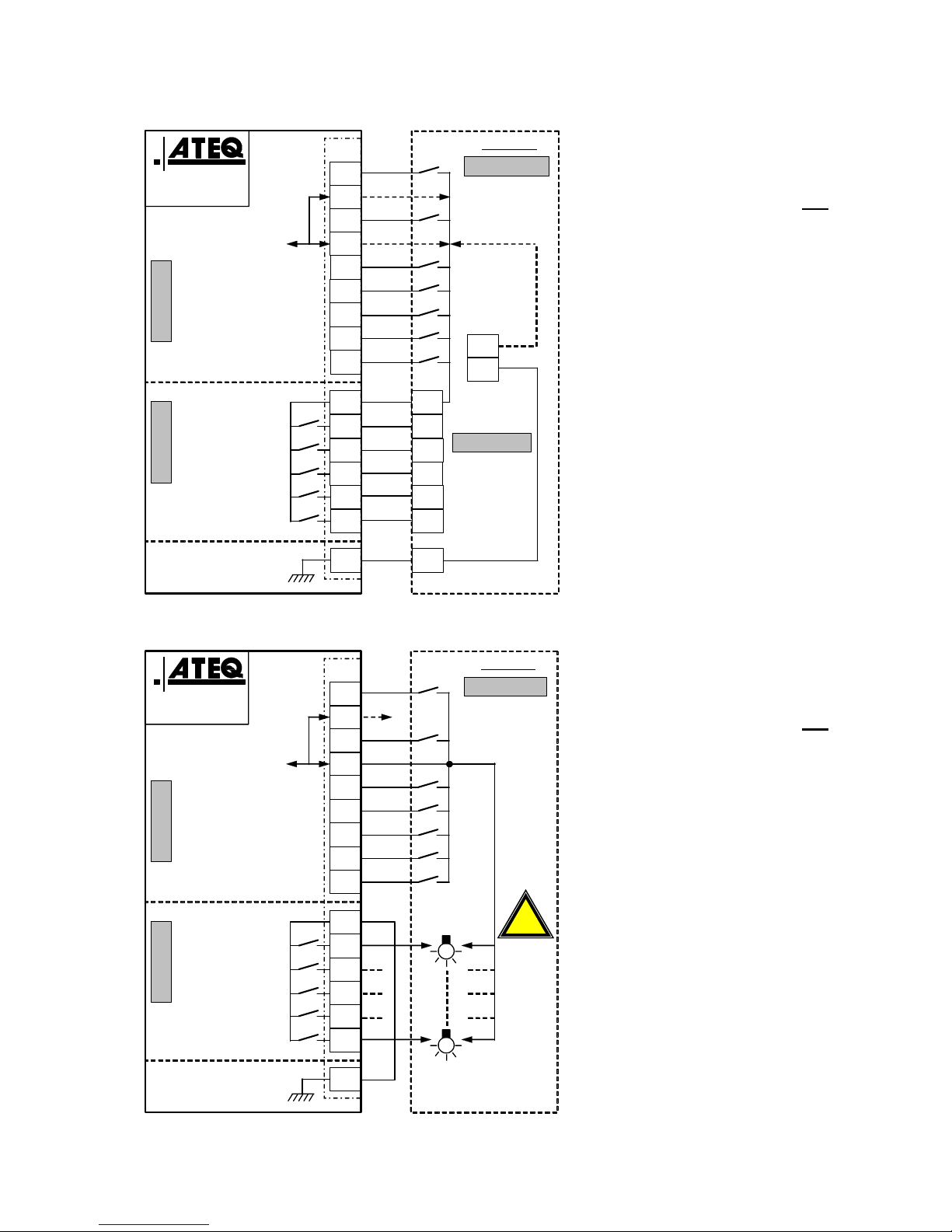

2.2.1. 6) J3 connector (Inputs/Outputs AON) diagram

1 2 3 4 5 6 7 8 9 10111213141516

a) PLC in NPN mode connection

I1 (Reset)

Customer

Input boards

16/32 programs

(Start)

(Pr 1 + 1)

(Pr 2 + 1)

Good part

Common

Test fail part

Reference fail part

Alarm

End of cycle

24 V DC

ATEQ or customer

I6 (Pr 8 + 1)

(Pr 4 + 1)

(Programmable input)

NPN MODE

Ground

+ 24 V DC

INPUTS OUTPUTS

OUTPUTS

INPUTS

Customer

0 V

(0,3 A max)

Note: The 24V power supply must be provided by the internal power supply of the ATEQ instrument (0,3A maximum) OR

through an external power supply provided by

the customer.

In the case of customer external supply, the ATEQ instrument can be supply by the 2 and 4 pins on the J3 connector too.

Page 31

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 21/122

b) PLC in PNP mode connection

I1 (Reset)

Customer

Inputs board

16/32 programs

(Start)

(Pr 1 + 1)

(Pr 2 + 1)

Good part

Common

Test fail part

Reference fail part

Alarm

End of cycle

24 V DC

ATEQ or customer

I6 (Pr 8 + 1)

(Pr 4 + 1)

(Programmable input)

PNP MODE

Ground

+ 24 V DC

INPUTS OUTPUTS

OUTPUTS

INPUTS

Customer

0 V

(0,3 A max)

Note: The 24V power supply must be provided by the internal power supply of the ATEQ instrument (0,3A maximum) OR through an external power supply provided by the customer.

In the case of customer external supply, the ATEQ instrument can be supply by the 2 and 4 pins on the J3 connector too.

c) Lights connection

I1 (Reset)

Customer

Inputs board

16/32 programs

(Start)

(Pr 1 + 1)

(Pr 2 + 1)

Good part

Common

Test fail part

Reference fail part

Alarm

End of cycle

24 V DC

I6 (Pr 8 + 1)

(Pr 4 + 1)

(Programmable input)

Ground

+ 24 V DC

INPUTS OUTPUTS

OUTPUTS

0,3 A Max

with ATEQ

24 V DC

0,2 A

Max

0,2 A

Max

(0,3 A max)

Note: The 24V power supply must be provided by the internal power supply of the ATEQ instrument (0,3A maximum) OR through an external power supply provided by the customer.

In the case of customer external supply, the ATEQ instrument can be supply by the 2 and 4 pins on the J3 connector too.

Page 32

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 22/122

2.2.1. 7) J4 connector

Allows the connection of the power supply.

The instrument can be powered directly through the relay board J3 connector on one of the 24 V DC pins.

2.2.1. 8) J5 remote control connector (RS232)

Allows the connection of an intelligent remote control. (Female Lumberg type connector). Optional.

PIN 1 Network (TXD) PIN 3 Network (RXD) PIN 2 Power + 24V PIN 4 Ground 0V

2.2.1. 9) J6 input connector (RS485)

2 1

ATEQ only network.

Allows the connection to other ATEQ instruments. (Male Lumberg type connector).

PIN 1 Network (D+) PIN 3 Network (D-) PIN 2 Power + 24 V PIN 4 Ground 0V

2.2.1. 10) J7 output connector (RS485)

ATEQ only network.

Allows the connection to other ATEQ instruments. (Female Lumberg type connector).

PIN 1 Network (D+) PIN 3 Network (D-) PIN 2 Power +24V PIN 4 Ground 0V

2.2.1. 11) J8 connector (RS232)

Allows the connection of a printer, a bar code reader, a PC, a memory module.

PIN 1 Not connected PIN 6 + 5 V DC 200 mA max PIN 2 RXD Reception of the data PIN 7 RTS request to send PIN 3 TXD Sending of the data PIN 8 CTS clear to send PIN 4 Not connected PIN 9 Not connected PIN 5 Ground

Page 33

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 23/122

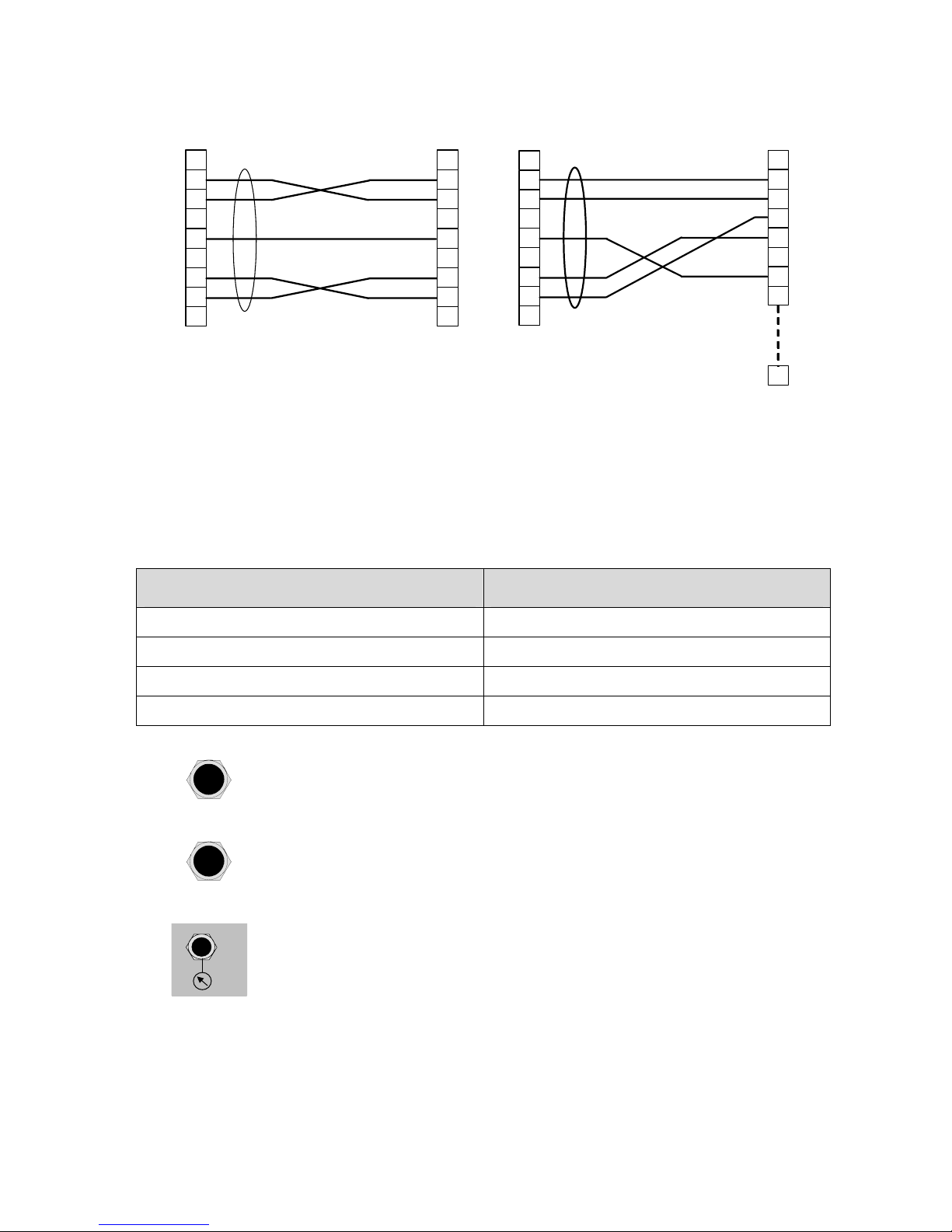

2.2.1. 12) Examples of RS232 cables

1 2 3 4 5 6 7 8 9

ATEQ

Operator

9 pin SubD

connector

9 pin SubD

connector

GND

RTS

CTS

GND

RTS

CTS

1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8

ATEQ

Operator

9 pin SubD

connector

25 pin SubD

connector

GND

RTS

CTS

GND

RTS

CTS

2.2.2. Pneumatic connectors

For the ATEQ D520, the automatic connectors can be installed on the front panel or on the rear panel depending on the option chosen.

These pneumatic outputs can take on different functionalities depending on the configuration requested following the purchase of the instrument (stamping, cut off, dump, second test output, etc.).

"Automatic connector A" output "Automatic connector B" output

Automatic connector A Automatic connector B

Automatic connector A Stamping

Automatic connector A Cut off

Stamping External dump

2.2.2. 1) Automatic connector A

Allows the pneumatic management of a sealing jig.

2.2.2. 2) Automatic connector B

Allows the pneumatic management of a second sealing jig.

2.2.2. 3) Take pressure socket (option)

This optional connector allows to plug the absolute pressure sensor the nearest as possible to the part to be controlled. Connector dimensions: 2.7/4 tube.

Page 34

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 24/122

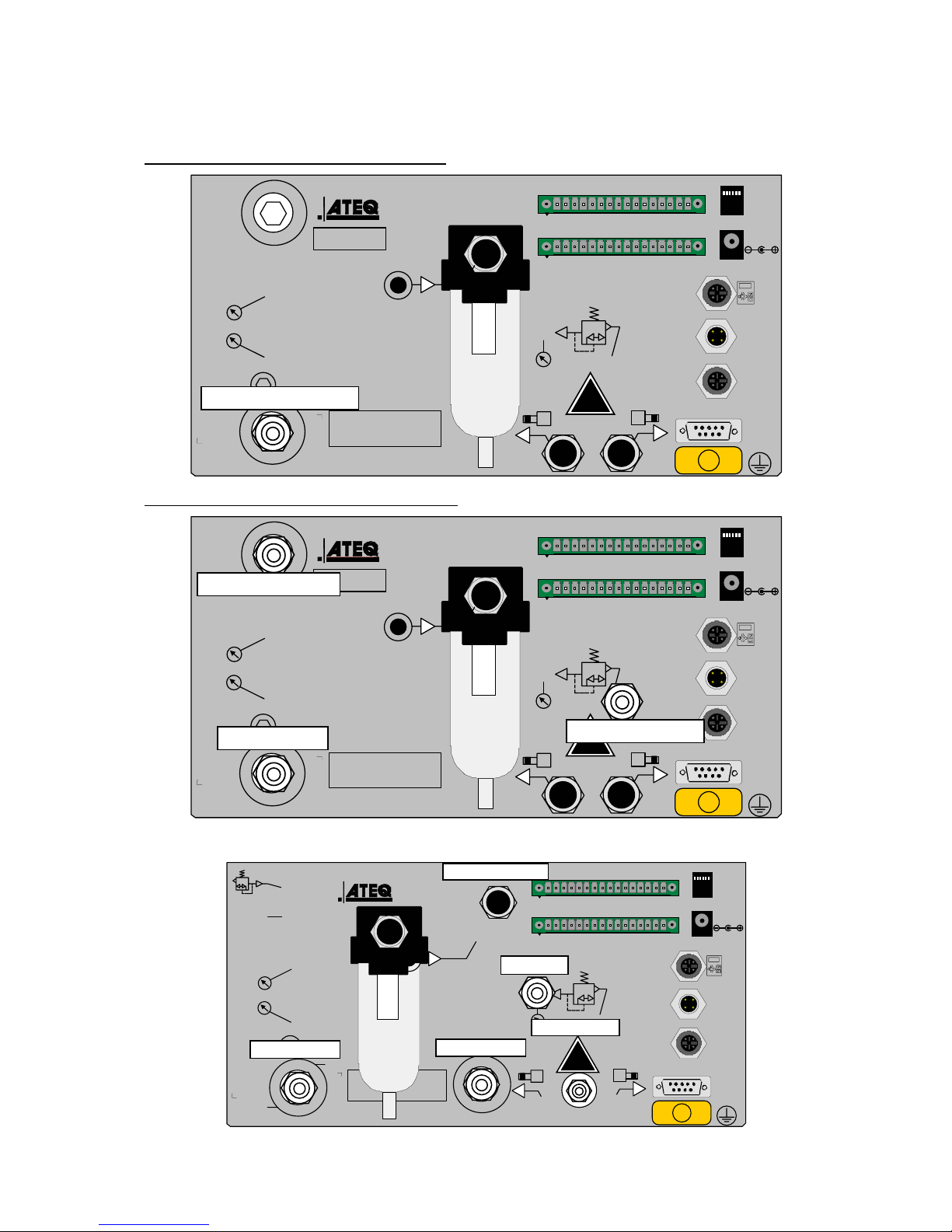

2.2.2. 4) Test pneumatic inputs / outputs

These outputs allow the connection of the parts.

Direct flow measurement mode output:

2 A

24 V ===

MADE BY ATEQ

www.ateq.com

I I I I I I I I I I I I I I I I ► O1 O2 O3 ►O4 O5 O6 T1 T2 T3 T4 S1 S2 S3 S4 24 V === 24 V ===

I I I I I I I I I I I I I I I I ► I1 I2 I3 ► I4 I5 I6 I7 ►O1 O2 O3 O4 O5 ► 24 V === 24 V === C 0V

I (Output) : 100 mA

I (Output) : 200 mA

NET

RS485

ENTREE/IN

RS485

SORTIE/OUT

RS232

485

ATM

SERVICE

Measurement output

Indirect flow measurement mode output:

2 A

24 V ===

MADE BY ATEQ

www.ateq.com

I I I I I I I I I I I I I I I I ► O1 O2 O3 ►O4 O5 O6 T1 T2 T3 T4 S1 S2 S3 S4 24 V === 24 V ===

I I I I I I I I I I I I I I I I ► I1 I2 I3 ► I4 I5 I6 I7 ►O1 O2 O3 O4 O5 ► 24 V === 24 V === C 0V

I (Output) : 100 mA

I (Output) : 200 mA

NET

RS485

ENTREE/IN

RS485

SORTIE/OUT

RS232

485

ATM

SERVICE

Measurement input

ATM

Regulator output

2.2.2. 5) "Gas" option

2 A

24 V ===

MADE BY ATEQ

www.ateq.com

I I I I I I I I I I I I I I I I ► O1 O2 O3 ►O4 O5 O6 T1 T2 T3 T4 S1 S2 S3 S4 24 V === 24 V ===

I I I I I I I I I I I I I I I I ► I1 I2 I3 ► I4 I5 I6 I7 ►O1 O2 O3 O4 O5 ► 24 V === 24 V === C 0V

I (Output) : 100 mA

I (Output) : 200 mA

NET

RS485

ENTREE/IN

RS485

SORTIE/OUT

RS232

485

TEST

SERVICE

ATM

(IND.)

(DIR.)

TEST

(DIR.)

T°

TEST

GAS INPUT

Pressure

GAS EXIT

CUT OFF VALVE

Page 35

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 25/122

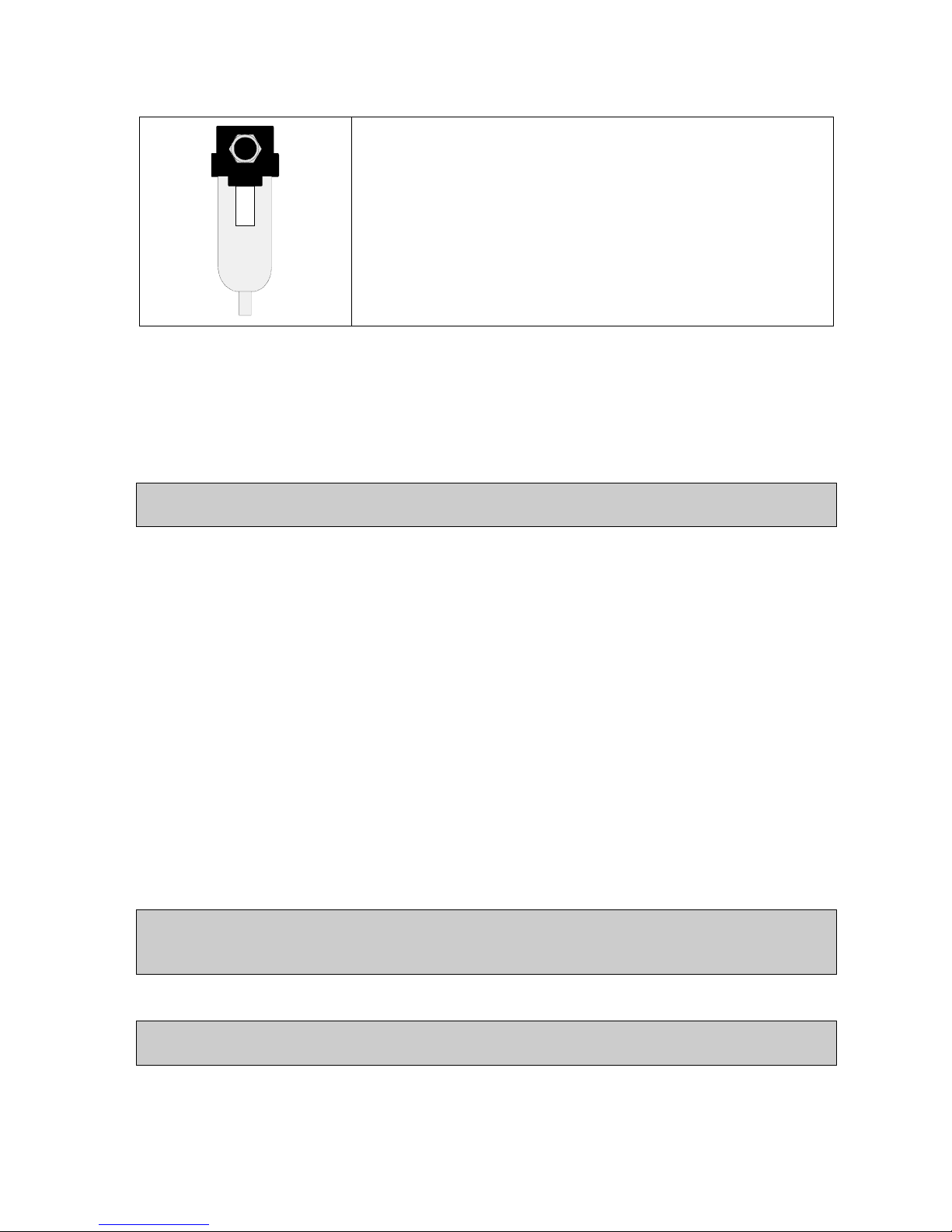

2.2.2. 6) Pneumatic air supply

The air is supplied through the filter placed on the back panel of the instrument.

The air supply must absolutely be clean and dry. The presence of dusts, oil or impurities, causes a risk of improper operation of the instrument despite the filter supplied.

When the instrument operates in vacuum the entry of debris into the instrument must be avoided. For this purpose it is highly recommended that an appropriate leak proof filter is fitted between the test part and the instrument. This filter can be supplied by ATEQ.

The presence of impurities, oil or humidity in the air may cause a deterioration for

which the guarantee will not be valid.

According to the ISO 8573-1 norm concerning the quality levels of compressed air for measurement instruments in industrial environments:

ATEQ recommends:

• Grain size and concentration CLASS 1 (0,1 µm and 0,1 mg/m3)

• Dew point under pressure CLASS 2 (- 40° of dew)

• Maximal concentration in oil CLASS 1 (0,01 mg/m3)

ATEQ recommends the installation:

• Of an air drier allowing the obtaining of a dry air with a dew point at less than 40°,

• Of a 25 microns and 1/100 of a micron double filter.

Optimisation of the operation:

The air supply pressure must be between 400 kPa and 800 kPa (4 and 8 bar) to ensure a perfect operation of the pneumatic distributors.

In the event of the use of a mechanical regulator, it is necessary to have an air

pressure supply which is at least 100 kPa (1 bar) over the test pressure with a

minimum of 400 kPa (4 bar).

In the event of the use of an electronic regulator, the input pressure must be at

least 10 % over the full scale value of the electronic regulator + 100 kPa (+ 1 bar).

Page 36

Chapter 1 – Installation of the instrument

UM-22100H-U User manual ATEQ D520 Page 26/122

Page 37

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 27/122

Chapter 2

USER INTERFACES

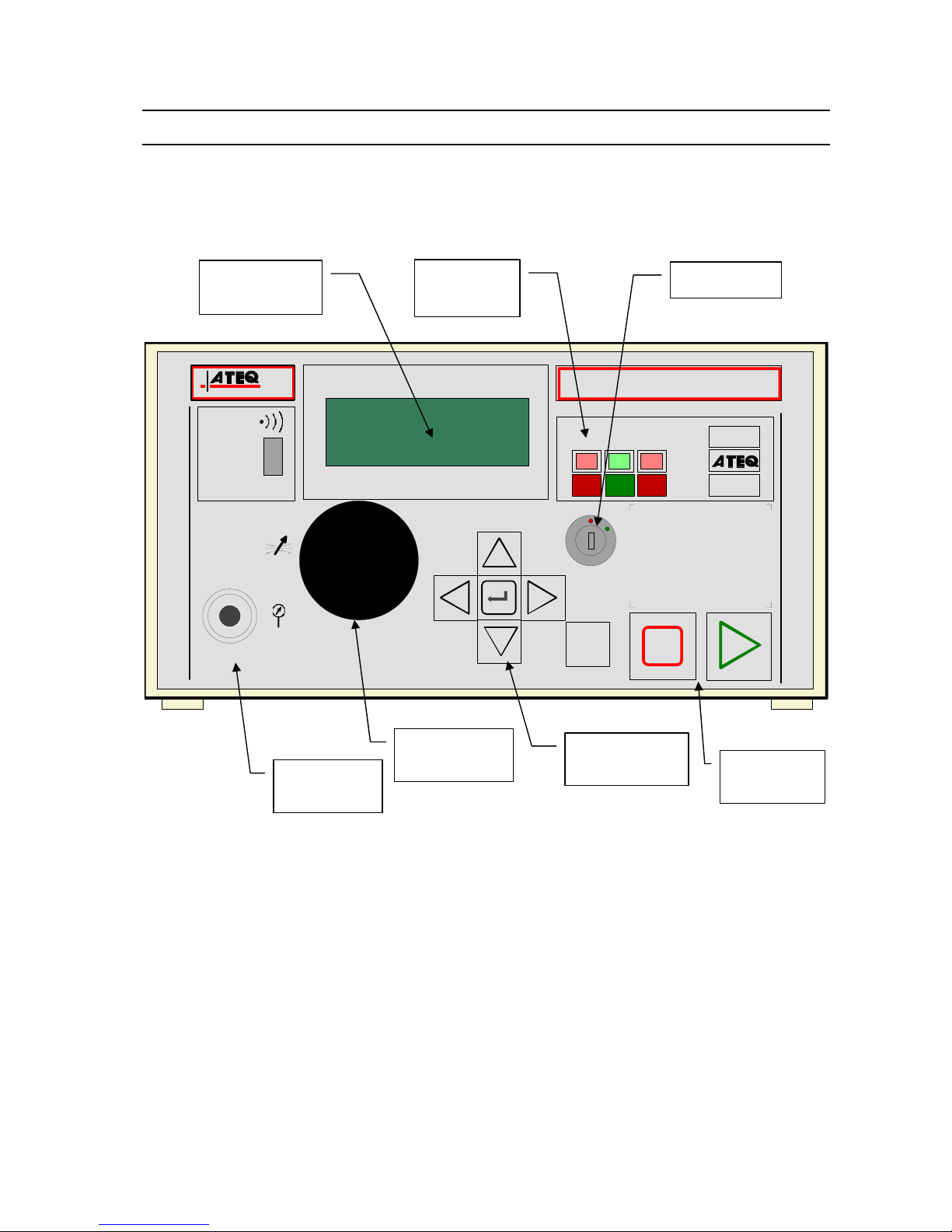

1. PRESENTATION OF THE FRONT PANEL OF THE D520

www.ateq.com

D520

4 lines LCD

display

Pressure regulator

Navigation

keys

Key lock

Cycle

keys

Results

indicators

Quick

connectors

Page 38

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 28/122

2. PRESENTATION OF THE KEYBOARD KEYS

2.1. NAVIGATION KEYS

KEY FUNCTION

Move up or increase of the numerical

values

Move down or decrease of the numerical

values

Not used

ENTER key

Enter the

Parameter edition menu

Validation of a parameter

« C » for CANCEL

Return to the previous menu or function

Escape a parameter without modifying it

Page 39

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 29/122

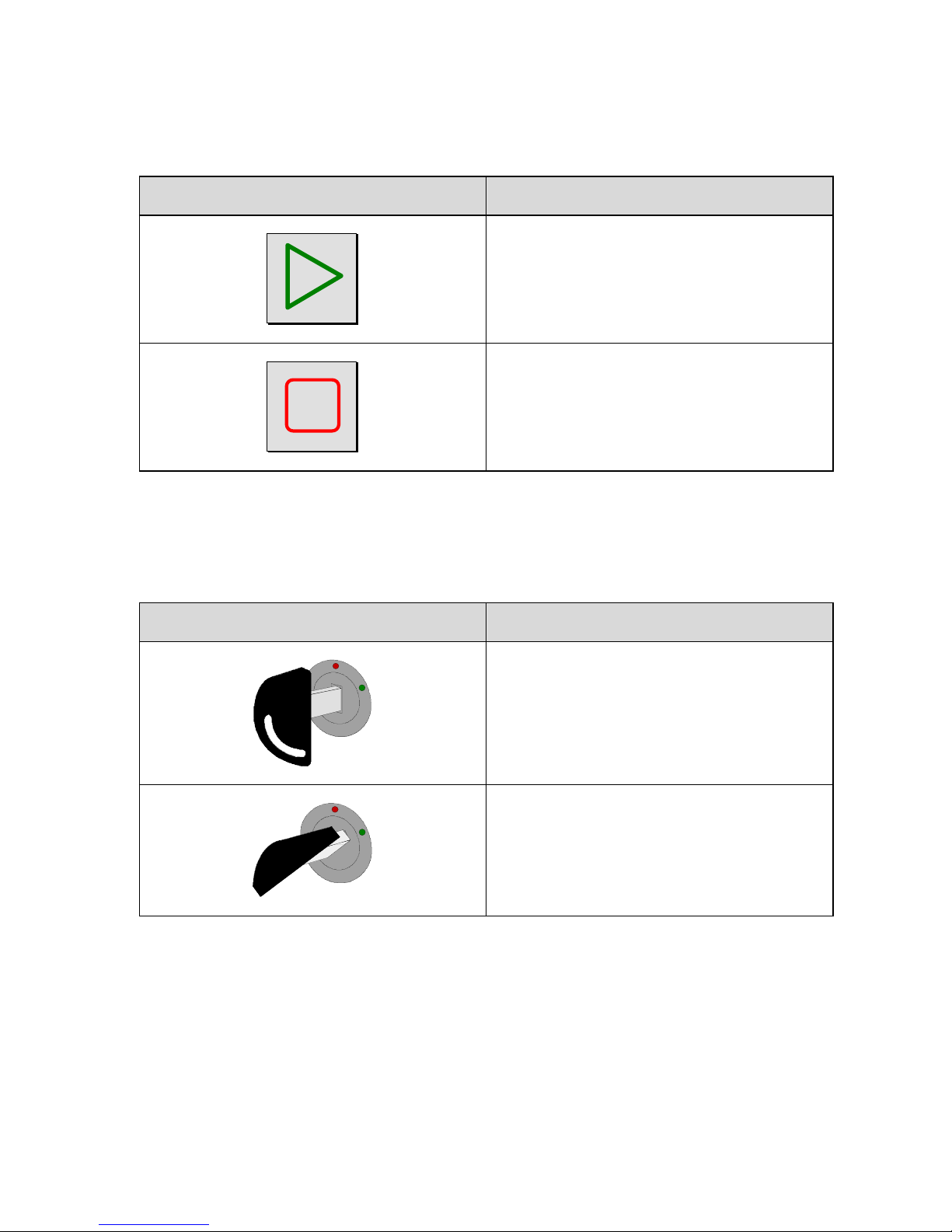

2.2. CYCLE KEYS

KEY FUNCTION

START key

Launching a measurement cycle

Reset key (Reset to 0)

Stopping of the measurement cycle in

progress

3. KEY LOCK

POSITION FUNCTION

LOCK position.

The access to the adjustable parameters is

not possible.

ACCESS position.

Access to the adjustable parameters.

Note: whatever the position of the key-lock is (LOCKED or ACCESS), it is possible to start and stop test cycles.

Page 40

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 30/122

4. REGULATOR

Allows the adjustment of the test pressure.

5. INFRA-RED INTERFACE

Not functional.

6. 4 LINE LCD DISPLAY

ATEQ

Version XX.XXi

0->500 mbar

Flow FS 30.00 l/h

Allows the display of the measurements and adjustable parameters. In the example to the left, XX.XXi represents the program version of the instrument.

7. QUICK CONNECTOR

A quick connector may be mounted on the front panel of the instrument. It allows the easy checking of the pressure. It is used for the regulator circuit. It allows the checking of the test pressure displayed by the instrument with a precision manometer or the ATEQ Leak/Flow calibrator.

Page 41

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 31/122

8. FUNCTIONNALITY OF THE INDICATORS

The symbol represents a lit indicator.

Pass part indicator.

Fail large flow indicator

(flow too big).

Fail low flow indicator (flow too weak).

Warning.

Standby, (intermittent flashing).

Recoverable parts (indicator constantly lit).

Page 42

Chapter 2 – User interfaces

UM-22100H-U User manual ATEQ D520 Page 32/122

Page 43

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 33/122

Chapter 3

STARTUP AND ADJUSTMENTS

1. POWERING UP THE ATEQ D520

Supply the instrument with

24 V DC.

When switched on the

instrument :

displays the version and the

sensor full scales …

ATEQ D5

Version XX.XXi

0-> 2 bar

Flow FS 5 L/h

…then displays the main

menu.

RUN

/Pr:001

PRESS = 0.000 bar

READY

Page 44

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 34/122

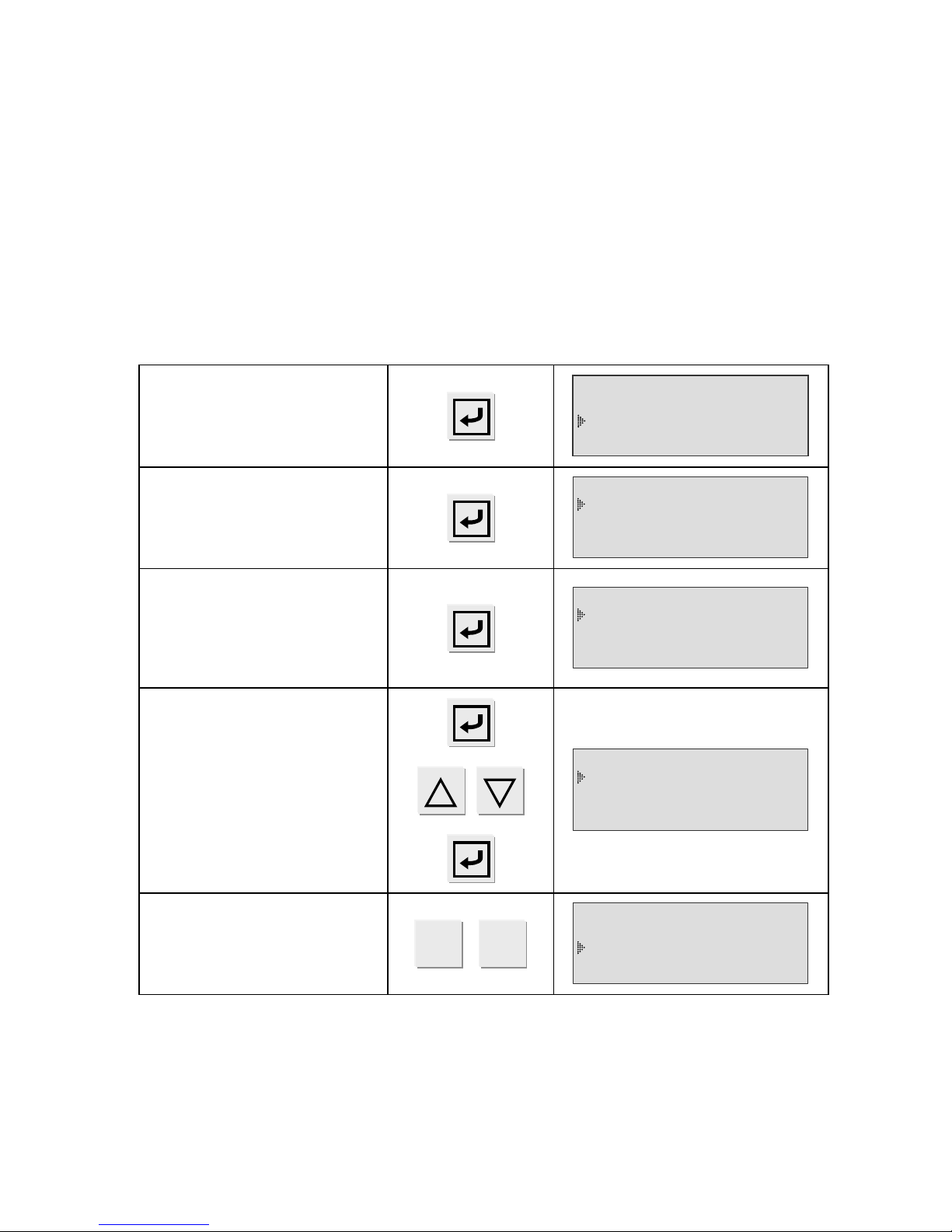

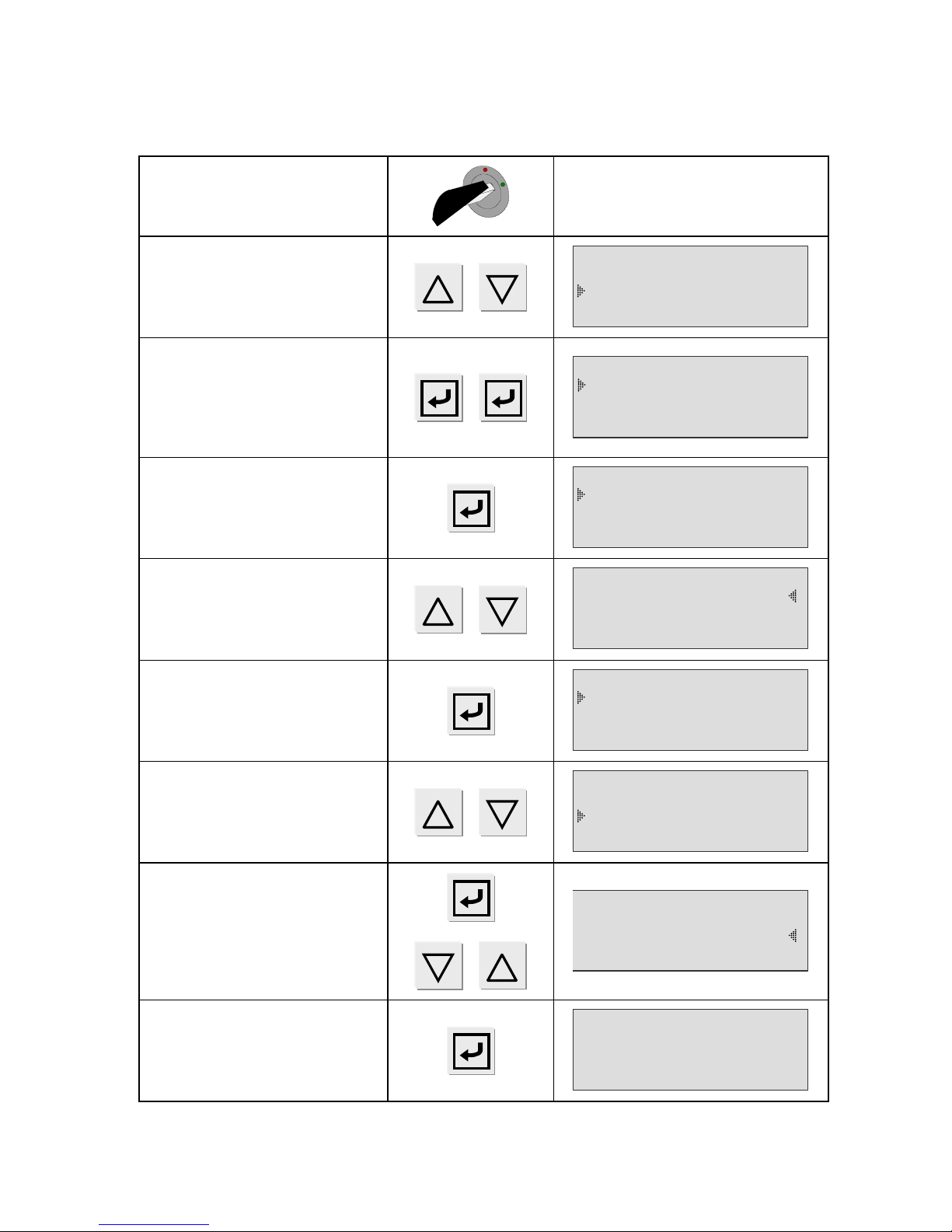

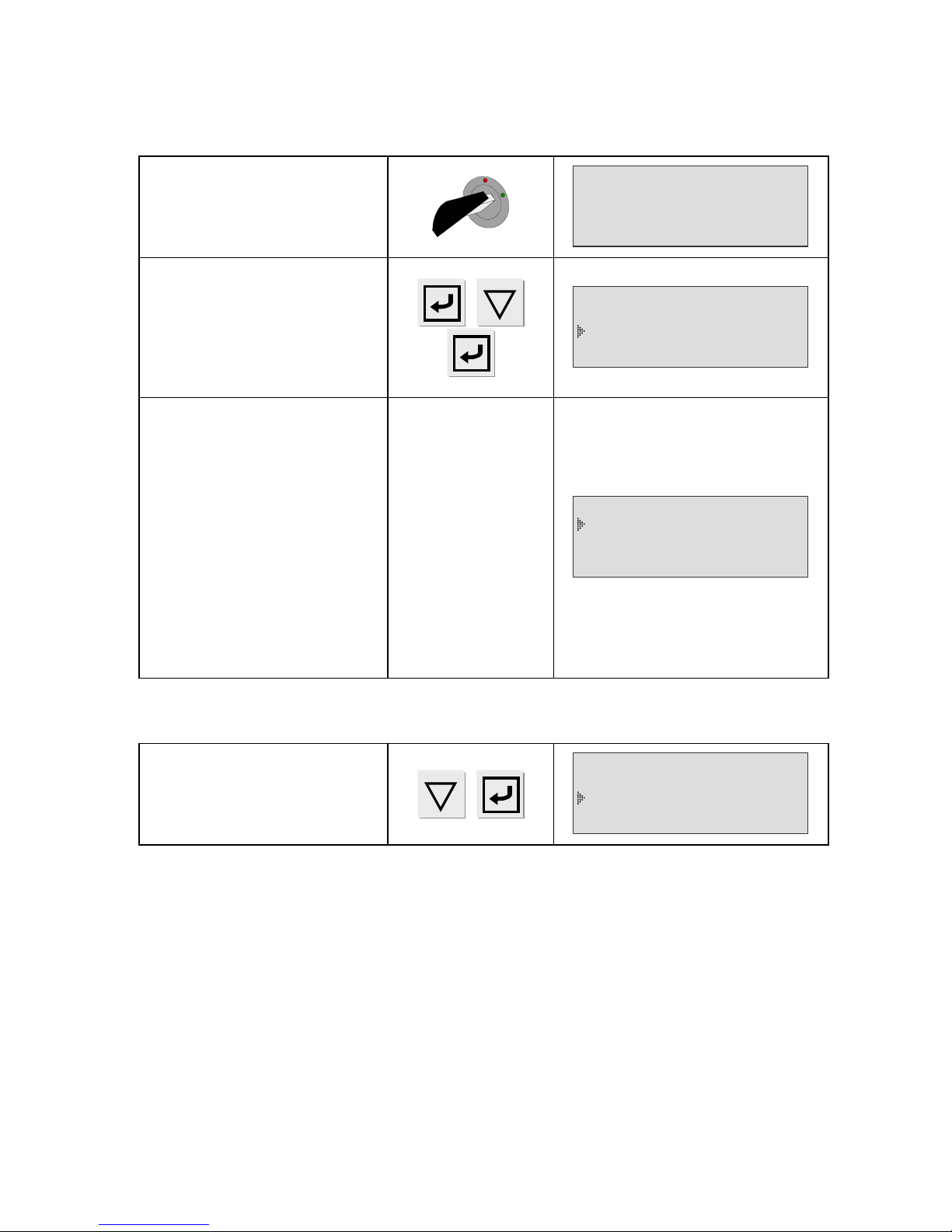

2. CREATION OF A TEST PROGRAM

To be able to modify the

parameters, place the key in

the ACCESS position.

RUN

r :

001

PRESS = 0.000 bar

READY

To access the main menu,

press on the ENTER key.

From the main menu, place

the cursor in front of the

PARAMETERS menu.

Confirm with the ENTER key.

MAIN MENU

RUN PROG. : ---

PARAMETERS

SPE CYCLE:Disabled

The PARAMETERS menu

allows the management of test

programs.

)If the different programs to

be created have different

parameters, it is necessary to

create them one by one.

)If these programs have identical parameters, a base program can be created and

the Copy – Paste function

used to duplicate this program

as many times as necessary.

PARAMETERS

Copy-Paste Pr :01 --------- Pr :02 ----------

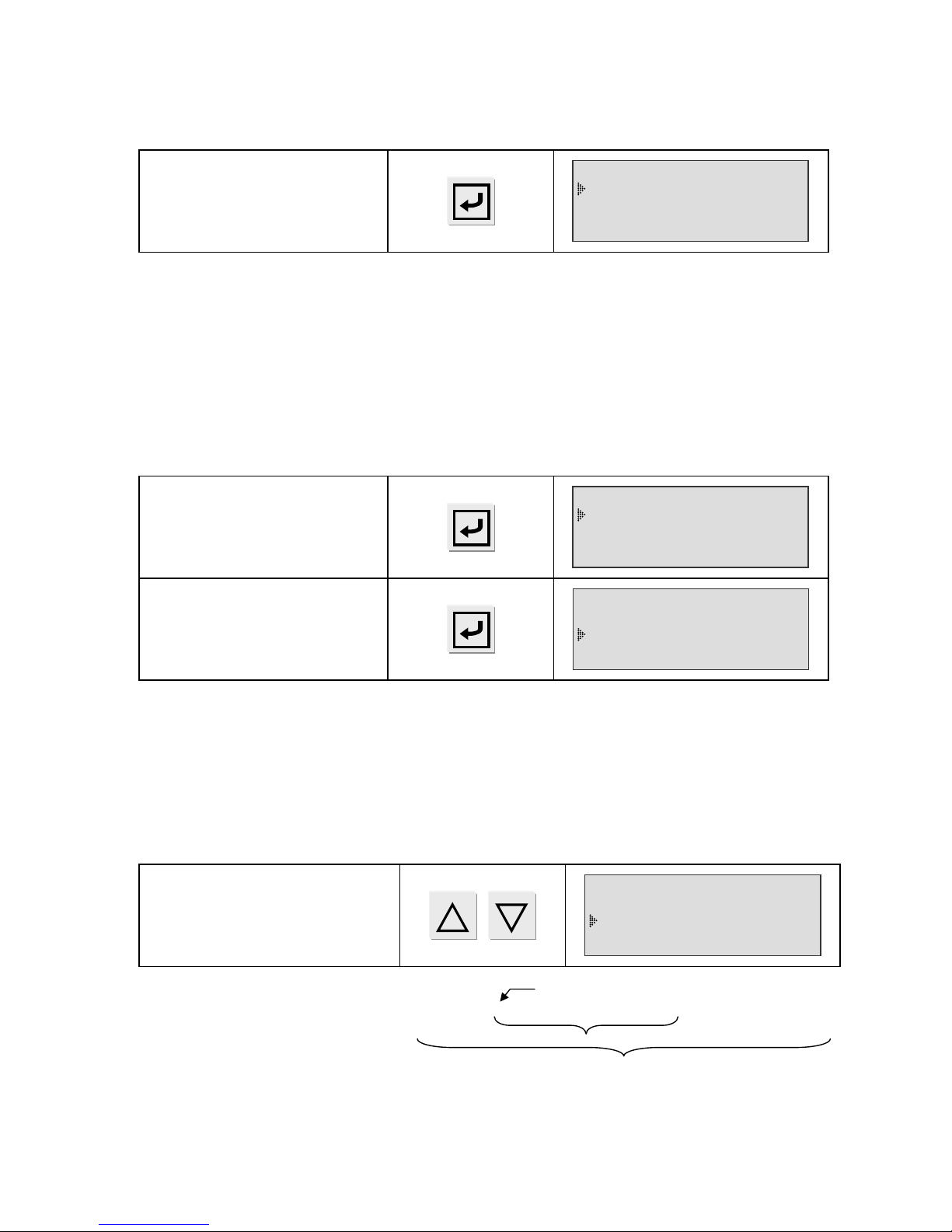

2.1. CHOICE OF THE PROGRAM NUMBER

Position the cursor in front of

the chosen program number.

Confirm with the ENTER key.

PARAMETERS

Copy-Paste

Pr :01 --------- Pr :02 ----------

Page 45

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 35/122

2.2. SELECTION OF THE TEST TYPE

Two test types are available.

The PARAMETERS menu

gives access to two possible

test types: Indirect or direct

flow test (FLOW. CYCLE) and

an operator test

(OPERATOR) non functional;

refer to the following

paragraph for explanations.

Place the cursor in front of the

required test type and confirm

with the ENTER key.

PARAM/TYPE

DIRECT FLOW

OPERATOR

2.2.1. Flow test (direct or indirect)

When a fluid (gas) passes through a calibrated flow tube (laminar flow), a pressure drop takes place, the value of which is proportional to the flow.

2.2.2. Test with reference

This kind of test is an option. It's named "Rich" or "High Precision". It's allows shifting the pneumatic circuit to a master (reference program), this is to make a learning before measuring on the test part (flow program).

The master characteristics are to be informed in the (single) "reference" program. See the "reference" function in the chapter 4.

Procedure for test with reference:

¾ Program the reference cycle.

¾ Program the flow test cycles with the same parameters as the reference one.

¾ Activate the reference function in the flow cycle.

2.2.3. Operator mode test

This test type allows the operator to carry out actions (or checks) on the part undergoing

a test then to confirm them with the "START"

key if the test is considered to be

good, or on the "RESET" key if the test is considered to be bad.

Page 46

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 36/122

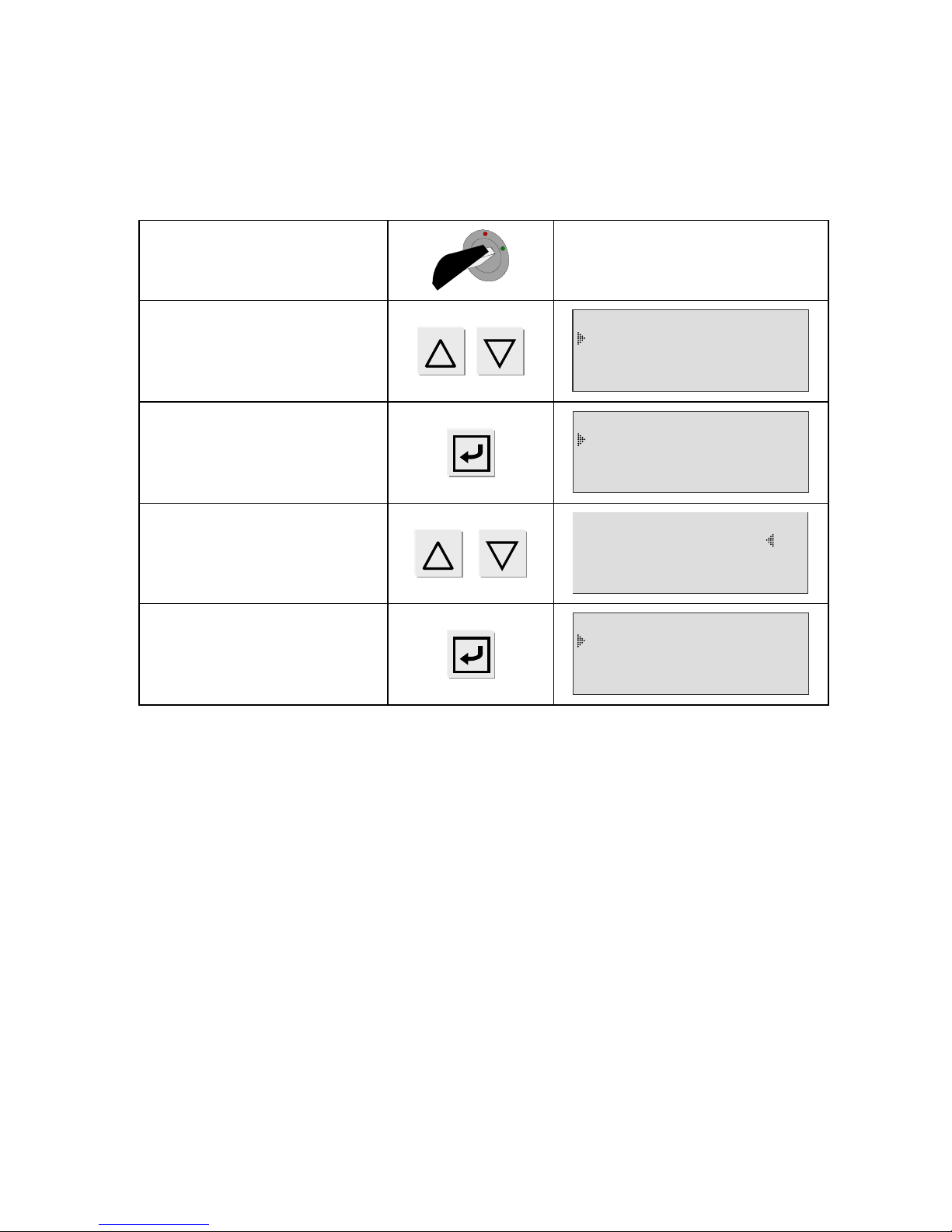

2.3. ADJUSTMENT OF THE PARAMETERS

Once the test type is chosen, the cycle parameters must be adjusted.

The procedure to follow to adjust all the test parameters is identical. Example with the Coupling time A.

First, place the cursor in front of the chosen parameter with

the navigation keys

(here, wait time A).

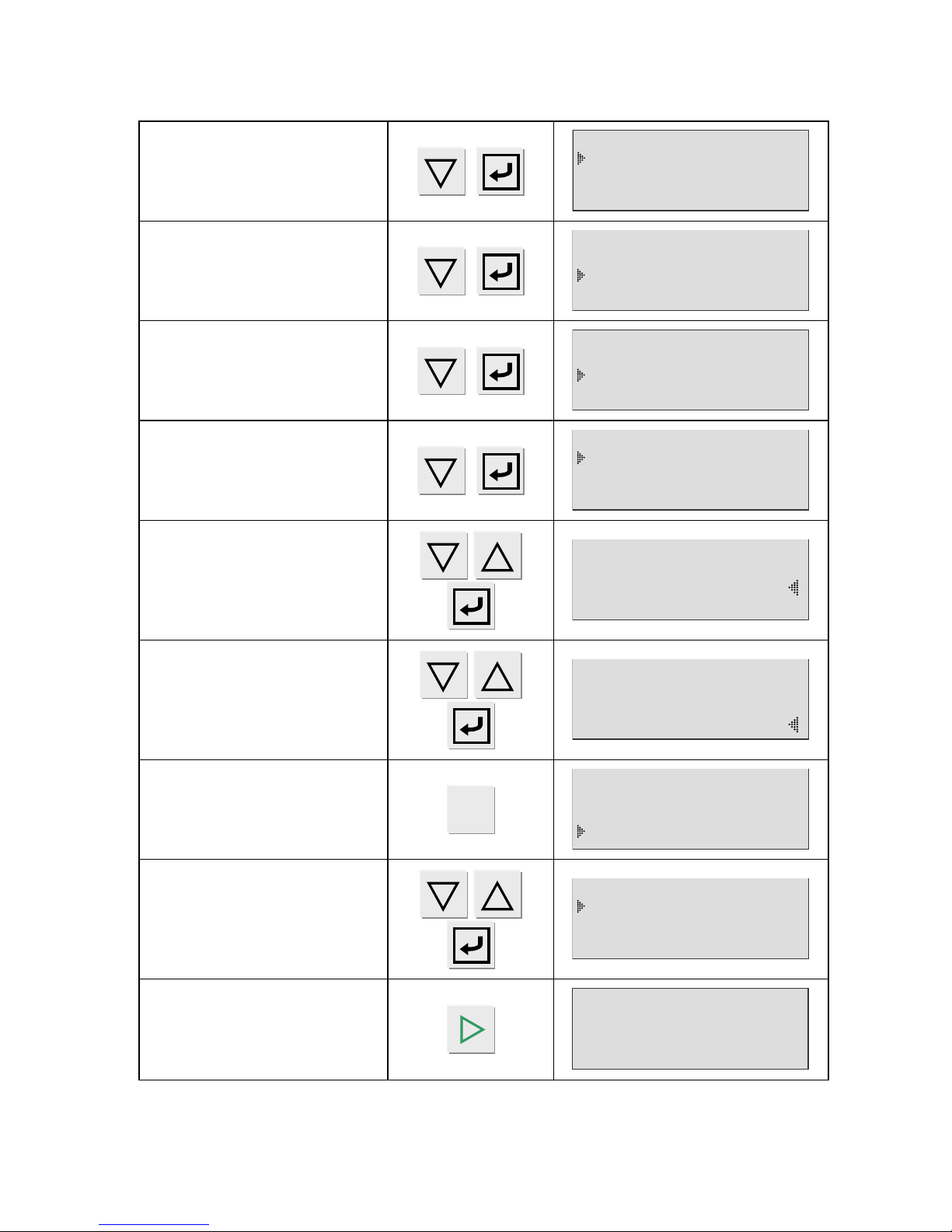

PARAM/

r001

TYPE : DIRECT FLOW

COUPL. A : 00.00 s

FILL : 00.00 s

Next, confirm with the ENTER

key. The cursor moves to the right hand side of the screen.

PARAM/

r001

TYPE : DIRECT FLOW COUPL. A : 00.00 s FILL : 00.00 s

Modify the value with the

navigation keys.

PARAM/P

r001

TYPE : DIRECT FLOW COUPL. A : 00.03 s FILL : 00.00 s

Once the value is modified,

confirm with the ENTER key.

PARAM/P

r001

TYPE : DIRECT FLOW

COUPL. A : 03.00 s

FILL : 00.00 s

To move to the next

parameter, use the navigation

keys.

PARAM/P

r001

TYPE : DIRECT FLOW COUPL. A : 03.00 s

FILL : 00.00 s

To exit the menu, use the

CANCEL key.

PARAMET

ERS

Copy-Paste Pr:001 FLOW

Pr:002 FLOW

Page 47

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 37/122

2.3.1. Coupling time

The coupling (also known as wait) times A and B are cycle start parameters.

When there is no automatic connector, the coupling time A is a part of the cycle.

In the event of an instrument with automatic connector the coupling time A allows the activation of a first connector as soon as the cycle starts and to delay the pressurisation of the test part. The coupling time B allows the activation of a second automatic connector. These coupling times ensure a better stabilisation of the seals placed on the test part.

)Adjust this parameter according to the method described in § 2.3.

2.3.2. Fill time

This is the time taken to pressurise and initialise the flow in the test part.

) Adjust this parameter according to the method described in § 2.3.

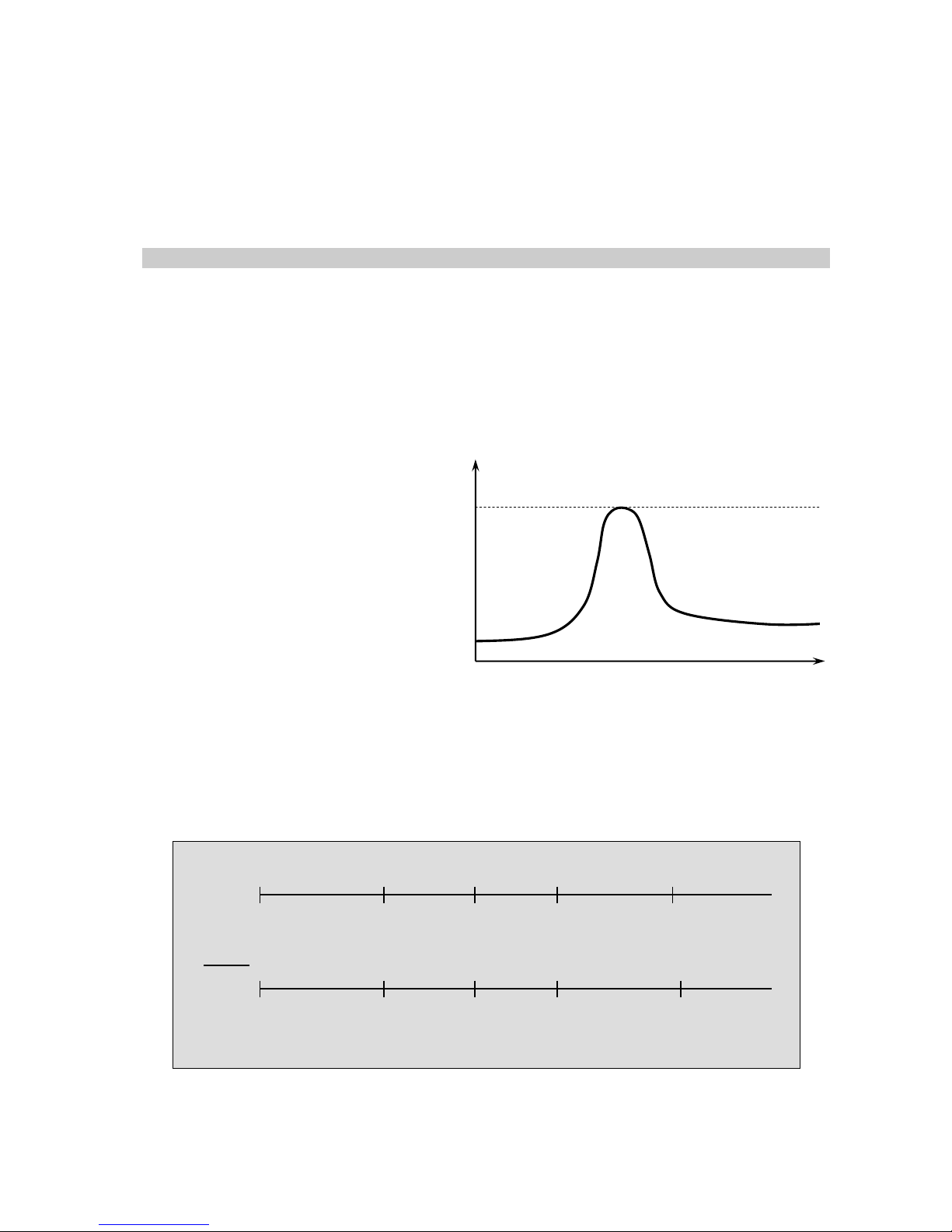

2.3.3. Stabilisation time

This time allows the stabilisation of the flow in the part. If the stabilisation time is too short, parasite flow variations can cause inaccurate readings.

It is therefore recommended to start with a long stabilisation time and to progressively reduce it until a stable reading of flow can be made.

) Adjust this parameter according to the method described in § 2.3.

2.3.4. Test time

The test time can be a set value or infinite. During all this time the instrument indicates if the flow in the part measured is between the minimum and maximum reject values.

When the test time is infinite, the fill pressure monitoring is inoperative. It is therefore necessary to be careful not to apply an excessive pressure to the part being tested.

) Adjust this parameter according to the method described in § 2.3.

2.3.5. Pressure unit

The different units are: bar, mbar, PSI, Pa, kPa, MPa.

) Adjust this parameter according to the method described in § 2.3.

Page 48

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 38/122

2.3.6. Max fill

This function allows the setting of a maximum fill pressure which sets off an alarm if it is exceeded.

) Adjust this parameter according to the method described in § 2.3.

2.3.7. Min fill

This function allows the setting of a minimum fill pressure threshold which sets of an alarm if the pressure is not reached. This function is not active when an infinite test time is set.

) Adjust this parameter according to the method described in § 2.3.

2.3.8. Reject unit

The reject units available depending on the system chosen by the operator are:

SI System: ml/h, l/h, ml/s, ml/min.

USA System: in3/h, ft3/h, in3/min, in3/h, ft3/h, in3/min.

Personalised system: no units, as chosen by the operator (CAL) only a unit name is required, then the input of the maximum authorised drift. A learning cycle is then necessary; it is carried out through the "CAL learning" special cycle.

) Adjust this parameter according to the method described in § 2.3.

2.3.9. Maximum reject

This parameter allows the definition of the upper limit of the authorised flow range in the test part, above this limit the part is considered as bad.

) Adjust this parameter according to the method described in § 2.3.

2.3.10. Minimum reject

This parameter allows the definition of the lower limit of the authorised flow range in the test part, under this limit the part is considered as bad.

) Adjust this parameter according to the method described in § 2.3.

Page 49

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 39/122

2.3.11. Range (second capillary option)

The second capillary is an option on the D520 instrument, it allows having two flow measurement ranges so that to have best adapt of the measurement extend of the capillary in function of the part to be controlled.

When this option exists in the instrument, the "Range" parameter appears in the parameters menu, so you have to choose the capillary (the range), then the best measurement range adapted to the part to be controlled.

The choice of the range is function of the capillaries installed in the instrument: the available ranges are: 5 l/h, 30 l/h, 150 l/h, 500 l/h, 1500 l/h, 4000 l/h and 10000 l/h.

) Adjust this parameter according to the method described in § 2.3.

2.3.12. Functions

The FUNCTION menu allows access to additional parameters which must first be activated in the CONFIGURATION menu, then in EXTENDED MENUS.

If no additional parameters have been activated in the EXTENDED MENUS, the FUNCTION menu is empty.

To activate these parameters, refer to chapter 4 § 2.

Page 50

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 40/122

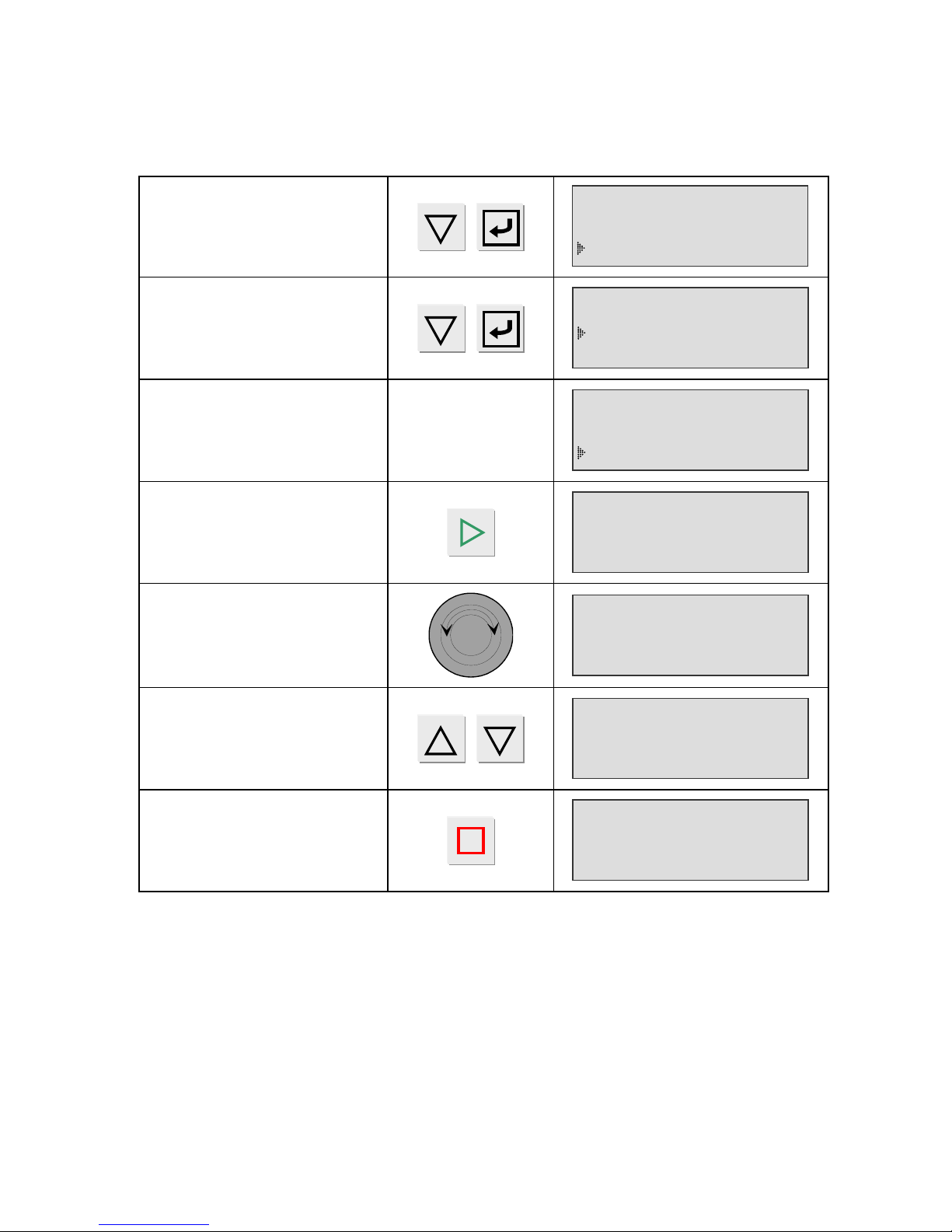

3. COPYING A TEST PROGRAM

To be able to modify the

parameters, place the key in

the ACCESS position.

From the main menu, place

the cursor in front of the

PARAMETERS heading.

MAIN MENU

RUN PROG. : 001

PARAMETERS

SPE CYCLE: Disabled

Validate with the ENTER key.

The cursor will place itself in

front of the Copy-Paste

function. Confirm this function

again with the ENTER key.

PARAMET

Copy-Paste Pr :001 VALVE 1 Pr :002 VALVE 2

Next, validate the COPY

function.

PARAM/Copy

Past

COPY :Pr ---

PASTE :Pr ---

Display the number of the

program to be copied by using

the navigation arrows.

(Here, program n°1).

PARAM/Copy

Past

e COPY :Pr 001 PASTE :Pr ---

Confirm with the ENTER key.

PARAM/Copy

Past

COPY :Pr

001

PASTE :Pr ---

Place the cursor in front of

Paste.

PARAM/Copy

Past

e COPY :

Pr 001

PASTE :Pr ---

Confirm with the ENTER key.

Attribute a number to this new

program by using the

navigation keys (for example

n°3).

PARAM/Copy

Past

e COPY :Pr 001 PASTE :Pr 003

Confirm with the ENTER key.

The display confirms the copy

of the program.

COPY IN PROGRESS...

Page 51

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 41/122

From this moment, the

parameters for program 1 are

duplicated into program 3. In this example, program n°3 is

therefore an exact copy of

program n°1.

PARAM/Copy

Past

e COPY :

Pr 001

PASTE :Pr 003

Press twice on CANCEL to

return to the main menu.

MAIN MENU

RUN PROG : 001

PARAMETERS

SPE CYCLE :Disabled

Page 52

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 42/122

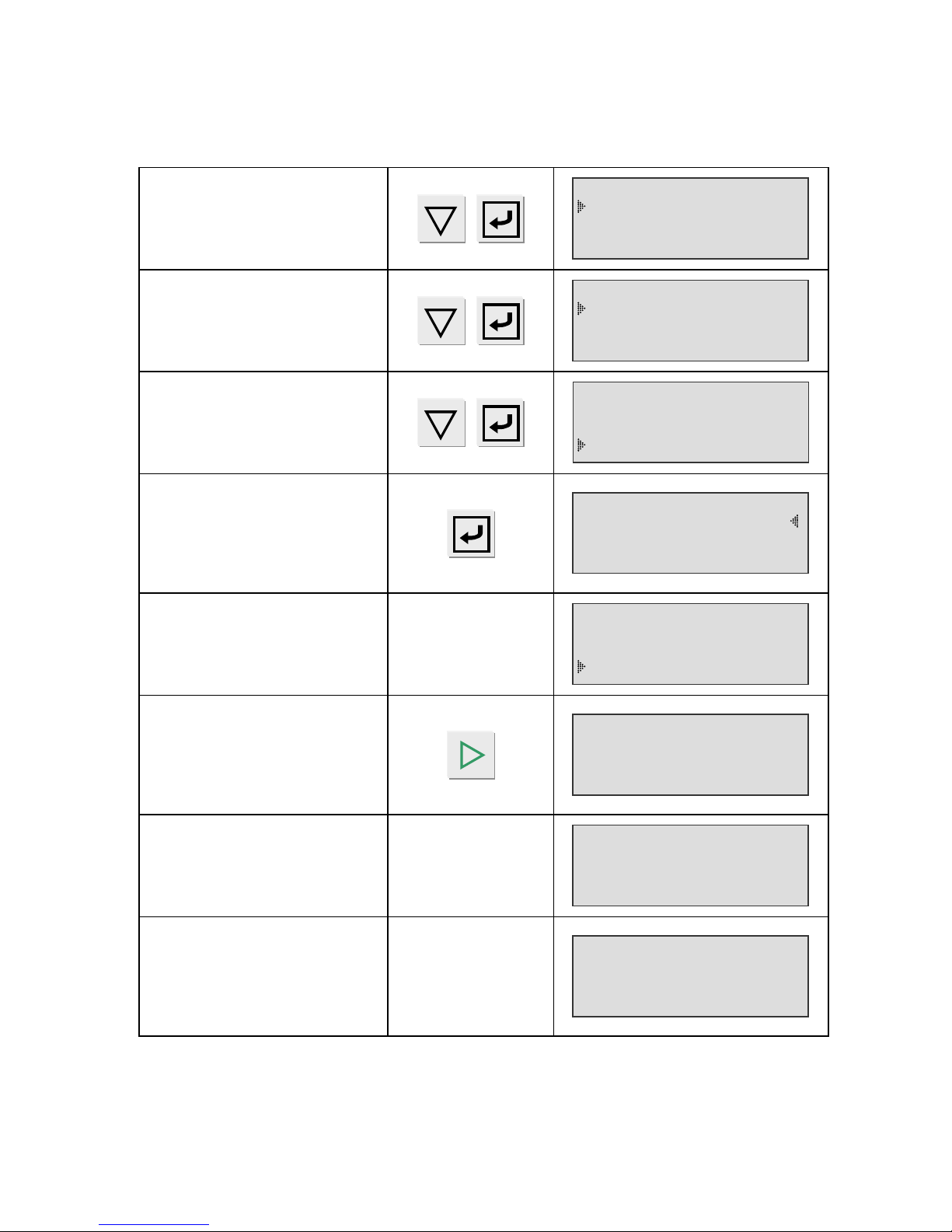

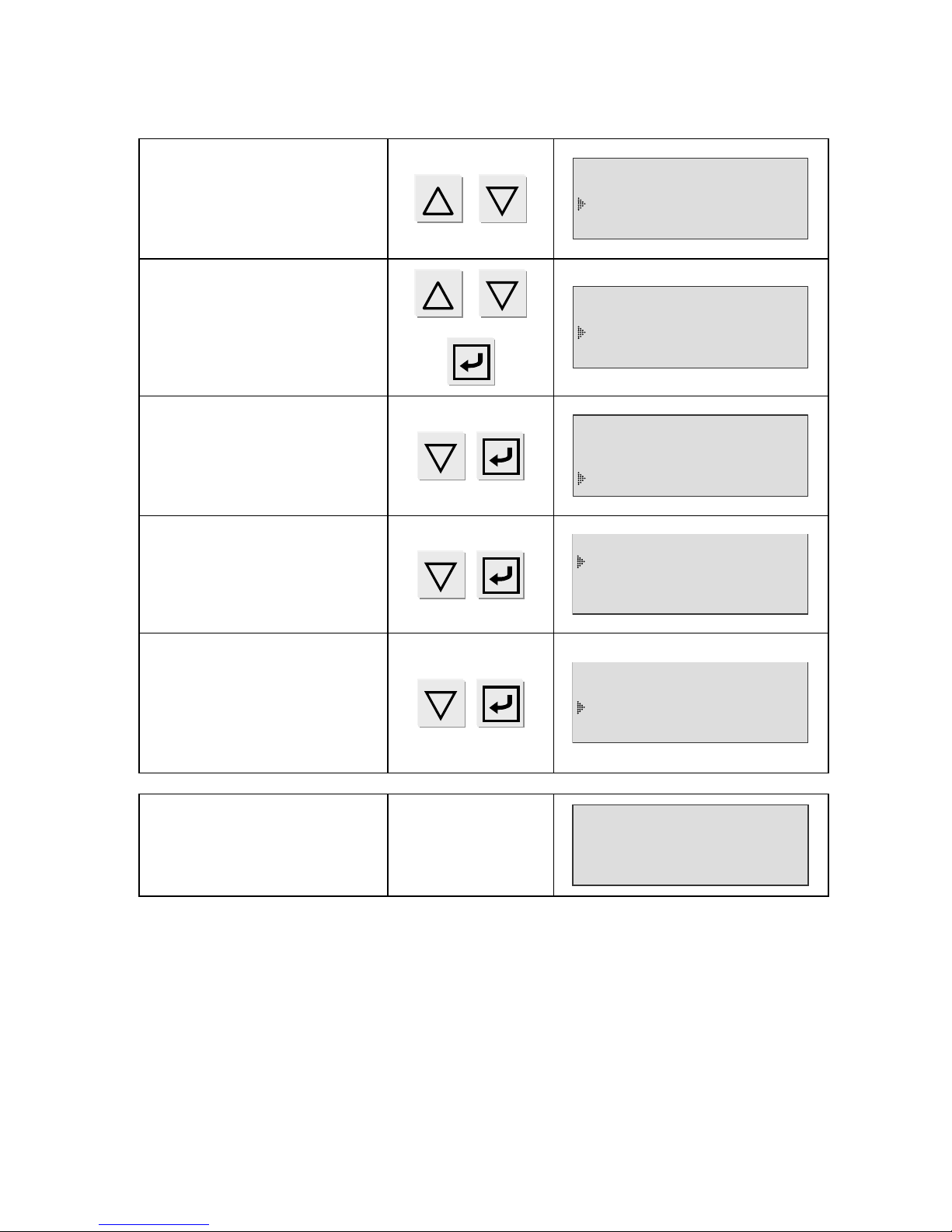

4. DELETING A PROGRAM OR THE NAME OF A PROGRAM

To be able to modify the

parameters, turn the key to

the ACCESS position.

Position the cursor in front of

PARAMETERS.

Confirm with the ENTER key.

MAIN

RUN PROG. : 001

PARAMETERS

SPE CYCLE: Disabled

Place the cursor in front of the program number to be deleted

or the name of the program to

be deleted.

PARAMETERS

Copy-Paste

Pr:001 VALVE 1

Pr:002 VALVE 2

Confirm a first time to enter

the program.

PARAM/Pr001

TEST : PRESS. CYCLE COUPL. A : 00.0 s INIT.PRES: 0000

Confirm a second time to gain

access to the delete menu.

Two possibilities are available:

delete the name of the

program or delete the whole

program.

M/Pr001/T

EST TYPE

Delete name Delete program

1°) Confirm a third time. The

name of the program is

deleted.

PARAMETERS

Copy-Paste

Pr:001 --------- Pr:002 VALVE 2

2°) Place the cursor in front of

delete program.

M/Pr001/

TEST

TYPE

Delete name Delete program

Confirm with ENTER. The

program is deleted.

Note: if the "Delete a

program" operation is done

first, then the program name is

also deleted.

PARAM/Pr001

TEST : PRESS. CYCLE COUPL. A : 00.0 s INIT.PRES: 0000

Page 53

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 43/122

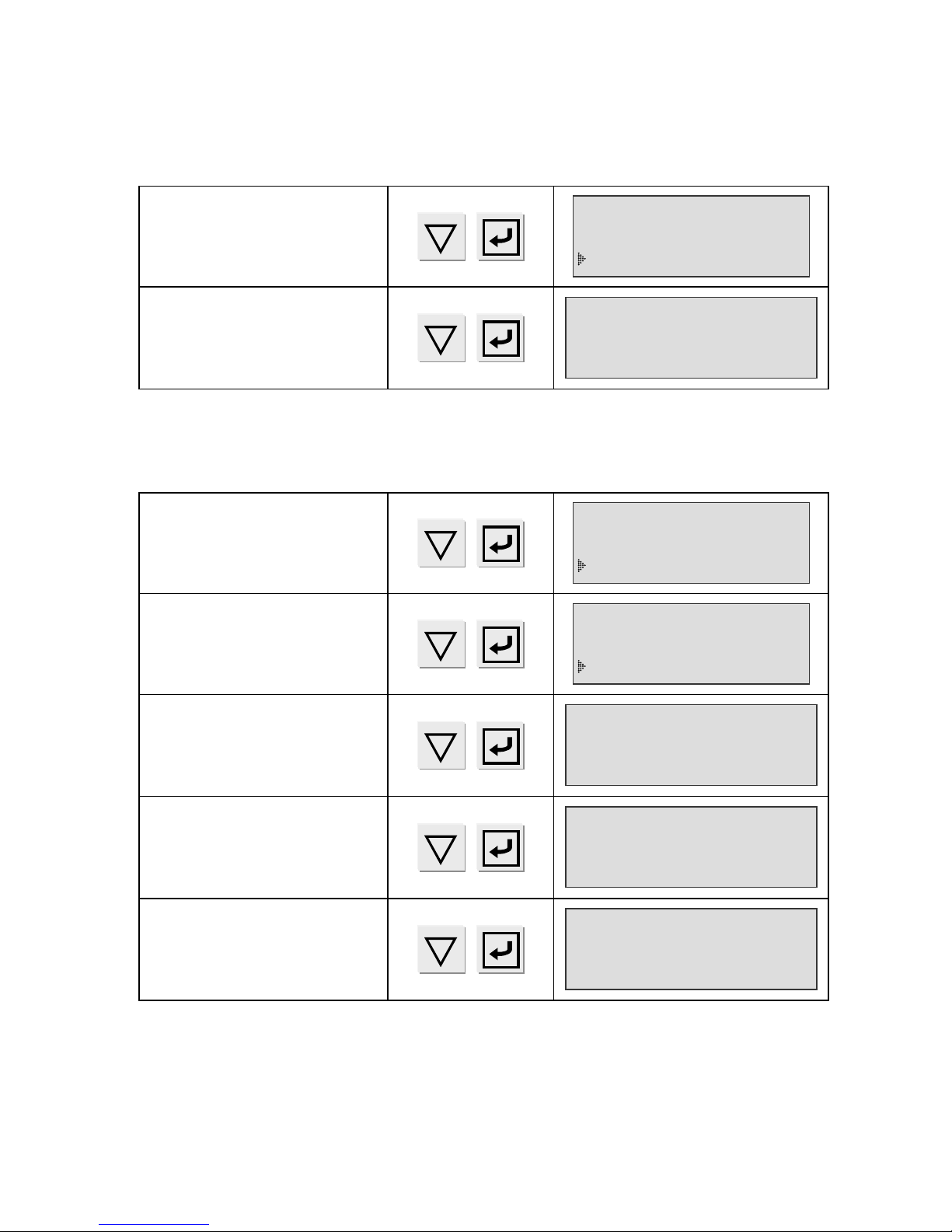

5. LAUNCHING OF A CYCLE

5.1. CHOICE OF THE PROGRAM NUMBER TO BE LAUNCHED

Position the key in the

ACCESS position.

Starting from the main menu,

place the cursor in front of the

RUN PROG. function.

MAIN MENU

RUN PROG.: 001

PARAMETERS SPE CYCLE :Disabled

Confirm with the ENTER key.

MAIN MENU

RUN PROG.: 001 PARAMETERS SPE CYCLE :Disabled

Display the number of the program required by scrolling through the numbers with the

navigation keys.

MAIN MENU

RUN PROG. : 004 PARAMETERS SPE CYCLE :Disabled

Confirm your choice with the

ENTER key.

MAIN MENU

RUN PROG. : 004 PARAMETERS SPE CYCLE :Disabled

Page 54

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 44/122

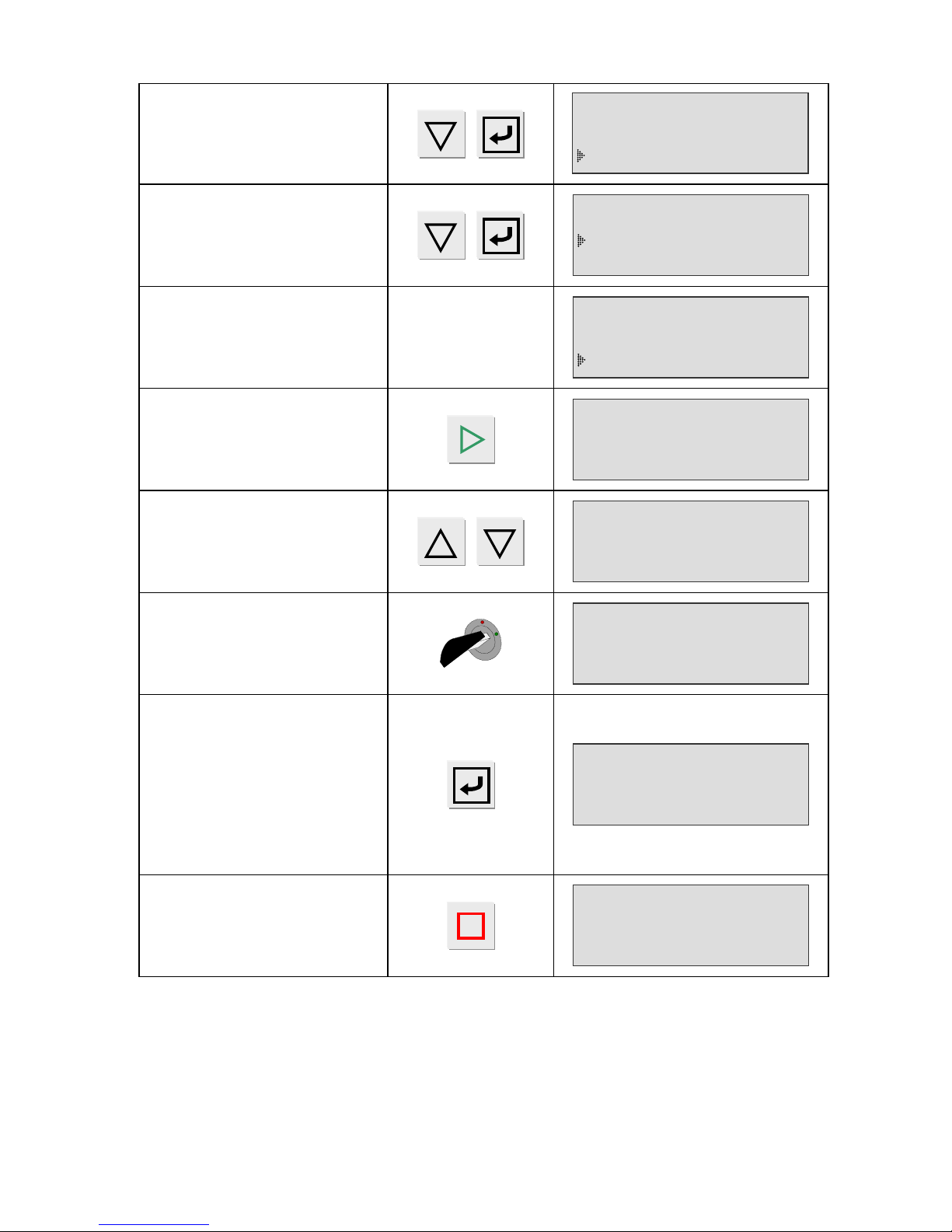

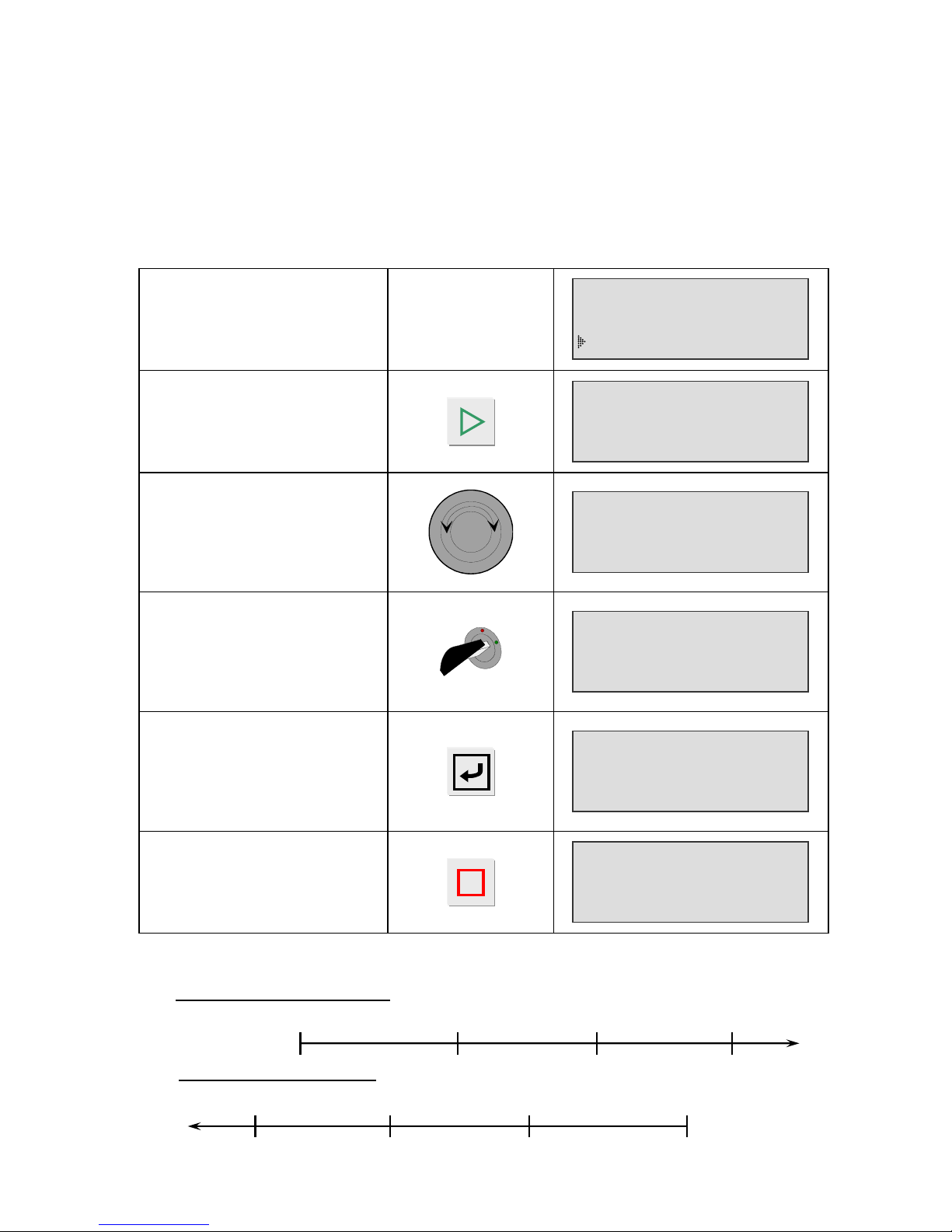

5.2. SETTING THE TEST PRESSURE

5.2.1. Manual setting with a mechanical regulator

Position the cursor in front of

the SPE CYCLE function and

confirm with the ENTER key.

SPE CYCLE

Disabled Regulator adjust Infinite Fill

Next, position the cursor in

front of Regulator adjust and

confirm with the ENTER key.

SPE CYCLE

Disabled

Regulator adjust Infinite fill

The display confirms that the

special cycle has been

selected.

MAIN MENU

RUN PROG. : 001 PARAMETERS

SPE CYCLE :Regul

Press the START key to

launch a special cycle.

RUN/Pr:001

PRESS = 355.5 mbar

COMPUTE LIMITS

REGULATOR ADJUST

Set the test pressure by using

the regulator.

RUN/Pr:001

PRESS = 1000 mbar

COMPUTE LIMITS

REGULATOR ADJUST

Once the pressure is set,

press the RESET key to stop

the special cycle.

RUN/Pr:001

PRESS = 0.000 bar

READY

5.2.2. Setting an instruction with an electronic regulator

5.2.2. 1) Pressure adjustment

When the instrument is equipped with an electronic regulator, the test pressure value is that which is displayed as the fill instruction. There is no special cycle to be carried out.

To input a fill instruction, refer to the previous paragraph.

Reminder: the input pressure with an instrument fitted with an electronic regulator must be at least superior by 100 kPa (1 bar) of the test pressure.

Page 55

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 45/122

6. STARTING A MEASUREMENT CYCLE

Press the START key to start

a measurement cycle.

RUN/Pr:004

PRESS =0.500 bar

READY

The cycle phases are

displayed on the LCD window:

COUPL.,

FILL,

STAB,

TEST.

RUN/Pr:004

PRESS =1.00 bar

STABILISATION

7. STOPPING A CYCLE

Press the RESET key to stop

the measurement. The display

“READY” indicates that the

instrument is ready to perform

a new measurement test.

RUN/Pr:004

PRESS =0.500 bar

READY

Page 56

Chapter 3 – Start-up and adjustments

UM-22100H-U User manual ATEQ D520 Page 46/122

Page 57

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 47/122

Chapter 4

FUNCTIONS OF THE INSTRUMENT

1. MENU STRUCTURE

1.1. MAIN MENU

MAIN MENU Sub menu 1 Sub menu 2 Sub menu 3 Sub menu 4

RUN PROGRAM

> 1 to 64

RUN SEQUENCE

> SQ01 to SQ32

SEQUENCE

> SEQ. UTILITY > Copy

v Paste

v Delete Name

v Delete Sequence

SQ01 to SQ32 > Name

Steps

<01> to <16>

These functions

appears only if the

sequence mode

(SEQUENCE) is

validated (Yes) in

the

CONFIGURATION

PARAMETERS

> Copy Paste > Copy

v Paste

Programs

01 to 64

DIRECT FLOW

(or INDIRECT)

Type: direct flow

(or indirect)

> Delete name

Range (2

capillary option)

Delete program

v Coupling A Delete name CAL

v Fill

v Stabilization

Test

v Dump

v Pressure unit >

Bar > Mpa > kPa

> Pa > PSI >

mbar

v Maximum fill

v Minimum fill

v Fill instruction

v Reject unit >

SI : ml/h > l/s > ml/s > ml/mn >

ml/h USA : in3/h > ft3/h > in

/mn > in3/h >

/h > in3/mn

v Maximum reject

v Minimum reject

v Functions > Refer to note

Page 58

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 48/122

REFERENCE > Type : reference > Delete name

v Coupling A Delete program

v Fill

v Stabilization

v Test

v Dump

v Pressure unit >

Bar > MPa > kPa

> Pa > PSI >

mbar

v Maximum fill

v Minimum fill

v Fill instruction

v Reference flow

v Reference unit >

SI : ml/h > l/s > ml/s > ml/mn >

ml/h

USA : in3/h >

ft3/h > in3/mn >

in3/h > ft3/h >

in3/mn

Reference

pressure

Reference

atmospheric

pressure

Reference

temperature

v Reference drift

v Functions > Refer to note

OPERATOR > Type: operator > Delete name

Coupling A Delete program

Test

Functions > Refer to note

SPECIAL CYCLES

> Disabled

Electronic

regulator learning

Regulator

adjustment

Infinite fill

CAL learning

CAL check

ATR learning

Atmospheric

conditions

Reference calibration

Piezo auto zero

CONFIGURATION

> Extended menus > Name

v Cycling

Page 59

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 49/122

v Reference

v Automatic mode

v Units

v Filter

Standard

conditions

Pressure

correction

Pressure auto

zero

v Offset

v ATR1

v ATR2

v Peak hold

Recovery

thresholds

v P1 – P2

v P1 –P2 correction

v Fill type

Automatic connector

v Valve codes

v Stamping

v Mini valve

v No negative

v Cycle end

v Gas (option)

Automatic save > Yes/no

Sequence > Yes/no

Ready status > Yes/no > Blow >

Reference > test

> stop

v v

Electronic Regulator

> Instruction > zero

Bar graph > yes / no >

30 % > 50 % >

70 % >

Cal reference > Yes/no

Regulator

learning

> yes / no > Frequency

v Number of cycles

Output

configuration

>Cut

v reference

v External 3

Page 60

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 50/122

v External 4

v External 5

v External 6

v Internal 7

v Internal 8

v Auxiliary 1

v Auxiliary 2

Automatic

Connector

Automatic

Connector

Hour > Hour

v Minute

v Day

v Month

v Year

RS232 > C540/F580

v Printer > RS parameters >

Speed:

4800 > 9600 > 19200 > 28800 > 38400 > 57600 >

115200

v v v

v v

Serial port:

-7bit-="0" > 1st-

7bit-="1" > 1

7bit-even > 1

7bit-odd > 1

8bit-without > 1

8bit-="0" > 1

8bit-="1" > 1

8bit-even > 1

8bit-odd >

v v

v Frame > Pressure

v v Personalization

v v Time keeper

v v Before results

v v After results

v v Line feed

v v

Sending

conditions

> All

v v Part OK

v v Maximum part

v v Minimum part

v v Warning

v v Pressure error

v v Recoverable

Page 61

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 51/122

v Export

v v

v Print parameters

RS485 > C540/F580

Security > yes / no

Light > Mode > Permanent

v v Manual

v v Automatic

v v

v Intensity > 00 to 07

I/O group > 1 to 2

I/O configuration > Input 7 (IN7)

Program selection

Electronic

regulator learning

v Regulator adjust

v Infinite fill

v ATR learning

Atmospheric

conditions

Reference calibration

v Piezo auto zero

Manual

differential reset

SERVICE

> PARAMETERS > Save

v Recover

v Delete

SENSOR > Pressure

Leak

RESULTS

> Program

Statistics > Program

v Total

v Part OK

v Maximum part

v Minimum part

v Recoverable

v Warning

Reset

Page 62

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 52/122

LANGUAGE

> English

French

STAND-BY

> Now

Power on time > Hour

v Minute

Power off time > Hour

Minute

Delay

1.2. "FUNCTIONS" MENU WHEN ACTIVATED

MENU PRINCIPAL Sub menu 1 Sub menu 2 Sub menu 3 Sub menu 4

FUNCTION

> NAME

CYCLING Inter cycle

v All

v Part OK

v Maximum part

v Minimum part

v Warning

v Pressure error

v Recoverable

Reference > Mode > Manual

v v Automatic

Reference

program

Automatic mode > Yes/No

Units > Units > SI > USA >CAL

v v

v Reject unit

SI: ml/h > l/s >

ml/s > ml/min >

ml/h. USA: in

/h >

/h > in3/min >

/h > ft3/h >

/min

v Drift CAL

v Name

v Single CAL > Yes/No

v Delete CAL name

Page 63

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 53/122

Filter

Standard

conditions

> Temperature

Atmospheric

pressure

Pressure

correction

> Instruction

Pressure auto

zero

> Before

v After

v Without

Offset > Offset

ATR 1 > Initial

v Transient

v Drift

ATR 2 > Initial

v Transient

v Drift

Peak hold

Recovery

thresholds

Maximum

recoverable

Minimum

recoverable

P1 – P2 > P1 – P2 max.

v P1 – P2 min.

Correction

P1 – P2

> Instruction

Fill mode > Standard

v v

v Instruction > Fill instruction

v v

v Ballistic

Auto connector > Coupling A

v Coupling B

Valves codes > Stamping

v Dump

v External 3

Page 64

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 54/122

v External 4

v External 5

v External 6

v Stamping

v Dump

Stamping > Maintain

v all

v Part OK

v Maximum part

v Minimum part

v Warning

v Pressure error

Mini valve >

Differential auto

zero

No negative > Yes/No

Cycle end > Automatic reset

Dump + Reset

Fill

Gas (option) > User gas > Viscosity

v % / degree C

v Full scale flow

G110 > Viscosity

v % / degree C

v Full scale flow

Propane > Viscosity

v % / degree C

v Full scale flow

Butane > Viscosity

v % / degree C

v Full scale flow

Natural gas > Viscosity

v % / degree C

v Full scale flow

Nitrogen > Viscosity

% / degree C

Full scale flow

Page 65

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 55/122

2. CONFIGURATION MENU

2.1. EXTENDED MENUS

The extended menus give access to additional functions. If these functions are activated, they can be found under the FUNCTIONS menu when a program is created. If no additional function is activated, the FUNCTIONS menu is empty when a new program is created.

2.1.1. Activation of the additional functions

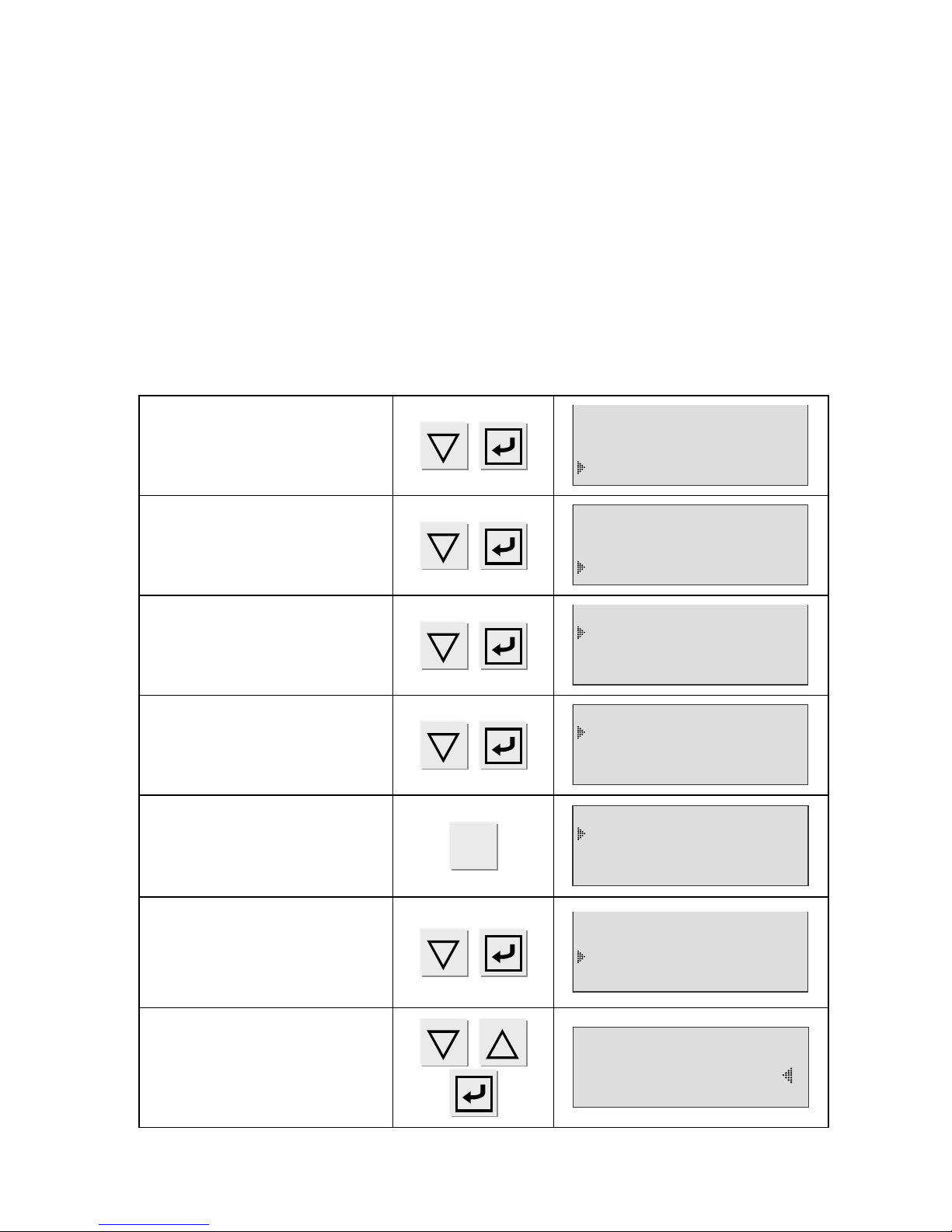

In the main menu, place the

cursor in front of the

CONFIGURATION label.

MAIN

CYCLE SPE: Disabled

CONFIGURATION

SERVICE

Confirm using the ENTER

key.

CONFIGURATION

EXTENDED MENUS BARGRAPH : Yes OUTPUTS CONF.

Next, confirm the EXTENDED

MENUS function with the

ENTER key. The list of

additional functions is

displayed.

CONFI/EXTENDED MENU

NAME : No CYCLING : No AUTO CONNECT :No

To activate a function (e.g. the

NAME function), validate it with the ENTER key. Next,

choose YES with the

navigation keys then confirm

again with the ENTER key.

Restart the operation if

necessary to activate other

functions.

CONFI/EXTENDED MENU

NAME : Yes CYCLING : No AUTO CONNECT :No

Once all the chosen functions

have been activated, press

twice on the CANCEL key to

return to the main menu.

MAIN MENU

SPE CYCLE: Disabled

CONFIGURATION RESULTS

Page 66

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 56/122

2.1.2. Adjustment of the additional functions

9 Place the key in the ACCESS position.

9 Create a new program (refer to chapter 3 paragraph 2 "Creation of a test program").

9 In the parameters list of this new program, validate the FUNCTIONS parameter

(refer to chapter 3 paragraph 2.3 "Adjustment of the parameters").

Only the functions activated according to the method described in the

previous paragraph will appear in the FUNCTIONS parameter.

2.1.3. List of additional functions

2.1.3. 1) Name

This function allows the personalization of a program, for example to identify it by the name of the test part.

)Select the option and adjust settings if necessary.

2.1.3. 2) Cycling

This function enables several tests to be carried out by the instrument one after the other.

The instrument offers 8 chaining criteria. When this function is activated it is possible to carry out a special “Step by Step” cycle as part of the initialization, which chains cycles without conditions.

Associated parameters to adjust: INTER-CYCLE (wait time between two cycles). Chaining conditions: ALL (under all conditions), part good, rise error, drop error, warning, pressure error.

)Select the option and adjust settings if necessary.

2.1.3. 3) Reference

The validation of the "Reference" function in a flow cycle program is associating to this cycle the "Reference" cycle. During this "Reference" cycle, the measurement circuit is shifting to a circuit equipped by a master jet or a master part with known characteristics.

This proceeding is correcting the possible atmospherics conditions variations.

The activation of the "Reference" phase can be done by following two ways:

¾ Manually, the instrument shift to the reference circuit with the operator request,

or automatic. Selection by the front panel or the inputs/outputs of the concerned program.

¾ Automatically the instrument shift to the reference circuit before each test cycle.

Page 67

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 57/122

It must also configure the reference program with the master parameters.

¾ Calibration pressure.

¾ Master flow.

¾ Atmospheric pressure of the calibration.

¾ Calibration temperature.

¾ Drift.

The drift is calculated between the first and the last master jet measurement (reference cycle realization). If it's higher than the programmed level, a error message appears. Only a manual acquit can be possible ("Drift acquit" special cycle).

) Select the option and adjust settings if necessary.

2.1.3. 4) Automatic mode

This function launches the test cycle automatically, it therefore avoids the need for a pressing of the cycle start by the operator. The cycling of this test is on is own part.

The automatic function allows launching a test cycle as the part to be tested to the measurement circuit connection. The start cycle is made when the test pressure is between the minimum and the maximum levels.

In the case of use of the personalized measurements units (CAL) it's imperative to make a learning cycle before starting a test cycle. The learning error can generate an instrument blocking mode.

) Select the option and adjust settings if necessary.

2.1.3. 5) Units

This function allows the operator to choose the units system required: SI, international metric unit system, USA, Anglo-Saxon international units system (inches, feet) and CAL, the operator personalized unit system (this system requires the carrying out of a learning cycle.

) Select the option and adjust settings if necessary.

2.1.3. 6) Filtering

This function ensures the slowing or the acceleration the sampling speed, by carrying out an average over the measurement time set, making the reading of the measurement more user friendly.

) Select the option and adjust settings if necessary.

2.1.3. 7) Standard conditions

The "Standard conditions" function allows the returning of the results measured by the instrument to defined atmospheric conditions.

The measurements depend on the ambient temperature and atmospheric pressure. When the function is activated, the instrument recalculates the flow results according to the atmospheric conditions inputted. Therefore the results of the measurements will not take into account the ambient variations.

To confirm this function, an asterisk is displayed after "FLOW".

) Select the option and adjust settings if necessary.

Page 68

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 58/122

2.1.3. 8) Pressure correction

The "pressure correction" function allows the conversion of the results by the instrument to a defined pressure instruction.

When the function is activated, the instrument recalculates the flow results depending on the instruction pressure. The measurement results will therefore no take into account pressure variations.

) Select the option and adjust settings if necessary.

2.1.3. 9) Pressure reset

The reset cycle in an ATEQ D520 instrument is carried out for each test cycle. This function allows the positioning of the auto zero (reset) in the test cycle. The positioning can be done BEFORE (just after the cycle start order and before the test cycle and before the test cycle), AFTER (just after the test time) or WITHOUT (no pressure auto zero).

) Select the option and adjust settings if necessary.

2.1.3. 10) Offset

This function allows the subtraction of the value set in the parameters from the value actually measured by the instrument. Example: if the measurement of the flow is of 14 litres a minute and the value of the offset set is of 5, then the instrument will display a flow value of 9 litres per minute (9 = 14 – 5).

) Select the option and adjust settings if necessary.

2.1.3. 11) ATR (Transient attenuation)

An ATR cycle enables time to be gained over a traditional cycle by enabling the stabilization time to be reduced and absorbing the transient pressure. The transient pressure is an unexpected drop in pressure caused by a stabilization time which is too short. The ATR may require a “learning cycle” to enable the transient pressure to be measured.

a) ATR1

The value of the transient is unknown. A special learning cycle must be carried out.

Associated parameters to be set: Initial (Initial value of the transient), Transit (actual and non modifiable value of the transient), Tolerance (Drift tolerance on acquisition of the transient, % of the reject level).

) Select the option and adjust settings if necessary.

Page 69

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 59/122

b) ATR2

Corresponds to ATR 1 but the potential leakage of the part is taken into account when the value of the transient is determined during the special cycle.

) Select the option and adjust settings if necessary.

For ATR learning cycles, see paragraph 3.7. "ATR learning".

When a parameter is modified but no learning cycle has been carried out, an "ATR" fault occurs. The "alarm" and "end of cycle" outputs are activated.

Learning may be carried out on a value greater than the reject level and the "Pass" and "end of cycle" outputs are then activated. However, the "ATR" fault appears if the difference between the transient and the initial value is greater than the reject level.

2.1.3. 12) Peak hold

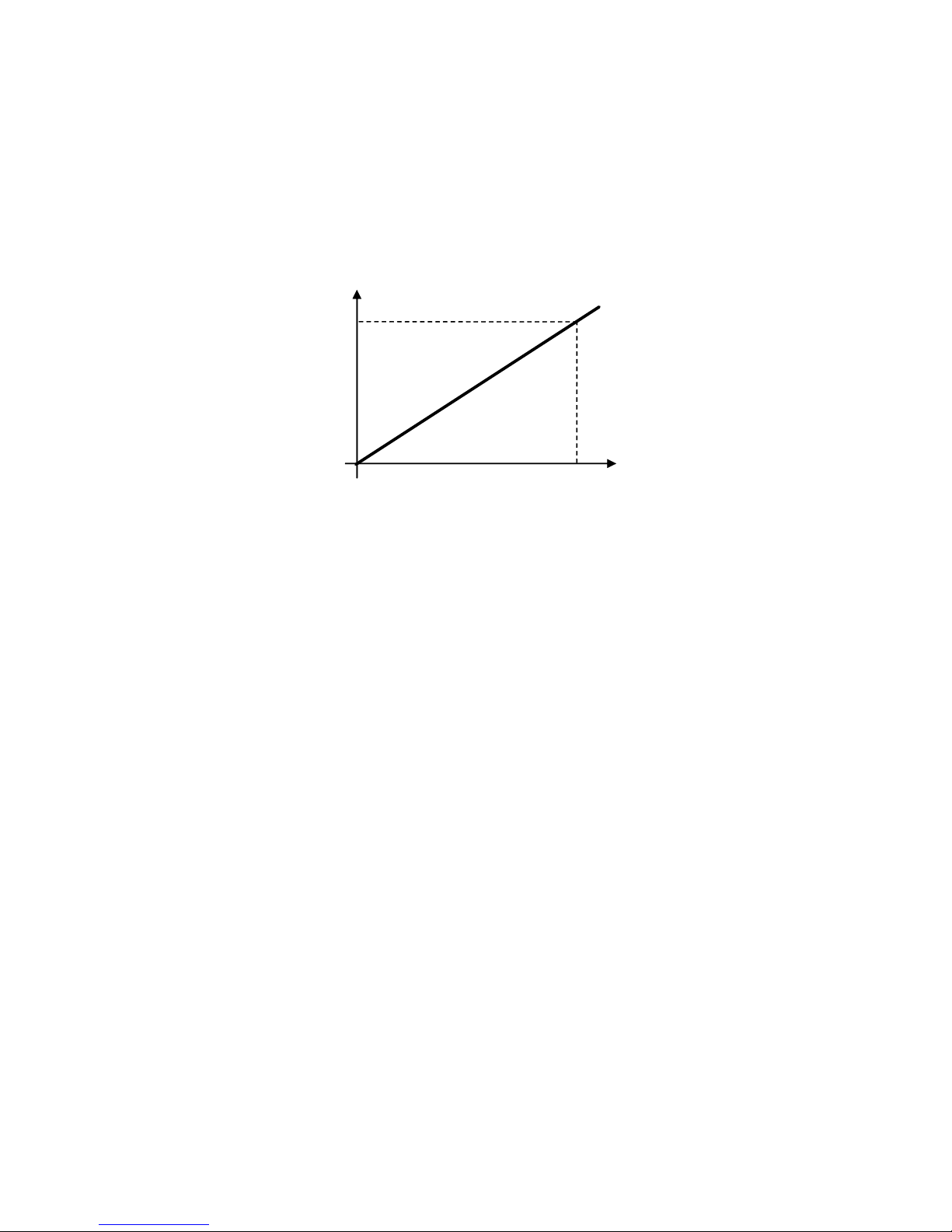

The peak hold mode allows the measurement a part dynamically. The instrument measures the flow which can evolve at a given time during the test. The instrument memorizes the most important flow, then displays it at the end of the test.

FLOW

MAXIMUM

VALUE

MEASURED

TIME

Note: The peak hold mode excludes any use of the ATR mode.

2.1.3. 13) Recovery thresholds

This option offers the possibility of having two reject levels: the level of intolerance (the part is bad and irrecoverable) and the level of recoverable reject (the part is bad but can be reworked to be accepted). This option is particularly used in casting for parts which may be impregnated.

REFERENCE REJECT

LEVEL

REF REJECT

RECOVERABLE LEVEL

TEST REJET

RECOVERABLE LEVEL

GOOD

PARTS

RECOVERABLE

PARTS

BAD

PARTS

0 10 20

Example

FROM 0 TO 10 THE PARTS ARE GOOD

FROM 10 TO 20 THE PARTS ARE RECOVERABLE

OVER 20THE PARTS ARE BAD

TEST REJECT LEVEL

Page 70

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 60/122

Associated parameters to be adjusted: Max RECOV, Min RECOV.

If in multi measurement instrument configuration the parts are recoverable, the good part (POK) and bad part (PNOK) outputs are activated simultaneously.

) Select the option and adjust settings if necessary.

2.1.3. 14) P1 – P2 Function

This function allows the taking away of the pressure measurement of piezo sensor 2 (if installed depending on options) from that of piezo sensor 1.

CYCLE/Pr:001 PRESS : 18.9 mbar FLOW : 97.7 ml/s P1-P2 : 18.9 mbar

) Select the option and adjust settings if necessary.

2.1.3. 15) P1 – P2 Correction

This function can on the basis of the P1 – P2 result (refer to the paragraph above) allow a correction to be made on the flow result of P1 - P2. Function similar to the function "pressure correction" paragraph 2.1.3.8.

) Select the option and adjust settings if necessary.

2.1.3. 16) Fill mode

This function gives the choice of three types of fill operation.

a) Standard

With a mechanical regulator

Adjust the value of the fill pressure manually by using the regulator handle during a "regulator adjust" special cycle.

With an electronic regulator

The fill pressure is adjusted automatically on the value chosen when the test program is created.

b) Instruction

The operator adjusts an instruction value for the fill pressure and opens the regulator. When the instruction pressure is reached the fill is stopped.

Associated parameters to be adjusted: I. FILL (Instruction fill).

c) Ballistic

This type of fill allows a fluctuation of the air pressure (filling of highly deformable parts) and enables an exceeding of the maximum fill threshold without stopping the cycle and delivering an error message. Never the less, to move into stabilization, the test pressure must be between the thresholds at the end of the fill.

Page 71

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 61/122

2.1.3. 17) Automatic connector

The automatic connector is a pneumatic command allowing the control of an external logic (pneumatic seal jig). This command is carried out as soon as the cycle is started and stopped at the end of the cycle (refer to paragraph 2.1.3.22) "Cycle end").

If several programs are cycled the automatic connectors are activated with the set times in the first program and are deactivated with the time set for the last program in the cycle.

They remain active during all the cycles between the first and the last program in the chain.

The various coupling times are respected by the intermediate programs.

Associated parameters to be adjusted: COUPLING A, COUPLING B.

) Select the option and adjust settings if necessary.

2.1.3. 18) Valve codes

The instrument has 8 electrical programmable outputs (24V DC / 100 mA maximum) of which 4 may be reserved through the presence of the stamping (valve code 1 internal and external) and external dump (valve code 2 internal and external). These outputs (one or more) may be assigned to program numbers. They are generally used to select the valves in a sequence of cycles. The desired outputs can be activated for each program (see Chapter 1 paragraph 2.2.1.1.).

Associated parameters to be set: External 1, External 2, External 3, External 4, External 5, External 6, Internal 1, Internal 2.

) Select the option and adjust settings if necessary.

Page 72

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 62/122

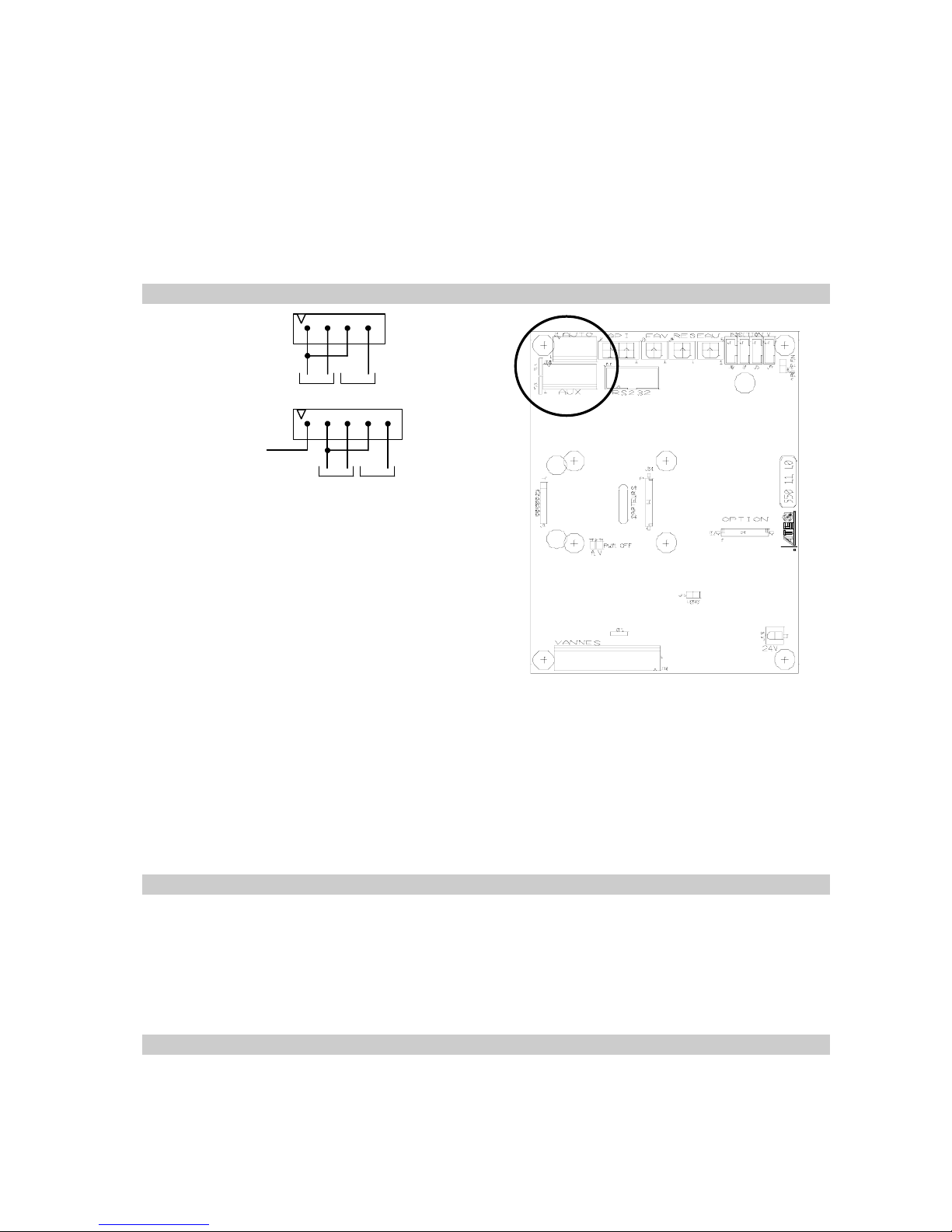

2.1.3. 19) 24V Auxiliary outputs

On the instrument main board there are four programmable electrical outputs (24V DC / 100 mA maximum, outputs).

Unlike the valve code outputs, the auxiliary outputs reserved for a pneumatic function are identified by the name of the function: stamping, automatic connector, etc. When they are free and available for the operator to use they are called: auxiliary and the position number.

Associated parameters to be adjusted: Auxiliary 1, Auxiliary 2, Auxiliary 3, Auxiliary 4.

) Select the option and enter settings if necessary.

Aux 4

AUTO J1

AUX J10

Aux 3

+ 24 V

Aux 2 Aux 1

+ 24 V

Gnd

2.1.3. 20) Mini valve

This function is dedicated to applications for small volume parts (below 10 cm

), and

has a base time of 0.01 s instead of 0.1 s.

Programming for the ATEQ D520 mini valve is identical to that for the standard ATEQ D520.

Associated parameters to be set: A-Z Diff (Differential Auto-zero). This time can be reduced as long as the values obtained are stable and repeatable.

) Select the option and adjust settings if necessary.

2.1.3. 21) No negative

The "No negative" function allows to reset the display of the measurement when the flow goes to the negative, in this case, the display of the flow comes to 0 (zero).

This function is useful in the case of we don't want to give the information of a negative flow to the operator (display) or to a PLC connected to the instrument.

) Select the option and adjust settings if necessary.

Page 73

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 63/122

2.1.3. 22) Stamping function

This option is used to activate a pneumatic output which marks the part (for example using a pneumatic cylinder).

Parameters can be set for the conditions and duration of marking.

This option requires two electrical outputs:

9 an internal one for the internal cabling on the pneumatic output,

9 an external one for "customer" cabling

One of the pneumatic outputs on the automatic connectors is used.

The output is activated at the end of test time for the programmed hold time.

Use the following procedure to use the inking function.

First, in the

CONFIGURATION menu,

confirm the STAMPING

function.

CONFI/

EXTEND

ED MENU

FILL MODE : Yes AUTO CONNECT : Yes

STAMPING : Yes

In the program's

PARAMETERS/FUNCTIONS

menu, confirm the STAMPING

function.

PARAM/Pr001/FUNCTION

AUTO CONNECT : No

STAMPING : Yes

MINI-VALVE : Yes

Set the inking hold value (can

be set between 0 and 650

seconds).

Pr001/FU

NCT/

STAMPING

MAINTAIN : 00.5 s ALL : No OK : Yes

Then select the inking

conditions from those offered.

Pr001/FONCT/

STAMPING

MAINTAIN : 00.5 s ALL : Non OK : Oui

When the instrument possesses this option, the internal and external valve codes 1 are no longer available.

Page 74

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 64/122

2.1.3. 23) Cycle end

This function allows the choosing of a different cycle end depending on the configuration of the instrument (connection to a PLC or robot…).

a) Relay sequencing depending the End of Cycle

In order to interface the ATEQ D520 with its environment (PLC, PC …), the timing charts below give the sequence for the electrical outputs (relay board on J8 connector) and pneumatics (automatic connectors) according to the commands entered on the front panel or on the J8 connector (START, RESET).

Legend

Coupling time for automatic connector A

Coupling time for automatic connector B

Piezo auto-zero time.

Fill time

Stabilization time

Undetermined time between the end of the programmed test time and

the pressing of the RESET key

Test time

Dump time

START

Press on the start key on the front panel or on pins 2-3 of the J3

connector.

RESET

Press on the reset key on the front panel or on pins 1-2 of the

J3 connector.

Automatic connector

Active (high level): the pneumatic output is active (air exiting)

Inactive (low level): the pneumatic output is inactive (absence of air)

POK or PNOK

Good part or bad part relay on the J3 connector.

EoC

End of Cycle relay on the J3 connector

t mini

Minimum time for the taking into account of an input, 500 ms on the J8 connector of a central module and 50 ms on the J3 connector of an instrument.

Actual times are not those displayed but those on the print-out.

Page 75

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 65/122

b) "Automatic RESET" cycle end

If the part is OK, at the beginning of the test time, the good part relay is activated until the following test cycle. After the dump time, the end of cycle relay is activated (or after the coupling time B if it is present).

If the part is fail, the fail part relay is activated as soon as the test is completed. The instrument sends a cycle end signal. A new cycle can then be launched.

PRESSURE

START

RESET

A F S T

Program N°

Auto

connector A

Part good or

part bad

Time B

Auto

connector B

Cycle end

Test cycle

Control actions

t mini

Active

Disabled

Active

Disabled

The active program is the one selected before starting up. It remains active even if the program inputs on the connector are no longer activated. This selection can only be modified during the inter cycle period.

To return to program 1, when a cycle is not in progress, press any of the program selection inputs.

Page 76

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 66/122

c) Stopping the cycle with the RESET key

PRESSURE

START

RESET

A F

Program n°

Auto

connector A

Part good or

bad

Time B

Auto

connector B

Cycle end

Test cycle

Control actions

t mini

Active

Disabled

Active

Disabled

To return to program 1, when a cycle is not in progress, press any of the program selection inputs.

Page 77

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 67/122

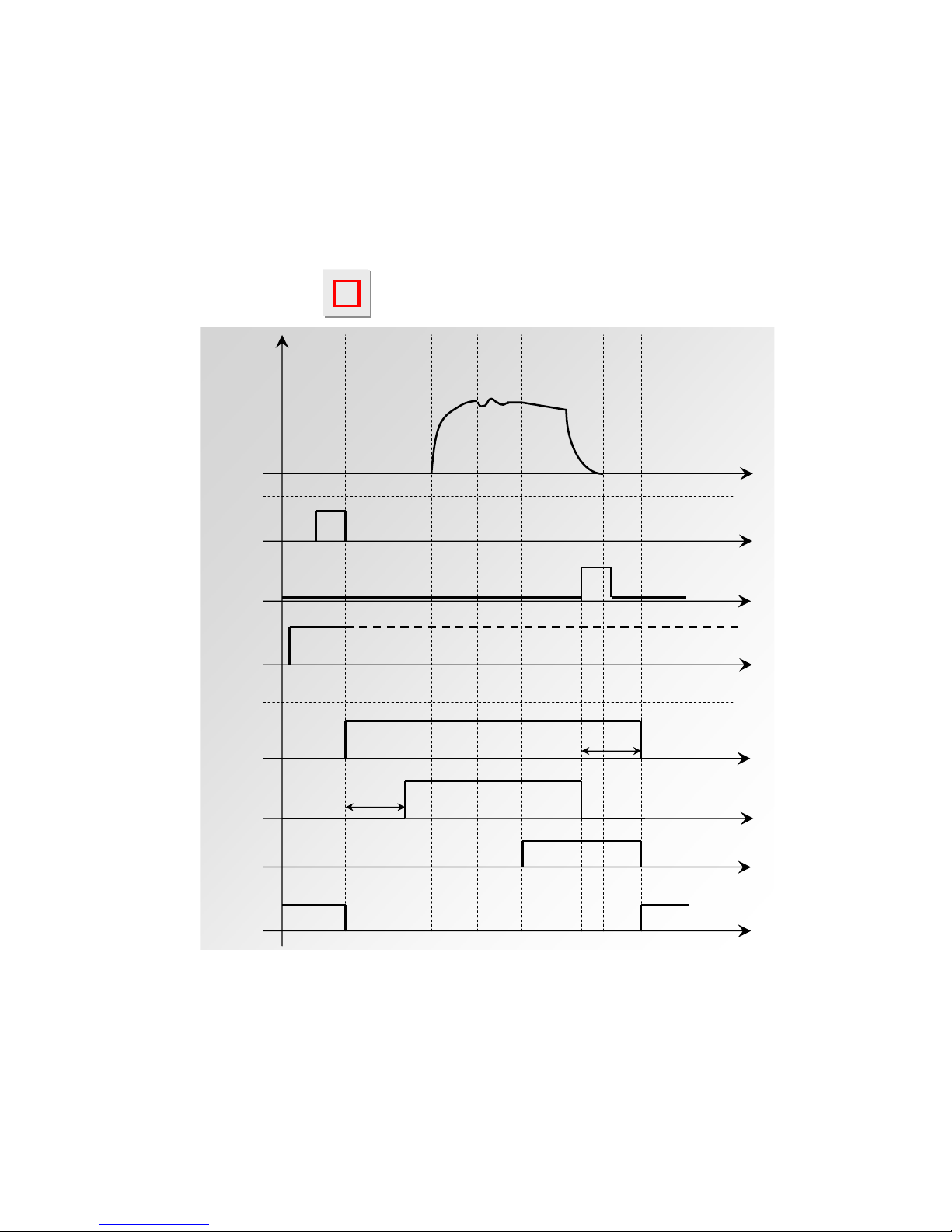

d) End of cycle and "Dump + Reset" (automatic dump)

If the part is OK, at the beginning of the test time, the pass part relay is activated and stays activated until the start of the next cycle.

At the end of the dump time, the end of cycle relay is activated (or after the coupling time B if it is present).

If the part is fail, at the beginning of the test time, the fail part relay is activated until the end of the cycle, the dump phase is carried out. The end of the cycle is obtained by

pressing on the Reset key or by activating the Reset input.

PRESSURE

START

RESET

A R S T

Program n°

Auto

connector A

Part

bad

Time B

Auto

connector B

End of cycle

Test cycle

Control actions

t mini

Active

Disabled

Active

Disabled

To return to program 1, when a cycle is not in progress, press any of the program selection inputs.

Page 78

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 68/122

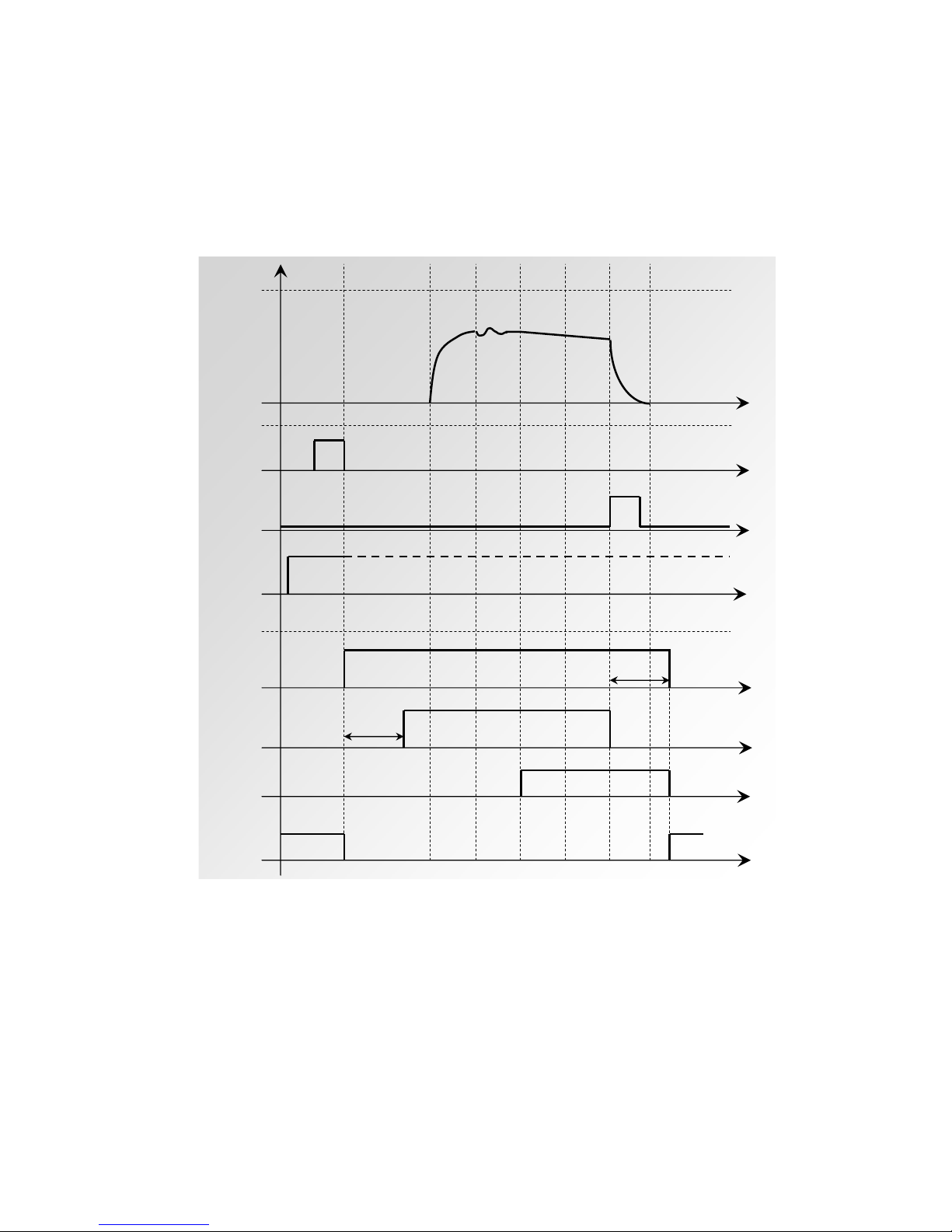

e) End of Cycle "FILL"

If the part is OK, the pass part relay is activated at the end of the test time until the start of the following cycle.

As soon as the test time is finished, if the part is fail the fail part relay stays activated.

In infinite fill mode, the instrument awaits an operator or PLC initiated reset to start the dump time and send an end of cycle signal (or after the coupling time B if it is present).

PRESSURE

START

RESET

A R S T

Program

N°

Auto

connector A

Bad

part

Time B

Auto

connector B

End of Cycle

Test cycle

Control actions

t mini

Active

Disabled

Active

Disabled

# D

Page 79

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 69/122

2.1.3. 24) Sign

The SIGN function enables the inversion of the sign (positive or negative) of the measurement result. This function is useful in the event of vacuum or recovery measurement as it allows the display of a positive leak result.

The Sign function (when it is

validated) changes the sign

for the leak value.

PARAM/Pr001/FU

NCTION

TEMP.CORR. 1 : Yes INDIRECT : Yes

SIGN : Yes

Example: if the result is -004 Pa, then the display will be 004 Pa.

2.1.3. 25) Gas (option)

This function allows calculating the flow measurement for a gas different from that commonly used by the apparatus (air).

The available parameters in the instruments are for the following gas:

¾ Nitrogen (N2),

¾ Natural gas (CH4, Methane G20),

¾ Propane gas (C3H8, G31),

¾ Butane gas (C4H10, G30),

¾ G110,

¾ "User" gas (the parameters have to be indicated, consult us).

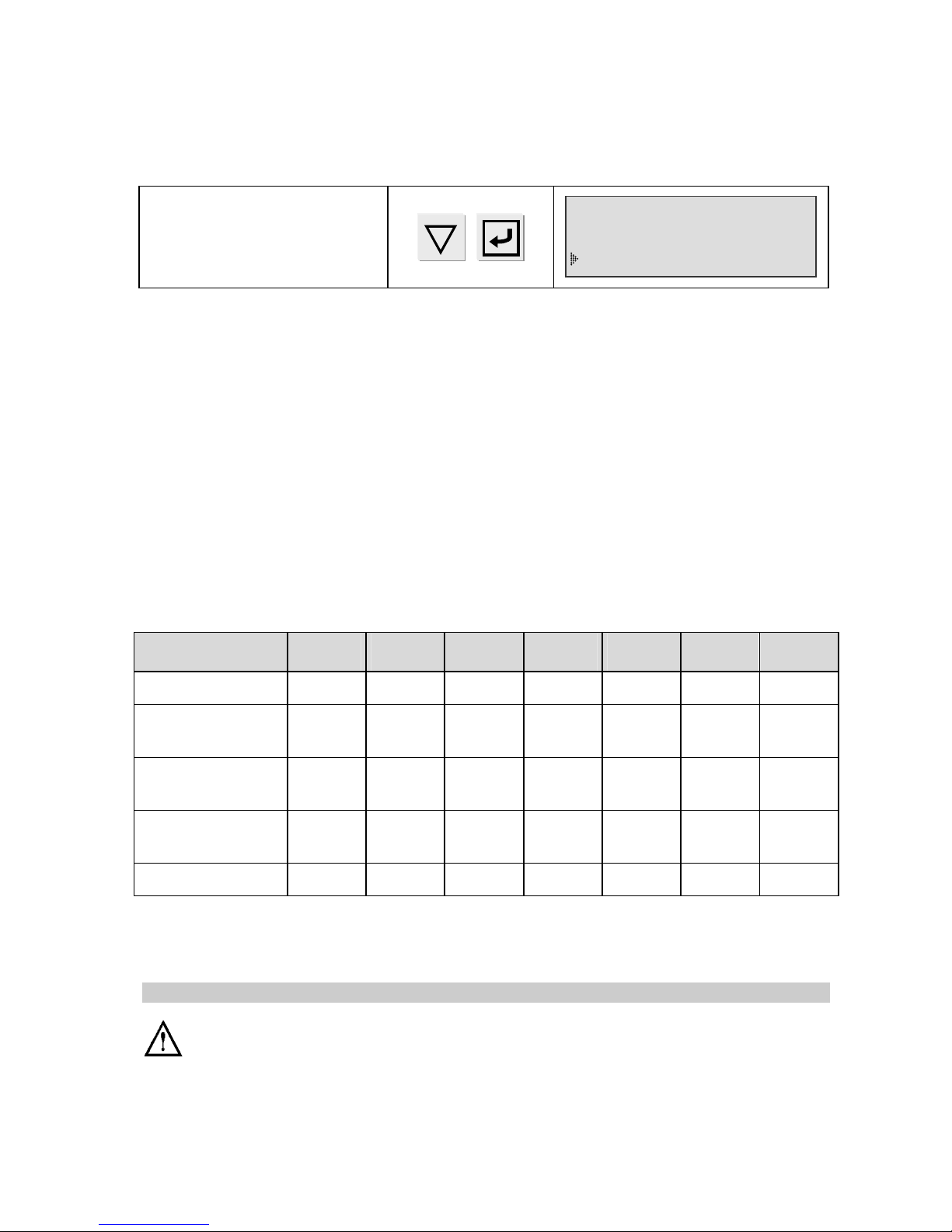

The full scale of flow varies according to the employed gas:

Air full scale l/h 5 30 150 500 1500 4000 10000

Nitrogen (N2)

4,979 29,87 149,4 497,9 1494 3983 9958

Methane (CH4) G20 natural gas

5,325 31,95 159,7 532,5 1597 4260 10649

Propane (C3H8) G31

1,100 6,60 33,0 110,0 330 880 2200

Butane (C4H10) G30

1,023 6,14 30,7 102,3 307 818 2045

G110

7,165 42,99 214,9 716,5 2149 5732 14329

The "gas" function is an option asked at the order of the instrument.

NB: the fitting and the calibration of the instrument are established with air. A calibration with a specific gas can be carried out on request.

) Select the option and adjust settings if necessary.

This type of instrument has a specific hardware configuration, a connection allows the rejection of a small quantity of gas at each piezo auto reset. The precautions related to the use of a flammable gas are to be applied to the working station.

Page 80

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 70/122

2.1.3. 26) Display

The "DISPLAY" function allows modify the result display format, this to put the comma and display the decimal number following the user preferences. Example: X.XXX, XX.XX, XXX.X or XXXX.

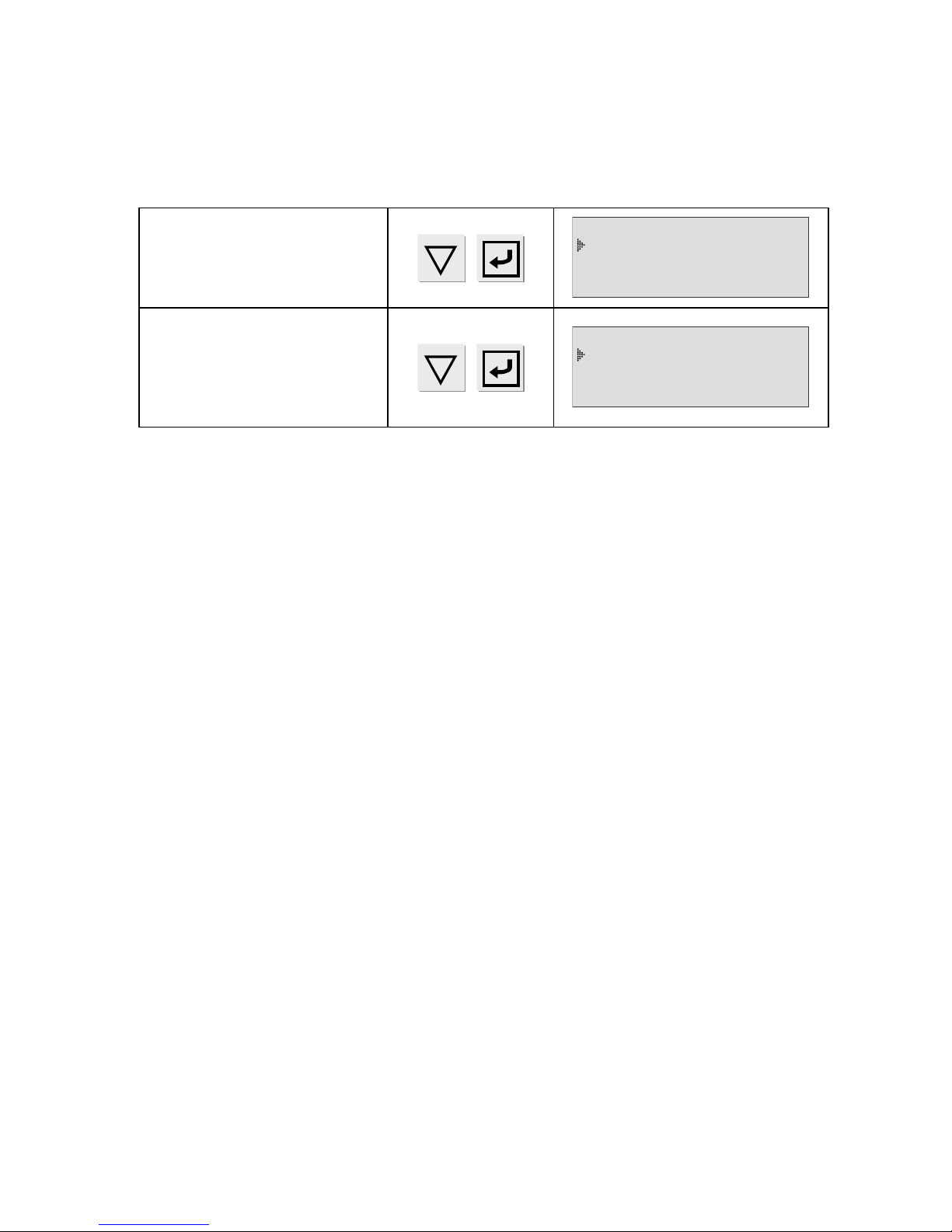

First check or validate the

"Display" function into the

CONFIGURATION menu.

MENU /CONFI/EXTEND

SIGN : No F. S. DAC : No

DISPLAY : Yes

Then in the test program

parameters, choose the

display format by using the UP

and DOWN keys.

PARAM/Pr001/FUNCTION STD. COND : No FILL MODE : No DISPLAY : X.XXX <

2.1.3. 27) Flow regulation (Option)

The flow regulation function allows to automatically adjusting the pressure following a flow instruction. This option is available only with an instrument fitted with an electronic regulator.

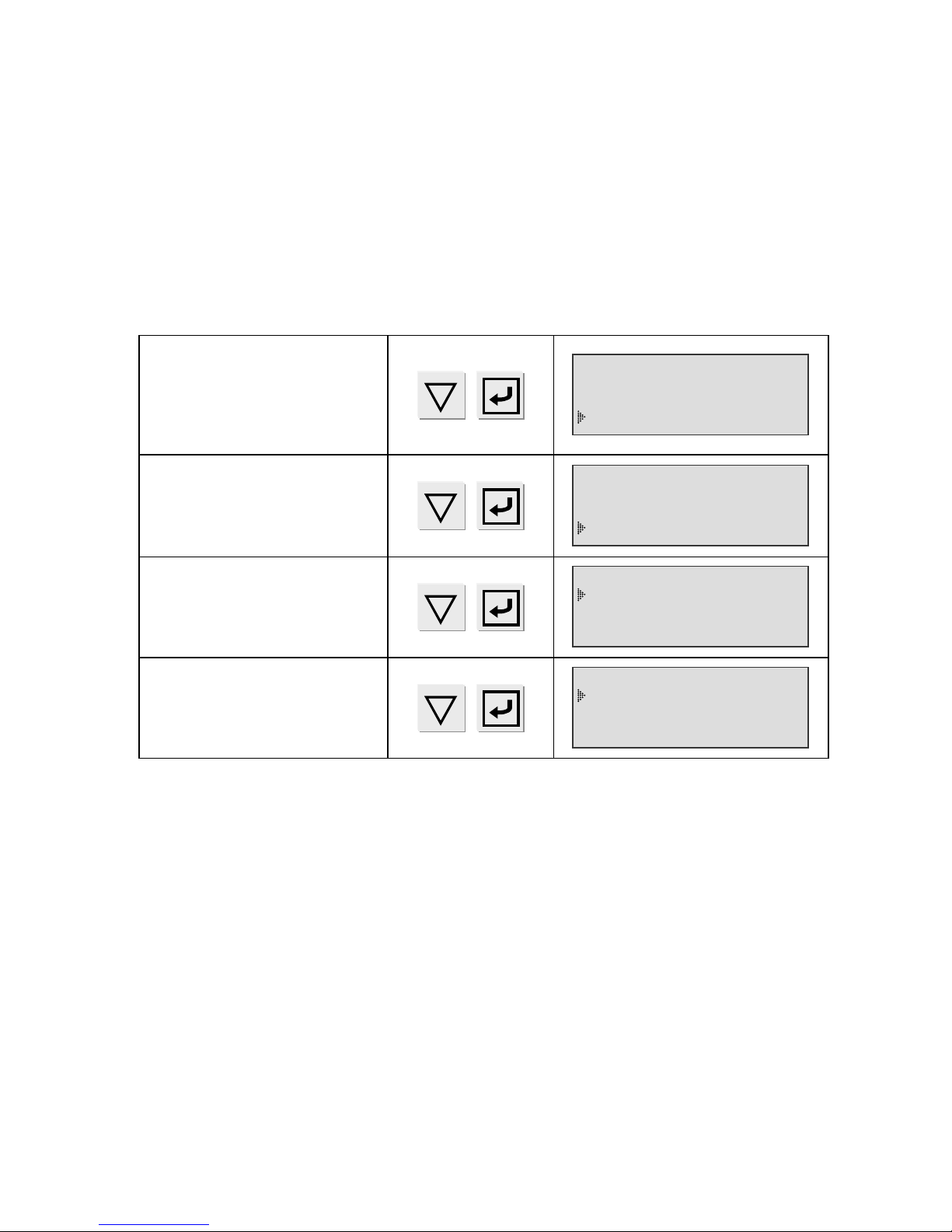

It's necessary to deactivate (No) the "Regulator learn"

function into the

"CONFIGURATION" menu.

MAIN /CONFIGURATION READY STATUS : No BARGRAPH : No

REGUL LEARN : No

Validate (Yes) the

"FLOW REG." function in the

"CONFIGURATION/

Extended Menus" menu.

CONFI/EXTENDED

MENUS

F. S. DAC : No DISPLAY : No

FLOW REG. : Yes

In the test program

parameters menu, validate

(Yes) the "FLOW REG."

function.

PARAM/Pr001/FUNCTION FILL MODE : No DISPLAY : X.XXX >FLOW REG. : Yes

In the test program

parameters menu, validate

(Yes) the "FILL MODE"

function.

PARAM/Pr001/FUNCTION >FILL MODE : Yes DISPLAY : X.XXX FLOW REG. : Yes

Then select the "PERCENT"

mode in the "FILL MODE"

function.

r001/FUNCT/FILL MODE

>FILL MODE : PERCENT

Connect a pass part to the instrument and make the flow instruction adjustment by starting the "Elec Reg Adjust" special cycle.

Page 81

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 71/122

Select the SPE CYCLE menu

and validate with ENTER.

MAIN MENU RUN PROG. : 01 PARAMETERS

SPE CYCLE: Disabled

Then select the

"Elec Reg adjust" special

cycle and validate with

ENTER.

SPE CYCLE

Disabled

Elec Reg adjust

ATM Conditions

The display confirms that the

special cycle is selected.

MAIN MENU

RUN PROG. : 01 PARAMETERS

SPE CYCLE: Regul.

Press the START key to

launch the special cycle.

RUN/Pr:001

REF = 91.3 l/h

REGULATOR ADJUST

Adjust the flow value by using

the UP and DOWN keys.

RUN/Pr:001

REF = 80.0 l/h

REGULATOR ADJUST

Turn the key in the ACCESS

position, the message:

COMPUTE LIMITS

appears on the screen.

RUN/Pr:001

COMPUTE LIMITS

REF = 80.0 l/h

REGULATOR ADJUST

Validate by pressing the

ENTREE key, the instrument

calculates the flow thresholds

(+/- 10% of the adjusted

value), the pressure

instruction in percent of the full

scale and record them into the

test program parameters.

COMPUTING LIMITS

When the flow is adjusted,

press on the RESET key to

stop the special cycle. Put the

key in the LOCK position.

RUN/Pr:001

PRESS = 0.0 mbar

READY

Note: it's possible to modify manually the flow thresholds calculated by the instrument.

The flow instruction taken in account for the test cycles will be the average of the maximum and the minimum thresholds.

Page 82

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 72/122

2.2. AUTOMATIC SAVE

This function has for main objective to save the test parameters from the RAM memory of the instrument to its flash memory.

When this function is not validated, each time the key switch is turned from the

ACCESS to the LOCKED mode, the instrument displays NO PARAMETERS SAVED IN FLASH. The save operation can be carried out manually in the SERVICE PARAMETERS menu.

When the AUTOMATIC SAVE function is confirmed with a YES, the parameters are saves automatically when the key is turned from the ACCESS to the LOCKED position.

This function is useful if the parameters in the RAM are accidentally erased. The instrument will then automatically read and restore the flash parameters in the RAM.

Page 83

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 73/122

2.3. PROGRAM SEQUENCES

2.3.1. Sequences conditions

The sequences allow chaining several different cycles ones after ones, following some the above conditions:

¾ 16 programs can run into one sequence.

¾ 32 sequences can be created.

¾ Built-in 64 programs device.

¾ A test program can be into several different sequences.

¾ All the programs in a sequence must have the "Cycling" function validated.

¾ Run the following program in the sequence by following the cycling conditions

validated in the test program.

¾ If the operator wants, during the test time (infinite or not), if he hits the start key, the

sequence jumps to the following test program.

¾ If the cycling condition is wrong, the sequence stops and the part is declared fail. In

all cases, the sequence starts from the beginning.

¾ A program can be cycled with itself in one sequence, for that, insert it several times.

¾ The program numbers are not important in the sequences; the program 17 can run

before the program 2.

¾ It's possible to run only one program, for that, create a sequence with only one

program.

¾ It's possible to run the same program several times in one sequence.

¾ It's not possible to cycling a sequence after another one.

¾ Some functions are not available when the Sequence mode is activated.

Sequences examples:

Step Sequence 01 Sequence 02 Sequence 03 > Sequence 32

1 Program 1 Program 3 Program 1 Program 4

V V End V

2 Program 3 Program 2 Program 7

V V

3 Program 1 Program 1 Program 2

End V

Program 1 Program 4

Program 2 Program 3

End

Page 84

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 74/122

2.3.2. Sequences installation

First, check or validate the

SEQUENCE function in the

CONFIGURATION menu.

MENU /

CONF

IGURATION

EXTENDED MENUS AUTO SAVE : Yes SEQUENCE : Yes

In the main menu, the

SEQUENCE function appears,

select it and validate it.

ENU

RINCIPAL

RUN SEQ. : SQ01

SEQUENCE

PARAMETERS

Select a first sequence, here

the sequence 01 then

validate.

SEQUE

NCE

UTILITY

SQ01

SQ02

In the line "NAME" it's

possible to type a sequence

name.

SEQUE

/SQ01

NAME : <01> --------- <02> ----------

Then select the first step and

validate, by using the UP and

DOWN arrows choose the

program and validate.

SEQUE

/SQ01

NAME : <01> : Pr01+ <02> : ----------

Select the following step,

choose the second program,

validate and so on.

SEQUE

/SQ01

NAME : <01> : Pr01+ <02> : Pr03+

When the sequence is

programmed, quit it by

pressing the C key.

SEQUE

/SQ01

NAME : <01> : Pr01+

<02> : Pr03+

In the main menu, select the

desired sequence.

ENU

RINCIPAL

RUN SEQ. : SQ01 SEQUENCE PARAMETERS

Start the sequence by

pressing the START CYCLE

key.

SQ01/

CYCLE/Pr:001

PRESS = 30.0 mbar

READY

Note: if the sequence doesn't start or if it stops on a program test, check in this program if the function and cycling conditions are validated.

Page 85

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 75/122

2.3.3. Sequences utility

The "UTILITY" menu allows managing the sequences, as the programs, it allows to make sequences "copy-paste", delete the sequence name or totally delete the sequence.

In the "SEQUENCE" menu,

select the "UTILITY" menu

then validate.

SEQUE

NCE

UTILITY SQ01 SQ02

The select the desired

command, the procedures are

the same as the test parameters program

management.

SEQUE

/UTILIT

COPY : --------- PASTE : --------- DELETE NAME : SQ01

Page 86

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 76/122

2.4. READY STATUS

The function "Ready status" allows to determinate the blow mode when the instrument is in the rest (out of test cycle). It's exist three blow modes:

¾ Blow on the reference circuit (Ref.),

¾ Blow on the test circuit (Test),

¾ No blow (Stop).

In the case of installation of electronic regulator in option, the right think to do is to inform the blow pressure instruction.

)Select the option and adjust settings if necessary.

2.5. REFERENCE CAL

The "Reference CAL" function, when is validate by "Yes" allows to make appears a "CAL ref" calibration special cycle, thus allowing to calibrate the reference circuit. This is a "super" calibration.

To calibrate the reference circuit, it must connect the "super master" on the test circuit and then select the "CAL ref" special cycle", capture the "super master" characteristics and launch the special cycle.

Thus when the special cycle is finished, the new characteristics are captured in the standard master jet parameters of the reference circuit.

)Select the option and adjust settings if necessary.

2.6. BAR GRAPH

This function is only valid if an RC5 remote control or L.E.D. 14 characters display is fitted.

It allows the graphical representation of the flow value in relation to the reject thresholds set.

On the lower scale, the minimum and maximum thresholds in relation to the full scale are displayed.

On the upper scale the flow value is displayed.

The parameters which can be set (30 % 50 % and 70 %) place the maximum threshold to 30 %, 50 % or 70 % of the bar graph. The example below represents a bar graph with a maximum threshold at 50 %:

Flow value

Representation of the thresholds

)Select the option and adjust settings if necessary.

Page 87

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 77/122

2.7. HOUR

This function includes a clock (hour, minutes) and an internal calendar (day, month and year).

) Select the option and adjust settings if necessary.

2.8. REGULATOR LEARNING

2.8.1. Standard regulator learning

This function is only valid in the event of the installation of a regulator in the instrument.

It enables the determining of the time between two electronic regulator learning cycles. When it is validated by "yes", the frequency (time or minutes) or the number of cycles between two learning cycles is to be determined.

When the frequency or number of cycle values are at zero, the learning request becomes manual, at the operator request by way of special cycle, or by the programmable input 7.

The learning cycle allows the calculation of the three characteristic points of the regulator (points at 20 %, 50 % and 80 % of the maximum pressure which can be supplied by the regulator, value depending on the input air supply pressure).

) Select the option and adjust settings if necessary.

2.8.2. Without regulator learning

When the "Regulator learning" is not validated (No) there won't regulator characteristics calculation (points at 20 %, 50 % and 80 %).

In this case two options arise in the "Fill mode" function: the fill mode in "Percent" or "Control". These two types appear in the case of test in "Flow" mode.

2.8.2. 1) "Percent" type

In this mode, it must adjust the pressure instruction in percent of the full scale of the regulator. Example: full scale of the regulator 4 bars, test pressure 1.5 bars then the percentage will be 37.5 %.

2.8.2. 2) "Control" type

In this mode, it must adjust the hoped pressure instruction (real value in the configured measurement unity).

The electronic regulator is correcting two times the pressure rise ramp during the fill. This function allows making a correction of the pressure instruction according the flow. When this correction is too important, an alarm "< Min. Pressure" is activated.

During the stabilization and test phases, no instruction correction is realized.

Page 88

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 78/122

2.9. RS232

2.9.1. C540/580

This function enables the configuration of the instrument so that it may be supervised by an ATEQ central module.

) Select the option and enter settings if necessary.

2.9.2. Printer

This function is used to configure the instrument so that the data relating to the programs (parameters) and the test results can be printed. When the option is activated (YES), the test results are automatically printed each time a cycle is started.

) Select the option and enter settings if necessary.

2.9.2. 1) RS parameters

These parameters are used to configure the instrument for dialogue with the printer.

Associated parameters to be set: Speed (bit rate transmission), stop bit, data bit number, parity.

) Select the option and enter settings if necessary.

2.9.2. 2) Frame

This function allows the configuration of the results frame.

Associated parameters to be adjusted: PRESSURE (Display of the test pressure or not), Personalization (Display of the program name when there is one), Timekeeper (printing of the date and the time), Before result (number of lines before the result), After result (number of lines after the result), Inter Line (space between each line).

Page 89

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 79/122

2.9.2. 3) Format of the frame

The results frame fits on 40 columns.

a) Example for a good test result

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

< 0 1 > : ( P B ) : 1 0 7 . 6 m l / s

Details of the frame:

Columns Characters

1 <

2-3 Number indicating the program number

4 > 5 : 6 (

7 – 8 2 letter indicating OK for a good part,

F+ for a bad part with a high flow, F- for a bad part with a low flow.

9 ) 10 : 11 SPACE

12 – 16 5 numbers indicating the value of the leak

17 SPACE

18 > XX 3 to 6 letters indicating the unit

b) Example for a test result with pressure

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

< 0 1 > : 1 8 . 8 m b a r : ( O K ) : 1 0 2 . 1 m l / s

c) Example for a test result with timekeeping

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

< 0 1 > : 1 0 / 0 4 / 2 0 0 3 1 6 : 0 2 : 4 0

< 0 1 > : 1 8 . 5 m b a r : ( O K ) : 1 0 1 . 8 m l / s

d) Example for a test with an error

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

< 0 1 > : ( A L ) : F . S S c . p i e z o

< 0 1 > : ( A L ) : P R E S S U R E L O W

< 0 1 > : ( A L ) : P R E S S U R E H I G H

Page 90

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 80/122

Details of the frame:

Columns Characters

1 <

2-3 Number indicating the program number

4 > 5 : 6 (

7 – 8 2 letters AL for ALARM

9 )

10 :

11 > XX Error text corresponding to the error

2.9.3. Send conditions

With this function you can choose which data is to be printed on the results sheet.

Associated parameters to be set: ALL (all test results), OK (number of good parts), MAX (high flow parts), MIN (low flow parts), WARN. (number of times the alarm has been triggered), PRESS DEF. (number of times pressure was incorrect), RECUPERABLE (number of recoverable parts).

) Select the option and enter settings if necessary.

2.9.4. Exportation

This function can be used to create and send a special results frame which can be processed by a PC using Microsoft Excel.

This frame is of the same type as the print parameters frame except that the different character strings follow each other and are separated by a punctuation mark which enables the various boxes to be entered automatically in Microsoft Excel.

This frame is operated by connecting a computer to the instrument's RS232 link.

) Select the option and enter settings if necessary.

2.9.5. Print the parameters

By validating this function, the test parameters of the programs activated on the instrument are instantly printed.

Page 91

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 81/122

2.9.5. 1) Parameter printout frame example

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

V e r s i o n 0 1 . 1 0 h

1 0 / 0 4 / 2 0 0 3 1 5 : 3 2 : 3 7

P r 0 1

T Y P E : D I R E C T F L O W

C O U P L I N G A : 0 0 . 0 s

F I L L . : 02 . 0 s

S T A B . : 02 . 0 s

T E S T : 0 2. 5 s

M a x . F I L L : 3 0 . 0

M i n . F I L L : 1 0 . 0

R E J E T M a x . : 1 2 0 . 0

R E J E T M i n . : 8 0 . 0

Note: The "PROGRAM NAME" characters are printed when a program name has been set in the parameters.

2.10. RS485

This function enables the configuration of the RS485 output to a C540 central or F580 when the instrument is installed in a network.

) Select the option and enter settings if necessary.

2.11. M

ODBUS

This function enables the configuration of the Modbus link when the instrument is installed in this type of network. The frame parameters, RS parameters (speed, serial port) must be entered.

) Select the option and enter settings if necessary.

2.12. SECURITY

This function deactivates the START key on the instrument front panel. Programs can only be started from the instrument inputs (J3 connector).

) Select the option and enter settings if necessary.

Page 92

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 82/122

2.13. LIGHTING THE SCREEN

Screen illumination can be programmed and modified. The lighting can be adjusted according to the ambient conditions or the user's choice.

There are three lighting modes:

9 continuous mode, display screen permanently lit whatever the conditions

9 manual mode, the screen remains lit for 20 minutes and if the keyboard has not

been used by the end of this period the screen shuts down and only relights when the keyboard is touched again.

9 automatic mode, which is identical to manual mode, with illumination of the

screen also if an action is carried out from the external inputs (rear connectors)

Using these three modes, the lighting intensity of the screen can be programmed from 00 (screen off) to 07 (maximum lighting intensity).

In the main menu, position the

cursor by the

CONFIGURATION menu then

confirm by pressing ENTER.

MAIN

PARAMETERS SPE CYCLE: Disabled

CONFIGURATION

Move the cursor down until it is

in front of the LIGHT menu

then confirm by pressing

ENTER.

CONFIGURATION

RS485 : C540/580 SECURITY : No

LIGHT

Place the cursor in front of

MODE to choose the required

lighting mode and confirm

using ENTER.

MAIN/

CONFI/

LIGHT

MODE :CONT

INTENSITY: 07

Select the lighting mode and

confirm using ENTER.

IN/

CONFI/

LIGHT

/MODE

CONT MANUAL AUTO

To return to the previous

menu, press the C button

once.

MAIN/

CONFI/

LIGHT

MODE :CONT

INTENSITY: 07

To select the lighting intensity

for the display, place the

cursor in front of the

INTENSITY menu and confirm

using ENTER.

MAIN/

CONFI/

LIGHT

MODE :CONT

INTENSITY: 07

Then select the lighting

intensity from 00 (off) to 07

(maximum) and the new

lighting intensity will be applied

after ENTER is pressed.

MAIN/

CONFI/

LIGHT

MODE :CONT INTENSITY: 04

Page 93

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 83/122

2.14. BAR CODE OPTION

2.14.1. Definition

The “Bar code” option enables to install a bar code reader on a second specific RS232 connector of the 5th series ATEQ instruments.

It enables on reading of the code to select a test program and eventually to launch the test of control (if the option is validated).

The quantity of characters read by the reader should not exceed 22. Beyond the unit will not take into account the character string (bar code string).

This option is valid for the units starting from the last version ATEQ devices.

2.14.2. Communication parameters configuration

The Bar Code reader must be set with the following communication parameters:

¾ 9600 bauds,

¾ 7 bits,

¾ 1 stop,

¾ Parity even.

The communication parameters of the ATEQ devices are the same by default and fixed, it's not provide to change it.

2.14.3. Function activation

Warning: each change of parameters or configuration will reset all the learning. It will be necessary to learning again all the bar codes for each programs.

From the main menu, put the

cursor in front of

CONFIGURATION.

MAIN MENU

SPE CYCLE : Disable

CONFIGURATION

RESULTS

Select the BAR CODE

function and validate by YES.

CONFIGURATION

BARCODE : Yes

SECURITY : No LIGHT

Then appears the parameters

of reading of the bars codes,

which it is advisable to inform.

CONFI/BARCODE

Pr. Select : No

Reset EOC : No

The "Select Pr." parameter enables to select the paired program to the bar code number. When the bar code is learned, when flashed, the corresponding program will be selected as the active program.

Page 94

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 84/122

2.14.4. Program selection function not validated

If the "Select Pr." Function is not validated (No) the function "Reset EOC" is displayed.

Validate the "Reset EOC".

Function (Yes).

CONFI/BARCODE

Pr. Select : No

Reset EOC : Yes

1. "Reset EOC" Function not validated (No): the flashed bar code is recorded in the device memory, and is used for the all serial product until a new number is flashed. This number will be sent on the device output frame or on the print output.

2. "Reset EOC" Function validated (Yes): the flashed bar code is recorded in the device memory; it will be used only for the next test cycle and will be deleted at the end of cycle. This number will be sent on the output frame or on the print output for the current cycle. If no number is flashed for the next cycle, no number will appears or printed (blank).

2.14.5. Program selection function validated

Validate the "Select Pr."

function (Yes).

CONFI/BARCODE

Pr. Select : Yes First char : 05 Char Number : 10

The reading parameters for the bar code are displayed,

that should be informed.

CONFIG/BAR CODE

Select Pr. : Yes

First char : 05 Char Number : 10

The parameter “First character” corresponds to the position of first character to take in account in the total string of characters.

The parameter “Char number” corresponds to the quantity of characters (or the length of the chain) to take in account.

The sum of the two captured parameters must be lower or equal to the total quantity of characters contained in the chain plus 1.

Σ Parameters ≤ Total quantity of characters + 1 ≤ 22

Adjust the values of the

parameters using the keys high

and low, then validate with the

ENTER key.

CONFIG/BAR CODE

Select Pr. : Yes

First char : 05

Char Number : 10

Example: the program will be selected if the unit reads the character chain:

E F G H I J K L M N.

A B C D E F G H I J K L M N O P Q R S T U V

5thcharacte

10 characters

Number total of characters = 22

If a same characters string is on several programs, the program with the smallest number will be selected the others will be ignored.

Page 95

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 85/122

2.14.6. Parameter setting of the strings (LEARNING)

The characters string learning will be done from the special cycles.

First, check or validate in the

CONFIGURATION menu the

BAR CODES function (Yes).

CONFIGURATION

BARCODE : Yes SECURITY : No LIGHT

Back to the main menu, and

select the SPE CYCLE menu.

MAIN

SPE CYCLE: None CONFIGURATION SERVICE

Then go to the BAR CODES

function and validate by

ENTER.

SPE CYCLES Infinite fill Auto zero

BAR CODE

The unit requires the number

of the test program

corresponding to the character

chain which will be flashed,

validate by ENTER.

MAIN

/BAR

CODE

Pr. Select : 01

The display confirms that the

BAR CODE special cycle is

selected.

MAIN MENU

RUN PROG. : 01 PARAMETERS

SPE CYCLE: BARCODE

Press START to run the

special cycle. The device

waits for the bar-code (string

characters). The paired

program number is displayed.

CYCLE/P

r :

Pr. Select : 1

BARCODE

Then flash the code by using

the bar code reader. The

captured string is displayed.

CYCLE/P

r :

Pr. Select : 1 123456789001XXXXXXXX 01 BARCODE

The code is recorded and the

device is ready to run. At each

time this character string is

flashed, the paired program

will be set as active program.

CYCLE/P

r :

PRESS = 185.8 mbar 123456789001XXXXXXXX

READY (OK)

Page 96

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 86/122

2.14.7. Program running

From the main menu, select

the PARAMETERS menu.

MAIN

RUN PROG. : 01

PARAMETERS

SPE CYCLE: none

Select a program and validate

with ENTER.

PARAMET

Copy-Paste

Pr:01 LEAK

Pr:02 LEAK

Then select the FUNCTION

menu and validate with

ENTER.

PARAM/P

001

Test FAIL :020 Ref. FAIL :000

FUNCTIONS

Validate the BAR CODE

function (Yes).

ARAM/Pr001/FU

NCTIONS

BAR CODE : Yes

The characters string is

displayed under the Num

parameter, the AUTO START

parameter allows starting

automatically the test cycle

when the barcode is flashed.

/Pr00

1/FUNCT/BAR

CODE

Num : 123456789001X

Auto Start : Yes

If the flashed code is

unknown, the

"DEF. BARCODE" message

is displayed.

CYCLE/P

r :

PRESS = 185.8 mbar

DEF. BARCODE

READY

2.15. I/O CONFIGURATION

This menu is used to configure programmable input 7 on connector J3 on the 16program input/output board.

See the Chapter 1, paragraph 2.2.1.5) "Connector J3 (Inputs/Outputs) programmable input".

Note: the manual auto zero maintains the instrument in auto zero mode as long as the input is not activated.

Page 97

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 87/122

2.16. REMOTE CONTROL

When an 8 functions console is fitted to the instrument, the remote control menu allows the programming of special menu shortcuts and the use of a “Start” function on the four function buttons (F1, F2, F3 or F4) available on this remote control.

This function is only available when a console is connected to the instrument which will automatically detect its presence.

The "Start" function enables the configuration of a function key in such a way as to simulate a console with a two handed control (cycle start with a function key and a cycle start key pressed simultaneously).

In the main menu, place the

cursor in front of the

CONFIGURATION menu,

then confirm with the ENTER

key.

MAIN

PARAMETERS SPE CYCLE: Disabled

CONFIGURATION

The, in the CONFIGURATION

menu, place the cursor in front

of REMOTE CONTROL and

confirm

CONFIGURATION

I/O GROUP : 1 IN7 : PR.Select.

REMOTE CONTROL

Select the key to be

programmed, F1 to F4, then

confirm.

CONFI

REMOTE

F1 : Disabled F2 : Diasbled F3 : Disabled

In the special menus choose the function to be associated

to the key.

I/REMOTE

/F1

Disabled

Disabled Regulator adjust Infinite fill

Notes: when a function is programmed on a key "F", it is deleted from the menu to not be installed on another "F" key.

The special cycle appears and is programmable if it has been activated in at least one of the test programs.

The programmed special cycle appears on the same key for all the programs, it will be inactive if it is disabled in the current program.

Page 98

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 88/122

3. SPECIAL CYCLES MENU

3.1. SPECIAL CYCLES AVAILABLE

The following list shows all the special cycles which are possible: those available will vary depending on what is checked in the extended menus and according to the optional extras requested at the time of manufacture of the instrument.

Special cycle Function

9 Inactive: No special cycle is selected.

9 Regulator adjustment:

Cycle allowing the adjustment of regulator number 1 (generally on the rear panel).

9 Electronic regulator learning (if

installed):

Cycle allowing the adjustment of points to the different pressure values of the electronic regulator, 20 %, 50 % and 80 %.

9 Infinite fill:

Cycle allowing the infinite pressurization of the test part.

9 Reference calibration:

"Super" calibration special cycle, allowing the reference circuit calibration.

9 Piezo auto zero:

Cycle allowing the carrying out of a forced reset of the piezo sensor and the electronic regulator.

9 CAL learning:

This cycle enables the carrying out of a learning cycle in calibrated mode on a calibrated leak for which the values are known.

9 CAL check:

This cycle enables a checking of the calibration of the calibrated mode (refer to previous element) within a tolerance determined through percentage thresholds.

9 ATR Learning:

This cycle allows the entering of ATR parameters when they are not known, to be done after each instrument start up, or after a long period without test cycle.

9 Atmospheric conditions:

This cycle allows the display of the ambient atmospheric, pressure and temperature conditions (the temperature is taken inside the instrument).

To run a special cycle, select it in the "special cycles" menu, then press the

button. To stop it, press the button. In some cycles the stop is automatic.

Page 99

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 89/122

3.2. REGULATOR

This special cycle enables the main regulator pressure to be set.

Position the cursor in front of

SPE CYCLE and confirm

using the ENTER key.

MAIN MENU

RUN PROG. : 001 PARAMETERS

SPE CYCLE: Disabled

Next, position the cursor in

front of Regulator adjust and

confirm using the ENTER key.

SPE CYCLE

Disabled

Regulator adjust. ATM conditions

The display confirms that the

special cycle has been

selected.

MAIN MENU

RUN PROG. : 001 PARAMETERS

SPE CYCLE :Regul

Press the START key to start

the special cycle.

CYCLE/P

r :

001

PRESS = 355.5 mbar

REGULATOR ADJUST

Adjust the value of the

pressure with the regulator.

CYCLE/P

r :

001

PRESS = 500.0 mbar

REGULATOR ADJUST

In case of electronic regulator

(option) adjust the pressure by

using the UP and DOWN

keys.

CYCLE/P

r :

001

PRESS = 500.0 mbar

REGULATOR ADJUST

Once the pressure is adjusted,

press the RESET key to stop

the special cycle.

CYCLE/P

r :

001

PRESS = 0.000 bar

READY

Page 100

Chapter 4 – Functions of the instrument

UM-22100H-U User manual ATEQ D520 Page 90/122

3.3. CALCULATION OF THE AUTOMATIC THRESHOLDS

This function enables the programming of the monitoring thresholds for the maximum and minimum pressure in relation to the adjustment of the chosen regulator.

The values of the automatically calculated thresholds are of plus or minus 20 % of the value measured.

The calculation and the automatic editing of the thresholds is done on the active program.

Confirm the REGULATOR

ADJUST special cycle.

MAIN

RUN PROG. : 001 PARAMETERS

SPE CYCLE : Regul.

Press on the START key to

launch a special cycle.

CYCLE/Pr:001

PRESS = 17 mbar

REGULATOR ADJUST

Eventually adjust the test

pressure with the regulator

handle or with the UP and

DOWN keys if fitted with an

electronic regulator (option).

CYCLE/Pr:001

PRESS = 20 mbar

COMPUTE LIMITS

REGULATOR ADJUST

At this moment, when the key

is turned to the ACCESS

position, the question:

COMPUTE LIMITS

appears on the screen.

CYCLE/Pr:001

PRESS = 20 mbar

REGULATOR ADJUST

Confirm the calculation with

the ENTER key, the

instrument computes the

thresholds and enters them in

the program parameters cycle.

COMPUTING LIMITS

When the operation is

finished, press on the RESET

key to stop the special cycle.

CYCLE/Pr:001

PRESS = 20 mbar

READY

Note: in the event of vacuum tests, the negative pressure thresholds keep their mathematical "order".

PRESSURE MEASUREMENT

VACUUM MEASUREMENT

PRE-FILL

THRESHOLD

PRE-FILL

THRESHOLD

MINIMUM

REJECT LEVEL

MAXIMUM

REJECT LEVEL

MINIMUM REJECT

LEVEL

MAXIMUM REJECT

LEVEL
