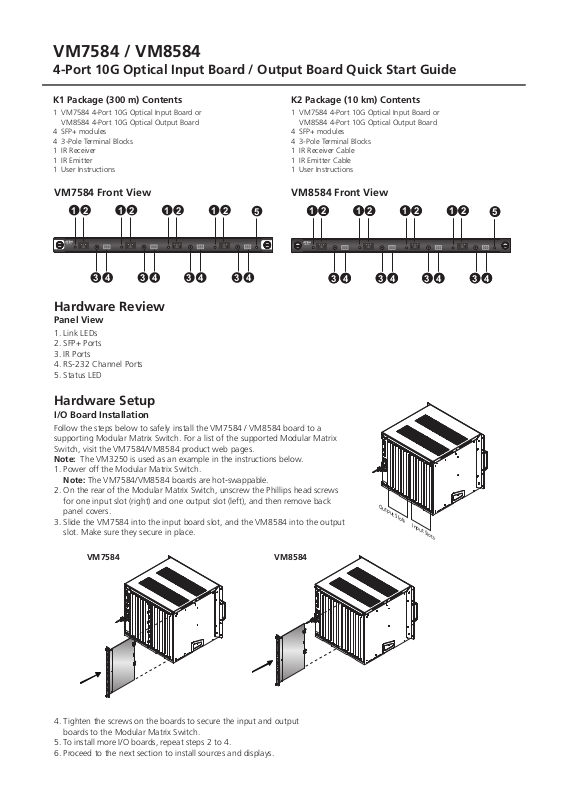

VM7584 / VM8584
4-Port 10G Optical Input Board / Output Board Quick Start Guide
K1 Package (300 m) Contents
1 VM7584 4-Port 10G Optical Input Board or
VM8584 4-Port 10G Optical Output Board
4 SFP+ modules
4 3-Pole Terminal Blocks
1 IR Receiver
1 IR Emitter
1 User Instructions
K2 Package (10 km) Contents
1 VM7584 4-Port 10G Optical Input Board or
VM8584 4-Port 10G Optical Output Board
4 SFP+ modules
4 3-Pole Terminal Blocks
1 IR Receiver Cable
1 IR Emitter Cable
1 User Instructions
VM7584 Front View VM8584 Front View
1 2
1 2 1 2
3 4 3 4
1 2
3 4 3 4
1 2
5
1 2
1 2 1 2
1 2 1 2
3 4 3 4
3 4 3 4
Hardware Review
Panel View
1. Link LEDs
2. SFP+ Ports
3. IR Ports
4. RS-232 Channel Ports
5. Status LED
1 2
1 2
3 4 3 4
3 4 3 4
5
5
Hardware Setup
I/O Board Installation
Follow the steps below to safely install the VM7584 / VM8584 board to a
supporting Modular Matrix Switch. For a list of the supported Modular Matrix
Switch, visit the VM7584/VM8584 product web pages.
Note: The VM3250 is used as an example in the instructions below.
1. Power off the Modular Matrix Switch.
Note: The VM7584/VM8584 boards are hot-swappable.
2. On the rear of the Modular Matrix Switch, unscrew the Phillips head screws
for one input slot (right) and one output slot (left), and then remove back
panel covers.
3. Slide the VM7584 into the input board slot, and the VM8584 into the output
slot. Make sure they secure in place.
VM7584 VM8584
Output Slots
Input Slots
4. Tighten the screws on the boards to secure the input and output
boards to the Modular Matrix Switch.
5. To install more I/O boards, repeat steps 2 to 4.
6. Proceed to the next section to install sources and displays.
Source and Display Device Installation
2
1
3
4
6
4
5
IR Emitter
IR Receiver
Serial Device
VE883R
VE883T
2
1
3
4
6
4
5
IR Emitter
IR Receiver
Serial Device
VE883R
VE883T
1. Connect one or more VE883T units to the SFP+ ports of the VM7584.
2. Connect one or more VE883R units to the SFP+ ports of the VM8584.
3. (Optional) To bypass RS-232 serial signals via the VM7584/8584, connect a serial controller to the RS-232
Serial port on either the VM7584 or VM8584.
4. (Optional) To bypass IR signals, connect the supplied IR receiver to the IR port on either the VM7584 or
VM8584, depending on which side you prefer to emit IR signals, and then the IR emitter to the IR port on
other board.
5. Ground the Modular Matrix Switch and all the devices in the installation.
6. Power on the Modular Matrix Switch and all the devices in the installation.
Support and Documentation
Notice
All information, documentation,
firmware, software utilities, and
specifications contained in this
package are subject to change
without prior notification by
the manufacturer.
To reduce the environmental
impact of our products, ATEN
documentation and software can
be found online at
http://www.aten.com/
download/
Technical Support
www.aten.com/support
Scan for
more information
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
Warning: Operation of this equipment in a residential environment could cause radio interference.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Important. Before proceeding, download the Installation and Operation Manual by visiting the website,
www.aten.com and navigating to the product page. The manual includes important warnings, loading
specifications and grounding instructions.
이 기기는 업무용(A급) 전자파적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며, 가정외의 지역에서 사
용하는 것을 목적으로 합니다.
© Copyright 2020 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks
are the property of their respective owners.
This product is RoHS compliant.
