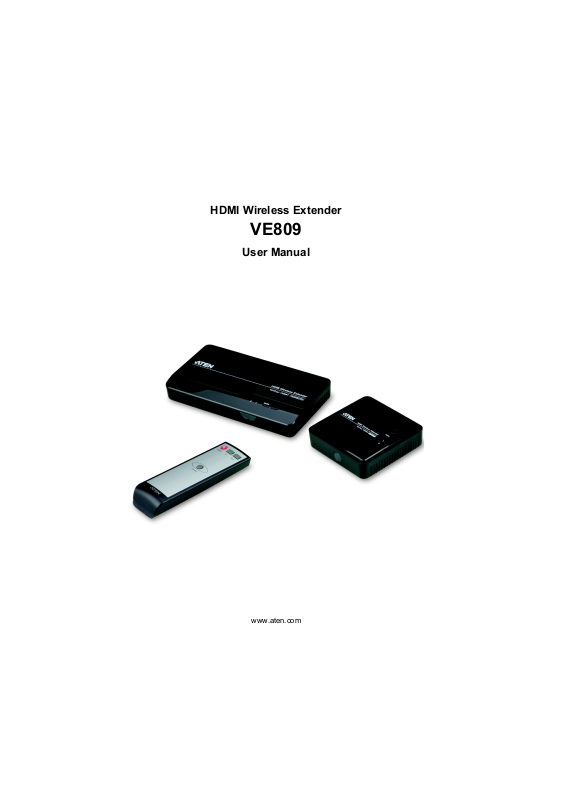

Aten VE809 User Manual
HDMI Wireless Extender
VE809
User Manual
www.aten.com
VE809 User Manual
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
ii
VE809 User Manual
User Information
Online Registration
Be sure to register your product at our online support center:
International http://eservice.aten.com
Telephone Support
For telephone support, call this number:
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8-4481-58923
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
iii
VE809 User Manual
© Copyright 2012 ATEN® International Co., Ltd.
Manual Date: 2012-12-10
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.
Package Contents
The VE809 package consists of:
1 VE809T HDMI Wireless Extender
1 VE809R HDMI Wireless Extender
1 IR Remote Control
1 IR Blaster Cable
1 Power Adapter (VE809T)
1 Mini USB Power Adapter (VE809R)
2 AAA Batteries
1 HDMI Cable
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
* Features may have been added to the VE809 since this manual was
published. Please visit our website to download the most up-to-date version.
iv
VE809 User Manual
Contents
RoHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SJ/T 11364-2006. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Source Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Display Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VE809T Transmitter Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
VE809R Receiver Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
VE809T Transmitter Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
VE809R Receiver Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
IR Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2. Hardware Setup
VE809T - Transmitter Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
VE809R - Receiver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
IR Blaster Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3. Operation
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
IR Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EDID Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
International. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
v
VE809 User Manual
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the VE809 system. Its purpose,
features and benefits are presented, its front and back panel components and
remote control are described.
Chapter 2, Hardware Setup, describes how to set up your installation. The
necessary steps needed to install the transmitter, receiver, and IR blaster are
explained.
Chapter 3, Operation, explains the fundamental concepts involved in
operating the VE809, IR Blaster cable, remote control, and EDID
management.
An Appendix, provides specifications, troubleshooting, and other technical
information regarding the VE809.
vi
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦ Bullet lists provide information, but do not involve sequential steps.
→ Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start
open the Start menu, and then select Run.
Indicates critical information.
Product Information
VE809 User Manual
→ Run means to
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com
vii
Chapter 1
Introduction
Overview
The VE809 HDMI Wireless Extender extends your HDMI display up to 30m*
from the HDMI source using wireless technology. Easily connect two HDMI
devices to an HDTV wirelessly with crystal clear image quality capable of
streaming Full 1080p with 5.1 channel digital audio and 3D technology. The
IR remote control allows you to switch between HDMI source devices from the
receiver side, remotely; and allows you to watch a local and wirelessly
connected HDTV- simultaneously. The VE809 consists of a wireless audio/
video transmitter and receiver. Consolidate your HDMI electronics and use the
VE809 as a wireless 2-port HDMI switch to connect remote devices such as
Blu-ray players and HD Cable boxes to design your own custom wireless
entertainment space.
* Distance may vary depending on the actual environment; solid objects such
as steel, concrete, or brick may cause interference and shorten the
transmission distance.
1
1. Introduction
Features
Wirelessly extend an HDMI display up to 30m from the HDMI source*
Setup two HDTVs and view HD content on two HDTVs simultaneously*
Connect and transmit wireless video content from your Blu-ray DVD
player, HD Cable box or other HDMI device wirelessly
Wireless 3D Supported
Wireless HD in Full 1080p and 5.1 channel digital audio
Video Resolutions: 480p, 720p, 1080i and 1080p (24 / 30 / 60fps)
Local Transmitter: 2 HDMI Inputs and 1 HDMI Output
Remote Receiver: 1 HDMI Output
Keep home theater electronic devices neatly out-of-sight
Built-in IR receiver allows control of source devices from the remote side
No software or driver installation needed
HDCP Compliant
Based on WHDI™ Technology - Low latency <1ms
* Distance may vary depending on the actual environment; solid objects such
as steel, concrete, or brick may cause interference and shorten the
transmission distance.
2
