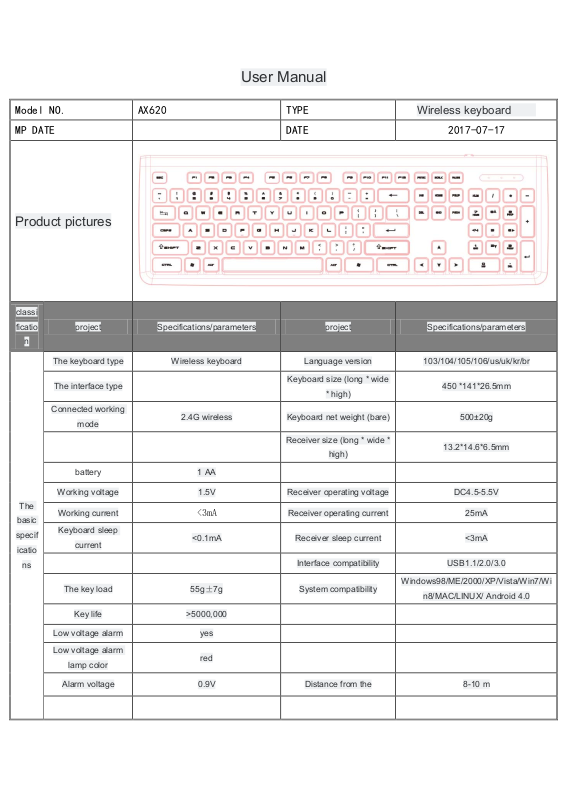

ATEK AX620 User Manual

User Manual

Model NO. AX620

TYPE Wireless keyboard

MP DATE DATE 2017-07-17

Product pictures

classi

ficatio

n

project

The keyboard type

The interface type

Connected working

mode

Specifications/parameters

Wireless keyboard Language version

Keyboard size (long * wide

2.4G wireless Keyboard net weight (bare)

Receiver size (long * wide *

project

* high)

high)

Specifications/parameters

103/104/105/106/us/uk/kr/br

450 *141*26.5mm

500±20g

13.2*14.6*6.5mm

The

basic

specif

icatio

ns

battery

Working voltage 1.5V Receiver operating voltage

Working current

Keyboard sleep

current

The key load

Key life

Low voltage alarm

Low voltage alarm

lamp color

Alarm voltage

1 AA

<3mA

<0.1mA Receiver sleep current

Interface compatibility

55g±7g System compatibility

>5000,000

yes

red

0.9V Distance from the

Receiver operating current

DC4.5-5.5V

25mA

<3mA

USB1.1/2.0/3.0

Windows98/ME/2000/XP/Vista/Win7/Wi

n8/MAC/LINUX/ Android 4.0

8-10 m

Electr

Code checking method: install the battery and press "ESC" + "+=" at the same time. The red indicator flashes and the receiver

ical

para

meter

s

IC model

IC factory,

Working

temperature

Working humidity

No need to install USB drive plug and play, strong anti-interference ability, distance more than 10 meters.

1

COMPX TECHNOLOGY CO., LTD IC factory

CX5176 IC model

0～45℃ Storage temperature

20～90% Storage humidity

-20～+60℃

≤93% (40℃)

2

is inserted into the USB connector

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable

exposure condition without restriction
