ATEK TECHNOLOGY CO., LTD 2.4G wireless mouse ver4.0

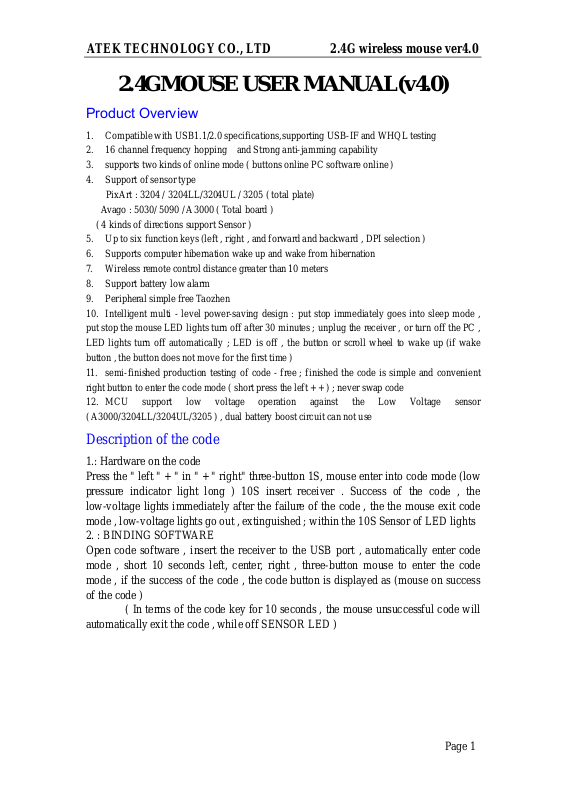

2.4GMOUSE USER MANUAL(v4.0)
Product Overview
1. Compatible with USB1.1/2.0 specifications,supporting USB-IF and WHQL testing
2. 16 channel frequency hopping and Strong anti-jamming capability
3. supports two kinds of online mode ( buttons online PC software online )
4. Support of sensor type
PixArt : 3204 / 3204LL/3204UL / 3205 ( total plate)
Avago : 5030/ 5090 / A3000 ( Total board )
( 4 kinds of directions support Sensor )
5. Up to six function keys (left , right , and forward and backward , DPI selection )
6. Supports computer hibernation wake up and wake from hibernation
7. Wireless remote control distance greater than 10 meters
8. Support battery low alarm
9. Peripheral simple free Taozhen
10. Intelligent multi - level power-saving design : put stop immediately goes into sleep mode ,
put stop the mouse LED lights turn off after 30 minutes ; unplug the receiver , or turn off the PC ,
LED lights turn off automatically ; LED is off , the button or scroll wheel to wake up (if wake
button , the button does not move for the first time )
11. semi-finished production testing of code - free ; finished the code is simple and convenient
right button to enter the code mode ( short press the left + + ) ; never swap code
12. MCU support low voltage operation against the Low Voltage sensor
( A3000/3204LL/3204UL/3205 ) , dual battery boost circuit can not use
Description of the code
1.: Hardware on the code
Press the " left " + " in " + " right" three-button 1S, mouse enter into code mode (low
pressure indicator light long ) 10S insert receiver . Success of the code , the
low-voltage lights immediately after the failure of the code , the the mouse exit code
mode , low-voltage lights go out , extinguished ; within the 10S Sensor of LED lights
2. : BINDING SOFTWARE
Open code software , insert the receiver to the USB port , automatically enter code
mode , short 10 seconds left, center, right , three-button mouse to enter the code
mode , if the success of the code , the code button is displayed as (mouse on success
of the code )
( In terms of the code key for 10 seconds , the mouse unsuccessful code will
automatically exit the code , while off SENSOR LED )
Page 1
Page 2
ATEK TECHNOLOGY CO., LTD 2.4G wireless mouse ver4.0
Functional Description
1. A different sensor, the power-on default DPI value and switchable DPI value below
Power-on default DPI
Sensor
PAN3204
If necessary , but also through the PC software to change the DPI factory default value
2.Mouse end an LED indicating low voltage / online status and fault indication :
Mouse on LED flashes when the battery is low voltage , normal voltage , the LED indicator turns
off LED goes out when the press code key LED long bright -line success
Fault indication : ( under normal circumstances , the power-on indicator bit off after )
1 indicator does not light = MCU does not wo rk
Indicator flashes (bright long time off the short time ) = sensor or eeprom does not work
3. Indicator flashes (bright short time a long time off )
value Switchable DPI value
1000 1600
operating current:
Sensor
Operating current A dormant
(Put stop after entering
this mode ) current ,
depending on the
characteristics of different
sensor
3204 11mA < 0.5mA 15-45uA
The two hibernation
( off)
( No USB receiver or no
action after about 30
minutes to enter)
Electrical Characteristics
MOUSE IC_ CX5184
Mark Parameters VDD State Min
VDD Operating voltage 1.8 2.8 3.6 V
IDD Operating current 3V Standby ≤3.0 uA
Typical
values
Max Unit
Fosc System frequency 3V 8.0 MHz
Page 2
Page 3
ATEK TECHNOLOGY CO., LTD 2.4G wireless mouse ver4.0
RF Product Specification Sheet(FCC,CE,KCC USED)
1. Product Name : 2.4G Wireless Mouse
2. power input rating: DC 3V , 25mA
3. Frequency Band : 2402MHz—2480MHz
4. Carrier Frequency : 2402MHz—2480MHz
5. Number of Channel: 16
6. Channel Spacing: ≥6MHz
7. RF Output Power (ERP OR EIRP) : 0dBm
8. Modulation Type : GFSK
9. Duty Cycle : <10%
10. Mode of operation (duplex , simplex): duplex
11. Bit Rate of Transmission : 1Mbps
12. Antenna Type: PCB Antenna
13. Antenna gain: -1~-2dBi
14. Operating Temperature Range: -20
15. book sales countries :EUROPE
~ 55
Page 3
Page 4
ATEK TECHNOLOGY CO., LTD 2.4G wireless mouse ver4.0
FCC Certification Requirements
Caution: A ny changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
