Atech Flash Technology XM-4, XM-4U User Manual

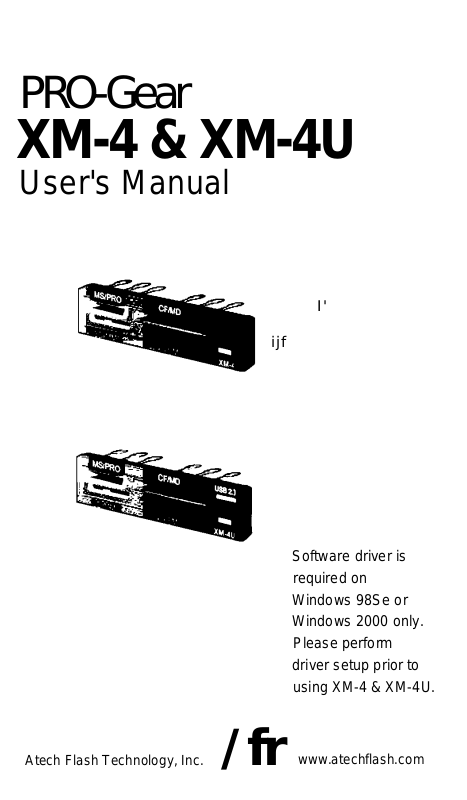

PRO-Gear

XM-4 & XM-4U

User's Manual

I'

ijf

Software driver is
required on
Windows 98Se or
Windows 2000 only.
Please perform
driver setup prior to
using XM-4 & XM-4U.

Atech Flash Technology, Inc.

/fr

www.atechflash.com

Congratulations on the purchase of your newAtech Flash
Technology PRO Gear flash readerAvriter. PRO Gear is a
readAvrite device that supports multiple formats of flash
memory cards and we recommend that you read this manual
carefully to become familiar with the operation of the
product. This manual explains the features and
specifications of your new PRO Gear reader, as well as the
installation in a few simple steps. Please retain this guide for
further reference.

If you have questions regarding your PRO Gear reader,
please call our technical support hotline at toll free number
(US only)

1-866-85-ATECH (1-866-852-8324)

or email us at

[email protected]

or visit our website at

www.atechflash.com

All trademarks, service marks, trade names and copyrights are
properties of their respective owners.

Table of Content

1. Introduction

2. Features...............................................2

3. System Requirement

4. Package Content Description

5. Before Installation................................6

6. Installation

7. Using PRO-Gear Multiple Card reader. 13

8. Specifications

9. Limited Warranty

..........................................

...........................

..............

..........................................

.....................................

................................

1

3

4-5

7-12

14

15-16

Introduction

PRO-Gear XM-4/XM-4U is a mulit-function, read and write

device for today's most popular flash memory card formats.

It brings you the advantage of ultra high speed data

transferring between desktop PC and you personal electronic

devices, such as Digital Cameras, MP3 Players, PDAs,

Voice Recorders, Pocket PCs, Cell Phones and much more.

Utilizing the widely-adopted USB (Universal Serial Bus)
interface of your PC, XM-4/XM-4U is fully Plug-&-Play on

Windows ME and Windows XP, without the need to install

software driver.

The XM-4U unit is also equipped with a front USB port on
the front panel, allowing you to connect your USB devices

easily.

Features

High Speed USB 2.0 interface - up to 480 Mb/s transfer
rate to access to your flash media cards. Also backward
compatible with USB 1.1 interface.

Front USB port (XM-4U) - allow you to connect USB

devices easily.

USB powered - no additional power adaptor or battery
required.

Fully Plug and Play* - No software driver needed on

Windows ME, XP or later.

Custom Icons - Driver icons for each card slot included on

our driver setup diskfdriver installation required).

Hot-Swappable - connect or disconnect reader without
having to turn your computer off

CF - Compact Flash™ Type I, Compact Flash™ Type II
MS - Memory Stick™, MagicGate Memory Stick™**
MS-PRO - Memory Stick Pro™
SM - SmartMedia™ Card (3.3V)
SD - Secure Digital™ Card
MMC - MultlMedia™ Card
MD - IBM MicroDrive™

xD - xD-Picture Card™***

ii

‘Software driver required on Wndows 98SE / 2000.
“Does not operate with MagicGate Memory Stick in secure mode.
*“xD-Picture Card™ is a trademark owned by Fuji Photo Film Co.. Ltd.

System Requirements 13

Operating System Requirement

Windows 98SE*
Windows ME
Windows 2000*
Windows XP

* A CD ROM Drive is also required to access AFT
Setup CD when setting up XM-4/XM-4U on Windows 98SE /
2000

Setup Requirement

IBM PC compatible computer with USB connection (USB 1.1

or USB 2.0)

Empty external 3.5" drive bay

On Board USB pin headers (two USB ports)

Package Content Description Li

This section explains the contents of PRO Gear package.

Before attempting to connect, please read this manual
carefully and determine if software driver setup is required
first.

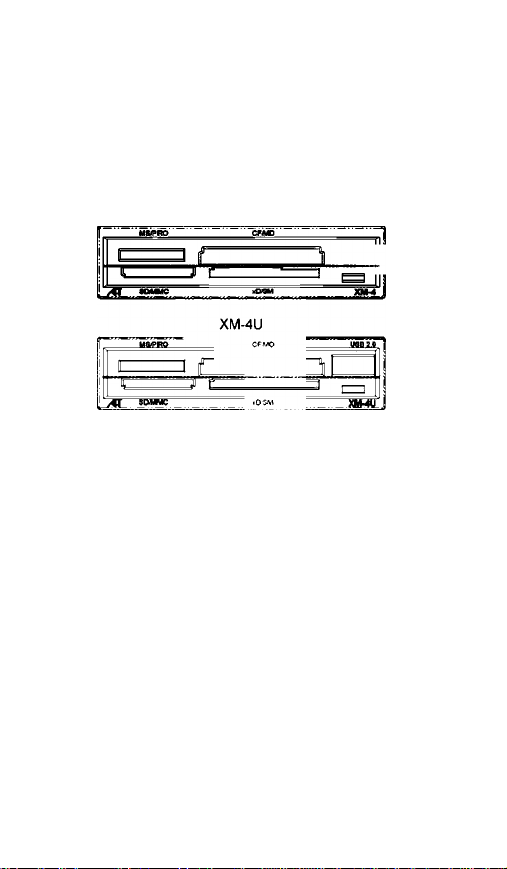

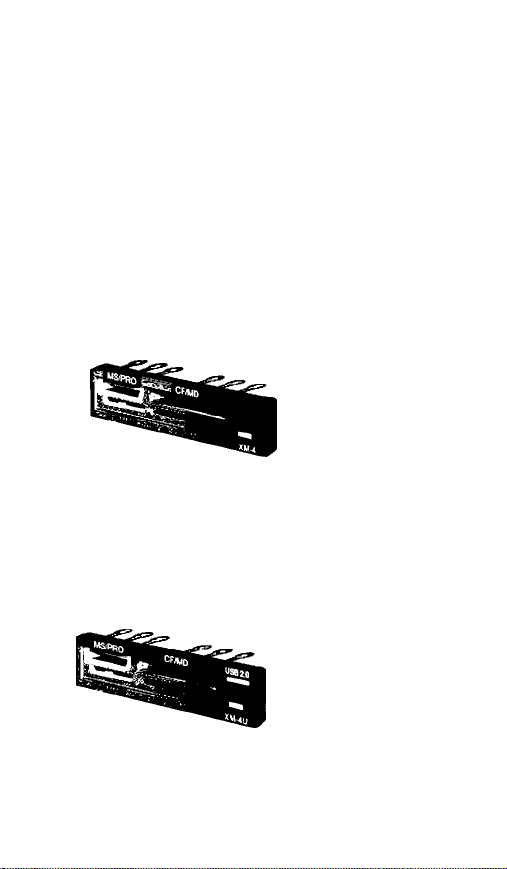

PRO-Gear XM-4

»>«

PRO-Gear XM-4U

<>>

Package Content Description

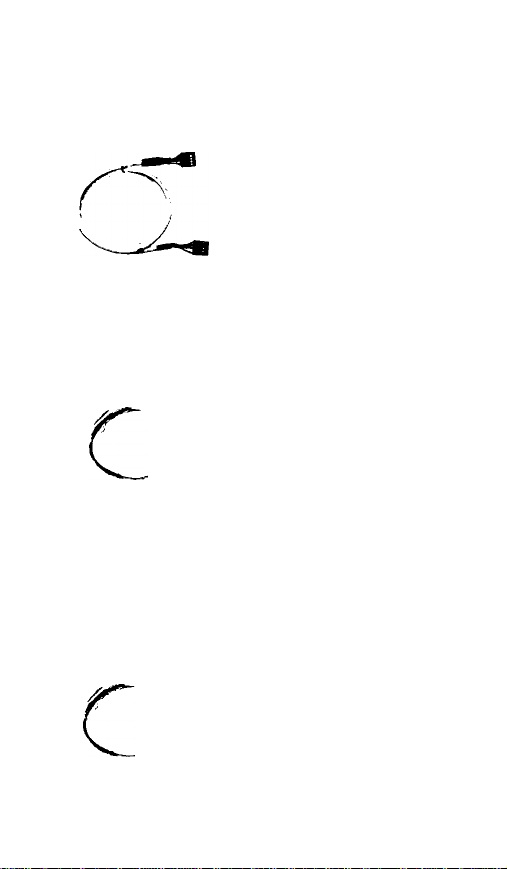

Internal USB Cable - Connects from XM-4/XM-4U unit to
the USB pin headers on motherboard.

To XM-4/XM-4U Unit
(10-pin)

To motherboard USB pin
headers (10-pin)

Internal USB Cable to mini-USB Cable - Connects from

XM-4/XM-4U unit to the USB pin headers on motherboard.

To XM-4/XM-4U Unit

To motherboard USB pin
headers (5-pin)

Internal USB Cable to mini-USB Cable - Connects from

XM-4U unit to the USB pin headers on motherboard.

•‘This option is for USB front port extension for XM-4U only.*

—u _

To XM-4U (USB
extension port)

To motherboard USB pin
headers (5-pin)

Before Installation

i6

Attention !!!!

Windows 98SE or Windows 2000 users :

Driver installation is required. Please perform software setup
first before inserting

XM-4/XM-4U is an USB 2.0 device and it is backward
compatible with USB 1.1 interface. However, USB 1.1
performance can only be expected when connecting to a
USB 1.1 port.

When XM-4/XM-4U is connected to an USB 1.1 port, following
Windows message may appear:
"A Hl-SPEED USB device is plugged into a non-Hl-SPEED
USB hub. For assistance in solving this problem, click this
message"

This is just a reminder that XM-4/XM-4U is not plugged into an
USB 2.0 port. It does not affect the function of XM-4/XM-4U.
Please ignore the message.

•’ HI-SPEEO USB Device P1u99ed into non-HI-SPEED USB Hub

A Hi-SPEED USB device i$ plugged mx> a non-Hi-SPEED USB hub.
For assstance n scMig ths problem, <Mi the message.

Please also be sure to remove the power plug of your computer
to avoid electrical shock or damage to your system.

Installation

step 1

Open computer case cover. Please refer to your computer
manual if necessary.

Step 2

Insert XM-4/XM-4U unit Into an empty external 3.5" drive bay.

1"

Step 3

Like standard 3.5" floppy drive, XM-4/XM-4U unit has 3
screw holes on both sides. Apply screws on each side to
secure unit to drive.

Installation

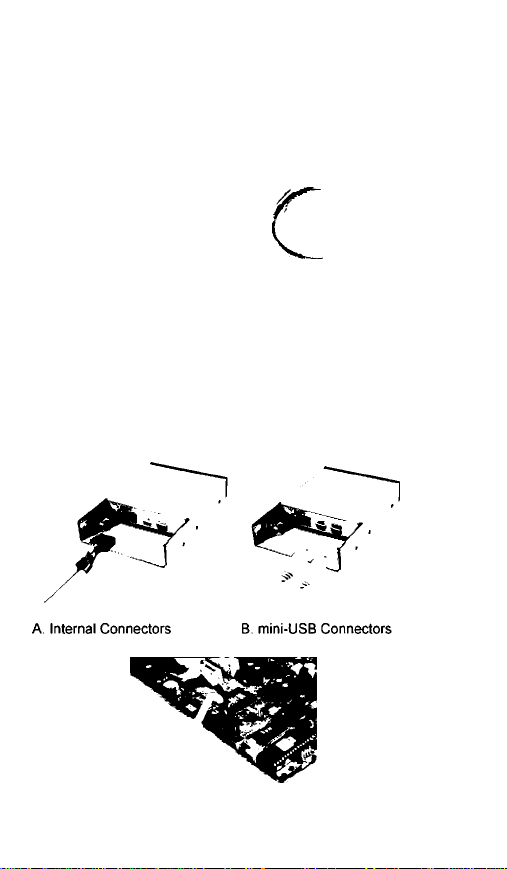

step 4

Connect Internal 10-pin cables or mini-USB cables

to the back of XM-4/XM-4U unit.

■ill

WARNINGIMYou can only use one option

below for cable connections!!!
A. Internal Connectors (10-pin to

10-pin)

B. mini-USB Connectors (mini-USB

to 5-pin)

Ll

Motherboard connection

Installation

Depending on the pin layout on your motherboard USB
header, it may be necessary rearrange the color wires of
Internal USB cable to match the USB pin assignment.
Please refer to your motherboard manual for USB header
pin assignment information.

Internal USB cable is consist of 2 sets of Red, White, Green
and Black wires. Each color wire shall be connected to a
specific pin on the USB header.

Red wire = Power (VCC)
White wire = P- (Data-)
Green wire = P+ (Data+)
Black wire = Ground (GND)
Black wire #2 = Ground (GND) [Optional connection]

«< Example »>

Here is an example base on the motherboard we have.

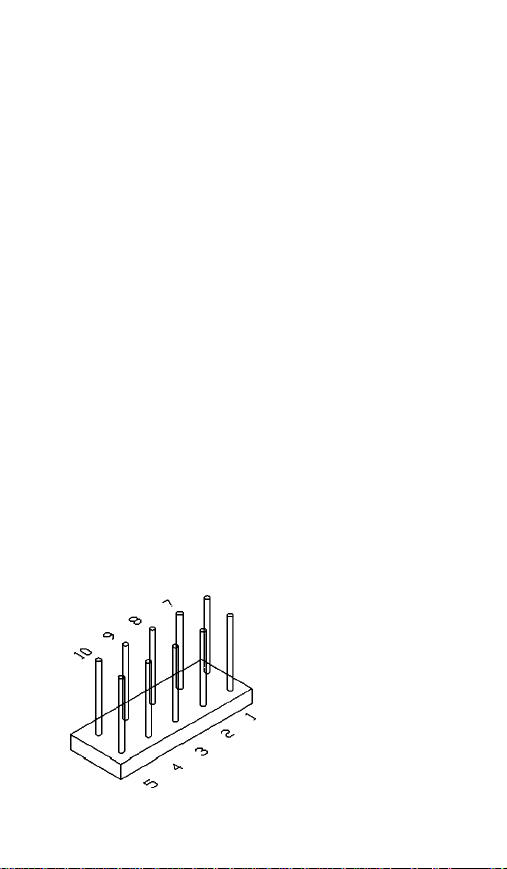

According to the motherboard manual, we have following pin

information on USB header:

Pin 1 = USB Power
Pin 2 = USBP2­Pin 3 = USBP2+
Pin 4 = GND
Pin 5 = NC

li.

Pin 6 = USB Power
Pin 7 = USBP3­Pin 8 = USBP3+
Pin 9 = GND
Pin10 = NC (No pin)

Installation

Therefore, we shall have:

[10

Set 1 USB wires

Red wire goes to pin 1
White wire goes to pin 2
Green wire goes to pin 3

Comparing the default wire setting on the Internal USB
cable, no wire reassignment is necessary. We can plug in
the black pin connector of Internal USB cable to the USB
header directly, with red wire goes to pin 1 or 6.

Please note that your motherboard USB header pin

assignment could be different from the example above. If you

need to reassign wires on Internal USB cable, please follow

the procedure below:

Set 2 USB wires
Red wire goes to pin 6

and

White wire goes to pin 7
Green wire goes to pin 8

Installation

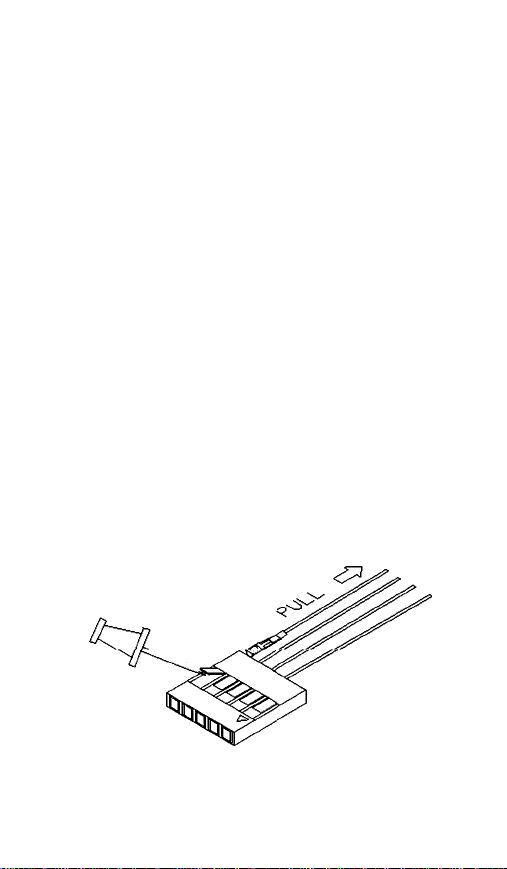

(1) Determine which wires you need to remove from the
black pin connectors first by referring to your motherboard
USB header pin layout.
(2) Using a needle or push pin to flip up the tiny plastic tab
and pull the wire out from the connector. Please take caution
on this step as excessive force on flipping the tab may cause
the tab to break.
(3) Repeat above step for each wire that requires changing.
(4) Insert the wire pin back into the correct slot and press the
tiny plastic tab down will hold the wire in its position.

Step 5

Install software driver

This step is required for Windows 98SE and Windows 2000
users only. If you have Windows ME or Windows XP, please
skip this step and proceed to Step 6.

(1) Close all application you are running, including
applications running in background.
(2) Insert AFT Setup CD into your CD ROM drive and
locate a setup.exe file in PC setup folder.
(3) Double click on setup.exe will lead you into setup
program.
(4) Follow setup instruction on your screen.
(5) After driver files are copied into your system, setup
program will prompt you to restart your computer. Please do
so.
(6) Once computer is restarted, you can proceed to Step 6

Installation

Step 6 AFT Custom Icons

Insert Memory Card and click on the Icon that
matches your memory card.

Devices wiUi Removable Storage

CO Dove IPO

Network Drives

m

Removable

Oskff:)

o

Removable

06k f:)

Removable

0isk(6:)

9

Q

Removable

06k (№)

LL2

Ron

Server»...

Ton

Server»..,

von

Server»...

Using XAA-4/XM-4U

Using XM-4/XM-4U is very similar to using a floppy drive.
Simply insert your flash media card into the slot and click on

the appropriate Removable Disk icon in My Computer, it will

allow you to access your flash media card like a disk.

XM-4

We strongly recommend that you copy the files in the flash

media card to your computer first before attempting to view
or make any changes to the files.

Caution !!

When removing your flash media card from PRO Gear

Reader, please make sure that your file transferring process
is fully completed before pulling your flash media card out.
Failing to do so may result in card damage.

LL3

Avoid formatting your flash media cards in PRO Gear if

possible. Always format your flash media card in the
electronic device it is used. Certain electronic devices may
become incompatible with the flash media cards formatted
under Windows file systems.

Specifications

LL4

Dimension (W x H x D);

Power Requirement: 5V DC, 500mA (USB Bus power)

Supported media format:

Operation Current:
Suspend Current:

Transfer rate:

Supported 0/S:

4.00 inch X 1 inch X 4.92 inch
100 mm X 25 mm x 124 mm

Compact Fiash™ Typei
Compact Fiash™ Type li

iBM MicroDrive™
Smart Media™ Card( .3V)
MultiMedia™ Card
Secure Digital™ Card
Memory Stick™
Memory Stick PRO™

MagicGate Memory Stick™
xD-Picture Card™*

<200mA

<500uA

Up to 480 Mbps (Via USB 2.0)
Up to 12 Mbps (via USB 1.1)

Windows 98 SE

Windows 2000

Windows ME (No driver required)

Windows XP (No driver required)

Mac OS 9.1 or later

Mac OS X (No Driver required)

Specifications are subject to change without further notice.

All trademarks, trade names and copyrights are properties

of their respective owners.

*xD-Picture Card™ is a trademark owned by Fuji Photo Film Co.. Ltd.

Limited Warranty

Atech Flash Technology, Inc. ("AFT"), warrants to the original
end user ("Customer") that under normal intended use AFT
memory flash card readers will be free from defects in
materials and workmanship for one (1) year from the date of
purchase. During warranty period, AFT shall either repair, or
replace of defective product. AFT shall not be liable for any
losses or damages of any kind resulting from the use of AFT
products or for any of Customer's data stored on products
returned to AFT for service. AFT accepts no liability for and
provides no expressed or implied warranty against any loss
of data or images.

You may register your product at http://www.atechflash.com
Customer must have proof of purchase and obtain warranty
service authorization from AFT within the applicable warranty
period before returning defective products to AFT. Returned
products must be shipped prepaid and packaged
appropriately, and It is recommended that they be insured or
sent by a method that provides for tracking of the package.

LL5

Limitations: This limited wamanty is in lieu of all other
warranties, terms or conditions; including warranties, terms,
or conditions of merchantability, fitness for a particular
purpose, satisfactory quality, suppliers, and in no event will
AFT be liable for any special, incidental, consequential, or
indirect damages resulting from the possession, use, or
failure of this product.

Limited Warranty

Product names mentioned herein are for identification
purposes only and may be trademarks and/or registered
trademarks of their respective companies.

Media Cards* Compatibility Note
Media cards may not w/ork properly when working with AFT
product. If you encounter this problem, contact AFT Tech
Support for compatible media card list and potential driver
support and update.

‘Compact Flash™, Secure Digital™, Smart Media™,
Microdrive™,Multimedia Card™, Memory Stick™,
Memory Stick PRO™, MagicGate Memory Stick™*,
and xD-Picture Card™**

LL6

•Software driver required on Windows 98SE / 2000.
“Does not operate with MagicGate Memory Stick in secure mode.

***xD-Picture Card™ is a trademark owned by Fuji Photo Film Co., Ltd.

yir

Atech Flash Technology, Inc.

www.atechflash.com
