ValidatorPRO™ and ValidatorPRO-NT
Ethernet Network Management Tools
Key Features
• Measures optical power on single mode and multimode ber
• Conducts BER testing to speed certify Ethernet data
transmission speed up to 1000BASE-T (1 Gb/s)
• Measures SNR and skew to uncover impairments to electrical
Ethernet data transmission
• Tests for opens, shorts, split pairs, miswires, and reversals and
measures distance to opens and shorts—supports all copper
network, telco, and coax cables
• Measure PoE voltage and current (NT only)
• Performs port discovery to detect advertised Ethernet speed
and displays capabilities of network devices (NT only)
• Pings network devices to verify connectivity to active
equipment (NT only)
• Discover and display essential information regarding
functionality of 802.11 b/g/n wireless devices (NT only)
• Includes Plan-Um® soware to create network layout;
document cable tests; show network topology; and record
moves, adds, and changes
Applications
• Certify speed capability of electrical Ethernet cable runs to support
10/100/1000 Mb/s Ethernet applications
• Ensure conguration and connectivity with active network devices
• Measure optical power and insertion
loss
• Discover and display essential information regarding functionality of
802.11 b/g/n wireless devices
• Document network topology including moves, adds, and changes
we bs it e: www.jds u.com/kn ow
Building on the capabilities of the JDSU Validator and Validator-NT, the JDSU
ValidatorPRO series of Ethernet Network Management Tools oers a complete
solution to test copper and ber Ethernet cables. e ValidatorPRO Ethernet speed
certier with integrated optical power meter and accompanying Plan-Um cable
management soware delivers the power to test both copper and ber cabling,
determine if cables can support Gigabit Ethernet, and perform troubleshooting for
cable installations. e ValidatorPRO performs all tests oered by the Validator and
Validator-NT, including speed certifying the data-carrying capabilities of copper
Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting
faults in the cabling wiring, and ensuring that cables can support the speed capabilities of active equipment.
To certify Ethernet speed performance of cable runs, the ValidatorPRO series of
handheld testers conducts bit error rate (BER) tests by sending data packets down
specied cable runs at dened data rates to check for errors at the maximum
throughput of the link. e ValidatorPRO also reports on signal quality that can
impact high-speed data transmission by measuring signal-to-noise ratio (SNR).
Skew measurements provide the signal time delay between pairs that can impact
Ethernet data transmission. e ValidatorPRO also provides continuity testing
that detects opens, shorts, miswires, split pairs, reversals, and high-resistance faults
while accurately measuring distance to faults and total cable length.
Page 2
2
Test fiber and copper (telco, network & coax) cables
ValidatorPRO and ValidatorPRO-NT Ethernet Network Management Tools
e ValidatorPRO includes an integrated optical power meter that
measures optical power at 850/1300/1310/1490/1550 nm on multimode or single-mode ber to address an increasing number of
Ethernet networks that now include optical links.
e ValidatorPRO-NT version includes a comprehensive set of features for testing a network’s active network capabilities: measure
Power over Ethernet (PoE) to ensure the correct power is available
on the correct pins, use port discovery to ensure the correct speed
and duplex capability are available; connect at gigabit Ethernet
and run ping tests to verify connectivity to IP hosts; discover network devices using Cisco Discovery Protocol (CDP) or Link Layer
Discovery Protocol (LLDP), discovery and display essential information regarding functionality and conguration of 802.11 b/g/n
networks.
Shows optical power levels in dB or dBm
Shows available wireless networks and relevant information
Plan-Um Cabling Installation and Planning Software
ValidatorPRO includes the updated powerful Plan-Um planning and reporting soware used to plan network architectures, organize cable information, estimate cable length requirements, and document test results. Plan-Um helps set
up each job, denes the scope of the job, aids in testing cable runs, and produces reports for the installer and customer.
e Network Tools feature provides a quick view of the network architecture and lets users document moves, adds, and
changes.
Used in conjunction with Plan-Um, ValidatorPRO provides condence in the physical properties of cable runs and the
overall capability of the network.
Page 3
ValidatorPRO and ValidatorPRO-NT Ethernet Network Management Tools
3

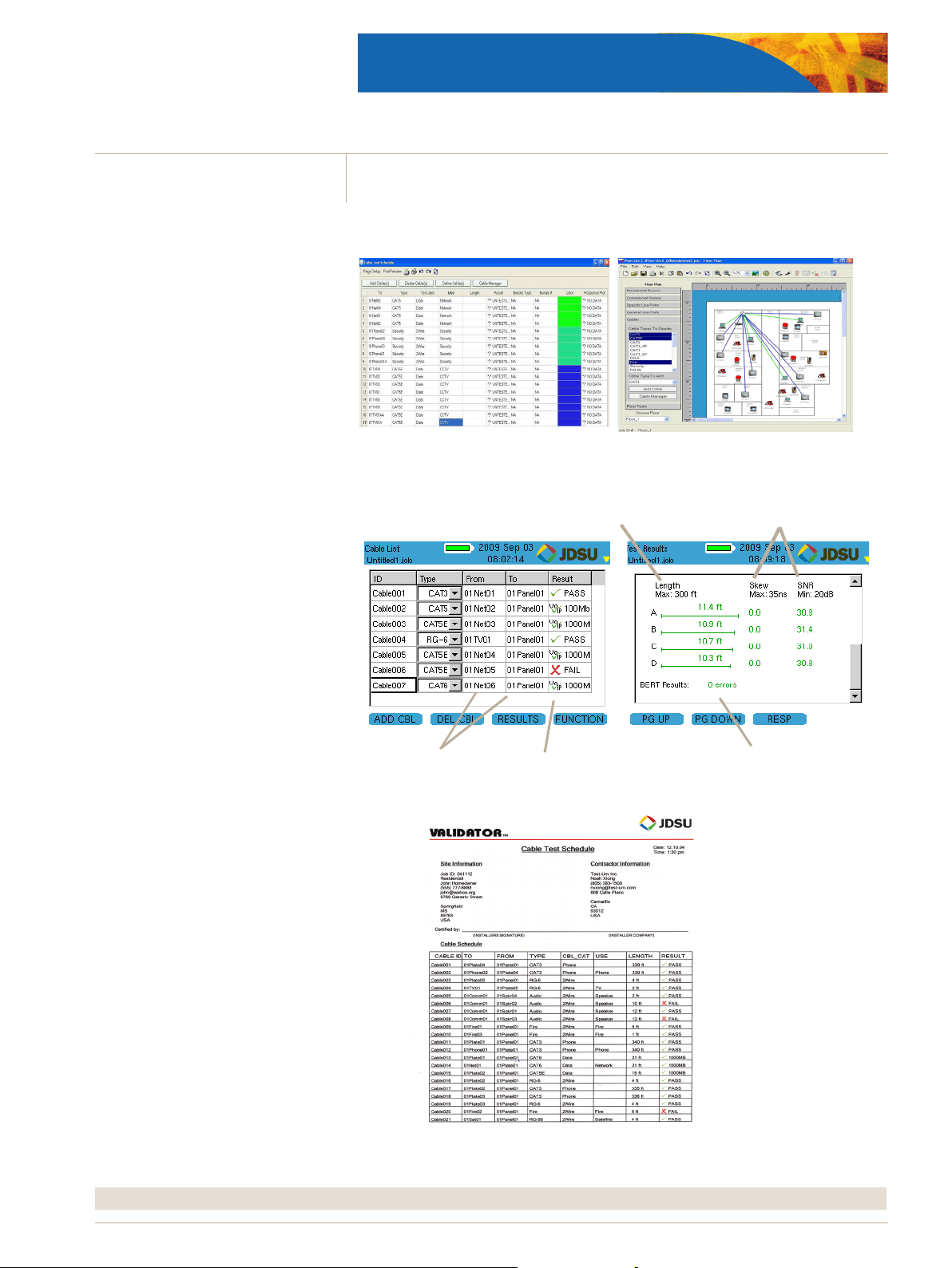

Plan the job, conduct tests, document results
Layout
•
Create custom oor plans or import
existing AutoCAD or Visio les
•
Show specic ports: network, tele-
phone, cable
•
Indicate cable runs
•
Print or e-mail layout for approval
•
Save layouts for future jobs
•
Automatically create cable test
schedule
•
Cable list shows run start and end
points
Measures cable length and distances
to opens and shorts using advanced
TDR technology
Skew and SNR results
Speed Certification
and Continuity Test
•
Certies Ethernet transmission
speed up to 1 Gb/s using full
Bit Error Rate (BER) test by
sending data packets across
cable runs
•
Conducts measurements to
detect noise and delay that aect
data transmission:
Skew and overall SNR
Document and Archive
•
Veries all tests are done against the plan
•
Shows PASS/FAIL, cable length, and
speed rating
•
Provides end-of-job report for billing
purposes
•
Stores nished jobs for reference to
support moves, adds, and changes
•
Can store data on a PC or directly on the
ValidatorPRO test unit
Wiremaps individual runs to
locate and identify cable routes
Tests telephone, network, coax, and
security/alarm cables for continuity,
proper termination, and polarity
Shows the actual
error rate in the
BER test
Page 4
Specifications
ValidatorPRO and ValidatorPRO-NT Ethernet Network Management Tools
OLP-5/6/8 Pocket-sized Optical Power Meters
General
Display Color back-lit FSTN liquid crystal display (LCD)
Operating System Linux
Keypad Full navigations set with alphanumeric data entry
and soft-key functions
Memory Non-volatile memory: internal NAND flash memor y
Volatile memory: 128 MByte DDR2 SDRAM memor y
Languages supported (GUI) English, French, Italian, German,
Spanish, Portuguese, Korean, and Simplified Chinese
Interfaces
– USB 2.0 host port (for external memory sticks)
– Optical Power meter for 850/1300/1310/1490/1550 nm
wavelengths. -45 to +10dBm dynamic range for 850nm
and -50 to +10dBm for all other frequencies. ±0.20dB
accuracy. ±0.06dB linearity. Measured in dB or dBm. Auto
wavelength selection with 270, 330, 1k, 2kHz modulation
– Wi-Fi 2.4 GHz 802.11 b/g/n standards with MIMO technol-
ogy. Support 64/128-bit WEP encryption, WPA, WPA2, and
CISCO CCX security
Test Connectors
– 8-position shielded modular jack (data)
– 6-position modular jack (telephone)
– F-coax (video) Male connector w/sacrificial adapter
– 2.5 mm universal push pull (UPP) (Fiber)
Cable Types
– Shielded or unshielded twisted pair net work cable
– Telephone
– Coax
– Single mode and multi mode fiber cable
Cable Length
Maximum cable length: 100 meters (1,500 ft)
Maximum cable length for testing of split pairs: Up to 100 m
(327 ft),depending upon cable type
Cable length accuracy ±5% (after performing both
unit and cable calibration)
Electrical
Power sources: AC adapter; auto cigarette lighter
power adapter; lithium-ion rechargeable,
removable batteries
Environmental
Operating temperature 0 to 50°C (32 to 122°F)
(normal operation, not charging battery)
0 to 45°C (32 to 113°F) (charging battery)
Storage temperature –20 to 60°C (–4 to 140°F)
Operating humidity 10 to 85% RH,
Shock and Vibration minimum 2 ft drop
(free fall from stationary) on concrete
Safety: EN 61010-1
EMI/EMC: EN 61326-1:2006
Altitude: 4000 m
Agency Certifications and Compliance
Main and Remote units: CE
Battery: CE
AC wall adapter: CE, PSE, UL
Auto cigarette lighter power: CE
Calibration
Traceable Calibration Period: 2 Years
Self-Calibration Period: 30 days for unit calibration
Perform cable calibration whenever
changing cable type being measured.
Physical
Main Unit Size 22.9 x 11.4 x 5.3 cm (9 x 4.5 x 1.8 in)
Weight 710 gm (1 lb 9 oz) with battery
Remote
Size 14.2 x 11.2 x 4.4 cm (5.6 x 4.4 x 1.8 in)
Weight 341 gm (12 oz) with batter y
non-condensing
Ordering Information (Models, options and accessories) Part #
ValidatorPRO Ethernet speed certifier with integrated optical power meter NT1150
ValidatorPRO-NT Ethernet speed certifier with integrated optical power meter including active net work tests NT1155
ValidatorPRO and ValidatorPRO-NT each include the following:
One smart remote, one set 1-8 wiremapping remotes (RJ11/RJ45) (TP612), two lithium-ion rechargeable batteries (NT93), two universal AC adapter/charger units, one 1.83 m (72 in) USB client-to-PC connection
cable (series A plug to series B plug), two 19 cm (7.5 in) RJ12-to-RJ12 cables for no-fault connection to RJ11 or RJ45 jacks, two 30.48 cm (1 ft) patch cables with RJ45 connectors, two 60.96 cm (2 ft) RJ45 to
8 a lligator clips cord s ets, two sacrificial cables for RJ45 mod plug, one coupler F-jack to F-jack, USB drive including Plan-Um cabling ins tallation
and planning softw are, user guide (product manual), firmware, and quick sta rt guide, Deluxe carr ying case, Printed quick start guide, 100 “speed
certified” cable labels, one 12 V vehicle charger
Accessories
Lithium-ion rechargeable battery NT93
1.83 m (72 in) USB cable assembly NT94
Cable speed certified labels, roll of 100 NT95
19 cm (7.5 in) RJ12-to-R J12 cable for no-fault connection to RJ11 or R J45 jacks TP20
30.48 cm (1 ft) patch cable with RJ45 connectors TP55
F-connector plug to BNC jack adapter TP62
60.96 cm (2 ft) RJ45 to 8 alligator clips cord set TP68
Sacrificial cable for RJ45 mod plug TP74
Set of 20 (1–20) Coax ID- only remotes TP311
Set of 20 (1-20) RJ45 ID-only remote identifiers TP312
Set of 20 (1-20) RJ11 ID-only remote identifiers TP314
OLS-5 Optical MM LED Source 850/1300nm, ST connector type 2255/01
ValidatorPRO NT1150
ValidatorPRO-NT NT1155
OLS-6 Optical SM Laser Source 1310/1550, FC connector type 2255/02
Inspection & Cleaning Kit 200/400X FBP Probe, HD3-P4 Display, FBPT Tips (SC, LC), FMAE Adapters, (U25M, U12M),
Bulkhead/Patchcord Cleaning Tools (2.5mm & 1.25mm), Case & power supply/charger FBP-SM05-C
Inspection & Cleaning Kit - same as FBP-SM05-C but with HD3 Display FBP-SM03-C
Visual Fault Locator - Pocket Size, 2.5mm (SM & MM) FFL-050
1.25mm UPP adapter FITP-UPP12
