Atec NBM-580 User Manual

Personal and Area Monitors

NBM-580 Broadband Radiation Meter

♦ Up to 8 Input Metering Station for

NBM Meters and/or NS3 Monitors

♦ Allows Central Control of Multiple

Field Sensors

♦ Built-in, Low and High Power Alarm Relays
♦ Touch Screen Controls
♦ Fiber Optic and USB Inputs
♦ IEEE-488 or Ethernet Connectivity

Description

The Narda NBM-580 allows users to combine multiple-sensor installations
into a fully functioning monitoring or alarm system. Configured as a single
communication point, this product allows complete control over sensors
that are stationed tens or hundreds of meters away from the metering
station. The built-in color, touch screen display can be user configured to
display individual readings of each sensor or the maximum, minimum or
average of one or more of the connected sensors. Programmable analog
voltage outputs can also be arranged to generate positive or negative go­ing voltages, depending on detected fields. Digital TTL-levels can be tied
to alarm settings as well as two built-in high power relays.

Area Monitoring

Intelligent area monitoring is made possible by the NBM-580 and Nardalert
S3 (NS3) monitors. NS3 monitors can be placed strategically around high­power test areas, powered by DC voltage and connected by fiber optic
cables back to the NBM-580. Levels detected by the monitors can be con­tinuously compared to preset thresholds and generate immediate alarms

narda Safety Test Solutions an communications company USA • Germany • Italy

USA TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • www.narda-sts.us

91

Personal and Area Monitors

NBM-580 Broadband Radiation Meter

if those thresholds are exceeded. With the built-in Ethernet
connection, monitoring can be configured anywhere that a
connection exists. NS3 monitors have NEMA enclosure and
solar charging panel optional accessories for outdoor moni­toring applications.

Field Monitoring

For more precise field monitoring, the NBM-580 can be con­nected to NBM meters and probes. A typical system would
consist of NBM series field probes and NBM-520 meters. The
fiber optic output of the NBM-520 is routed to the NBM-580
where display of the detected fields is processed. Many NBM

probes cover dynamic ranges of 60 dB and provide detection
of E or H fields to provide coverage of most any industrial,
communication or military applications.

System Operation

As the NBM-580 is a metering station it requires no re­calibration. Therefore it can form part of a comprehensive
monitoring system where it can be semi-permanently
mounted. All probes, meters and Nardalerts do require peri­odic re-calibration and can be readily substituted with other
calibrated units directly for seamless operation.

BUS Activity LEDLocal / Remote Control

Backlit LCD with
Touch Screen

CH A Alarm Relay
and D2A Output

AC Mains
~ 90 to 250 VAC

Input Channel
Select

CH B Alarm Relay
and D2A Output

Spare USB Ports

Alarm Relays
Reset

Auxiliary Alarms
and Logic

Fiber Optic Inputs

Power SwitchUSB Ports

FanCH 1 thru CH 4

92

narda Safety Test Solutions an communications company USA • Germany • Italy

USA TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • www.narda-sts.us

Personal and Area Monitors

NBM-580 Broadband Radiation Meter

Specifications

NBM-580

DISPLAY
Display Type TFT Active Matrix, Touchscreen
Display Size 6.95 inches, 156 x 82.8 mm, 800 x 480 pixels
Backlight White LED’s
Display Refresh Rate 250 msec.
MEASUREMENT FUNCTIONS
Result Units mW/cm2, W/m2, V/m, A/m, % of standard
Display Range 0001 to 9999, switchable between variable and permanent triads

Display Range, Variable Triads

Display Range, Fixed Triads

Result Types (Isotropic, RSS)

Result Types (X-Y-Z Mode)

Time Averaging Averaging time selectable from 4 s to 30 min (2 s steps)
Spatial Averaging Individual or continuous sampling

Multi-Position Spatial Averaging

Progress Memory (History Mode) Graphical display of the latest values versus time (time span 2 min to 8 h)

Correction Frequency

Hot Spot Search

Alarm Function 2 kHz warning tone (4 Hz repetition rate), variable threshold

Timer Controlled Recording
(Timer Logging)

MEMORY
Memory 4 GB (expandable through USB Memory)
INTERFACES
Remote Operation Interface Ethernet and IEEE-488.2 (Standard), RS-232 (Optional)

Sensor Connection

Keyboard and Mouse 2 front panel USB interfaces
High Power Alarm Relays Two user-configurable relays rated for 3 Amps at 115/130 VAC or 5 Amps at 30 V
GENERAL SPECIFICATIONS
Recommended Calibration Interval 24 months

Temperature Range

Humidity

Size 21 x 17 x 5.25 in. (53.4 x 43.2 x 13.4 cm) excluding rack mount angles
Weight 14.25 lbs. (6.46 kg)
Accessories Included AC Power Cord, Manual, Calibration Certificate

NOTES: a Only for basic instrument; probes are specified separately

0.01 V/m to 100.0 kV/m • 0.01 mA/m to 265.3 A/m

0.001 mW/m2 to 26.53 MW/m2 • 0.1nW/cm2 to 2.653 kW/cm2

0.0001% to 9999%

0.01 to 9999 V/m • 0.0001 to 265.3 A/m • 0.0001 to 9999 W/m2

0.0001 to 9999 mW/cm2 • 0.0001% to 9999%
Actual (ACT), Maximum (MAX), Minimum( MIN), Average (AVG),

Maximum Average (MAX AVG)
Latest values: Actual X, Actual Y, Actual Z

(for probes with separate axis connections)

Averaging over up to 24 spatially averaged results, storage of individual position
results and of the total value

1 kHz to 100 GHz or OFF
(direct frequency selection, interpolation between calibration points)

Acoustic indication of increasing or decreasing field strength
(Actual or Maximum)

Starting time setting: Up to 24 h in advance or record immediately
Recording time: up to 100 h
Store interval: Every 1s to 6 min (in 11 steps)
Number of store intervals: up to 32000

4 optical USB interfaces (serial, full duplex, 115200 baud, no parity,
1 start bit, 1 stop bit). 4 additional USB interfaces on rear panel.

a

Operational: -10°C to +50°C • Non-operational (transport): -30°C to +70°C
5 to 95% relative humidity, no condensation; ≤29 g/m³ absolute humidity

(IEC 60721-3-2 class 7K2)

narda Safety Test Solutions an communications company USA • Germany • Italy

USA TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail] • www.narda-sts.us

93

Personal and Area Monitors

NBM-580 Broadband Radiation Meter

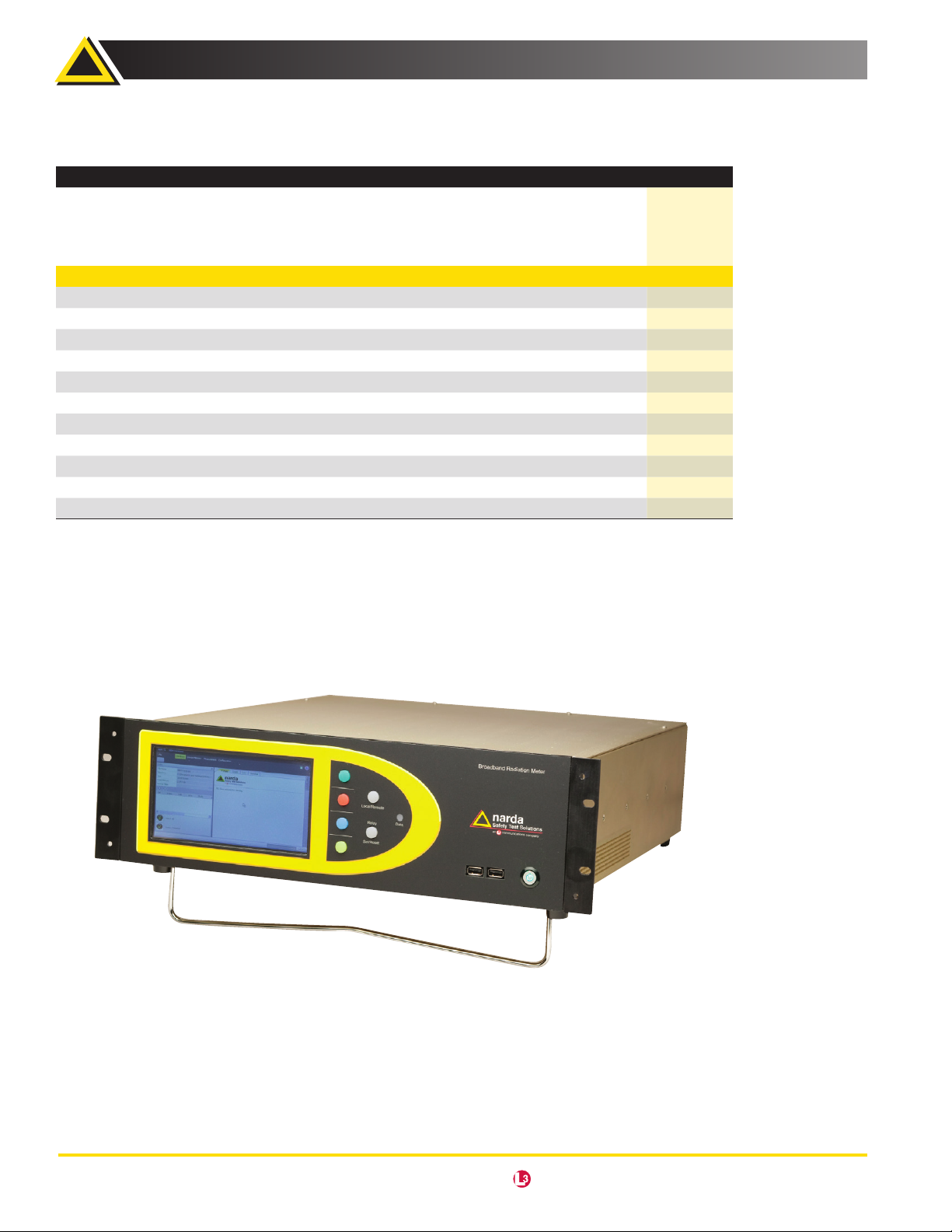

Ordering Information

NBM-580 Part Number

NBM-580 Narda Broadband Field Meter, Set 1 contains:

• NBM-580 Basic Unit (2404/01)

• Operating Manual NBM-580

• Certificate of Calibration

OPTIONAL ACCESSORIES

Test generator 27 MHz 2244/90.38
Tripod (non-conducting), 1.65 m, with carrying bag 2244/90.31
Tripod extension (non-conducting), 0.50 m (for 2244/90.31) 2244/90.45
Extension handle (non-conducting), 0.42m 2250/92.02
Cable, coaxial, multi-pin to BNC for NBM-550, external triggering, 2m 2400/90.04
Cable, optical fiber, duplex (1000 μm) RP-02, 2m 2260/91.02
Cable, optical fiber, duplex (1000 μm) RP-02, 20m 2260/91.02
Cable, optical fiber, duplex, F-SMA to RP-02, 0.3m 2260/91.01
O/E converter RS232, RP-02/DB9 2260/90.06
O/E converter USB, RP-02/USB 2260/90.07
Cable, adapter, USB 2.0 - RS232, 0.8m 2260/90.53

2400/801
