Atec MS-40 User Manual

M

M

S

S

●

●

4

4

0

0

S

S

e

e

rii

r

e

e

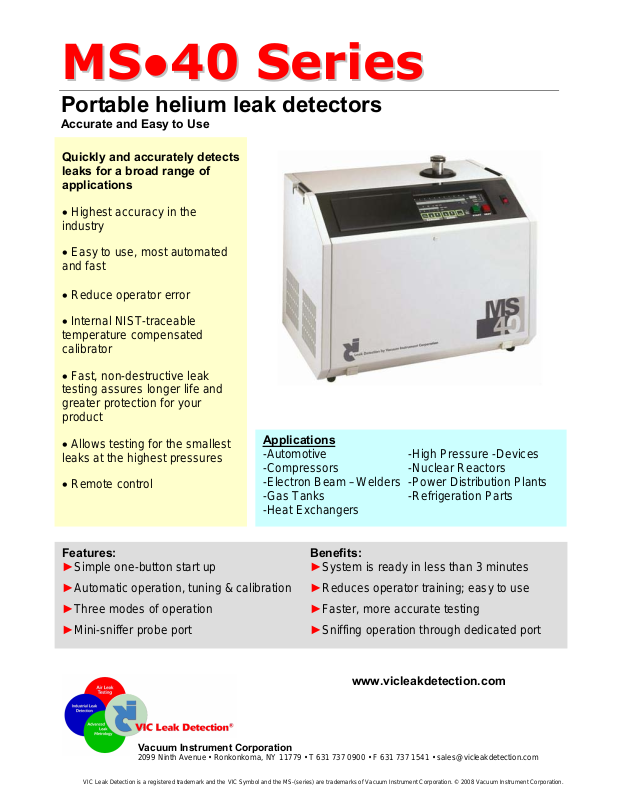

Portable helium leak detectors

Accurate and Easy to Use

Quickly and accurately detects
leaks for a broad range of
applications

• Highest accuracy in the
industry

• Easy to use, most automated
and fast

• Reduce operator error

• Internal NIST-traceable

temperature compensated
calibrator

• Fast, non-destructive leak
testing assures longer life and
greater protection for your
product

• Allows testing for the smallest
leaks at the highest pressures

• Remote control

Features:

►Simple one-button start up
►Automatic operation, tuning & calibration
►Three modes of operation
►Mini-sniffer probe port

Applications

-Automotive -High Pressure -Devices

-Compressors -Nuclear Reactors

-Electron Beam –Welders -Power Distribution Plants

-Gas Tanks -Refrigeration Parts

-Heat Exchangers

Benefits:

►System is ready in less than 3 minutes
►Reduces operator training; easy to use
►Faster, more accurate testing
►Sniffing operation through dedicated port

www.vicleakdetection.com

s

s

Vacuum Instrument Corporation

VIC Leak Detection is a registered trademark and the VIC Symbol and the MS-(series) are trademarks of Vacuum Instrument Corporation. © 2008 Vacuum Instrument Corporation.

2099 Ninth Avenue • Ronkonkoma, NY 11779 • T 631 737 0900 • F 631 737 1541 • [e-mail]

MS●40 PERFORMANCE SPECIFICATIONS

Characteristics Units MS-40

Sensitivity, vacuum *
Sensitivity, sniffing 6.0 x 10
Leak Measurement Range
Leak Ranging - Auto/Manual
Start-up time minutes <3
Response Time * seconds <2 direct, <3 reverse

Resolution for 4He * - 14
Mass Spectrometer Tube - 180° deflection; dual-magnetic sector
Auto-tuning - Yes
Auto-calibration - Internal – yes; External - manual
Auto-zeroing - Yes
Reject set-point - Yes
Built-in calibrated leak - Yes
NIST traceable - Yes
Temperature compensated - Yes
He Scan - Yes
Filaments - 2 - Tungsten
Maximum Operating Pressure Torr 7.5, 760 w/ext roughing option
Display - Alpha/Numeric
Units - atm cc/s, mbar*l/s
Background Compensation - Continuous automatic compensation for system background
Testable Masses - 3 and 4
Printer Port - Yes
RS-232C - Yes
Remote Control Unit - Yes

atm-cc/sec

10 x 10

-4

to 4.0 x 10

-11

(10 x 10

VACUUM SYSTEM

Vacuum Mode - Direct, reverse or combination flow
Roughing Pump cfm 1.2 Mechanical Foreline/Rouging Pump
High Vacuum Pump liters/second 61 turbomolecular
Vacuum Gauging - Pirani: Test port & foreline; Ion: High vacuum
Test Port Connection - NW25

PHYSICAL

Dimensions (W x H x D) Inches (cm) 20.5 x 15 x 14 (52.7 x 38.1 x 35.6)
Weight lbs. (kg) 87 (39.5)

ELECTRICAL

Power V/Hz/A 115/50-60/8; 230-240/50-60/5; 100/50-60/8

4.0 x 10

-11

-10

-3

to 4.0 x 10

-11

w/ext pump)

Vacuum Instrument Corporation

2099 Ninth Avenue • Ronkonkoma NY 11779 • Tel [phone] • Fax [phone]
www.vicleakdetection.com • email [e-mail]

* Performance determined in accordance with American Vacuum Society Standards; Specifications subject to change without notice.
©2009 Vacuum Instrument Corporation; ®VIC Leak Detection is a registered trademark and the VIC symbol and the MS-(series) are trademarks of Vacuum Instrument Corporation.

REV090716
