Atec mc5 User Manual

Multifunction Calibrator

5

Multifunction Calibrator

Multifunction

MC5 is the first of its kind modular ALL-IN-ONE multifunction
calibrator. Within its compact and ergonomic case, MC5 provides

calibration capability for pressure, temperature, electrical and
frequency signals (including pulses). Therefore, MC5 offers calibration
capability for virtually all types of process and other instruments.

Up to 3 internal pressure modules (each having internal overpressure
protection) may be installed in the MC5 case. This together with the
possibility to use external pressure modules, gives MC5 a unique
pressure calibration capability.

A unit fitted with the barometric module allows a single pressure port
to measure gauge, absolute and vacuum pressures.

Only a few modules are required to cover the pressure ranges and
uncertainties demanded by modern industry.

U

NIQUE

M

ODULAR CONSTRUCTION

Modular

The modular construction of MC5 provides flexibility in user specific

requirements. For example, MC5 can be ordered as a pressure or

temperature stand-alone calibrator and then later be expanded into

a datalogging documenting multifunction calibrator. Firmware

updates are installed via the RS port (loaded from a user’s

computer), making it possible to upgrade existing MC5’s with

additional functionality as requirements arise.

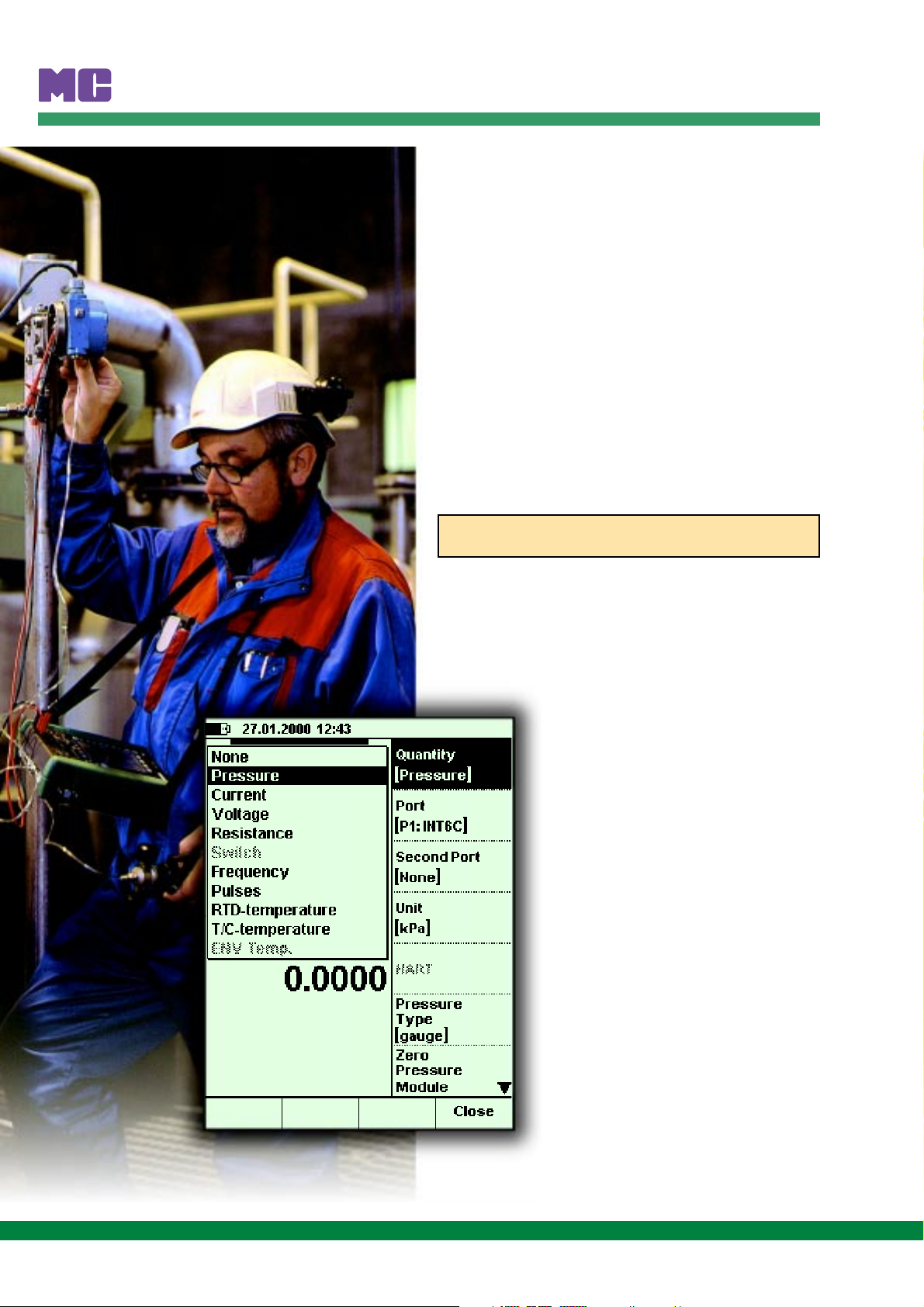

True field compatibility

The lightweight MC5 is designed for use in tough

field environments. Its rugged IP65-rated case,

along with the integrated impact protectors, make

MC5 the ideal portable calibrator for use in wet and
dusty environments subject to wide temperature
variations.

The advanced battery technology used by MC5
eliminates the typical concerns associated with
portable calibrators. The powerful, easy to change
NiMH rechargeable battery pack, provides many
hours of field use. The battery pack can be rapidly

charged while the MC5 is in use or when the battery

pack is outside of the unit. Alternately, dry batteries

(6 AA sized) may be used.

5

Multifunction Calibrator

Accurate

MC5 is one of the most accurate field-portable calibrators available
providing excellent measurement uncertainty in both laboratory and
field environments. The latest in measurement technology and

advanced compensation techniques are employed providing excellent
accuracy even with large temperature variations. Additionally, good
long term stability is achieved.

The reference junction (cold junction) module provides excellent
versatility and accurate compensation for thermocouple measurement/
simulation. Alternately, external and manual reference junction
compensation may be performed.

For detailed technical specifications please see MC5 Technical Data
Sheet.

M

ULTICHANNEL DATALOGGING

Documenting

The MC5 has been designed to make it easier to comply with the IS0
9000 and ISO 14000 series of standards as well as regulatory
agencies such as FDA, EPA, NRC and OSHA.

• Instrument data together with calibration
procedures (including written instructions) can be
downloaded to MC5 from QCAL® software (QM6
Quality Manager Software or QD3 Quality
Documenter Software).

• Both as-found and as-left calibration results,
along with user entered text comments, can be
stored in the memory and up-loaded to software for
hard copy print out in the workshop or in the field
using the portable printer.

• User IDs and configurable password protection
support the Electronic Records/Signature
requirements for the Pharmaceutical Industry
(21 CFR Part 11).

• The MC5 also performs as a field-entry device (FED)
allowing for the recording of non-calibration related
maintenance results, thereby documenting the
performance of preventative maintenance.

5

Multifunction Calibrator

Easy to use

The logical multilingual user interface makes MC5 very
easy to use. Calibration procedures for various instrument

types are provided as standard.
The user selects the instrument type via a menu list – MC5 is

then automatically configured for the calibration. Alternately,
the calibration procedure for specific instruments can be
downloaded from the QCAL® System software (QM6 Quality
Manager or QD3 Quality Documenter).

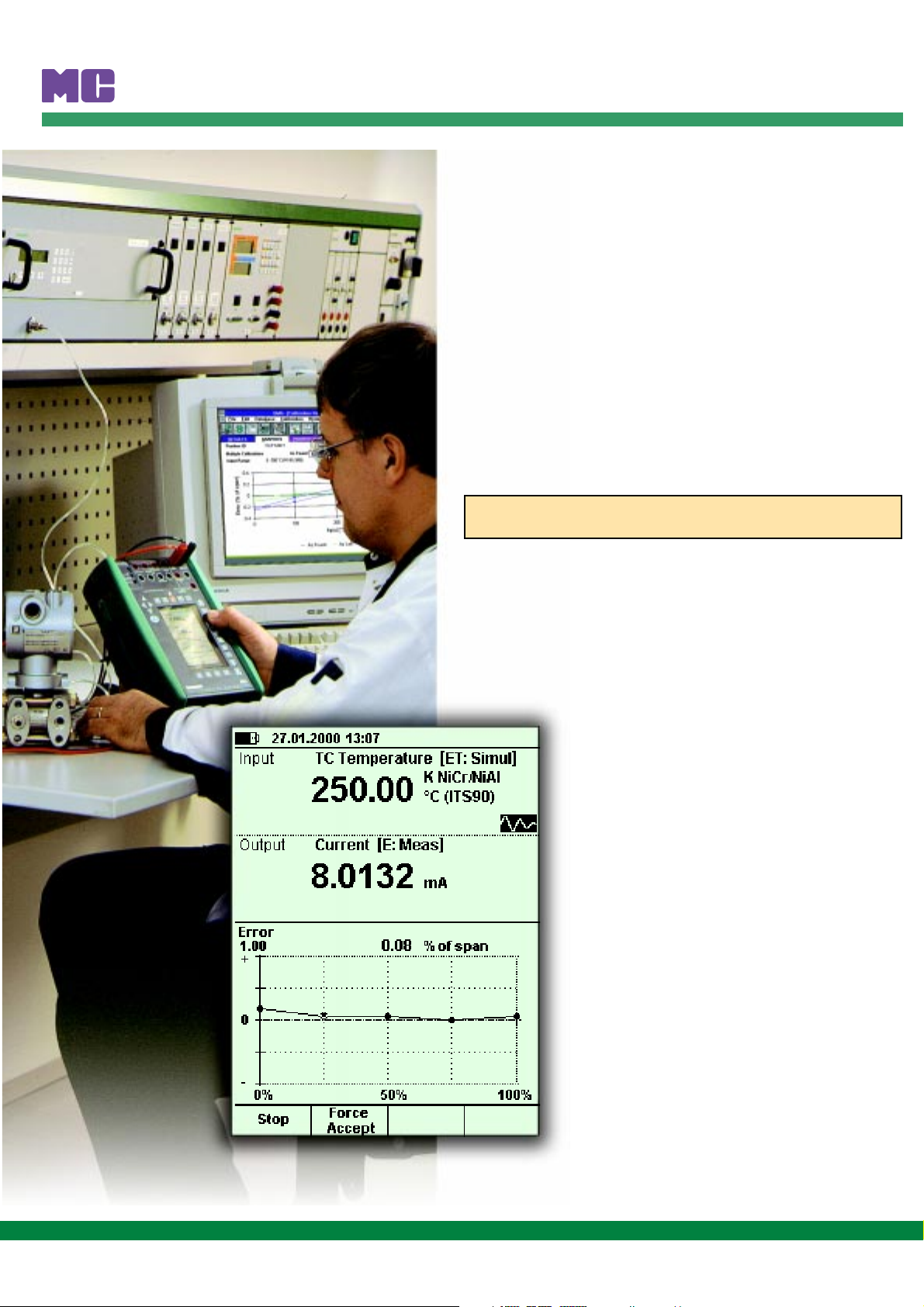

The large back-lit LCD display gives both as-found and as-left
calibration results both in numerical and graphical form.

If needed, on-line help is available via a single key stroke.

A

UTOMATIC CALIBRATION

Additional features

• HART® communication using an internal modem.

• Communication with dry block temperature
baths, thus offering true automatic
temperature calibration.

• Automatic pressure calibration through
communication with pressure controllers.

• Batch communication (field use) as well as
on-line communication (workshop use)
with QM6 QCAL® software.

• Transmitter simulation mode allowing MC5
to replace a transmitter.

• Configurable ramp and step generation.

• User configurable resolution and filter
(damping) settings.

Multifunction Calibrator

5

Connection for

External Pressure

Modules (XPM)

Internal Pressure

Modules (INT)

Base Unit

(BU)

Electrical
Module

(E Module)

Electrical and
Temperature Module

(ET Module)

Reference
Junction Module

(RJ Module)

MC5 Technical Specifications - Summary

General

Display 96 x 72 mm (3.78“ x 2.83“), 320 x 240 pixels, back-lit LCD
Weight 1.7 – 2.3 kg (3.7 – 5.1 lbs)
Dimensions 245 mm (9.6“) x 192 mm (7.5“) x 74 mm (2.9“), (d/w/h)
Case protection IP65 (dust and water proof)
Battery operation average 10 hours with the NiMH Battery Pack
Charger supply 100…240 VAC, 50-60 Hz
Operating temperature -10…50 °C (14…122 °F)
Warranty 3 years as standard

Module Function Range Uncertainty / 1 year

INTInternal Pressure Modules-1bar (-14.5 psi) to 20bar (300 psi)From 0.025 RDG + 0.01 % FS
EXT External Pressure Modules Up to 1000 bar (14500 psi) From 0.04 % RDG + 0.01 % FS
E mV measurement ± 1000 mV 0.02 % RDG + 5 uV
E V measurement ± 50 V 0.02 % RDG + 0.25 mV
E mA measurement ± 100 mA 0.02 % RDG + 1.5 uA
E mA generation 0 … 25 mA 0.02 % RDG + 1.5 uA
E Hz measurement 0.0028 … 50000 Hz 0.01 % RDG
E Pulse counting 0 … 9 999 999 pulses N/A
ET V generation ± 12 V 0.02 % RDG + 0.1 mV
ET mA generation ± 25 mA 0.02 % RDG + 1 uA
ET Hz generation 0.00028 … 50000 Hz 0.01 % RDG
ET Pulse generation 0 … 9 999 999 pulses N/A
ET mV generation / measurement ± 500 mV 0.02 % RDG + 4 uV
ET Ohm measurement / simulation 0 … 4000 ohm / 1 … 4000 ohm From 0.02 % RDG + 3.5 mohm
ET T/C measurement / simulation G, D From 0.02 % RDG + 0.1 °C
ET RTD measurement / simulation Pt100 + 13 other types From 0.025 % RDG + 0.06 °C
RJ T/C reference junction compensation -10 … 50 °C 0.1 °C

Specifications are subject to change without notice. For detailed technical specifications please see MC5 Technical Data Sheet.

5

Multifunction Calibrator

Accessories:

Calibration pumps:

• PGV (-0.95 bar / -13.8 Psi...0 bar/psi)

• PGH (0 bar/psi...20 bar / 300 psi)

• PGXH ( 0 bar/psi...700 bar / 10000 psi)

Calibration software:

• QM6 Quality Manager

• QD3 Quality Documenter

Environmental temperature sensor

Portable printer

QCAL® - TOTAL CALIBRATION SYSTEM

External Pressure Modules:

• EXT60 (60 bar / 900 psi)

• EXT100 (100 bar / 1500 psi)

• EXT160 (160 bar / 2400 psi)

• EXT250 (250 bar / 3700 psi)

• EXT600 ( 600 bar / 9000 psi)

• EXT1000 ( 1000 bar / 15000 psi)

Automatic pressure controllers (POC4)

Carrying case (soft)

Dry battery cartridge

Portable Calibrators

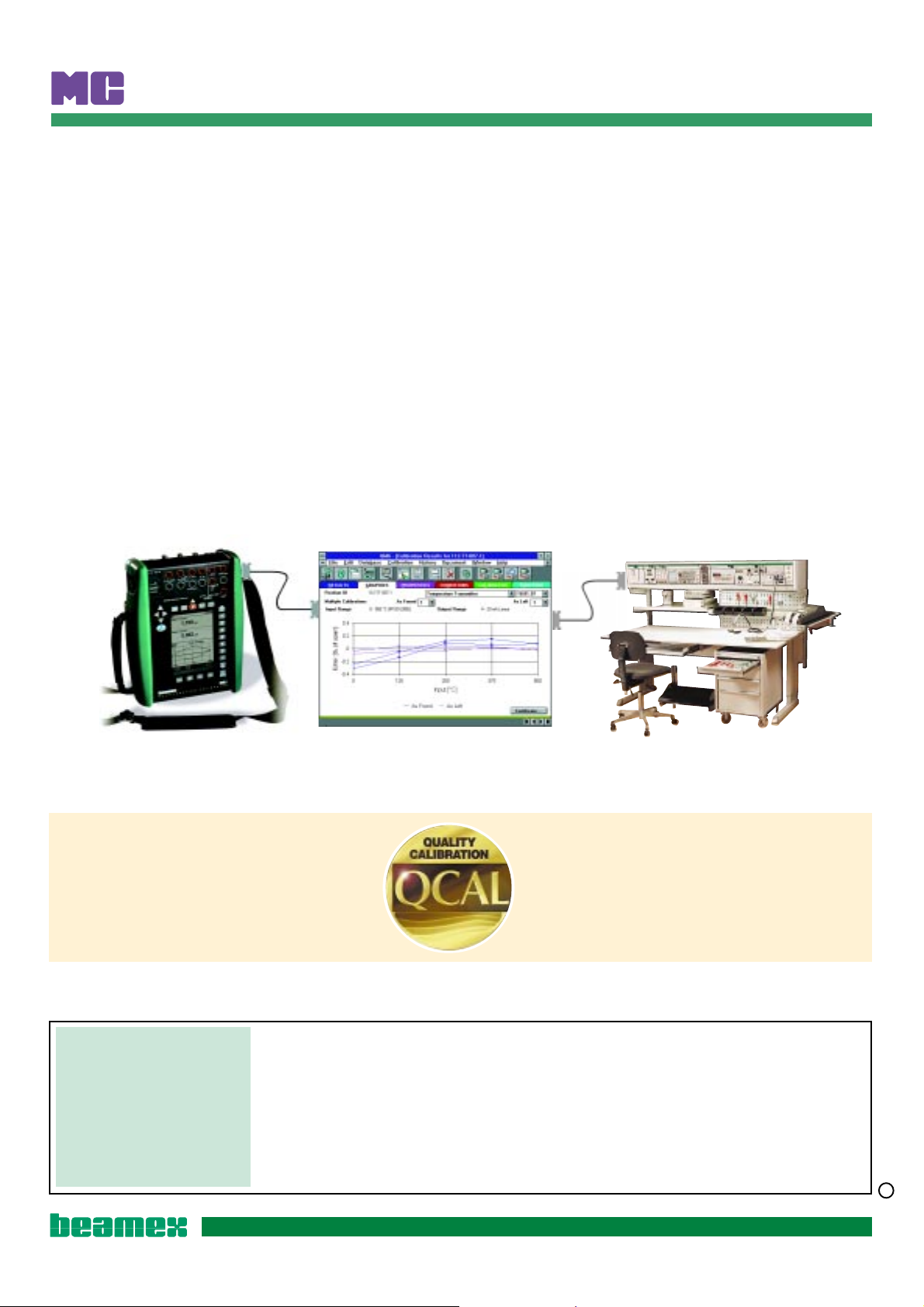

QCAL® System

The QCAL® System is a complete calibration sys­tem comprising calibration database software,
portable calibrators and calibration bench systems.
