California Instruments BPS Series
30–180 kVA
Overview
• High Power AC Source
Programmable AC power for frequency conversion
and product test applications
• Expandable Power Levels
Available output power of 30, 45, 75 and 90 kVA
per unit and multi-unit congurations for power
requirements up to 180 kVA and above
• Remote Control
Standard RS232, USB and IEEE-488 (GPIB) and optional LAN interfaces are available for automated
test applications.
Introduction
The BPS Series consists of multiple high power AC
power systems that provide controlled AC output
for ATE and product test applications.
This high power AC test system covers a wide
spectrum of AC power applications at an
affordable cost. Using state-of-the-art PWM
switching techniques, the BPS Series combines
compactness, robustness and functionality in a
compact oor-standing chassis, no larger than a
typical ofce copying machine. This higher power
density has been accomplished without the
need to resort to elaborate cooling schemes or
additional installation wiring. Simply roll the
unit to its designated location (using included
casters), plug it in, and the BPS Series is ready
to work for you.
Simple Operation
The BPS Series can be operated completely from
its menu driven front panel controller. A backlit
LCD display shows menus, setup data, and
read-back measurements. IEEE-488, RS232C,
USB and LAN remote control interfaces and
instrument drivers for popular ATE programming
environments are available. This allows the BPS
Series to be easily integrated into an automated
test system.
Congurations
The BPS is capable of delivering 30, 45, 75, 90,
150 or 180kVA of AC power. The 30 and 45kVA
models come as dedicated single or three phase
output while the 75, 90, 150 and 180kVA models
are dedicated three phase.
For higher power requirements, simply parallel
the BPS in multi-cabinet conguration. Multi
cabinet systems always operate in three phase
output mode commonly found in power systems.
Product Evaluation and Test
Increasingly, manufacturers of high power
equipment and appliances are required to fully
evaluate and test their products over a wide
range of input line conditions. The built-in output
transient generation and read-back measurement
capability of the BPS Series offers the convenience
of a powerful, and easy to use, integrated test
system.
Avionics
With an output frequency range to 819 Hz,
the BPS Series is well suited for aerospace
applications. Precise frequency control and
accurate load regulation are key requirements in
these applications. The available remote control
interfaces and SCPI command language provide
for easy integration into existing ATE systems.
The BPS Series eliminates the need for several
additional pieces of test equipment, saving
cost and space. Instrument drivers for popular
programming environments such as National
Instruments LabView™ are available to speed up
system integration.
Choice of voltage ranges
Standard voltage ranges are 150V L-N
(259V L-L) and 300V (519V L-L) and are direct
coupled output.
For applications requiring more than 300V L-N
(or 519V L-L), the optional -HV output
transformer provides a third additional
400V L-N and 693 V L-L output range which is
internal to the AC chassis. No external magnetics
modules are required.
Multi-Box Congurations
For high power applications, two BPS75 or BS90
chassis can be combined to provide 150kVA or
180kVA of output power. For higher power
requirement please contact sales for custom
congurations.
150–400 V
0–400 A / Phase
208 230 400
480
AMETEK
Programmable Power
9250 Brown Deer Road
San Diego, CA 92121-2267
USA
858.458.0223
sales@ProgrammablePower.com
08292013
205
BPS Series
Simple transition from R&D to
Manufacturing.
The California Instruments Mx and RS Series are
high performance, feature rich Research and
Development solutions. That level of advanced
performance is not always required in production
and lab environments. Since the BPS shares
common code structure and performance
characteristics as the Mx and RS the BPS is ideally
suited to easily transition into cost effective
production solutions.
High Crest Factor
With a crest factor of up to 4.5, the BPS Series
AC source can drive difcult nonlinear loads with
ease. Since many modern products use switching
power supplies, they have a tendency to pull high
repetitive peak currents.
Remote Control
Standard RS232, USB and IEEE 488 (GPIB) along
with optional LAN
programming of all instrument functions from an
external computer. The popular SCPI command
protocol is used for programming.
Application Software
Windows® application software is included.
This software provides easy access to the power
source’s capabilities without the need to develop
any custom code. The following functions are
available through this GUI program:
• Steady state output control (all parameters)
• Create, run, save, reload and print
transient programs
• Measure and log standard measurements
• Capture and display output voltage and
current waveforms.
• Measure standard power measurements..
• Display IEEE-488, RS232C, USB and LAN bus
trafc to and from the AC Source to help you
develop your own test programs.
remote control interfaces allow
BPS Series - AC Transient Generation
The BPS Series controller has a powerful AC
transient generation system that allows complex
sequences of voltage and frequency to be
generated. This further enhances the BPS’s
capability to simulate AC line conditions and
disturbances. Transient generation is controlled
independently yet time synchronized on all
three phases. Accurate phase angle control and
synchronized transient list execution provide
unparalleled accuracy in positioning AC output
events.
Transient programming is easily accomplished
from the front panel where clearly laid out menu’s
guide the user through the transient denition
process.
The front panel provides a convenient listing
of the programmed transient sequence and
allows for transient execution Start, Stop,
Abort and Resume operations. User dened
transient sequences can be saved to non-volatile
memory for instant recall and execution at a
later time. The included Graphical User Interface
program supports transient denitions using
a spreadsheet-like data entry grid. A library
of frequently used transient programs can be
created and saved using this GUI program.
Transient List Data Entry from the front panel.
Transient List Data Entry in GUI program.
www.ProgrammablePower.com206
BPS Series
BPS Series - Measurement and Analysis
The BPS Series is much more than a
programmable AC power source. It also
incorporates an advanced digital signal processor
based data acquisition system that continuously
monitors all AC source and load parameters.
This data acquisition system forms the basis for
all measurement and analysis functions. These
functions are accessible from the front panel and
the remote control interface for the BPS Series.
Conventional Measurements
Common AC measurement parameters are
automatically provided by the data acquisition
system. These values are displayed in numeric
form on the front panel LCD display. The
following measurements are available: Frequency,
Vrms, Irms, Ipk, Crest Factor, Real Power (Watts),
Apparent Power (VA) and Power Factor.
Waveform Acquisition
The measurement system is based on real-time
digitization of the voltage and current waveforms
using a 4K deep sample buffer. This time domain
information provides detailed information on
both voltage and current waveshapes. Waveform
acquisitions can be triggered at a specic phase
angle or from a transient program to allow
precise positioning of the captured waveform
with respect to the AC source output.
The front panel LCD displays captured waveforms
with cursor readouts. The included GUI program
also allows acquired waveform data to be
displayed, printed, and saved to disk.
30–180 kVA
Acquired Current waveform (BPS Display).
Measurement data for single phase (BPS Display).
Measurement data for all three phases (BPS Display).
Acquired three phase voltage waveforms display on PC.
858.458.0223
sales@ProgrammablePower.com
207
Voltage (RMS)

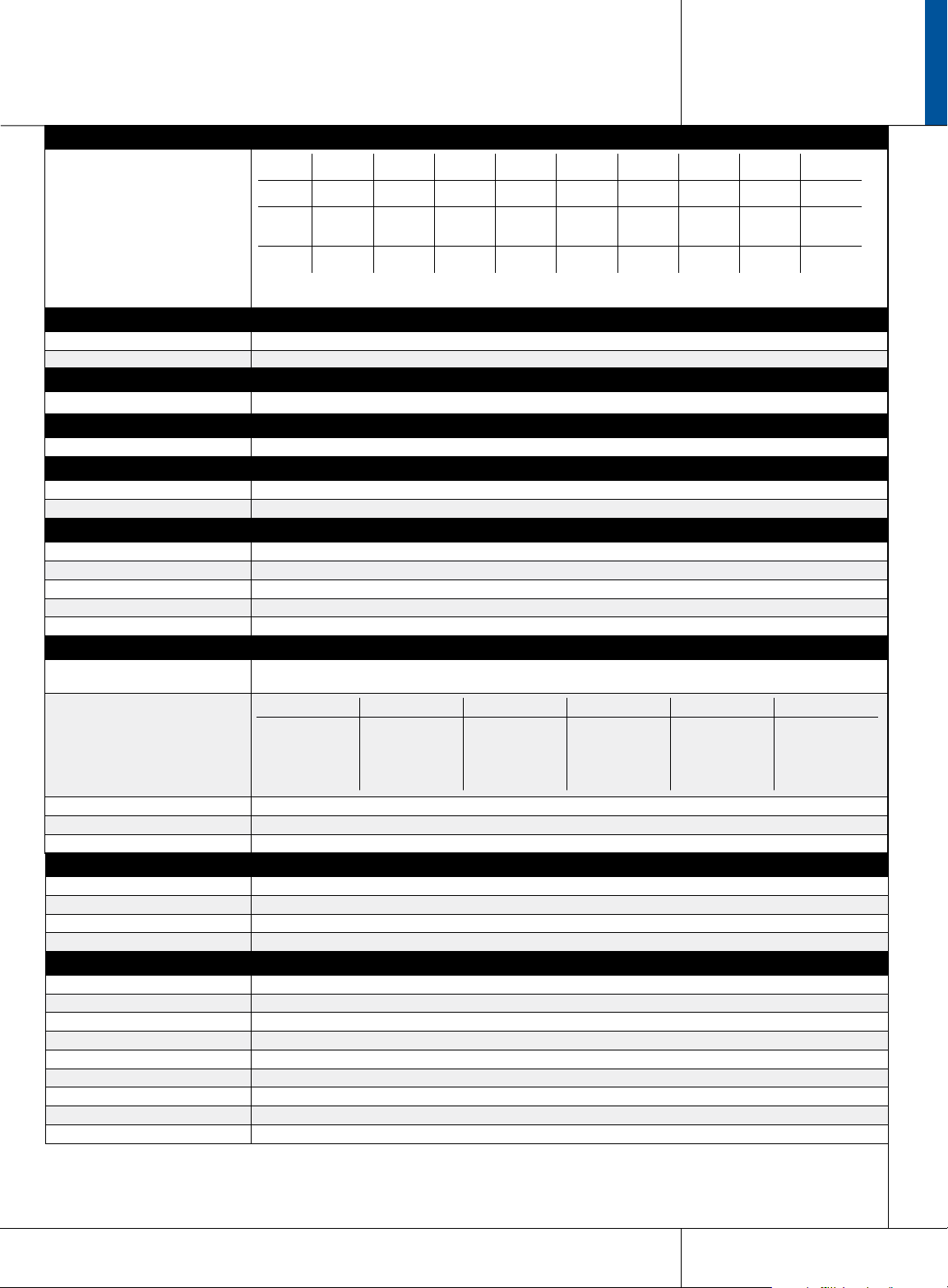

BPS Series : Specications
Operating Modes
BPS Series AC
AC Mode Output
Frequency Range: 16.00-819.0 Hz, -LF Option: 16.00-500.0 Hz,
Phase Outputs 1 or 3 Neutral: Floating, Coupling: DC (except for -HV option) Please specify Single (-1) or Three Phase (-3) for BPS30 and BPS45
Total Power BPS30-1/3; 30kVA, BPS45-1/3: 45kVA, BPS75-3: 75kVA, BPS90-3: 90kVA, BPS150-3:150kVA, BPS180-3, 180kVA
Load Power Factor 0 to unity at full output current
AC Mode Voltage
Voltage Ranges
External Sense Voltage drop compensation (5% Full Scale)
Harmonic Distortion (Linear) Less than 0.5% from 16 - 66 Hz, Less than 1% from 66 - 500 Hz, Less than 1.25% above 500 Hz
DC Offset < 20 mV
Load Regulation 0.25% FS @ - 100 Hz, 0.5% FS > 100 Hz
External Amplitude Modulation Depth: 0 - 10 %, Frequency: DC - 2 KHz
Voltage slew rate 200 µs for 10% to 90% of full scale change into resistive load, 0.5V / µSec
AC Mode Current
Output
Resolution: 0.01 Hz: 16.00 - 81.91 Hz, 0.1 Hz: 82.0 Hz - 819.1 Hz
at time of order.
Range V Low V High Load Regulation < 0.25 % FS to 100 Hz, < 0.5 % FS 100 Hz to 819 Hz
AC 0-150 V 0-300 V Line Regulation < 0.1% FS for 10 % line change
Model BPS30-1/3 BPS45-1/3 BPS75 BPS90 BPS150 BPS180
30 KVA 45 KVA 75 KVA 90 KVA 150 KVA 180 kVA
BPS30-1
V Lo:200 A
V Hi: 100A
Single phase
BPS45-1
V Lo:300 A
V Hi: 150A
Single phase
BPS75
V Lo: 166A
V Hi: 83A per
phase
BPS90
V Lo:200A
V Hi: 100A per
phase
BPS150
V Lo:332A
V Hi: 166A per
phase
BPS180
V Lo:400A
V Hi: 200A per
phase
BPS30-3
V Lo: 66.7A
V Hi: 33.3A
per phase 3 phase
Note: Constant power mode provides increased current at reduced voltage. See chart below
Peak Repetitive AC Current 4.5 x RMS current for BPS30, 3.0 x RMS current for BPS45, 3.6 x RMS current for BPS75 and 3.0 x RMS current for BPS90.
BPS150 is 2x BPS75 and BPS180 is 2x BPS90
Programming Accuracy Voltage (rms): ± 0.3 Vrms, Frequency: ± 0.01 % of programmed value, Current Limit: - 0 % to + 5 % of programmed value + 1A, Phase:
< 0.5° + 0.2°/ 100 Hz with balanced load
Programming Resolution Voltage (rms): 100 mV, Frequency: 0.01 Hz from 16 - 81.91 Hz, 0.1 Hz from 82.0 - 819 Hz, Current Limit: 0.1 A, 3 phase mode,
1.0 A, 1 phase mode, Phase: 0.1°
BPS45-3
V Lo: 100
V Hi: 50A
per phase 3 phase
Constant Power AC Mode - Available Max. AC Current
125%
Current
(RMS)
Note: Specications are subject to change without notice. Specications are warranted over an ambient temperature range of 25°± 5° C. Unless otherwise noted, specications are per phase
for a sinewave with a resistive load and apply after a 30 minute warm-up period. For three phase congurations, all specications are for L-N. Phase angle specications are valid under
balanced load conditions only.
© 2009 AMETEK Programmable Power All rights reserved. AMETEK Programmable Power is the trademark of AMETEK Inc., registered in the U.S. and other countries. Elgar, Sorensen,
California Instruments, and Power Ten are trademarks of AMETEK Inc., registered in the U.S.
100%
50%
20%
10% 80%
50%
Full
Power
100%
www.ProgrammablePower.com208
BPS Series : Specications
30–180 kVA
Measurement
Measurements - Standard
(AC Measurements)
Parameter Frequency RMS
Range 16-100 Hz
Accuracy*
Resolution* 0.01 Hz /
* Measurement system bandwidth = DC to 6.7 kHz. Accuracy specications are valid above 100 counts. Current and Power Accuracy and Range specications are times
100-820 Hz
0.01% + 0.01 Hz 0.05 V + 0.02%
(±)
three for BPS 150 and BPS180 in single phase mode. PF accuracy applies for PF > 0.5 and VA > 50 % of range
Voltage
0-400 V 0-300 A 0-800 A 0.00-6.00 90 kW 90 kW 0.00-1.00 0.0-360.0
0.1 V + 0.02%
10 mV 10 mA 10 mA 0.01 10 W 10 VA 0.01 0.1°
0.1 Hz
RMS
Current
0.15 A + .02%
0.3 A + .02%
Peak
Current
0.15 A + 0.02%
0.3 A + .02%
Crest
Factor
0.05
0.05
Real
Power
30 W + 0.1%
60 W + 0.1%
Apparent
Power
30 VA + 0.1%
60 VA + 0.1%
Power
Factor
0.01
0.02
Protection
Over Load Constant Current or Constant Voltage mode
Over Temperature Automatic shutdown
Storage
Non Volatile Mem. storage 16 instrument setups, 200 user dened waveforms [Pi only]
Waveforms
Waveform Types Std: Sine Wave
System Interface
Inputs Remote shutdown
Outputs Function Strobe / Trigger out
Remote Control (Pi standard with -P option)
IEEE-488 Interface IEEE-488 (GPIB) talker listener. Subset: AH1, C0, DC1, DT1, L3, PP0, RL2, SH1, SR1, T6, IEEE-488.2 SCPI Syntax
RS232C Interface 9 pin D-shell connector (Supplied with RS232C cable)
LAN ( option ) Ethernet Interface: 10BaseT, 100BaseT, RJ45
USB Version: USB 1.1; Speed: 460 Kb/s maximum
Output Relay Push button controlled or bus controlled output relay
AC Input
Voltage Must be specied at time of order. All inputs are L-L, 3ø, 3 wire + Gnd. 208 ± 10% VAC, 230 ± 10% VAC, 400 ± 10% VAC,
Input Line Current (per phase)
Line Frequency 47 - 63 Hz
Efciency 85 % typical
Power Factor 0.95 typical
480 ± 10% VAC
BPS30-1/3 BPS45-1/3 BPS75 BPS90 BPS150 BPS180
116 ARMS @ 187 VLL
105 ARMS @ 207 VLL
60 ARMS @ 360 VLL
50 ARMS @ 432 VLL
175 ARMS @ 187 VLL
157 ARMS @ 207 VLL
90 ARMS @ 360 VLL
75 ARMS @ 432 VLL
285 ARMS @187 VLL
256 ARMS @ 207 VLL
147 ARMS @ 360 VLL
122 ARMS @ 432 VLL
350 ARMS @ 187 VLL
314 ARMS @ 207 VLL
180 ARMS @ 360 VLL
150 ARMS @ 432 VLL
Each BPS75 chassis
requires its own AC
service. Total Line
currents are 2 x
BPS75
Each BPS90 chassis
requires its own AC
service. Total Line
currents are 2 x
BPS90
AC Service
Inputs/Outputs Rear panel connection
Regulatory IEC61010, EN50081-2, EN50082-2, CE EMC and Safety Mark requirements
EMI CISPR 11, Group1 , Class A
Connectors All remote interface connections available from the rear panel.
Physical Dimensions
BPS30/45 Dimensions Height: 50” 1270 mm, Width: 28.75” 731mm, Depth: 34.5” 876mm
BPS30/45 Weight Per Chassis: Net: 1150 lbs / 522 Kg approximately, Shipping: 1231 lbs / 560 Kg approximately
BPS75/90 Dimensions Height: 76” 1930 mm, Width: 32.0” 812mm, Depth: 40.0” 1016mm
BPS75/90 Weight Per Chassis: Net: 1650 lbs / 748 Kg approximately, Shipping: 1731 lbs / 785 Kg approximately
Chassis Casters and forklift openings.
Vibration and Shock Designed to meet NSTA project 1A transportation levels. Units are shipped in wooden crate with forklift slots
Air Intake/Exhaust Forced air cooling, front air intake, rear exhaust
Operating Humidity 0 to 95 % RAH, non condensing
Temperature Operating: 0 to 40° C (30° C max in CP mode), Storage: -20 to +85° C
Phase
2.0°
3.0°
858.458.0223
sales@ProgrammablePower.com
209
BPS Series
BPS30/45 Dimensions - single chassis
Supplied with
Standard: User/Programming Manual and Software
on CD ROM. RS232C serial cable.
Input Voltage Settings
Specify input voltage (L-L) setting for each BPS
system at time of order:
208 Congured for 208 V ±10 % L-L, 4 wire input.
230 Congured for 230 V ±10 % L-L, 4 wire input.
380 Congured for 380V +/- 10% L-L, 4 Wire Input
400 Congured for 400 V ±10 % L-L, 4 wire input.
480 Congured for 480 V ±10 % L-L, 4 wire input
28.75
[730.25]
Standard Model Options
- LF Limits maximum frequency to 500 Hz.
-LAN Ethernet Interface.
-HV Adds 400 V L-N AC-only output range.
Packaging and Shipment
All BPS systems are packaged in re-usable
protective wooden crates for shipment.
48.125
[1222.4]

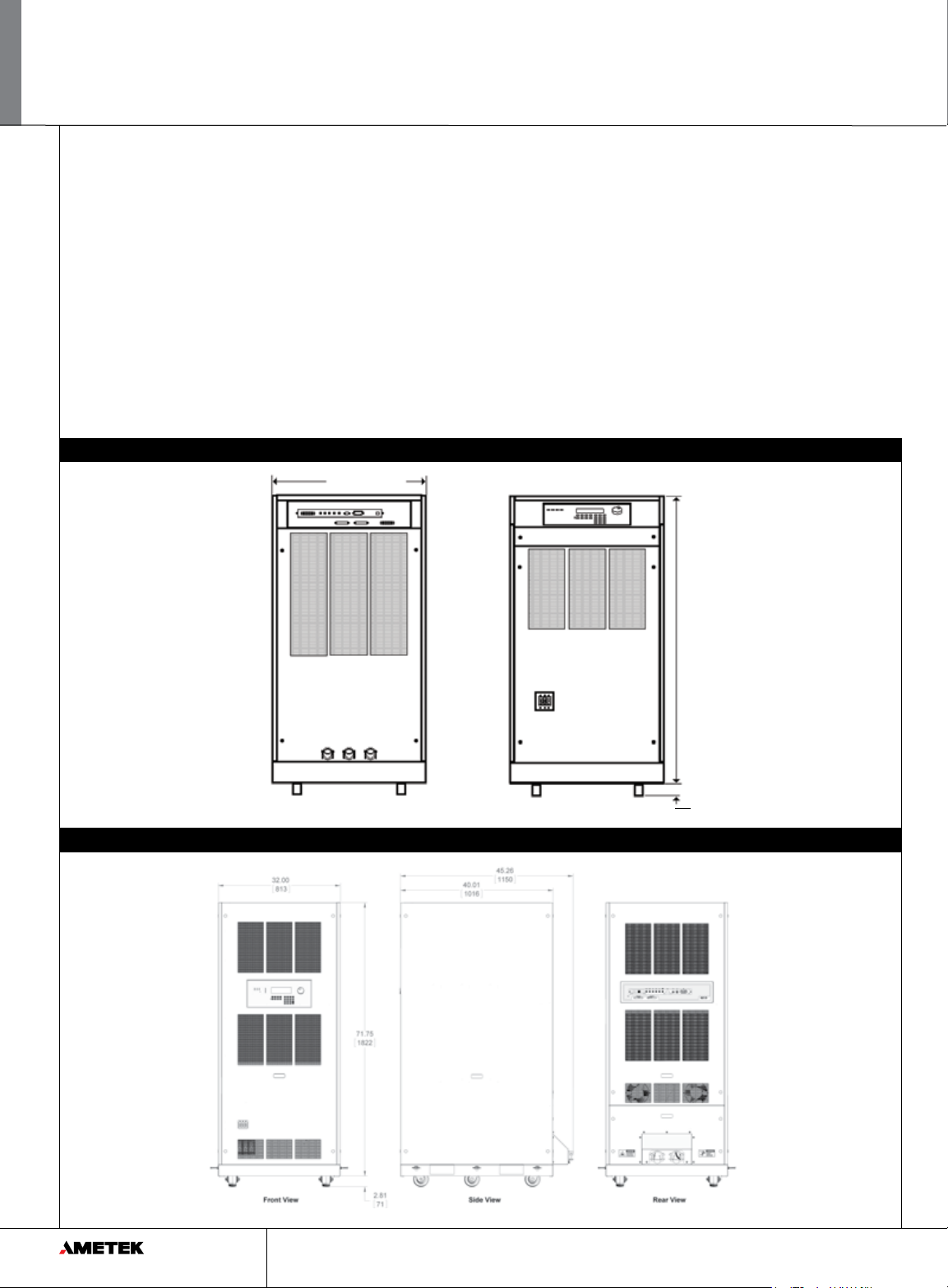

BPS75/90 Dimensions - single chassis
Rear View Front View
www.ProgrammablePower.com210
1.95
[49.53]
Loading...
