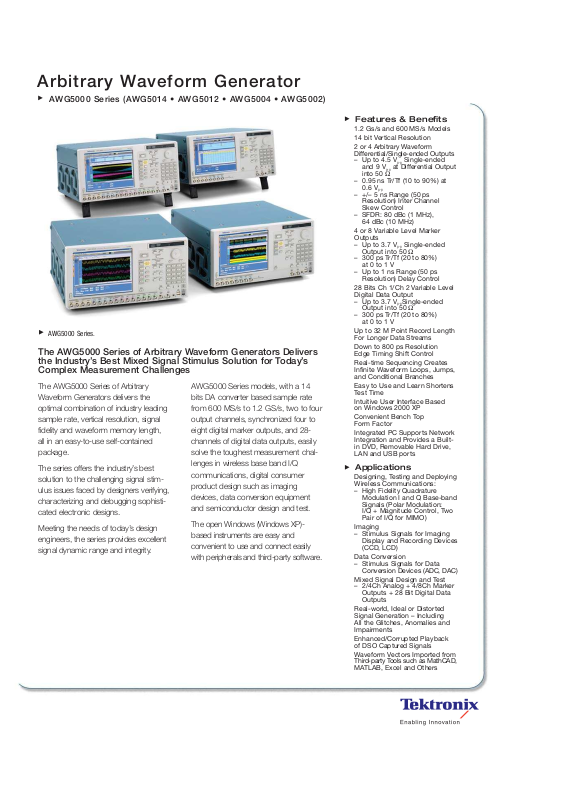

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

AWG5000 Series.

The AWG5000 Series of Arbitrary Waveform Generators Delivers
the Industry’s Best Mixed Signal Stimulus Solution for Today’s
Complex Measurement Challenges

The AWG5000 Series of Arbitrary
Waveform Generators delivers the
optimal combination of industry leading
sample rate, vertical resolution, signal
fidelity and waveform memory length,
all in an easy-to-use self-contained
package.

The series offers the industry’s best
solution to the challenging signal stim­ulus issues faced by designers verifying,
characterizing and debugging sophisti­cated electronic designs.

Meeting the needs of today’s design
engineers, the series provides excellent
signal dynamic range and integrity.

AWG5000 Series models, with a 14
bits DA converter based sample rate
from 600 MS/s to 1.2 GS/s, two to four
output channels, synchronized four to
eight digital marker outputs, and 28­channels of digital data outputs, easily
solve the toughest measurement chal­lenges in wireless base band I/Q
communications, digital consumer
product design such as imaging
devices, data conversion equipment
and semiconductor design and test.

The open Windows (Windows XP)­based instruments are easy and
convenient to use and connect easily
with peripherals and third-party software.

Features & Benefits

1.2 Gs/s and 600 MS/s Models
14 bit Vertical Resolution
2 or 4 Arbitrary Waveform

Differential/Single-ended Outputs
– Up to 4.5 V

and 9 V
into 50 Ω

– 0.95 ns Tr/Tf (10 to 90%) at

0.6 V

p-p

– +/– 5 ns Range (50 ps

Resolution) Inter Channel
Skew Control

– SFDR: 80 dBc (1 MHz),

64 dBc (10 MHz)

4 or 8 Variable Level Marker
Outputs
– Up to 3.7 V

Output into 50 Ω

– 300 ps Tr/Tf (20 to 80%)

at 0 to 1 V

– Up to 1 ns Range (50 ps

Resolution) Delay Control

28 Bits Ch 1/Ch 2 Variable Level
Digital Data Output
– Up to 3.7 V

Output into 50 Ω

– 300 ps Tr/Tf (20 to 80%)

at 0 to 1 V

Up to 32 M Point Record Length
For Longer Data Streams

Down to 800 ps Resolution
Edge Timing Shift Control

Real-time Sequencing Creates
Infinite Waveform Loops, Jumps,
and Conditional Branches

Easy to Use and Learn Shortens
Test Time

Intuitive User Interface Based
on Windows 2000 XP

Convenient Bench Top
Form Factor

Integrated PC Supports Network
Integration and Provides a Built­in DVD, Removable Hard Drive,
LAN and USB ports

Single-ended

p-p

at Differential Output

p-p

Single-ended

p-p

Single-ended

p-p

Applications

Designing, Testing and Deploying
Wireless Communications:
– High Fidelity Quadrature

Modulation I and Q Base-band
Signals (Polar Modulation:
I/Q + Magnitude Control, Two
Pair of I/Q for MIMO)

Imaging
– Stimulus Signals for Imaging

Display and Recording Devices
(CCD, LCD)

Data Conversion
– Stimulus Signals for Data

Conversion Devices (ADC, DAC)

Mixed Signal Design and Test
– 2/4Ch Analog + 4/8Ch Marker

Outputs + 28 Bit Digital Data
Outputs

Real-world, Ideal or Distorted
Signal Generation – Including
All the Glitches, Anomalies and
Impairments

Enhanced/Corrupted Playback
of DSO Captured Signals

Waveform Vectors Imported from
Third-party Tools such as MathCAD,
MATLAB, Excel and Others

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Wireless I/Q and IF Signal
Generation

Tektronix AWGs support “Wireless
Everywhere” by enabling the latest
Digital RF technology, increasing wire­less network capacity and delivering
the performance that supports higher
modulation bandwidth and modulation
schemes.

The AWG 5000 Series’ 1.2 GS/s,
(600 MS/s), with enough signal
dynamic range and SFDR via 14 bit
vertical resolution meets narrowband IQ
applications to broadband IF applica­tions. The AWG5000 is able to
generate not only analog IQ/IF signals,
but digital data IQ/IF. The MIMO
(Multiple Input Multiple Output) system
that supports W-LAN /Wi-Max using
space-multiplex with multiple antennas
is a leading edge technology for reliable
and faster data rate communication.
The AWG5000 Series generates up to
four analog channels (eight channels via
two instruments) to simultaneously
generate MIMO signals. The series can
generate two pairs of IQ signals (four
pairs with two instruments) as an IQ
generator, and four pairs of IF signals
(eight pairs with two instruments) as an
IF generator. With the two channels
models, ch 1 and ch 2 digital data
output is available as an option.

Typical Signal Injection.

EVM/Constellation measurement.

AWG5000 Series • www.tektronix.com/signal_sources

2

RTSA Spectrum view.

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Spurious Performance

The 14 bit vertical resolution and
sophisticated design of the AWG5000
Series provides ample signal dynamic
range and purity. The SFDR perform­ance is 80 dBc for 1 MHz signal and
64 dBc for 10 MHz signal.

Multi-Level Logic Signal

One technique to increase the data rate
without increasing the transition rate is
applying multi-level signals, wherein a
signal can assume more than the stan­dard binary two levels. In multi-level
signaling, one can think of multi-level
discrete amplitudes of a signal. This
phenomenon is known as pulse ampli­tude-modulation or PAM. A 9PAM
signal, a signal with nine different ampli­tudes, increases the data rate by four
without increasing the transition rate of
the signal.

9-PAM with 250 Mbps.

The AWG5000 Series enables you to
test your latest design by generating
any kind of mixed or multi-level signal.

Mixed Signal Generation

AWG5012 and AWG5002 models can
generate two analog signals with four­digital marker outputs, supporting 28
digital outputs (ch 1 and ch 2 data) as
an option. They deliver a mixed analog
and digital signal generator and the most
versatile solution for a broad range of
applications, including consumer elec­tronics such as ADC/DAC converter
and imaging or display devices.

Mixed signal test by TDS/TLA iView.™

AWG5000 Series • www.tektronix.com/signal_sources

3

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Additional Software
Application Tools to Extend
Waveform Generation

RFXpress (RFX100)

RFXpress is a software package that
synthesizes digitally modulated base
band IQ and IF signals. It takes IQ and
IF signal generation to the next level
and fully exploits the wideband signal
generation capabilities of Arbitrary
Waveform Generators (AWGs).
Supporting a wide range of modula­tions, as well as the symbol map func­tions, the software allows you to define
your own modulation.

RFXpress is a powerful easy-to-use
software package to synthesize IQ and
IF signals for arbitrary waveform gener­ators (AWG). It runs as an integral part
of the AWG5000 series arbitrary wave­form generators or from an external
PC.

For more details on RFXpress visit
www.tek.com.

4

AWG5000 Series • www.tektronix.com/signal_sources

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Characteristics

AWG5014 AWG5012 AWG5004 AWG5002

Arbitrary Waveforms

Waveform Length 1 to 16,200,000 points (or 1 to 32,400,000 points, option 01)
Number of Waveforms 1 to 16,000
Sequence Length 1 to 4,000 steps
Sequence Repeat Counter 1 to 65,536 or infinite
Sequence Control Repeat count, Trigger, Go-to-N and Jump
Jump Mode Synchronous and Asynchronous

Run Modes

Continuous Waveform is iteratively output. If a sequence is defined, the sequence order and repeat functions are applied
Triggered Waveform is output only once when an external, internal, GPIB, LAN or manual trigger is received
Gated Waveform begins output when gate is true and resets to beginning when false
Sequence Waveform is output as defined by the sequence

Clock Generator

Sampling Frequency 10 MS/s to 1.2 GS/s 10 MS/s to 600 MS/s
Resolution 8 digits
Internal Clock
Accuracy Within ± (1 ppm + Aging),

Clock Phase Noise Less than –90 dBc/Hz at 100 kHz offset

Internal Trigger Generator

Internal Trigger Rate

Range 1.0 µs to 10.0 s
Resolution 3 digits, 0.1 µs minimum

Skew Control Between Outputs

Range – 5 ns to + 5 ns
Resolution 5 ps

Aging: within ± 1 ppm/year

AWG5000 Series • www.tektronix.com/signal_sources

5

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

AWG5014 AWG5012 AWG5004 AWG5002

Main Arbitrary Waveform Output

Resolution 14 bits

Analog Output

(in to 50 Ω) (Twice for Hi_Z input)

Number of Arb Outputs 42 42

Output Style Differential
Output Impedance 50 Ω
Connector BNC Front

Amplitude

Output Voltage Normal: –4.5 V to + 4.5 V,

Amplitude Normal: 20 mV

Resolution 1 mV
DC Accuracy ±(2.0% of Amplitude + 2 mV) at offset = 0 V

Offset (into 50 Ω)

Range Normal: –2.25 V to +2.25 V,

Resolution 1 mV
Accuracy ±(2% of offset +10 mV at minimum amplitude

Pulse Response

Rise/Fall time: (10% to 90%). Normal: 1.4 ns (2.0 V

Bandwidth (–3dB) Normal: 250 MHz (2.0 V

Ringing Normal: 750 mV

Low Pass Filter High range: 100 MHz, 20 MHz,

Delay from Marker Normal: 17.5 ns to 19.4 ns (20 MHz filter),

Sine Wave Characteristics (1.2 GS/s clock, 32 waveform points, 37.5 MHz signal frequency)

(600 MS/s clock, 32 waveform points, 18.75 MHz signal frequency)

Harmonics Normal: ≤–40 dBc (2.0 V

Non Harmonics Normal: ≤–60 dBc (2.0 V

Phase noise ≤ –85 dBc/Hz (2.0 V

SFDR 50 dBc (Normal, 37.5 MHz, 1.2 GS/s, 2.0 V

60 dBc (Normal, 10 MHz, 600 MS/s, 1.0 V

80 dBc (Normal, 1 MHz, 600 MS/s, 1.0 V
64 dBc (Direct, 10 MHz, 600 MS/s, 0.6 V

80 dBc (Direct, 1 MHz, 600 MS/s, 0.6 V

Direct –0.3 V to +0.3 V

to 4.5 V

Direct; 20 mV

p-p

p-p

to 0.6 V

,

p-p

p-p

Direct: N/A

),

p-p

(0.6 V

p-p

)

p-p

),

p-p

)

p-p

(2.0 V

p-p

)

p-p

filter through),

p-p

Direct: 0.95 ns (0.6 V

Direct: 370 MHz (0.6 V

(4.5 V

p-p

filter through), 80 mV

p-p

Direct: 60 mV

Low range: through, 100 MHz, 20 MHz,

Direct: N/A

3.8 ns to 5.7 ns (100 MHz filter),
0 to 1.9 ns (Through),

Direct: –1.5 ns to 0.4 ns

),

Direct ≤=–49 dBc (0.6 V

Normal: ≤–46 dBc (2.0 V

Direct ≤=–55 dBc (0.6 V

Normal: ≤–60 dBc (2.0 V

, 10 kHz offset) –85 dBc/Hz (2.0 V

p-p

) 56 dBc (Normal, 18.75 MHz, 600 MS/s, 2.0 V

p-p

) 60 dBc (Normal, 10 MHz, 600 MS/s, 1.0 V

p-p

) 80 dBc (Normal, 1 MHz, 600 MS/s, 1.0 V

p-p

) 64 dBc (Direct, 10 MHz, 600 MS/s, 0.6 V

p-p

) 80 dBc (Direct, 1 MHz, 600 MS/s, 0.6 V

p-p

p-p

)

p-p

),

p-p

)

p-p

, DC to 600 MHz)

p-p

, DC to 300 MHz)

p-p

, 10 kHz offset)

p-p

)

p-p

)

p-p

)

p-p

)

p-p

)

p-p

6

AWG5000 Series • www.tektronix.com/signal_sources

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

AWG5014 AWG5012 AWG5004 AWG5002

Auxiliary Outputs
Marker Output

Number of Outputs 8 (2 per ch) 4 (2 per ch) 8 (2 per ch) 4 (2 per ch)
Output Style Single-ended
Output Impedance 50 Ω
Connector BNC Front

Level (into 50 Ω)

(Twice for Hi_Z input)
Output Windows –1.00 V to + 2.7 V
Amplitude 0.10 V
Resolution 10 mV
DC Accuracy ±(10% of setting +120 mV)
Maximum Output Current ± 54 mA /ch
Rise/Fall Time (20% to 80%) 300 ps (1.0 V

Skew Adjust Between Markers

Range 0 to 1000 ps
Resolution 50 ps
Random Jitter (Typical) 1010 clock pattern
RMS 5ps
Total Jitter (Typical) 2^
Peak to Peak (p-p) 80 ps

Clock (VCO) Out

Range 600 MHz to 1.2 GHz
Amplitude 0.4 V
Impedance: 50 Ω, AC coupling
Connector BNC Rear

10 MHz Reference Out

Amplitude 1.2 V

p-p

Impedance 50 Ω, AC coupling
Connector BNC Rear

DC Outputs

Number of Outputs 4: independently controlled outputs
Range –3.0 to +5.0 V
Resolution 10 mV
Max. Current
Connector 2x4 pin header on front panel

Digital Data Output (Option 03)

Number of Output NA 14 bits output on channel 1 NA 14 bits output on channel 1

and channel 2 (28 total) and channel 2 (28 total)
Output Style Single-ended Single-ended
Output Impedance 50 Ω 50 Ω
Connector SMB rear SMB rear

Level (into 50 Ω)

(Twice for Hi_Z input)
Output Windows –1.00 V to + 2.7 V –1.00 V to + 2.7 V
Amplitude 0.10 V

p-p

to 3.7 V

p-p

Resolution 10 mV 10 mV
DC Accuracy ± (10% of setting +120 mV) ± (10% of setting +120 mV)
Maximum Output current ± 54 mA /ch ± 54 mA /ch
Rise/Fall Time (20% to 80%) 300 ps 300 ps

(1.0 V

, Hi +1.0 V, Lo 0 V) (1.0 V

p-p

to 3.7 V

p-p

p-p

, Hi +1.0 V, Lo 0 V)

p-p

rms

15–1

PN data pattern

p-p

into 50 Ω to GND

p-p

into 50 Ω. Max 2.5 V

± 100 mA

open

p-p

0.10 V

to 3.7 V

p-p

p-p

, Hi +1.0 V, Lo 0 V)

p-p

AWG5000 Series • www.tektronix.com/signal_sources

7

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Auxiliary Inputs

Trigger In

Impedance 1 kΩ or 50 Ω
Polarity POS or NEG
Connector BNC Front
Input Voltage Range 1 kΩ: ±10 V. 50 Ω:±5V

Threshold

Level –5.0 V to 5.0 V
Resolution 0.1 V
Trigger Jitter 2.0 ns to 4.5 ns (Typical)

Trigger Mode

Minimum Pulse Width 20 ns
Trigger Hold-off 832* sampling_period – 100 ns
Delay to Analog Out 128* sampling_period + 250 ns

Gate Mode

Minimum Pulse Width 1024* sampling_period + 10 ns
Delay to Analog Out 640* sampling_period + 260 ns

Event Input

Impedance 1 kΩ or 50 Ω
Polarity POS or NEG
Connector BNC Front
Input Voltage Range 1 kΩ: ±10 V. 50 Ω:±5V
Threshold –5.0 V to 5.0 V
Resolution 0.1 V

Sequence Mode Mode

Minimum Pulse Width 20 ns
Event Hold Off 1024* Sampling Period + 10 ns
Delay to Analog Out 640* Sampling Period + 280 ns (Jump timing: Asynchronous jump)

External Clock IN

Input Voltage Range 0.2 V
Impedance 50 Ω, AC coupled
Frequency Range 600 MHz to 1.2 GHz
Clock Divider 1/1, 1/2, 1/4…1/32 1/2, 1/4…1/32
Connector BNC Rear

Reference Clock IN

Input Voltage Range 0.2 V
Impedance 50 Ω, AC coupled
Frequency Range 10 MHz, 20 MHz, 100 MHz (with ±0.1%)
Connector BNC Rear

Phase Lock IN

Input Ranges 5 MHz to 600 MHz (acceptable frequency drift is ±0. 5%)
Input Voltage Range 0.2 V
Impedance 50 Ω, AC coupled
Multiple Rate 1 to 240 1 to 120
Connector BNC Rear

Add IN For each analog channel

Impedance 50 Ω, DC coupled
DC Gain 1
Bandwidth DC to 100 MHz at –3 dB
Input Voltage Range ± 1.0 V
Connector BNC Rear

p-p

p-p

p-p

to 0.8 V

to 3.0 V

to 3 V

p-p

p-p

p-p

8

AWG5000 Series • www.tektronix.com/signal_sources

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

AWG5000 Series Common Features

Waveform File Import Capability Tektronix TDS5000/6000/7000, DPO4000/7000/70000, DSA70000 (*.wfm). TDS3000 (*.wfm)

AWG400s/500s/610/615/710/710B (*.wfm, *.pat, *.seq), DTG5000s (*.DAT) Text data file

(Third party software creation waveform data: MATLAB, MathCad, Excel)

S/W driver for 3rd party S/W IVI-com driver and MATLAB library

Instrument Control/Data Transfer Ports

GPIB Remote control and data transfer. (Conforms to IEEE-Std 488.1, compatible with IEEE 488.2 and SCPI-1999.0)
Ethernet (10/100/1000Base-T) Remote control and data transfer. (Conforms to IEEE 802.3). RJ-45
Computer System & Peripherals Windows XP Professional, 512 MB SDRAM, 80 GB removable Hard Drive at rear (available front mount kit),

PC I/O Ports USB 2.0 compliant ports (6 total, 2 front, 4 rear), PS/2 mouse and keyboard connectors (rear panel),

Display Characteristics 10.4 inch, LCD color display with touch screen, 1024 (H)x768 (V) (XGA)

Power Supply 100 to 240 VAC, 47 to 63 Hz
Power Consumption 450 W
Safety UL61010-1, CAN/CSA-22.2, No.61010-1-04, EN61010-1, IEC61010-1
Emissions EN 55011 (Class A), IEC61000-3-2, IEC61000-3-3
Immunity IEC61326, IEC61000-4-2/3/4/5/6/8/11

Regional Certifications

Europe EN61326
Australia/New Zealand AS/NZS 2064

CD-RW/DVD drive at front, included USB compact keyboard and mouse

RJ-45 Ethernet connector (rear panel) supports 10/100/1000BASE-T, XGA out

Physical Characteristics mm/kg lbs/in.

Dimension mm in.

Height 245 9.6
Width 465 18.0
Length 500 19.7

Weight (approx.) kg lbs.

Net19.5 43.0
Net with Package 28.5 62.8

Mechanical Cooling

Required Clearance
Top and Bottom 2 cm 0.8 inch
Side 15 cm 6 inch
Rear 7.5 cm 3 inch

Environmental

Operating Non-operating

Temperature +10º C to +40º C –20º C to +60º C
Humidity 5% to 80% relative humidity (% RH) at up to +30º C, 5% to 90% RH (Relative Humidity) at up to +30º C,

5% to 45% RH above +30º C up to +50º C 5% to 45% RH above +30º C up to +50º C
Altitude Up to 3,048 meters (10,000 feet) Up to 12,192 meters (40,000 feet)
Random Vibration 0.27 G
Sine Vibration 0.33 mm

, 5 to 500 Hz, 10 minutes per axis 2.28 G

RMS

(0.013 inch

p-p

) constant displacement, 5 to 55 Hz NA

p-p

, 5 to 500 Hz, 10 minutes per axis

RMS

Mechanical shock Half-sine mechanical shocks, 30 g peak amplitude, NA

11 msec duration, 3 drops in each direction of each axis

AWG5000 Series • www.tektronix.com/signal_sources

9

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Ordering Information

Arbitrary Waveform
Generator Mainframe

AWG5014

1.2 GS/s, 4-channel, 14bits, 16 M point/channel
Arbitrary Waveform Generator.

AWG5012

1.2 GS/s, 2-channel, 14bits, 16 M point/channel
Arbitrary Waveform Generator.

AWG5004

600 MS/s, 4-channel, 14bits, 16 M point/channel
Arbitrary Waveform Generator.

AWG5002

600 MS/s, 2-channel, 14bits, 16 M point/channel
Arbitrary Waveform Generator.

All Models Include:Accessory pouch, front cover,
USB mouse, compact USB key board, lead set for
DC output, stylus for touch screen 2 each,

®

Windows
instructions, AWG5000 Series product software CD
and instructions, Document CD with Browser, Quick
Start User Manual, registration card, Certificate of
Calibration, power cable.

Note: Please specify power cord and language
option when ordering.

Instrument Options

AWG5014/AWG5012,
AWG5004/AWG5002

Opt. 01 – Waveform Length Expansion (from 16 M
to 32 M).

AWG5012/AWG5002

Opt. 03 – 28 bits digital data outputs (digital data of
ch 1 and ch 2).

XP operating system restore DVD and

Common Options

International Power Plugs

Opt. A0 – North America power.
Opt. A1 – Universal EURO power.
Opt. A2 – United Kingdom power.
Opt. A3 – Australia power.
Opt. A5 – Switzerland power.
Opt. A6 – Japan power.
Opt. A10 – China power.
Opt. A99 – No power cord or AC adapter.

Language Options

Opt. L0 – English.
Opt. L5 – Japanese.
Opt. L7 – Simplified Chinese.
Opt. L8 – Traditional Chinese.

Service

Opt. CA1 – A single calibration event.
Opt. C3 – Calibration service 3 years.
Opt. C5 – Calibration service 5 years.
Opt. D1 – Calibration data report.
Opt. D3 – Calibration data report 3 years (with

option C3).
Opt. D5 – Calibration data report 5 years (with
option C5).

Opt. R3 – Repair service 3 years.
Opt. R5 – Repair service 5 years.
Post-sales Service Options: (e.g.,AWG5012-CA1).
CA1 – A single calibration event.
R3DW – Repair service coverage 3 years.
R5DW – Repair service coverage 5 years.
R2PW – Repair service coverage 2 years

post warranty.
R1PW – Repair service coverage 1 year
post warranty.

Product Upgrade
AWG5014, AWG50UP

Opt. M14 – Waveform Length Expansion
from 16 M point to 32 M point.

Product Upgrade
AWG5012, AWG50UP

Opt. M12 – Waveform Length Expansion
from 16 M point to 32 M point.
Opt. D13 – Digital Data Outputs.

Product Upgrade
AWG5004, AWG50UP

Opt. M04 – Waveform Length Expansion
from 16 M point to 32 M point.

Product Upgrade
AWG5002, AWG50UP

Opt. M02 – Waveform Length Expansion
from 16 M point to 32 M point.
Opt. D03 – Digital Data Outputs.

10

AWG5000 Series • www.tektronix.com/signal_sources

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Recommended Accessories

Item Description Parts Number

Transition Time Converter 150 ps (10% to 90%) 015-0710-00

250 ps (10% to 90%) 015-0711-00

500 ps (10% to 90%) 015-0712-00

1000 ps (10% to 90%) 015-0713-00

2000 ps (10% to 90%) 015-0714-00

Pin Header

SMA Cable 102 cm (40 inch) 012-1690-00

SMB Cable 51 cm (20 inch) 012-1503-00

Rack Mount kit Rack Mount Kit with instruction 016-1983-00

Front Removable HDD Bay Front removable HDD kit 016-1979-01

Replacement Hard Disk SATA disk assembly (no software installation) 065-0753-00

Documentation

Quick Start User Manual English 071-2078-00

Japanese 071-2079-00

Simplified Chinese 071-2080-00

Traditional Chinese 071-2081-00

Service Manual English 071-2083-00

Warranty

One-year parts and labor.

AWG5000 Series • www.tektronix.com/signal_sources

11

Arbitrary Waveform Generator

AWG5000 Series (AWG5014 • AWG5012 • AWG5004 • AWG5002)

Contact Tektronix:

ASEAN/Australasia (65) 6356 3900

Austria [phone]

Balkans, Israel, South Africa and other ISE Countries [phone]

Belgium 07 81 60166

Brazil & South America (11) 40669400

Canada 1 [phone]

Central East Europe, Ukraine and the Baltics [phone]

Central Europe & Greece [phone]

Denmark [phone]

Finland [phone]

France [phone]

Germany [phone]

Hong Kong (852) 2585-6688

India (91) 80-22275577

Italy [phone]

Japan 81 (3) 6714-3010

Luxembourg [phone]

Mexico, Central America & Caribbean 52 (55) 5424700

Middle East, Asia and North Africa [phone]

The Netherlands 090 02 021797

Norway 800 16098

People’s Republic of China 86 (10) 6235 1230

Poland [phone]

Portugal 80 08 12370

Republic of Korea 82 (2) 6917-5000

Russia & CIS [phone]

South Africa [phone]

Spain ([phone]

Sweden 020 08 80371

Switzerland [phone]

Taiwan 886 (2) 2722-9622

United Kingdom & Eire [phone]

USA 1 [phone]

For other areas contact Tektronix, Inc. at: 1 [phone]

Updated 12 November 2007

For Further Information

Tektronix maintains a comprehensive, constantly expanding collection of

application notes, technical briefs and other resources to help engineers

working on the cutting edge of technology. Please visit www.tektronix.com

Product(s) are manufactured in ISO registered facilities.

Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with
Tektronix Standard Codes and Formats.

Copyright © 2008, Tektronix. All rights reserved. Tektronix products are
covered by U.S. and foreign patents, issued and pending. Information
in this publication supersedes that in all previously published material.
Specification and price change privileges reserved. TEKTRONIX and
TEK are registered trademarks of Tektronix, Inc. All other trade names
referenced are the service marks, trademarks or registered trademarks
of their respective companies.
07/08 JS/WOW 76W-20381-3
