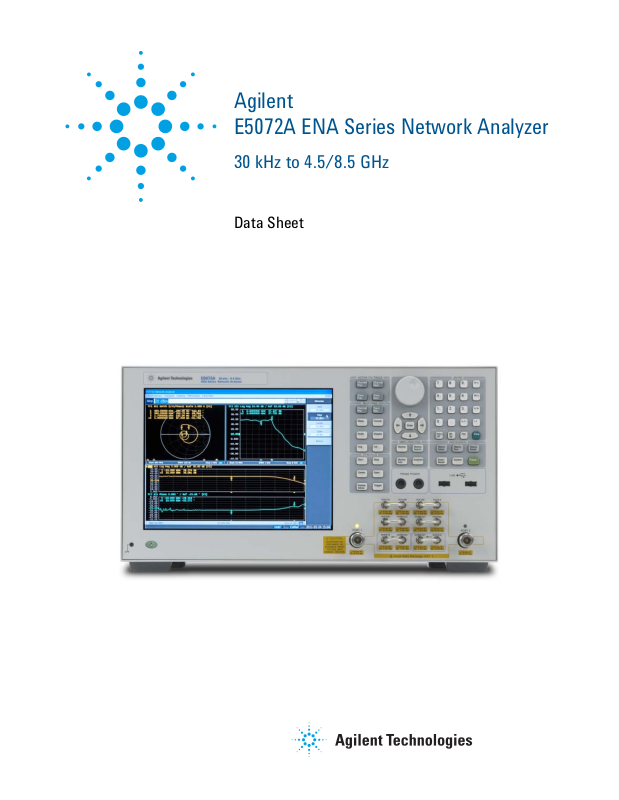

Agilent E5072A ENA Series Network Analyzer

30 kHz to 4.5 /8.5 GHz

Data Sheet

Options

This document provides technical speciﬁ cations for the E5072A ENA network analyzer.

E5072A-245 2-port with conﬁ gurable test set, 30 kHz to 4.5 GHz

E5072A-285 2-port with conﬁ gurable test set, 30 kHz to 8.5 GHz

Calibration kits and ECal modules

This E5072A data sheet provides technical specifications for the following calibration kits and ECal modules. For models not listed in this data sheet, please download the free Uncertainty Calculator from www.agilent.com/find/na_calculator to generate the curves for your calibration kit.

85032F Calibration kit

85033E Calibration kit

85092C Electronic calibration (ECal) module

85093C Electronic calibration (ECal) module

Deﬁ nitions

Speciﬁ cation (spec.):

Warranted performance. All speciﬁ cations apply at 23 ºC (± 5 ºC), unless otherwise stated, and 90 minutes after the instrument has been turned on. Speciﬁ cations include guard bands to account for the expected statistical performance distribution, measurement uncertainties, and changes in performance due to environmental conditions.

Typical (typ.):

Describes performance that will be met by a minimum of 80% of all products. It is not guaranteed by the product warranty.

Supplemental performance data (SPD):

Supplemental performance data represents the value of a parameter that is most likely to occur; the expected mean or average. It is not guaranteed by the product warranty.

General characteristics:

A general, descriptive term that does not imply a level of performance.

Boundary Conditions

In this data sheet, boundary conditions are given for the speciﬁ cations. For example, system dynamic range is 98 dB with the following boundary conditions.

Frequency: 10 MHz, IF bandwidth: 3 kHz

If the same boundary conditions fall under more than one category in a table, apply the best value.

Corrected System Performance

The specifications in this section apply to measurements made with the Agilent E5072A network analyzer under the following conditions:

• No averaging applied to data

• Environmental temperature of 23 °C (± 5 °C) with less than 1 °C deviation from the calibration temperature

• Response and isolation calibration performed

Description Specification SPD

System dynamic range at test port

(IF Bandwidth = 3 kHz)

30 to 300 kHz 65 dB (Typ.)

300 kHz to 10 MHz 82 dB

10 MHz to 6 GHz 98 dB

6 to 8.5 GHz 92 dB

(IF Bandwidth = 10 Hz)

30 to 300 kHz 90 dB (Typ.) 100 dB

300 kHz to 10 MHz 107 dB 115 dB

10 MHz to 6 GHz 123 dB 130 dB

6 to 8.5 GHz 117 dB 128 dB

Extended dynamic range at direct receiver access input

(IF Bandwidth = 10 Hz)

30 to 300 kHz 128 dB

300 kHz to 10 MHz 134 dB

10 MHz to 3 GHz 151 dB

3 GHz to 6 GHz 147 dB

6 to 8.5 GHz 145 dB

1. The test port dynamic range is calculated as the difference between the test port rms noise ﬂoor and the source maximum output power. The effective dynamic range must take measurement uncertainty and interfering signals into account.

2. Typical performance might not be met from 60 to 70 kHz.

3. The direct receiver access input system dynamic range is calculated as the difference between the direct receiver access input noise ﬂ oor and the source maximum output power. The effective dynamic range must take measurement uncertainties and interfering signals into account.

1, 2

8.E+09

150

140

130

120

110

100

3.E+04

System Dynamic Range (dB)

Test Frequency (Hz)

1.E+09

2.E+09

3.E+09

4.E+09

5.E+09

6.E+09

7.E+09

Actual Measurement Example (Smothing ON) Spec

Figure1. System dynamic range (speciﬁ cation and actual measurement data example, IF bandwidth 10 Hz)

Corrected system performance with calibration kit

0.01

0.1

-90-80-70-60-50-40-30-20-10010

Uncertainty (dB)

Transmission coefﬁcient (dB)

Magnitude

30 KHz to 300 kHz

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.01

0.02

0.03

0.04

0.05

00.20.40.60.81

Uncertainty (linear)

Reﬂection coefﬁcient (linear)

Magnitude

30 KHz to 300 kHz

300 KHz to 1 0 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.1

100

-90-80-70-60-50-40-30-20-10010

Uncertainty (degrees)

Transmission coefﬁcient (dB)

Phase

30 KHz to 300 kHz

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0 0.2 0.4 0.6 0.8 1

Uncertainty (degrees)

Reﬂection coefﬁcient (linear)

Phase

30 KHz to 300 kHz

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

Corrected system performance with type-N device connectors, 85032F calibration kit

Network analyzer : E5072A Calibration kit : Calibration : full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C ) with < 1 °C deviation from calibration temperature, isolation calibration performed.

Description 30 to 300 kHz (Typ.) 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Directivity 49 49 46 40 38

Source match 41 41 40 36 35

Load match 49 49 46 39 37

Reﬂ ection tracking ± 0.011 ± 0.011 ± 0.021 ± 0.032 ± 0.054

Transmission tracking ± 0.011 ± 0.007 ± 0.029 ± 0.074 ± 0.088

85032F (Type-N, 50 Ω)

Specification (dB)

Figure 2. Transmission uncertainty (Speciﬁ cation)

Figure 3. Reﬂ ection uncertainty (Speciﬁ cation)

Corrected system performance with type-N device connectors,

0.01

0.1

-90-80-70-60-50-40-30-20-10010

Uncertainty (dB)

Transmission coefﬁcient (dB)

Magnitude

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.01

0.02

0.03

0.04

0.05

0 0.2 0.4 0.6 0.8 1

Uncertainty (linear)

Reﬂection coefﬁcient (linear)

Magnitude

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.1

100

-90-80-70-60-50-40-30-20-10010

Uncertainty (degrees)

Transmission coefﬁcient (dB)

Phase

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0 0.2 0.4 0.6 0.8 1

Uncertainty (degrees)

Reﬂection coefﬁcient (linear)

Phase

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GH z

6 GHz to 8.5 GHz

85092C electronic calibration (ECal) module

Network analyzer : E5072A Calibration kit : 85092C (Type-N, 50 Ω) Electronic calibration (ECal) module Calibration : full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C ) with < 1 °C deviation from calibration temperature, isolation calibration is not performed.

Specification (dB)

Description 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Directivity 45 54 52 47

Source match 36 44 41 36

Load match 41 47 44 39

Reﬂ ection tracking ± 0.100 ± 0.040 ± 0.060 ± 0.070

Transmission tracking ± 0.053 ± 0.040 ± 0.069 ± 0.136

Figure 4. Transmission uncertainty (Speciﬁ cation)

Figure 5. Reﬂ ection uncertainty (Speciﬁ cation)

Corrected system performance with 3.5 mm device connector type,

0.01

0.1

-90-80-70-60-50-40-30-20-10010

Uncertainty (dB)

Transmission coefﬁcient (dB)

Magnitude

30 KHz to 300 kHz

300 KHz to 1 0 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.01

0.02

0.03

0.04

0.05

0 0.2 0.4 0.6 0.8 1

Uncertainty (linear)

Reﬂection coefﬁcient (linear)

Magnitude

30 KHz to 300 kHz

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.1

100

-90-80-70-60-50-40-30-20-10010

Uncertainty (degrees)

Transmission coefﬁcient (dB)

Phase

30 KHz to 300 kHz

300 KHz to 1 0 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0 0.2 0 .4 0.6 0.8 1

Uncertainty (degrees)

Reﬂection coefﬁcient (linear)

Phase

30 KHz to 300 kHz

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

85033E calibration kit

Network analyzer : E5072A Calibration kit : 85033E (3.5 mm, 50 Ω) Calibration : full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C ) with < 1 °C deviation from calibration temperature, isolation calibration performed.

Specification (dB)

Description 30 to 300 kHz (Typ.) 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Directivity 46 46 44 38 38

Source match 43 43 40 37 36

Load match 46 46 44 38 38

Reﬂ ection tracking ± 0.006 ± 0.006 ± 0.007 ± 0.009 ± 0.010

Transmission tracking ± 0.010 ± 0.007 ± 0.032 ± 0.074 ± 0.079

Figure 6. Transmission uncertainty (Speciﬁ cation)

Figure 7. Reﬂ ection uncertainty (Speciﬁ cation)

Corrected system performance with 3.5 mm device connector type, 85093C electronic

0.01

0.1

-90-80-70-60-50-40-30-20-10010

Uncertainty (dB)

Transmission coefﬁcient (dB)

Magnitude

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.01

0.02

0.03

0.04

0.05

0 0.2 0.4 0.6 0.8 1

Uncertainty (linear)

Reﬂection coefﬁcient (linear)

Magnitude

300 KHz to 1 0 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.1

100

-90-80-70-60-50-40-30-20-10010

Uncertainty (degrees)

Transmission coefﬁcient (dB)

Phase

300 KHz to 10 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

0.01

0.02

0.03

0.04

0.05

0 0.2 0.4 0.6 0.8 1

Uncertainty (degrees)

Reﬂection coefﬁcient (linear)

Phase

300 KHz to 1 0 MHz

10 MHz to 3 GHz

3 GHz to 6 GHz

6 GHz to 8.5 GHz

calibration (ECal) module

Network analyzer : E5072A Calibration kit : 85093C (3.5 mm, 50 Ω) Electronic calibration (ECal) module Calibration : full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23 °C (± 5 °C ) with < 1 °C deviation from calibration temperature, isolation calibration is not performed.

Specification (dB)

Description 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Directivity 45 52 51 47

Source match 36 44 39 34

Load match 41 47 44 40

Reﬂ ection tracking ± 0.100 ± 0.040 ± 0.050 ± 0.070

Transmission tracking ± 0.053 ± 0.049 ± 0.069 ± 0.117

Figure 8. Transmission uncertainty (Speciﬁ cation)

Figure 9. Reﬂ ection uncertainty (Speciﬁ cation)

Uncorrected System Performance

User correction: OFF, System error correction: ON

Specification (dB)

Description 30 to 300 kHz 300 kHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Directivity 15 (Typ.) 25 20 15

Source match 15 (Typ.) 25 20 15

Reﬂ ection tracking ± 1.5 (Typ.) ± 1.0 ± 1.5 ± 1.5

Transmission tracking ± 1.5 (Typ.) ± 1.0 ± 1.5 ± 1.5

Specification (dB)

Description 30 to 300 kHz 300 kHz to 100 MHz 100 MHz to 2 GHz 2 to 4.5 GHz 4.5 to 8.5 GHz

Load match 14 (Typ.) 22 15 11 8

Test Port Output (Source)

Test port output frequency

Description Specification Typical

Frequency range

Option 245 Option 285

Resolution 1 Hz

Source Stability

Standard Option 1E5

CW accuracy

Standard Option 1E5

30 kHz to 4.5 GHz 30 kHz to 8.5 GHz

± 7 ppm (5 to 40 ºC) ± 1 ppm (5 to 40 ºC) ± 0.5 ppm/year

± 7 ppm ± 1 ppm

Test port output power

Description Specification SPD

Nominal Power (Preset Power)

Range

30 to 300 kHz 300 kHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Max Leveled Power

30 to 300 kHz 300 kHz to 1 GHz 1 to 3 GHz 3 to 8.5 GHz

1. Frequency can be set down to 9 kHz

2. Source output performance on port 1 only. Port 2 output performance is typical.

3. Power can be set from –109 to 20 dBm

0 dBm

–85 to 10 dBm –85 to 16 dBm –85 to 12 dBm –85 to 10 dBm

16 dBm 20 dBm 18 dBm Slope from 18 dBm (3 GHz) to 12 dBm (8.5 GHz)

Description Specification Typical

Resolution 0.05 dB

Level Accuracy

At 50 MHz, 0 dBm, Absolute ± 0.65 dB

(Level Flatness)

Stepped Sweep Mode 30 to 300 kHz 300 kHz to 8.5 GHz

— ± 1.0 dB

± 1.0 dB —

Swept Sweep Mode 30 kHz to 7 GHz 7 to 8.5 GHz

Level Linearity

± 2.5 dB ± 3.0 dB

(–15 dBm to Maximum Power)

Stepped Sweep Mode 30 to 300 kHz 300 kHz to 8.5 GHz

— ± 0.75 dB

± 0.75 dB —

Swept Sweep Mode All frequency ± 1.5 dB

Power Sweep Range

65 dB

Test port output signal purity

Description Specification Typical

Harmonics (2nd or 3rd)

(at 5 dBm) 30 kHz to 2 GHz 2 to 8.5 GHz

Non-harmonic spurious

(at 5 dBm) < –30 dBc

1. Power calibration using an external power meter improves level accuracy of the test port output power.

2. Level accuracy of other frequency is taken at 0 dBm, relative to 50 MHz reference unless otherwise stated.

3. Level linearity given is relative to 0 dBm.

4. Stop power may be limited by maximum power.

< –25 dBc < –20 dBc

Test Port Input

Description Specification SPD

Crosstalk 30 to 300 kHz

300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Test Port Noise Floor 30 to 300 kHz

300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

(at 10Hz IFBW) 30 to 300 kHz 300 kHz to 10 MHz 10 MHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Compression level

(at +10dBm input)

Magnitude

30 to 300 kHz 300 kHz to 3 GHz 3 to 8.5 GHz

Phase

30 to 300 kHz 300 kHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

0.1 dB Compression Input Level

30 to 300 kHz 300 kHz to 2 GHz 2 to 6 GHz 6 to 8.5 GHz

Damage Level +26 dBm or ± 35 VDC

–90 dB (Typ.) –110 dB –120 dB –110 dB –100 dB

–90 dBm/Hz (Typ.) –101 dBm/Hz –117 dBm/Hz –121 dBm/Hz –117 dBm/Hz

–80 dBm (Typ.) –91 dBm –107 dBm –111 dBm –107 dBm

0.3 dB (Typ.)

0.2 dB

7 deg (Typ.) 5 deg 5 deg 5 deg

–95 dB –120 dB –140 dB –130 dB –120 dB

–100 dBm/Hz –109 dBm/Hz –124 dBm/Hz –128 dBm/Hz –128 dBm/Hz

–90 dBm –99 dBm –114 dBm –118 dBm –118 dBm

0.15 dB

0.08 dB

0.1 dB

0.7 deg

0.3 deg

0.6 deg

1.0 deg

6 dBm 16 dBm 14 dBm 10 dBm

Trace Noise

Description Specification SPD

(test port input level = maximum power in Speciﬁ cation)

Magnitude

30 to 300 kHz, 3 kHz IFBW 300 kHz to 10 MHz, 3 kHz IFBW 10 MHz to 4.38 GHz, 70 kHz IFBW

4.38 to 8.5 GHz, 70 kHz IFBW

Phase

30 to 300 kHz, 3 kHz IFBW 300 kHz to 10 MHz, 3 kHz IFBW 10 MHz to 4.38 GHz, 70 kHz IFBW

4.38 to 8.5 GHz, 70 kHz IFBW

1. Typical performance might not be met from 60 to 70 kHz.

2. The speciﬁ cation might not be met at the following frequencies: 333.333 kHz, 406.25 kHz, 857.143 kHz, and 928.571 kHz.

0.015 dB rms (Typ.)

0.003 dB rms

0.004 dB rms

0.006 dB rms

0.1 deg rms (Typ.)

0.02 deg rms

0.035 deg rms

0.05 deg rms

0.007 dB rms

0.0005 dB rms

0.001 dB rms

0.0012 dB rms

0.05 deg rms

0.0025 deg rms

0.0075 deg rms

0.015 deg rms

Stability

0.01

0.1

-100-90-80-70-60-50-40-30-20-10010

Accuracy (dB)

Testport Power (dBm)

Magnitude

0.1

100

-100-90-80-70-60-50-40-30-20-10010

Accuracy (degrees)

Testp ort Pow er (dB m)

Phase

Description Specification SPD

Magnitude

30 to 300 kHz 300 kHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

Phase

30 to 300 kHz 300 kHz to 3 GHz 3 to 6 GHz 6 to 8.5 GHz

± 0.04 dB/°C ± 0.005 dB/°C ± 0.03 dB/°C ± 0.04 dB/°C

± 0.8 deg/°C ± 0.1 deg/°C ± 0.4 deg/°C ± 0.8 deg/°C

Dynamic Accuracy

Description Specification (dB) Typical

Magnitude

10 dBm –30 dBm –100 dBm –110 dBm

Phase

10 dBm –30 dBm –100 dBm

± 0.21 dB ± 0.045 dB ± 2 dB

± 3.0 dB

± 5 deg ± 0.3 deg ± 15 deg

Figure 10. Dynamic Accuracy

1. Accuracy of the test port input power reading is relative to –10 dBm reference input power level.

Group Delay

Description Specification

Supplemental information

(dB)

Aperture (selectable) (frequency span)/(number of points - 1)

Maximum aperture 25% of frequency span

Minimum delay Limited to measuring no more than 180° of

phase change within the minimum aperture.

Accuracy See graph below (Typical)

The following graph shows group delay accuracy with type-N connectors, full 2-port calibration and a 10 Hz IF bandwidth.

• Calibration kit (85032F).

• Insertion loss is assumed to be < 2 dB.

In general, the following formula can be used to determine the accuracy (in seconds) of a specific group delay measurement: ± phase accuracy (degrees)/[360 x aperture (Hz)]

Group Delay

100

0.1

Accuracy (nSec)

0.01

0.001

0.01 0.1 1 10 100

Figure 11. Group delay

Aperture (MHz)

1. Group delay is computed by measuring the phase change within a speciﬁ ed step (determined by the frequency span and the number of points per sweep).

Front-Panel Jumpers

Measurement Receiver Input (R1, R2, A, B)

Description SPD Typical

Noise Floor

30 kHz to 10 MHz 10 MHz to 8.5 GHz

(10Hz IFBW ) 30 kHz to 10 MHz 10 MHz to 8.5 GHz

Maximum Input Level

(Rcvr R1/R2/A or B IN at 0.1dB typical compression) 30 to 300 kHz 300 kHz to 8.5 GHz

Damage Level +15 dBm or ± 16 VDC

Coupler arm output

Description SPD Typical

Damage Level +15 dBm or 0 VDC

Coupler through input

Description SPD Typical

Insertion Loss from Coupler Thru to Test Port

Damage Level +26 dBm or ± 35VDC

–128 dBm/Hz –145 dBm/Hz

–118 dBm –135 dBm

–15 dBm –10 dBm

Slope from 0.8 dB at 30 kHz to 3.5 dB at

8.5 GHz (0.32 x f [GHz] + 0.8) dB

Source output

Description SPD Typical

Maximum Leveled Power

30 to 300 kHz 300 kHz to 1 GHz 1 to 3 GHz 3 to 8.5 GHz

Maximum Input Level

(at Max Speciﬁ ed Output Power) 30 kHz to 8.5 GHz +20 dBm

Damage Level +26 dBm or 0 VDC

+18 dBm +20.5 dBm +19 dBm Slope from +19dBm at 3 GHz to +16 dBm at 8.5 GHz

Reference source output

Description SPD Typical

Damage Level +15 dBm or 0 VDC

General Information

Measurement Receiver Input (R1, R2, A, B)

Description General characteristic

System band width

Range 10 Hz to 500 kHz

Nominal settings are: 10, 15, 20, 30, 40, 50, 70, 100, 150, 200, 300, 400, 500, 700, 1 k, 1.5 k, 2 k, 3 k, 4 k, 5 k, 7 k, 10 k, 15 k, 20 k, 30 k, 40 k, 50 k, 70 k, 100 k, 150 k, 200 k, 300 k, 400 k, 500 kHz

Front Panel

Description Typical General characteristic

Test Ports

Front Panel Jumpers

Probe Power

Connector Voltage & Maximum current

Display Type

Resolution

USB host port Universal serial bus jack, Type A conﬁ guration;

+15 V ± 5% (400 mA) –12.6 V ± 5% (300 mA)

Type –N, female, 50 Ω (nominal)

SMA, female, 50 Ω (nominal)

3 terminal connector x 2

10.4 inch TFT color LCD with touch screen XGA (1024 x 768)

female; provides connection to mouse, keyboard, printer, ECal module, USB power sensor, or USB/GPIB interface

Rear Panel

Description Typical General characteristic

External trigger input connector

Type Input level

Pulse width Polarity

External trigger output connector

Type Maximum output current Output level

Pulse width Polarity

External reference signal input connector

Type Input frequency Input level

1. Combined load for both probe connections

2. Valid pixels are 99.99% and more. Below 0.01% (approx. 30 points) of ﬁ xed points of black, blue, green or red are not regarded as failure.

10 MHz ± 10 ppm –3 to +10 dBm

BNC, female Low threshold voltage: 0.5 V High threshold voltage: 2.1 V Input level range: 0 to +5 V ≥ 2 μsec Positive or negative

BNC, female 50 mA Low level voltage: 0 V High level voltage: 5 V 1 μsec Positive or negative

BNC, female

Rear Panel

Description Typical General characteristic

Internal reference signal output connector

Type Output frequency Signal Type Output level Output Impedance

Internal reference signal oven connector (Option 1E5)

Type Output frequency Output level

Bias tee input connector

Type Damage level No RF spec degradation level Over current protection

Video output 15-pin mini D-Sub; female; drives XGA

GPIB 24-pin D-Sub (Type D-24), female; compatible

USB host port Universal serial bus jack, Type A conﬁ guration;

USB (USBTMC

LAN 10/100BaseT Ethernet, 8-pin conﬁ guration;

Handler I/O port 36-pin centronics, female; provides connection

Line Power

Frequency Voltage VA max Power consumption

) interface port Universal serial bus jack, Type B conﬁ guration

10 MHz ± 7 ppm Sinewave 0 dBm ± 3 dB into 50 Ω

10 MHz ± 1 ppm 0 dBm minimum

± 35 V, 1A DC 300 mA 1A (Circuit Breaker)

BNC, female

50 Ω

BNC, female

compatible monitors

with IEEE-488

female; provides connection to mouse, key board, printer, ECal module, USB power sensor, or USB/GPIB interface

(4 contacts inline); female; provides connection to an external PC; compatible with USBTMCUSB488 and USB 2.0.LA

auto selects between the two data rates

to handler system

47 Hz to 63 Hz 90-264 VAC (Vpeak ≥ 120V) 350 VA max. 135 W (SPD)

Rear panel

Description Specification General characteristic

AUX input connector Type

Input Range Accuracy

1. USB Test and Measurement Class (TMC) interface that communicates over USB, complying with the IEEE 488.1 and IEEE 488.2 standards.

2. A third-wire ground is required.

1% + 1 mV for ± 1 V input 1% + 10 mV for ± 10 V input

BNC, female ± 1 V or ± 10 V selectable

Block Diagram

Source

Solid-state

Aenuator

(65 dB)

SPDT Switch

Mechan ical Ste p

Aenuator

(60 dB,

10 dB step)

REF 1

Bias-Tee

Port 1 Port 2

RCVR R1 IN

CPLR THRU

SOURCE OUT

RCVR A IN

CPLR ARM

EMC, safety, environment and compliance

Description Specification

EMC

European Council Directive 2004/108/EC IEC 61326-1:2005 EN 61326-1:2006 CISPR 11:2003+A1:2004 EN 55011:2007 Group 1, Class A IEC 61000-4-2:1995 +A2:2000 EN 61000-4-2:1995 +A2:2001 4 kV CD/8 kV AD IEC 61000-4-3:2006 EN 61000-4-3:2006 1-3 V/m, 80-1000 MHz/1.4 GHz - 2.7 GHz, 80% AM IEC 61000-4-4:2004 EN 61000-4-4:2004 1 kV power lines/0.5 kV signal lines IEC 61000-4-5:2005 EN 61000-4-5:2006

0.5 kV line-line/1 kV line-ground IEC 61000-4-6:2003 + A1:2004+ A2:2006 EN 61000-4-6:2007 3 V, 0.15-80 MHz, 80% AM IEC 61000-4-11:2004 EN 61000-4-11:2004

0.5-300 cycle, 0%/70%

ICES-001:2006 Group 1, Class A

Bias-Tee

RCVR B IN

CPLR ARM

CPLR THRU

SOURCE OUT

REF 2

RCVR R2 IN

Mechanic al Step

Aenuator

(60 dB,

10 dB step)

AS/NZS CISPR11:2004 Group 1, Class A

EMC, safety, environment and compliance

Description Specification

Safety

European Council Directive 2006/95/EC IEC 61010-1:2001/EN 61010-1:2001 Measurement Category I Pollution Degree 2 Indoor Use

CAN/CSA C22.2 No. 61010-1-04 Measurement Category I Pollution Degree 2 Indoor Use

Environment

This product complies with the WEEE Directive (2002/96/EC) marking requirements. The afﬁ xed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as a “Monitoring and Control instrumentation” product.

Do not dispose in domestic household waste. To return unwanted products, contact your local Agilent ofﬁ ce, or see

http://www.agilent.com/environment/product/

for more information.

Compliance

Class C

Analyzer environmental speciﬁ cations and dimensions

Description General characteristics

Operating environment

Temperature Error-corrected temperature range Humidity Altitude Vibration

Non-operating environment

Temperature Humidity Altitude Vibration

Dimensions

Weight (net)

+5 °C to +40 °C 23 °C (± 5 °C) with < 1 °C deviation from calibration temperature 20% to 80% at wet bulb temperature < +29 °C (non-condensation) 0 to 2,000 m (0 to 6561 feet)

0.21 G maximum, 5 Hz to 500 Hz

–10 °C to +60 °C 20% to 90% at wet bulb temperature < +40 °C (non-condensation) 0 to 4,572 m (0 to 15,000 feet)

0.5 G maximum, 5 Hz to 500 Hz

See next page

Option 017: 19.8 kg Option 019: 19.0 kg

Dimensions (front view)

Dimensions (rear view)

Dimensions (side view)

Measurement Throughput Summary

Measurement throughput data is supplemental performance data. Common condition for the measurement throughput data:

• Analyzer display turned off with: DISP : ENAB OFF

• Number of traces = 1

• firmware version: A.01.00

Cycle time for measurement completion

Sweep mode: Swept System error correction: OFF

Number of Points 51 201 401 1601 51 201 401 1601

Start 1 GHz, stop 1.2 GHz, 500 kHz IF bandwidth

Uncorrected 2 ms 3 ms 4 ms 12 ms 3 ms 6 ms 10 ms 26 ms

2-port cal 2 ms 4 ms 7 ms 23 ms 4 ms 11 ms 18 ms 51 ms

Start 1 GHz, stop 1.2 GHz, 1 kHz IF bandwidth

Uncorrected 52 ms 199 ms 394 ms 1560 ms 52 ms 199 ms 394 ms 1600 ms

2-port cal 102 ms 396 ms 786 ms 3119 ms 102 ms 396 ms 786 ms 3119 ms

Start 30 kHz, stop 4.5 GHz, 500 kHz IF bandwidth

Uncorrected 9 ms 11 ms 12 ms 18 ms 5 ms 11 ms 16 ms 45 ms

2-port cal 16 ms 21 ms 23 ms 35 ms 10 ms 20 ms 32 ms 90 ms

Start 30 kHz, stop 4.5 GHz, 1 kHz IF bandwidth

Uncorrected 54 ms 203 ms 401 ms 1579 ms 54 ms 203 ms 401 ms 1579 ms

2-port cal 107 ms 405 ms 800 ms 3158 ms 107 ms 405 ms 800 ms 3157 ms

Start 30 kHz, stop 8.5 GHz, 500 kHz IF bandwidth

Uncorrected 12 ms 16 ms 17 ms 20 ms 6 ms 11 ms 17 ms 45 ms

2-port cal 24 ms 31 ms 33 ms 38 ms 10 ms 21 ms 32 ms 90 ms

Start 30 kHz, stop 8.5 GHz, 1 kHz IF bandwidth

Uncorrected 55 ms 204 ms 401 ms 1579 ms 55 ms 204 ms 401 ms 1579 ms

2-port cal 108 ms 406 ms 801 ms 3157 ms 108 ms 406 ms 801 ms 3157 ms

Sweep mode: Step System error correction: ON

Cycle time vs. number of points

Condition: Start 1 GHz, stop 1.2 GHz, 500 kHz IF bandwidth

Number of Points

3 1 ms 1 ms

11 2 ms 2 ms

51 2 ms 3 ms

101 2 ms 4 ms

201 3 ms 6 ms

801 7 ms 16 ms

1601 12 ms 27 ms

Sweep mode: Swept System error correction: OFF

Sweep mode: Step System error correction: ON

Cycle time vs. IF bandwidth

Condition: NOP=201, system error correction: OFF, Sweep mode: swep

IF BW (Hz)

10 19297 100 1931 1000 195 10000 20 100000 3

15 12865 150 1288 1500 130 15000 14 150000 3

20 9649 200 1091 2000 98 20000 11 200000 3

30 6433 300 645 3000 66 30000 8 300000 3

40 4825 400 484 4000 50 40000 6 400000 2

50 3861 500 388 5000 40 50000 5 500000 2

70 2735 700 276 7000 29 70000 4

Cycle Time (ms)

IF BW (Hz)

Cycle Time (ms)

IF BW (Hz)

Cycle Time (ms)

IF BW (Hz)

Cycle Time (ms)

IF BW (Hz)

Cycle Time (ms)

Data transfer time

Number of Points 51 201 401 1601

SCPI over GPIB

64-bit ﬂ oating point 5 ms 15 ms 28 ms 110 ms

32-bit ﬂ oating point 3 ms 8 ms 15 ms 56 ms

ASCII 21 ms 78 ms 156 ms 618 ms

SCPI over 100 Mbps LAN (Socket)

REAL 64 1 ms 1 ms 2 ms 3 ms

REAL 32 1 ms 1 ms 1 ms 2 ms

ASCII 13 ms 47 ms 93 ms 363 ms

SCPI over 100 Mbps LAN (SICL-LAN)

REAL 64 3 ms 3 ms 4 ms 6 ms

REAL 32 3 ms 3 ms 4 ms 4 ms

ASCII 3 ms 7 ms 11 ms 37 ms

SCPI over USB

REAL 64 2 ms 2 ms 2 ms 3 ms

REAL 32 2 ms 2 ms 2 ms 3 ms

ASCII 3 ms 9 ms 17 ms 66 ms

SCPI over GPIB/USB (82357B)

REAL 64 8 ms 14 ms 23 ms 77 ms

REAL 32 7 ms 10 ms 14 ms 41 ms

ASCII 74 ms 285 ms 568 ms 2268 ms

COM

Variant Type 1 ms 1 ms 1 ms 1 ms

1. Measured using a VEE Pro 7.0 program running on a 3.2 GHz Pentium 4 DELL Precision 370, Transferred complex S11 data, using : CALC{1-36} : DATA : FDAT?.

2. USB Test and Measurement Class (TMC) interface that communicates over USB, complying with the IEEE 488.1 and IEEE 488.2 standards.

3. Measured using an E5072A VBA macro running inside the analyzer. Transferred complex S11 data

www.agilent.com

Agilent Email Updates

www.agilent.com/find/emailupdates

Get the latest information on the products and applications you select.

www.lxistandard.org

LAN eXtensions for Instruments puts the power of Ethernet and the Web inside your test systems. Agilent is a founding member of the LXI consortium.

Agilent Channel Partners

www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s measurement expertise and product breadth, combined with channel partner convenience.

Three-Year Warranty

www.agilent.com/find/ThreeYearWarranty

Agilent’s combination of product reliability and three-year warranty coverage is another way we help you achieve your business goals: increased confidence in uptime, reduced cost of ownership and greater convenience.

Agilent Advantage Services

www.agilent.com/find/AdvantageServices

Accurate measurements throughout the life of your instruments.

www.agilent.com/quality

For more information on Agilent Technologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada (877) 894 4414 Brazil (11) 4197 3600 Mexico 01800 5064 800 United States (800) 829 4444

Asia Paciﬁ c

Australia 1 800 629 485 China 800 810 0189 Hong Kong 800 938 693 India 1 800 112 929 Japan 0120 (421) 345 Korea 080 769 0800 Malaysia 1 800 888 848 Singapore 1 800 375 8100 Taiwan 0800 047 866 Other AP Countries (65) 375 8100

Europe & Middle East

Belgium 32 (0) 2 404 93 40 Denmark 45 45 80 12 15 Finland 358 (0) 10 855 2100 France 0825 010 700* *0.125 €/minute Germany

49 (0) 7031 464 6333 Ireland 1890 924 204 Israel 972-3-9288-504/544 Italy 39 02 92 60 8484 Netherlands 31 (0) 20 547 2111 Spain 34 (91) 631 3300 Sweden 0200-88 22 55 United Kingdom 44 (0) 118 927 6201

For other unlisted countries: www.agilent.com/find/contactus

(BP-3-1-13)

Product specifications and descriptions in this document subject to change without notice.

Atec Agilent-N5072A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
