InfiniiVision 2000 X-Series
Oscilloscopes
Data Sheet
Oscilloscopes redefined:
Breakthrough technology delivers
more scope for the same budget
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Breakthrough technology for budget conscious customers
Overview of the Agilent InfiniiVision X-Series oscilloscopes
InfiniiVision
2000 X-Series
Analog channels 2 and 4 2 and 4 2 and 4
Bandwidth (upgradable) 70, 100, 200 MHz 100, 200, 350, 500 MHz, 1 GHz 200, 350, 500 MHz, 1 GHz, 1.5 GHz
Digital channels 8 (MSO models or upgrade) 16 (MSO models or upgrade) 16 (MSO models or upgrade)
Maximum sample rate 2 GSa/s 5 GSa/s (1-GHz models)
Maximum memory depth 100 kpts/channel (standard)
1 Mpt/channel (optional)
Waveform update rate > 50,000 waveforms per
second
Display 8.5-inch display 8.5-inch display 12.1-inch capacitive touch display
InfiniiScan Zone touch trigger No No Standard
WaveGen 20-MHz function/
arbitrary waveform generator
Integrated digital voltmeter Yes (option) Yes (option) Yes (option)
Search and navigate Yes (serial) Ye s Ye s
Serial protocol analysis Yes (CAN, LIN, I2C, SPI,
Segmented memory Yes (option) Yes (option) Standard
Mask/limit testing Yes (option) Yes (option) Yes (option)
Power analysis No Yes (option) Yes (option)
USB 2.0 signal quality test No No Yes (option)
HDTV analysis No Yes (option) Yes (option)
Advanced waveform math No Yes (option) Standard
Connectivity Standard USB 2.0 (LAN/
Single-channel function
(option)
RS232/UART)
Video option) (GPIB option)
InfiniiVision
3000 X-Series
4 GSa/s (100-500 MHz models)
2 Mpts (standard), 4 Mpts
(option)
> 1,000,000 waveforms per
second
Single-channel AWG (option) Dual-channel AWG (option)
Yes (optional: ARINC 429, CAN
FlexRay, I2C, I2S, LIN, MILSTD-1553, SPI, UART/RS232)
Standard USB2.0 (LAN/Video
option) (GPIB option)
InfiniiVision
4000 X-Series
5 GSa/s
4 Mpts (standard)
> 1,000,000 waveforms per second
Yes (optional: ARINC 429, CAN,
FlexRay, I2C, I2S, LIN, MIL-STD-1553,
SPI, UART/RS232, USB 2.0)
Standard USB2.0, LAN, video out
(GPIB option)
Need bigger display and state-of-the-art usability?
See the InfiniiVision 4000 X-Series, which redefines the
oscilloscope experience.
• Industry’s first 12.1-inch capacitive touch display
• InfiniiScan Zone touch trigger capability
• 200 MHz - 1.5 GHz DSO and MSO models
• 1,000,000 wfms/sec
• Standard segmented memory
• Fully upgradable 5 instrument in 1
• Digital channels (MSO)
• Protocol analysis including USB 2.0
• 20 MHz Dual-channel WaveGen with arbitrary waveform
and modulation support
• Digital voltmeter (DVM)
• Application analysis including power analysis, Xilinx FPGA,
and USB 2.0 signal quality
• N8900A InfiniiView offline analysis software support
• Standard LAN, USB, and video out connectivity
See www.agilent.com/find/4000X-Series for more details.
2
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
More scope
The InfiniiVision 2000 X-Series offers entry-level price
points to fit your budget with superior performance and
optional capabilities that are not available in any other
oscilloscope in its class. Agilent’s breakthrough technology
delivers more scope for the same budget.
With more scope, you can:
• See more of your signal more of the time with the
largest screen in its class, the deepest memory and
the fastest waveform update rates
• Do more with the power of 5 instruments in 1:
oscilloscope, logic timing analyzer, WaveGen
built-in 20 MHz function generator (optional), serial
protocol triggering and decode (optional), and digital
voltmeter (optional)
• Get more investment protection with the classes
only fully upgradable scope, including memory and
bandwidth, and a standard 5 year warranty.*
*5-year warranty applies to all orders on or after 1/1/2013.
3
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
See more of your signal, more of the time
Largest display
Engineering for the best signal visibility starts with the
largest display. Our 8.5-inch WVGA display offers 50%
more viewing area with 3.5 times the resolution (WVGA
800 x 480 versus 7-inch WQVGA 480 x 234).
Notice that the Agilent 2000 X-Series allows you to see more of your signals, and captures the infrequent glitch that you are unable to
see on other oscilloscopes in this class.
Fastest update rate
With Agilent-designed MegaZoom IV custom ASIC technology, the InfiniiVision 2000 X-Series family delivers up to
50,000 waveforms per second. With this speed you can see
signal detail and infrequent anomalies more of the time.
How does Agilent do that?
Agilent-designed MegaZoom IV custom ASIC technology
combines the capabilities of an oscilloscope, logic analyzer,
and WaveGen built-in function generator in a compact form
factor at an affordable price. 4th generation MegaZoom
technology enables the industry’s fastest waveform update
rate with responsive deep memory acquisitions.
4
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Do more with the power of 5 instruments in 1
Best-in-class oscilloscope
The InfiniiVision 2000 X-Series features Agilent’s patented
MegaZoom IV smart memory technology that is always
enabled and always responsive providing the industry’s fastest update rate at up to 50,000 waveforms per second, with
no compromise if you turn on measurements or add digital
channels. In addition, the 2000 X-Series offers 23 automated
measurements such as voltage, time, and frequency as well
as five waveform math functions including add, subtract,
multiply, divide, and FFT.
Industry’s first economy-class mixed signal
oscilloscope (MSO)
The 2000 X-Series is the first instrument in its class to
offer an integrated logic timing analyzer. Digital content is
everywhere in today’s designs and with an additional 8 integrated digital timing channels, you now have up to 12 channels of time-correlated triggering, acquisition and viewing
on the same instrument. Buy a 2 or 4 channel DSO and at
any time, upgrade it yourself to a MSO with a license to
turn on those integrated 8 digital timing channels.
Industry’s first WaveGen built-in 20 MHz
function generator with a modulation capability
An industry first, the 2000 X-Series offers an integrated
20MHz function generator, now available with the signal
modulation capability. Ideal for educational or design labs
where bench space and budget are at a premium, the
integrated function generator provides stimulus output
of sine, square, ramp, pulse, DC and noise waveforms to
your device under test. No need to buy a separate function
generator when you can get one integrated in your new
oscilloscope. Turn on WaveGen at any time by ordering the
DSOX2WAVEGEN option and install the license yourself.
Hardware-based serial protocol decode and
triggering
• Embedded serial triggering and analysis (I²C, SPI)
• Computer serial triggering and analysis
(RS232/422/485/UART)
• Automotive and industrial serial triggering and analysis
(CAN,LIN)
Agilent’s InfiniiVision Series oscilloscopes are the industry’s first scopes to use hardware-based serial protocol
decoding. Other vendors scopes use software post-processing techniques to decode serial packetsframes. With
these software techniques, waveform and decode-update
rates tend to be slow (sometimes seconds per update).
That’s especially true when using deep memory, which is
often required to capture multiple packetized serial bus
signals. Faster decoding with hardware-based technology
enhances scope usability, and more importantly, the probability of capturing infrequent serial communication errors.
After capturing a long record of serial bus communication
using the InfiniiVision scope’s MegaZoom IV deep memory,
you can easily perform a search operation based on specific
criteria, and then quickly navigate to bytes/frames of serial
data that satisfy that search criteria. Sometimes it may be
necessary to correlate data from one serial bus to another.
Integrated digital voltmeter
An industry first, the 2000 X-Series offers an integrated
3-digit voltmeter (DVM) and 5-digit frequency counter inside
the oscilloscopes. The voltmeter operates through the same
probes as the oscilloscope channels, however, the
measurements are de-coupled from the oscilloscope
triggering system so that both the DVM and triggered
oscilloscope measurements can be made with the same
connection. The voltmeter results are always displayed,
keeping these quick characterization measurements at
your fingertips. Turn on DVM at any time by ordering the
DSOXDVM option.
5
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Get more investment protection with the industry’s only fully upgradable
oscilloscope
Upgradability:
Project needs change, but traditional oscilloscopes are
fixed – you get what you pay for at the time of purchase.
With the 2000 X-Series, your investment is protected. If
you need more bandwidth (up to 200 MHz), digital channels, memory, WaveGen, integrated digital voltmeter, or
measurement applications in the future, you can easily add
them all after the fact.
See page 21 for more information on upgradable products.
Mask testing
Whether performing pass/fail tests to specified standards
in manufacturing or testing for infrequent signal anomalies
in R&D debug, the mask test option can be a valuable
productivity tool. The 2000 X-Series features hardwarebased mask testing and can perform up to 50,000 tests per
second.
Add at the time of your purchase or upgrade later:
• Bandwidth
• Digital channels (MSO)
• Memory
• WaveGen built-in 20 MHz function generator
• Integrated digital voltmeter (DVM)
• Serial protocol analysis
• Measurement applications
◦ Mask testing
◦ Segmented memory
◦ Educators’ lab kit
Segmented memory
When capturing low-duty cycle pulses or data bursts,
you can use segmented memory acquisition to optimize
acquisition memory. Segmented memory acquisition lets
you selectively capture and store important segments of
signals without capturing unimportant signal idle/deadtime. Segmented memory acquisition is ideal for applications including packetized serial pulses, pulsed laser, radar
bursts and high-energy physics experiments. Up to 250
segments can be captured on the 2000 X-Series models
with a minimum re-arm time under 19 s.
30-day trial license
The 2000 X-Series comes with a one-time 30-day all-optional-features trial license. You can
choose to start the 30-day trial at any time. In addition you can redeem individual optional
feature 30-day trial licenses at any time by visiting
enables you to receive in effect 60 days of trial license of each optional feature.
www.agilent.com/find/30daytrial. This
6
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Other productivity tools
Reference waveforms
Store up to two waveforms in the scope’s non-volatile
reference waveform memory locations. Compare these
reference waveforms with live waveforms, and perform
post analysis and measurements of stored data. You can
also store waveform data on a removable USB memory
device that can be recalled back into one of the available
two reference memories of the scope for full waveform
measurement and analysis. Save and/or transfer waveforms as XY data pairs in a comma-separated values
format (*.csv) for PC analysis. Save screen images to a PC
for documentation purposes in a variety of formats including: 8-bit bitmaps (*.bmp), 24-bit bitmaps (*.bmp), and PNG
24-bit images (*.png).
Localized GUI and help
Operate the scope in the language most familiar to you.
The graphical user interface, built-in help system, front
panel overlays, and user’s manual are available in 13
languages. Choose from: English, Japanese, simplified
Chinese, traditional Chinese, Korean, German, French,
Spanish, Russian, Portuguese, Thai, Polish and Italian.
During operation, access the built-in help system just by
pressing and holding any button.
Probe solutions
Get the most out of your 2000 X-Series scope, by using
the right probes and accessories for your application.
Agilent offers a complete family of innovative probes and
accessories for the InfiniiVision 2000 X-Series scopes.
For the most up-to-date and complete information about
Agilent’s probes and accessories, please visit our Web site
at www.agilent.com/find/scope_probes.
Autoscale
Quickly display any active signals and automatically set the
vertical, horizontal and trigger controls for optimal viewing
with the press of the autoscale button. (This feature can
be disabled or enabled for the education environment via a
USB thumb drive file with a SCPI remote command).
7
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Other productivity tools
Connectivity and LXI Compatibility
Built-in USB host (one front, one back) and USB device
ports make PC connectivity easy. Operate the scope from
your PC and save and recall stored waveforms as well as
set-up files via LAN. An optional LAN/VGA module gives
you network connectivity and complete LXI class C support
as well as the ability to connect to an external monitor. An
optional GPIB module is also available. Only one module
may be used at a time.
Intuilink toolbars and Data Capture gives you a quick way
to move screen shots and data into Microsoft Word® and
Excel. These toolbars can be installed from
www.agilent.com/find/intuilink
View Scope enables simple and free time-correlated
measurements between a 2000 X-Series oscilloscope and
an Agilent 16900, 16800, 1690 or 1680 Series logic analyzer.
Virtual Front Panel
In addition to the traditional VNC virtual front panel remote
operation through your favorite PC Web browser, the
InfiniiVision X-Series supports remote oscilloscope control
from your tablet devices. The tablet virtual front panel
looks and acts as the real front panel on the oscilloscope.
Control the setting, save/recall data, get image, and more.
Secure erase
The secure erase feature comes standard with all
InfiniiVision X-Series models. At the press of a button,
internal nonvolatile memory is clear of all setup, reference
waveforms, and user preferences, ensuring the highest
level of security in compliance with National Industrial
Security Program Operation Manual (NISPOM) Chapter 8
requirements.
8
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Other productivity tools

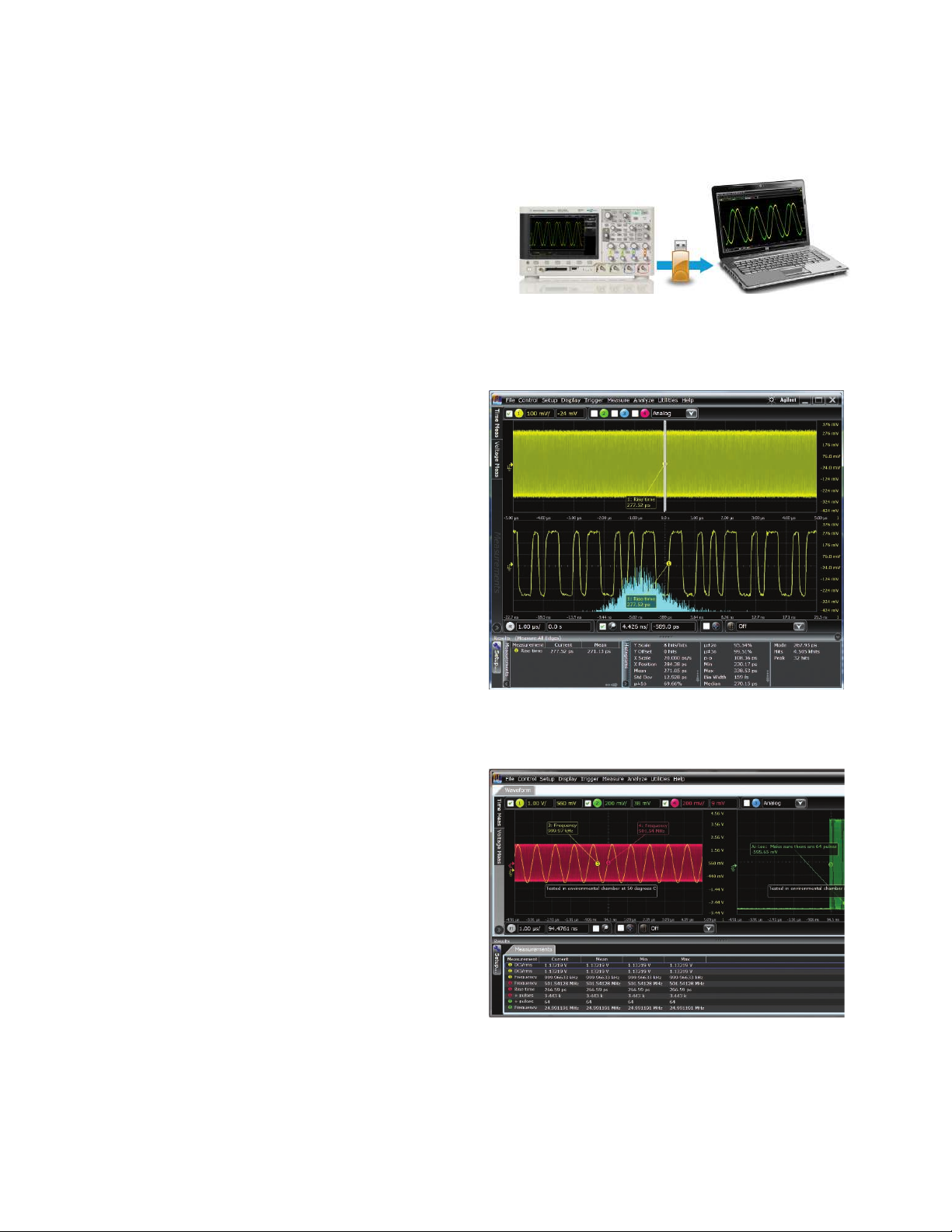

InfiniiView Oscilloscope Analysis Software
(N8900A)
Agilent’s InfiniiView PC-based analysis oscilloscope software allows you to do additional signal viewing, analysis
and documentation tasks away from your scope. Capture
waveforms on your scope, save to a file, and recall the
waveforms into InfiniiView. The application supports a
variety of popular waveform formats from multiple
oscilloscope vendors and includes the following features:
Navigate
• Pan and zoom to anywhere in the data record. Navigate
in time, or between bookmarks.
View
• Up to 8 waveforms simultaneously, 1, 2, or 4 grids
(stacked, side by side, custom layout, zoom)
Measurements
• Over 50 automated measurements
• View up to 20 simultaneously
• User-customizable result window (size, position,
information)
• X & Y markers with dynamic delta values
View and analyze away from your scope and target system
Analyze
• 20 math operators including FFT and filters
• Up to four independent/cascaded math functions
• Measurement histogram
View Windows
• Analog, math, spectral, measurement results
(simultaneous, tabbed, or undocked)
Documentation
• Right-click to copy
• Up to 100 bookmarks
• Annotated axis values
• Markers with dynamic delta value updates when moved
• One step save/load setup and all waveforms
Analysis Upgrades (Optional)
• Protocol decode for
I2C/SPI, RS232/UART, CAN/ LIN/FlexRay, SATA,
8B/10B, digRF v4, JTAG , MIPI D-Phy, SVID,
Ethernet 10G KR, PCIe 1, 2, 3, USB 2, 3, HSIC
• Jitter analysis
• Serial data analysis
Use familiar scope controls to quickly navigate and zoom in to
any event of interest.
Add bookmarks and call outs to produce friendly and useful
documentation.
9
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Other productivity tools
Agilent Spectrum Visualizer (ASV) Software
This PC-based software package connects to the scope
via USB or ethernet connection and uses the Agilent
I/O libraries to communicate. It provides advanced FFT
frequency domain analysis at a cost-effective price as well
as spectrum and spectrogram analysis with an intuitive
user interface that RF engineers are familiar with.
Tools include:
Spectrum Measurements
• Power (dBm) vs. frequency
• Horizontal (x-axis): Specify center frequency and
frequency span, or start and stop frequencies
• Vertical (y-axis): Specify reference level (dBm) and
scale (dB/div)
• Settable resolution bandwidth
• Flat top, Gaussian, or Hanning windows applied to the
time domain data for the FFT analysis
• Marker to peak amplitude, and marker to center
frequency.
• Marker peak search can be enabled for time-varying
signals
• Multiple marker, with delta X and delta Y readouts
Waterfall View for ASV Spectrogram Measurement
Acquisition and Display Modes
• Free Run (continuous ), Triggered, Stop, Single, Preset
• Triggered mode: specify trigger power level (dBm),
single or continuous sweep
• Enable/disable y-axis label
• Enable/disable main trace display
• Max hold display mode
• Gated Measurements
• Multiple viewing options
- Spectrogram
- waterfall
- 3D
• Changeable scaling settings on main window
• Local language support
• Multiple oscilloscopes can be configured to allow user
to rapidly switch between multiple instruments
Arbitrary Waveform Generator Source Control
• 20 MHz sine wave
• 10 MHz square wave
• Pulsed waveform
• WaveGen source settings can be altered while ASV is
running for interactive signal source and analysis
capability
Close-Up Detail on Frequency Shift Keying (FSK) Characteristics with the ASV Spectrogram Measurement
10
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Designed with education in mind
Quickly and easily set up or upgrade a
teaching lab
Teach your students what an oscilloscope is and how
to perform basic measurements with the Educator’s
Oscilloscope Training Kit (DSOXEDK). It includes training
tools created specifically for electrical engineering and
physics undergraduate students and professors. It contains
an array of built-in training signals, a comprehensive
oscilloscope lab guide and tutorial written specifically for the
undergraduate student, and an oscilloscope fundamentals
PowerPoint slide set for professors and lab assistants. For
more information, refer to www.agilent.com/find/EDK. Also
available are DreamCatcher’s full semester applicationspecific courseware written around Agilent test and
measurement equipment: www.dreamcatcher.asia/cw.
With features such as the ability to disable autoscale and
the 50- Ohm input data path, the InfiniiVision X-Series is a
perfect choice for education.
Get your students to quickly put the scope to work
Intuitive localized front panel design with pushable knobs
for quick access to commonly used oscilloscope functions
helps students spend more time learning the concepts and
less time learning how to use the oscilloscope. Enable your
students to answer their own questions with the localized
built-in help system that provides quick access by simply
pressing and holding any button.
Stretch your budget over the long term
Save money with an industry-exclusive built-in 20 MHz
WaveGen, instead of a separate function generator. Buy
what you need today and protect your investment in
the future with the only oscilloscopes in this class with
upgradable bandwidth, 8 digital channels (MSO), WaveGen,
integrated digital voltmeter and measurement applications.
Get long scope life and keep repair costs to a minimum
with a standard 5-year warranty*, and an instrument
reliability you’ve come to expect from the leader in test and
measurement equipment.
*Applies to all orders on or after 1/1/2013.
Optimize lab bench space
With 5 instruments in 1, you will save on precious lab
bench space by getting an oscilloscope, logic timing
analyzer, serial protocol analyzer, WaveGen function
generator and integrated digital voltmeter all in one
innovative instrument with a footprint that is only
5.57inches deep. With the large 8.5-inch WVGA display,
you can easily view all signals on one screen with enough
viewing area for more than one student to view.
11
Get up to eight integrated
digital channels
WaveGen –
Industry first
built-in function
generator
Built-in USB port
makes it easy to
save your work and
update your system
software quickly
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Oscilloscope shown actual size
8.5-inch high resolution
wide screen display
reveals subtle details
that most scopes
don’t show you
Quick summary
display of
sample rate,
channel
settings and
measurements
12
Demo and
training
signals
Quickly pan and
zoom for analysis
with MegaZoom IV’s
instant response and
optimum resolution
All front
panel
knobs are
pushable
Dedicated
keys for
quick
access
to digital
channels,
serial
analysis,
math
functions
and
reference
waveforms
Navigation front panel
controls make it easy
to play, stop, rewind
and fast forward
through waveforms
Autoscale lets you
quickly display any
analog or digital
active signals,
automatically
setting the vertical,
horizontal and trigger
controls for the
best display, while
optimizing memory
Integrated
digital
voltmeter
13
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Configuring your InfiniiVision X-Series oscilloscope
Step 1. Choose your bandwidth and channel count.
InfiniiVision 2000 X-Series scopes
2002A 2004A 2012A 2014A 2022A 2024A
Bandwidth* (–3 dB) 70 MHz 100 MHz 200 MHz
Calculated rise time (10-90%) ≤ 5 ns ≤ 3.5 ns ≤ 1.75 ns
Input
channels
* For example, if you chose 100 MHz, 2+8 channels, the model number will be MSOX2014A.
Step 2. Tailor your scope with measurement applications to save time and money
Application 2000 X-Series
1 Megapoint memory upgrade DSOX2MEMUP (-010)
Embedded serial triggering and analysis (I²C, SPI) DSOX2EMBD (-LSS)
Computer serial triggering and analysis (RS232/422/485/UART) DSOX2COMP (-232)
Automotive serial triggering and analysis (CAN, LIN) DSOX2AUTO (-AMS)
WaveGen (built-in function generator) DSOX2WAVEGEN (-001)
Integrated digital voltmeter DSOXDVM (-DVM)
Educator’s kit DSOXEDK (-EDK)
Mask testing DSOX2MASK (-LMT)
Segmented memory DSOX2SGM (-SGM)
InfiniView oscilloscope analysis software N8900A
Agilent spectrum visualizer (ASV) 64997A
1. See pages 20-21 for more detailed information on upgradability, and installation process.
Step 3. Choose your probes
DSOX 2 4 2 4 2 4
MSOX 2 + 8 4 + 8 2 + 8 4 + 8 2 + 8 4 + 8
.1
2
Probes 2000 X-Series
N2862B 150 MHz 10:1 passive probe Standard one per channel for 70 and 100 MHz models
N2863B 300 MHz, 10:1 passive probe Standard one per channel for 200 MHz models
N6459-60001 8-channel logic probe and accessory kit Standard on MSO models or with DSOX2MSO upgrade
N2889A 350 MHz 10:1/1:1 passive probe Optional
10070D 20 MHz 1:1 passive probe with probe ID Optional
10076A 250 MHz 100:1, 4 kV high-voltage passive probe with probe ID Optional
N2791A 25 MHz, ±700 V high-voltage differential probe Optional
N2792A 200 MHz 10:1 differential probe Optional
1146A 100 kHz, 100 A, AC/DC current probe Optional
2. See page 20 for probe compatibilty table. For more information on probes and accessories, see the Agilent literature 5968-8153EN
Step 4. Add the final touches.
Recommended accessories 2000 X-Series
LAN/VGA connection module DSOXLAN
GPIB connection module DSOXGPIB
Rack mount kit N6456A
Soft carrying case and front panel cover N6457A
Hard copy manual N6458A
Front panel cover (only) N2747A
14
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Performance characteristics
Specification overview
2002A 2004A 2012A 2014A 2022A 2024A
Bandwidth * (–3 dB) 70 MHz 100 MHz 200 MHz
“Calculated rise time (10-90%)” ≤ 5 ns ≤ 3.5 ns ≤ 1.75 ns
Input channels DSOX 2 4 2 4 2 4
MSOX 2 + 8 4 + 8 2 + 8 4 + 8 2 + 8 4 + 8
Maximum sample rate 2 GSa/s half-channel interleaved, 1 GSa/s per channel
Maximum memory depth 100 kpts per channel (standard), 1 Mpt per channel (optional with DSOX2MEMUP)
Display size and type 8.5-inch WVGA with 64 levels of intensity grading
Waveform update rate > 50,000 waveforms per second
Vertical system analog channels
Input coupling AC, DC
Input sensitivity range 1 mV/div to 5 V/div**
Input impedance 1 MΩ ± 2% (11 pF)
Vertical resolution 8 bits
Dynamic range ±8 divisions from center screen
Maximum input voltage CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
CAT II 300 Vrms, 400 Vpk; with N2862B or N2863B 10:1 probe: 300 Vrms
DC vertical accuracy ±[DC vertical gain accuracy + DC vertical offset accuracy + 0.25% full scale] **
DC vertical gain accuracy* ±3% full scale (≥ 10 mV/div); ±4% full scale (< 10 mV/div) **
DC vertical offset accuracy ±0.1 div ± 2mV ±1% of offset setting
Channel-to-channel isolation 200 MHz ~ 1 GHz
1.5 GHz ≥ 40 dB from DC to 1 GHz, ≥ 35 dB from 1 GHz to 1.5 GHz
Position/offset range 1 MΩ 1 mV to 200 mV/div: ±2 V, > 200 mV to 5 V/div: ± 50V
Hardware bandwidth limits Approximately 20 MHz (selectable)
≥ 40 dB from DC to maximum specified bandwidth of each model
Horizontal system analog channels
2002A 2004A 2012A 2014A 2022A 2024A
Time base range 5 ns/div to 50 s/div 2 ns/div to 50 s/div
Horizontal resolution 2.5 ps
Time base accuracy* 25 ppm ±5 ppm per year (aging)
Time base delay time
range
Channel-to-channel deskew range ± 100 ns
∆ Time accuracy (using cursors) ± (time base accuracy* reading) ± (0.0016 * screen width) ± 100 ps
* Denotes warranted specifications, all others are typical.
Specifications are valid after a 30-minute warm-up period and from ±10 °C firmware calibration temperature.
** 1 mV/div and 2 mV/div is a magnification of 4 mV/div setting. For vertical accuracy calculations, use full scale of 32 mV for 1 mV/div and 2 mV/div sensitivity setting.
Pre-trigger Greater of 1 screen width or 200 µs (400 µs in interleaving mode)
Post-trigger 1 s to 500 s
15
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Performance characterisitics
Acquisition modes
Normal
Peak detect Capture glitch as narrow as 500 ps at all timebase settings.
Averaging Select from 2,4,8,16, 64... to 65,536
High resolution mode 12 bits of resolution when ≥ 20 s/div
Segmented Re-arm time= 19 s (minimum time between trigger events)
Trigger system
Trigger modes • Normal (triggered): requires trigger event for scope to trigger
• Auto: triggers automatically in absence of trigger event
• Single: triggers only once on a trigger event, press [Single] again for scope to find another trigger
event, or press [Run] to trigger continuously in either Auto or Normal mode
• Force: front panel button that forces a trigger
Trigger coupling Coupling selections: AC, DC, noise reject, LF reject and HF reject.
Trigger source Each analog channel, each digital channel (MSO models or DSOX2MSO upgrade, Ext, WaveGen, line)
Trigger sensitivity (internal)* < 10 mV/div: greater of 1 div or 5 mV; ≥ 10 mV/div: 0.6 div
Trigger sensitivity (external)* 200 mV (DC to 100 MHz); 350 mV (100 MHz - 200 MHz)
External trigger input Included on all models
Trigger type selections
All 2000 X-Series models
Edge Trigger on a rising, falling, alternating or either edge of any source
Pulse width Trigger on a pulse on a selected channel, whose time duration is less than a value, greater than a value,
or inside a time range
• Minimum duration setting: 2 ns- 10 ns (depends on bandwidth)
• Maximum duration setting: 10 s
Pattern Trigger when a specified pattern of high, low, and don’t care levels on any combination of analog, digital,
or trigger channels is [entered | exited]. Pattern must have stabilized for a minimum of 2 ns to qualify as
a valid trigger condition.
Video Trigger on all lines or individual lines, odd/even or all fields from composite video, or broadcast
standards (NTSC, PAL, SECAM, PAM-M)
I²C (optional) Trigger on I²C (Inter-IC bus) serial protocol at a start/stop condition or user defined frame with address
and/or data values. Also trigger on missing acknowledge, address with no accq, restart, EEPROM read,
and 10-bit write.
SPI (optional) Trigger on SPI (Serial Peripherial Interface) data pattern during a specific framing period. Supports positive
and negative Chip Select framing as well as clock Idle framing and userspecified number of bits per frame.
CAN (optional) Trigger on CAN (controller area network) version 2.0A and 2.0B signals. Trigger on the start of frame
(SOF) bit (standard). Remote frame ID (RTR), data frame ID (~RTR), remote or data frame ID, data frame
ID and data, error frame, all errors, acknowledge error and overload frame.
LIN (optional) Trigger on LIN (Local Interconnect Network) sync break, sync frame ID, or frame ID and data.
RS232/422/485/UART
(optional)
Trigger on Rx or Tx start bit, stop bit or data content
* Denotes warranted specifications, all others are typical.
Specifications are valid after a 30-minute warm-up period and from ±10 °C firmware calibration temperature.
16
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Performance characterisitics
Cursors
Types Amplitude, time , frequency (FFT), manual, tracking, binary, HEX
Measurements ∆T, 1/∆T, ∆V/X, 1/∆X, ∆Y, Phase and Ratio
Cursors** • Single cursor accuracy:
±[DC vertical gain accuracy + DC vertical offset accuracy + 0.25% full scale]
• Dual cursor accuracy:
±[DC vertical gain accuracy + 0.5% full scale]*
Automatic waveforms measurements
Voltage Snapshot all, maximum, minimum, peak-to-peak, top, base, amplitude, overshoot, preshoot, average- N
cycles, average-full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles
Time Period, frequency, rise time, fall time, + width, – width, duty cycle, delay A→B (rising edge), delay A→B
(falling edge), phase A→B (rising edge,) and phase A→B (falling edge)
Waveform math
Operators Add, subtract, multiply, FFT
FFT Windows: Hanning, flat top, rectangular; Blackman-Harris - up to 64 kpts resolution
Sources Math functions available between any two channels
Display characteristics
Display 8.5-inch WVGA
Resolution 800 (H) x 480 (V) pixel format (screen area)
Interpolation Sin(x)/x interpolation (using FIR filter; used when there is less than one sample per column of the display)
Persistence Off, infinite, variable persistence (100ms-60s)
Intensity gradation 64 intensity levels
Modes Normal
XY - XY mode changes the display from voltage versus time scale to a volts versus volts scale
Roll – Displays the waveform moving across the screen from right to left much like a strip chart recorder
MSO (digital channels)
Upgradable from DSO Yes
MSO channels 8 channels (D0 to D7)
Maximum sample rate 1 GSa/s
Maximum record length 50 kpts per channel (digital channels only)
12.5 kpts per channel (analog and digital channels)
Threshold selections TTL (+1.4 V), CMOS (+2.5 V), ECL (-1.3 V), User-definable (±8.0 V in 10 mV stops)
Threshold accuracy* ± (100 mV + 3% of threshold settings)
Maximum input dynamic
range
Minimum voltage swing 500 mVpp
Input impedance 100 kΩ ± 2% at probe tip, ~8 pF
Minimum detectable pulse
width
Channel-to-channel skew 2 ns (typical), 3 ns (maximum)
±10 V about threshold
5 ns
* Denotes warranted specifications, all others are typical.
Specifications are valid after a 30-minute warm-up period and from ±10 °C firmware calibration temperature.
** 1 mV/div and 2 mV/div is a magnification of 4 mV/div setting. For vertical accuracy calculations, use full scale of 32 mV for
2 mV/div sensitivity setting.
17
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Performance characteristics
WaveGen – built-in function generator (specifications are typical)
Waveforms Sine, square, pulse, triangle, ramp, noise, DC
Sine • Frequency range: 0.1 Hz to 20 MHz
• Amplitude flatness: ±0.5 dB (relative to 1 kHz)
• Harmonic distortion: –40 dBc
• Spurious (non harmonics): –40 dBc
• Total harmonic distortion: 1%
• SNR (50 ohm load, 500 MHz BW) : 40 dB (Vpp ≥ 0.1 V); 30 dB (Vpp <0.1 V)
Square wave/pulse • Frequency range: 0.1 Hz to 10 MHz
• Duty cycle: 20 to 80%
• Duty cycle resolution: Larger of 1% or 10 ns
• Pulse width: 20 ns minimum
• Pulse width resolution: 10 ns or 5 digits, whichever is larger
• Rise/fall time: 18 ns (10 to 90%)
• Overshoot: < 2%
• Asymmetry (at 50% DC): ±1% ± 5 ns
• Jitter (TIE RMS): 500 ps
Ramp/triangle wave • Frequency range: 0.1 Hz to 100 kHz
• Linearity: 1%
• Variable symmetry: 0 to 100%
• Symmetry resolution: 1%
Noise Bandwidth: 20 MHz typical
Frequency • Sine wave and ramp accuracy:
◦ 130 ppm (frequency < 10 kHz)
◦ 50 ppm (frequency > 10 kHz)
• Square wave and pulse accuracy:
◦ [50+frequency/200] ppm (frequency < 25 kHz)
◦ 50 ppm (frequency ≥ 25 kHz)
• Resolution: 0.1 Hz or 4 digits, whichever is larger
Amplitude • Range:
◦ 20 mVpp to 5 Vpp into Hi-Z
◦ 10 mVpp to 2.5 Vpp into 50 ohms
• Resolution: 100 V or 3 digits, whichever is larger
• Accuracy: 2% (frequency = 1 kHz)
DC offset • Range:
◦ ±2.5 V into Hi-Z
◦ ±1.25 V into 50 ohms
• Resolution: 100 µV or 3 digits, whichever is larger
• Accuracy: ±1.5% of offset setting ±1.5% of amplitude ±1 mV
Trigger output Trigger output available on Trig out BNC
18
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
Performance characteristics
WaveGen – built-in function generator (specifications are typical) (Continued)
Modulation Modulation types: AM, FM, FSK
Carrier waveforms: sine, ramp
Modulation source: Internal (no external modulation capability)
AM:
Modulation waveform: sine, square, ramp
Modulation frequency (1Hz to 20 kHz)
Depth: 0% to 100%
FM:
Modulation: sine, square, ramp (1 Hz to 20 kHz)
Modulation frequency (1 Hz to 20 kHz)
Minimum carrier frequency: 10 kHz
Minimum deviation: 1 Hz
Maximum deviation: 100 kHz or (carrier frequency - 9 kHz), whichever is smaller.
FSK:
Modulation: 50% duty cycle square wave
FSK rate: 1 Hz to 20 kHz
Minimum carrier frequency: 10 kHz
Minimum hop frequency: 2 * FSK rate
Integrated Digital Voltmeter
Functions ACrms, DC, DCrms, Frequency
Resolution ACV/DCV: 3 digits Frequency: 5.5 digits
Measuring rate 100 times/ second
Autoranging Automatic adjustment of vertical amplification to maximize the dynamic range of measurements.
Range meter Graphical display of most recent measurement, plus extrema over the previous 3 seconds
Measurement range (specifications are typical)
Frequency Range Vertical Range
ACRms 20 Hz - 100 KHz 100 MHz to 500 MHz: 1 mV/div to 5 V/
DCRms 20 Hz - 100 KHz [DC vertical gain accuracy + DC vertical offset
DC NA [DC vertical gain accuracy + DC vertical offset
Frequency
counter
1Hz – BW of Scope <10 mV/div: greater of 1 div or 5 mV; ≥
div** (1 MΩ and 50 Ohm)
1 GHz model: 1 mV/div to 5 V/div** (1
MΩ), 1mV/div to 1V/div (50 Ohm)
10 mV/div: 0.6 div
Vertical Accuracy
[
DC vertical gain accuracy + 0.5% full scale
accuracy + 0.25% full scale]
accuracy + 0.25% full scale]
25 ppm ± 5 ppm per year (aging)
.
19
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
InfiniiVision X-Series physical characteristics
Connectivity
Standard ports One USB 2.0 hi-speed device port on rear panel. Supports USBTMC protocol.
Two USB 2.0 hi-speed host ports, front and rear panel
Supports memory devices and printers
Optional ports GPIB, LAN, WVGA video out
General and environmental characteristics
Power line consumption 100 watts
Power voltage range 100-120V, 50/60/400 Hz; 100-240V, 50/60 Hz ±10% auto ranging
Temperature Operating: 0 to +55 °C
Humidity Operating: Up to 80% RH at or below +40 °C; up to 45% RH up to +50 °C
Altitude Operating: up to 4,000 m, Non-operating 15,300 m
Electromagnetic compatibility Meets EMC Directive (2004/108/EC), meets or exceeds IEC 61326-1:2005/EN
Safety UL61010-1 2nd edition, CAN/CSA22.2 No. 61010-1-04
Dimensions 381 mm (15 in) W x 204 mm (8 in) H x 142 mm (5.6 in) D
Weight Net: 3.9 kg (8.5 lbs), shipping: 4.1 kg (9.0 lbs)
Non-operating: –30 to +71 °C
Non-operating: Up to 95% RH up to 40 °C; up to 45% RH up to 50 °C
61326-1:2006 Group 1 Class A requirement
CISPR 11/EN 55011
IEC 61000-4-2/EN 61000-4-2
IEC 61000-4-3/EN 61000-4-3
IEC 61000-4-4/EN 61000-4-4
IEC 61000-4-5/EN 61000-4-5
IEC 61000-4-6/EN 61000-4-6
IEC 61000-4-11/EN 61000-4-11
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
Nonvolatile storage
Reference waveform display 2 internal waveforms or USB thumb drive
Waveform storage Set up, .bmp, .png, .csv, ASCII, XY, reference waveforms, .alb, .bin, lister, mask , HDFS
Max USB flash drive size Supports industry standard flash drives
Set ups without USB flash drive 10 internal setups
Set ups with USB flash drive Limited by size of USB drive
Included standard with oscilloscope
Standard 5-year warranty*
Standard secure erase
Standard Probe
N2862B 150 MHz 10:1 passive probe Standard one per channel for 70 and 100 MHz models
N2863B 300 MHz, 10:1 passive probe Standard one per channel for 200 MHz models
N6459-60001 8-channel logic probe and accessory kit Standard on MSO models or with DSOX2MSO upgrade
Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish,
Russian, Portuguese and Italian, Certificate of Calibration, Documentation CD
Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French,
Spanish, Russian, Portuguese, Thai, Polish and Italian
Localized power cord
*Applies to all orders on or after 1/1/2013.
For MET/CAL procedures, click on the Cal Labs solutions link below Cal Labs Solutions
http://www.callabsolutions.com/MetCALandCLS.asp
These procedures are FREE to customers.
20
Oscilloscopes redefined: Breakthrough technology delivers more scope for the same budget
License-only bandwidth upgrades and measurement applications
Bandwidth upgrade models
2000 X-Series
DSOX2BW12 70 MHz to 100 MHz, 2 ch, License only
DSOX2BW14 70 MHz to 100 MHz, 4 ch, License only
DSOX2BW22 100 MHz to 200 MHz, 2 ch, License only
DSOX2BW24 100 MHz to 200 MHz, 4 ch, License only
Measurement applications
DSOX2MEMUP Upgrade to 1 Mpts per channel
DSOX2COMP Computer serial triggering and analysis
(RS232/422/485/UART)
DSOX2AUTO Automotive serial triggering and analysis
(CAN, LIN)
DSOX2EMBD Embedded serial triggering and analysis
(I2C, SPI)
DSOX2WAVEGEN WaveGen (built-in function generator)
DSOXDVM Integrated digital voltmeter
DSOXEDK Educator’s kit
DSOX2MASK Mask testing
DSOX2SGM Segmented memory
DSOX2MSO
Upgrade to 8 digital timing channels

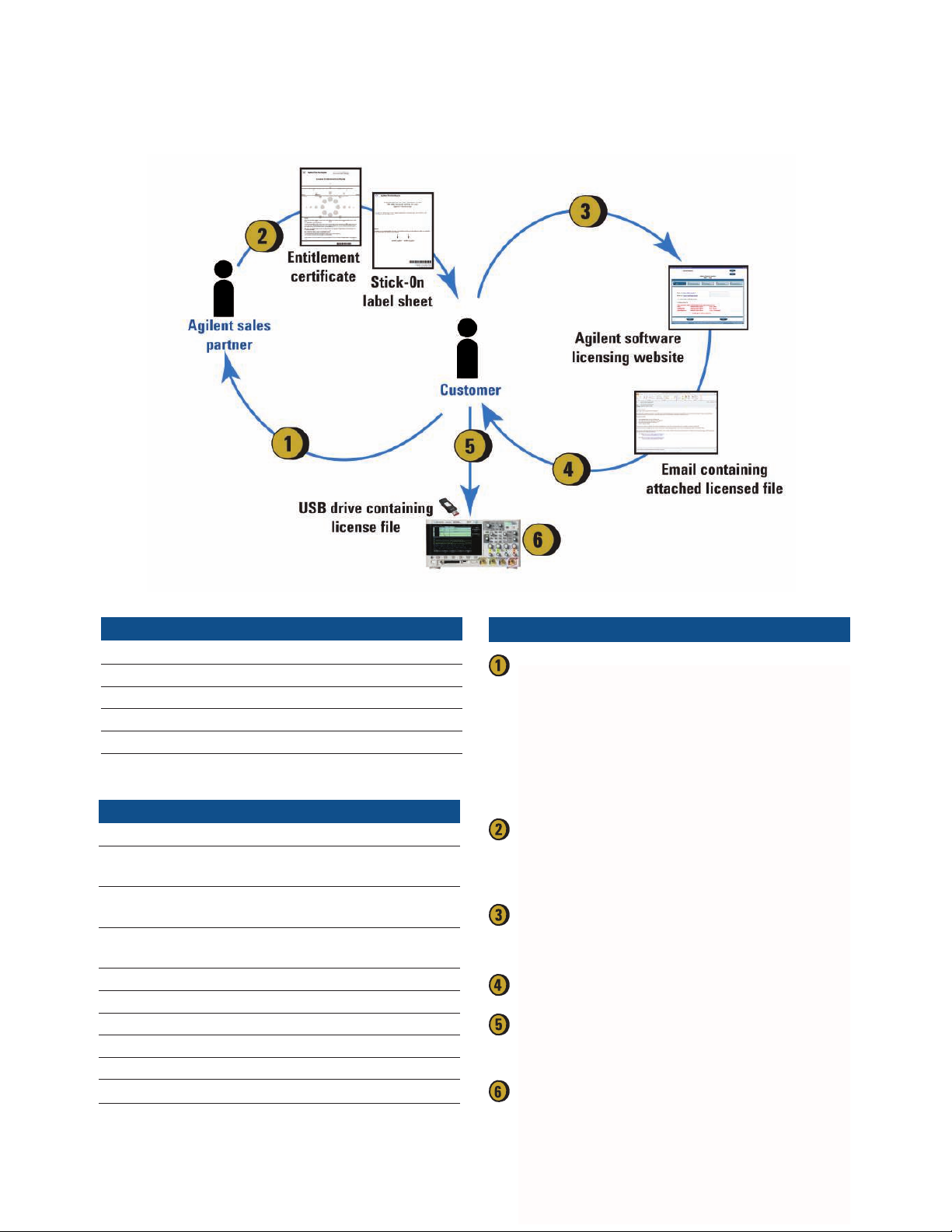

Process description
Place order for a license only bandwidth upgrade or
measurement appliction product to an Agilent sales
partner. If multiple bandwidth upgrade steps are needed,
order all the corresponding upgrade products required to
get from current bandwidth to desired bandwidth. In the
case where the new bandwidth requires higher bandwidth
passive probes, they are included with the upgrade. For
the DSOX2BW22 and DSOX2BW24, the N2863B 10:1 300
MHz passive probes (1 per channel) will be sent with the
upgrade.
Receive a paper or electronic .pdf Entitlement
Certificate document for any of the orderable measurement
applications For bandwidth upgrades only, you receive a
stick-on label document indicating upgraded bandwidth
specification.
Use Entitlement Certificate or electronic .pdf document
containing instructions and certificate number needed to
generate a license file for a particular 2000 or 3000 X-Series
oscilloscope model number and serial number unit.
Receive the licensed file and installation instructions via
email.
Copy license file (.lic extension) from email to a
USB drive and follow instructions in email to install the
purchased bandwidth upgrade or measurement application
on the oscilloscope.
For bandwidth upgrades only, attach bandwidth upgraded
stick-on labels to front and rear panels of the oscilloscope.
Model number and serial number of the oscilloscope do not
change.
21
Agilent Technologies Oscilloscopes
Multiple form factors from 20 MHz to > 90 GHz | Industry leading specs | Powerful applications
22
www.agilent.com
Quality Management SystemQuality Management Sy
s
Agilent Electronic Measurement Group
DEKRA Certified
www.agilent.com/find/2000X-Series
myAgilent
myAgilent
www.agilent.com/find/myagilent
A personalized view into the information most
relevant to you.
www.axiestandard.org
AdvancedTCA® Extensions for
Instrumentation and Test (AXIe) is an
open standard that extends the
AdvancedTCA for general purpose and
semiconductor test. Agilent is a founding
member of the AXIe consortium.
www.pxisa.org
PCI eXtensions for Instrumentation
(PXI) modular instrumentation delivers
a rugged, PC-based high-performance
measurement and automation system.
Agilent Channel Partners
www.agilent.com/find/channelpartners
Get the best of both worlds: Agilent’s
measurement expertise and product
breadth, combined with channel partner
convenience.
Three-Year Warranty*
www.agilent.com/find/ThreeYearWarranty
Agilent’s combination of product reliability
and three-year warranty coverage is another
way we help you achieve your business goals:
increased confidence in uptime, reduced cost
of ownership and greater convenience.
* InfiniiVision 2000 X-Series oscilloscopes
bought on or after January 1, 2013, have a
5-year warranty.
Agilent Advantage Services
www.agilent.com/find/AdvantageServices
Accurate measurements throughout the
life of your instruments.
ISO 9001:2008
www.agilent.com/quality
For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent
office. The complete list is available at:
www.agilent.com/find/contactus
Americas
Canada (877) 894 4414
Brazil (11) 4197 3600
Mexico 01800 5064 800
United States (800) 829 4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Other AP Countries (65) 375 8100
Europe & Middle East
Belgium 32 (0) 2 404 93 40
Denmark 45 45 80 12 15
Finland 358 (0) 10 855 2100
France 0825 010 700*
*0.125 €/minute
Germany 49 (0) 7031 464 6333
Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
United Kingdom 44 (0) 118 927 6201
For other unlisted countries:
www.agilent.com/find/contactus
(BP2-19-13)
Product specifications and descriptions
in this document subject to change
without notice.
© Agilent Technologies, Inc. 2012, 2013
Published in USA, August 23, 2013
5990-6618EN
Loading...
