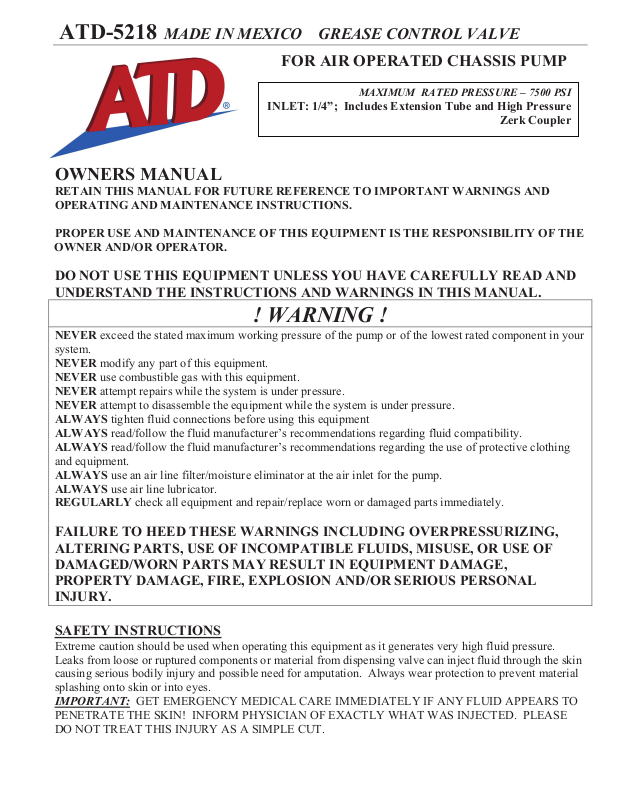

ATD Tools ATD-5218 User Manual

ATD-5218 MADE IN MEXICO GREASE CONTROL VALVE
FOR AIR OPERATED CHASSIS PUMP
MAXIMUM RATED PRESSURE – 7500 PSI
INLET: 1/4”; Includes Extension Tube and High Pressure
Zerk Coupler

OWNERS MANUAL

RETAIN THIS MANUAL FOR FUTURE REFERENCE TO IMPORTANT WARNINGS AND OPERATING AND MAINTENANCE INSTRUCTIONS.
DO NOT USE THIS EQUIPMENT UNLESS YOU HAVE CAREFULLY READ AND UNDERSTAND THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL.

! WARNING !

NEVER exceed the stated maximum working pressure of the pump or of the lowest rated component in your system.
NEVER modify any part of this equipment. NEVER use combustible gas with this equipment. NEVER attempt repairs while the system is under pressure. NEVER attempt to disassemble the equipment while the system is under pressure. ALWAYS tighten fluid connections before using this equipment ALWAYS read/follow the fluid manufacturer’s recommendations regarding fluid compatibility. ALWAYS read/follow the fluid manufacturer’s recommendations regarding the use of protective clothing
and equipment.
ALWAYS use an air line filter/moisture eliminator at the air inlet for the pump. ALWAYS use air line lubricator. REGULARLY check all equipment and repair/replace worn or damaged parts immediately.
FAILURE TO HEED THESE WARNINGS INCLUDING OVERPRESSURIZING, ALTERING PARTS, USE OF INCOMPATIBLE FLUIDS, MISUSE, OR USE OF DAMAGED/WORN PARTS MAY RESULT IN EQUIPMENT DAMAGE, PROPERTY DAMAGE, FIRE, EXPLOSION AND/OR SERIOUS PERSONAL INJURY.

SAFETY INSTRUCTIONS

Extreme caution should be used when operating this equipment as it generates very high fluid pressure. Leaks from loose or ruptured components or material from dispensing valve can inject fluid through the skin causing serious bodily injury and possible need for amputation. Always wear protection to prevent material splashing onto skin or into eyes.
IMPORTANT:
PENETRATE THE SKIN! INFORM PHYSICIAN OF EXACTLY WHAT WAS INJECTED. PLEASE DO NOT TREAT THIS INJURY AS A SIMPLE CUT.
GET EMERGENCY MEDICAL CARE IMMEDIATELY IF ANY FLUID APPEARS TO
! WARNING ! – RELIEF PROCEDURE
DO NOT EVER point the dispensing valve at another person. DO NOT EVER attempt to stop material from the dispensing valve or a leaking connection with your hand
or body. BEFORE EACH USE, check equipment for proper operation and to insure safety devices are in place and working properly. NEVER modify this equipment. Modification could cause equipment malfunction and resulting serious bodily injury. When flushing the pump with solvents, ALWAYS hold a metal part of the dispensing valve firmly to the side of a grounded metal pail and operate pump at the lowest possible fluid pressure to reduce the risk of injury from splashing or static sparking.
WARNING: This pump can develop 7500 PSI working pressure at 125 PSI maximum incoming air pressure. Be sure that all system equipment and accessories are rated to withstand the maximum working pressure of this pump. NEVER exceed the maximum working pressure of the lowest rated component in the system. IMPORTANT: “Whip” hoses for dispensing valve are fluid pressure rated at 4500 PSI. NEVER exceed 90 PSI, air pressure to pump when using “whip” hoses.
WARNING: Water and even moist air can cause this pump to corrode. To aid in the prevention of this corrosion, NEVER leave the pump filled with water or air. After normal flushing, flush the pump once more with mineral spirits or an oil based solvent, relieve pressure and leave the mineral sp irits in the pump. It is strongly suggested to put 2-4 fl oz of Lubricating Oil in the Air Motor Inlet every week for Proper Lubrication. Never use a Synthetic Oil as this will cause irreparable damage to the pump. BE SURE
TO CORRECTLY FOLLOW THE PRESSURE RELIEF PROCEDURE.
PRESSURE RELIEF PROCEDURE
ALWAYS FOLLOW THIS PROCEDURE to reduce the risk of serious bodily injury, including splashing into the eyes. After shutting off the pump; checking/servicing any part of the system; installing/cleaning or changing any part of the system, ALWAYS follow this procedure:
1. Disconnect the air supply to the pump.
2. Aim the dispensing valve away from yourself and others.
3. Aim the dispensing valve into an appropriate container and open until all pressure is relieved.
If you believe that the dispensing valve or hose is completely clogged or that pressure in the pump has not been fully relieved after following the above procedure, VERY SLOWLY loosen the hose end coupling to relieve the pressure gradually and then loosen completely. Then proceed to clear the valve or hose.
WARNING: ALWAYS follow the Pressure Relief Procedure after shutting off the pump. WARNING: ALWAYS follow the Pressure Relief Procedure when checking/servicing any part of the
system and when installing, cleaning or changing any part of the system.
INSPECTION INSTRUCTIONS
If you believe that you have overpressurized the equipment, or if your equipment requires adjustments or repair, contact ATD’s service center at 1-800-328-2897 for inspection of the pump.
LUBRICATION: It is recommended to lubricate the Air Motor once a week with 2-4fl oz of Common Lubricating
Motor Oil injected into the Airlet port of the Air Motor. This will ensure maximum life of the Air Motor. Never use a Synthetic Oil to Lubricate the Air Motor and this will swell the Buna-N rubber packings and cause irreparable damage.
INSTALLATION
It is recommended that you use an air line filter/regulator/lubricator to remove harmful dirt
and moisture from the compressed air supply and to provide automatic lubrication to the air motor. Blow­dry the lines and hoses with air before connecting them to the system.
ATD WARRANTY & SERVICE CENTER MAY BE CONTACTED AT 1-800-328-2897.
WARNING: AVOID INJURY: DO NOT
COME IN CONTACT WITH ANY BODY
PARTS WITH THE NOZZLE TO
PREVENT INJURY
MODEL
ATD5218
LT82393ME
LT3050ME
LT81495ME
AVAILABLE MODELS
W/ ACC
W/ 62028ME ATD5258
W/O 62028ME ATD5258
W/ 62028ME ATD5258
W/O 62028ME ATD5258
COUPLNG NUT INLET
12869ME 1/4" NPT(F) 12869ME 1/4" NPT(F) 11396ME 3/8" NPT(F) 11396ME 3/8" NPT(F)
y
REPAIR PARTS
QTY PART # DESCRIPTION
HYDRAULIC COUPLER W/
1 5834 1 ATD5258 HYDRAULIC COUPLER 1 10181 NOZZLE ADAPTER 1 11356 CONTROL VALVE BODY
1 11362 1 11363 BALL RETAINER
1 11364 1 1 11837 TOGGLE PIVOT SCREW 1 12826 PACKING GLAND 1 12828 PIVOT BAR 1
1 35007 1 45788 HANDLE 1 45820 TOGGLE LINK
1 48218 3 51043 LOCKNUT 1 55029 FRICTION SPRING 1 62028 NOZZLE EXTENSION 1 66177 TOGGLE PIN
1 66255 1 66011 STEEL BALL
11396 3/8" NPTF COUPLING NUT
12869 1/4" NPTF COUPLING NUT
EXTENSION
PULL ROD
CHECK SEAT
VALVE STEM PACKING
PACKING WASHER
STEEL BALL
* Included in Repair Kit 82157ME
*
*
*
*
*
FIGURE “A” ADJUSTING
CONTROL VALVE:
ROD MAY PROTRUDE
5/32” MAX
1/32” MIN MOVE 1/16” MAX MOVE
OPERATION OF THE CONTROL VALVE:
All 4 High Pressure control valves were designed to control the flow of lubricant from high pressure air operated pumps. Only a small pull of the trigger on the control valve handle is required to obtain sensitive flow control. When the 45788ME Handle is in its normal position the 55029ME Spring acts thru the 11363ME Ball Retainer to seat the 66255ME Ball against the 11364ME Check Seat, preventing lubricant flow thru the control valve. When the handle is depressed, the 11362ME Rod and ball retainer move up, compressing the spring, allowing lubricant pressure to unseat the ball and flow thru the control valve. The ball retainer limits the travel of the ball. Thus, the lubricant flow rate is determined b
the distance the handle is depressed.
MAINTENANCE :
If lubricant continues to flow from the ATD5258 Coupler after the handle is released, the ball is not sealing against the check seat. Remove and examine the check seat and the ball by unthreading the coupling nut. If the ball is not perfectly smooth, replace it. The check seat has a ball seat on both sides. If the ball seat being used is rough, worn or pitted, invert the check seat and reassemble the control valve. If both sides of the check seat are damaged replace the check seat and ball or use the 82157ME Repair Kit. After assembly, the adjustment nuts at the top of the control valve should be adjusted as in Figure ''A". To prevent damage to the check seat, do not adjust for less than 1/32" pull rod travel.
TROUBLESHOOTING GUIDE FOR HIGH PRESSURE CONTROL VALVES
Greases leaks out of the coupler ATD5258 when handle is not depressed. No Grease is pumped out of the coupler ATD5258 when handle is depressed Grease Leaks out of the top Replace packing 35007ME
Clean ball 66255ME and Seat 11364ME; If seat is pitted on one side, reverse it. Clean ball 66255ME and Seat 11364ME; If seat is pitted on one side, reverse it.
