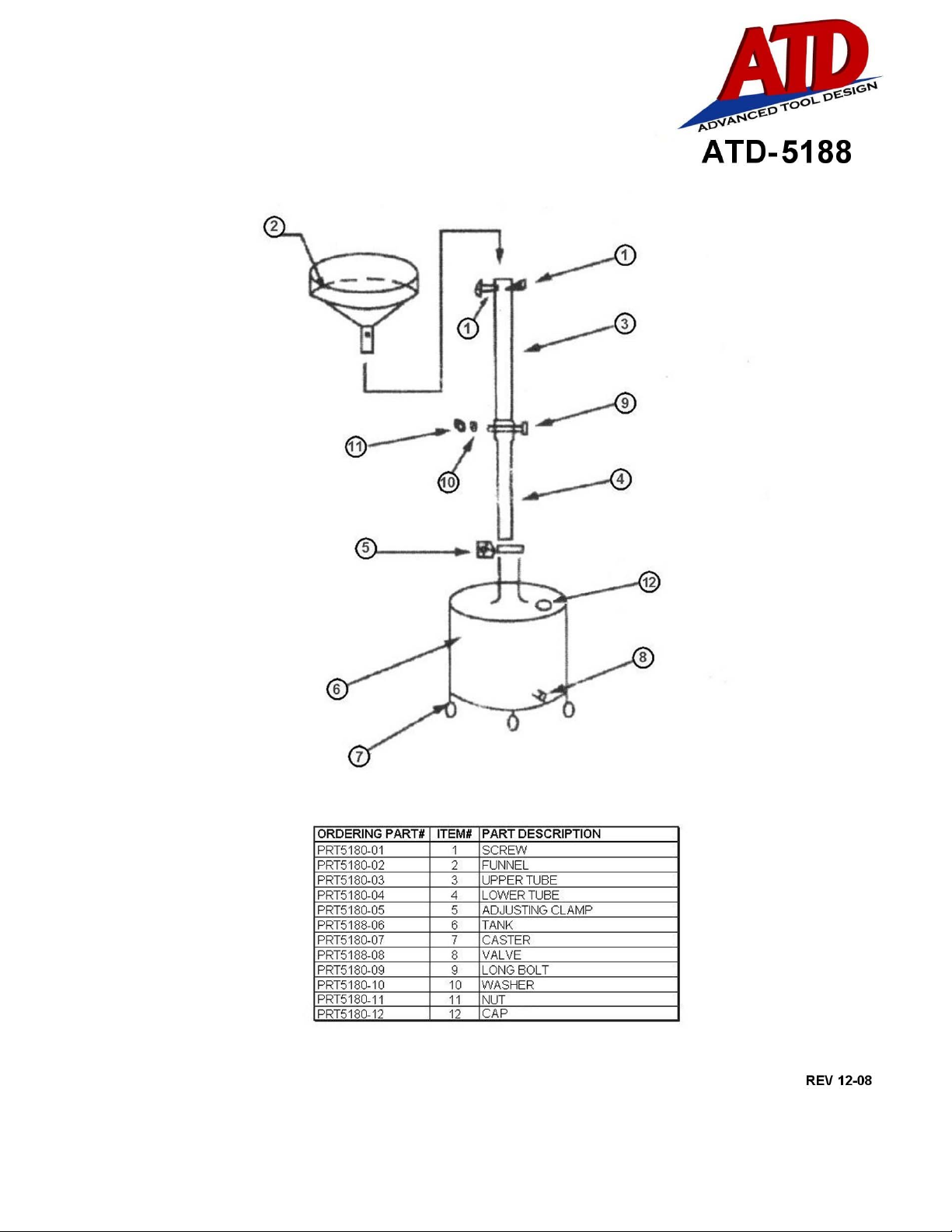

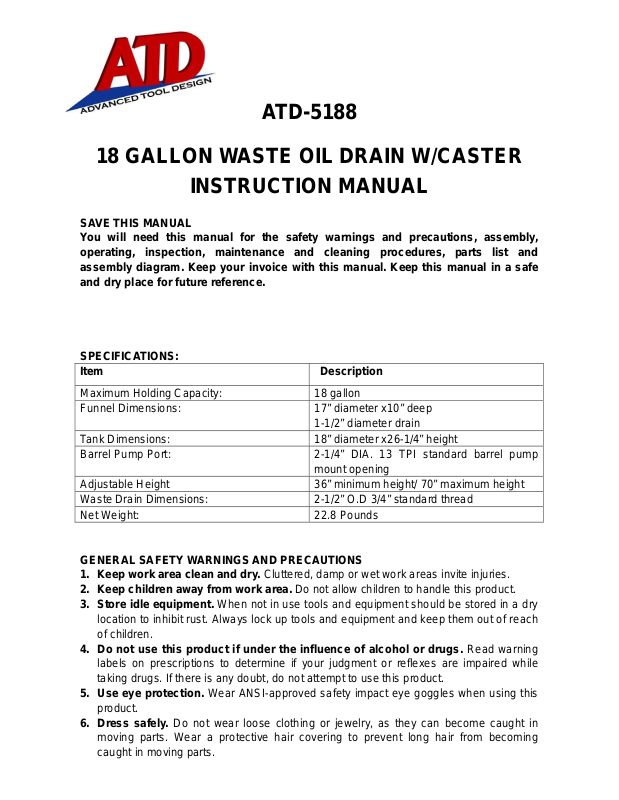

ATD Tools ATD-5188 User Manual

ATD-5188

18 GALLON WASTE OIL DRAIN W/CASTER

INSTRUCTION MANUAL

SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and
assembly diagram. Keep your invoice with this manual. Keep this manual in a safe
and dry place for future reference.

SPECIFICATIONS:
Item Description

Maximum Holding Capacity: 18 gallon
Funnel Dimensions: 17” diameter x10” deep

1-1/2” diameter drai n
Tank Dimensions: 18” diameter x26-1/4” height
Barrel Pump Port: 2-1/4” DIA. 13 TPI standard barrel pump

mount opening
Adjustable Height 36” minimum height/ 70” maximum height
Waste Drain Dimensions: 2-1/2” O.D 3/4” standard thread
Net Weight: 22.8 Pounds

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. Keep work area clean and dry. Cluttered, damp or wet work areas invite injuries.

2. Keep children away from work area. Do not allow children to handle this product.

3. Store idle equipment. When not in use tools and equipment should be stored in a dry

location to inhibit rust. Always lock up tools and equipment and keep them out of reach
of children.

4. Do not use this product if under the influence of alcohol or drugs. Read warning

labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not attempt to use this product.

5. Use eye protection. Wear ANSI-approved safety impact eye goggles when using this

product.

6. Dress safely. Do not wear loose clothing or jewelry, as they can become caught in

moving parts. Wear a protective hair covering to prevent long hair from becoming
caught in moving parts.

7. Do not overreach. Keep proper footing and balance at all times to prevent tripping,

falling and related injuries.

8. Industrial applications must follow OSHA requirements.

9. Stay alert. Watch what you are doing at all times. Use common sense. Do not use this

product when you are tired or distracted from the job at hand.

10. Check for damaged parts. Before using this product, carefully check that it will operate

properly and perform its intended function. Check for damaged parts and any other
conditions that may affect the operation of this product. Replace or repair damaged or
worn parts immediately.

11. Replacement parts and accessories: When servicing, use only identical replacement

parts. Only use accessories intended for use with this product. Approved accessories
are available from your local ATD jobber or distributor.

12. Maintain this product with care. Keep this prod uct clean and dry during storage fo r

better and safer performance. For your safety, service and maintenance should be
performed regularly by a qualified technician.

13. Use the right equipment for the job. Do not attempt to force small equipment to do the

work of a larger industrial tool. There are certain applications for which this equipment
was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this equipment, and do not use this equipment for a purpose f or
which it was not intended.

14. WARNING . The warnings, precautions, and instructions discussed in this manual

cannot cover all possible conditions and situations that may occur. The operator must
understand that common sense and caution are factors, which cannot be built into this
product, but must be supplied by the operator.

SPECIFIC PRODUCT WARNING AND PRECAUTIONS

1. Make sure the oil drain is used only on a dry, oil/grease free, flat, level, ground

surface capable of supporting the weight of the unit and contents.

2. Do not work under the vehicle without proper support devices.

3. Prior to using the oil drain dolly, make sure to read and understand all warnings,

safety precautions, and instructions as outlined in the vehicle manufacturers’ and
the support device’s instruction manuals.

4. Do not use the oil drain with the vehicle’s engine running. A vehicle’ s engine that is

running produces odorless, invisible, carbon monoxide vapors which if inhaled may
cause serious injury or death.

5. Do not allow anyone in the vehicle while using the oil drain. Keep all bystanders a

safe distance away from the vehicle.

6. Avoid burns. Allow the engine oil to completely cool before draining the oil into the Oil

Drain Dolly.

7. Do not leave the oil drain unattended when operating or evacuating oil.

8. Never use the oil drain near open flames or heat sources.

9. Make sure to remove the oil drain and all other tools and equipment before

lowering the vehicle to the floor surface.

10. Follow guidelines for engine oil disposal. Used engine oil should be removed form

the vehicle and properly disposed of or recycled, Many states require recyc li ng. Contact
your local solid/liquid waste authority for information on recycling and/or disposal.

11. Oil contains hazardous chemicals which may be harmful to the environment and

hazardous to your health.
