ASUS VINTAGE V2-PE3 User Manual

Vintage V2-PE3

PC (Desktop Barebone)

E254 8

Firs t E diti o n V1 Marc h 2 006

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identiﬁcation or explanation and to the ownersʼ beneﬁt, without intent to infringe.

Table of contents

Notices ................................................................................................ vi

Safety information .............................................................................. vi

About this guide ................................................................................. vii

System package contents ..................................................................viii

Cha p te r 1 : S y ste m I n tro d uc t ion

1.1 Welcome! .............................................................................. 1-2

1.2 Front panel ............................................................................ 1-2

1.3 Rear panel ............................................................................. 1-4

1.4 Internal components ............................................................. 1-7

Cha p te r 2 : Bas i c I nst a ll a tio n

2.1 Preparation ........................................................................... 2-2

2.2 Before you proceed .............................................................. 2-2

2.3 Removing the side cover and front panel assembly ............. 2-3

2.4 Central Processing Unit (CPU) .............................................. 2-4

2.4.1 Overview ................................................................. 2-4

2.4.2 Installing CPU .......................................................... 2-4

2.4.3 Installing the CPU fan and heatsink assembly ......... 2-6

2.5 Installing a DIMM ................................................................... 2-8

2.5.1 Memory conﬁgurations ........................................... 2-8

2.5.2 Installing a DIMM ...................................................2-11

2.5.3 Removing a DIMM ..................................................2-11

2.6 Expansion slots ................................................................... 2-12

2.6.1 Installing an expansion card .................................. 2-12

2.6.2 Conﬁguring an expension card .............................. 2-12

2.6.3 AGP slot ................................................................ 2-14

2.6.4 PCI slots ................................................................ 2-14

2.7 Installing an optical drive .................................................... 2-15

2.8 Installing a hard disk drive .................................................. 2-17

2.9 Installing a ﬂoppy disk drive ............................................... 2-20

2.10 Re-connecting cables .......................................................... 2-21

2.11 Removing the bay covers ................................................... 2-22

iii

Table of contents

Cha p te r 3 : Sta r ti n g u p

3.1 Installing an operating system .............................................. 3-2

3.2 Powering up .......................................................................... 3-2

3.3 Support CD information ........................................................ 3-2

3.3.1 Running the support CD .......................................... 3-3

3.3.2 Utilities menu .......................................................... 3-4

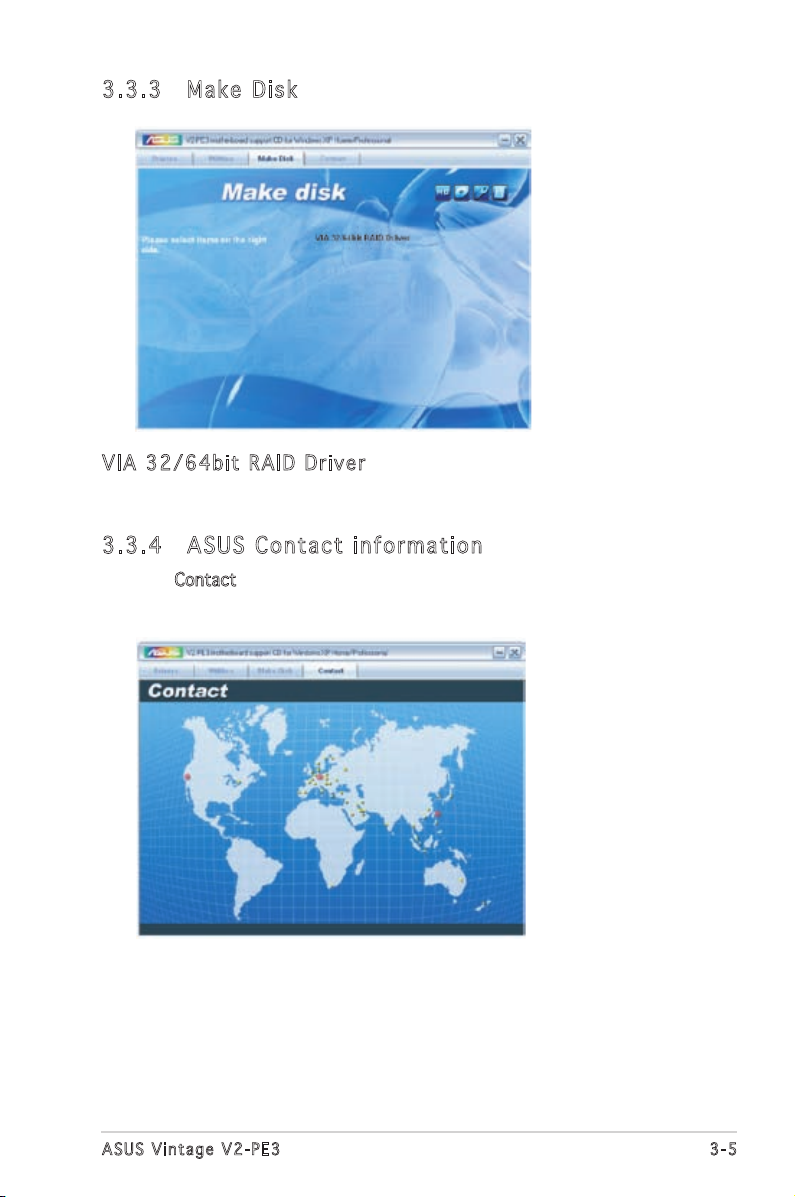

3.3.3 Make disk ................................................................ 3-5

3.3.4 ASUS contact information ...................................... 3-5

3.4 Software information ............................................................ 3-6

Cha p te r 4 : Mot h er b oar d I n fo

4.1 Introduction .......................................................................... 4-2

4.2 Motherboard layout .............................................................. 4-2

4.3 Jumpers ................................................................................ 4-3

4.4 Connectors ........................................................................... 4-5

Cha p te r 5 : BIO S s e tup

5.1 Managing and updating your BIOS ........................................ 5-2

5.1.1 Creating a bootable ﬂoppy disk .............................. 5-2

5.1.2 ASUS EZ Flash utility ............................................... 5-3

5.1.3 Award BIOS Flash Uuility ......................................... 5-3

5.1.4 Saving the current BIOS ﬁle .................................... 5-5

5.1.5 ASUS CrashFree BIOS 2 utility ................................ 5-6

5.2 BIOS setup program .............................................................. 5-7

5.3 BIOS menu screen ................................................................. 5-8

5.4 Standard BIOS features ...................................................... 5-10

5.5 Advanced BIOS features ..................................................... 5-14

5.6 Integrated peripherals ......................................................... 5-16

5.7 Power management setup .................................................. 5-20

5.8 PC health status .................................................................5-22

5.9 Other items ......................................................................... 5-23

Notices

Fed er al Co mm un ica ti on s C om mi ssi on S tat em en t

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturerʼs instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could void the userʼs authority to operate this equipment.

Can ad ia n D ep ar tme nt o f C om mu nic at io ns St at eme nt

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Safety information

Ele ct ri cal s af ety

•

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

•

If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Ope ra ti on sa fe ty

•

Before installing devices into the system, carefully read all the documentation that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualified service technician or your retailer.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturerʼs instructions.

VORSICHT: Explosionsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnljchen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

LASER PRODUCT WARNING

CLA SS 1 LA SE R PRO DU CT

About this guide

Aud ie nc e

This guide provides general information and installation instructions about the ASUS Vintage V2-PE3 barebone system. This guide is intended for experienced users and integrators with hardware knowledge of personal computers.

How t hi s g ui de is o rg ani ze d

This guide contains the following parts:

1. Chap t e r 1: S y s tem i n t rodu c t i on This chapter gives a general description of the ASUS

Vintage V2-PE3. The chapter lists the system features, including introduction on the front and rear panel, and internal components.

2. Chap t e r 2: B a s ic i n s t alla t i o n This chapter provides step-by-step instructions on how to install

components in the system.

3. Chap t e r 3: S t a rtin g u p This chapter helps you power up the system and install drivers and

utilities from the support CD.

4. Chap t e r 4: M o t herb o a r d in f o r mati o n This chapter gives information about the motherboard that comes

with the system. This chapter includes the motherboard layout, jumper settings, and connector locations.

5. Chap t e r 5: B I O S in f o r mati o n This chapter tells how to change system settings through the BIOS

Setup menus and describes the BIOS parameters.

vii

Con ve nt ion s us ed in t his g ui de

WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Whe re t o f in d mor e in for ma ti on

Refer to the following sources for additional information and for product and software updates.

1. ASUS W e bsit e s The ASUS websites worldwide provide updated information on

ASUS hardware and software products. Refer to the ASUS contact information.

2. Opti o n a l Do c u m enta t i o n Your product package may include optional documentation, such as

warranty ﬂyers, that may have been added by your dealer. These documents are not part of the standard package.

System package contents

Check your Vintage V2-PE3 system package for the following items.

If any of the items is damaged or missing, contact your retailer immediately.

Ite m d escri p t i on

1. ASUS Vintage V2-PE3 barebone system with

• ASUS motherboard

• 300 W PFC power supply unit

• ASUS chassis

2. Cable

• AC power cable

3. Support CD

4. User guide

viii

ASUS Vintage V2-PE3

Chapter 1

System introduction

This chapter gives a general description of the ASUS Vintage V2-PE3. The chapter lists the system features including introduction on the front and rear panel, and internal components.

1-2

Chapter 1: System introduction

1.1 Welcome!

Thank you for choosing the ASUS Vintage V2-PE3!

The ASUS Vintage V2-PE3 is an all-in-one barebone system with a versatile home entertainment feature.

The system comes in a stylish mini-tower casing and powered by the ASUS motherboard that supports the Intel® Pentium® D, Intel® Pentium® 4 or Intel® Celeron® processor in the 775-land package.

The system supports up to 2 GB of system memory using DDR 400/333 or DDR2-533 DIMMs, high-resolution graphics via integrated graphics controller or AGP slot, Serial ATA, USB 2.0, and 6-channel audio features the system takes you ahead in the world of power computing.

1.2 Front panel

The front panel includes the optical drive bays, ﬂoppy disk drive slot, power button, and several I/O ports are located at the front panel.

456

1-3

ASUS Vintage V2-PE3

1. Two empty 5.25-inch bays. These bays are for IDE optical drives.

2. 3.5-inch drive bays. These slots are for 3.5-inch ﬂoppy or hard disk drives.

3. Power button. Press this button to turn the system on.

4. Reset button. Press this button to reboot the system without turning off the power.

5. HDD LED. This LED lights up when data is read from or written to the hard disk drive.

6. USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports are available for connecting USB 2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

7. Headphone port. This Line In (green) port connects a headphone with a stereo mini-plug.

8. Microphone port. This Mic (pink) port connects a microphone.

1-4

Chapter 1: System introduction

1394

1.3 Rear panel

The system rear panel includes the power connector and several I/O ports that allow convenient connection of devices.

1. Power connector. This connector is for the power cable and plug.

2. Voltage selector. This switch allows you to adjust the system input voltage according to the voltage supply in your area. See the section “Voltage selector” on page 1-6 before adjusting this switch.

3. PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.

4. PS/2 keyboard port. This purple 6-pin connector is for a PS/2 keyboard.

5. Serial port (COM1). This port connects a mouse, modem, or other devices that conform with serial speciﬁcation.

1-5

ASUS Vintage V2-PE3

6. Parallel port. This 25-pin port connects a printer, scanner, or other devices.

7. VGA port (COM2). This port connects a VGA monitor.

8. USB 2.0 ports 1, 2, 3 and 4. These 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices.

9. Microphone port (pink). This port connects a microphone.

10. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and 6-channel conﬁguration, the function of this port becomes Front Speaker Out.

11. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio sources.

12. Power supply unit fan vent. This vent is for the PSU fan that provides ventilation inside the power supply unit.

13. Chassis fan vent. This vent is for the fan that provides ventilation inside the system chassis.

14. IEEE 1394a port. This port provides high-speed connectivity for IEEE 1394a-compliant audio/video devices, storage peripherals, and other PC devices.

15. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

16. Expansion slot covers. Remove these covers when installing expansion cards.

Refer to the audio conﬁguration table below for the function of the audio ports in 2, 4, or 6-channel conﬁguration.

Audio 2, 4, or 6-channel conﬁguration

Light Blue Line In Rear Speaker Out Rear Speaker Out Lime Line Out Front Speaker Out Front Speaker Out Pink Mic In Mic In Center/Subwoofer

Por t He a d s et 4-s p e a ker 6-s p e a ker 2-spe a k e r

1-6

Chapter 1: System introduction

Vol ta ge se le ct or

The PSU has a 115 V/230 V voltage selector switch located beside the power connector. Use this switch to select the appropriate system input voltage according to the voltage supply in your area.

If the voltage supply in your area is 100-127 V, set this switch to 115 V.

If the voltage supply in your area is 200-240 V, set this switch to 230 V.

Setting the switch to 115V in a 230V environment or 230V in a 115V environment will seriously damage the system!

115 V / 2 30V

Vol t a g e sel e c t or

1-7

ASUS Vintage V2-PE3

1.4 Internal components

The illustration below is the internal view of the system when you remove the top cover and the power supply unit. The installed components are labeled for your reference. Proceed to Chapter 2 for instructions on installing additional system components.

1. Front panel cover

2. 5.25-inch optical drive bays

3. Hard disk drive bay

4. Floppy disk drive bay

5. Power supply unit

6. CPU socket

7. DIMM sockets

8. ASUS motherboard

9. Chassis fan

10. AGP slot

11. PCI slots

12. Metal bracket lock

F_PANEL

FWPCLRTC1

IR_CON

LGA775

DDR2 DIMM_A1 (128 bit,240-pin module)

DDR2 DIMM_B1 (128 bit,240-pin module)

DDR DIMM_A1 (64 bit,184-pin module)

DDR DIMM_B1 (64 bit,184-pin module)

Super

I/O

VIA VT837R

Plus

VIA P4M800

PRO

AGP

PCI1

PCI2

PCI3

RTL8100S

4Mb BIOS

BUZZER

CR2032 3V Lithium Cell

CMOS Power

ATXPWR

ATX12V

ALC655

PRI_IDE

SEC_IDE

FLOPPY

USB78

USB56

IE1394_1

SPDIF_OUT

FP_AUDIO

AUX

SB_PWR

CHA_FAN

CPU_FAN

SATA2

SATA1

Below: Center/Subwoofer

Center

Side Speaker Out

Top:Rear Speaker Out

LAN_USB34

BOTTOM: USB1 USB2

COM1

PARALLEL PORT

VGA

PS/2KBMS

T: Mouse B: K

eyboard

COM1

TOP: IE1394

1-8

Chapter 1: System introduction

ASUS Vintage V2-PE3

Chapter 2

Basic installation

This chapter provides step-by-step instructions on how to install components in the system.

2-2

Chapter 2: Basic installation

2.1 Preparation

Before you proceed, make sure that you have all the components you plan to install in the system.

Bas i c c omp o ne n ts t o i nst a ll

1. Central Processing Unit (CPU)

2. DDR or DDR2 Dual Inline Memory Module (DIMM)

3. Expansion card(s)

4. Hard disk drive

5. Optical drive

6. Floppy disk drive

Too l

Phillips (cross) screw driver

The motherboard comes with an onboard standby power LED. This LED lights up to indicate that the system is ON, in sleep mode or in soft-off mode, and not powered OFF. Unplug the power cable from the power outlet and make sure that the standby power LED is OFF before installing any system component.

•

Use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, before handling components to avoid damaging them due to static electricity.

•

Hold components by the edges to avoid touching the ICs on them.

•

Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

2.2 Before you proceed

Take note of the following precautions before you install components into the system.

Onboard LED

SB_PWR

Standby

Power

OFF

Powered

Off

2-3

ASUS Vintage V2-PE3

2.3 Removing the side cover and front

panel assembly

1. Remove the cover screws on the rear panel.

2. Pull the side cover toward the rear panel until its hooks disengage from the chassis tab holes. Set the side cover aside.

3. Locate the front panel assembly hooks, then lift them until they disengage from the chassis.

4. Swing the front panel assembly to the right, until the hinge-like tabs on the right side of the assembly are exposed.

5. Remove the front panel assembly, then set aside.

Cha s s i s tab h o les

Air d u ct

2-4

Chapter 2: Basic installation

2.4 Central Processing Unit (CPU)

2.4 .1 Ove rv ie w

The motherboard comes with a surface mount LGA775 socket designed for the Intel® Pentium® 4 processor in the 775-land package.

• Your boxed Intel® Pentium® 4 LGA775 processor package should come with installation instructions for the CPU, heatsink, and the retention mechanism. If the instructions in this section do not match the CPU documentation, follow the latter.

•

Check your motherboard to make sure that the PnP cap is on the CPU socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/ transit-related.

•

Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA775 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

2.4 .2 Ins ta ll ing C PU

To install a CPU:

1. Locate the CPU socket on the motherboard.

Before installing the CPU, make sure that the socket box is facing towards you and the load lever is on your left.

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.

Loa d l ever

Ret e n t ion t a b

2-5

ASUS Vintage V2-PE3

3. Lift the load lever in the direction of the arrow to a 135º angle.

4. Lift the load plate with your thumb and foreﬁnger to a 100º angle (4A), then push the PnP cap from the load plate window to remove (4B).

5. Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the socket then ﬁt the socket alignment key into the CPU notch.

Gol d tri a n g le mar k

Ali g n m ent k e y

CPU n o tch

Loa d p late

PnP c a p

2-6

Chapter 2: Basic installation

7. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.

6. Apply Thermal Interface Material on the CPU before closing the load plate.

DO NOT eat the Thermal Interface Material. If it gets into your eyes or touches your skin, make sure to wash it off immediately, and seek professional medical help.

2.4 .3 Ins ta ll ing t he CP U f an a n d he ats in k a ss em bly

The Intel® Pentium® 4 LGA775 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.

• When you buy a boxed Intel® Pentium® 4 processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, make sure that you use only Intel®-certiﬁed multi-directional heatsink and fan.

• Your Intel® Pentium® 4 LGA775 heatsink and fan assembly comes in a push-pin design and requires no tool to install.

2-7

ASUS Vintage V2-PE3

If you purchased a separate CPU heatsink and fan assembly, make sure that the Thermal Interface Material is properly applied to the CPU heatsink or CPU before you install the heatsink and fan assembly.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the motherboard.

3. When the fan and heatsink assembly is in place, connect the CPU fan cable to the connector on the motherboard.

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.

Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

CPU FAN Connector

CPU_FA

GND CPU F

AN PWR

CPU F

AN IN

CPU F

AN PWM

2-8

Chapter 2: Basic installation

2.5 Installing a DIMM

The motherboard comes with two 240-pin Double Data Rate 2 (DDR2) and two 184-pin DDR Dual Inline Memory Modules (DIMM) sockets.

DDR2 DIMMS are notched differently to prevent misplacement in DDR DIMM sockets.

The following ﬁgure illustrates the location of the sockets:

2.5 .1 Me m or y co n fi gu ra t io ns

You may install 256 MB, 512 MB and 1 GB unbuffered non-ECC DDR/DDR2 DIMMs into the DIMM sockets using the memory conﬁgurations in this section.

To prevent damage to the motherboard, do not use DDR and DDR2 memory simultaneously.

• Always install DIMMs with the same CAS latency. For optimum compatibility, we recommend that you obtain memory modules from the same vendor. Refer to the DDR/DDR2 Qualiﬁed Vendors List on the next page for details.

• Due to chipset resource allocation, the system may detect less than 2 GB system memory when you installed two 1 GB DDR or DDR2 memory modules.

DDR and DDR2 DIMM Sockets

DDR_A1

DDR_B1

DDR2_A1

DDR2_B1

2-9

ASUS Vintage V2-PE3

Size Type Vendor Module Chip Vendor Chip Component

DDR 2 ( 5 33 M Hz) Qu a lif i ed Ven d or s Li s t

DDR (4 0 0 M H z) Qua l ifi ed V end ors Lis t

256Mbytes Unbuffer Inﬁneon HYS64T32000GU-3.7-A Inﬁneon HYS64T32000GU-3.7-A

256Mbytes Unbuffer Micron MT8HTF3264AG-53EB3 Micron MT4CB11Z9BQT

256Mbytes Unbuffer Samsung M378T3253FG0-CD5 Samsung K4T56083QF-GCD5

512Mbytes Unbuffer Adata M2OHT2G3H3110A1B0Z Hynix HY5PS12821

512Mbytes Unbuffer Corsair CM2X-512-4300 Corsair CM2X-512-4300

512Mbytes Unbuffer Elpida EBE51ED8ABFA-5C-E Elpida U5108AB-5C-E

512Mbytes Unbuffer Elpida EBE51UD8ABFA-5C-E Elpida E5108AB-5C-E

512Mbytes Unbuffer Elpida EBE51UD8ABFA-5C Elpida E5108AB-5C

512Mbytes Unbuffer Hynix HYMP564U648-C4 AA Hynix HY5PS12821F-C4

512Mbytes Unbuffer Hynix HYMP564U728-C4 Hynix HY5PS12821F-C4

512Mbytes Unbuffer Inﬁneon HYS64T64000GU-3.7-A Inﬁneon HYB18T512

512Mbytes Unbuffer Inﬁneon HYS64T64000HU-3.7-A Inﬁneon HYB18T512

512Mbytes Unbuffer Kingston KVR533D2N4/512GID SEC K4T51083QC

512Mbytes Unbuffer Micron MT16HTF6464AG-53EB2 Micron MT4DB11Z9BQT

512Mbytes Unbuffer Samsung M378T6453FG0-CD5 Samsung K4T56083QF-GCD5

512Mbytes Unbuffer Samsung M378T6553BG0-CD5 Samsung K4T51083QB-GCD5

512Mbytes Unbuffer Samsung M391T6453FG0-CD5 Samsung K4T51083QB-GCD5

512Mbytes Unbuffer Samsung M391T6553BG0-CD5 Samsung K4T56083QF-GCD5

1024Mbytes ECC Hynix HYMP512U648-C4 Hynix HY5PS12821F-C4

1024Mbytes Unbuffer Hynix HYMP512U728-C4 ECC Hynix HY5PS12821F-D4

1024Mbytes Unbuffer Micron MT16HTF12864AY-53EA1 Micron 4MAII D9CRZ

2048Mbytes Unbuffer Elpida EBE21EE8AAFA-5C-E Elpida E1108AA-5C-E

256Mbytes Unbuffer Albatron MDGVD5F3G31CB1EZ2 Vdata VDD8608A8A-5B

256Mbytes Unbuffer Apacer 73.85397.460 Samsung K4H560838D-TCC4

256Mbytes Unbuffer Corsair CMX256A-3200LL Winbond W942508BH-5

256Mbytes Unbuffer Corsair VS256MB400 Corsair VS32M8-5

256Mbytes Unbuffer Corsair VS256MB400 Corsair PR1200528

256Mbytes Unbuffer Elixir M2U25664DS88B3G-5T Elixir N2DS25680BT-5T

256Mbytes Unbuffer Hynix HYMD232646A8J-D43 AA Hynix HY5DU56822AT-D43

256Mbytes Unbuffer Hynix HYMD232646D8J-D43 AA Hynix HY5DU56822DT-D43

256Mbytes Unbuffer Kingmax MPLB62D-68K DDR Kingmax KDL684T4A2A-06

256Mbytes Unbuffer Kingston KVR400X64C3A/256 Kingston D3208DHIT-5

256Mbytes Unbuffer Kingston KVR400X64C25/256 Winbond W942508BH-5

256Mbytes Unbuffer Kingston KVR400X64C3A/256 Hynix HY5DU56822BT-D43

256Mbytes Unbuffer Micron MT8VDDT3264AG-40BC4 Micron MT46V32M8TG-5BC

256Mbytes Unbuffer ProMOS V826632K24SCTG-D0 ProMOS V58C2256804SCT5B

256Mbytes Unbuffer Samsung M368L3223DTM-CC4 Samsung K4H560838D-TCC4

256Mbytes Unbuffer Samsung M368L3223FTN-CCC Samsung K4H560838F-TCCC

256Mbytes Unbuffer Trancend 256MB DDR400 Winbond W942508BH-5

256Mbytes Unbuffer TwinMOS M2G9108A-TT TwinMOS TMD7608F8E50D

256Mbytes Unbuffer TwinMOS PC3200 256MB DDR/CL2.5 Winbond W942508BH-5

Size Type Vendor Module Chip Vendor Chip Component

(continued on the next page)

2-10

Chapter 2: Basic installation

SS - Single-sided DS - Double-sided

Visit the system builderʼs website for the latest DDR2-533/DDR-400/ DDR-333 Qualiﬁed Vendors List.

DDR (3 3 3 M H z) Qua l ifi ed V end ors Lis t

256Mbytes Unbuffer TwinMOS M2S9I08AIAPS9F0811A-T PSC A2S56730BTP

512Mbytes Unbuffer Adata MDOPM5F3H41Y0B1E0Z Mosel V58C2256804SCT5B

512Mbytes Unbuffer Apacer 77.10736.46G Samsung K4H560838F-TCCC

512Mbytes ECC Apacer 77.10738.464 Samsung K4H560838E-TCCC

512Mbytes Unbuffer Apacer 77.10739.534 PSC A2S56D30BTP

512Mbytes Unbuffer Corsair VS512MB400 Corsair VS32M8-5

512Mbytes Unbuffer Corsair VS512MB400 Corsair EL1100528

512Mbytes Unbuffer Hynix HYMD264646A8J-D43 AA Hynix HY5DU56822AT-D

512Mbytes Unbuffer Inﬁneon HYS64D64320GU-5-C Inﬁneon HYS64D64320GU-5-C

512Mbytes Unbuffer Kingmax MPXC22D-38KT3 Kingmax KDL388P4EA-50

512Mbytes Unbuffer Kingston KVR400X64C3A/512 Hynix HY5DU56822BT-D43

512Mbytes Unbuffer Kingston KVR400X64C3A/512 Kingston D3208DH1T-5

512Mbytes Unbuffer Kingston KVR400X64C3A/512 Mosel V58C2256804SAT5B

512Mbytes Unbuffer Micron MT16VDDT6464AG-40BC4 Micron MT46V32M8TG-5BC

512Mbytes Unbuffer PNV DDC51230.38P6B Bravo ADP 328TM-50

512Mbytes Unbuffer ProMOS V826664K24SCTG-D0 ProMOS V58C2256804SCT5B

512Mbytes ECC PQI MDAD-421HA2801-04D6 PQI PQ4D328D5 512Mbytes Unbuffer Samsung M368L6423FTN-CCC Samsung K4H560838F-TCCC

512Mbytes Unbuffer Transcend 512MB DDR400 DIMM Mosel V85C2256804SAT5B

512Mbytes Unbuffer Transcend TS64MLD64V4F PSC A2S56D30BTP

512Mbytes Unbuffer Weblink PW200411130-0447 Rami RS56D08BTP-5

512Mbytes Unbuffer Winbond W9451GBDB-5 Winbond W942508BH-5

512Mbytes Unbuffer Winbond U24512ADWBG6H20 Winbond W942508CH-5

1024Mbytes Unbuffer Transcend TS128MLD64V4J 1GB Samsung K4H510838C-UCCC

256Mbytes Unbuffer Corsair VS256MB333 Samsung K4H560838D-TBC3

256Mbytes Unbuffer Elixir M2U25H64DS8HB2G-6K Elixir N2DS12H80BT-6K

256Mbytes Unbuffer Elixir M2U25664DS88B2G-6K Elixir N2DS25680BT-6K

256Mbytes Unbuffer Inﬁneon HYS64D32000GU-6-B Inﬁneon HYB25D256800BT-6

256Mbytes Unbuffer Inﬁneon HYS64D32300GU-6-C Inﬁneon HYB25D256800CE-6

256Mbytes Unbuffer Micron MT16VDDT3264AG-335B3 Micron MT46V16M8TG-6TB

256Mbytes Unbuffer Micron MT8VDDT3264AG-335GB Micron MT46V32M8TG-6TG

256Mbytes Unbuffer PQI MD3456UPS T286A-02D3 PQI PQ3D328S60248

256Mbytes Unbuffer Samsung M368L3223FTN-CB3 Samsung K4H560838F-TCB3

512Mbytes ECC Buffalo NBPC333CL25-521 Inﬁneon HYB25D256800BT-6

512Mbytes Unbuffer Corsair VS512MB333 Corsair VS32M8-6

512Mbytes Unbuffer Elixir M2U51264DS8HB1G-6K Elixir N2DS25680BT-6K

512Mbytes Unbuffer Inﬁneon HYS64D64320GU-6-C Inﬁneon HYB25D256800CE-6

512Mbytes Unbuffer Kingston KVR333X64C25/512 Winbond W942508BH-6

512Mbytes Unbuffer Micron MT16VDDT6464AG-335GB Micron MT46V32M8-6TG

1024Mbytes Unbuffer Nanya NT1GD64S8HA0F-6K Nanya NT5DS64M8AF-6K

1024Mbytes Unbuffer Transcend TS128MLD64V3J Samsung K4H510838B-TCB3

DDR (4 0 0 M H z) Qua l ifi ed V end ors Lis t

Size Type Vendor Module Chip Vendor Chip Component

2-11

ASUS Vintage V2-PE3

2.5 .3 Rem ov in g a D IM M

Follow these steps to remove a DIMM.

1. Simultaneously press the retaining clips outward to unlock the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with your ﬁngers when pressing the retaining clips. The DIMM might get damaged when it ﬂips out with extra force.

2.5 .2 Ins ta ll ing a D IM M

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

1. Unlock a DIMM socket by pressing the retaining clips outward.

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

Loc k e d Reta i n i ng Cl i p

Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components.

DDR D I MM no t c h

Unl o c k ed re t a i ning c l i p

DIM M n otch

• A DDR/DDR2 DIMM is keyed with a notch so that it ﬁts in only one direction. Do not force a DIMM into a socket to avoid damaging the DIMM.

• The DDR2 DIMM sockets do not support DDR DIMMs. DO not install DDR DIMMs to the DDR2 DIMM sockets.

2-12

Chapter 2: Basic installation

2.6 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

2.6 .1 Ins ta ll ing a n ex p an si on ca rd

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press ﬁrmly until the card is completely seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

2.6 .2 Con fi gu rin g an e x pa ns io n c ar d

After installing the expansion card, conﬁgure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 5 for information on BIOS setup.

2. Assign an IRQ to the card. Refer to the tables on the next page.

3. Install the software drivers for the expansion card.

2-13

ASUS Vintage V2-PE3

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that the cards do not need IRQ assignments. Otherwise, conﬂicts will arise between the two PCI groups, making the system unstable and the card inoperable.

Sta n da r d i n te r rup t a s sig n me n ts

IRQ Pr i o rity St andar d F uncti o n

0 1 System Timer 1 2 Keyboard Controller 2 - Re-direct to IRQ#9 3 11 Communications Port (COM2)* 4 12 Communications Port (COM1)* 5 13 IRQ holder for PCI steering* 6 14 Floppy Disk Controller 7 15 Printer Port (LPT1)* 8 3 System CMOS/Real Time Clock 9 4 IRQ holder for PCI steering* 10 5 IRQ holder for PCI steering* 11 6 IRQ holder for PCI steering* 12 7 PS/2 Compatible Mouse Port* 13 8 Numeric Data Processor 14 9 Primary IDE Channel 15 10 Secondary IDE Channel

* T h e s e IRQ s a re us u a l l y av a i l a ble f o r ISA o r P CI d e v i c es.

IRQ as s ign m en t s f o r t his mo t her b oa r d

A B C D E F G H

PCI slot 1 shared — — — — — — — PCI slot 2 — shared — — — — — — PCI slot 3 — — shared — — — — Onboard USB controller 0-1 shared — — — — — — — Onboard USB controller 2-3 shared — — — — — — — Onboard USB controller 4-5 — shared — — — — — — Onboard USB controller 6-7 — shared — — — — — — Onboard USB 2.0 controller — — shared — — — — — Onboard AC `97 Audio — — shared — — — — — Onboard PCI LAN — — — — shared — — — Onboard PCI 1394 — — — — — shared — — AGP Slot shared — — — — — — —

2-14

Chapter 2: Basic installation

2.6 .4 PCI s lo ts

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI speciﬁcations. The ﬁgure shows a LAN card to be installed on a PCI slot.

Install only 1.5 V or 0.8 V AGP cards on this motherboard! 3.3V AGP cards are not supported in this motherboard.

2.6 .3 AGP s lo t

The Accelerated Graphics Port (AGP) slot supports AGP8X/4X cards. When you buy an AGP card, make sure that you ask for one with +1.5V speciﬁcation. Note the notches on the card golden ﬁngers to ensure that they ﬁt the AGP slot on your motherboard. The below ﬁgure shows a graphic card to be installed on a AGP slot.

2-15

ASUS Vintage V2-PE3

2.7 Installing an optical drive

Refer to the instructions in this section if you wish to install a new optical drive.

Follow these steps to install an optical drive:

1. Place the chassis upright.

2. Remove the drive slot metal plate cover.

3. Insert the optical drive into the upper 5.25-inch drive bay and carefully push the optical drive into the bay until its screw holes align with the holes on the bay as shown.

4. Secure the optical drive with two screws on both sides of the bay.

IDE r i bbon c a b le

Pow e r cable

5. Connect a power cable from the power supply to the power connector at the back of the optical drive.

6. Connect one end of the IDE ribbon cable to the IDE interface at the back of the optical drive, matching the red stripe on the cable with Pin 1 on the IDE interface.

2-16

Chapter 2: Basic installation

7. Connect the other end of the IDE ribbon cable to the secondary IDE connector (labeled SEC_IDE) on the motherboard.

8. Remove the dummy drive slot cover from the front panel.

9. Replace the front panel.

2-17

ASUS Vintage V2-PE3

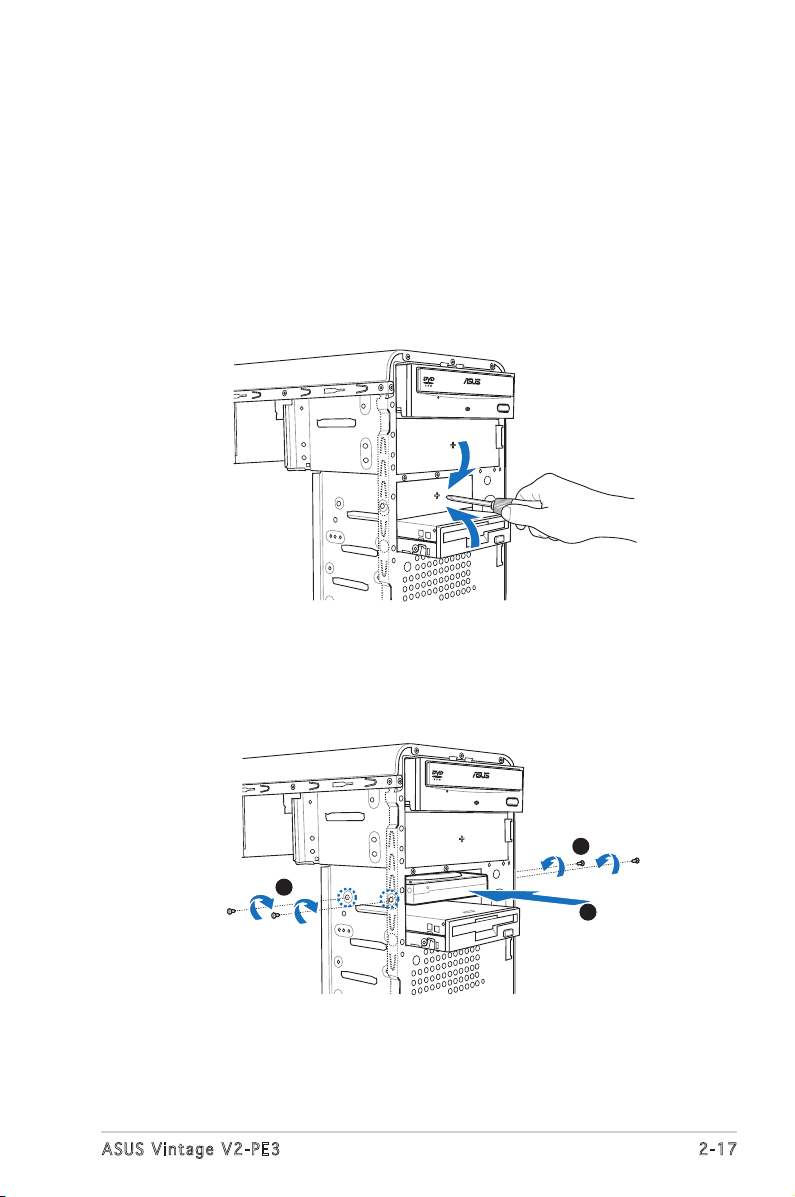

2.8 Installing a hard disk drive

The system may have one pre-installed 3.5-inch Serial ATA or IDE hard disk drive. Refer to this section to install additional Serial ATA or IDE hard disk drive(s).

To install a Serial ATA hard disk drive:

4. Secure the drive with two screws on both sides.

1. Place the chassis upright.

2. Use a screw driver to remove the HDD drive slot metal plate cover.

3. With the HDD label side up, carefully insert the drive into the 3.5-inch bay and push the drive into the bay until its screw holes align with the holes on the drive bay.

2-18

Chapter 2: Basic installation

If your Serial ATA HDD has both 4-pin and 15-pin connectors at the back, use either the 15-pin SATA power adapter plug OR the legacy 4-pin power connector. DO NOT use both to prevent damage to components and to keep the system from becoming unstable.

5. Connect one end of the Serial ATA cable to the SATA connector at the back of the drive, then connect the other end to a Serial ATA connector on the motherboard.

6. Connect a 15-pin Serial ATA power plug from the power supply unit to the 15-pin power connector at the back of the drive.

- OR -

Connect a 4-pin (female) power plug from the power supply unit to

the 4-pin (male) power connector at the back of the drive.

Ser i a l ATA c a b le

Ser i a l ATA p o w er cab l e

2-19

ASUS Vintage V2-PE3

To install an IDE hard disk drive:

1. Follow steps 1-4 of the previous section.

2. Connect the blue interface of the IDE ribbon cable to the primary IDE connector (blue connector labeled PRI_IDE) on the motherboard.

• If you will install only one hard disk drive, make sure to conﬁgure your hard disk drive as Master device before connecting the IDE cable and power plug. Refer to the HDD documentation on how to set the drive as a Master device.

• If you will install two IDE hard disk drives, conﬁgure the other device as Slave.

3. Connect the gray interface of the IDE ribbon cable to the IDE connector on the drive.

4. If you install two IDE hard disk drives, connect the black interface of the IDE ribbon cable to the IDE connector on the second (Slave) IDE hard disk drive.

5. Connect a 4-pin power plug from the power supply unit to the power connector at the back of the drive(s).

IDE r i bbon c a b le

Pow e r cable

2.9 Installing a ﬂoppy disk drive

The Vintage V2-PE3 system comes with one 3.25-inch drive bay for a ﬂoppy disk drive.

To install a ﬂoppy disk drive:

1. Remove the front panel cover.

For instructions on how to remove the front panel cover, refer to page 2-3 of section “2.3 Removing the side cover and front panel assembly”.

2. Carefully insert the ﬂoppy disk drive into the ﬂoppy drive bay until the screw holes align with the holes on the bay.

3. Secure the ﬂoppy disk drive with two screws on both sides.

4. Connect the ﬂoppy disk drive signal cable to the signal connector at the back of the drive.

Pow e r cable

Flo p p y ribb o n cab l e

5. Connect the other end of the signal cable to the ﬂoppy disk drive connector on the motherboard. See page 4-6 for the location of the ﬂoppy disk drive connector.

6. Connect a 4-pin power cable from the power supply unit to the power connector at the back of the ﬂoppy disk drive.

2-20 Chapter 2: Basic installation

2-21

ASUS Vintage V2-PE3

2.10 Re-connecting cables

You may have disconnected some cables when you were installing components. You must re-connect these cables before you replace the chassis cover.

LED c ab les

Connect the reset button, power switch, power LED, and HDD LED cables to their respective leads in the system panel connector on the motherboard. See page 4-12 for the system panel descriptions.

HDD L E D

Pow e r LED

Pow e r Switc h

Res e t butto n

System Panel Connector

F_PANEL

PWRGround

GNDReset

IDE_LED+

IDE_LED-

RESET

IDE LED

PWRSW

PWR_LED+

PWR_LED-

PWR LED

2-22

Chapter 2: Basic installation

2.11 Removing the bay covers and

reinstalling the front panel assembly and side cover

If you installed an optical and/or ﬂoppy disk drive, remove the bay cover(s) on the front panel assembly before reinstalling it to the chassis. To do this:

1. Locate the bay cover locks.

2. Press the locks inward to release the bay cover.

3. Push the bay cover outward, then set it aside.

4. Follow the same instructions to remove the 3.5” drive bay cover.

To reinstall the front panel assembly and side cover:

1. Insert the front panel assembly hinge-like tabs to the holes on the right side of the chassis.

2. Swing the front panel assembly to the left, then insert the hooks to the chassis until the front panel assembly ﬁts in place.

3. Insert the six side cover hooks into the chassis tab holes .

4. Push the side cover to the direction of the front panel until it ﬁts in place.

5. Secure the cover with two screws you removed earlier.

If the air duct interferes with the CPU fan, adjust the air duct accordingly.

Air d u ct

Cha s s i s tab h o les

ASUS Vintage V2-PE3

Chapter 3

Starting up

This chapter helps you power up the system and install drivers and utilities from the support CD.

3-2

Chapter 3: Starting up

3.1 Installing an operating system

The barebone system supports Windows® 2000/XP operating systems (OS). Always install the latest OS version and corresponding updates so you can maximize the features of your hardware.

3.3 Support CD information

The support CD that came with the system contains useful software and several utility drivers that enhance the system features.

3.2 Powering up

Press the system power button ( ) to enter the OS.

Pre s s to tu r n ON th e s y stem

Because motherboard settings and hardware options vary, use the setup procedures presented in this chapter for general reference only. Refer to your OS documentation for more information.

•

Screen display and driver options may not be the same for different operating system versions.

•

The contents of the support CD are subject to change at any time without notice. Visit the ASUS website for updates.

• Windows XP OS setup cannot recognize Serial ATA hard drives without the necessary drivers. Use the bundled ﬂoppy disk when installing Windows XP OS to a Serial ATA hard drive.

• From the Windows XP setup screen, press F6 when prompted then follow succeeding screen instructions to install the SATA drivers.

3-3

ASUS Vintage V2-PE3

3.3 .1 Run ni ng th e su ppo rt C D

To begin using the support CD, place the CD in your optical drive. The CD automatically displays the Drivers menu if Autorun is enabled in your computer.

If Autorun is NOT enabled in your computer, browse the contents of the support CD to locate the ﬁle ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the CD.

Cli c k an it e m to in s t a ll

Cli c k an ic o n to dis p l a y sup p o r t CD/ m o t herbo a r d inf o r m ation

ASU S I n stA l l - Dr i ve r s I n st a lla t io n Wi z ar d

Automatically installs all the necessary drivers for this motherboard.

VIA Ch i pse t D r ive r P r ogr a m

Installs the VIA chipset driver program.

VIA S3 G Di s pl a y d r iv e r

Installs the S3G diaplay driver.

Rea l te k AC ʼ 97 Aud i o D riv e r

Installs the ACʼ97 audio driver.

Rea l te k RT L 81 6 9/8 1 10 E th e rne t D r ive r

Installs the Realtek RTL8169/8110 ethernet Driver.

USB 2.0 Dr i ver

Installs the USB 2.0 driver ﬁle that came with the utility for details.

3-4

Chapter 3: Starting up

3.3 .2 Uti li ti es me nu

The Utilities menu shows the applications and other software that the motherboard supports.

ASU S I n stA l l- I nst a ll a tio n W i zar d f o r U t ili tie s

Installs the ASUS InstAll-Installation Wizard Utilities.

ASU S P C Pr o be II

This smart utility monitors the fan speed, CPU temperature, and system voltages, and alerts you of any detected problems. This utility helps you keep your computer in healthy operating condition.

ASU S U p dat e

The ASUS Update utility allows you to update the motherboard BIOS in a Windows® environment. This utility requires an Internet connection either through a network or an Internet Service Provider (ISP).

ASU S S c ree n S a ver

Installs the ASUS screen saver.

Ado b e R ead e r V 7.0

Installs the Adobe® Acrobat® Reader V7.0 that allows you to open, view, and print documents in Portable Document Format (PDF).

Mic r os o ft D ir e ctX 9. 0 c D r ive r

Installs the Microsoft® DirectX 9.0c driver.

Ant i -v i rus ut i lit y

The anti-virus application scans, identiﬁes, and removes computer viruses. View the online help for detailed information.

3-5

ASUS Vintage V2-PE3

3.3 .3 Mak e Di sk

VIA 32/ 64b i t R A ID Dri v er

Creates the VIA 32/64bit RAID driver.

3.3 .4 ASU S Co nta ct i nfo rm at ion

Click the Contact tab to display the ASUS contact information. You can also ﬁnd this information on the inside front cover of this user guide.

3-6

Chapter 3: Starting up

3.4 Software information

Most of the applications in the support CD have wizards that will conveniently guide you through the installation. View the online help or readme ﬁle that came with the software for more information.

ASU S PC Pr ob e II

PC Probe II is a utility that monitors the computerʼs vital components and alerts you of any problem with these components. PC Probe II senses fan rotations, CPU temperature, and system voltages, among others. PC Probe II is software-based, allowing you to start monitoring your computer the moment you turn it on. With this utility, you are assured that your computer is always at a healthy operating condition.

Ins t al l ing PC Pro b e I I

To install PC Probe II on your computer:

1. Place the support CD to the optical drive. The Drivers installation tab appears if your computer has an enabled Autorun feature.

If Autorun is not enabled in your computer, browse the contents of the support CD to locate the setup.exe ﬁle from the ASUS PC Probe II folder. Double-click the setup.exe ﬁle to start installation.

3-7

ASUS Vintage V2-PE3

Cli c k to cl o s e the Pre f e r ence p a n el

2. Click the Utilities tab, then click ASUS PC Probe II.

3. Follow the screen instructions to complete installation.

Lau n ch i ng P C P rob e I I

You can launch the PC Probe II right after installation or anytime from the Windows® desktop.

To launch the PC Probe II from the Windows® desktop, click Start > All Programs > ASUS > PC Probe II. The PC Probe II main window appears.

After launching the application, the PC Probe II icon appears in the Windows® taskbar. Click this icon to close or restore the application.

Usi n g P C P r ob e II

Main window

The PC Probe II main window allows you to view the current status of your system and change the utility conﬁguration. By default, the main window displays the Preference section. You can close or restore the Preference section by clicking on the triangle on the main window right handle.

3-8

Chapter 3: Starting up

But t o n F u n ctio n

Opens the Conﬁguration window Opens the Report window Opens the Desktop Management Interface window Opens the Peripheral Component Interconnect window Opens the Windows Management Instrumentation window Opens the hard disk drive, memory, CPU usage window Shows/Hides the Preference section Minimizes the application Closes the application

Sensor alert

When a system sensor detects a problem, the main window right handle turns red, as the illustrations below show.

When displayed, the monitor panel for that sensor also turns red. Refer to the Monitor panels section for details.

Pre f er e nce s

You can customize the application using the Preference section in the main window. Click the box before each preference to activate or deactivate.

3-9

ASUS Vintage V2-PE3

Har d wa r e m o ni t or p an e ls

The hardware monitor panels display the current value of a system sensor such as fan rotation, CPU temperature, and voltages.

The hardware monitor panels come in two display modes: hexagonal (large) and rectangular (small). When you check the Enable Monitoring Panel option from the Preference section, the monitor panels appear on your computerʼs desktop.

Changing the monitor panels position

To change the position of the monitor panels on the desktop, click the arrow down button of the Scheme options, then select another position from the list box. Click OK when ﬁnished.

Moving the monitor panels

All monitor panels move together using a magnetic effect. If you want to detach a monitor panel from the group, click the horseshoe magnet icon. You can now move or reposition the panel independently.

Adjusting the sensor threshold value

You can adjust the sensor threshold value in the monitor panel by clicking the arrow buttons. You can also adjust the threshold values using the Conﬁg window.

You cannot adjust the sensor threshold values in a small monitoring panel.

Lar g e displ a y

Sma l l displ a y

Cli c k to

inc r e a se

val u e

Cli c k to

dec r e a se

val u e

3-10

Chapter 3: Starting up

Monitoring sensor alert

The monitor panel turns red when a component value exceeds or is lower than the threshold value. Refer to the illustrations below.

Lar g e displ a y

Sma l l displ a y

WMI br o wse r

Click to display the WMI (Windows Management Instrumentation) browser. This browser displays various Windows® management information. Click an item from the left panel to display on the right panel. Click the plus sign (+) before WMI Information to display the available information.

You can enlarge or reduce the browser size by dragging the bottom right corner of the browser.

DMI br o wse r

Click to display the DMI (Desktop Management Interface) browser. This browser displays various desktop and system information. Click the plus sign (+) before DMI Information to display the available information.

3-11

ASUS Vintage V2-PE3

PCI br o wse r

Click to display the PCI (Peripheral Component Interconnect) browser. This browser provides information on the PCI devices installed on your system. Click the plus sign (+) before the PCI Information item to display available information.

Usa g e

The Usage browser displays real-time information on the CPU, hard disk drive space, and memory usage. Click to display the Usage browser.

CPU usage

The CPU tab displays real-time CPU usage in line graph representation. If the CPU has an enabled HyperThreading, two separate line graphs display the operation of the two logical processors.

Hard disk drive space usage

The Hard Disk tab displays the used and available hard disk drive space. The left panel of the tab lists all logical drives. Click a hard disk drive to display the information on the right panel. The pie chart at the bottom of the window represents the used (blue) and the available HDD space.

3-12

Chapter 3: Starting up

Memory usage

The Memory tab shows both used and available physical memory. The pie chart at the bottom of the window represents the used (blue) and the available physical memory.

Con f ig u rin g P C Pr o be II

Click to view and adjust the sensor threshold values.

The Conﬁg window has two tabs: Sensor/Threshold and Preference. The Sensor/Threshold tab enables you to activate the sensors or to adjust the sensor threshold values. The Preference tab allows you to customize sensor alerts, change temperature scale, or enable the Q-Fan feature.

Loa d s the d e f a u lt

thr e s h old v a l u es

for e a ch se n s o r

App l i e s you r

cha n g e s

Can c e l s or

ign o r e s you r

cha n g e s

Lo ads y our s ave d co nfigu ratio n

Sav e s your con f i g urati o n

ASUS Vintage V2-PE3

Chapter 4

Motherboard info

This chapter gives information about the motherboard that comes with the system. This chapter includes the motherboard layout, jumper settings, and connector locations.

4-2

Chapter 4: Motherboard info

4.1 Introduction

The Vintage V2-PE3 barebone system comes with an ASUS motherboard. This chapter provides technical information about the motherboard for future upgrades or system reconﬁguration.

4.2 Motherboard layout

F_PANEL

FWPCLRTC1

IR_CON

LGA775

DDR2 DIMM_A1 (128 bit,240-pin module)

DDR2 DIMM_B1 (128 bit,240-pin module)

DDR DIMM_A1 (64 bit,184-pin module)

DDR DIMM_B1 (64 bit,184-pin module)

Super

I/O

VIA VT8237R

Plus

VIA P4M800

PRO

AGP

PCI1

PCI2

PCI3

RTL8110S

4Mb BIOS

BUZZER

CR2032 3V Lithium Cell

CMOS Power

ATXPWR

ATX12V

ALC655

PRI_IDE

SEC_IDE

FLOPPY

USB78

USB56

IE1394_1

SPDIF_OUT

FP_AUDIO

AUX

SB_PWR

CHA_FAN

CPU_FAN

SATA2

SATA1

Below: Center/Subwoofer

Center

Side Speaker Out

Top:Rear Speaker Out

LAN_USB34

BOTTOM: USB1 USB2

COM1

PARALLEL PORT

VGA

PS/2KBMS

T: Mouse B: K

eyboard

24.5cm (9.6in)

22.9cm (9.0in)

COM2

TOP: IE1394

TSB43AB22A

4-3

ASUS Vintage V2-PE3

4.3 Jumpers

1. Clea r R TC R A M (CLR T C ) This jumper allows you to clear the Real Time Clock (RTC) RAM in

CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in the CMOS, which includes the system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery.

3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep

the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure.

Clear RTC RAM

CLRTC

Normal Clear CMOS

(Default)

4-4

Chapter 4: Motherboard info

BIOS_WP

(Default)

FWP

WRITE ENABLE WRITE PROTECT

2. Flas h W rite P r otec t i o n (F W P ) Place the jumper cap on this jumper to write protect the BIOS. If you

need to update your BIOS, remove the jumper cap.

A warning message “Please make sure whether lockout jumper is set to correct or not.” appears when you ﬂash the BIOS with the jumper cap. Remove the jumper cap before you update your BIOS.

4-5

ASUS Vintage V2-PE3

4.4 Connectors

1. Flop p y disk d r ive c o n nect o r (34- 1 p in F L O P PY) This connector is for the provided ﬂoppy disk drive (FDD) signal cable.

Insert one end of the cable to this connector, then connect the other end to the signal connector at the back of the ﬂoppy disk drive.

Pin 5 on the connector is removed to prevent incorrect cable connection when using a FDD cable with a covered Pin 5.

2. Seri a l ATA c o n nect o r s (7- p i n SAT A 1 , SAT A 2 ) These connectors are for the Serial ATA signal cables for Serial ATA

hard disk drives.

Important notes on Serial ATA:

• You must install Windows® 2000 Service Pack 4 or the Windows® XP Service Pack1 before using Serial ATA hard disk drives.

• When using the connectors in Standard IDE mode, connect the primary (boot) hard disk drive to the SATA1 or SATA2 connector.

Floppy Disk Drive Connector

NOTE: Orient the red markings on

the floppy ribbon cable to PIN 1.

PIN 1

FLOPPY

SATA Connectors

SATA2

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA

_RXP2

RSATA

_RXN2

GND

RSATA_TXP1

RSATA

_TXN1

GND

RSATA

_RXP1

RSATA

_RXN1

GND

SATA1

4-6

Chapter 4: Motherboard info

3 ID E c onne c t o rs ( 4 0 - 1 pi n P RI_I D E , SEC _ I D E)

The onboard IDE connectors are for Ultra DMA 133/100/66 signal cable(s). There are three connectors on each Ultra DMA 133/100/66 signal cable: blue, black, and gray. Connect the blue connector to the motherboardʼs IDE connector, then select one of the following modes to conﬁgure your device(s).

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.

If any device jumper is set as “Cable-Select”, make sure all other device jumpers have the same setting.

Drive jumper setting

Mode Cable of device(s)

Cable connector

Single device Cable-Select or

Master

- Black

Two devices Cable-Select Master

Slave

Black Gray

Master Slave

Black or gray

IDE Connectors

PRI_IDE

SEC_IDE

NOTE: Orient the red marking

s (usually zigzag) on the IDE ribbon cable to PIN 1.

4-7

ASUS Vintage V2-PE3

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

5. USB c o n nect o r s (10 - 1 p in U S B 5 6, U S B 7 8) These connectors are for USB 2.0 ports. Connect the USB module

cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 speciﬁcation that supports up to 480 Mbps connection speed.

The USB module is purchased separately.

4. CPU a n d Cha s s i s Fa n c onne c t o rs (4-p i n CPU_ F A N , 3- p i n CHA _ F A N )

The fan connectors support cooling fans of 350 mA~740 mA (8.88 W max.) or a total of 1 A~2.22 A (26.64 W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufﬁcient air ﬂow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!

FAN Connectors

CPU_FAN

GND CPU FAN PWR CPU FAN IN CPU FAN PWM

CHA_FAN

GND

Rotation

+12V

USB 2.0 Connectors

USB56

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB78

USB+5V

USB_P10-

USB_P10

GND

USB+5V

USB_P9-

USB_P9+

GND

4-8

Chapter 4: Motherboard info

6. ATX p o w er c o n n ecto r s (20- p i n EAT X P W R, 4 - p i n AT X 1 2 V) These connectors are for ATX power supply plugs. The plugs from

the power supply are designed to ﬁt these connectors in only one orientation. Find the proper orientation and push down ﬁrmly until the connectors completely ﬁt.

•

Do not forget to connect the 4-pin ATX +12 V power plug;

otherwise, the system will not boot.

• Use of a PSU with a higher power output is recommended when conﬁguring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.

• The power suppply unit (PSU) available along with this barebone system has a 24-pin plug. Match the 1-20 pins of this plug to the ATX power connector and leave the 21-24 pins idle.

• Make sure that your power supply unit (PSU) can provide at least the minimum power required by your system.

7. Inte r n a l au d i o con n e c tors ( 4 -pin C D , 4- p i n AUX ) These connectors allow you to receive stereo audio input from sound

sources such as a CD-ROM, TV tuner, or MPEG card.

Enable the CD-IN function in the audio utility when using this connector.

ATX Power Connectors

ATX12V

+12V DC

GND

+12V D

GND

ATXPWR

+3.3VDC

-12.0VD

GND

PS_ON#

GND GND

GND

-5.0VDC

+5.0VDC

PWR_OK

+12.0VDC

+3.3VDC

GND

+5.0VDC

GND

+5.0VDC

GND

+5VSB

Internal Audio Connectors

AUX

(white)

(black)

Right Audio Channel

Left Audio Channel

Ground

Right Audio Channel

Left Audio Channel

Ground

4-9

ASUS Vintage V2-PE3

8. Fron t p anel a u dio c o n nect o r (10- 1 p in F P _ A U DIO) This connector is for a chassis-mounted front panel audio I/O module

that supports legacy ACʼ97 audio standard.

We recommend that you connect a high-deﬁnition front panel audio module to this connector to avail of the motherboardʼs high-deﬁnition audio capability.

9. Digi t a l aud i o conn e c t or ( 4 - 1 pin S P DIF_ O U T ) This connector is for an additional Sony/Philips Digital Interface

(S/PDIF) port(s). Connect the S/PDIF module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

Front Panel Audio Connector

BLINE_OUT_L

MIC2

Line out_R

Line out_L

BLINE_OUT_R

MICPWR

+5VA

AGND

FP_AUDIO

Digital Audio Connector

+5V

SPDIFOUT

GND

SPDIF_OUT

4-10

Chapter 4: Motherboard info

10. S e r ial p o r t co n n e ctor ( 1 0-1 p i n COM 2 ) This connector is for a serial (COM) port. Connect the serial port

module cable to this connector, then install the module to a slot opening at the back of the system chassis.

COM Port Connector

PIN 1

COM2

11 IE EE 1 3 9 4 por t ( 10-1 p i n IE 1 3 9 4_1)

This connector is for a IEEE 1394 port. Connect the IEEE 1394 module cable to this connector, then install the module to a slot opening at the back of the system chassis.

(optional)

IEEE 1394 Connector

IE1394_1

TPA2-

GND

TPB2-

+12V

GND

TPA2+

GND

+12V

TPB2+

Never connect a USB cable to the IEEE 1394 connector. Doing so will damage the motherboard!

4-11

ASUS Vintage V2-PE3

12. I n f rare d M odul e c onne c t o r (5 - 1 pin I R _ CON) This connector supports a wireless transmitting and receiving infrared

module. The module mounts to a small opening on the system chassis that suppots this feature.

If you use an infrared module on this motherboard, set the item UART Mode Select to [IrDA] or [ASKIR] in the BIOS. Refer to “5.5 Integrated Peripherals” on page 5-14 for details.

Infrared Connector

+5V

IRRX

GND

IR_CON

IRTX

Standard Infrared (SIR)

Front View Back View

(NC)

IRRX

GND

IRTX

4-12

Chapter 4: Motherboard info

13. S y s tem p a n el c o n n ecto r ( 10-1 p i n PA N E L )

This connector supports several chassis-mounted functions.

•

System power LED (2-pin PWRLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity (2-pin HDLED) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or ﬂashes when data is read from or written to the HDD.

• Power/Soft-off button (2-pin PWRBTN) This connector is for the system power button. Pressing the power button turns the system ON or puts the system in SLEEP or SOFT-OFF mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

• Reset button (2-pin RESET) This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

System Panel Connector

F_PANEL

PWRGround

GNDReset

IDE_LED+

IDE_LED-

RESET

IDE LED

PWRSW

PWR_LED+

PWR_LED-

PWR LED

Chapter 5

This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters.

ASUS Vintage V2-PE3

BIOS setup

5-2 Chapter 5: BIOS setup

5.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup.

1. ASUS EZ Flash (Updates the BIOS using a ﬂoppy disk during POST.)

2. Award BIOS Flash Utility (Updates the BIOS in DOS mode using a bootable ﬂoppy disk.)

3. ASUS CrashFree BIOS 2 (Updates the BIOS using a bootable ﬂoppy disk or the motherboard support CD when the BIOS ﬁle fails or gets corrupted.)

Refer to the corresponding sections for details on these utilities.

5.1 .1 Cre at in g a b oo tab le f lop py d isk

1. Do either one of the following to create a bootable ﬂoppy disk.

DOS environment

a. Insert a 1.44MB ﬂoppy disk into the drive. b. At the DOS prompt, type format A:/S then press <Enter>.

Windows® XP environment

a. Insert a 1.44 MB ﬂoppy disk to the ﬂoppy disk drive. b. Click Start from the Windows® desktop, then select My Computer. c. Select the 3 1/2 Floppy Drive icon. d. Click File from the menu, then select Format. A Format 3 1/2

Floppy Disk window appears.

e. Select Create an MS-DOS startup disk from the format options

ﬁeld, then click Start.

Windows® 2000 environment

To create a set of boot disks for Windows® 2000:

a. Insert a formatted, high density 1.44 MB ﬂoppy disk into the drive. b. Insert the Windows® 2000 CD to the optical drive. c. Click Start, then select Run.

Save a copy of the original motherboard BIOS ﬁle to a bootable ﬂoppy disk in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update or AWDFLASH utilities.

ASUS Vintage V2-PE3 5-3

d. From the Open ﬁeld, type D:\bootdisk\makeboot a: assuming that D: is your optical drive. e. Press <Enter>, then follow screen instructions to continue.

2. Copy the original or the latest motherboard BIOS ﬁle to the bootable ﬂoppy disk.

5.1 .2 ASU S EZ Fl as h uti li ty

The ASUS EZ Flash feature allows you to update the BIOS without having to go through the long process of booting from a ﬂoppy disk and using a DOS-based utility. The EZ Flash utility is built-in the BIOS chip so it is accessible by pressing <Alt> + <F2> during the Power-On Self-Test (POST).

To update the BIOS using EZ Flash:

1. Visit the ASUS website (www.asus.com) to download the latest BIOS ﬁle for the motherboard and rename the same to P5VDCTVM.ROM.

2. Save the BIOS ﬁle to a ﬂoppy disk, then restart the system.

3. Press <Alt> + <F2> during POST to display the following.

EZFlash starting BIOS update

Checking for ﬂoppy...

4. Insert the ﬂoppy disk that contains the BIOS ﬁle to the ﬂoppy disk drive. When the correct BIOS ﬁle is found, EZ Flash performs the BIOS update process and automatically reboots the system when done.

• Do not shutdown or reset the system while updating the BIOS to prevent system boot failure!

• A “Floppy not found!” error message appears if there is no ﬂoppy disk in the drive. A “P5VDCTVM.ROM not found!” error message appears if the correct BIOS ﬁle is not found in the ﬂoppy disk. Make sure that you rename the BIOS ﬁle to P5VDCTVM.ROM.

5.1 .3 Awa rd B IOS F la sh Ut il ity

The Basic Input/Output System (BIOS) can be updated using the AwardBIOS Flash Utility. Follow these instructions to update the BIOS using this utility.

1. Download the latest BIOS ﬁle from the ASUS web site. Rename the ﬁle to

P5VDCTVM

.BIN and save it to a ﬂoppy disk.

Save only the updated BIOS ﬁle in the ﬂoppy disk to avoid loading the wrong BIOS ﬁle.

5-4 Chapter 5: BIOS setup

Message: Do You Want To Save Bios (Y/N)

2. Downlaod the AwardBIOS Flash Utility (awdﬂash.exe) from ASUS website to the ﬂoppy disk with the latest BIOS ﬁle.

3. Boot the system in DOS mode using the bootable ﬂoppy disk you created earlier.

4. When the A:> appears, replace the bootable ﬂoppy disk with the ﬂoppy disk containing the new BIOS ﬁle and the Award BIOS Flash Utility.

5. At the prompt, type awdﬂash then press <Enter>. The Award BIOS Flash Utility screen appears.

AwardBIOS Flash Utility for ASUS V1.14

6. Type the BIOS ﬁle name in the File Name to Program ﬁeld, then press <Enter>.

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: p5vdctvm.bin

7. Press <N> when the utility prompts you to save the current BIOS ﬁle.

8. The utility veriﬁes the BIOS ﬁle in the ﬂoppy disk and starts ﬂashing the BIOS ﬁle.

Do not turn off or reset the system during the ﬂashing process!

AwardBIOS Flash Utility for ASUS V1.14

Warning: Don’t Turn Off Power Or Reset System!

9. The utility displays a Flashing Complete message indicating that you have successfully ﬂashed the BIOS ﬁle. Remove the ﬂoppy disk then press <F1> to restart the system.

AwardBIOS Flash Utility for ASUS V1.14

Reset

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: p5vdctvm.bin Flashing Complete

Press <F1> to Continue

Write OK No Update Write Fail

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: p5vdctvm.bin

Programming Flash Memory -

Write OK No Update Write Fail

ASUS Vintage V2-PE3 5-5

4. The utility saves the current BIOS ﬁle to the ﬂoppy disk, then returns to the BIOS ﬂashing process.

3. Type a ﬁlename for the current BIOS ﬁle in the Save current BIOS as ﬁeld, then press <Enter>.

To save the current BIOS ﬁle using the AwardBIOS Flash Utility:

1. Follow steps 1 to 6 of the previous section.

2. Press <Y> when the utility prompts you to save the current BIOS ﬁle.

5.1 .4 Sav in g the c ur ren t BI OS fi le

You can use the AwardBIOS Flash Utility to save the current BIOS ﬁle. You can load the current BIOS ﬁle when the BIOS ﬁle gets corrupted during the ﬂashing process.

AwardBIOS Flash Utility for ASUS V1.14

Message:

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: p5vdctvm.bin

Save current BIOS as: 0109.bin

AwardBIOS Flash Utility for ASUS V8.64

Message: Please Wait!

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: p5vdctvm.bin Checksum: Save current BIOS as: 01.bin

AwardBIOS Flash Utility for ASUS V8.64

Message: Please Wait!

For P4M800-8237R-P5VDC-TVM-00 DATE:05/01/2006 Flash Type - PMC Pm49FL004T LPC/FWH

File Name to Program: 01.bin Now Backup System BIOS to

File!

Make sure that the ﬂoppy disk has enough disk space to save the ﬁle.

5-6 Chapter 5: BIOS setup

5.1 .5 ASU S Cr ash Fr ee BI OS 2 ut il it y

The ASUS CrashFree BIOS 2 is an auto recovery tool that allows you to restore the BIOS ﬁle when it fails or gets corrupted during the updating process. You can update a corrupted BIOS ﬁle using the motherboard support CD or the ﬂoppy disk that contains the updated BIOS ﬁle.

Rec o ve r ing th e BI O S f rom a f lop p y d isk

To recover the BIOS from a ﬂoppy disk:

1. Turn on the system.

2. Insert the ﬂoppy disk with the original or updated BIOS ﬁle to the ﬂoppy disk drive.

3. The utility displays the following message and automatically checks the ﬂoppy disk for the original or updated BIOS ﬁle.

Bad BIOS checksum. Starting BIOS recovery...

Checking for ﬂoppy...

4. Restart the system after the utility completes the updating process.

Bad BIOS checksum. Starting BIOS recovery... Checking for ﬂoppy... Floppy found! Reading ﬁle “P5VDCTVM.ROM”. Completed. Start ﬂashing...

When found, the utility reads the BIOS ﬁle and starts ﬂashing the

corrupted BIOS ﬁle.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

• Prepare the motherboard support CD or the ﬂoppy disk containing the updated motherboard BIOS before using this utility.

• Make sure that you rename the original or updated BIOS ﬁle in the ﬂoppy disk to P5VDCTVM.ROM.

ASUS Vintage V2-PE3 5-7

5.2 BIOS setup program

This motherboard supports a programmable ﬁrmware chip that you can update using the provided utility.

Use the BIOS Setup program when you are installing a motherboard, reconﬁguring your system, or prompted to “Run Setup.” This section explains how to conﬁgure your system using this utility.

Even if you are not prompted to use the Setup program, you can change the conﬁguration of your computer in the future. For example, you can enable the security password feature or change the power management settings. This requires you to reconﬁgure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the ﬁrmware hub.

The ﬁrmware hub on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing <Ctrl> + <Alt> + <Del>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if the ﬁrst two failed.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults from the BIOS menu screen. See section “2.2 BIOS menu screen.”

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the system builderʼs website to download the latest BIOS ﬁle for this motherboard.

5-8 Chapter 5: BIOS setup

5.3 BIOS menu screen

When you enter the BIOS, the following screen appears. The BIOS menu screen displays the items that allow you to make changes to the system conﬁguration. To access the menu items, press the up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to open the speciﬁc menu.

Leg e nd box

The keys in the legend bar allow you to navigate through the various setup menus.

Phoenix - Award BIOS CMOS Setup Utility

Standard BIOS Features

Advanced BIOS Features

Integrated Peripherals

Power Management Setup

PC Health Status

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Time, Date, Hard Disk Type...

Esc : Quit : Select Item

F9: Optimized Defaults F10 : Save & Exit Setup

Lis t b ox

Leg e n d box

Nav i g a tion K e y (s) Func t i o n Des c r i ption

<F1> Displays the General Help screen from anywhere in

the BIOS Setup

<Esc> Returns to the main menu from a sub-menu or

prompts you to quit the setup program Left or Right arrow Selects the menu item to the left or right Up or Down arrow Moves the highlight up or down between ﬁelds <Enter> Brings up a selection menu for the highlighted

ﬁeld <+> or <PgUp> Moves the cursor to the ﬁrst ﬁeld <-> or <PgDn> Moves the cursor to the last ﬁeld <F5> Loads the previous values <F6> Loads the fail-safe defaults <F9> Loads the optimized defaults <F10> Saves changes and exits Setup

ASUS Vintage V2-PE3 5-9

Lis t b o x

This box appears only in the opening screen. The box displays an initial list of conﬁgurable items in the menu you selected.

Sub - me n u

Note that a right pointer symbol ( ) appears to the left of certain ﬁelds. This pointer indicates that you can display a sub-menu from this ﬁeld. A sub-menu contains additional options for a ﬁeld parameter. To display a sub-menu, move the highlight to the ﬁeld and press <Enter>. The sub-menu appears. Use the legend keys to enter values and move from ﬁeld to ﬁeld within a sub-menu as you would within a menu. Use the <Esc> key to return to the main menu.

Take some time to familiarize yourself with the legend keys and their corresponding functions. Practice navigating through the various menus and sub-menus. If you accidentally make unwanted changes to any of the ﬁelds, press <F6> to load the fail-safe default values. While moving around through the Setup program, note that explanations appear in the Item Speciﬁc Help window located to the right of each menu. This window displays the help text for the currently highlighted ﬁeld.

5-10 Chapter 5: BIOS setup

5.4 Standard BIOS Features

The Standard BIOS Features screen gives you an overview of the basic system information.

Dat e [ D ay, xx / xx/ x xx x ]

Allows you to set the system date.

Tim e [ x x:x x :x x ]

Allows you to set the system time.

IDE Ch a nne l 0 Mas t er / Sla v e IDE Ch a nne l 1 Mas t er / Sla v e

While entering Setup, the BIOS automatically detects the presence of IDE devices. There is a separate sub-menu for each IDE device. Select a device item then press <Enter> to display the IDE device information.

Phoenix - Award BIOS CMOS Setup Utility

Standard BIOS Features

Select Menu

Item Speciﬁc Help

Change the day, month, year and century

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

Date (mm:dd:yy) Mon, Jan 24 2005 Time (hh:mm:ss) 11 : 35 : 24

IDE Channel 0 Master [ST320410A] IDE Channel 0 Slave [ASUS CD-S520/A] IDE Channel 1 Master [None] IDE Channel 1 Slave [None] SATA Channel 2 Master [None] SATA Channel 3 Master [None]

Drive A [1.44M, 3.5 in.] Drive B [None]

Halt On [All, But Keyboard]

Base Memory 640K

Extended Memory 252928K Total Memory 253952K

Phoenix - Award BIOS CMOS Setup Utility

IDE Channel 0 Master

Select Menu

Item Speciﬁc Help

To auto-detect the HDD’s size, head... on this channel

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

IDE HDD Auto-Detection [Press Enter]

IDE Channel 0 Master [Auto] Access Mode [Auto]

Capacity 20021 MB

Cylinder 38792 Head 16 Precomp 0 Landing Zone 38791 Sector 63

ASUS Vintage V2-PE3 5-11

IDE HDD Auto-Detection [Press Enter]

Allows auto-detection of the hard disk driveʼs speciﬁcations.

IDE Channel 0, 1 Master/Slave [Auto]

Sets the selected channel as Master or Slave. Conﬁguration options: [None] [Auto] [Manual]

Access Mode [Auto]

This item allows the user to select the sector addressing mode. CHS mode supports 528 MB hard disks. LBA (logical block addressing) mode supports hard disks up to 128 GB in size. Large mode (also called extended CHS mode) supports hard disks above 528 MB in size, but does not support LBA mode. Conﬁguration options: [CHS] [LBA] [Large] [Auto]

Before attempting to conﬁgure a hard disk drive, make sure you have the correct conﬁguration information supplied by the drive manufacturer. Incorrect settings may cause the system to fail to recognize the installed hard disk.

Capacity

Displays the auto-detected hard disk capacity. This item is not conﬁgurable.

Cylinder

Shows the number of the hard disk cylinders. This item is not conﬁgurable.

Head

Shows the number of the hard disk read/write heads. This item is not conﬁgurable.

Precomp

Shows the number of precomp per track. This item is not conﬁgurable.

Landing Zone

Shows the number of landing zone per track. This item is not conﬁgurable.

Sector

Shows the number of sectors per track. This item is not conﬁgurable.

After entering the IDE hard disk drive information into the BIOS, use a disk utility, such as FDISK, to partition and format new IDE hard disk drives. This is necessary so that you can write or read data from the hard disk. Make sure to set the partition of the Primary IDE hard disk drives to active.

5-12 Chapter 5: BIOS setup

SAT A C h ann e l 2 , 3 Mas ter

While entering Setup, the BIOS automatically detects the presence of Serial ATA devices. There is a separate sub-menu for each SATA device. Select a device item then press <Enter> to display the SATA device information.

Extended IDE Drive [Auto]

Select [Auto] to automatically detect a SATA hard disk drive. If automatic detection is successful, Setup program automatically ﬁlls in the correct values for the remaining ﬁelds (including Capacity, Cylinder, Head, Precomp, Landing Zone, Sector) on this sub-menu. Conﬁguration options: [None] [Auto]

Access Mode [Auto]

Allows the user to select the sector addressing mode. Conﬁguration options: [Large] [Auto]

Phoenix - Award BIOS CMOS Setup Utility

SATA Channel 2 Master

Select Menu

Item Speciﬁc Help

To auto-detect the HDD’s size, head... on this channel

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

IDE Auto-Detection [Press Enter]

Extended IDE Drive [Auto] Access Mode [Auto]

Capacity 20021 MB

Cylinder 38792 Head 16 Precomp 0 Landing Zone 38791 Sector 63

Capacity

Displays the auto-detected hard disk capacity. This item is not conﬁgurable.

Cylinder

Shows the number of the hard disk cylinders. This item is not conﬁgurable.

ASUS Vintage V2-PE3 5-13

Dri v e A /B [ 1. 4 4M, 3.5 in . ]

Speciﬁes the capacity and physical size of diskette drive A. Do not select [None] if you are using a ﬂoppy disk drive. Conﬁguration options: [None] [360K, 5.25 in.] [1.2M , 5.25 in.] [720K , 3.5 in.] [1.44M, 3.5 in.]

Hal t O n [

All, B u t Ke y b o ard

]

Sets the system to halt on errors according to the system functions speciﬁed in each option. Conﬁguration options: [All Errors] [No Errors] [All, But Keyboard] [All, But Diskette] [All, But Disk/Key]

Head

Shows the number of the hard disk read/write heads. This item is not conﬁgurable.

Precomp

Shows the number of precomp per track. This item is not conﬁgurable.

Landing Zone

Shows the number of landing zone per track. This item is not conﬁgurable.

Sector

Shows the number of sectors per track. This item is not conﬁgurable.

5-14 Chapter 5: BIOS setup

5.5 Advanced BIOS Features

The Advanced BIOS Features menu items allow you to change the advanced BIOS settings.

Take caution when changing the settings of the Advanced BIOS Features items. Incorrect ﬁeld values may cause the system to malfunction.

CPU Fe a tur e [ P res s E n ter ]

Allows you to view the CPU feature setup menu.

Execute Disable Bit [Enabled]

When disabled, the processor forces the XD feature ﬂag to always return 0. Conﬁguration options: [Disabled] [Enabled]

CPU Hyper-Threading [Enabled]

Enables or disabled the processor Hyper-Threading technology. Set this item to [Enabled] if you are using Windows® XP, Linux 2.4, or other operating systems optimized for Intel® Hyper-Threading technology. Set this item to [Disabled] if you are using other operating systems that are not optimized for Intel® Hyper-Threading technology. Conﬁguration options: [Disabled] [Enabled]

Har d D i sk B oo t Pr i or i ty [ Pr e ss E nt e r]

Allows you to select the hard disk boot device priority. The number of devices that appears on the screen depends on the number of devices installed in the system.

Phoenix - Award BIOS CMOS Setup Utility

Advanced BIOS Features

Select Menu

Item Speciﬁc Help

CPU feature setup menu

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

CPU Feature [Press Enter]

Hard Disk Boot Priority [Press Enter] First Boot Device [Hard Disk] Second Boot Device [CDROM] Third Boot Device [Floppy] Boot Other Device [Enabled] Boot Up Floppy Seek [Disabled] Boot up Num-Lock Status [On] Security Option [Setup] Full Screen LOGO Show [Setup]

ASUS Vintage V2-PE3 5-15

Fir s t/ S eco n d/ T hir d B o ot D ev i ce

Allows you to assign the boot device priority. Conﬁguration options: [Floppy] [LS120] [Hard Disk] [CDROM] [ZIP] [USB-FDD] [USB-ZIP] [USB-CDROM] [LAN] [Disabled]

Boo t O t her De v ice [E n abl e d]

Enables or disables support for other bootable devices. Conﬁguration options: [Enabled] [Disabled]

Boo t U p Fl o pp y Se e k [ Dis a bl e d]

When [Enabled], the BIOS will seek the ﬂopy disk drive to determine whether the drive has 40 or 80 tracks. Conﬁguration options: [Disabled] [Enabled]

Boo t U P Nu m -L o ck S ta t us [ On ]

Allows you to select the power-on state for the NumLock. Conﬁguration options: [Off] [On]

Sec u ri t y O p ti o n [ S et u p]

Select [Setup] to require the password before entering the BIOS Setup. Select [System] to require the password before entering the system. Conﬁguration options: [Setup] [System]

Ful l S c ree n L O GO S ho w [E n ab l ed]

Enable or disable full screen logo show support.Conﬁguration options: [Enabled] [disabled]

5-16 Chapter 5: BIOS setup

5.6 Integrated Peripherals

The Integrated Peripherals menu items allow you to change the onboard devices conﬁguration settings.

Onc h ip IDE De v ice

This sub-menu contains IDE function-related items. Select an item then press <Enter> to edit.

IDE Pr i mar y , S eco n da r y M a st e r/S l av e PI O [ A uto ]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE device. Modes 0 through 4 provide successive increase in performance. Conﬁguration options: [Auto] [Mode 0] [Mode 1] [Mode 2] [Mode 3] [Mode 4]

IDE Pr i mar y , S eco n da r y M a st e r/S l av e UD M A [ Aut o ]

Ultra DMA capability allows improved transfer speeds and data integrity for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA capability. Conﬁguration options: [Disabled] [Auto]

Phoenix - Award BIOS CMOS Setup Utility

Integrated Peripherals

Select Menu

Item Speciﬁc Help

Onchip IDE Device setup menu

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

Onchip IDE Device [Press Enter]

Onboard Device [Press Enter]

SuperIO Device [Press Enter]

Phoenix - Award BIOS CMOS Setup Utility

Onchip IDE Device

Select Menu

Item Speciﬁc Help

Set a PIO mode for

the IDE device.

Mode 0/through 4

successive increase in

performance.

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

IDE Primary Master PIO [Auto] IDE Primary Slave PIO [Auto] IDE Secondary Master PIO [Auto] IDE Secondary Slave PIO [Auto] IDE Primary Master UDMA [Auto] IDE Primary Slave UDMA [Auto] IDE Secondary Master UDMA [Auto] IDE Secondary Slave UDMA [Auto] On-Chip Serial ATA [Enabled] SATA Mode [IDE]

ASUS Vintage V2-PE3 5-17

Onb o ar d 13 9 4 [ E na b led ]

Allows you to enable or disable the onboard 1394 controller. Conﬁguration options: [Enabled] [Disabled]

USB Co n tro l le r [E n ab l ed]

Allows you to enable or disable the USB 2.0 controller. Conﬁguration options: [Enabled] [Disabled]

USB 2.0 Co n tro lle r [E nab l ed]

Allows you to enable or disable the EHCI controller. If the BIOS has built-in high speed USB support, this item will be enabled automatically when a high speed device is attached. Conﬁguration options: [Enabled] [Disabled]

USB Ke y boa r d S upp o rt [En a bl e d]

Allows you to enable or disable legacy USB device support. Conﬁguration options: [Disabled] [Enabled]

USB Mo u se S up p ort [E n abl e d]

Allows you to enable or disable USB mouse support. Conﬁguration options: [Disabled] [Enabled]

AC9 7 Au dio [Au to]

Allows the BIOS to automatically enable support for legacy AC`97 audio, or disable the onboard AC`97 Audio controller. Conﬁguration options: [Enabled] [Disabled]

Onb o ar d De v ic e

This sub-menu allows you to set the conﬁgurations for onboard devices. Select an item then press <Enter> to edit.

Phoenix - Award BIOS CMOS Setup Utility

Onboard Device

Select Menu

Item Speciﬁc Help

Enable/Disable Onboard

1394 device support.

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

Onboard 1394 [Enabled] USB Controller [Enabled] USB 2.0 Controller [Enabled] USB Keyboard Support [Enabled] USB Mouse Support [Enabled] Onboard AC97 Audio [Enabled] Onboard LAN Device [Enabled] Onboard LAN Boot ROM [Disabled]

5-18 Chapter 5: BIOS setup

Onb o ar d LA N D e vic e [ E nab l ed ]

Allows you to enable or disable the onboard LAN device support. Conﬁguration options: [Disabled] [Enabled]

Onb o ar d LA N B o ot R OM [Di s ab l ed]

Allows you to enable or disable the boot ROM of the onboard LAN chip. Conﬁguration options: [Enabled] [Disabled]

Onb o ar d Se r ia l Po r t 1 [3 F 8/I RQ4 ]

Allows you to set the Serial Port 1 base address. Conﬁguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3] [Auto]

Onb o ar d Se r ia l Po r t 2 [2 F 8/I RQ3 ]

Allows you to set the Serial Port 2 base address. Conﬁguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3] [Auto]

Onb o ar d Pa r al l el P or t [3 7 8/I RQ7 ]

Allows you to set the base address of the onboard parallel port connector. Conﬁguration options: [Disabled] [378/IRQ7] [278/IRQ5] [3BC/IRQ7]

Sup e rI O De v ic e

This sub-menu allows you to set the conﬁgurations for SuperIO devices. Select an item then press <Enter> to edit.

Phoenix - Award BIOS CMOS Setup Utility

SuperIO Device

Select Menu

Item Speciﬁc Help

Select Serial Port1

base address.

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial POrt 2 [2F8/IRQ3] UART Mode Select [Normal] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [ECP] ECP Mode Use DMA [3]

ASUS Vintage V2-PE3 5-19

Par a ll e l P o rt Mod e [ E CP]

Allows you to set the operation mode of the parallel port. Conﬁguration options: [SPP] [EPP] [ECP] [ECP+EPP]

UAR T M o de S el e ct [ No r mal ]

Allows you to set the operation mode of the Universal Asynchronous Receiver/Transmitter (UART) microchip, that is used to control serial devices. Select [IrDA] or [ASKIR] if you connect any infrared devices to the motherboard. IrDA provides a max speed of up to 115K baud while ASKIR reaches a max speed of 19.2K baud. Conﬁguration options: [Normal] [IrDA] [ASKIR]

ECP Mo d e U s e D MA [ 3]

Allows you to select the ECP Mode. This item becomes conﬁgurable only if the Parallel Port Mode is set to [ECP] or [ECP+EPP]. Conﬁguration options: [1] [3]

5-20 Chapter 5: BIOS setup

5.7 Power Management Setup

The Power Management Setup menu items allow you to change the settings for the Advanced Power Management (APM) and Advanced Conﬁguration and Power Interface (ACPI).

ACP I F u nct i on [En a bl e d]

Allows you to enable or disable the ACPI support for the operating system. Conﬁguration options: [Enabled] [Disabled]

ACP I S u spe n d T ype [S 3 (ST R )]

Allows you to select the ACPI state used for system suspend. Conﬁguration options: [S1(POS)] [S3(STR)]

Off by Pow e r B utt o n [ Ins t an t -Of f ]

When set to [Instant-Off], the system goes to soft-off when you press the power button for less than 4 seconds. When set to [Delay 4 Sec], press the power button for more than 4 seconds to power off the system. Conﬁguration options: [Instant-Off] [Delay 4 Sec]

Res u me by P CI PME [D i sab l ed ]

Enables or disables system wake-up by power management event (PME). Conﬁguration options: [Disabled] [Enabled]

Phoenix - Award BIOS CMOS Setup Utility

Power Management Setup

Select Menu

Item Speciﬁc Help

Enable/Disable ACPI support for operating system.

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

ACPI Function [Enabled] ACPI Suspend Type [S3(STR)] Off by Power Button [Instant-Off] Resume by PCI PME [Disabled] Resume by Ring [Disabled] Resume by USB (S3) [Enabled] Resume by Alarm [Disabled]

x Date (of Month) Alarm 0 x Time (hh:mm:ss) Alarm 0 : 0 : 0

State after Power Failure [Off]

ASUS Vintage V2-PE3 5-21

The computer cannot receive or transmit data until the computer and applications are fully running. Thus, connection cannot be made on the ﬁrst try. Turning an external modem off and then back on while the computer is off causes an initialization string that turns the system power on.

Res u me by U SB (S3 ) [E nab l ed]

Allows you to wake up the system using a USB mouse or keyboard. Conﬁguration options: [Disabled] [Enabled]

Res u me by A la r m [ D is a ble d ]

Allows you to enable or disable RTC to generate an event. When this item is enabled, you can set the date and time of alarm using the two following items. Conﬁguration options: [Disabled] [Enabled]

Day of Mon t h A lar m [ N A]

To set the day of alarm, highlight this item and press <Enter> to display a pop-up menu. Key in a value (Min=0, Max=31), then press <Enter>. Selecting [0] means the alarm will set off everyday.

Tim e ( h h:m m :s s ) A l ar m [0 : 0 : 0 ]

To set the time of alarm:

1. Highlight this item and press <Enter> to display a pop-up menu for the hour ﬁeld.

2. Key-in a value (Min=0, Max=23), then press <Enter>.

3. Press tab to move to the minutes ﬁeld, then press <Enter>.

4. Key-in a minute value (Min=0, Max=59), then press <Enter>.

5. Press tab to move to the seconds ﬁeld, then press <Enter>.

6. Key-in a value (Min=0, Max=59), then press <Enter>.

Sta t e a fte r P o wer Fa i lur e [ O ff]

When set to Off, the system goes into off state after an AC power loss. When set to On, the system turns on after an AC power loss. When set to Former-Sts, the system goes to its previous state before the AC power loss. Conﬁguration options: [Off] [On] [Former-Sts]

The following items become conﬁgurable only when the Resume by Alarm item is set to [Enabled].

Res u me by R in g [E n ab l ed]

Allows you to enable or disable system power up when the external modem receives a call while the computer is in soft-off mode. Conﬁguration options: [Disabled] [Enabled]

5-22 Chapter 5: BIOS setup

5.8 PC Health Status

The PC Health Status screen shows the motherboard CPU and fan temperatures, and allows you to set threshold levels for efﬁcient system operation.

The BIOS auto-detects the former eight items. The user cannot conﬁgure these items.

CPU Te m per a tu r e [ x xx º C] MB T em p era t ur e [x x xº C ]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures.

CPU Fa n Sp e ed [xx x xR P M] Sys t em Fan Sp e ed [ xx x xRP M ]

The onboard hardware monitor automatically detects and displays the CPU and system fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the ﬁeld shows 0 RPM.

VCO R E V olt a ge , 3V Vo l tag e , + 5V i n, +13 V in

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators.

CPU Fa n Sp e ed Con t ro l [E n ab l ed]

Allows you to enable or disable the CPU fan speed controller. Conﬁguration options: [Enabled] [Disabled]

Phoenix - Award BIOS CMOS Setup Utility

PC Health Status

Select Menu

Item Speciﬁc Help

: Move Enter:Select +/-/PU/PD:Value F10:Save&Exit ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F9: Optimized Defaults

Press <Enter> to enable or disable.

CPU Temperature 38oC

MB Temperature 37oC CPU Fan Speed 3835 RPM System Fan Speed 0 RPM VCORE Voltage 1.50 V

3.3 V voltage 3.34 V +5V in 5.19 V

+13V in 11.61 V

CPU FAN SPEED CONTROL [Enabled]

Start Up Temperature(ºC) [50] Full Speed Temperature(ºC) [70] Start Up PWM [60] Slope Select PWM/ºC [4 PWM/ºC]

ASUS Vintage V2-PE3 5-23

5.9 Other items

Loa d Op tim iz ed De fa ul ts

Allows you to load the optimized defaults.

Sup er vi sor P as swo rd

Allows you to set the supervisor password. To set a password, press <Enter>. Type in and conﬁrm the password when prompted.

Use r Pa ssw or d

Allows you to set a user password for access to system after boot-up.

Sav e & Exi t Se tup

Once you are ﬁnished making your selections, choose this option to ensure that the values you selected are saved to the CMOS RAM. When you select this option, a conﬁrmation window appears. Select Yes to save changes and exit.

Exi t Wi tho ut S avi ng

Select this option only if you do not want to save the changes that you made to the Setup program.

Sta r t U p T e mp e rat u re (ºC ) [ 5 0]

Allows you to set the fan start-up temperature. Conﬁguration options: [0] [1] ~ [100]

Ful l S p eed Te m per a tu r e ( º C) [70 ]

Allows you to set the threshold temperature before the fan begins running at full speed. Conﬁguration options: [0] [1] ~ [100]

Sta r t U p P W M [ 60]

Sets the start-up Pulse Width Modulation (PWM) value when the fan starts running. Conﬁguration options: [0] [1] ~ [127]

Slo p e S ele c t P WM/ º C [ 4 P W M/ º C]

Sets the PWM increase value per degree Celcius to control the fan speed when the system temperature increases. Conﬁguration options: [0 PWM/ºC] [1 PWM/ºC] [2 PWM/ºC] [4 PWM/ºC] [8 PWM/ºC] [16 PWM/ºC] [32 PWM/ºC] [64 PWM/ºC]

ASUS VINTAGE V2-PE3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
