Asus VA32UQ User’s Manual

VA32UQ Series

LCD Monitor

User Guide

Table of contents

Notices ......................................................................................................... iii

Safety information ...................................................................................... iv

Care & Cleaning .......................................................................................... vi

1.1 Welcome ....................................................................................... 1-1

1.2 Package contents ......................................................................... 1-1

1.3 Assembling the monitor .............................................................. 1-2

1.4 Connect cables ............................................................................. 1-3

1.4.1 Rear of the LCD monitor ................................................. 1-3

1.5 Monitor introduction .................................................................... 1-4

1.5.1 Using the Controls button .............................................. 1-4

2.1 Adjusting the monitor .................................................................. 2-1

3.1 OSD (On-Screen Display) menu ................................................. 3-1

3.1.1 Howtorecongure .......................................................... 3-1

3.1.2 OSD Function Introduction .............................................. 3-2

3.2 Specications ............................................................................. 3-12

3.3 Troubleshooting (FAQ) .............................................................. 3-13

3.4 Supported Timing List ............................................................... 3-14

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Notices

As an Energy Star® Partner, our company has determined that this product meets the Energy Star® guidelines for energy

efciency.

Made in China

iii

Safety information

• Before setting up the monitor, carefully read all the documentation that

came with the package.

• To prevent fire or shock hazard, never expose the monitor to rain or

moisture.

• Never try to open the monitor cabinet. The dangerous high voltages

inside the monitor may result in serious physical injury.

• If the power supply is broken, do not try to fix it by yourself. Contact a

qualified service technician or your retailer.

• Before using the product, make sure all cables are correctly connected

and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for

ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power

standard.

• Do not overload power strips and extension cords. Overloading can

result in fire or electric shock.

• Avoid dust, humidity, and temperature extremes. Do not place the

monitor in any area where it may become wet. Place the monitor on a stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a

long period of time. This will protect the monitor from damage due to power surges.

• Never push objects or spill liquid of any kind into the slots on the

monitor cabinet.

• To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate configured receptacles marked between 100 ~ 240V AC.

• The socket-outlet shall be installed near the equipment and shall be

easily accessible

• If you encounter technical problems with the monitor, contact a

qualified servic er.

• Provide an earthing connection before the mains plug is connected to

the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.

WARNING

Usageofotherthanspeciedhead-orearphonescanresultinhearing

loss due to excessive sound pressures.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the

cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the

monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner

intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the

fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.

• You may find slightly uneven brightness on the screen depending on

the desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the

previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or flashes, or cannot work anymore,

contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Wheretondmoreinformation

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

vii

1.1 Welcome

Thank you for purchasing the ASUS® LCD monitor!

The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual experience that the monitor brings you!

1.2 Package contents

Check your package for the following items:

LCD Monitor

Quick Start Guide

Warranty Card

1x Power Cord

1x DP Cable (option)

1x HDMI Cable

• If any of the above items is damaged or missing, contact your retailer

immediately.

ASUS LCD Monitor VA32UQ Series

1-1

1.3 Assembling the monitor

To assemble the monitor:

1. Placethedisplayatonaclothonthetable.

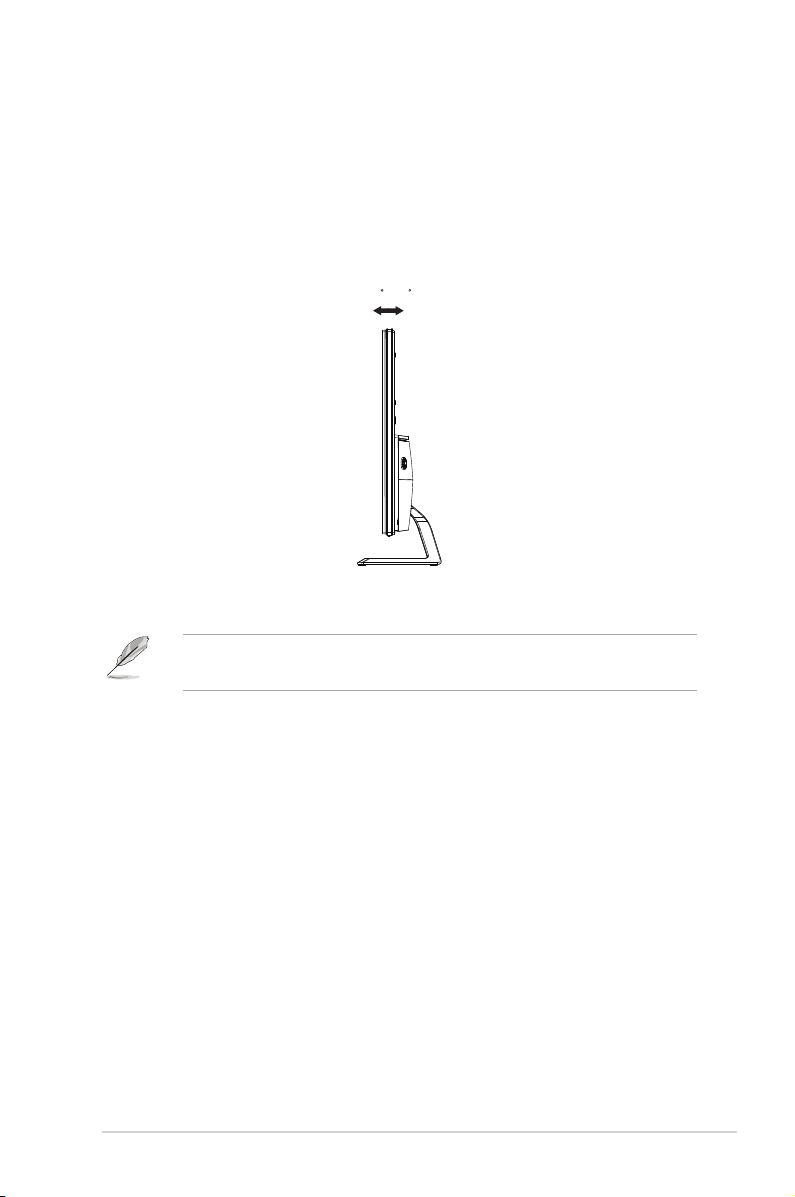

2. Adjust the monitor to the angle that is most comfortable for you.

-5 ~ 10

1-2

Chapter 1: Product Introduction
