Asus ROG Front Base Quick Start Manual

ROG Front Base

EC Declaration of Conformity

We, the undersigned,

Manufacturer:

ASUSTeK COMPUTER INC.

Address, City:

4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Country:

TAIWAN

Authorized representative in Europe:

ASUS COMPUTER GmbH

Address, City:

HARKORT STR. 21-23, 40880 RATINGEN

Country:

GERMANY

declare the following apparatus:

Product name : Front panel

Model name : Front Base

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006

EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 893 V1.6.1(2011-11)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001
EN 62479:2010
EN 50385:2002
EN 62311:2008

EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)

2006/95/EC-LVD Directive

EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009

Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 130816

CE marking

Declaration Date: 16/08/2013

Year to begin affixing CE marking:2013

Position : CEO

Name :

Jerry Shen

Signature :

__________

(EC conformity marking)

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Front Panel

Model Number : Front Base

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

Representative Person’s Name : Steve Chang / President

Signature :

Date : Jun. 16, 2013

Ver. 120601

REPUBLIC OF

GAMERS

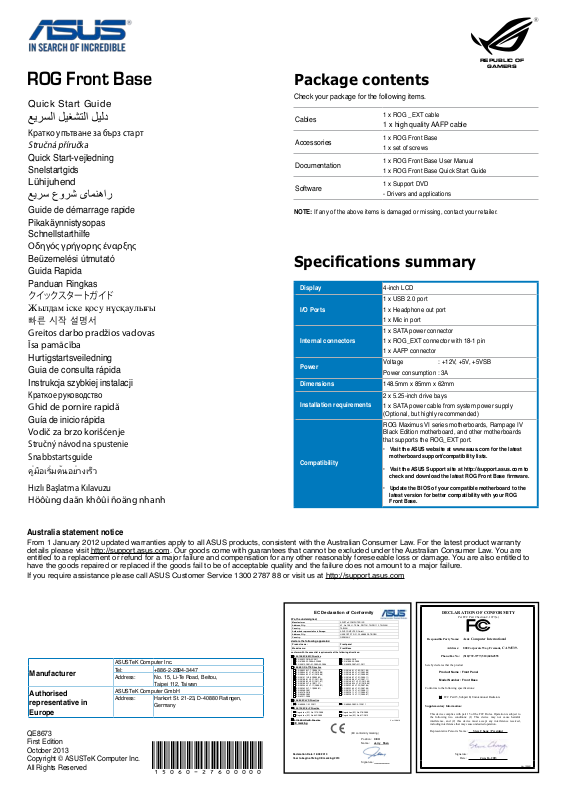

Quick Start Guide

Кратко упътване за бърз старт

Stručná příručka

Quick Start-vejledning
Snelstartgids
Lühijuhend

Package contents

Check your package for the following items.

Cables

Accessories

Documentation

Software

1 x ROG _EXT cable

1 x high quality AAFP cable

1 x ROG Front Base

1 x set of screws

1 x ROG Front Base User Manual

1 x ROG Front Base Quick Start Guide

1 x Support DVD

- Drivers and applications

Guide de démarrage rapide
Pikakäynnistysopas
Schnellstarthilfe

Οδηγός γρήγορης έναρξης

Beüzemelési útmutató
Guida Rapida
Panduan Ringkas

クイックスタートガイド

Жылдам іске қосу нұсқаулығы

빠른 시작 설명서

Greitos darbo pradžios vadovas
Īsa pamācība

Hurtigstartsveiledning
Guia de consulta rápida
Instrukcja szybkiej instalacji

Краткое руководство
Ghid de pornire rapidă

Guía de inicio rápida

Vodič za brzo korišćenje
Stručný návod na spustenie
Snabbstartsguide

คู่มือเริ่มต้นอย่างเร็ว

Hızlı Başlatma Kılavuzu
Höôùng daãn khôûi ñoäng nhanh

NOTE: If any of the above items is damaged or missing, contact your retailer.

Specications summary

Display

I/O Ports

Internal connectors

Power

Dimensions

Installation requirements

Compatibility

4-inch LCD

1 x USB 2.0 port

1 x Headphone out port

1 x Mic in port

1 x SATA power connector

1 x ROG_EXT connector with 18-1 pin

1 x AAFP connector

Voltage : +12V, +5V, +5VSB

Power consumption : 3A

148.5mm x 85mm x 62mm

2 x 5.25-inch drive bays

1 x SATA power cable from system power supply
(Optional, but highly recommended)

ROG Maximus VI series motherboards, Rampage IV
Black Edition motherboard, and other motherboards
that supports the ROG_EXT port.

• Visit the ASUS website at www.asus.com for the latest
motherboard support/compatibility lists.

• Visit the ASUS Support site at http://support.asus.com to

check and download the latest ROG Front Base rmware.

• Update the BIOS of your compatible motherboard to the
latest version for better compatibility with your ROG
Front Base.

Australia statement notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty
details please visit http://support.asus.com. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://support.asus.com

Manufacturer

Authorised
representative in
Europe

QE8673
First Edition
October 2013
Copyright © ASUSTeK Computer Inc.
All Rights Reserved

ASUSTeK Computer Inc.
Tel: [phone]
Address: No. 15, Li-Te Road, Beitou,

ASUSTeK Computer GmbH
Address: Harkort St. 21-23, D-40880 Ratingen,

Taipei 112, Taiwan

Germany

15060-27600000

ROG Front Base Overview

ROG_EXT

AAFP

REPUBLIC OF

GAMERS

Front view

1 2 4 5 6 7

83

Rear view

1

Headphone out port

2

Mic in port

3

LCD panel

4

USB 2.0 port

5

Escape Mode button

6

CPU Level Up OC button

LCD power button

7

9

10 11

Selector knob

8

Installation steps

Step 1 Step 2 Step 3

two (2) empty 5.25-inch drive bays

B

ROG_EXT cable

AAFP cable

9

SATA power connector

ROG_EXT connector

10

AAFP connector

11

B

A

Step 4 Step 5

PC chassis

SATA Power cable

AAFP

ROG_EXT
