Asus MX279HR User’s Manual

MX279

LCD Monitor

User Guide

First Edition
August 2012

Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

ii

Table of contents

Notices ......................................................................................................... iv

Safety information ....................................................................................... v

Care & Cleaning .......................................................................................... vi

Takeback Services ..................................................................................... vii

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents ......................................................................... 1-1

1.3 Monitor introduction .................................................................... 1-2

1.3.1 Front view ....................................................................... 1-2

1.3.2 Back view ........................................................................ 1-4

1.3.3 QuickFit Function ............................................................ 1-5

2.1 Assembling the monitor base ..................................................... 2-1

2.1.1 Assembling the base ....................................................... 2-1

2.1.2 Detaching the base ......................................................... 2-2

2.2 Adjusting the monitor .................................................................. 2-3

2.3 Connecting the cables ................................................................. 2-3

2.4 Turning on the monitor ................................................................ 2-4

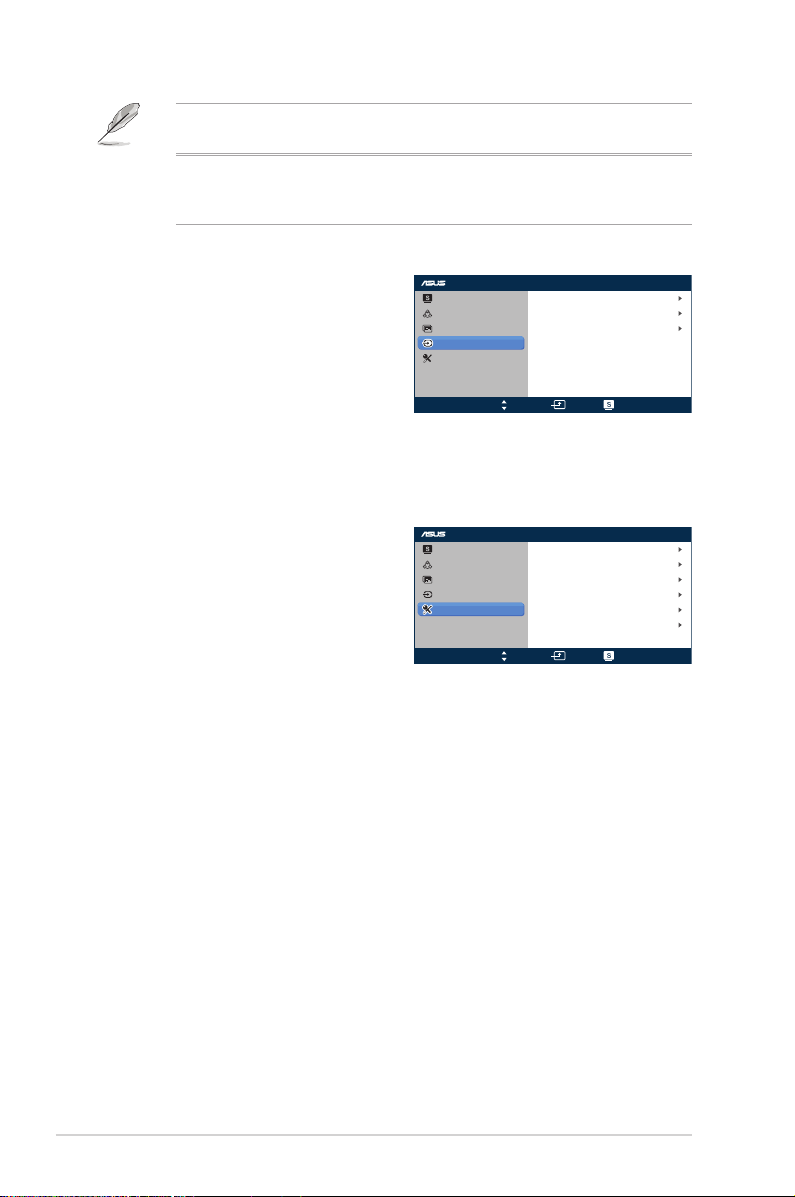

3.1 OSD (On-Screen Display) menu ................................................. 3-1

3.1.1 Howtorecongure .......................................................... 3-1

3.1.2 OSD Function Introduction .............................................. 3-1

3.2 SpecicationsSummary ............................................................. 3-4

3.3 Troubleshooting (FAQ) ................................................................ 3-6

3.4 Supported operating modes ....................................................... 3-7

iii

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This product implements power management functionality. In case of no
signal input after 10 seconds, the product automatically goes to sleep/
standby mode.

As an Energy Star® Partner, our company has determined
that this product meets the Energy Star® guidelines for

energyefciency.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

iv

Safety information

• Before setting up the monitor, carefully read all the documentation that

came with the package.

• To prevent fire or shock hazard, never expose the monitor to rain or

moisture.

• Never try to open the monitor cabinet. The dangerous high voltages

inside the monitor may result in serious physical injury.

• If the power supply is broken, do not try to fix it by yourself. Contact a

qualified service technician or your retailer.

• Before using the product, make sure all cables are correctly connected

and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for

ventilation. Do not block these slots. Never place this product near or
over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supply to
your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power

standard.

• Do not overload power strips and extention cords. Overloading can

result in fire or electric shock.

• Avoid dust, humidity, and temperature extremes. Do not place the

monitor in any area where it may become wet. Place the monitor on a
stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a

long period of time. This will protect the monitor from damage due to
power surges.

• Never push objects or spill liquid of any kind into the slots on the

monitor cabinet.

• To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate configured receptacles marked
between 100-240V AC.

• If you encounter technical problems with the monitor, contact a

qualified service technician or your retailer.

This product may contains chemicals known to the State of California

•

to cause cancer , and birth defects or other reproductive harm.
Wash hands after handling.

AEEE Yönetmeliğine Uygundur

v

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the

cables and power cord. Follow the correct lifting techniques when
positioning the monitor. When lifting or carrying the monitor, grasp the
edges of the monitor. Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the

monitor surface with a lint-free, non-abrasive cloth. Stubborn stains
may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner

intended for use with the LCD. Never spray cleaner directly on the
screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the

fluorescent light. Turn off the Power Switch and turn it on again to
make sure that the flicker disappears.

• You may find slightly uneven brightness on the screen depending on

the desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the

previous screen may remain after switching the image. The screen will
recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or flashes, or cannot work anymore,

contact your dealer or service center to fix it. Do not repair the screen
by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying
to complete a task.

CAUTION: Information to prevent damage to the components
when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a
task.

NOTE: Tips and additional information to aid in completing a task.

vi

Wheretondmoreinformation

Refer to the following sources for additional information and for product
and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation that may
have been added by your dealer. These documents are not part of
the standard package.

Takeback Services

ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for our customers to be able to responsibly recycle our products,
batteries and other components as well as the packaging materials.

Please go to http://csr.asus.com/english/Takeback.htm for detail recycling
information in different region.

vii

1.1 Welcome!

Thank you for purchasing the ASUS® LCD monitor!

The latest widescreen LCD monitor from ASUS provides a crisper,
broader, and brighter display, plus a host of features that enhance your
viewing experience.

With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!

1.2 Package contents

Check your package for the following items:

LCD monitor

1 x Adapter

1 x Power cable

1 x VGA cable

1 x DVI-HDMI cable

1 x Audio cable

1 x Quick start guide

1 x Warranty card

If any of the above items is damaged or missing, contact your retailer
immediately.

CAUTION

ASUS LCD Monitor MX279

1-1

1.3 Monitor introduction

1.3.1 Front view

1. Button:

• Activates the QuickFit function. (Please refer to 1.3.3 QuickFit

function).

2.

3.

4. MENU Button:

5.

6.

Button:

• Press this hotkey to switch from six video preset modes

(Scenery Mode, Standard Mode, Theater Mode, Game
Mode, Night View Mode, and sRGB) with SPLENDID™ Video
Intelligence Technology.

• Exit the OSD menu or go back to the previous menu as the OSD

menu is active.

• Automatically adjusts the image to its optimized position, clock,

and phase by pressing this button for 2~4 seconds (for VGA
mode only).

Button:

• Decreases values or moves your selection left/down.

• Volume hotkey

• Turns on the OSD menu.

• Enacts the selected OSD menu item.

Button:

• Increases values or moves your selection right/up.

• Brightness hotkey

Input Select Button:

• Selects an available input source.

74 6

1-2

Chapter 1: Product Introduction

Press (Input Select button) to display HDMI signals after you connect
HDMI cable with the monitor.

7. Power Button/Power Indicator:

• Press this button to turn the monitor on/off.

• The color definition of the power indicator is as the table below.

Status Description

White ON

Amber Standby mode

OFF OFF

ASUS LCD Monitor MX279

1-3

1.3.2 Back view

HDMI-2HDMI-1

HDMI-2HDMI-1

VGA

VGA

4

6

1. HDMI port: This port is for connection with an HDMI compatible

device.

2. VGA port: This 15-pin port is for PC VGA connection.

3. Audio-in port: This port connects PC audio source by the bundled

audio cable.

4. Earphone jack: This port connects to an earphone.

5. DC-in port: This port connects the adapter.

6. Kensington Lock: This port connects a lock-and-cable apparatus for

security purposes.

1-4

Chapter 1: Product Introduction

1.3.3 QuickFit Function

The QuickFit function allows users to have a preview of the document or
photo layout directly on screen without printing test copies.

QuickFit has three patterns:

a. Grid pattern: Facilitates designers and users to organize content

and layout on one page and achieve a consistent look and feel.

Alignment Grid

QuickFit

b. Paper size: Provides users to view their documents in real size

on the screen.

A4

QuickFit

Letter

QuickFit

c. Photo size: Provides photographers and other users to

accurately view and edit their photos in real size on the screen.

4x6 3x5 2x2

QuickFit

5x78x10

QuickFit

To activate QuickFit, press the QuickFit hotkey repeatedly to switch
between different pattern sizes.

When QuickFit is activated, press the control buttons to make adjustments.
The QuickFit OSD displayed in the lower right corner of the screen will
guide users to make selections.

QuickFit

ASUS LCD Monitor MX279

1-5

2.1 Assembling the monitor base

2.1.1 Assembling the base

1. Have the front of the monitor face down on a table.

2. Attachthebasetothearmandxwiththescrewtojointhemtightly.

Youcaneasilytightenthescrewbyngers.

3. Adjust the monitor to the angle that is most comfortable for you.

We recommend that you cover the table surface with soft cloth to
prevent damage to the monitor.

2-1

Chapter 2: Setup

2.1.2 Detaching the base

1. Disconnect power and signal cables. Carefully put the front of the
monitor face down on a clean table.

2. Useyourngerstoloosenthescrewlocatedatthebottomofthe
base, and remove the base from the stand.

3. Or, you may directly use a screwdriver to remove the screw that
secures the base to the stand, and detach the base from the stand.

• We recommend that you cover the table surface with soft cloth to

prevent damage to the monitor.

• Hold the base while removing the screw.

ASUS LCD Monitor MX279

2-2

2.2 Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the

monitor, then adjust the monitor to the angle that is most comfortable
for you.

• Hold the stand to prevent the monitor from falling while changing its

angle.

• Youcanadjustthemonitor’sanglefrom-5˚to20˚.

-5 to +20

It is normal that the monitor slightly shakes while you adjust the viewing angle.

2.3 Connecting the cables

Connect the cables according to the following instructions:

HDMI-2HDMI-1

HDMI-2HDMI-1

VGA

VGA

Audio-in DC-IN

HDMI

VGA Earphone jack

• To connect the audio cable: connect one end of the audio cable to

the monitor’s Audio-in port, the other end to the computer’s audio-out
port.

2-3

Chapter 2: Setup

• To connect the power cord:

a. Connect the adapter to the monitor's DC input.

b. Connect one end of the power cable to the adapter, and the other

end to a power outlet.

• To connect the VGA/HDMI cable:

a. Plug one end of the VGA/HDMI cable to the monitor's VGA/HDMI

port.

b. Connect the other end of the VGA/HDMI cable to your computer's

VGA/HDMI port.

c. Tighten the two screws to secure the VGA connector.

• To use the earphone:

a. When an HDMI cable is connected, connect the end with plug

type to the monitor’s earphone jack.

b. When VGA and Audio-in-line is connected, connect the end with

plug type to the monitor's earphone jack.

When multiple video cable signals are connected, you can choose the desired
input by pressing the Input Select key or select from the Input Select item

in the OSD menu.

2.4 Turning on the monitor

Press the power button . See page 1-2 for the location of the power

button. The power indicator
is ON.

lights up in white to show that the monitor

ASUS LCD Monitor MX279

2-4

3.1 OSD (On-Screen Display) menu

3.1.1 Howtorecongure

1. Press the MENU button
to activate the OSD menu.

2. Press

and to navigate
through the functions. Highlight
and activate the desired function
by pressing the MENU button. If
the function selected has a
sub-menu, press and again to navigate through the
sub-menu functions. Highlight and activate the desired sub-menu
function by pressing the MENU button.

3. Press

and to change the settings of the selected function.

4. To exit the OSD menu, press the
to adjust any other function.

3.1.2 OSD Function Introduction

1. lSplendid
This function contains six sub­functions that you can select for
your preference. Each mode has
the Reset selection, allowing you
to maintain your setting or return
to the preset mode.

• Scenery Mode: best choice for scenery photo display with

SPLENDID™ Video Enhancement.

• Standard Mode: best choice for document editing with

SPLENDID™ Video Enhancement.

• Theater Mode: best choice for movies with SPLENDID™ Video

Enhancement.

• Game Mode: best choice for games playing with SPLENDID™

Video Enhancement.

• Night View Mode: best choice for dark-scene games or movies

with SPLENDID™ Video Enhancement.

• sRGB: best choice for viewing photos and graphics from PCs.

In the Standard Mode, the Saturation, Skin Tone, Sharpness, and
ASCR functions are not user-configurable.
In the sRGB, the Brightness, Contrast, Saturation, Color
Temp., Skin Tone, Sharpness, and ASCR functions are not user­configurable.

MX279

Splendid

Color


Input Select

System Setup

Scenery Mode

Standard Mode

Theater Mode

Game Mode

Night View Mode

sRGB

Move Menu Exit

button. Repeat step 2 and step 3

MX279

Splendid

Color


Input Select

System Setup

Scenery Mode

Standard Mode

Theater Mode

Game Mode

Night View Mode

sRGB

Move Menu Exit

3-1

Chapter 3: General Instruction

2. Color

You can adjust Brightness, Contrast,
Saturation, Color Temp., and Skin
Tone from this menu.

• Brightness: the adjusting

MX279

Splendid

Color


Input Select

System Setup

Brightness

Contrast

Saturation

Color Temp.

range is from 0 to 100.
button is a hotkey to activate

Move Menu Exit

this function.

• Contrast: the adjusting range is from 0 to 100.

• Saturation: the adjusting range is from 0 to 100.

• Color Temp.: contains four modes including Cool, Normal,

Warm and User Mode.

• Skin Tone: contains three color modes including Reddish,

Natural, and Yellowish.

In the User Mode, colors of R (Red), G (Green), and B (Blue) are
user-configurable; the adjusting range is from 0 ~ 100.

3. Image

You can adjust Sharpness, Trace
Free, Aspect Control, ASCR,
Position (VGA only), and Focus
(VGA only) from this menu.

• Sharpness: the adjusting

range is from 0 to 100.

MX279

Splendid

Color


Input Select

System Setup

Sharpness 60

Trace Free

Aspect Control

ASCR

Position

Focus

Move Menu Exit

• Trace Free: adjusts the response time of the monitor. The

adjusting range is from 0 to 100.

• Aspect Control: adjust the aspect ratio to full, 4:3, 1:1 or OverScan

User Mode

NaturalSkin Tone

100

80

50

60

Full

OFF

4:3 is only available when input source is in 4:3 format

OverScan is only available for the HDMI input source

• ASCR: turns on/off the ASCR (ASUS Smart Contrast Ratio)

function (only available in Scenery Mode, Theater Mode, Game
Mode, and Night View Mode)

• Position: adjusts the horizontal postition (H-Position) and the

vertical position (V-Position) of the image. The adjusting range is
from 0 to 100 (only available for VGA input).

• Focus: reduces the Horizonal-line noise and Vertical-line noise

of the image by adjusting (Phase) and (Clock) separately. The
adjusting range is from 0 to 100.

ASUS LCD Monitor MX279

3-2

• Phase adjusts the phase of the pixel clock signal. With a wrong phase

adjustment, the screen shows horizontal distrubances.

• Clock (pixel frequency) controls the number of pixels scanned by one

horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image i not proportional.

Input Select

In this menu, you can select your
desired input source: VGA,
HDMI1 or HDMI2 (only available
in Scenery Mode, Theater Mode,
Game Mode, and Night View
Mode)

MX279

Splendid

Color


Input Select

System Setup

VGA

HDMI1

HDMI2

Move Menu Exit

4. System Setup

Allows you to adjust the system.

• Splendid Demo Mode:

splits the screen into two for
Splendid mode comparison
(only available in Scenery
Mode, Theater Mode, Game

MX279

Splendid

Color


Input Select

System Setup

Splendid Demo Mode OFF

Volume

ECO Mode

OSD Setup

Language

Information

Move Menu Exit

Mode, and Night View Mode).

• Volume: Adjust the

earphone output volume level. The adjusting range
is from 0 to 100.

• ECO Mode: Activate the ecology mode for power saving. (Some

gray levels may not be distinguished if ECO is ON. Its brightness
is lower than that when setting the Contrast Ratio to 100.)

• OSD Setup: Adjust the horizontal postition (H-Position), vertical

position (V-Position), OSD Timeout, DDD/CI, and Transparency
of the OSD screen.

• Language: Select OSD language. The selections are English,

French, German, Spanish, Italian, Dutch, Russian, Traditional
Chinese, Simplified Chinese, and Japanese.

• Information: Display the monitor information of Input Port,

Resolution, H-freq., V-freq, and Model Name.

• All Reset: Set to “Yes” to revert all settings to the factory default

status.

English

70

OFF

1/2

3-3

Chapter 3: General Instruction

3.2 SpecicationsSummary

Panel Type TFT LCD

Panel Size 27” (16:9, 68.6 cm) wide screen

Max. Resolution 1920 x 1080

Brightness (Typ.) 250 cd/m

Contrast Ratio (Typ.) 1000:1

ASUS Smart Contrast Ration
(ASCR)

Color Saturation (NTSC) 72 % (Typ)

Viewing Angle (H/V) CR>10 178° (H) / 178° (V)

Display Colors 16.7 M

Response Time 5 ms (Gray to Gray)

Pixel Pitch 0.3114 (H) mm x 0.3114 (V) mm

Full HD 1080P

Trace Free Technology Yes

SPLENDID

SPLENDID

TM

Video Enhancement Yes

TM

selection 6 video preset modes (by hotkey)

Auto adjustment Yes (by hotkey)

Color temperature selection 4 color temperatures

Skin-Tone selection 3 skin tones

Digital input

Analog input D-Sub

Audio-in port 3.5 mm Mini-jack

Earphone jack Yes (only for HDMI)

Kensington Lock Slot Yes

Auto Adjustment Hotkey Yes

Brightness Adjustment Hotkey Yes

Volume Adjustment Hotkey Yes

Input Selection Hotkey Yes

Colors Black

Speaker (Built-in) 2 x 3 W

Power LED White (On) / Amber (Standby)

Tilt -5° ~ +20°

2

≥80,000,000:1(withASCRon)

HDMI v1.3 (x2)

ASUS LCD Monitor MX279

3-4

Voltage Rating

(AC adaptor: ENERTRONIX-EXA1203YH /
Delta-ADP-65GD B)

Power On: 37W (max), Standby: < 0.5 W (AC110V) /

AC 100~240Vac, 50/60Hz

Power Consumption

0.55 W (AC220V), Power Off: < 0.5 W (AC110V) / <

0.55 W (AC220V)

Temperature (Operating) 0 ~ 40° C

Temperature (Non-operating)

Dimensions (W x H x D)

-30 ~ 65° C

441.3 x 622.6 x 225.2 mm (monitor)

537.0 x 700.0 x 114.0 mm (package)

Weight (Esti.) 5.2 ± 1.0 kg (Net), 8.0 ± 1.0 kg (Gross)

21 languages (English, French, German, Spanish,
Italian, Dutch, Russian, Poland, Czech, Croatia,

Multi-languages

Hungary, Romania, Portuguese, Turkey, Traditional

Chinese,SimpliedChinese,Japanese,Korean

Persian, Thai, Indonesian)

Accessories

Adapter, Power cable, VGA cable, DVI-HDMI cable,
Audio cable, Quick Start Guide, Warranty card

UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, c-Tick,

Regulation approvals

VCCI, Windows Vista & 7 WHQL, EuP, RoHS, WEEE,
EPEAT, HDMI, Energy Star

®

5.1, China Energy Label,

J-Moss

*Adaptor has PSE Regulation approvals.

*Specicationssubjecttochangewithoutnotice.

3-5

Chapter 3: General Instruction

3.3 Troubleshooting (FAQ)

Problem Possible Solution

Power LED is not ON

The power LED lights amber and
there is no screen image

Screen image is too light or dark • Adjust the Contrast and Brightness settings via

Screen image is not centered or
sized properly

Screen image bounces or a wave
pattern is present in the image

Screen image has color defects
(white does not look white)

Screen image is blurry or fuzzy

No sound or sound is low • Make sure the audio cable is properly connected to

• Press the button to check if the monitor is in the

ON mode.

• Check if the adapter and power cable are properly

connected to the monitor and the power outlet.

• Check if the monitor and the computer are in the

ON mode.

• Make sure the signal cable is properly connected

the monitor and the computer.

• Inspect the signal cable and make sure none of the

pins are bent.

• Connect the computer with another available

monitor to check if the computer is properly working.

OSD.

• Press the button for two seconds to

automatically adjust the image.

• Adjust the H-Position or V-Position settings via

OSD.

• Make sure the signal cable is properly connected to

the monitor and the computer.

• Move electrical devices that may cause electrical

interference.

• Inspect the signal cable and make sure that none of

the pins are bent.

• Perform Reset via OSD.

• Adjust the R/G/B color settings or select the Color

Temperature via OSD.

• Press the button for two seconds to

automatically adjust the image (for VGA mode only).

• Adjust the Phase and Clock settings via OSD.

the monitor.

• Adjust the volume settings of both your monitor and

computer.

• Make sure the computer sound card driver is

properly installed and activated.

ASUS LCD Monitor MX279

3-6

3.4 Supported operating modes

Mode Resolution Refresh Rate

Frequency

(KHz)

Horizontal

DOS 720x400@70Hz 900x449 31.469 70.087 28.322

VGA

SVGA

XGA

VESA 1152x864@75Hz 1600x900 67.5 75.000 108.00

SXGA

WXGA

WXGA+ 1440x900@60Hz 1904x934 55.935 59.887 106.500

UXGA 1600x1200@60Hz 2160x1250 75.000 60.000 162.000

WSXGA+ 1680x1050@60Hz 2240*1089 65.290 59.954 146.250

WUXGA

MAC 640x480@66.66Hz 864x525 35 66.66 30.24

SVGA 832x624@75Hz 1152x667 49.714 74.533 57.27

* Modes not listed in the table may not be supported. For optimal resolution, we recommend that

you choose a mode listed in the table above.

* This monitor supports full HD (480p, 576p, 720p, 1080i/p) video content from game consoles, DVD

players and other consumer video devices via HDMI.

640x480@60Hz 800 x 525
640x480@72Hz 832 x 520
640x480@75Hz 840x500 37.500 75.000 31.500
800x600@56Hz 1024 x 625 35.156 56.250 36.000
800x600@60Hz 1056 x 628 37.879 60.317 40.000
800x600@72Hz 1040 x 666 48.077 72.188 50.000

800x600@75Hz 1056 x 625 46.875 75.000 49.500
1024x768@60Hz 1344x806 48.363 60.004 65.000
1024x768@70Hz 1328x806 56.476 70.069 75.000
1024x768@75Hz 1312x800 60.023 75.029 78.750

1280x1024@60Hz 1688x1066 63.981 60.020 108.000
1280x1024@75Hz 1688x1066 79.976 75.025 135.00

1280x960@60Hz 1800x1000 60.000 60.000 108.00
1280x800@60Hz 1680x831 49.702 59.810 83.500
1280x720@60Hz 1650x750 45.00 60.000 74.25
1280x768@60Hz 1664x798 47.776 59.870 79.5

1360x768@60Hz 1792x795 47.712 60.015 85.500

1366x768@60Hz 1792x798 47.712 59.790 85.500

1920x1080@60Hz 2576x1120 67.158 59.963 173.000
1920x1080@60Hz 2200x1125 67.500 60.000 148.500
1920x1080@60Hz 2080x1111 66.587 59.934 138.500

31.469

37.861

Vertical

Frequency

Pixel (MHz)

(Hz)

59.940 25.175

72.809 31.500

3-7

Chapter 3: General Instruction
