Asus MB16AHP User Guide

ZenScreen Go MB16AHP

Portable USB Monitor

User Guide

Table of contents

Notices ......................................................................................................... iii

Safety information ...................................................................................... iv

Care & cleaning ............................................................................................ v

Takeback services ...................................................................................... vi

Caution ........................................................................................................ vi

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents ......................................................................... 1-1

1.3 Monitor introduction .................................................................... 1-2

1.3.1 Front View and Charging Instructions ............................. 1-2

1.3.2 QuickFit Function ............................................................ 1-4

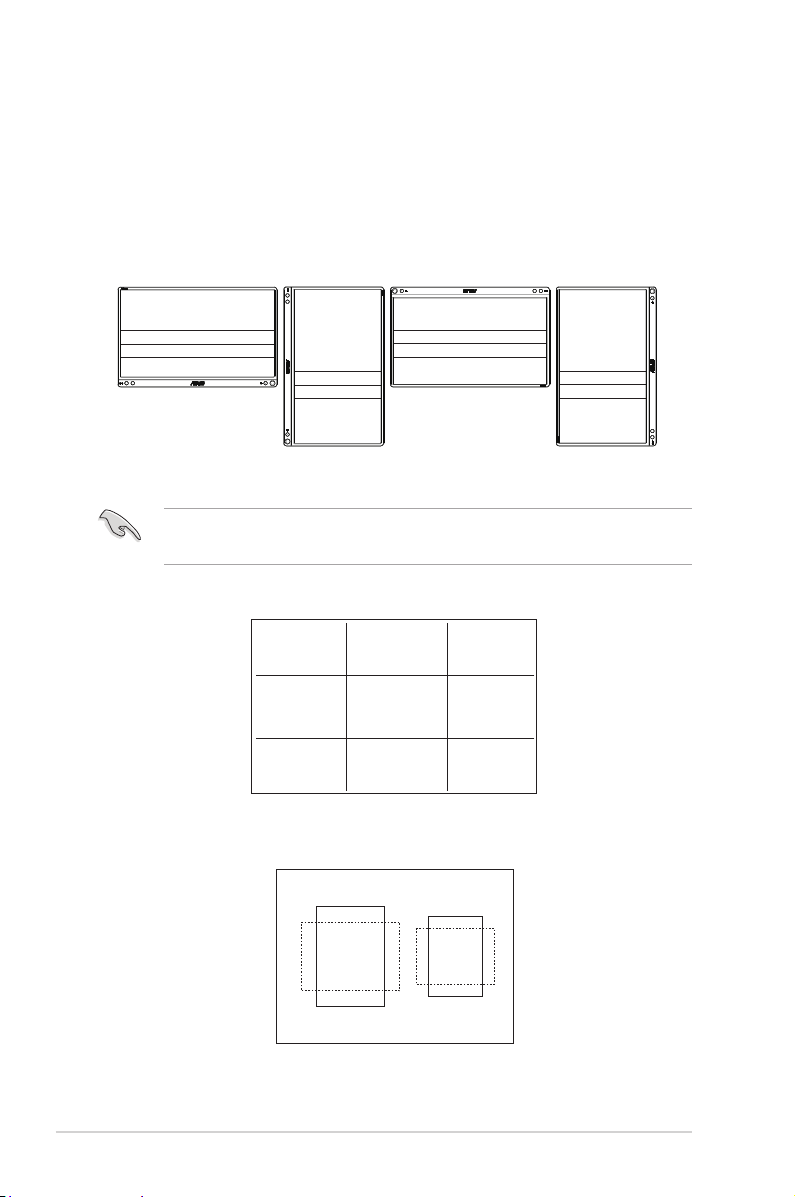

2.1 Monitor standing positions ......................................................... 2-1

2.2 Connect the USB monitor with system ...................................... 2-2

2.3 Announcements ........................................................................... 2-4

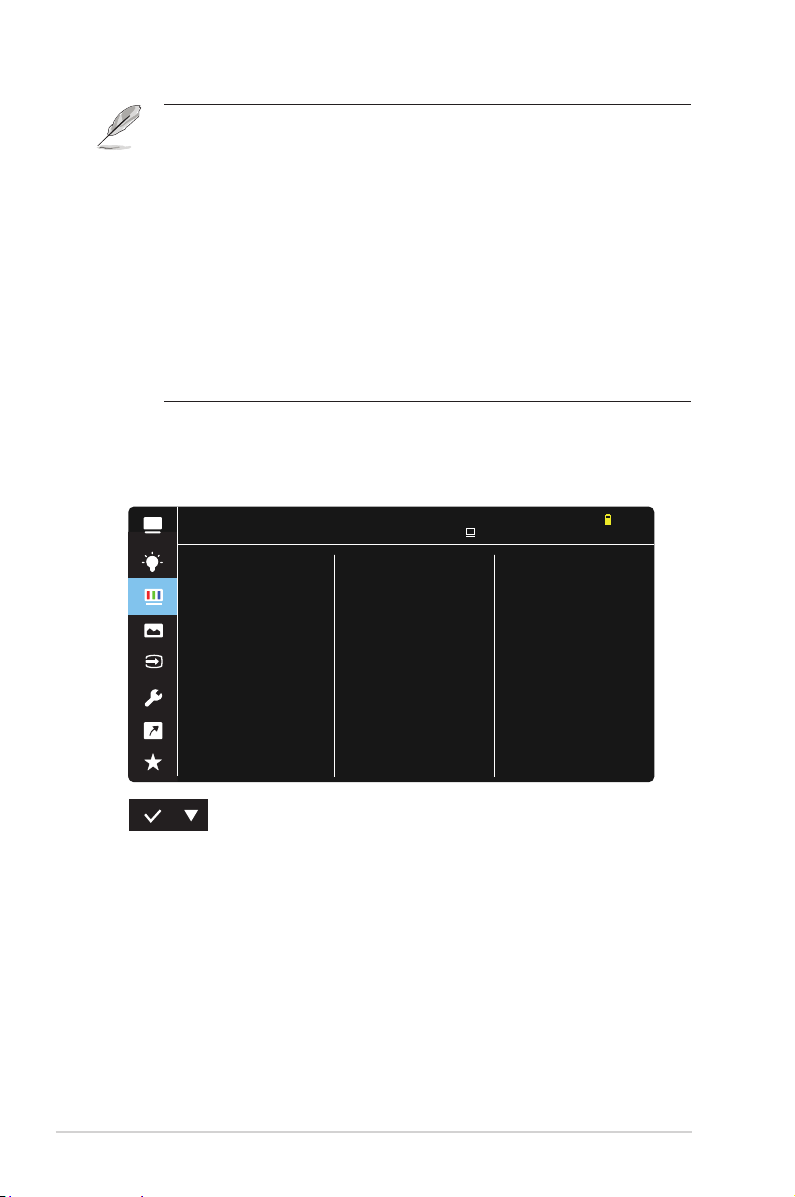

3.1 OSD (On-Screen Display) menu ................................................. 3-1

3.1.1 How to reconfigure .......................................................... 3-1

3.1.2 OSD Function Introduction .............................................. 3-2

3.2 Specications ............................................................................. 3-11

3.3 Troubleshooting (FAQ) .............................................................. 3-12

3.4 Supported Timing List ............................................................... 3-13

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

iii

Safety information

• Before setting up this Portable USB Monitor, carefully read all the documentation that came with the package.

• To prevent fire or shock hazard, never expose this Portable USB Monitor to rain or moisture.

• Never try to open this Portable USB Monitor cabinet.

• Before using this Portable USB Monitor, make sure all cables are

correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

• Avoid dust, humidity, and temperature extremes. Do not place this Portable USB Monitor in any area where it may become wet. Place this Portable USB Monitor on a stable surface.

• Never push objects or spill liquid of any kind into the slots on this Portable USB Monitor cabinet.

• If you encounter technical problems with this Portable USB Monitor, contact a qualified service technician or your retailer.

• This Portable USB Monitor is powered by USB port which complies with LPS and SELV circuit according to IEC60950-1:2005.

• DO NOT dispose of the product in fire

• DO NOT use monitor near heating equipment or in places where there

is likelihood of high temperature

• Keep your monitor away from sharp objects

• DO NOT place objects on top of your monitor

Care & cleaning

• Cleaning. Turn your monitor off and unplug the cable. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Wheretondmoreinformation

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to

2. Optional documentation

Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

http://www.asus.com

Takeback services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

Please go to recycling information in different region.

http://csr.asus.com/english/Takeback.htm

for detail

Caution

We suggest to use the attached pen or any pen or stick that can fit in the hole at the corner as a simple stand for the monitor.

Please reserve at least 10cm/4 inch of the pen at the back of the monitor to stabilize.

Please be noted the pen attached has no Touch function.

1.1 Welcome!

Thank you for purchasing the ASUS® Portable USB Monitor!

The latest ASUS Portable USB Monitor provides great portability and simplicity to your daily life, enhancing both of your viewing experience and style.

1.2 Package contents

Check your package for the following items:

Portable USB Monitor

Quick Start Guide

Warranty Card

USB Type-C Cable

Smart Cover

USB Type-C to A Adapter

Micro HDMI to HDMI cable

Pen

Power Adapter

• If any of the above items is damaged or missing, contact your retailer immediately.

• Inbox pen is not included in the warranty.

ASUS USB Type-C Monitor MB16AHP

1-1

1.3 Monitor introduction

1.3.1 Front View and Charging Instructions

Volume

Input Select

Input Device

1. Pen hole

• Use the attached pen to insert into the hole, the monitor can stand up directly without the smart cover.

2. Power

button/Power LED

• Press this button to turn the monitor on/off when connected to a valid source.

• The color definition of the power indicator is as the below table.

Status Description

Blue

Dark OFF

Red Charging Mode

Green Finished charging

ON/Standby mode

3. Menu button

• Press this button to enter OSD when in connection to a valid source

• Long pressing the button allows you to have a quick check on battery %

4. HDMI

• Connect your computer with HDMI cable.

1-2

even the device is OFF.

Chapter 1: Product Introduction

5. USB Type-C port

• Used to connect to a valid source such as PC or mobile phone for monitor to work when there’s enough power

• Used to do battery charging when the monitor is in OFF mode

• Up to 9V@2A 18W power supply, signal input supported, maximum

resolution 1920 x 1080@60Hz

IMPORTANT:

• Charge the monitor for 4 hours before using it for the first time

• Use only bundled power adapter and USB cable to charge your

monitor. Using different power adapter and cable might bring potential damage to your device.

WARNING: The adapter may become warm to hot while in use. DO NOT cover the adapter and keep it away from your body while it is connected to a power source. If your device become unusual hot, disconnect the USB cable from your device and send the device including the power adapter and USB cable to an ASUS qualified service personnel

ASUS USB Type-C Monitor MB16AHP

1-3
