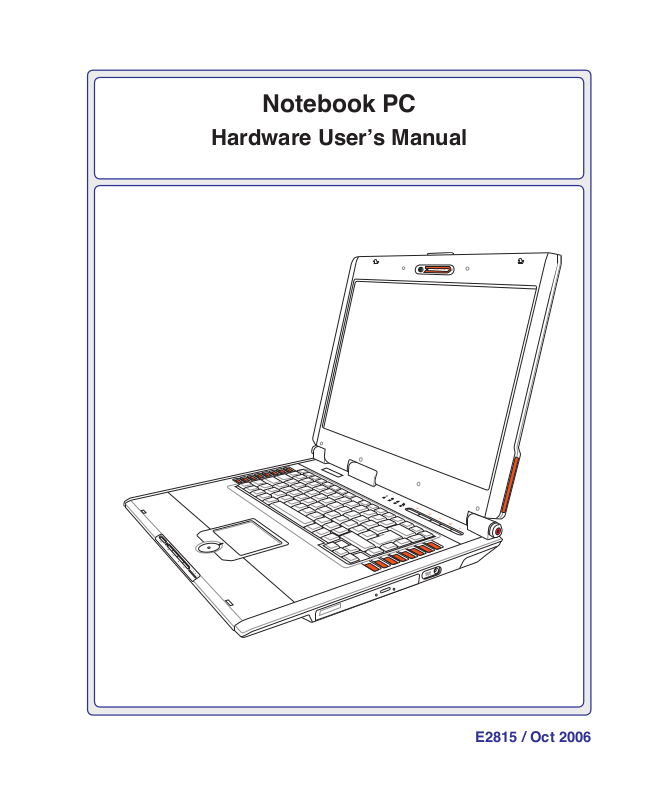

Notebook PC

</*+5)'3+8'

Hardware User’s Manual

E2815 / Oct 2006

Contents

1. Introducing the Notebook PC

About This User’s Manual Notes For This Manual Safety Precautions Preparing your Notebook PC

5

1 Introducing the Notebook PC

About This User’s Manual

You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the various components in the Notebook PC and how to use them. The following are major sections of this User’s Manuals:

1. Introducing the Notebook PC

Introduces you to the Notebook PC and this User’s Manual.

2. Knowing the Parts Gives you information on the Notebook PC’s components.

3. Getting Started

Gives you information on getting started with the Notebook PC.

4. Using the Notebook PC Gives you information on using the Notebook PC’s components.

5. Appendix Introduces you to optional accessories and gives additional information.

Notes For This Manual

A few notes and warnings in bold are used throughout this guide that you should be aware of in order to complete certain tasks safely and completely. These notes have different degrees of importance as described below:

NOTE: Tips and information for special situations.

TIP: Tips and useful information for completing tasks.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

WARNING! Important information that must be followed for safe operation.

< >

Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the < > or [ ] and the enclosed letters.

[ ]

6

Introducing the Notebook PC 1

Safety Precautions

The following safety precautions will increase the life of the Notebook PC. Follow all precautions and

instructions. Except as described in this manual, refer all servicing to qualied personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,

benzene, or other chemicals on or near the surface.

IMPORTANT! Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT press or touch the display

panel. Do not place together with

small items that may scratch or enter the Notebook PC.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT leave the Notebook PC on your lap or any part of the body in order to prevent discomfort or injury from heat exposure.

SAFE TEMP: This Notebook PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F)

DO NOT throw the Notebook PC in municipal waste. Check local regulations for disposal of electronic products.

DO NOT place or drop objects on top and do not shove any foreign objects into the Notebook PC.

DO NOT expose to strong magnetic

or electrical elds.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during an electrical storm.

Battery safety warning: DO NOT throw the battery in re. DO NOT short circuit the contacts. DO NOT disassemble the battery.

INPUT RATING: Refer to the rating

label on the bottom of the Notebook PC and be sure that your power adapter complies with the rating.

DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

7

1 Introducing the Notebook PC

Transportation Precautions

To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned

OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely in the closed position to protect the keyboard and display panel.

CAUTION: The Notebook PC’s surface is easily dulled if not properly cared for. Be careful not to rub or scrape the Notebook PC surfaces.

Cover Your Notebook PC

Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.

Charge Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack and any optional battery packs before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Notebook PC is in use.

Airplane Precautions

Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restrictions for using electronic devices. Most airlines will allow electronic use only between and not during takeoffs and landings.

CAUTION! There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Notebook PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Notebook PC or diskettes through airport magnetic detectors or expose them to magnetic wands.

8

Introducing the Notebook PC 1

2

1

3

2

</*+5)'3+8'

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC. Read the later pages for detailed information on using your Notebook PC.

1. Install the battery pack

2. Connect the AC Power Adapter

3. Open the Display Panel 4. Turn ON the Notebook PC

IMPORTANT! When opening, do not force the display panel down to the table or else the hinges may break! Never lift the Notebook PC by the display panel!

Press the power button and release.

(In Windows XP, this button can also be used to safely turn OFF the Notebook PC.)

9

1 Introducing the Notebook PC

10

2. Knowing the Parts

Basic sides of the Notebook PC

NOTE: Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

11

2 Knowing the Parts

1

</*+5)'3+8'

4

7

6

11

12

5

1

2

3

8

9

10

Top Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

NOTE: The keyboard will be different for each territory.

Camera (on selected models)

The built-in camera allows picture taking or video recording. Can be used with video conferencing and other interactive applications.

12

(continued on next page)

Knowing the Parts 2

2

3

4

5

6

7

8

9

10

11

12

Camera Indicator

The camera indicator shows when the built-in camera is in use. The camera may be auto-activated by supported software.

Microphone (Built-in)

The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings.

Display Panel

The display panel functions the same as a desktop monitor. The Notebook PC uses an

active matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or ickering,

so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if necessary) to clean the display panel.

Instant Keys

Instant keys allow you to launch frequently used applications with one push of a button. Details are described in section 3.

Keyboard

The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands. Two Windows function keys are provided to help ease navigation in the Windows operating system.

Touchpad and Buttons

The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse. A software-controlled scrolling function is available after setting up the included touchpad utility to allow easy Windows or web navigation.

Pad-Lock Indicator (between touchpad buttons)

This indicator will light when the built-in touchpad is UNLOCKED (enabled). When the built-in touchpad is LOCKED (disabled), this indicator will not light.

Status Indicators (front)

Status indicators represent various hardware/software conditions. See indicator details in section 3.

Multimedia Keys

Multimedia keys allow you to activate frequently used multimedia commands with one push of a button. Details are described in section 3.

Direct Messenger

Direct console allows user-dened status indications. See indicator details in section 3.

Status Indicators (top)

Status indicators represent various hardware/software conditions. See indicator details in section 3.

13

2 Knowing the Parts

2

1

2

1

2

3

4

5

6

7

8

9

10

Bottom Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

NOTE: The bottom side may vary in appearance depending on model.

WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling the Notebook PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. Do not use on soft surfaces such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.

Wireless LAN (WLAN) Compartment

The WLAN compartment allows the installation of a wireless networking card in order to wirelessly connect to network access points or other wireless networking devices.

TV-Tuner Card Compartment

The TV-tuner card compartment allows the installation of a TV-Tuner card for viewing television programs on this Notebook PC.

14

(continued on next page)

Knowing the Parts 2

3

4

8

6

7

5

10

9

Hard Disk Drive Compartment

The hard disk drive is secured in a compartment. Hard disk drive upgrades are to be done by authorized service centers or dealers only.

Battery Lock - Spring

The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.

Battery Lock - Manual

The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.

Audio Speaker System

The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.

Battery Pack

The battery pack is automatically charged when the Notebook PC is connected to an AC power source and maintains power to the Notebook PC when AC power is not connected. This allows use when moving temporarily between locations. Battery time varies by usage

and by the specications for this Notebook PC. The battery pack cannot be disassembled

and must be purchased as a single unit.

Name Card Holder

The Notebook PC has a name card holder glued to the bottom of the Notebook PC to hold

identication information on the user in case the Notebook PC is found by others.

Shutdown Button (Emergency)

In case your operating system cannot properly turn OFF or restart, the shutdown button can be pressed with a straightened paper clip to shutdown the Notebook PC.

Memory (RAM) Compartment

The memory compartment provides expansion capabilities for additional memory. Additional memory will increase application performance by decreasing hard disk access. The

BIOS automatically detects the amount of memory in the system and congures CMOS

accordingly during the POST (Power-On-Self-Test) process. There is no hardware or software (including BIOS) setup required after the memory is installed. Visit an authorized service center or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

15

2 Knowing the Parts

2

3

4

1

5

ON OFF

FM/DTV/CATV

EXPRESS

2 3 4 5 6 7 8 9

1110

12

1

2.0

Left Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

Direct Flash Indicator

The direct ash indicator blinks when Microsoft DirectX 9/10 (used with most games) is running. Use the provided Direct Console software (see indicators) to enable or disable this function.

LAN Port

The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a

standard Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters.

Modem Port

The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports a standard telephone cable. The internal modem supports up to 56K V.90 transfers. The

built-in connector allows convenient use without additional adapters.

IMPORTANT! The built-in modem does not support the voltage used in digital phone systems. Do not connect the modem port to a digital phone system or else damage will occur to the Notebook PC.

USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices

such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners

connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB

allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.

Audio/Video (AV/S) Input (on selected models)

The audio video input is a way of inputting audio and video signals through RCA jacks or

S-Video (requires the RCA adapter included with selected models). This function only works

when purchased with the TV tuner hardware and software package.

16

(continued on next page)

Knowing the Parts 2

8

10

7

6

9

11

12

Antenna Input

The antenna input is for TV or FM Radio (on selected models) frequency signal and allows for use with the provided digital TV/FM antenna or input from subscription television services. The provided antenna can receive digital TV or FM radio. Cable service connection can receive digital TV, analog TV, or FM radio depending on paid services. Note: Use the provided adapter for use with coaxial connectors.

Audio Input Jack

The stereo input jack (1/8 inch) can be used to connect a stereo audio source to the Notebook PC. This feature is used mainly to add audio to multimedia applications.

Microphone Input Jack

The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for video conferencing, voice narrations, or simple audio recordings.

SPDIF Output Jack

This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi- home

Combo

entertainment system.

Headphone Output Jack

The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to

amplied speakers or headphones. Using this jack automatically disables the built-in speakers.

IEEE1394 Port

IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-

plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400

Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in

high-end digital equipment and should be marked “DV” for Digital Video port.

Wireless Switch

Enables or disables the built-in wireless LAN and Bluetooth (selected models). When enabled, the wireless status indicator will light. Windows software settings are necessary before use.

ExpressCard Slot

One 26pin Express card slot is available to support one ExpressCard/34mm or one ExpressCard/54mm expansion card. This new interface is faster by using a serial bus

supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC

card slot. (Not compatible with previous PCMCIA cards.)

(continued on next page)

17

2 Knowing the Parts

15

13

14

ON OFF

FM/DTV/CATV

EXPRESS

13

15

14

Left Side (Cont.)

Flash Memory Slot

Normally a PCMCIA or USB memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile

phones, and PDAs. This Notebook PC has a built-in memory card reader that can read many ash memory cards as specied later in this manual. The built-in memory card reader is

not only convenient, but also faster than most other forms of memory card readers because it utilizes the high-bandwidth PCI bus.

Infrared Port (IrDA) (on selected models)

The infrared (IrDA) communication port allows convenient wireless data communication

with infrared-equipped devices or computers. This allows easy wireless synchronization

with PDAs or mobile phones and even wireless printing to printers. If your ofce supports IrDA networking, you can have wireless connection to a network anywhere provided there is a direct line of sight to an IrDA node. Small ofces can use IrDA technology to share a printer between several closely placed Notebook PCs and even send les to each other without a network.

Audio Speaker System

The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.

18

Knowing the Parts 2

2

3

1

4

2 4 61 3 5

7

5

6

7

Right Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

Audio Speaker System

The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.

Optical Drive

The Notebook PC comes in various models with different optical drives. The Notebook

PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R) or re-writable (RW) capabilities. See the marketing specica-

tions for details on each model.

Optical Drive Emergency Eject (location varies by model)

The emergency eject is used to eject the optical drive tray in case the electronic eject does

not work. Do not use the emergency eject in place of the electronic eject.

Optical Drive Electronic Eject

The optical drive eject has an electronic eject button for opening the tray. You can also eject the optical drive tray through any software player or by right clicking the optical drive in

Windows™ “My Computer.”

Optical Drive Activity Indicator (location varies by model)

The optical drive activity indicator shows when data is being transferred by the optical disk drive. This indicator will light in proportion to the data size transferred.

Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent damage to the Notebook PC and battery pack, always use the supplied power adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE

NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

Direct Flash Indicator

The direct ash indicator blinks when Microsoft DirectX 9/10 (used with most games) is running. Use the provided Direct Console software (see indicators) to enable or disable this function.

19

2 Knowing the Parts

DVI

1 2 3 4 5 6

1

2

3

4

5

6

2.0

Rear Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

Air Vents

The air vents allow cool air to enter and warm air to exit the Notebook PC.

IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating of the Notebook PC may occur.

Kensington® Lock Port

The Kensington® lock port allows the Notebook PC to be secured using Kensington® compatible Notebook PC security products. These security products usually include a

metal cable and lock that prevent the Notebook PC to be removed from a xed object.

Some security products may also include a motion detector to sound an alarm when moved.

TV-Out Port

The TV-Out port is an S-Video connector that allows routing the Notebook PC’s display to a television or video projection device. You can choose between simultaneously or single display. Use an S-Video cable (not provided) for high quality displays or use the provided RCA to S-Video adapter for standard video devices. This port supports both NTSC and PAL formats.

Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor

or projector to allow viewing on a larger external display.

DVI

Display (DVI-D) Output (on selected models)

The Digital Video Interface port is designed to maximize video graphics output to at panel LCD monitors or other DVI-compliant device.

USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices

such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners

connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB

allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.

20

Knowing the Parts 2

2

3

4

2

3

1

4

ON/OFF TV MUSIC

PICTURES VIDEO

DVD/MENU

BACK SELECT

PLAY/PAUSE

STOP FWDREW

FULL SCREENMUTE

JUMP

VOL CH

OK

RECORD

RADIO

SETUP MENU

Front Side

Refer to the diagram below to identify the components on this side of the Notebook PC.

Display Panel Button

Press the display panel button to open the display panel.

WARNING! When opening, do not force the display panel down to the table or else the hinges may break! Never lift the Notebook PC by the display panel!

Multimedia Keys

Multimedia keys allow you to activate frequently used multimedia commands with one push of a button. Details are described in section 3.

Status Indicators (front)

Status indicators represent various hardware/software conditions. See indicator details in section 3.

CIR (Consumer Infrared) Port

The consumer infrared (IrDA) communication port allows convenient wireless control of the

provided multimedia software in selected models using the provided wireless remote control in selected models.

21

3 Getting Started

22

3. Getting Started

Using AC Power Using Battery Power Powering ON the Notebook PC Checking Battery Power Restarting or Rebooting Powering OFF the Notebook PC Special Keyboard Functions Switches and Status Indicators

23

3 Getting Started

Power System

Using AC Power

The Notebook PC power is comprised of two parts, the power adapter and the battery power system. The power adapter converts AC power from a wall

outlet to the DC power required by the Notebook

PC. Your Notebook PC comes with a universal

AC-DC adapter. That means that you may connect the power cord to any 100V-120V as well as 220V240V outlets without setting switches or using power converters. Different countries may require

that an adapter be used to connect the provided US-standard AC power cord to a different standard. Most hotels will provide universal outlets to support different power cords as well as voltages. It is always best to ask an experienced traveler about AC outlet voltages when bringing power adapters to another country.

TIP: You can buy travel kits for the Notebook PC that includes power and modem adapters for almost every country.

With the AC power cord connected to the AC-DC converter, connect the AC power cord to an AC outlet (preferably with surge-protection) and then connect the DC plug to the Notebook PC. Connecting the AC-DC adapter to the AC outlet rst allows you to test the AC outlet’s power and the AC-DC converter itself for compatibility problems before connecting the DC power to the Notebook PC. The power indi-

cator on the adapter (if available) will light if the power is within accepted ranges.

IMPORTANT! Damage may occur if you use a different adapter to power the Notebook PC or use the Notebook PC’s adapter to power other electrical devices. If there is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek servicing if you suspect a faulty AC-DC adapter. You may damage both your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.

NOTE: This Notebook PC may come with either a two or three-prong plug depending on territory. If a three-prong plug is provided, you must use a grounded AC outlet or use a properly grounded adapter to ensure safe operation of the Notebook PC.

WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

24

Getting Started 3

2

1

3

2

1

2

3

Using Battery Power

The Notebook PC is designed to work with a removable battery pack. The battery pack consists of a set of battery cells housed together. A fully charged pack will provide several hours of battery life, which can be further extended by using power management features through the BIOS setup. Additional battery packs are optional and can be purchased separately through a Notebook PC retailer.

Installing and Removing the Battery Pack

Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack.

IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is turned ON, as this may result in the loss of working data.

To install the battery pack:

To remove the battery pack:

IMPORTANT! Only use battery packs and power adapters supplied with this Notebook

PC or specically approved by the manufacturer or retailer for use with this model or

else damage may occur to the Notebook PC.

Battery Care

The Notebook PC’s battery pack, like all rechargeable batteries, has a limit on the number times it can be recharged. The battery pack’s useful life will depend on your environment temperature, humidity, and

how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 5˚C and 35˚C (41˚F and 95˚F). You must also take into account that the Notebook PC’s internal temperature

is higher than the outside temperature. Any temperatures above or below this range will shorten the life of the battery. But in any case, the battery pack’s usage time will eventually decrease and a new battery pack must be purchased from an authorized dealer for this Notebook PC. Because batteries also have a shelf life, it is not recommended to buy extras for storing.

WARNING! For safety reasons, DO NOT throw the battery in re, DO NOT

short circuit the contacts, and DO NOT disassemble the battery. If there is any abnormal operation or damage to the battery pack caused by impact, turn OFF the Notebook PC and contact an authorized service center.

25

Asus G2K User Manual

Table of Contents

1. Introducing the Notebook PC

About This User’s Manual

Notes For This Manual

Preparing your Notebook PC

2. Knowing the Parts

Top Side

Bottom Side

Left Side

Right Side

Rear Side

Front Side

3. Getting Started

Power System

Using AC Power

Using Battery Power

Battery Care
