ASUS EEE PC E5064 User Manual

Eee PC User Manual
Windows® 7 Edition Eee PC 1005 Series
E5064
15G06Q178001

Table of Contents

Table of Contents ......................................................................................................................ii
About This User’s Manual ......................................................................................................iv
Notes for This Manual .............................................................................................................iv
Safety Precautions.....................................................................................................................v
Chapter 1: Knowing the Parts
Top Side ....................................................................................................................................1-2
Bottom Side .............................................................................................................................1-5
Front Side ................................................................................................................................. 1-6
Right Side .................................................................................................................................1-7
Left Side ....................................................................................................................................1-8
Keyboard Usage .....................................................................................................................1-9
Special Function Keys ...........................................................................................1-9
Touchpad Usage ..................................................................................................................1-11

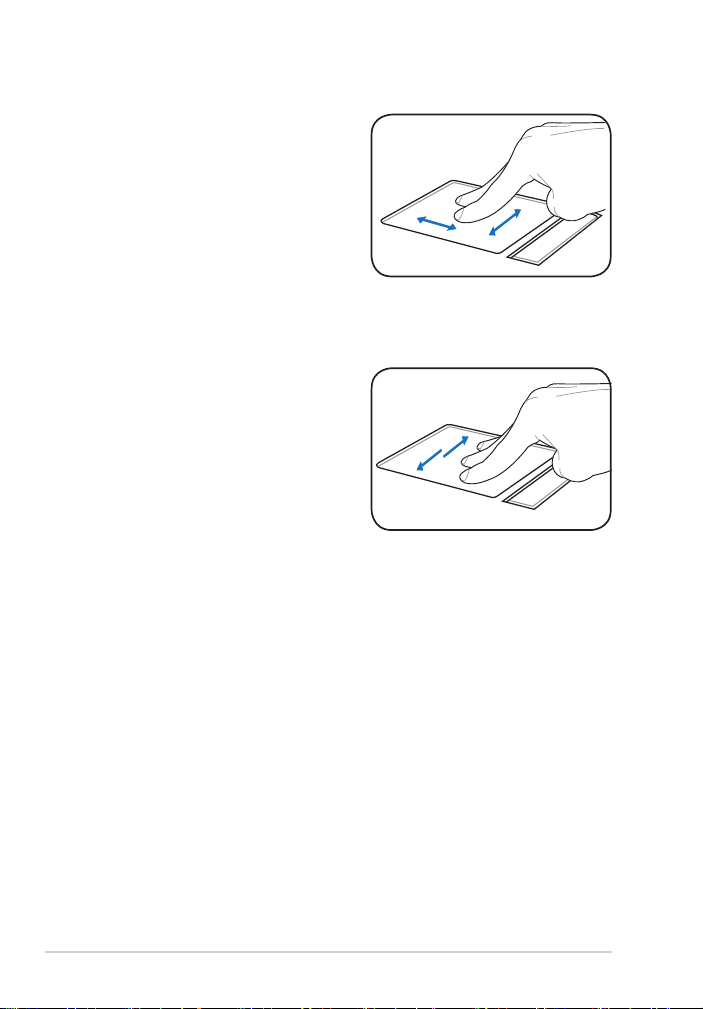

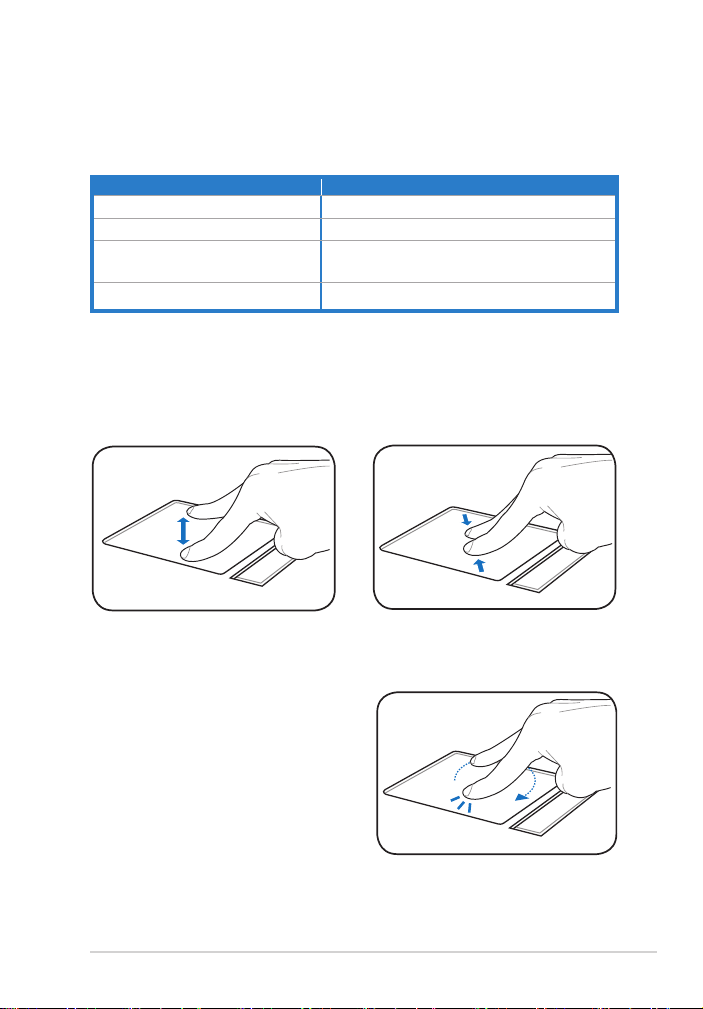

Multi-finger gesture input (on selected models) ......................................1-11
Chapter 2: Getting Started
Powering on your Eee PC ................................................................................................... 2-2

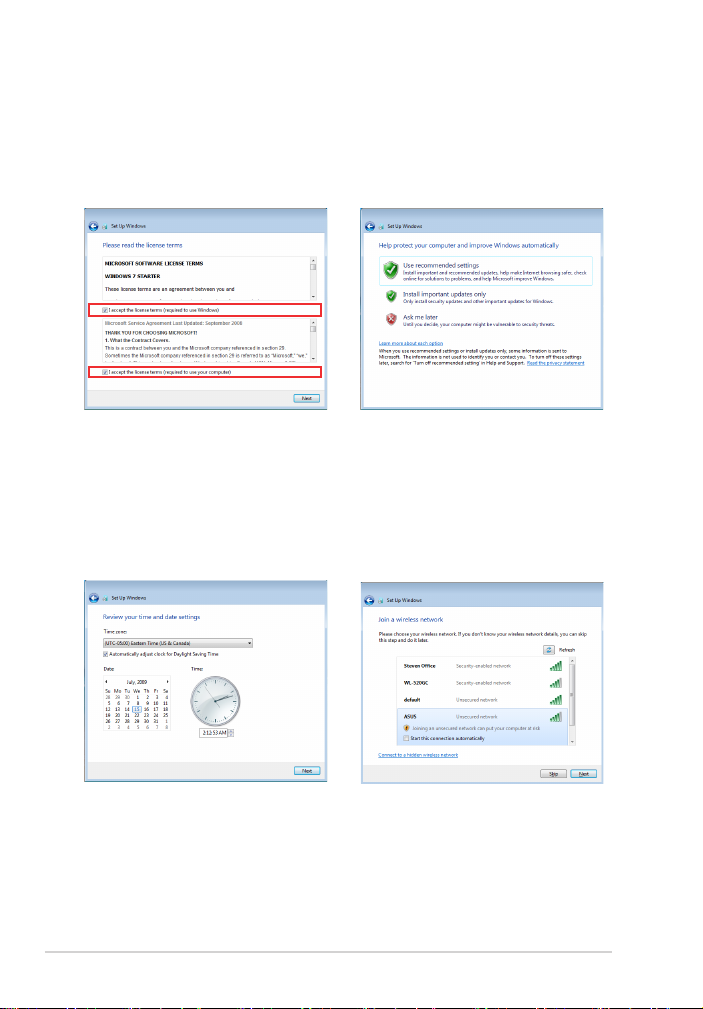

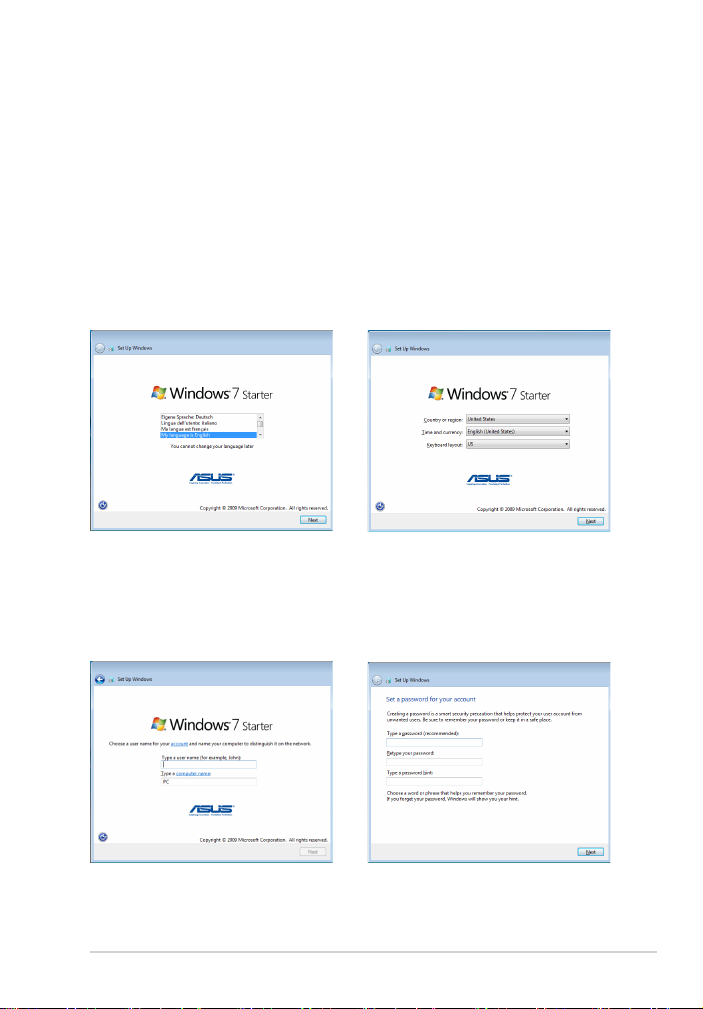

First-time Startup ..................................................................................................................2-3
Desktop .....................................................................................................................................2-5
Network Connection ............................................................................................................2-6

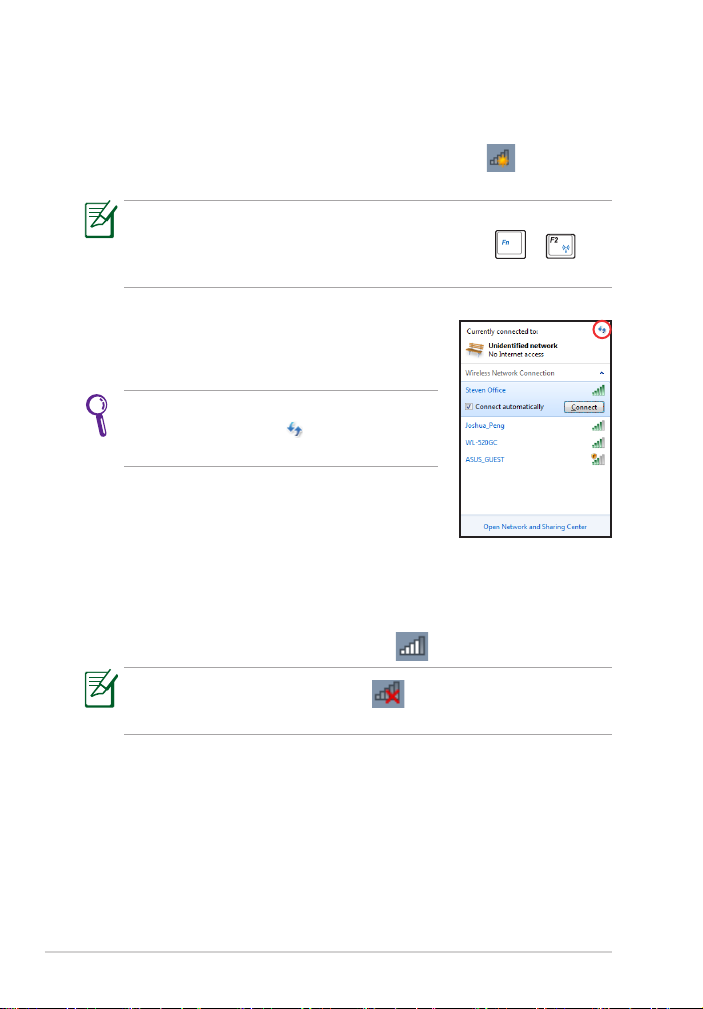

Configuring a wireless network connection.................................................2-6

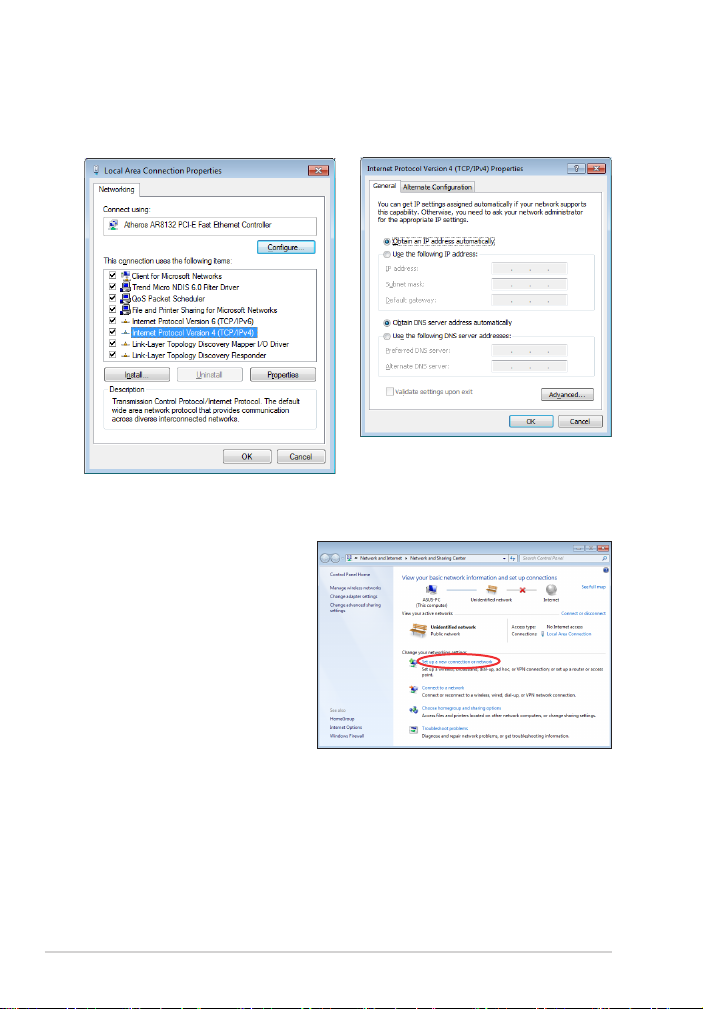

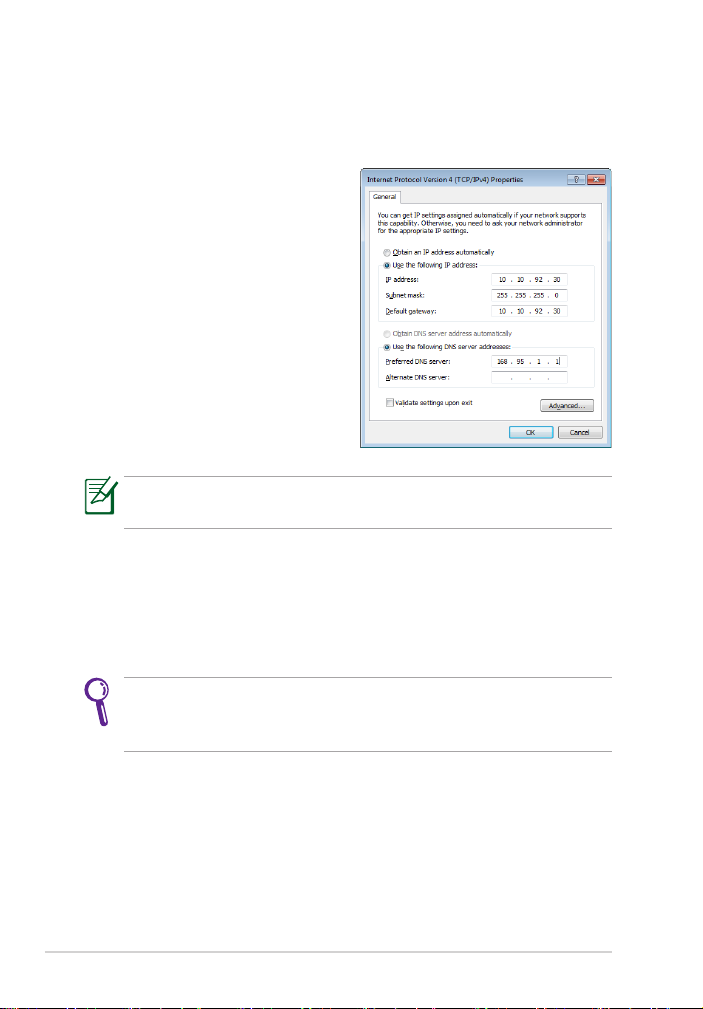

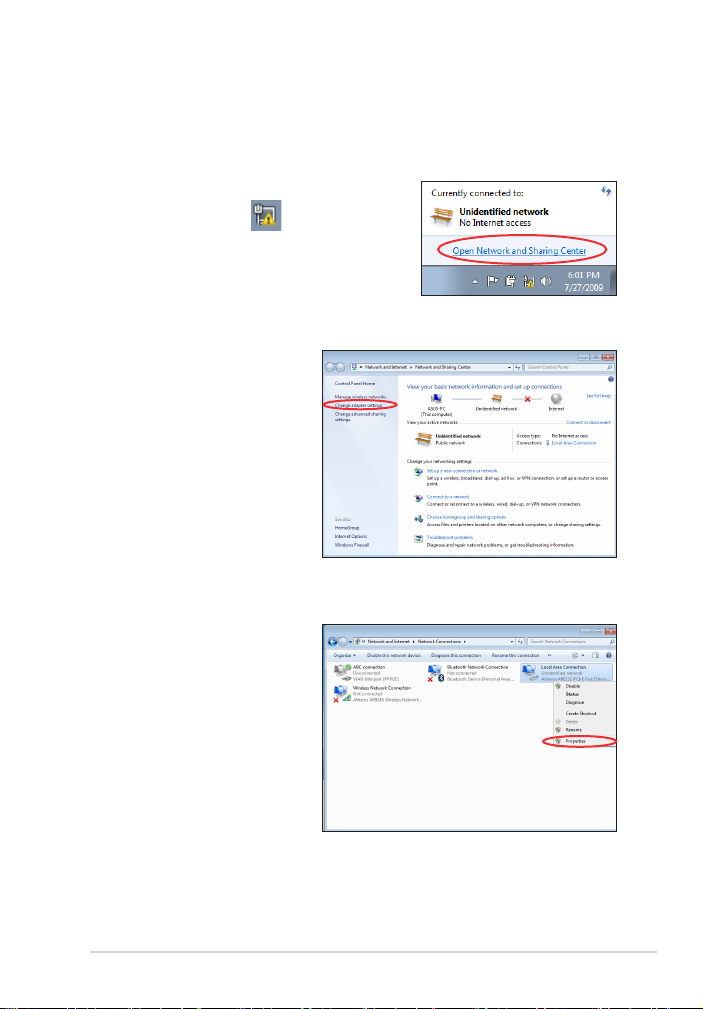

Local Area Network ................................................................................................2-7
Browsing web pages ...........................................................................................2-10
Chapter 3: Using the Eee PC

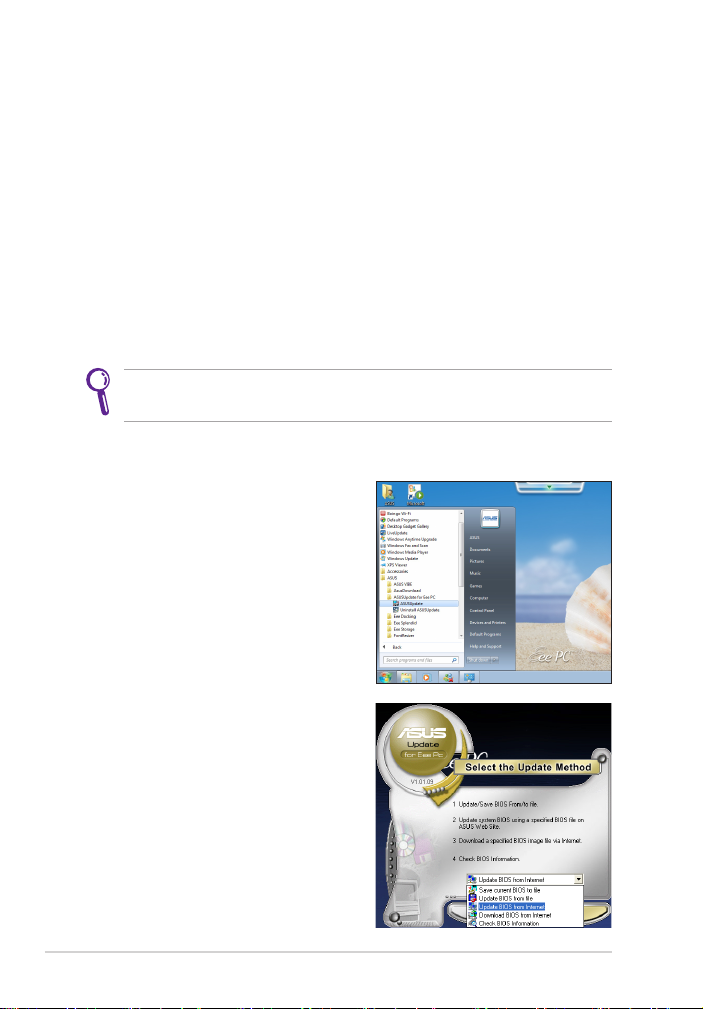

ASUS Update ...........................................................................................................................3-2

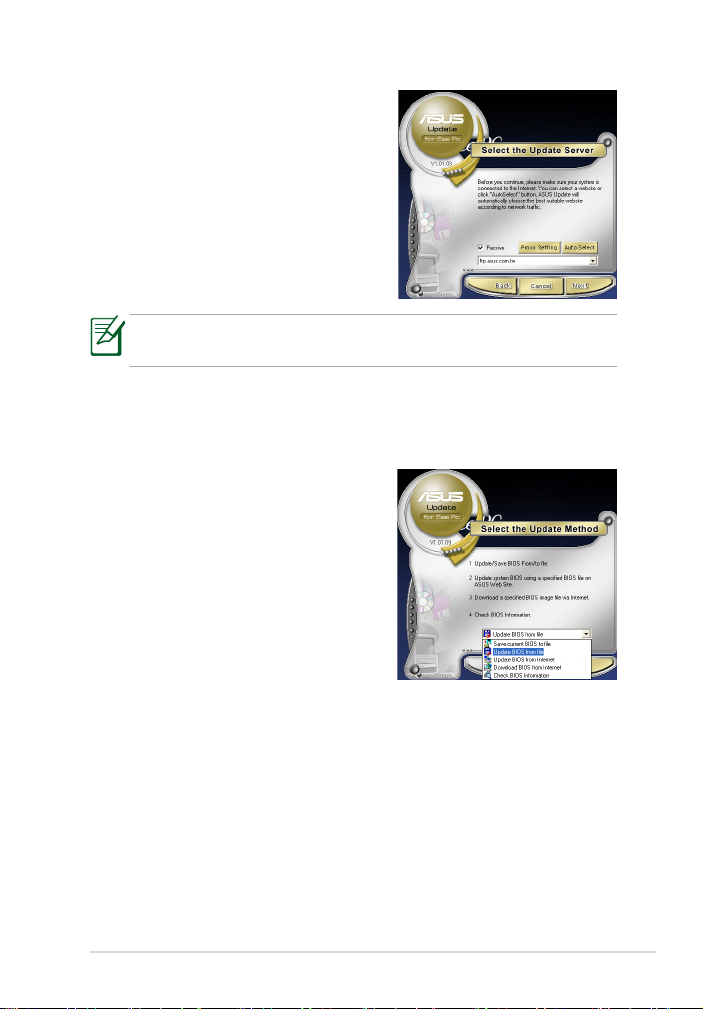

Updating the BIOS through the Internet ....................................................... 3-2
Updating the BIOS through a BIOS file ...........................................................3-3

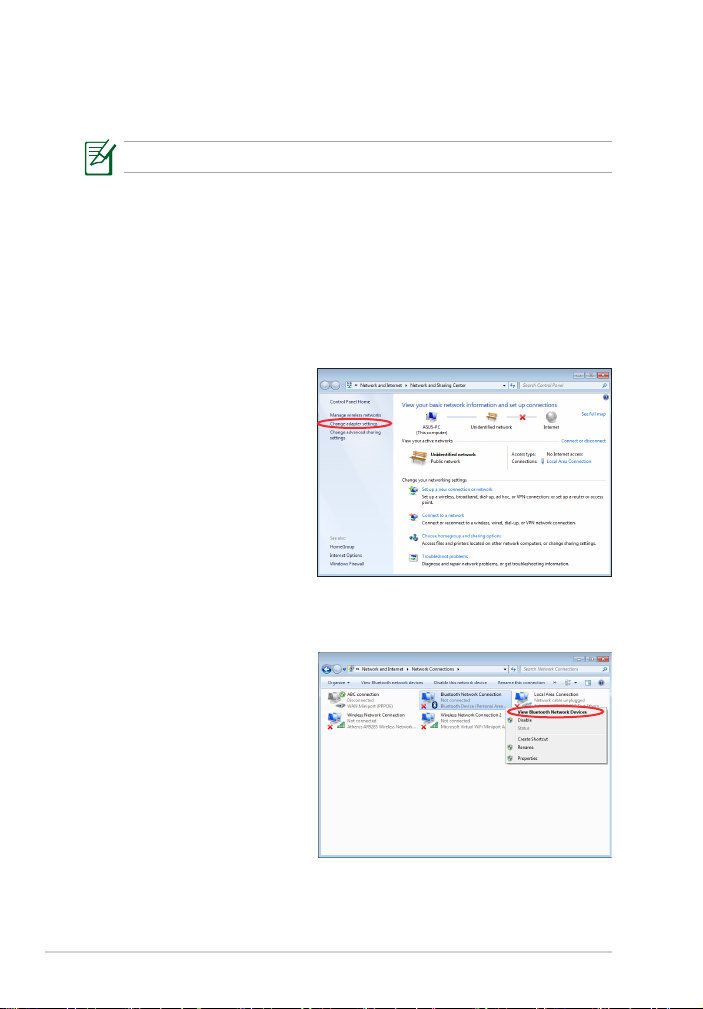

Bluetooth Connection (on selected models) ..............................................................3-4

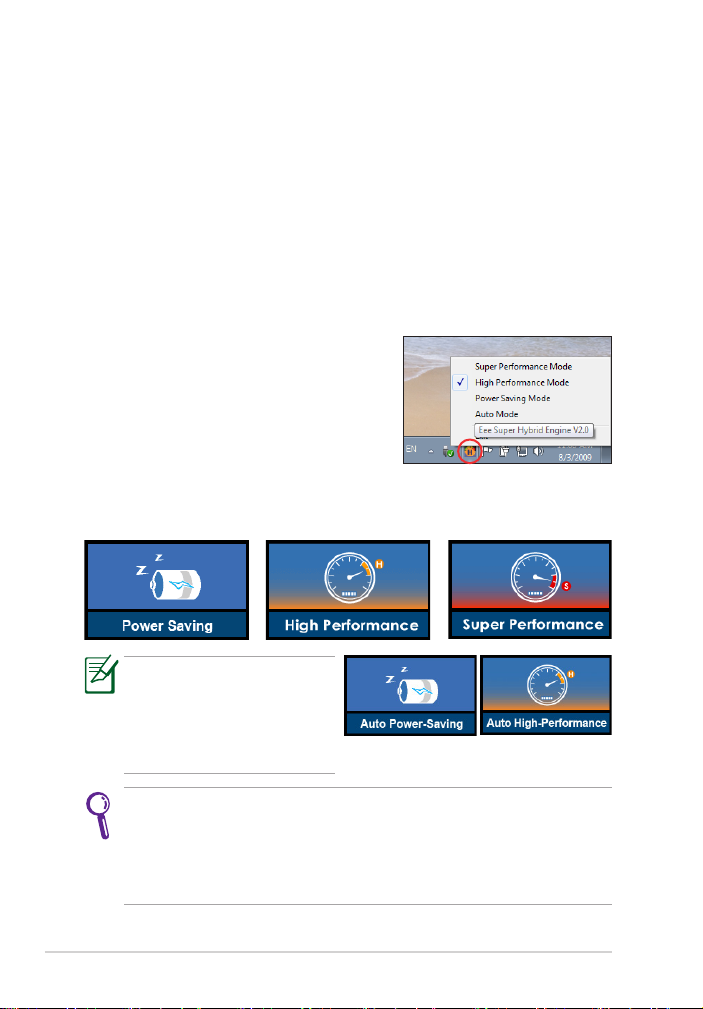

Super Hybrid Engine ............................................................................................................3-6
Super Hybrid Engine Modes...............................................................................3-6
Eee Docking ............................................................................................................................3-7

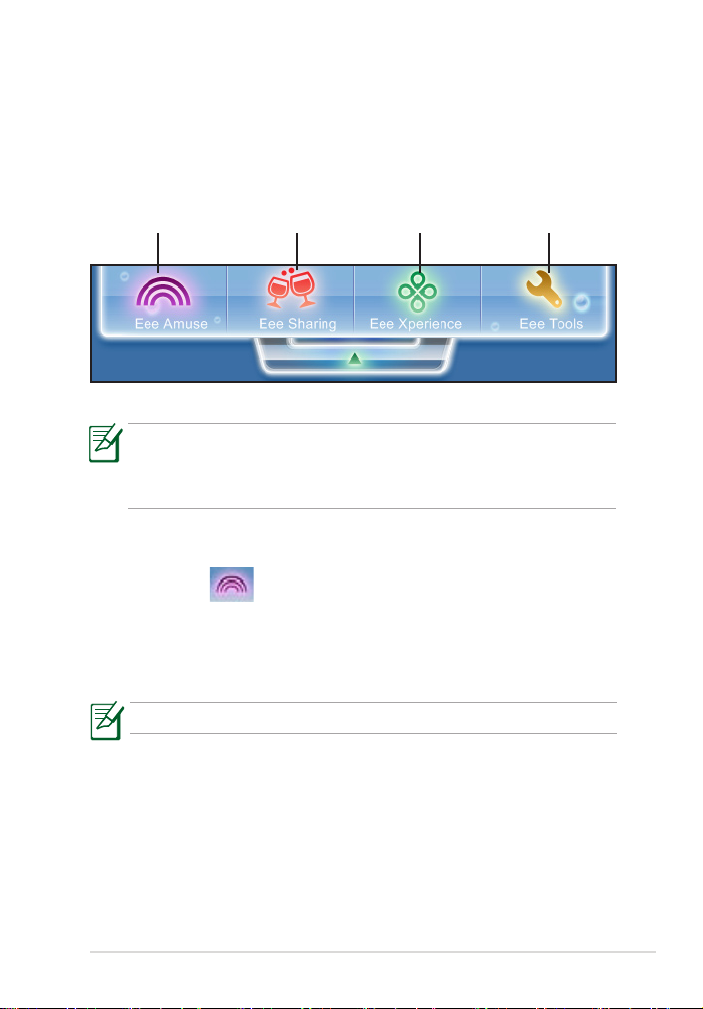

Eee Amuse ................................................................................................................3-7
Table of Contents
Eee Sharing ............................................................................................................... 3-8
Eee Xperience .......................................................................................................... 3-8
Eee Tools ....................................................................................................................3-9
Boingo (on selected models) ............................................................................................3-9

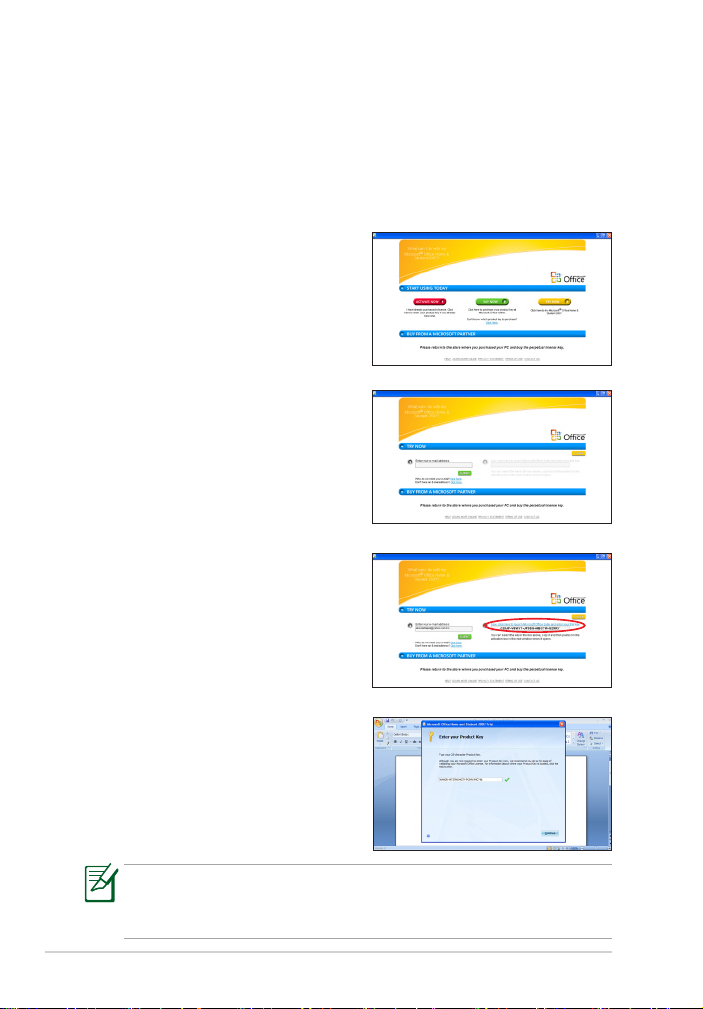

Microsoft® Office Trial .........................................................................................................3-10
Chapter 4: Support DVD & System Recovery
Support DVD information ..................................................................................................4-2
Running the support DVD ...................................................................................4-2

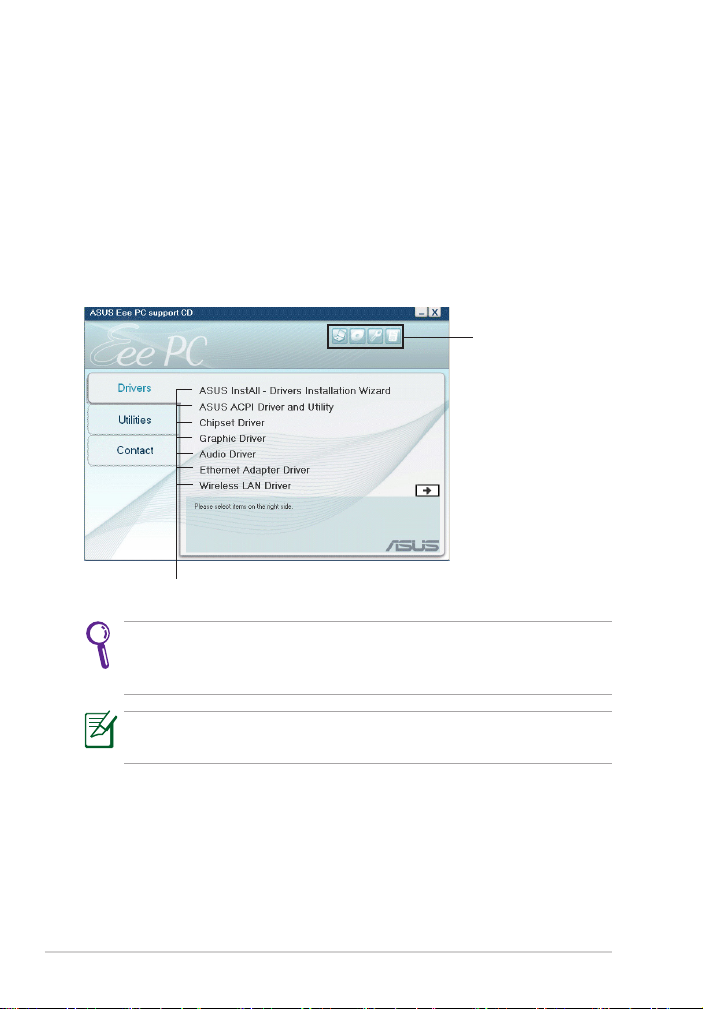

Drivers menu ............................................................................................................4-3
Utilities menu ...........................................................................................................4-3
Contact .......................................................................................................................4-3
Other information ..................................................................................................4-3
System Recovery....................................................................................................................4-4
Using Recovery Partition (F9 Recovery) .........................................................4-4
Using the Support DVD ........................................................................................4-4
Boot Booster............................................................................................................................4-6
Appendix
Declarations and Safety Statements ..............................................................................A-2
Federal Communications Commission Statement .....................................A-2
FCC Radio Frequency (RF) Exposure Caution Statement .........................A-3
Declaration of Conformity(R&TTE directive 1999/5/EC)...........................A-4
IC Radiation Exposure Statement for Canada ..............................................A-4
CE Mark Warning ....................................................................................................A-6
Wireless Operation Channel for Different Domains ..................................A-7
France Restricted Wireless Frequency Bands ...............................................A-7
UL Safety Notices ....................................................................................................A-8
Power Safety Requirement .................................................................................A-9
REACH Notice ...........................................................................................................A-9
Nordic Lithium Cautions (for lithium-ion batteries)................................A-10
Copyright Information ......................................................................................................A-12
Limitation of Liability ........................................................................................................A-13
Service and Support .......................................................................................................... A-13
ASUS Eee PC
iii

About This User’s Manual

You are reading the Eee PC User’s Manual. This User’s Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User’s Manual:
1. Knowing the Parts
Provides information on the Eee PC’s components.
2. Getting Started
Provides information on getting started with the Eee PC.
3. Using the Eee PC
Provides information on using the Eee PC’s utilities.
4. Support DVD and System Recovery
Gives you information on support DVD contents and system recovery.
5. Appendix
Gives you safety statements.
The actual bundled applications differ by models and territories. There may be differences between your Eee PC and the pictures shown in this manual. Please accept your Eee PC as being correct.

Notes for This Manual

A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows:
WARNING! Important information that must be followed for safe operation.
IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
iv
Table of Contents

Safety Precautions

The following safety precautions will increase the life of the Eee PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.
Disconnect the AC power before cleaning. Wipe the Eee PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.
DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.
DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Eee PC.
DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.
DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC.
DO NOT expose to strong magnetic or electrical fields.
DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.
ASUS Eee PC
v
SAFE TEMP: This Eee PC
should only be used
in environments with
ambient temperatures
between 5°C (41°F) and
35°C (95°F)
INPUT RATING: Refer to the rating label on the bottom of the Eee PC and be sure that your power adapter complies with the rating.
DO NOT carry or cover a
Eee PC that is powered
ON with any materials that
Incorrect installation of battery may cause explosion and damage the Eee PC.
will reduce air circulation
such as a carrying bag.
DO NOT throw the Eee PC in municipal waste. This product has
been designed to enable proper reuse of parts and recycling. The
symbol of the crossed out wheeled bin indicates that the product
(electrical, electronic equipment and mercury-containing button
cell battery) should not be placed in municipal waste. Check local
regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the
crossed out wheeled bin indicates that the battery should not be
placed in municipal waste.
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and
disconnect all external peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display
panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches.
vi
Table of Contents
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximmum capacity after a few full charging and discharging cycles.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.
There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands.
ASUS Eee PC
vii
viii
Table of Contents
Top Side
Bottom Side
Front Side
Right Side
Left Side
Keyboard Usage
Touchpad Usage
Chapter 1:
Knowing the Parts
1
3
5
8
4
6
7
2
1

Top Side

Refer to the illustration below to identify the components on this side of the Eee PC.
The top side may vary in appearance depending on models.
1-2
The keyboard differs for each territory.
Chapter 1: Knowing the Parts
1
Microphone (Built-in)
Built-in Camera
2
Display Panel
3
Touchpad key
4
Toggles the touchpad ON/OFF. You can also turn on/off the
function by pressing <Fn> + <F3>.
Power Switch
5
The power switch allows powering ON and OFF the Eee PC and
recovering from STR. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned ON
and blinks slowly when the Eee PC is in the Save-to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF.
Keyboard
6
The keyboard provides keys with comfortable travel (depth at
which the keys can be depressed) and palm rest for both hands.
The keyboard differs depending on models.
Touchpad and Buttons
7
The touchpad and its buttons comprises a pointing device that
provides the same functions as a desktop mouse.
Status Indicators
8
Power Indicator
The power indicator lights when the Eee PC is turned ON
and blinks slowly when the Eee PC is in the Save-to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF.
ASUS Eee PC
1-3
Battery Charge Indicator
The battery charge indicator (LED) shows the battery
charging status as follows:
Powered ON
High battery power (95%–100%) Medium battery power (11%–94%) Low battery power (0%–10%)
With Adapter Without Adapter
Green ON Off
Orange ON Off
Orange Blinking Orange Blinking
Powered OFF / Standby mode
High battery power (95%–100%) Medium battery power (11%–94%) Low battery power (0%–10%)
With Adapter Without Adapter
Green ON Off
Orange ON Off
Orange Blinking Off
Hard Disk Drive (HDD) Indicator
The hard disk drive indicator blinks when data is written to
or read from the disk drive.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless LAN/
Bluetooth (on selected models). When the built-in wireless LAN/Bluetooth is enabled, this indicator lights.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when
lighted.
1-4
Chapter 1: Knowing the Parts

Bottom Side

4
21 3
Refer to the illustration below to identify the components on this side of the Eee PC.
The bottom side may vary in appearance depending on model.
The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT use on soft surfaces such as beds or sofas, which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
Battery Lock - Spring
1
The spring battery lock keeps the battery pack secure. When
the battery pack is inserted, it will automatically lock. When removing the battery pack, this spring lock must be retained in the unlocked position.
ASUS Eee PC
1-5
2
1
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC when AC power is not connected. This allows use when moving temporarily between locations. Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit.
3
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured.
Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.
Memory Compartment
4
The memory module is secured in a dedicated compartment.

Front Side

Refer to the illustration below to identify the components on this side of the Eee PC.
1-6
1
Audio Speaker System
The built-in stereo speaker system allows you to hear audio
without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.
Chapter 1: Knowing the Parts

Right Side

1 2 3 4 5
Refer to the illustration below to identify the components on this side of the Eee PC.
1
Memory Card Slot
The built-in memory card reader can read SD/SDHC/MMC cards.
Headphone Output Jack
2
The 1/8” stereo headphone jack (3.5mm) connects the Eee PC’s
audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Microphone Jack
3
The microphone jack is designed to connect the microphone
used for Skype, voice narrations, or simple audio recordings.
USB Port (2.0/1.1)
4
The USB (Universal Serial Bus) port is compatible with USB 2.0 or
USB 1.1 devices such as keyboards, pointing devices, cameras, and storage devices, connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). Also, the USB supports hot-swapping function.
LAN Port
5
The eight-pin RJ-45 LAN port (10/100M bit) supports a standard
Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters.
ASUS Eee PC
1-7

Left Side

1 2 3 4 5
Refer to the illustration below to identify the components on this side of the Eee PC.
Power (DC) Input
1
The supplied power adapter converts AC power to DC power
for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack. To prevent damage to the Eee PC and battery pack, always use the supplied power adapter.
THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
2
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-
compatible device such as a monitor or projector to allow viewing on a larger external display.
3
USB Port (2.0/1.1)
Kensington® Lock port
4
The Kensington® lock port allows the Eee PC to be secured
using Kensington® compatible security products. These security products usually include a metal cable and lock that prevent the Eee PC to be removed from a fixed object.
Air Vents
5
The air vents allow cool air to enter and warm air to exit the Eee
PC.
Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.
1-8
Chapter 1: Knowing the Parts

Keyboard Usage

Special Function Keys

The following defines the colored hot keys on the Eee PC’s keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation.
The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons whenever your hot key locations do not match the manual.
Zz Icon (F1): Places the Eee PC in suspend mode
(Save-to-RAM).
Radio Tower (F2) (Wireless Models Only): Toggles
the internal wireless LAN or Bluetooth (on selected models) ON or OFF with an on-screen-display. When enabled, the corresponding wireless indicator will light.
The default setting is WLAN ON / Bluetooth OFF.
Touchpad (F3): Toggles the touchpad ON/OFF.
Resolution Selection (F4): Press to adjust the display
resolution.
Sun Down Icon (F5): Decreases the display brightness.
Sun Up Icon (F6): Increases the display brightness.
Crossed Screen Icon (F7): Turns off the display backlight.
LCD/Monitor Icons (F8): Toggles between the Eee PC’s
LCD display and an external monitor.
ASUS Eee PC
1-9
Task Manager Icon (F9): Initiates the Task Manager to
view the application process or terminates applications.
Crossed Speaker Icon (F10): Mutes the speaker.
Volume Down Icon (F11): Decreases speaker volume.
Volume Up Icon (F12): Increases the speaker volume.
Super Hybrid Engine (Fn+Space Bar): Toggles among
various power saving modes. The selected mode is shown on the display.
Num Lk (Insert): Toggles the numeric keypad
(number lock) ON and OFF. Allows use of a larger portion of the keyboard for number entering.
Scr Lk (Delete): Toggles the “Scroll Lock” ON and OFF.
Allows you to use a larger portion of the keyboard for cell navigation.
Pg Up (↑): Press to scroll up in documents or the web
browser.
Pg Dn (↓): Press to scroll down in documents or the web
browser.
Home (←): Press to move the pointer to the beginning of
the line.
End (→): Press to move the pointer to the end of the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties menu
and is equivalent to right-clicking the touchpad/mouse on an object.
1-10
Chapter 1: Knowing the Parts
Loading...
+ 42 hidden pages
