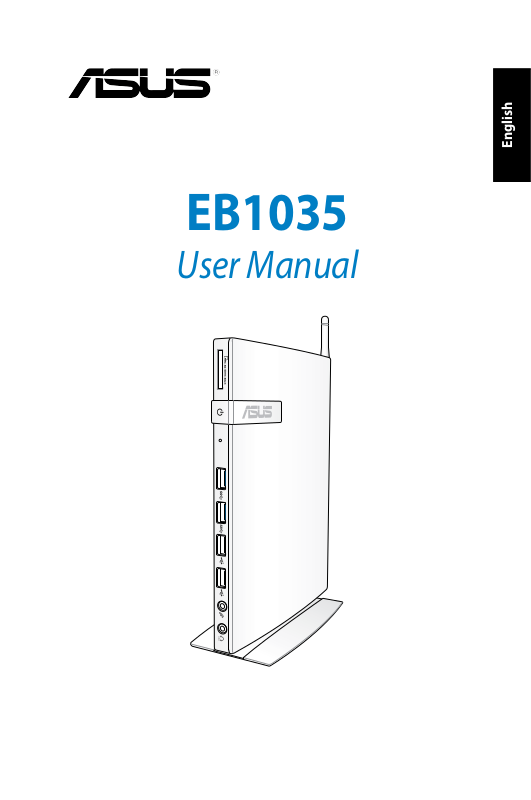

EB1035
User Manual
English
E7723
First Edition / September 2012
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD­PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
Contents
About this manual ............................................................................................. 5
Conventions used in this manual ............................................................... 6
Typography ......................................................................................................... 6
Safety information ............................................................................................. 7
Setting up your system................................................................................... 7
Care during use ................................................................................................. 7
Package contents ............................................................................................... 9
Chapter 1: Hardware Setup
Getting to know your PC ...............................................................................10
Front view ..........................................................................................................10
Rear view ...........................................................................................................12
Chapter 2: Using your PC
Positioning your PC .........................................................................................14
Mounting your PC on the stand ................................................................14
Installing your PC to a monitor ..................................................................15
Using your PC .................................................................................................... 18
Connecting to an external display ...........................................................18
Connecting to a USB device .......................................................................18
Connecting the wireless antenna .............................................................19
Turning your PC on ........................................................................................20
Configuring the audio output via an HDMI device ............................21
English
Chapter 3: Working with Windows® 8
System requirements ......................................................................................23
Starting for the first time ...............................................................................24
Windows® 8 lock screen .................................................................................. 24
Windows® UI .......................................................................................................25
Start Screen.......................................................................................................25
Windows® apps ................................................................................................26
Working with Windows® apps ......................................................................29
Launching apps ...............................................................................................29
Customizing apps from the Start screen................................................29
EB1035 PC
3
English
Contents
Closing apps .....................................................................................................30
Accessing the Apps screen..........................................................................30
Charm bar ..........................................................................................................31
Snap feature .....................................................................................................33
Other keyboard shortcuts .............................................................................34
Turning your PC off ..........................................................................................36
Putting your PC to sleep ................................................................................36
Entering the BIOS Setup ................................................................................36
Quickly enter the BIOS ..................................................................................37
Chapter 4: Connecting to the Internet
Connecting on Windows® 7 ..........................................................................38
Wireless connection ......................................................................................38
Wired connection ...........................................................................................39
Connecting on Windows® 8 ..........................................................................45
Wi-Fi connection .............................................................................................45
Wired connection ..........................................................................................47
Chapter 5: Recovering your system 48
Recovery options on Windows®7 ................................................................ 48
Using the Recovery Partition .....................................................................48
Recovery options on Windows®8 ................................................................ 50
Resetting your PC ...........................................................................................50
Recovering from a system image file ......................................................51
Removing everything and reinstalling Windows ................................53
Appendices
Notices .................................................................................................................54
ASUS contact information ............................................................................61
4
EB1035 PC

About this manual

This manual provides information about the hardware and software features of your PC , organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your PC .
Chapter 2: Using your PC
This chapter provides you with information on using your PC .
Chapter 3: Working with Windows® 8
This chapter provides an overview of using Windows® 8 in your PC .
Chapter 4: Connecting to the Internet
This chapter provides information on connecting your PC to a wired or Wi-Fi network.
Chapter 5: Recovering your system
This chapter provides recovery options for your PC .
Appendices
This section includes notices and safety statements for your PC .
NOTE:
The user manual is located in the following folder in your PC:
For 64-bit Windows® 8 OS: Program Files(X86)/ASUS/eManual
English
EB1035 PC
5
English

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your PC's data and components.

Typography

Bold text Indicates a menu or an item to select.
Italic
This indicates sections that you can refer to in this manual.
6
EB1035 PC

Safety information

Your EeeBox PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface with the provided stand. Never use the system alone without the stand.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0˚C and 35˚C.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
English

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned o, a small amount of electrical current still ows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualied service technician or your retailer.
The power cord or plug is damaged.
EB1035 PC
7
English
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating instructions.
The system was dropped or the cabinet is damaged.
The system performance changes.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
LASER PRODUCT WARNING
CLASS 1 LASER PRODUCT
NO DISASSEMBLY
The warranty does not apply to the products that
have been disassembled by users
8
DO NOT throw the PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling.
EB1035 PC

Package contents

X
EB1035 Stand (optional)
Remote receiver
(optional)
Antenna
AC adapter Power cord
VESA mount and Screw
pack (optional)
Mini jack to S/PDIF
adapter
English
Remote control
(optional)
Warranty card
Quick Installation
Guide (QIG)
NOTES:
• Actual product specications may vary with territories.
• If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.
EB1035 PC
9
English
X

Chapter 1: Hardware Setup

Getting to know your PC

Front view

10
Memory card slot
The built-in memory card reader enables your PC to read and write data to and from MMC/SD/SDHC/SDXC cards.
Power switch
The power switch allows powering ON and OFF the system.
EB1035 PC
BIOS Reset key
Before booting up the system, insert a straightened paper clip into this hole to enter the BIOS.
USB 3.0 ports
These USB (Universal Serial Bus) ports provide a transfer rate of up to 5Gbit/s and are backward compatible with USB2.0.
USB 2.0 ports
The USB (Universal Serial Bus) 2.0 ports are compatible with USB 2.0/1.1 devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.
Microphone jack
The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings.
Headphone/Audio (S/PDIF) Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to amplied speakers or headphones.
English
NOTE: For S/PDIF Out function, use the optional mini jack to
S/PDIF adapter to connect to your amplier.
EB1035 PC
11
English

Rear view

12
Wireless antenna jack
The jack is used to connect the supplied wireless antenna to enhance wireless signal reception.
EB1035 PC
HDMI port
The HDMI (High Denition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display.
USB 2.0 ports
The USB (Universal Serial Bus) 2.0 ports are compatible with USB 2.0/1.1 devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.
LAN port
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA­compatible device such as a monitor or projector to allow viewing on a larger external display.
Power input (DC 19V)
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.
English
WARNING! The power adapter may become warm to hot when in
use. Do not cover the adapter and keep it away from your body.
Kensington® lock port
The Kensington® lock port allows you to secure your PC using Kensington® compatible PC security products.
EB1035 PC
13
English
X

Chapter 2: Using your PC

Positioning your PC

Mounting your PC on the stand

To mount your PC on the stand:
1. Locate the mounting hole at the bottom of your PC.
2. Align the stand’s mounting hole with the mounting hole on your PC, then secure it in place with the stand screw.
14
Stand screw
IMPORTANT! Ensure that your PC is mounted on its stand before placing it on a stable and at surface.
EB1035 PC

Installing your PC to a monitor

1
2
To install your PC to a monitor:
1. Secure the VESA mount to your monitor with four screws bundled with your VESA mount kit.
NOTE: Your monitor must comply with VESA75 or VESA100 standard.
English
EB1035 PC
15
English
2
1
3
2. Place your PC onto the VESA mount noting the correct alignment, and secure the PC to the VESA mount from below with the stand screw.
NOTE: Make sure that the ASUS trademark on the rotation wheel of the VESA mount is set to its customary position when putting in the PC so that the machine can rotate properly.
16
EB1035 PC
3. The VESA mount is designed for you to rotate the PC so to use
1
2
3
the front and rear I/O ports at convenient angles. To turn the PC secured in the VESA mount, press the lever switch at the bottom of the VESA mount to unlock the wheel. Then turn according to preference.
English
IMPORTANT!
• Set the rotation wheel upright when the system is in use.
• Please take note of the cables connected to the PC while operating the rotation wheel. To prevent hazards from loosened cables, the wheel is designed to rotate no more than 90° clock/ counterclock-wise.
EB1035 PC
17

Using your PC

X
English

Connecting to an external display

Connect one end of an HDMI or a VGA cable to an external display, and the other end of the cable to your PC’s HDMI or VGA port.

Connecting to a USB device

Connect USB devices like wired/wireless keyboards, mouse devices, and printers to the USB ports on your PC.
18
NOTE: The keyboard varies with country or region.
EB1035 PC

Connecting the wireless antenna

Connect the wireless antenna to your PC to enhance the wireless signal. Ensure that the wireless antenna is in an upright position (90o angle) to get the best wireless reception.
English
EB1035 PC
19
