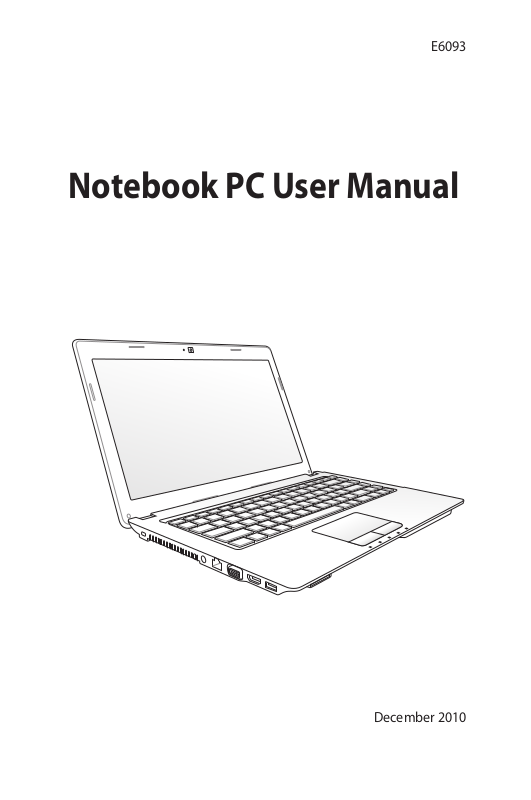

ASUS E6093 User Manual
E6093
Notebook PC User Manual
December 2010
Table of Contents
Chapter 1: Introducing the Notebook PC
About This User’s Manual ................................................................................ 6
Notes for This Manual ....................................................................................... 6
Safety Precautions ............................................................................................. 7
Preparing your Notebook PC .......................................................................11
Chapter 2: Knowing the parts
Top Side ...............................................................................................................14
Bottom Side ........................................................................................................18
Right Side ............................................................................................................21
Left Side .............................................................................................................24
Rear Side ............................................................................................................26
Front Side ..........................................................................................................27
Chapter 3: Getting Started
Power System ....................................................................................................30
Using AC Power ...............................................................................................30
Using Battery Power ......................................................................................32
Battery Care ......................................................................................................33
Powering ON the Notebook PC .................................................................34
The Power-On Self Test (POST) ..................................................................34
Checking Battery Power ...............................................................................36
Charging the Battery Pack ...........................................................................37
Power Options .................................................................................................38
Power Management Modes .......................................................................40
Sleep and Hibernate ......................................................................................40
Thermal Power Control .................................................................................41
Special Keyboard Functions .........................................................................42
Colored Hot Keys ............................................................................................42
Microsoft Windows Keys ..............................................................................44
Extended Keyboard (on selected models) ............................................44
Multimedia Control Keys (on selected models) ...................................46
Switches and Status Indicators ...................................................................47
Switches .............................................................................................................47
Status Indicators .............................................................................................48
2
Notebook PC User Manual
Chapter 4: Using the Notebook PC
Pointing Device .................................................................................................52
Using the Touchpad .......................................................................................53
Touchpad Usage Illustrations .....................................................................54
Caring for the Touchpad ..............................................................................57
Automatic Touchpad Disabling .................................................................57
Storage Devices ................................................................................................59
Flash Memory Card Reader .........................................................................59
Hard Disk Drive ................................................................................................60
Memory (RAM) .................................................................................................62
Connections .......................................................................................................63
Network Connection .....................................................................................63
Wireless LAN Connection (on selected models) .................................65
Windows Wireless Network Connection ................................................67
Bluetooth Wireless Connection(on selected models) .......................69
Appendix
Optional Accessories .....................................................................................A-2
Optional Connections .................................................................................A-2
Operating System and Software ...............................................................A-3
System BIOS Settings ..................................................................................A-4
Common Problems and Solutions .........................................................A-7
Recovering Your Notebook PC ............................................................... A-13
Using Recovery Partition ....................................................................... A-13
Using Recovery DVD (on selected models) ...................................... A-14
DVD-ROM Drive Information .................................................................. A-16
Blu-ray ROM Drive Information (on selected models) ................... A-18
Internal Modem Compliancy .................................................................. A-19
Declarations and Safety Statements .................................................... A-23
Federal Communications Commission Statement ........................A-23
FCC Radio Frequency (RF) Exposure Caution Statement ............ A-24
Declaration of Conformity(R&TTE directive 1999/5/EC) .............. A-24
CE Mark Warning ........................................................................................ A-25
IC Radiation Exposure Statement for Canada ................................. A-25
Notebook PC User Manual
3
Wireless Operation Channel for Different Domains ...................... A-26
France Restricted Wireless Frequency Bands ..................................A-26
UL Safety Notices .......................................................................................A-28
Power Safety Requirement ....................................................................A-29
TV Tuner Notices ........................................................................................A-29
REACH ........................................................................................................ A-29
Nordic Lithium Cautions (for lithium-ion batteries) ...................... A-30
Optical Drive Safety Information .........................................................A-31
Laser Safety Information ......................................................................... A-31
Service warning label ............................................................................... A-31
CDRH Regulations ..................................................................................... A-31
Macrovision Corporation Product Notice ......................................... A-32
CTR 21 Approval(for Notebook PC with built-in Modem) .......... A-33
European Union Eco-label ...................................................................... A-35
ENERGY STAR complied product ......................................................... A-35
Global Environmental Regulation Compliance and
Declaration .................................................................................................. A-36
Takeback Services ...................................................................................... A-36
Copyright Information .............................................................................. A-37
Limitation of Liability ................................................................................. A-38
Service and Support ................................................................................... A-38
4
Notebook PC User Manual
Chapter 1:
Introducing the
Notebook PC
1
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual
provides information regarding the various components in the
Notebook PC and how to use them. The following are major chapters
of this User’s Manual:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional
information.
The actual bundled operating system and applications differ by
models and territories. There may be differences between your
Notebook PC and the pictures shown in this manual. Please
accept your Notebook PC as being correct.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively. These notes have
different degrees of importance as follows:
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
6
Notebook PC User Manual
Safety Precautions
The following safety precautions will increase the life of the
Notebook PC. Follow all precautions and instructions. Except as
described in this manual, refer all servicing to qualified personnel.
Disconnect the AC power and remove the battery pack(s) before
cleaning. Wipe the Notebook PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT place on
uneven or unstable work
surfaces. Seek servicing
if the casing has been
damaged.
DO NOT expose to dirty
or dusty environments.
DO NOT operate during a
gas leak.
DO NOT press or touch
the display panel. Do not
place together with small
items that may scratch or
enter the Notebook PC.
DO NOT leave the
Notebook PC on your lap
or any part of the body
to prevent discomfort
or injury from heat
exposure.
DO NOT place or drop
objects on top and
do not shove any
foreign objects into the
Notebook PC.
DO NOT expose to
strong magnetic or
electrical fields.
DO NOT expose to or
use near liquids, rain,
or moisture. DO NOT
use the modem during
electrical storms.
Battery safety warning:
DO NOT throw the
battery in fire. DO NOT
short circuit the contacts.
DO NOT disassemble the
battery.
Notebook PC User Manual
7
SAFE TEMP: This
Notebook PC should
only be used in
environments with
ambient temperatures
between 10°C (50°F) and
35°C (95°F).
INPUT RATING: Refer to
the rating label on the
bottom of the Notebook
PC and be sure that your
power adapter complies
with the rating.
DO NOT carry or cover
a Notebook PC that
is powered ON with
any materials that will
reduce air circulation
DO NOT use strong
solvents such as
thinners, benzene, or
other chemicals on or
near the surface.
such as a carrying bag.
DO NOT use damaged
power cords, accessories,
or other peripherals.
Incorrect installation
of battery may cause
explosion and damage
the Notebook PC.
DO NOT throw the Notebook PC in municipal waste. This
product has been designed to enable proper reuse of parts
and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
8
Notebook PC User Manual
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF
and disconnect all external peripherals to prevent damage to
the connectors. The hard disk drive’s head retracts when the power
is turned OFF to prevent scratching of the hard disk surface during
transport. Therefore, you should not transport the Notebook PC
while the power is still ON. Close the display panel and check that
it is latched securely in the closed position to protect the keyboard
and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not
properly cared for. Be careful not to rub or scrape the Notebook
PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water,
shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your
battery pack and any optional battery packs before going on long
trips. Remember that the power adapter charges the battery pack as
long as it is plugged into the computer and an AC power source. Be
aware that it takes much longer to charge the battery pack when the
Notebook PC is in use.
Notebook PC User Manual
9
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the
airplane. Most airlines will have restrictions for using electronic
devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
CAUTION! There are three main types of airport security
devices: X-ray machines (used on items placed on conveyor
belts), magnetic detectors (used on people walking through
security checks), and magnetic wands (hand-held devices used
on people or individual items). You can send your Notebook
PC and diskettes through airport X-ray machines. However, it
is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to
magnetic wands.
10
Notebook PC User Manual
Preparing your Notebook PC
1
2
3
110V-220V
1
2
3
These are quick instructions for using your Notebook PC.
Installing the Battery Pack
Connecting the Power Adapter
Notebook PC User Manual
11
Opening the LCD display panel
1. Carefully lift up the display panel with your thumb.
2. Slowly tilt the display panel forward or backward to a
comfortable viewing angle.
Turning on the Power
1. Push and release the power button located beneath the LCD
display panel.
2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.
12
Notebook PC User Manual
Chapter 2:
Knowing the parts
2
Top Side
4
2
3
6
7
8
1
9
5
The keyboard differs for each territory.
14” model
14
Notebook PC User Manual
ESC
F1 F2 F3 F4 F5 F6 F7 F8 F9
F10 F11
F12
Pause
Prt sc
Sysrq
Delete
Backspace
Home
Home
Num lk
Scr lk
Pgup
Pgup
Pgdn
Pgdn
Enter
Enter
Shift
Shift
Ctrl
Alt
Ctrl
Fn
Alt
End
End
Insert
DeleteInsert
Break
7 8 9
4 5 6
1
2
0
3
Tab
Caps Lock
3
4
2
6
7
8
1
9
5
15.6” model
Notebook PC User Manual
15
Camera
1
The built-in camera allows picture taking or video
recording. Can be used with video conferencing and other
interactive applications.
Camera Indicator
2
The camera indicator shows when the built-in camera is in
use.
Microphone (Built-in)
3
The built-in mono microphone can be used for video
conferencing, voice narrations, or simple audio recordings.
Display Panel
4
The display panel functions the same as a desktop monitor.
The Notebook PC uses an active matrix TFT LCD, which
provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce
any radiation or flickering, so it is easier on the eyes. Use
a soft cloth without chemical liquids (use plain water if
necessary) to clean the display panel.
Power Indicator
5
The power indicator lights when the Notebook PC is turned
ON and blinks slowly when the Notebook PC is in the
Suspend-to-RAM (Sleep) mode. This indicator is OFF when
the Notebook PC is turned OFF or in the Suspend-to-Disk
(Hibernation) mode.
16
Power Switch
6
The power switch allows powering ON and OFF the
Notebook PC and recovering from STD. Use the switch once
to turn ON and once to turn OFF the Notebook PC. The
power switch only works when the display panel is opened.
Notebook PC User Manual
Keyboard
7
The keyboard provides full-sized keys with comfortable
travel (depth at which the keys can be depressed) and
palm rest for both hands. Two Windows function keys are
provided to help ease navigation in the Windows operating
system.
Touchpad and Buttons
8
The touchpad with its buttons is a pointing device that
provides the same functions as a desktop mouse. A
software-controlled scrolling function is available after
setting up the included touchpad utility to allow easy
Windows or web navigation.
Status Indicators (front)
9
Status indicators represent various hardware/software
conditions. See indicator details in Chapter 3.
Notebook PC User Manual
17
Bottom Side
3
4 5
12
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.
14” model
18
Notebook PC User Manual
3
4 5
12
15.6” model
WARNING! The bottom of the Notebook PC can get very hot. Be
careful when handling the Notebook PC while it is in operation
or recently been in operation. High temperatures are normal
during charging or operation. DO NOT USE ON SOFT SURFACES
SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE VENTS. DO
NOT PUT THE NOTEBOOK PC ON YOUR LAP OR OTHER PARTS
OF THE BODY TO AVOID INJURY FROM THE HEAT.
1
Battery Lock - Manual
The manual battery lock is used to keep the battery pack
secured. Move the manual lock to the unlocked position to
insert or remove the battery pack. Move the manual lock to
the locked position after inserting the battery pack.
Notebook PC User Manual
19
2
Battery Lock - Spring
The spring battery lock is used to keep the battery
pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring
lock must be held in the unlocked position.
3
Battery Pack
The battery pack is automatically charged when the
Notebook PC is connected to an AC power source and
maintains power to the Notebook PC when AC power is
not connected. This allows use when moving temporarily
between locations. Battery time varies by usage and by
the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be purchased as a single
unit.
Hard Disk Drive Compartment
4
The hard disk drive is secured in a compartment. Visit an
authorized service center or retailer for information on hard
disk drive upgrades for your Notebook PC. Only purchase
hard disk drives from authorized retailers of this Notebook
PC to ensure maximum compatibility and reliability.
Memory (RAM) Compartment
5
The memory compartment provides expansion capabilities
for additional memory. Additional memory will increase
application performance by decreasing hard disk access.
The BIOS automatically detects the amount of memory in
the system and configures CMOS accordingly during the
POST (Power-On-Self-Test) process. There is no hardware or
software (including BIOS) setup required after the memory
is installed. Visit an authorized service center or retailer for
information on memory upgrades for your Notebook PC.
Only purchase expansion modules from authorized retailers
of this Notebook PC to ensure maximum compatibility and
reliability.
20
Notebook PC User Manual
Right Side
3 4 5 6 7
5 6 7 8
1 2
31 2
4
14” model
15.6” model
1
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect
the Notebook PC’s audio out signal to amplified speakers
or headphones. Using this jack automatically disables the
built-in speakers.
Microphone Input Jack
2
The mono microphone jack (1/8 inch) can be used to
Notebook PC User Manual
connect an external microphone or output signals from
audio devices. Using this jack automatically disables the
built-in microphone. Use this feature for video conferencing,
voice narrations, or simple audio recordings.
21
3
USB Port (2.0)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec
(USB 2.0). USB allows many devices to run simultaneously
on a single computer, with some peripherals acting as
additional plug-in sites or hubs. USB supports hot-swapping
of devices so that most peripherals can be connected or
disconnected without restarting the computer.
Optical Drive
4
The Notebook PC comes in various models with different
optical drives. The Notebook PC’s optical drive may support
compact discs (CD) and/or digital video discs (DVD) and
may have recordable (R) or re-writable (RW) capabilities.
See the marketing specifications for details on each model.
Optical Drive Activity Indicator
5
(location varies by model)
The optical drive activity indicator shows when data is
being transferred by the optical disk drive. This indicator
will light in proportion to the data size transferred.
22
Optical Drive Electronic Eject
6
The optical drive eject has an electronic eject button for
opening the tray. You can also eject the optical drive tray
through any software player or by right clicking the optical
drive in Windows “Computer” and selecting Eject.
Notebook PC User Manual
Optical Drive Emergency Eject
7
(location varies by model)
The emergency eject is used to eject the optical drive tray
in case the electronic eject does not work. Do not use the
emergency eject in place of the electronic eject.
Kensington® Lock Port
8
The Kensington® lock port allows the Notebook PC to
be secured using Kensington® compatible Notebook PC
security products. These security products usually include
a metal cable and lock that prevent the Notebook PC to
be removed from a fixed object. Some may also include a
motion detector to sound an alarm when moved.
Notebook PC User Manual
23
Left Side
3 4 5 6 71 2
3 4 5 6 72
14” model
15.6” model
1
Kensington® Lock Port
Air Vents
2
The air vents allow cool air to enter and warm air to exit the
Notebook PC.
Ensure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may
occur.
24
3
Power (DC) Input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Notebook PC and charges the
internal battery pack. To prevent damage to the Notebook
PC and battery pack, always use the supplied power
adapter.
The adapter may become warm to hot when in use. Ensure
not to cover the adapter and keep it away from your body.
Notebook PC User Manual
LAN Port
4
The RJ-45 LAN port with eight pins is larger than the RJ-11
modem port and supports a standard Ethernet cable for
connection to a local network. The built-in connector allows
convenient use without additional adapters.
5
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard
VGA-compatible device such as a monitor or projector to
allow viewing on a larger external display.
HDMI
6
HDMI Port
HDMI (High-Definition Multimedia Interface) is an
uncompressed all-digital audio/video interface between
any audio/video source, such as a set-top box, DVD player,
and A/V receiver and an audio and/or video monitor, such
as a digital television (DTV). Supports standard, enhanced,
or high-definition video, plus multi-channel digital audio
on a single cable. It transmits all ATSC HDTV standards and
supports 8-channel digital audio, with bandwidth to spare
to accommodate future enhancements or requirements.
7
Notebook PC User Manual
USB Port (2.0)
25
Rear Side
1
1
14” model
15.6” model
1
Battery Pack
The battery pack is automatically charged when the
Notebook PC is connected to an AC power source and
maintains power to the Notebook PC when AC power is
not connected. This allows use when moving temporarily
between locations. Battery time varies by usage and by
the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be purchased as a single
unit.
26
Notebook PC User Manual
Front Side
1
1
14” model
15.6” model
1
Flash Memory Slot
Normally an external memory card reader must be
purchased separately in order to use memory cards from
devices such as digital cameras, MP3 players, mobile
phones, and PDAs. This Notebook PC has a built-in
high-speed memory card reader that can conveniently read
from and write to many flash memory cards.
Notebook PC User Manual
27
28
Notebook PC User Manual
Chapter 3:
Getting Started
3
Power System
1
2
3
110V-220V
Using AC Power
The Notebook PC power is comprised of two parts, the power
adapter and the battery power system. The power adapter converts
AC power from a wall outlet to the DC power required by the
Notebook PC. Your Notebook PC comes with a universal AC-DC
adapter. That means that you may connect the power cord to any
100V-120V as well as 220V-240V outlets without setting switches
or using power converters. Different countries may require that an
adapter be used to connect the provided US-standard AC power
cord to a different standard. Most hotels will provide universal
outlets to support different power cords as well as voltages. It is
always best to ask an experienced traveler about AC outlet voltages
when bringing power adapters to another country.
30
You can buy travel kits for the Notebook PC that includes power
and modem adapters for almost every country.
WARNING! DO NOT connect the AC power cord to an AC outlet
prior to connecting the DC plug to the Notebook PC. Doing so
may damage the AC-DC adapter.
Notebook PC User Manual
Loading...
