ASUS 850 ATX P4T User Manual

®

P4T

Intel® 850 ATX Motherboard

USER’S MANUAL

USER'S NOTICE

No part of this manual, including the products and software described in it, may be repro­duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED T O THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANT ABILITY OR FITNESS FOR A PAR­TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN­TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI­NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trade­marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.

• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

• ADI and SoundMAX are trademarks of Analog Devices, Inc..
The product name and revision number are both printed on the product itself. Manual revi-

sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR­NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM­MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANY ERRORS OR INACCURACIES THAT MA Y APPEAR IN THIS MANUAL, INCLUD­ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved.

Product Name: ASUS P4T
Manual Revision: 1.07 E707
Release Date:: March 2001

2 ASUS P4T User’s Manual

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [e-mail]

Technical Support

MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [e-mail]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL (America)

Marketing

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA
Fax: [phone]
Email: [e-mail]

Technical Support

Fax: [phone]
Email: [e-mail]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [e-mail] (for marketing requests only)

Technical Support

Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS P4T User’s Manual 3

CONTENTS

1. INTRODUCTION ............................................................................. 7

1.1 How This Manual Is Organized .................................................. 7

1.2 Item Checklist ............................................................................. 7

2. FEATURES ........................................................................................ 8

2.1 The ASUS P4T............................................................................ 8

2.2 P4T Motherboard Components................................................. 12

3. HARDWARE SETUP ...................................................................... 14

3.1 P4T Motherboard Layout.......................................................... 14

3.2 Layout Contents ........................................................................ 15

3.3 Getting Started .......................................................................... 16

3.4 Motherboard Settings................................................................ 17

3.5 System Memory ........................................................................ 22

3.6 Central Processing Unit (CPU) ................................................. 25

3.7 Expansion Cards ....................................................................... 31

3.8 External Connectors.................................................................. 33

3.9 Starting Up the First Time ........................................................ 43

4. BIOS SETUP..................................................................................... 45

4.1 Managing and Updating Your BIOS ......................................... 45

4.1.1 Upon First Use of the Computer System....................... 45

4.1.2 Updating BIOS Procedures ........................................... 46

4.2 BIOS Setup Program ................................................................ 49

4.2.1 BIOS Menu Bar ............................................................. 50

4.2.2 Legend Bar .................................................................... 50

4.3 Main Menu................................................................................ 52

4.3.1 Primary & Secondary Master/Slave .............................. 53

4.3.2 Keyboard Features ......................................................... 56

4.4 Advanced Menu ........................................................................ 58

4.4.1 Chip Configuration ........................................................ 62

4.4.2 I/O Device Configuration .............................................. 64

4.4.3 PCI Configuration ......................................................... 66

4.4.4 Shadow Configuration................................................... 67

4.5 Power Menu .............................................................................. 68

4.5.1 Power Up Control .......................................................... 70

4.5.2 Hardware Monitor ......................................................... 72

4.6 Boot Menu ................................................................................ 73

4.7 Exit Menu ................................................................................. 75

4 ASUS P4T User’s Manual

CONTENTS

5. SOFTWARE SETUP ....................................................................... 77

5.1 Install Operating System........................................................... 77

5.2 Start Windows........................................................................... 77

5.3 P4T Motherboard Support CD.................................................. 78

5.4 INF Update Utility for Intel 850 Chipset .................................. 80

5.5 Intel Ultra ATA Storage Driver ................................................. 81

5.6 Intel LDCM Administrator Setup ............................................. 83

5.7 Intel LDCM Client Setup.......................................................... 85

5.8 ASUS BIOS Flash Utility for LDCM 6.0................................. 86

5.9 ASUS PC Probe Vx.xx ............................................................. 86

5.10 ASUS Update Vx.xx................................................................. 88

5.11 Microsoft DirectX Driver ......................................................... 89

5.12 YAMAHA S-YXG50 SoftSynthesizer...................................... 91

5.13 PC-Cillin 98 Vx.xx ................................................................... 91

5.14 Adobe Acrobat Reader Vx.x ..................................................... 92

5.15 Install Cyberlink Video and Audio Applications ...................... 92

5.16 Uninstalling Programs .............................................................. 94

6. SOFTWARE REFERENCE ........................................................... 97

6.1 ASUS PC Probe ........................................................................ 97

6.2 ASUS Update.......................................................................... 102

6.3 YAMAHA XGPlayer .............................................................. 103

6.4 CyberLink PowerPlayer SE .................................................... 107

6.5 CyberLink PowerDVD ........................................................... 108

6.6 CyberLink V ideoLive Mail..................................................... 109

7. APPENDIX...................................................................................... 11 1

7.1 PCI-L101 Fast Ethernet Card ................................................. 111

7.2 Glossary .................................................................................. 113

INDEX ................................................................................................. 117

ASUS P4T User’s Manual 5

FCC & DOC COMPLIANCE

This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that
may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer­ence by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly ap-

proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.

Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. W ashington DC: Of fice of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6 ASUS P4T User’s Manual

1. INTRODUCTION

1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Intructions on setting up the motherboard.

4. BIOS SETUP Intructions on setting up the BIOS

5. SOFTWARE SETUP Intructions on setting up the included software

6. SOFTWARE REFERENCE Reference material for the included software

7. APPENDIX Optional items and general reference

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items,
contact your retailer.

Manual / Checklist

1. INTRODUCTION

Package Contents

(1) ASUS Motherboard
(1) 40-pin 80-conductor ribbon

cable for internal UltraDMA33/
66/100 IDE drives

(1) Ribbon cable for master and slave

IDE drives

(1) Ribbon cable for (1) 5.25” and (2)

3.5” floppy disk drives

Bag 1
(1) Rubber pad
(1) Metal baseboard

Bag 2
(4) Copper captive nuts
(4) Washers

Bag 3
(2) Plastic CPU heatsink support base
(2) Metal CPU heatsink retaining

clips

(4) Pan head screws

Optional Items

ASUS IrDA-compliant infrared
module

ASUS PCI-L101 W ake-On-LAN 10/
1000 ethernet card

(2) ASUS C-RIMM Continuity

RIMM

(1) ASUS 2-port USB connector set

with bracket
(1) I/O port bracket
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) This Motherboard User’s Manual

ASUS P4T User’s Manual 7

2. FEATURES

2.1 The ASUS P4T

The ASUS P4T motherboard is carefully designed for the demanding PC user who
wants advanced features processed by the fastest processors.

2.1.1Specifications

• Latest Intel Processor Support

2. FEATURES

Specifications

• Intel 850 Chipset: Features the Intel

• Intel ICH2: The Intel I/O Controller Hub 2 (ICH2) features support for

• PC800 Memory Support: Equipped with four Rambus Inline Memory Module

• Intel

• AGP Pro Slot: Comes with an Accelerated Graphics Port Pro slot that supports

®

Intel Socket 423 Pentium

I/O Controller Hub, and Firmware Hub) with support for AGP 4X mode;
400MHz Front Side Bus (FSB); and dual channel RDRAM.

UltraDMA/100, which allows burst mode data transfer rates of up to 100MB/
sec; and two USB controllers for a total of 4 USB ports.

(RIMM) sockets to support Intel PC800/PC600-compliant Rambus DRAMs
(RDRAMs) (available in 64, 96, 128, 192, 256, 512MB densities) up to 2GB.
These RDRAMs are necessary to meet the increase in processor performance
and multimedia and 3D functions, especially where high bandwidth is required.

®

Accelerated Hub Architecture: Features a dedicated high speed hub

link between the ICH2 and MCH with a bandwidth of 266MB/sec – twice the
maximum bandwidth of the PCI bus.

AGP cards for high performance, component level interconnect targeted at 3D
graphical applications using a 1X, 2X, or 4X mode bus. Backward compatible
to support AGP 2X and AGP 1X.

4 processors

®

850 chipset (Memory Controller Hub,

• UltraDMA/100 Support: Comes with an onboard PCI Bus Master IDE controller

with two connectors that support four IDE devices on two channels. Supports
UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master
IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM,
CD-R/RW , LS-120, and Tape Backup drives.

• More USB Ports: Supports a total of 4 USB ports for more peripheral connec-

tivity options.

• W ake-Up Support: Supports W ake-On-LAN, W ake-On-Ring, Keyboard W ake-

Up, and BIOS Wake-Up.

• JumperFree™ Mode: Allows processor settings and easy overclocking of fre-

quency and Vcore voltage all through BIOS setup when JumperFree™ mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.

• Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log

chassis open events into LDCM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!

8

ASUS P4T User’s Manual

2. FEATURES

• SMBus: Features the System Management Bus interface, which is used to physi-

cally transport commands and information between SMBus devices.

• PC Health Monitoring: Provides an easy way to examine and manage system

status information, such as CPU and systerm voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe or Intel LDCM software.

• Legacy Free: Provides five 32-bit PCI (PCI 2.2 compliant) with no ISA, elimi-

nating bottlenecks and system memory management issues. All PCI slots can
support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to
133MB/s maximum throughput.)

• Low Pin Count (LPC) Multi-I/O: Provides two high-speed UAR T compatible

serial ports and one parallel port with EPP and ECP capabilities. UART2 can
also be directed from COM2 to the Infrared Module for wireless connections.

• Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash

EEPROM), offering enhanced ACPI for Windows 98/2000/Millenium compat­ibility, built-in firmware-based virus protection, and autodetection of most de­vices for virtually automatic setup.

• Smart BIOS: 4Mbit firmware gives a new easy-to-use interface which provides

more control and protection over the motherboard. Provides Vcore and CPU/
RDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppy boot selection.

• IrDA: Supports an optional infrared port module for a wireless interface.

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter busses to the memory and processor.

• Onboard LED: The onboard LED will light up when there is standby power to

the motherboard. This acts as a reminder to the user to turn OFF the power
before plugging and unplugging devices so as not to damage the motherboard,
peripherals, and/or components.

• Integrated LAN Capability (optional): Features the Intel ICH2 integrated LAN

controller, which supports Wired for Management, remote wake-up, and OnNow
initiative to reduce Total Cost of Ownership (TCO).

2. FEATURES

Optional Components

ASUS P4T User’s Manual 9

2.1.2 Performance

• High-Speed Data T ransfer Interface: Onboard IDE Bus Master controller with

2. FEATURES

Performance

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

• RDRAM Optimized Performance: This motherboard supports the new gen-

2. FEATURES

two connectors that support four IDE devices in two channels. Supports
UltraDMA/100/66, UltraDMA/33 (IDE DMA Mode 2), PIO Modes 3 & 4, and
supports Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW,
LS-120, and Tape Backup drives. UltraDMA/100 is backward compatible with
DMA/66, DMA/33, and DMA and with existing DMA devices and systems so
there is no need to upgrade current EIDE/IDE drives and host systems.
(UltraDMA/66/100 requires a 40-pin 80-conductor cable to be enabled.)

ter buses to memory and processor.

eration memory , Rambus Dynamic Random Access Memory (RDRAM). While
PC100 SDRAM modules operate at 100MHz with a peak bandwidth of 0.8GB/s,
MCH dual channel Rambus DRAMs can operate at up to 400 MHz with a peak
bandwidth of 3.2GB/s.

• ACPI Ready: ACPI (Advanced Configuration and Power Interface) is also imple-

mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality . W ith these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS, such as W indows
98/2000/Millenium, must be used.

• Suspend and Go: Suspend-to-RAM (STR) provides maximum power savings

as an alternative to leaving the computer ON and QuickStart™ so that you do
not have to wait for a long time for system bootup.

• New Compliancy: Both the BIOS and hardware levels of the motherboard meet

the stringent requirements for PC 99 certification. The new PC 99 requirements
for systems and components are based on the following high-level goals: sup­port for Plug and Play compatibility and power management for configuring
and managing all system components, and 32-bit device drivers and installation
procedures for Windows 95/NT and later. Color-coded connectors and descrip­tive icons make identification easy as required by PC 99.

10

ASUS P4T User’s Manual

2. FEATURES

2.1.3 Intelligence

• Auto CPU Throttling Function: Incorporated into this motherboard is a new

technology to enable Pentium 4 processors auto throttling function. When auto
throttling is enabled, the CPU with throttle down to 50% of its duty cycle when
the CPU temperature reaches the threshold and return to 100% of its duty cycle
when temperature lowers to normal level. This function ensures the best
performance and reliability.

• Fan Status Monitoring and Alarm: To prevent system overheat and system

damage, the CPU, PCI, and MAIN fans can be monitored for RPM and failure.
All the fans are set for its normal RPM range and alarm thresholds.

• T emperature Monitoring and Alert: T o prevent system overheat and system dam-

age, this motherboard supports processor thermal sensing and auto-protection.

• Voltage Monitoring and Alert: System voltage levels are monitored to ensure

stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.

Intelligence

2. FEATURES

• System Resources Alert: Today’s operating systems, such as Windows 98/

Millenium, and W indows NT/2000, require much more memory and hard drive
space to present enormous user interfaces and run large applications. The onboard
hardware ASUS ASIC in conjunction with either the bundled ASUS PC Probe
or Intel LDCM will warn the user before the system resources are used up to
prevent possible application crashes. Suggestions will give the user information
on managing their limited resources more efficiently.

• Dual Function Power Button: Through BIOS, the power button can be defined
as the “Stand by” (a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX
Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.
Regardless of the setting, pushing the power button for more than 4 seconds will
enter the Soft-Off mode.

• Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world.

• Message LED (requires ACPI OS support): Message LEDs now act as infor-
mation providers. Through the way a particular LED illuminates, the user can
determine if a message has been received from a fax/modem. A simple glimpse
provides useful information to the user. This function requires ACPI OS and
driver support.

• Peripheral Power Up: Keyboard or Mouse power up can be enabled or dis-
abled through BIOS setup to allow the computer to be powered ON using your
keyboard or mouse click.

ASUS P4T User’s Manual 11

2.2 P4T Motherboard Components

See opposite page for locations.

Processor Support Socket 423 for Pentium 4 Processors ....................................... 1

2. FEATURES

MB Components

Expansion Slots 5 PCI Slots .............................................................................. 18

2. FEATURES

Location

Feature Setting DIP Switches ................................................... 8

Chipsets Intel 850 Memory Controller Hub (MCH) ............................... 2

Intel I/O Controller Hub 2 (ICH2) ......................................... 12

4Mbit Firmware Hub (FWH) ................................................. 14

Low Pin Count (LPC) Multi-I/O Chipset ............................... 16

Main Memory Maximum 2GB support

4 RIMM Sockets ...................................................................... 3

Dual Channel PC800/PC600 RDRAM support

1 Accelerated Graphics Port (AGP) Pro Slot ......................... 19

System I/O 2 IDE Connectors (UltraDMA33/66/100 support) ................... 4

1 Floppy Disk Drive Connector ............................................... 7

1 USB Header (supports 2 USB ports)................................... 11

2 USB Port Connectors .......................................................... 20

1 Parallel Port Connector ............................................. (Top) 22

2 Serial COM1/COM2 Port Connectors .......... (Bottom) 21, 23

1 PS/2 Mouse Connector .............................................. (Top) 24

1 PS/2 Keyboard Connector ................................... (Bottom) 24

Network Features LAN (RJ-45) Connector (optional) .............................. (Top) 20

Wake-On-LAN Connector...................................................... 15

Wake-On-Ring Connector ...................................................... 17

Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 10

Power ATX Power Supply Connector ................................................. 6

ATX 12V Power Supply Connector ......................................... 9

Auxiliary Power Supply Connector ......................................... 5

Special Feature Onboard LED ......................................................................... 13

Form Factor ATX

12

ASUS P4T User’s Manual

2. FEATURES

2.2.1 Component Locations

24
23

22

21

20

19

14

3

6

72 5

2. FEATURES

Component Locations

18

16 814

15

12

11

10 91317

ASUS P4T User’s Manual 13

3.1 P4T Motherboard Layout

PS/2KBMS

T: Mouse
B: Keyboard

COM1

PARALLEL PORT

COM2

Motherboard Layout

3. H/W SETUP

USB

T: Port1
B: Port

2

Top:

RJ-45

USBPWR

3. HARDWARE SETUP

24.4cm (9.60in)

RIMMB2 (16/18 bit, 184-pin module)

RIMMB1 (16/18 bit, 184-pin module)

RIMMA2 (16/18 bit, 184-pin module)

RIMMA1 (16/18 bit, 184-pin module)

MAIN_FAN

TR2

Intel 850

Memory

Controller

Hub (MCH)

Socket 423

®

ATX12V

AUX Power
Connector

CPU_FAN

1

ATX Power Connector

1

FLOPPY

1

30.5cm (12.0in)

Accelerated Graphics Port (AGP Pro)

CHASSIS

P4T

PCI1

PCI2

PCI3

PCI4

PCI5

IR

WOR

SMB

CR2032 3V
Lithium Cell

CMOS Power

4Mbit

Firmware

Hub

Multi

I/O

WOL

Intel I/O

Controller

Hub

(ICH2)

LED

SCSILED

CLRTC

PCI_FAN

USB2

PANEL

ASUS

ASIC

Hardware

Monitor

with

SECONDARY IDE

PRIMARY IDE

JEN

HDDLED

DIP

Switches

Grayed components are available only on certain models at the time of purchase.

14

ASUS P4T User’s Manual

3. HARDWARE SETUP

3.2 Layout Contents

Motherboard Settings

1) JEN p.18 JumperFree™ Mode (Enable/Disable)

2) USBPWR p.19 USB Device Wake Up (Enable/Disable)

3) SW1 6-10 p.20 CPU External Frequency Setting

4) SW1 1-4 p.22 CPU Core:Bus Frequency Multiple Setting

Expansion

1) RIMMA1/A2/B1/B2 p.23 184-Pin System Memory Support

2) CPU p.25 Central Processing Unit (CPU)6

3) PCI1/2/3/4/5 p.31 32-bit PCI Bus Expansion Slots

4) AGPPRO p.32 Accelerated Graphics Port (AGP Pro) Slot

Connectors

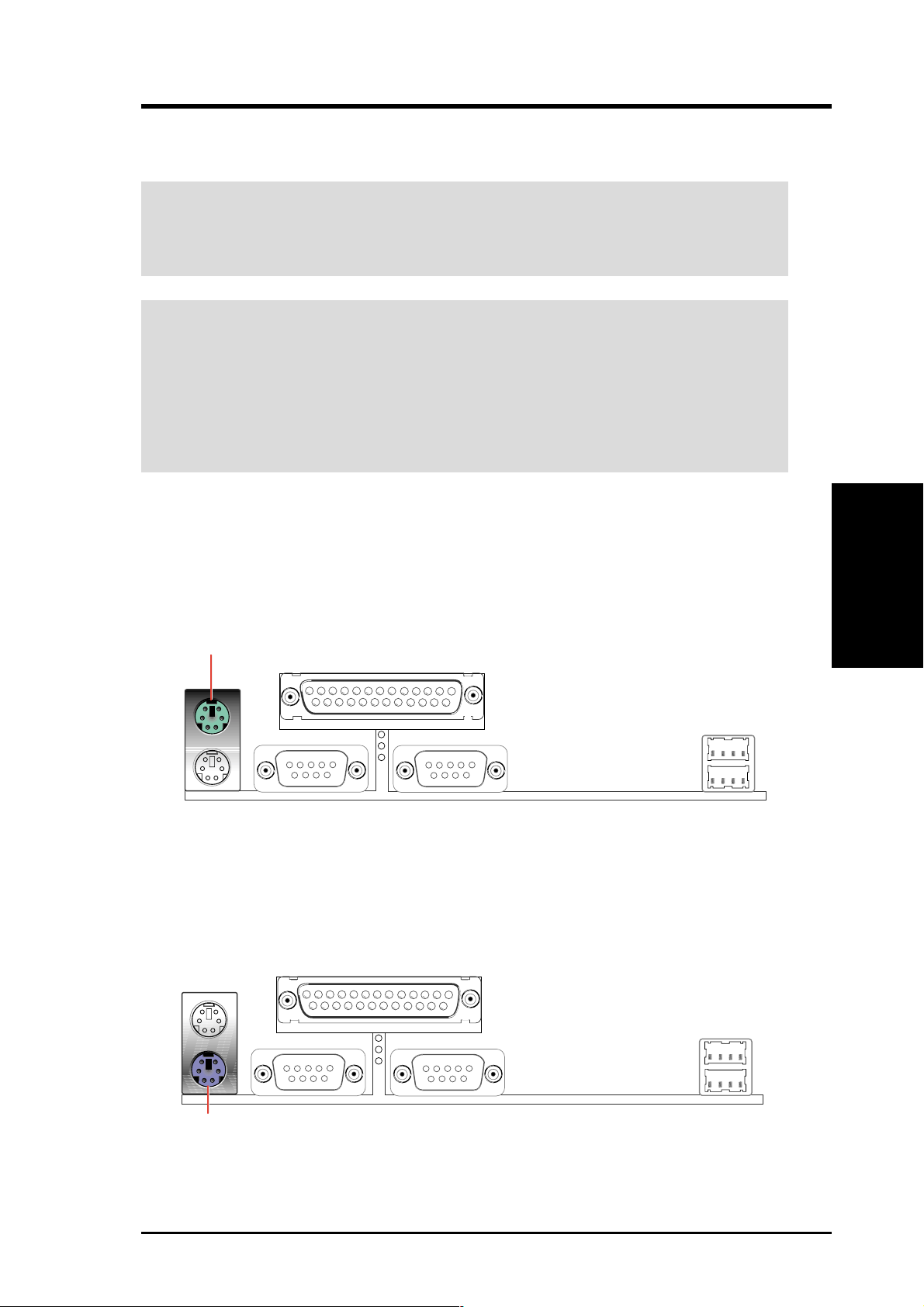

1) PS2KBMS p.33 PS/2 Mouse Connector (6-pin female)

2) PS2KBMS p.33 PS/2 Keyboard Connector (6-pin female)

3) USB p.34 Universal Serial Bus Ports (Two 4-pin female)

4) PRINTER p.34 Parallel Port Connector (25-pin female)

5) COM1/COM2 p.34 Serial Port Connectors (Two 9-pin male)

6) RJ45 p.35 Fast Ethernet Port Connector (optional)

7) PRIMARY/SECONDAR Y IDE p.35 Primary/Secondary IDE Connectors (Two 40-1pins)

8) FLOPPY p.36 Floppy Disk Drive Connector (34-1pins)

9) CPU_FAN, PCI_FAN p.36 CPU, PCI, MAIN Fan Connectors (Three 3-pin)
MAIN_FAN

10) SMB p.37 SMBus Connector (5-1 pins)

Layout Contents

3. H/W SETUP

11) CHASSIS p.37 Chassis Intrusion Connector (4-1 pins)

12) WOL p.38 Wake-On-LAN Connector (3 pins)

13) WOR p.38 Wake-On-Ring Connector (2 pins)

14) USB2 p.39 USB Header (10-1 pins)

15) HDDLED p.39 Hard Disk Drive Activity LED Lead (2 pins)

16) SCSILED p.39 SCSI Activity LED Connector (4 pins)

17) IR p.40 Infrared Module Connector (5 pins)

18) TR2 p.40 Device Thermal Sensor Connector (2 pins)

19) ATXPWR, AUXPWR, p.41 ATX 12V Power Supply Connectors
ATX12V

20) PWRLED (PANEL) p.42 System Power LED Lead (3-1 pins)

21) KEYLOCK (PANEL) p.42 Keyboard Lock Switch Lead (2 pins)

22) SPEAKER (PANEL) p.42 System Warning Speaker Connector (4 pins)

23) MSG.LED (PANEL) p.42 System Message LED (2 pins)

24) SMI (PANEL) p.42 System Management Interrupt Switch Lead (2 pins)

25) PWRSW (PANEL) p.42 ATX Power / Soft-Off Switch Lead (2 pins)

26) RESET (PANEL) p.42 Reset Switch Lead (2 pins)

ASUS P4T User’s Manual

15

3.3 Getting Started

IMPORTANT: Due to Pentium 4 CPU’s power consumption requirement, an

ATX12V power supply is recommended for this motherboard. For typical system
configurations, an ATX12V power supply that can supply at least 230W and at least

8.5A on the +12V lead is required. For heavily-loaded configurations, an ATX12V
power supply that can supply at least 300W is required.

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

3. H/W SETUP

Getting Started

3. HARDWARE SETUP

16 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.4 Motherboard Settings

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. To protect them against damage from static electric­ity, you should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do
not have one, touch both of your hands to a safely grounded object or to a metal
object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or con­nectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with the
component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.

WARNING! Make sure that you unplug your power supply when adding or

removing system components. Failure to do so may cause severe damage to
your motherboard, peripherals, and/or components. The onboard LED when
lit acts as a reminder that the system is in suspend or soft-off mode and not
powered OFF.

®

ON

Standby

Power

P4T

P4T Onboard LED

OFF

Powered

Off

3. H/W SETUP

Motherboard Settings

ASUS P4T User’s Manual

17

3. HARDWARE SETUP

Motherboard Feature Settings

The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi­tion. The example below shows all the switches in the OFF position.

OFF

SW1

®

P4T

ON

ON

1. Frequency Multiple

2. Frequency Multiple

3. Frequency Multiple

4. Frequency Multiple

5. Reserved

6. Frequency Selection

7. Frequency Selection

8. Frequency Selection

9. Frequency Selection

10. Frequency Selection

12345678910

Motherboard Settings

P4T DIP Switches

3. H/W SETUP

1) JumperFree™ Mode (JEN)

This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).

NOTE: In JumperFree™ mode, all dip switches must be set to OFF.
Setting JEN

Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)

SW1

®

OFF

P4T

P4T JumperFree™ Mode Setting

Jumper JumperFree

12

18 ASUS P4T User’s Manual

ON

JEN

12345678910

2

3

3. HARDWARE SETUP

2) USB Device Wake Up (USBPWR)

This allows you to disable or enable the USB device wake up function. Set this
jumper to Enable if you wish to use your USB devices to wake up your computer .
This feature requires an ATX 12V power supply that can supply at least 2A on the
+5VSB lead. The default is set to Disable because not all computers have the
appropriate ATX power supply. Your computer will not power ON if you set this
to Enable and do not have the appropriate ATX power supply.

NOTES

1. This jumper must be set in conjunction with Wake On USB Device in 4.5.1
Power Up Control.

2. To support wake up from USB devices, this jumper must be set to Enable.

3. The total current consumed must NOT exceed the power supply capability
(+5VSB) whether under normal working conditions or in the sleep mode.

Setting USBPWR

Disable [2-3] (default)
Enable [1-2]

®

P4T

P4T USB Device Wake Up

USBPWR

2

1

Enable

2

3

Disable

(Default)

3. H/W SETUP

Motherboard Settings

ASUS P4T User’s Manual

19

3) CPU External Frequency Setting (SW1)

This option tells the clock generator what frequency to send to the CPU, DRAM,
AGP, and the PCI bus. This allows the selection of the CPU’s External fre-
quency.

IMPORTANT:

1. In JumperFree mode, all dip switches must be set to OFF.

2. When JumperFree mode is enabled, use BIOS setup in place of these switches

(see CPU Speed in Advanced Menu in BIOS Setup).

NOTE: Only selected switches are illustrated. For a complete frequency listing,
see next page.

Motherboard Settings

3. H/W SETUP

3. HARDWARE SETUP

SW1

CPU/DRAM
PCI BUS

ON

→→100.0MHz

33.3MHz

12345678910

103.0MHz

ON

34.3MHz

12345678910

105.0MHz

35.0MHz

ON

12345678910

108.0MHz

12345678910

ON

36.0MHz

®

P4T

CPU/DRAM
PCI BUS

P4T CPU
External Frequency Selection

CPU/DRAM
PCI BUS

CPU/DRAM
PCI BUS

→

110.0MHz

→

36.7MHz

→

120.0MHz

→

40.0MHz

→

130.0MHz

→

43.3.0MHz

ON

ON

ON

12345678910

112.0MHz

37.3MHz

12345678910

122.0MHz

40.7MHz

12345678910

133.0MHz

44.3MHz

ON

ON

ON

12345678910

115.0MHz

12345678910

125.0MHz

12345678910

ON

38.3MHz

ON

41.7MHz

12345678910

118.0MHz

12345678910

128.0MHz

12345678910

ON

39.3MHz

12345678910

ON

42.7MHz

20 ASUS P4T User’s Manual

3. HARDWARE SETUP

Manual CPU Settings
NOTE: JumperFree mode must be disabled. The following table is for use by expe-

rienced motherboard installers only. Overclocking can result in system instability or
even shortening the life of the processor .

CPU PCI AGP External Frequency Settings

(MHz) (MHz) (MHz) 678910

100 33.5 66.9 [ON] [OFF] [ON] [ON] [ON]
103 34.3 68.7 [OFF] [OFF] [ON] [ON] [ON]
105 35.0 70.0 [ON] [ON] [OFF] [ON] [ON]
108 36.0 72.0 [OFF] [ON] [OFF] [ON] [ON]
110 36.7 73.3 [ON] [OFF] [OFF] [ON] [ON]
112 37.3 74.7 [OFF] [OFF] [OFF] [ON] [ON]
115 38.3 76.7 [ON] [ON] [ON] [OFF] [ON]
118 39.3 78.7 [OFF] [ON] [ON] [OFF] [ON]
120 40.0 80.0 [ON] [OFF] [ON] [OFF] [ON]
122 40.7 81.3 [OFF] [OFF] [ON] [OFF] [ON]
125 41.7 83.3 [ON] [ON] [OFF] [OFF] [ON]
125 41.7 83.3 [OFF] [ON] [OFF] [OFF] [ON]
130 43.3 86.7 [ON] [OFF] [OFF] [OFF] [ON]
133 44.5 89.1 [OFF] [OFF] [OFF] [OFF] [ON]
120 30.0 60.0 [ON] [ON] [ON] [ON] [OFF]
133 33.3 66.7 [OFF] [ON] [ON] [ON] [OFF]
133 33.4 66.8 [ON] [OFF] [ON] [ON] [OFF]
136 34.0 68.0 [OFF] [OFF] [ON] [ON] [OFF]
138 34.5 69.0 [ON] [ON] [OFF] [ON] [OFF]
140 35.0 70.0 [OFF] [ON] [OFF] [ON] [OFF]
142 35.5 71.0 [ON] [OFF] [OFF] [ON] [OFF]
144 36.0 72.0 [OFF] [OFF] [OFF] [ON] [OFF]
145 36.3 72.5 [ON] [ON] [ON] [OFF] [OFF]
148 37.0 74.0 [OFF] [ON] [ON] [OFF] [OFF]
150 37.5 75.0 [ON] [OFF] [ON] [OFF] [OFF]
152 38.0 76.0 [OFF] [OFF] [ON] [OFF] [OFF]
154 38.5 77.0 [ON] [ON] [OFF] [OFF] [OFF]
156 39.0 78.0 [OFF] [ON] [OFF] [OFF] [OFF]
133 26.5 53.2 [ON] [OFF] [OFF] [OFF] [OFF]
150 30.0 60.0 [OFF] [OFF] [OFF] [OFF] [OFF]

3. H/W SETUP

Motherboard Settings

For updated processor settings, visit ASUS’s web site (see ASUS CONTACT IN­FORMATION)

ASUS P4T User’s Manual

21

3. HARDWARE SETUP

4) CPU Core: Bus Frequency Multiple (SW1-Switches 1-4)

This option sets the frequency multiple between the Internal frequency of the
CPU and the CPU’s External frequency. These must be set in conjunction with
the CPU Bus Fr equency.

SW1

P4T

Motherboard Settings

3. H/W SETUP

P4T CPU External
Clock (BUS) Frequency
Selection

12345678910

®

ON

8.0x

ON

13.0x

ON

9.0x

12345678910

ON

14.0x

Frequency Multiple Settings

Mult. 1 2 3 4

8 [OFF] [OFF] [OFF] [OFF]

9 [ON] [OFF] [OFF] [OFF]
10 [OFF] [ON] [OFF] [OFF]
11 [ON] [ON] [OFF] [OFF]
12 [OFF] [OFF] [ON] [OFF]
13 [ON] [OFF] [O N] [OFF]
14 [OFF] [ON] [ON] [OFF]
15 [ON] [ON] [ON] [OFF]
16 [OFF] [OFF] [OFF] [ON]

12345678910

12345678910

ON

10.0x

ON

15.0x

12345678910

12345678910

ON

11.0x

ON

16.0x

12345678910

12345678910

ON

12.0x

12345678910

22 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.5 System Memory

NOTE: No hardware or BIOS setup is required after adding or removing memory .
This motherboard has four 184-pin Rambus Inline Memory Modules (RIMM) sockets.

These sockets support 64Mbit, 128Mbit, and 256Mbit Direct RDRAM technologies.

Location Memory Module Subtotal

RIMMA1
(Rows 0&1)

RIMMA2
(Rows 2&3)

RIMMB1
(Rows 4&5)

RIMMB2
(Rows 6&7)

RDRAM x 1
C-RIMM (use when socket will not be populated)

RDRAM x 1
C-RIMM (use when socket will not be populated)

RDRAM x 1
C-RIMM (use when socket will not be populated)

RDRAM x 1
C-RIMM (use when socket will not be populated)

TOT AL SYSTEM MEMOR Y =

(2GB Max)

IMPORTANT

1. The memory configuration of channel A (RIMMA1 and RIMMA2) and chan­nel B (RIMMB1 and RIMMB2) must be identical (see below).

2. C-RIMMs (Continuity RIMM) must be used to complete the sockets that are
not populated by RDRAMs. A C-RIMM is necessary to avoid breaking the
signal lines, which are a serial connection in a Rambus interface, such as
used in this motherboard. This assures the electrical integrity of a Rambus
interface.

3. When C-RIMMs are required, it is recommended that they be inserted into
RIMMA2 and RIMMB2.

System Memory

3. H/W SETUP

a.

b.

c.

C-RIMM

128MB RDRAM

C-RIMM

128MB RDRAM

128MB RDRAM

C-RIMM

128MB RDRAM

C-RIMM

128MB RDRAM
256MB RDRAM

128MB RDRAM
256MB RDRAM

RIMMB2
RIMMB1

RIMMA2
RIMMA1

RIMMB2
RIMMB1

RIMMA2
RIMMA1

RIMMB2
RIMMB1

RIMMA2
RIMMA1

NOTE: When using only two memory modules,
it is recommended that you use configuration a.

ASUS P4T User’s Manual

23

3. HARDWARE SETUP

3.5.1Installing Memory

The memory module (RIMM/C-RIMM) will fit in only one orientation.

IMPORTANT: Do not touch the memory module’s connectors. Handle the mod-

ule only by the edges.

P4T

3. H/W SETUP

System Memory

P4T 184-Pin RIMM Sockets

1. Make sure that the notch keys in the module are aligned with the small ribs
inside the RIMM sockets.

Channel B

Channel A

®

RIMM with Heat Spreader

RDRAM (with heat spreader)MOUNTING NOTCH

RIMM Sockets

NOTCH KEYS

RIMMB2
RIMMB1

RIMMA2
RIMMA1

CONNECTORS

C-RIMM

EJECTOR

RIBS (inside socket)

(TOP VIEW)

2. With the ejectors in the open position (as shown), push down gently but firmly
on the memory module until it snaps into place. The guides on the socket’s
ejectors should go through the two mounting notches on the module and the
ejectors should close. If necessary, push the ejectors inward to secure the mod-

ule in place.

Removing Memory

T o release a memory module, push both ejectors outward and pull the module straight
up and out of the RIMM sockets.

WARNING! RIMM modules become extremely hot during operation. To re-

duce the risk of personal injury from hot surfaces, allow the modules to cool off
before removing them.

24 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.6 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket for the supported CPUs listed in section

2.1.1 Specifications. The CPU that came with the motherboard should have a fan
attached to it to prevent overheating. If this is not the case, then purchase a fan
before you turn on your system.

®

Pin 1

P4T

P4T Socket 423

Pentium 4
Processor

Gold Arrow

Pin 1

Before you start, you should check to see that you have the following items:

Rubber Pad

2 Metal heatsink retaining clips

Metal Baseboard

CPU

3. H/W SETUP

2 Heatsink support bases

4 Copper captive nuts

4 Pan Head screws

ASUS P4T User’s Manual

4 W ashers

25

3. H/W SETUP

®

CPU

3. HARDWARE SETUP

3.6.1 CPU Installation

Step 1: Install the Baseboard

A metal baseboard is required to install the heatsink to the motherboard. A rubber
pad is placed between the metal board and motherboard to provide insulation to
prevent shorting.

Align the rubber pad over
the metal baseboard so that
the holes match. Align the
motherboard over the rub­ber pad and metal base­board so that the screws on
the baseboard match up
with the motherboard’s
screw holes.

Rubber Pad Metal Baseboard

Place the four washers over the four
screws on the baseboard.

Washer

Motherboard

IMPORTANT:

This step is a MUST! The washers
are necessary to prevent shorting.

Tighten the four copper captive
nuts over the washers.

Copper captive nut

Motherboard

Washer

26 ASUS P4T User’s Manual

3. HARDWARE SETUP

Step 2: Install the CPU

A. Locate the ZIF socket on the motherboard.
B. Unlock the socket by pressing the lever sidesways and then lifting it up to a

90˚–100˚ angle.

C. Align the CPU over the socket such that its notched or marked corner matches

the socket’ s corner near the end of the lever, while making sure that the CPU is
parallel to the socket.

D. Carefully insert the CPU into the socket until it fits in place. The illustration

below shows how to insert a CPU properly.

CAUTION! The CPU fits in only one orientation. Do not force the CPU into the

socket as it will bend the pins and damage the CPU. It should drop into the
socket with minimal pressure. If not, check its orientation or check for bent pins.

E. Secure the CPU into the socket by pushing the socket lever all the way down.

You will hear a click indicating that the lever is in place.

CPU

3. H/W SETUP

ASUS P4T User’s Manual

27

Step 3: Install the Heatsink Support Base

Place the two heatsink support base as shown and screw in the four pan head screws.

3. H/W SETUP

3. HARDWARE SETUP

CPU

Step 4: Install the Heatsink

Carefully place the fan heatsink on top of the heatsink support base and connect the
fan power cable to the CPU fan connector.

Connect to the
CPU fan connector.

28 ASUS P4T User’s Manual

3. HARDWARE SETUP

Step 5: Install the Heatsink Retaining Clips

Latch one end of the heatsink
retaining clip to one of the tabs
on the heatsink support base.

Latch the large slotted tab
on the clip to the protrud­ing tab on the side of the
heatsink support base.

Push down on the
other end of the
heatsink retaining
clip until it locks
into place.

1

CPU

2

3. H/W SETUP

3

2

WARNING! Be sure that there is sufficient air circulation across the processor’ s

heatsink by regularly checking that your CPU fan is working. W ithout sufficient
circulation, the processor could overheat and damage both the processor and the
motherboard. You may install an auxiliary fan, if necessary.

NOTE: Do not forget to set the correct Bus Frequency and Multiple (frequency
multiple setting is available only on unlocked processors) for your Socket 423 pro­cessor or else boot-up may not be possible. Socket 423 processors provide internal
thermal sensing so that a socket mounted thermal resistor is not needed.

1

ASUS P4T User’s Manual

29

(This page was intentionally left blank.)

3. H/W SETUP

3. HARDWARE SETUP

CPU

30 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.7 Expansion Cards

WARNING! Unplug your power supply when adding or removing expansion

cards or other system components. Failure to do so may cause severe damage to
both your motherboard and expansion cards (see 3.3 Hardware Setup Proce-

dure for more information).

3.7.1 Expansion Card Installation Procedure

1. Read the documentation for your expansion card and make any necessary hard­ware or software settings for your expansion card, such as jumpers.

2. Remove your computer system’s cover and the bracket plate on the slot you
intend to use. Keep the bracket for possible future use.

3. Carefully align the card’s connectors and press firmly.

4. Secure the card on the slot with the screw you removed above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary
(such as IRQ xx Used By ISA: Yes in PNP AND PCI SETUP)

7. Install the necessary software drivers for your expansion card.

3.7.2 Assigning IRQs for Expansion Cards

Some expansion cards need an IRQ to operate. Generally, an IRQ must be exclu­sively assigned to one use. In a standard design, there are 16 IRQs available but
most of them are already in use, leaving 6 IRQs free for expansion cards. If your
motherboard has PCI audio onboard, an additional IRQ will be used. If your moth-

erboard also has MIDI enabled, another IRQ will be used, leaving 4 IRQs free.

Standard Interrupt Assignments

IRQ Priority Standard Function

0 1 System T imer
1 2 Keyboard Controller
2 N/A Programmable Interrupt
3* 11 Communications Port (COM2)
4* 12 Communications Port (COM1)
5* 13 Sound Card (sometimes LPT2)
6 14 Floppy Disk Controller
7* 15 Printer Port (LPT1)
8 3 System CMOS/Real Time Clock
9* 4 ACPI Mode when enabled
10* 5 IRQ Holder for PCI Steering
11* 6 IRQ Holder for PCI Steering
12* 7 PS/2 Compatible Mouse Port
13 8 Numeric Data Processor
14* 9 Primary IDE Channel
15* 10 Secondary IDE Channel

*These IRQs are usually available for ISA or PCI devices.

3. H/W SETUP

Expansion Cards

ASUS P4T User’s Manual 31

Interrupt Request Table for this Motherboard

PCI slot 1 ——shared —
PCI slot 2 shared ———
PCI slot 3 — shared ——
PCI slot 4 ——shared —
PCI slot 5 ———shared
AGP slot shared ———
Onboard USB controller ———shared
SMBus — shared ——

IMPORTANT: If using PCI cards on shared slots, make sure that the drivers sup-

port “Share IRQ” or that the cards do not need IRQ assignments. Conflicts will arise
between the two PCI groups that will make the system unstable or cards inoperable.

Expansion Cards

3. H/W SETUP

3.7.4 Accelerated Graphics Port (AGP) Pro Slot

3. HARDWARE SETUP

INT-A INT-B INT-C INT-D

This motherboard provides an accelerated graphics port (AGP) pro slot to support a
new generation of AGP graphics cards with ultra-high memory bandwidth.

AGP Card without Retention Notch

®

TOP VIEW

20-pin bay

P4T

P4T Accelerated Graphics Port (AGP PRO)

Rib (inside slot) Rib

28-pin bay

CAUTION! The AGP Pro slot is shipped with a warning label over the 20-pin bay .

DO NOT remove this label and the safety tab underneath it if you will be using an
AGP card without a retention notch. Removing may cause the
card to shift and may cause damage to your card, slot, and moth­erboard. Remove ONLY when you will be using an AGP Pro
card. Use a rigid tip, such as a pen tip, to dislodge and remove
the tab from the bay.

Removing the

tab

32 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.8 External Connectors

WARNING! Some pins are used for connectors or power sources. These are

clearly distinguished from jumpers in the Motherboard Layout. Placing jumper
caps over these connector pins will cause damage to your motherboard.

IMPORTANT: Ribbon cables should always be connected with the red stripe to

Pin 1 on the connectors. Pin 1 is usually on the side closest to the power connec­tor on hard drives and CD-ROM drives, but may be on the opposite side on
floppy disk drives. Check the connectors before installation because there may
be exceptions. IDE ribbon cables must be less than 46 cm (18 in.), with the
second drive connector no more than 15 cm (6 in.) from the first connector.

1) PS/2 Mouse Connector (Green 6-pin PS2KBMS)

The system will direct IRQ12 to the PS/2 mouse if one is detected. If one is not
detected, expansion cards can use IRQ12. See PS/2 Mouse Function Control
in 4.4 Advanced Menu.

PS/2 Mouse (6-pin Female)

2) PS/2 Keyboard Connector (Purple 6-pin PS2KBMS)
This connection is for a standard keyboard using an PS/2 plug (mini DIN). This
connector will not allow standard AT size (large DIN) keyboard plugs. You
may use a DIN to mini DIN adapter on standard AT keyboards.

3. H/W SETUP

Expansion Cards

PS/2 Keyboard (6-pin Female)

ASUS P4T User’s Manual 33

3) Parallel Port Connector (Burgundy 25-pin PRINTER)

4) Serial Port Connectors (Teal/Turquoise 9-pin COM1, 10-1 pin COM2)

3. H/W SETUP

Connectors

3. HARDWARE SETUP

You can enable the parallel port and choose the IRQ through Onboard Parallel
Port (see 4.4.2 I/O Device Configuration).
NOTE: Serial printers must be connected to the serial port.

Parallel Port (25-pin Female)

Two serial ports are ready for a mouse or other serial devices. See Onboard
Serial Port 1/2 in 4.4.2 I/O Device Configuration for settings.

COM2COM1

Serial Ports (9-pin Male)

5) Universal Serial Bus Ports (Black two 4-pin USB)

Two USB ports are available for connecting USB devices. For additional USB
ports, you can use the USB headers (see USB Headers later in this section).
NOTE: USB Function (see 4.4.3 PCI Configuration) must be Enabled to use
these ports.

USB 1

USB 2

34 ASUS P4T User’s Manual

3. HARDWARE SETUP

6) Fast-Ethernet Port Connector (RJ45) (optional)

The RJ45 connector is optional at the time of purchase and is located on top of
the USB connectors. The connector allows the motherboard to connect to a Lo­cal Area Network (LAN) through a network hub.

RJ-45 Port

7) Primary (Blue) / Secondary IDE Connectors (Two 40-1pin IDE)

These connectors support the provided IDE hard disk ribbon cable. Connect the
cable’s blue connector to the motherboard’s primary (recommended) or second-
ary IDE connector, and then connect the gray connector to your UltraDMA/100
slave device (hard disk drive) and the black connector to your UltraDMA/100
master device. It is recommended that non-UltraDMA/100 devices be connected
to the secondary IDE connector . If you install two hard disks, you must config­ure the second drive to Slave mode by setting its jumper accordingly. Please
refer to your hard disk documentation for the jumper settings. BIOS now sup­ports specific device bootup (see 4.6 Boot Menu). (Pin 20 is removed to pre-

vent inserting in the wrong orientation when using ribbon cables with pin
20 plugged).

Connectors

3. H/W SETUP

TIP: You may configure two hard disks to be both Masters with two ribbon
cables – one for the primary IDE connector and another for the secondary IDE
connector . You may install one operating system on an IDE drive and another on
a SCSI drive and select the boot disk through 4.6 Boot Menu.

IMPORTANT: UltraDMA/100 IDE devices must use a 40-pin 80-conductor IDE

cable for 100MByte/sec transfer rates.

®

P4T

P4T IDE Connectors

Secondary IDE Connector

PIN 1

NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.

Primary IDE Connector

ASUS P4T User’s Manual 35

3. HARDWARE SETUP

8) Floppy Disk Drive Connector (34-1pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After connect­ing the single end to the board, connect the two plugs on the other end to the
floppy drives. (Pin 5 is removed to prevent inserting in the wrong orienta-

tion when using ribbon cables with pin 5 plugged).

FLOPPY

PIN 1

3. H/W SETUP

Connectors

9) Chassis (PCI_FAN), CPU (CPU_FAN), Power Supply (MAIN_FAN) Fan

®

P4T

NOTE: Orient the red markings on

the floppy ribbon cable to PIN 1.

P4T Floppy Disk Drive Connector

Connectors (3 pins)

These connectors support cooling fans of 350mA (4.2 Watts) or less. Orientate
the fans so that the heat sink fins allow airflow to go across the onboard heat
sink(s) instead of the expansion slots. Depending on the fan manufacturer, the
wiring and plug may be different. The red wire should be positive, while the
black should be ground. Connect the fan’s plug to the board taking into consid-
eration the polarity of the connector.

NOTE: The “Rotation” signal is to be used only by a specially designed fan with
rotation signal. The Rotations per Minute (RPM) can monitored using a utility such
as ASUS PC Probe or Intel LDCM.

WARNING! The CPU and/or motherboard will overheat if there is no airflow

across the CPU and onboard heatsinks. Damage may occur to the motherboard
and/or the CPU fan if these pins are incorrectly used. These are not jumpers,

do not place jumper caps over these pins.

GND
+12V
Rotation

Rotation

+12V

®

GND

MAIN_FAN

CPU_FAN

PCI_FAN

P4T

GND

+12V

Rotation

P4T 12-Volt Cooling Fan Power

36 ASUS P4T User’s Manual

(for power supply fan)

(for chassis fan)

3. HARDWARE SETUP

10) SMB Connector (5-1 pin SMB)

This connector allows you to connect SMBus (System Management Bus) de­vices. SMBus devices communicate by means of the SMBus with an SMBus
host and/or other SMBus devices. SMBus is a specific implementation of an
I2C bus, which is a multi-device bus; that is, multiple chips can be connected to
the same bus and each one can act as a master by initiating data transfer.

®

SMBCLK

Ground

SMBDATA

+5V

P4T

1

SMB

P4T SMBus Connector

11) Chassis Intrusion Lead (4-1 pin CHASSIS)

This lead is for a chassis designed for chassis intrusion detection. After-market
toggle switches may also be installed to the chassis panel or on any removable
components. Two wires should be available from the chassis to connect to this
lead. When any chassis component is removed, the contact should open and the
motherboard will record a chassis intrusion event. The event can then be pro­cessed by software such as LDCM. If the chassis intrusion lead is not used, a

jumper cap must be placed over the pins to close the circuit.

®

Connectors

3. H/W SETUP

P4T

P4T Chassis Open Alarm Lead

ASUS P4T User’s Manual 37

+5VSB_MB

Chassis Signal

1

CHASSIS

GND

12) Wake-On-LAN Connector (3-pin WOL)

IMPORTANT: This feature requires that Wake On LAN or PCI Modem is

enabled (see 4.5.1 Power Up Control) and that your system has an ATX power
supply with at least 720mA +5V standby power.

3. H/W SETUP

Connectors

3. HARDWARE SETUP

This connector connects to a LAN card with a Wake-On-LAN output, such as
the ASUS PCI-L101 Ethernet card (see 7. Appendix). The connector powers up
the system when a wakeup packet or signal is received through the LAN card.

IMPORTANT: Requires an ATX power
supply with at least 720mA +5 volt
standby power

®

WOL

Ground

P4T

PME

+5 Volt Standby

P4T Wake-On-LAN Connector

13) Wake-On-Ring Connector (2-pin WOR)

This connector connects to internal modem cards with a Wake-On-Ring output.
The connector powers up the system when a ringup packet or signal is received
through the internal modem card. NOTE: For external modems, W ake-On-Ring
is detected through the COM port.

IMPORTANT: This feature requires that Wake On LAN or PCI Modem is

enabled (see 4.5.1 Power Up Control) and that your system has an ATX power
supply with at least 720mA +5V standby power.

®

Ring# Ground

P4T

2

1

WOR

P4T Wake-On-Ring Connector

38 ASUS P4T User’s Manual

3. HARDWARE SETUP

14) USB Headers (10-1 pin USB2)

If the USB Ports on the back panels are inadequate, a USB header is available
for two additional USB ports. Connect the 10-1 pin ribbon cable from the pro­vided 2-port USB connector set to the midboard 10-1 pin USB header and mount
the USB connector set to an open slot on your chassis.

1: USB Power

610
15

2: USBP2–
3: USBP2+
4: GND
5: NC

®

USB2

P4T

6: USB Power
7: USBP3–
8: USBP3+
9: GND

P4T USB Headers

15) Hard Disk Drive Activity LED (2-pin HDDLED)

This lead supplies power to the cabinet’s hard disk drive activity LED. Read and
write activity by devices connected to the Primary/Secondary IDE connectors
will cause the LED to light up.

®

TIP: If the case-mounted LED
does not light, try reversing the
2-pin plug.

Connectors

3. H/W SETUP

P4T

HDDLED

P4T Hard Disk Drive Activity LED

16) SCSI Activity LED Lead (2-pin SCSILED)

To use the Hard Disk Drive Activity LED indicator with a SCSI device con­nected to an add-in PCI SCSI card, connect the 4-pin connector on the PCI SCSI
card to this lead. When connected, the cabinet’s IDE activity LED will indicate
activity of the SCSI device.

®

-

+

P4T

P4T SCSI LED Connector

1

SCSILED

ASUS P4T User’s Manual 39

3. HARDWARE SETUP

17) Infrared Module Connector (5-pin IR)

This connector supports an optional wireless transmitting and receiving infrared
module. This module mounts to a small opening on system cases that support
this feature. You must also configure the setting through UART2 Use Infrared
(see 4.4.2 I/O device Configuration) to select whether UART2 is directed for
use with COM2 or IrDA. Use the five pins as shown in Back View and connect
a ribben cable from the module to the motherboard’s IR connector according to
the pin definitions.

3. H/W SETUP

Connectors

18) Device Thermal Sensor Connector (2-pin TR2)

®

P4T

IR

+5V

GND

IRTX

(NC)

IRRX

1

Front View Back View

IRTX
GND

IRRX

+5V
(NC)

P4T Infrared Module Connector

If you have a device (e.g. power supply) with thermal monitoring, connect its
thermal sensor cable to this connector.

TR2

Thermal

®

Sensor

Connector

P4T

P4T Thermal Sensor Connector

40 ASUS P4T User’s Manual

3. HARDWARE SETUP

19) Power Supply Connectors (20-pin block ATXPWR)

(6-pin AUXPWR)
(4-pin A TX12V)

These connectors connect to an ATX 12V power supply. Each plug from the
power supply will only insert in one orientation because of the different hole
sizes. Find the proper orientation and push down firmly making sure that the
pins are aligned. An auxiliary power supply may be needed depending on your
system configuration.

IMPORTANT: Make sure that your ATX 12V power supply (minimum recom-

mended wattage: 230 watts; 300W for a fully-configured system) can supply at
least 20 amperes on the +5-volt lead and at least 720mA on the +5-volt standby
lead (+5VSB). Your system may become unstable/unreliable and may experi­ence difficulty in powering up if your power supply is inadequate. For Wake­On-LAN support, your ATX power supply (minimum recommended wattage:
230watts) must supply at least 720mA +5VSB.

ATXPWR

Pin 1

+12.0VDC

+5VSB

PWR_OK

COM

+5.0VDC

COM

+5.0VDC

COM
+3.3VDC
+3.3VDC

®

+5.0VDC
+5.0VDC

-5.0VDC
COM
COM
COM
PS_ON#
COM

-12.0VDC
+3.3VDC

Connectors

3. H/W SETUP

P4T

P4T A TX & Auxiliary
Power Connectors

COM

+12V DC

Pin 1

ATX12V

COM
+12V DC

Pin 1

COM

+3V

AUXPWR

Key

+5V

ASUS P4T User’s Manual 41

3. HARDWARE SETUP

The following is for items 20–26

20) System Power LED Lead (3-1 pin PWRLED)

3. H/W SETUP

Connectors

21) Keyboard Lock Switch Lead (2-pin KEYLOCK)

22) System Warning Speaker Connector (4-pin SPEAKER)

Keyboard Lock
Power LED

PLED

+5 V

®

+5 V

MLED

Speaker
Connector

Keylock

Ground

PWR

Ground

ExtSMI#

Ground

+5V

Ground

Speaker

Ground

Reset

Ground

Reset SW

Message LED

ATX Power

P4T

SMI Lead

* Requires an ATX power supply.

Switch*

P4T System Panel Connectors

This 3-1 pin connector connects the system power LED, which lights when the
system is powered on and blinks when it is in sleep mode.

This 2-pin connector connects to the case-mounted key switch to allow key­board locking.

This 4-pin connector connects to the case-mounted speaker. Two sources
(LINE_OUT and SPEAKER) will allow you to hear system beeps and warn­ings. Only SPEAKER will allow you to hear system beeps before the integrated
audio has been properly initialized.

23) System Message LED Lead (2-pin MSG.LED)

This indicates whether a message has been received from a fax/modem. The
LED will remain lit when there is no signal and blink when there is data re­ceived. This function requires an ACPI OS and driver support.

24) System Management Interrupt Lead (2-pin SMI)

This allows the user to manually place the system into a suspend mode or “Green”
mode, where system activity is decreased to save electricity and expand the life
of certain components when the system is not in use. This 2-pin connector con­nects to the case-mounted suspend switch.

25) ATX Power Switch Lead (2-pin PWRSW)

The system power is controlled by a momentary switch connected to this lead.
Pressing the button once will switch the system between ON and SOFT OFF.
Pushing the switch while in the ON mode for more than 4 seconds will turn the
system off. The system power LED shows the status of the system’s power.

26) Reset Switch Lead (2-pin RESET)

This 2-pin connector connects to the case-mounted reset switch for rebooting
your computer without having to turn off your power switch. This is a preferred
method of rebooting to prolong the life of the system’s power supply.

42 ASUS P4T User’s Manual

3. HARDWARE SETUP

3.9 Starting Up the First T ime

1. After all connections are made, close the system case cover.

2. Be sure that all switches are off (in some systems, marked with

3. Connect the power supply cord into the power supply located on the back of
your system case according to your system user’s manual.

4. Connect the power cord into a power outlet that is equipped with a surge protector .

5. You may then turn on your devices in the following order:
a. Your monitor
b. External SCSI devices (starting with the last device on the chain)
c. Y our system power. For ATX power supplies, you need to switch on the power

supply as well as press the ATX power switch on the front of the case.

6. The power LED on the front panel of the system case will light. For ATX power
supplies, the system LED will light when the ATX power switch is pressed. The
LED on the monitor may light up or switch between orange and green after the
system’s if it complies with “green” standards or if it has a power standby fea-
ture. The system will then run power-on tests. While the tests are running, the
BIOS will alarm beeps or additional messages will appear on the screen. If you
do not see anything within 30 seconds from the time you turn on the power, the
system may have failed a power-on test. Recheck your jumper settings and con­nections or call your retailer for assistance.

).

Powering Up

3. H/W SETUP

Award BIOS Beep Codes

Beep Meaning

One short beep when No error during POST
displaying logo
Long beeps in an endless loop No DRAM installed or detected
One long beep followed by Video card not found or video card
three short beeps memory bad
High frequency beeps when CPU overheated
system is working System running at a lower frequency

ASUS P4T User’s Manual 43

7. During power-on, hold down <Delete> to enter BIOS setup. Follow the instruc-

* Powering Off your computer: You must first exit or shut down your operating

3. H/W SETUP

Powering Up

3. HARDWARE SETUP

tions in 4. BIOS SETUP.

system before switching off the power switch. For ATX power supplies, you can
press the ATX power switch after exiting or shutting down your operating sys­tem. If you use W indows 9X, click the Start button, click Shut Down, and then
click Shut down the computer? The power supply should turn off after Win-
dows shuts down.

NOTE: The message “You can now safely turn off your computer” will not
appear when shutting down with ATX power supplies.

ASUS P4T User’s Manual44

4. BIOS SETUP

4.1 Managing and Updating Your BIOS

4.1.1 Upon First Use of the Computer System

It is recommended that you save a copy of the original motherboard BIOS along
with a Flash Memory Writer utility (AFLASH.EXE) to a bootable floppy disk in
case you need to reinstall the BIOS later . AFLASH.EXE is a Flash Memory W riter
utility that updates the BIOS by uploading a new BIOS file to the programmable
flash ROM on the motherboard. This file works only in DOS mode. To determine
the BIOS version of your motherboard, check the last four numbers of the code
displayed on the upper left-hand corner of your screen during bootup. Larger num­bers represent a newer BIOS file.

1. Type FORMAT A:/S at the DOS prompt to create a bootable system floppy
disk. DO NOT copy AUTOEXEC.BAT & CONFIG.SYS to the disk.

2. Type COPY E:\AFLASH\AFLASH.EXE A:\ (assuming E is your CD-ROM
drive) to copy AFLASH.EXE to the just created boot disk.

NOTE: AFLASH works only in DOS mode. It will not work with DOS prompt in
Windows and will not work with certain memory drivers that may be loaded when
you boot from your hard drive. It is recommended that you reboot using a floppy .

3. Reboot your computer from the floppy disk. NOTE: BIOS setup must specify
“Floppy” as the first item in the boot sequence.

4. In DOS mode, type A:\AFLASH <Enter> to run AFLASH.

Updating BIOS

4. BIOS SETUP

IMPORTANT! If “unknown” is displayed after Flash Memory:, the memory

chip is either not programmable or is not supported by the ACPI BIOS and there­fore, cannot be programmed by the Flash Memory Writer utility.

ASUS P4T User’s Manual 45

4. BIOS SETUP

5. Select 1. Save Current BIOS to File from the Main menu and press <Enter>.
The Save Current BIOS To File screen appears.

6. Type a filename and the path, for example, A:\XXX-XX.XXX and then press
<Enter>.

4.1.2 Updating BIOS Procedures

WARNING! Only update your BIOS if you have problems with your mother-

board and you know that the new BIOS revision will solve your problems. Care­less updating can result in your motherboard having more problems!

4. BIOS SETUP

Updating BIOS

1. Download an updated ASUS BIOS file from the Internet (WWW or FTP) (see
ASUS CONTACT INFORMATION on page 3 for details) and save to the disk
you created earlier.

2. Boot from the disk you created earlier.

3. At the “A:\” prompt, type AFLASH and then press <Enter>.

4. At the Main Menu, type 2 and then press <Enter>. The Update BIOS Includ-
ing Boot Block and ESCD screen appears.

5. Type the filename of your new BIOS and the path, for example, A:\XXX-

XX.XXX, and then press <Enter>.
NOTE: To cancel this operation, press <Enter>.

ASUS P4T User’s Manual46

4. BIOS SETUP

6. When prompted to confirm the BIOS update, press Y to start the update.

7. The utility starts to program the new BIOS information into the flash ROM. The
boot block will be updated automatically only when necessary. This will mini­mize the chance that a failed update will prevent your system from booting up.
When the programming is finished, Flashed Successfully will be displayed.

8. Follow the onscreen instructions to continue.

WARNING! If you encounter problems while updating the new BIOS, DO NOT

turn off your system since this might prevent your system from booting up. Just
repeat the process, and if the problem still persists, update the original BIOS file
you saved to disk above. If the Flash Memory Writer utility was not able to
successfully update a complete BIOS file, your system may not be able to boot
up. If this happens, your system will need servicing.

Updating BIOS

4. BIOS SETUP

ASUS P4T User’s Manual 47

4. BIOS SETUP

(This page was intentionally left blank.)

4. BIOS SETUP

Updating BIOS

ASUS P4T User’s Manual48

4. BIOS SETUP

4.2 BIOS Setup Program

This motherboard supports a programmable EEPROM that can be updated using the
provided utility as described in 4.1 Managing and Updating Your BIOS.

The utility is used if you are installing a motherboard, reconfiguring your system, or
prompted to “Run Setup”. This section describes how to configure your system
using this utility.

Even if you are not prompted to use the Setup program, at some time in the future
you may want to change the configuration of your computer . For example, you may
want to enable the Security Password Feature or make changes to the power man­agement settings. It will then be necessary to reconfigure your system using the
BIOS Setup program so that the computer can recognize these changes and record
them in the CMOS RAM of the EEPROM.

The EEPROM on the motherboard stores the Setup utility. When you start up the
computer, the system provides you with the opportunity to run this program. This
appears during the Power-On Self Test (POST). Press <Delete> to call up the Setup
utility. If you are a little bit late in pressing the mentioned key, POST will continue
with its test routines, thus preventing you from calling up Setup. If you still need to
call Setup, restart the system by pressing <Ctrl> + <Alt> + <Delete>, or by pressing
the Reset button on the system chassis. You can also restart by turning the system off
and then back on again. But do so only if the first two methods fail.

The Setup program has been designed to make it as easy to use as possible. It is a
menu-driven program, which means you can scroll through the various sub-menus
and make your selections among the predetermined choices.

To access the BIOS Setup program, press the <Delete> key after
the computer has run through its POST.

NOTE: Because the BIOS software is constantly being updated, the following
BIOS screens and descriptions are for reference purposes only and may not reflect
your BIOS screens exactly.

4. BIOS SETUP

Program Information

ASUS P4T User’s Manual 49

4. BIOS SETUP

4.2.1 BIOS Menu Bar

The top of the screen has a menu bar with the following selections:

MAIN Use this menu to make changes to the basic system configuration.
ADVANCED Use this menu to enable and make changes to the advanced fea-

tures.

POWER Use this menu to configure and enable Power Management fea-

tures.

BOOT Use this menu to configure the default system device used to locate

and load the Operating System.

EXIT Use this menu to exit the current menu or specify how to exit the

Setup program.

T o access the menu bar items, press the right or left arrow key on the keyboard until
the desired item is highlighted.

4.2.2 Legend Bar

At the bottom of the Setup screen you will notice a legend bar. The keys in the
legend bar allow you to navigate through the various setup menus. The following
table lists the keys found in the legend bar with their corresponding alternates and
functions.

Menu Introduction

4. BIOS SETUP

Navigation Key(s) Function Description
<F1> or <Alt + H> Displays the General Help screen from anywhere

<Esc> Jumps to the Exit menu or returns to the main menu

← or → (keypad arrow) Selects the menu item to the left or right
↑ or ↓ (keypad arrow) Moves the highlight up or down between fields

- (minus key) Scrolls backward through the values for the high-

+ (plus key) or spacebar Scrolls forward through the values for the high-

<Enter> Brings up a selection menu for the highlighted field

in the BIOS Setup

from a sub-menu

lighted field

lighted field

<Home> or <PgUp> Moves the cursor to the first field
<End> or <PgDn> Moves the cursor to the last field
<F5> Resets the current screen to its Setup Defaults
<F10> Saves changes and exits Setup

ASUS P4T User’s Manual50

4. BIOS SETUP

General Help

In addition to the Item Specific Help window , the BIOS setup program also provides
a General Help screen. This screen can be called up from any menu by simply press­ing <F1> or the <Alt> + <H> combination. The General Help screen lists the legend
keys with their corresponding alternates and functions.

Saving Changes and Exiting the Setup Program

See 4.7 Exit Menu for detailed information on saving changes and exiting the setup
program.

Scroll Bar

When a scroll bar appears to the right of a help window, it indicates that there is
more information to be displayed that will not fit in the window. Use <PgUp> and
<PgDn> or the up and down arrow keys to scroll through the entire help document.
Press <Home> to display the first page, press <End> to go to the last page. To exit
the help window, press <Enter> or <Esc>.

Sub-Menu

Note that a right pointer symbol (as shown in the left view)
appears to the left of certain fields. This pointer indicates that a
sub-menu can be launched from this field. A sub-menu con­tains additional options for a field parameter. T o call up a sub­menu, simply move the highlight to the field and press <En­ter>. The sub-menu will then immediately appear . Use the leg­end keys to enter values and move from field to field within a
sub-menu just as you would within a menu. Use the <Esc> key
to return to the main menu.

T ake some time to familiarize yourself with each of the legend keys and their corre­sponding functions. Practice navigating through the various menus and sub-menus.
If you accidentally make unwanted changes to any of the fields, use the set default
hot key <F5>. While moving around through the Setup program, note that explana­tions appear in the Item Specific Help window located to the right of each menu.
This window displays the help text for the currently highlighted field.

4. BIOS SETUP

Menu Introduction

NOTE: The item heading in square brackets represents the default setting for
that field.

ASUS P4T User’s Manual 51

4. BIOS SETUP

4.3 Main Menu

When the Setup program is accessed, the following screen appears:

System Time [XX:XX:XX]

Sets your system to the time that you specify (usually the current time).

4. BIOS SETUP

Main Menu

The format is hour, minute, second. Valid values for hour, minute and sec­ond are Hour: (00 to 23), Minute: (00 to 59), Second: (00 to 59). Use the
<Tab> or <Shift> + <Tab> keys to move between the hour, minute, and
second fields.

System Date [XX/XX/XXXX]

Sets your system to the date that you specify (usually the current date). The
format is month, day , year . Valid values for month, day, and year are Month:
(1 to 12), Day: (1 to 31), Y ear: (100 year range). Use the <T ab> or <Shift>
+ <Tab> keys to move between the month, day, and year fields.

Legacy Diskette A [1.44M, 3.5 in.], Legacy Diskette B [None]

Sets the type of floppy drives installed. Configuration options: [None]
[360K, 5.25 in.] [1.2M , 5.25 in.] [720K , 3.5 in.] [1.44M, 3.5 in.]
[2.88M, 3.5 in.]

Floppy 3 Mode Support [Disabled]

This is required to support older Japanese floppy drives. Floppy 3 Mode
support will allow reading and writing of 1.2MB (as opposed to 1.44MB)
on a 3.5-inch diskette. Configuration options: [Disabled] [Drive A]
[Drive B] [Both]

ASUS P4T User’s Manual52

4. BIOS SETUP

4.3.1 Primary & Secondary Master/Slave

NOTE: Before attempting to configure a hard disk drive, make sure you
have the configuration information supplied by the manufacturer of the
drive. Incorrect settings may cause your system to not recognize the in­stalled hard disk. To allow the BIOS to detect the drive type automati­cally, select [Auto].

Type [Auto]

Select [Auto] to automatically detect an IDE hard disk drive. If automatic
detection is successful, the correct values will be filled in for the remaining
fields on this sub-menu. If automatic detection fails, your hard disk drive
may be too old or too new. You can try updating your BIOS or enter the
IDE hard disk drive parameters manually.

NOTE: After the IDE hard disk drive information has been entered into
BIOS, new IDE hard disk drives must be partitioned (such as with FDISK)
and then formatted before data can be read from and write on. Primary
IDE hard disk drives must have its partition set to active (also possible
with FDISK).

4. BIOS SETUP

Master/Slave Drives

Other options for the Type field are:

[None] - to disable IDE devices

ASUS P4T User’s Manual 53

4. BIOS SETUP

IMPORTANT: If your hard disk was already formatted on an older previous
system, incorrect parameters may be detected. You will need to enter the correct
parameters manually or use low-level format if you do not need the data stored
on the hard disk. If the parameters listed differ from the ones used when the disk
was formatted, the disk will not be readable. If the auto-detected parameters do
not match the ones that should be used for your disk, you should enter the correct
ones manually by setting [User Type HDD].

[User Type HDD]

Master/Slave Drives

4. BIOS SETUP

Manually enter the number of cylinders, heads and sectors per track for your drive.
Refer to your drive documentation or look on the drive for this information. If no
drive is installed or if you are removing a drive and not replacing it, select [None].

Translation Method [LBA]

Select the hard disk drive type in this field. When Logical Block Addressing is
enabled, 28-bit addressing of the hard drive is used without regard for cylinders,
heads, or sectors. Note that LBA Mode is necessary for drives with greater than
504MB in storage capacity. Configuration options: [LBA] [LARGE] [Normal]
[Match Partition Table] [Manual]

Cylinders

This field configures the number of cylinders. Refer to your drive documentation
to determine the correct value to enter into this field. NOTE: To make changes to
this field, the Type field must be set to [User Type HDD] and the Translation

Method field must be set to [Manual].

ASUS P4T User’s Manual54

4. BIOS SETUP

Head

This field configures the number of read/write heads. Refer to your drive documenta­tion to determine the correct value to enter into this field. NOTE: To make changes to
this field, the Type field must be set to [User Type HDD] and the T ranslation Method
field must be set to [Manual].

Sector

This field configures the number of sectors per track. Refer to your drive docu­mentation to determine the correct value to enter into this field. NOTE: To make
changes to this field, the Type field must be set to [User T ype HDD] and the Trans-

lation Method field must be set to [Manual].
CHS Capacity

This field shows the drive’s maximum CHS capacity calculated automatically by
the BIOS from the drive information you entered.

Maximum LBA Capacity

This field shows the drive’s maximum LBA capacity calculated automatically by
the BIOS from the drive information you entered.

Multi-Sector Transfers [Maximum]

This option automatically sets the number of sectors per block to the highest number
supported by the drive. This field can also be configured manually. Note that when
this field is automatically configured, the set value may not always be the fastest
value for the drive. Refer to the documentation that came with your hard drive to
determine the optimal value and set it manually. NOTE: To make changes to this
field, the Type field must be set to [User Type HDD]. Configuration options: [Dis-
abled] [2 Sectors] [4 Sectors] [8 Sectors] [16 Sectors] [32 Sectors] [Maximum]

SMART Monitoring [Disabled]

This allows the enabling or disabling of the S.M.A.R.T. (Self-Monitoring, Analy­sis and Reporting T echnology) system which utilizes internal hard disk drive moni­toring technology . This feature is normally disabled because system resources used
in this feature may decrease system performance. Configuration options: [Dis­abled] [Enabled]

PIO Mode [4]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE de­vice. Modes 0 through 4 provide successively increased performance. Configura­tion options: [0] [1] [2] [3] [4]

4. BIOS SETUP

Master/Slave Drives

Ultra DMA Mode [Disabled]

Ultra DMA capability allows improved transfer speeds and data integrity for com­patible IDE devices. Set to [Disabled] to suppress Ultra DMA capability. NOTE:
To make changes to this field, the Type field must be set to [User Type HDD].
Configuration options: [0] [1] [2] [3] [4] [Disabled]

ASUS P4T User’s Manual 55

4. BIOS SETUP

Other options for “Type:” are:
[CD-ROM] - for IDE CD-ROM drives

[LS-120] - for LS-120 compatible floppy disk drives
[ZIP-100] - for ZIP-100 compatible disk drives
[MO] - for IDE magneto optical disk drives
[Other ATAPI Device] - for IDE devices not listed here

After using the legend keys to make your selections on this sub-menu, press the
<Esc> key to exit back to the Main menu. When the Main menu appears, you will
notice that the drive size appear in the field for the hard disk drive that you just
configured.

4.3.2 Keyboard Features

Master/Slave Drives

4. BIOS SETUP

Boot Up NumLock Status [On]

This field enables users to activate the Number Lock function upon system boot.
Configuration options: [Off] [On]

Keyboard Auto-Repeat Rate [12/Sec]

This controls the speed at which the system registers repeated keystrokes. Options
range from 6 to 30 characters per second. Configuration options: [6/Sec] [8/Sec]
[10/Sec] [12/Sec] [15/Sec] [20/Sec] [24/Sec] [30/Sec]

Keyboard Auto-Repeat Delay [1/4 Sec]

This field sets the time interval for displaying the first and second characters. Con­figuration options: [1/4 Sec] [1/2 Sec] [3/4 Sec] [1 Sec]

ASUS P4T User’s Manual56

4. BIOS SETUP

Language [English]

This allows selection of the BIOS’ displayed language. Currently only English is
available.

Supervisor Password [Disabled] / User Password [Disabled]

These fields allow you to set the passwords. To set the password, highlight the ap­propriate field and press <Enter>. Type in a password and press <Enter>. You can
type up to eight alphanumeric characters. Symbols and other keys are ignored. To
confirm the password, type the password again and press the <Enter>. The pass­word is now set to [Enabled]. This password allows full access to the BIOS Setup
menus. To clear the password, highlight this field and press <Enter>. The same
dialog box as above will appear. Press <Enter> and the password will be set to
[Disabled].

A Note about Passwords

The BIOS Setup program allows you to specify passwords in the Main menu. The
passwords control access to the BIOS during system startup. The passwords are not
case sensitive. In other words, it makes no difference whether you enter a password
using upper or lowercase letters. The BIOS Setup program allows you to specify
two separate passwords: a Supervisor password and a User password. When dis­abled, anyone may access all BIOS Setup program functions. When enabled, the
Supervisor password is required for entering the BIOS Setup program and having
full access to all configuration fields.

Forgot the Password?

If you forgot the password, you can clear the password by erasing the CMOS Real
Time Clock (RTC) RAM. The RAM data containing the password information is
powered by the onboard button cell battery. To erase the RTC RAM: (1) Unplug
your computer, (2) Short the solder points, (3) Turn ON your computer, (4) Hold
down <Delete> during bootup and enter BIOS setup to re-enter user preferences.

Intel I/O

®

Controller

Hub

(ICH2)

P4T

P4T Clear RTC RAM

Halt On [All Errors]

This field determines which types of errors will cause the system to halt. Configura­tion options: [All Errors] [No Error] [All but Keyboard] [All but Disk] [All but
Disk/Keyboard]

Short solder points
to Clear CMOS

CLRTC

4. BIOS SETUP

Keyboard Features

Installed Memory [XXX MB]

This display-only field displays the amount of conventional memory detected by the
system during bootup. You do not need to make changes to this field.

ASUS P4T User’s Manual 57

4. BIOS SETUP

4.4 Advanced Menu

CPU Internal Frequency [Manual]

When the motherboard is set to JumperFree™ mode, this field allows you to select
the internal frequency of your CPU. Select [Manual] if you want to make changes to
the subsequent 2 fields. Note that selecting a frequency higher than the CPU manu-

4. BIOS SETUP

Advanced Menu

facturer recommends may cause the system to hang or crash. See System Hangup.

CPU Frequency Multiple

This field is for unlocked processors only . If your processor’s Frequency Multiple is
detected locked, you will not be able to access this field. This field sets the fre­quency multiple between the CPU’s internal frequency and external frequency. This
must be set in conjunction with CPU External (FSB) Frequency to match the speed
of your CPU. Configuration options: [10.0x] [11.0x] [12.0x] [13.0] [14.0x] [15.0x]
[16.0x] [17.0x] [18.0x] [19.0x] [20.0x]

CPU Front Side Bus Frequency (when CPU Speed is set to [Manual])

This feature tells the clock generator what frequency to send to the CPU and chipset.
The external frequency (bus frequency) multiplied by the bus multiple equals the
CPU’s internal frequency (the CPU speed). Configuration options: [100] [103]
[105]...[120]

(when CPU Speed is set to [Manual])

CPU Vcore

This field displays the core voltage supplied to the CPU. If you want to
set it manually, always refer to the CPU documentation. The pictures
shown here provide only examples of possible Vcore ranges.

ASUS P4T User’s Manual58

4. BIOS SETUP

RDRAM Frequency (MHz) [Auto]

This feature tells the clock generator what frequency to send to the RDRAM. The
default setting [Auto] seeks to balance optimal performance with stability . The other
options displayed in the popup menu vary according to the CPU External Fre-
quency. NOTE: This field will not appear when [Turbo mode] is enabled.

CPU Level 1 Cache, CPU Level 2 Cache [Enabled]

These fields allow you to choose from the default of [Enabled] or choose [Disabled]
to turn on or off the CPU’s Level 1 and Level 2 built-in cache. Configuration op-
tions: [Disabled] [Enabled]

CPU Level 2 Cache ECC Check [Enabled]

This function controls the ECC capability in the CPU level 2 cache. Configuration
options: [Disabled] [Enabled]

CPU Fast String [Enabled]

When set to [Enabled], the CPU has direct access to the memory. Leave on default
setting for best performance. Configuration options: [Disabled] [Enabled]

FPU OPCODE Compatible Mode [Disabled]

Leave on default setting for optimized performance of Pentium 4 processor. Con­figuration options: [Disabled] [Enabled]

BIOS Update [Enabled]

This functions as an update loader integrated into the BIOS to supply the processor
with the required data. In the default position of [Enabled], the BIOS will load the
update on all processors during system bootup. Configuration options: [Disabled]
[Enabled]

PS/2 Mouse Function Control [Auto]

The default of [Auto] allows the system to detect a PS/2 mouse on startup. If de­tected, IRQ12 will be used for the PS/2 mouse. IRQ12 will be reserved for expan­sion cards only if a PS/2 mouse is not detected. [Enabled] will always reserve IRQ12,
whether on startup a PS/2 mouse is detected or not. Configuration options: [En­abled] [Auto]

Advanced Menu

4. BIOS SETUP

ASUS P4T User’s Manual 59

4. BIOS SETUP

USB Legacy Support [Auto]

This motherboard supports Universal Serial Bus (USB) devices. The default of [Auto]
allows the system to detect a USB device on startup. If detected, USB controller
legacy mode will be enabled. If not detected, USB controller legacy mode will be
disabled. When this field is set to [Disabled], USB controller legacy mode is dis­abled no matter whether you are using a USB device or not. Configuration options:
[Disabled] [Enabled] [Auto]

OS/2 Onboard Memory > 64M [Disabled]

When using OS/2 operating systems with installed DRAM of greater than 64MB,
you need to set this option to [Enabled]; otherwise, leave this on [Disabled]. Con­figuration options: [Disabled] [Enabled]

Notes for JumperFree Mode

CPU Upgrade/Reinstallation

T o ensure that your system can enter BIOS setup after the processor has been changed
or reinstalled, your system will start up running at a bus speed of 100MHz and a fail­safe CPU internal frequency (8x100MHz). It will then automatically take you to the
Advanced menu with a popup menu of all the officially possible CPU internal fre­quencies.

JumperFree Mode

4. BIOS SETUP

ASUS P4T User’s Manual60

4. BIOS SETUP

System Hangup

If your system crashes or hangs due to improper frequency settings, power OFF
your system and restart. The system will start up in safe mode running at a bus speed
of 100MHz and enter BIOS setup.

Cause for Hangup: Improper CPU Internal Frequency

Cause for Hangup: Improper CPU External (FSB) Freq. (MHz)

4. BIOS SETUP

JumperFree Mode

ASUS P4T User’s Manual 61

4. BIOS SETUP

4.4.1 Chip Configuration

RDRAM Pool B State [Nap]

This sets the operating state of the RDRAM devices in Pool B. Selecting [Nap]
allows the RDRAM in Pool B to enter power-saving mode. [Standby] allows the
RDRAM in Pool B to return to the working state quickly.

Chip Configuration

4. BIOS SETUP

AGP Fast-Write [Enabled]

This controls the AGP fast-write function. Configuration options: [Enabled] [Dis­abled]

Graphics Window Size [64MB]

This feature allows you to select the size of mapped memory for AGP graphic data.
Configuration options: [4MB] [8MB] [16MB] [32MB] [64MB] [128MB] [256MB]

Video Memory Cache Mode [UC]

USWC (uncacheable, speculative write combining) is a new cache technology for
the video memory of the processor. It can greatly improve the display speed by
caching the display data. You must set this to UC (uncacheable) if your display card
cannot support this feature; otherwise your system may not boot. Configuration op­tions: [UC] [USWC]

Memory Hole At 15M-16M [Disabled]

This field allows you to reserve an address space for ISA expansion cards that re­quire it. Setting the address space to a particular setting will make that memory
space unavailable to the system. Expansion cards can only access memory up to
16MB. Configuration options: [Disabled] [Enabled]

ASUS P4T User’s Manual62

4. BIOS SETUP

PCI 2.1 Support [Enabled]

This function allows you to enable or disable PCI 2.1 features including passive
release and delayed transaction. Configuration options: [Disabled] [Enabled]

High Priority PCI Mode [Enabled]

This field allows you to give PCI slot 1 a higher priority. You may want to leave on
the default setting if you are using an IEEE-1394 PCI card. Configuration options:
[Disabled] [Enabled]

Onboard PCI IDE Enable [Both]

You can select to enable the primary IDE channel, secondary IDE channel, both, or
disable both channels. Configuration options: [Both] [Primary] [Secondary] [Dis­abled]

ASUS P4T User’s Manual 63

4. BIOS SETUP

Chip Configuration

4. BIOS SETUP

4.4.2 I/O Device Configuration

Onboard Lan Controller [Enabled] (only on model with LAN)

This motherboard features an integrated LAN controller . If you want to use it, leave
it on the default setting. If you want to use an add-on LAN card, select [Disabled].
Configuration options; [Disabled] [Enabled]

4. BIOS SETUP

I/O Device Config

NOTE: To disable the integrated LAN controller, you must first set this field to
[Disable], shut down your system, and then restart.

Floppy Disk Access Control [R/W]

When set to [Read Only], this field protects files from being copied to floppy disks
by allowing reads from the floppy disk drive but not writes. The setup default [R/W]
allows both reads and writes. Configuration options: [R/W] [Read Only]

Onboard Serial Port 1 [3F8H/IRQ4], Onboard Serial Port 2 [2F8H/IRQ3]

These fields allow you to set the addresses for the onboard serial connectors. Serial
Port 1 and Serial Port 2 must have different addresses. Configuration options: [3F8H/
IRQ4] [2F8H/IRQ3] [3E8H/IRQ4] [2E8H/IRQ10] [Disabled]

ASUS P4T User’s Manual64

4. BIOS SETUP

UART2 Use Standard Infrared [Disabled]

When enabled, this field activates the onboard standard infrared feature and sets the
second serial UART to support the infrared module connector on the motherboard.
If your system already has a second serial port connected to the onboard COM2
connector , it will no longer work if you enable the infrared feature. See IrDA-Com-
pliant Infrared Module Connector in 3.8 External Connectors. Configuration
options: [Disabled] [Enabled]

Onboard Parallel Port [378H/IRQ7]

This field sets the address of the onboard parallel port connector . If you disable this
feature, Parallel Port Mode and ECP DMA Select configurations will not be avail-
able. Configuration options: [Disabled] [378H/IRQ7] [278H/IRQ5]

Parallel Port Mode [ECP+EPP]

This field allows you to set the operation mode of the parallel port. [Normal] allows
normal-speed operation but in one direction only; [EPP] allows bidirectional paral­lel port operation; [ECP] allows the parallel port to operate in bidirectional DMA
mode; [ECP+EPP] allows normal speed operation in a two-way mode. Configura­tion options: [Normal] [EPP] [ECP] [ECP+EPP]

ECP DMA Select [3]

This field allows you to configure the parallel port DMA channel for the selected

ECP mode. This selection is available only if you select [ECP] or [ECP+EPP] in
Parallel Port Mode above. Configuration options: [1] [3]

I/O Device Config

4. BIOS SETUP

ASUS P4T User’s Manual 65

4. BIOS SETUP

4.4.3 PCI Configuration

Slot 1/4 IRQ, Slot 2 IRQ, Slot 3 IRQ, Slot 5 IRQ [Auto]

These fields set how IRQ use is determined for each PCI slot. The default setting for
each field is [Auto], which utilizes auto-routing to determine IRQ use. Configura­tion options: [Auto] [NA] [3] [4] [5] [7] [9] [10] [11] [12] [14] [15]

PCI Configuration

4. BIOS SETUP

PCI/VGA Palette Snoop [Disabled]

Some nonstandard VGA cards, such as graphics accelerators or MPEG video cards,
may not show colors properly. The setting [Enabled] should correct this problem.
Otherwise, leave this on the default setting of [Disabled]. Configuration options:
[Disabled] [Enabled]

PCI Latency Timer [32]

Leave on default setting for best performance vs. stability.

ASUS P4T User’s Manual66

4. BIOS SETUP

USB Function [Enabled]

This motherboard supports Universal Serial Bus (USB) devices. Set to [En­abled] if you want to use USB devices. Configuration options: [Disabled]
[Enabled]

Primary VGA BIOS [PCI Card]

If your computer has both PCI and AGP VGA cards, this field allows you to select
which of the cards will act as your primary graphics card. [AGP Card] uses the AGP
card as your primary card. The default, [PCI Card], allows your PCI graphics card to
take precedence when detected. Configuration options: [PCI Card] [AGP Card]

4.4.4 Shadow Configuration

Video ROM BIOS Shadow [Enabled]

This field allows you to change the video BIOS location from ROM to RAM. Relo­cating to RAM enhances system performance, as information access is faster than
the ROM. Configuration options: [Disabled] [Enabled]

C8000-DFFFF Shadow [Disabled]

These fields are used for shadowing other expansion card ROMs. If you install other
expansion cards with ROMs on them, you will need to know which addresses the
ROMs use to shadow them specifically. Shadowing a ROM reduces the memory
available between 640K and 1024K by the amount used for this purpose. Configura­tion options: [Disabled] [Enabled]

ASUS P4T User’s Manual 67

PCI Configuration

4. BIOS SETUP

4. BIOS SETUP

4.5 Power Menu

The Power menu allows you to reduce power consumption. This feature turns off
the video display and shuts down the hard disk after a period of inactivity.

Power Management [User Define]

This option must be enabled to use any of the automatic power saving features. If

4. BIOS SETUP

Power Menu

this menu item is set to [Disabled], power management features will not function
regardless of other field settings on this menu. The [User Define] option allows you
to make your own selections in the Power menu. When set to [Max Saving], system
power will be conserved to its greatest amount. The Suspend Mode field will then
be set to predefined value that ensures maximum power savings.

This field acts as the master control for the power management modes. [Max Sav­ing] puts the system into power saving mode after a brief period of system inactiv­ity; [Min Saving] is almost the same as [Max Saving] except that the system inactiv­ity period is longer; [Disabled] disables the power saving features; [User Define]
allows you to set power saving options according to your preference. Configuration
options: [User Define] [Disabled] [Min Saving] [Max Saving]

IMPORTANT: Advanced Power Management (APM) should be installed to keep

the system time updated when the computer enters suspend mode activated by
the BIOS Power Management. For DOS environments, you need to add the state­ment, DEVICE=C:\DOS\POWER.EXE, to your CONFIG.SYS file. For Win­dows 3.x and Windows 95, you need to install Windows with the APM feature.
For W indows 98 and later, APM is automatically installed. A battery and power
cord icon labeled “Power Management” will appear in the “Control Panel.”
Choose “Advanced” in the Power Management Properties dialog box.

ASUS P4T User’s Manual68

4. BIOS SETUP

Video Off Option [Suspend -> Off ]

This field determines when to activate the video off feature for monitor power man­agement. Configuration options: [Always On] [Suspend -> Off]

Video Off Method [DPMS OFF]

This field defines the video off features. The DPMS (Display Power Management
System) feature allows the BIOS to control the video display card if it supports the
DPMS feature. [Blank Screen] only blanks the screen (use this for monitors without
power management or “green” features. If set up in your system, your screen saver
will not display with [Blank Screen] selected). [V/H SYNC+Blank] blanks the screen
and turns off vertical and horizontal scanning. Configuration options: [Blank Screen]
[V/H SYNC+Blank] [DPMS Standby] [DPMS Suspend] [DPMS OFF] [DPMS
Reduce ON]

HDD Power Down [Disabled]

Shuts down any IDE hard disk drives in the system after a period of inactivity as set
in this user-configurable field. This feature does not affect SCSI hard drives. Con­figuration options: [Disabled] [1 Min] [2 Min] [3 Min]...[15 Min]

Suspend-to-RAM Capability [Disabled]

Suspend-to-RAM (STR) is an energy-saving feature. In Suspend-to-RAM state, all
devices on the computer are turned off, except for the system RAM. Thus, the PC
consumes less than 5 Watts of power. Select [Enabled] if your power supply can
supply at least 720mA on the +5VSB lead to support the STR function. If the expan­sion cards you use on the motherboard do not support the STR function, you must
leave this field on the default setting [Disabled]. NOTE: This field is only effective
for Windows 98. Configuration options: [Disabled] [Enabled]

Suspend Mode [Disabled]

Sets the time period before the system goes into suspend mode.
is effective for DOS, Windows 9x, and Windows NT 4.0 environments.
Configuration options: [Disabled] [1~2 Min] [2~3 Min]...[1 Hour]

PWR Button < 4 Secs [Soft Off]

When set to [Soft off], the ATX switch can be used as a normal system power-off
button when pressed for less than 4 seconds. [Suspend] allows the button to have a
dual function where pressing less than 4 seconds will place the system in sleep
mode. Regardless of the setting, holding the ATX switch for more than 4 seconds
will power off the system. Configuration options: [Soft off] [Suspend]

NOTE: This field

Power Menu

4. BIOS SETUP

ASUS P4T User’s Manual 69

4. BIOS SETUP

4.5.1 Power Up Control

AC PWR Loss Restart [Disabled]

This allows you to set whether you want your system to reboot after the power has
been interrupted. [Disabled] leaves your system of f and [Enabled] reboots your sys-
tem. [Previous State] sets your system back to the state it is before the power inter­ruption. Configuration options: [Disabled] [Enabled] [Previous State]

Power Up Control

4. BIOS SETUP

PWR Up On external Modem Act [Disabled]

This allows either settings of [Enabled] or [Disabled] for powering up the computer
when the external modem receives a call while the computer is in Soft-off mode.
NOTE: The computer cannot receive or transmit data until the computer and appli­cations are fully running. Thus connection cannot be made on the first try. Turning
an external modem off and then back on while the computer is off causes an initial­ization string that will also cause the system to power on. Configuration options:
[Disabled] [Enabled]

Wake On LAN or PCI Modem card [Disabled]

Wake-On-LAN or a PCI modem card allows your computer to be booted from an­other computer via a network by sending a wake-up frame or signal. Configuration
options: [Disabled] [Enabled]

IMPORTANT: This feature requires an optional network interface with Wake-On-

LAN and an ATX power supply with at least 720mA +5V standby power.

ASUS P4T User’s Manual70

4. BIOS SETUP

Wake On PS2 KB/PS2 Mouse/CIR [Disabled]

Set this field to [Enabled] if you wish to use your PS2 keyboard, PS2 mouse, or
consumer IR device to power up your computer . This feature requires an ATX power
supply that can supply at least 300mA on the +5VSB lead. The default is set to
[Disabled] because not all computers have the appropriate ATX power supply . Your
computer will not power ON if you set this to [Enabled] and do not have the appro­priate ATX power supply. Configuration options: [Disabled] [Enabled]

Automatic Power Up [Disabled]

This allows an unattended or automatic system power up. You may configure your
system to power up at a certain time of the day by selecting [Everyday] or at a
certain time and day by selecting [By Date]. NOTE: Automatic Power Up will not
work if the system is powered down by operating systems, such as Windows 98/
2000/Millenium, that have ACPI support enabled. Configuration options: [Disabled]
[Everyday] [By Date]

ASUS P4T User’s Manual 71

Power Up Control

4. BIOS SETUP

4. BIOS SETUP

4.5.2 Hardware Monitor

MB Temperature, CPU Temperature [xxxC/xxxF]

The onboard hardware monitor is able to detect the MB (motherboard) and CPU
temperatures. Set to [Ignore] only if necessary.

CPU Fan, PCI Fan, Main Fan Speed [xxxxRPM]

4. BIOS SETUP

Hardware Monitor

The onboard hardware monitor is able to detect the CPU fan speed, power supply
fan speed, and the chassis fan speed in rotations per minute (RPM). The presence of
the fans is automatically detected. Set to [Ignore] only if necessary.

VCORE Voltage, +3.3V Voltage, +5V Voltage, +12V Voltage,

-12V Voltage [xx.xV], -5V Voltage [Ignore]

The onboard hardware monitor is able to detect the voltage output by the onboard
voltage regulators. Set to [Ignore] only if necessary.

NOTE: If any of the monitored items is out of range, an error message will appear:
“Hardware Monitor found an error. Enter Power setup menu for details”. Y ou will
then be prompted to “Press F1 to continue, DEL to enter SETUP”.

ASUS P4T User’s Manual72

4. BIOS SETUP

4.6 Boot Menu

Boot Sequence

The Boot menu allows you to select among the four possible types of boot devices
listed using the up and down arrow keys. By using the <+> or <Space> key , you can
promote devices and by using the <-> key, you can demote devices. Promotion or
demotion of devices alters the priority which the system uses to search for a boot
device on system power up. Configuration fields include Removable Devices, IDE
Hard Drive, ATAPI CD-ROM, and Other Boot Device.

Removable Device [Legacy Floppy]

Configuration options: [Disabled] [Legacy Floppy] [LS120] [ZIP-100] [ATAPI MO]

IDE Hard Drive

This field allows you to select which IDE hard disk drive to use in the boot se­quence. Pressing [Enter] will show the product IDs of all connected IDE hard disk
drives.

ATAPI CD-ROM

This field allows you to select which ATAPI CD-ROM drive to use in the boot
sequence. Pressing [Enter] will show the product IDs of all your connected ATAPI
CD-ROM drives.

Boot Menu

4. BIOS SETUP

Other Boot Device Select [INT18 Device (Network)]

Configuration options: [Disabled] [SCSI Boot Device] [INT18 Device (Network)]
[LANDesk (R) Service Agent]

ASUS P4T User’s Manual 73

4. BIOS SETUP

Plug & Play O/S [No]

This field allows you to use a Plug-and-Play (PnP) operating system to configure
the PCI bus slots instead of using the BIOS. When [Yes] is selected, interrupts may
be reassigned by the OS. When a non-PnP OS is installed or you want to prevent
reassigning of interrupt settings, select the default setting of [No]. Configuration
options: [No] [Yes]

Boot Virus Detection [Enabled]

This field allows you to set boot virus detection, ensuring a virus-free boot sector.
The system halts and displays a warning message when it detects a virus. If this
occurs, you can either allow the operation to continue or use a virus-free bootable
floppy disk to restart and investigate your system. Configuration options: [Disabled]
[Enabled]

Quick Power On Self Test [Enabled]

This field speeds up the Power-On-Self Test (POST) routine by skipping retesting a
second, third, and fourth time. Configuration options: [Disabled] [Enabled]

Boot Up Floppy Seek [Enabled]

When enabled, the BIOS will seek the floppy disk drive to determine whether the
drive has 40 or 80 tracks. Configuration options: [Disabled] [Enabled]

4. BIOS SETUP

Boot Menu

ASUS P4T User’s Manual74

4. BIOS SETUP

4.7 Exit Menu

Once you have made all of your selections from the various menus in the Setup
program, you should save your changes and exit Setup. Select Exit from the menu
bar to display the following menu:

NOTE: Pressing <Esc> does not exit this menu. You must select one of the options
from this menu or <F10> from the legend bar to exit this menu.

Exit Saving Changes

Once you are finished making your selections, choose this option from the Exit
menu to ensure the values you selected are saved to the CMOS RAM. The CMOS
RAM is sustained by an onboard backup battery and stays on even when the PC is
turned off. Once this option is selected, a confirmation is asked. Select [Yes] to save
changes and exit.

NOTE: If you attempt to exit the Setup program without saving your changes, the
program will prompt you with a message asking if you want to save your changes
before exiting. Pressing <Enter> will then save changes while exiting.

Exit Discarding Changes

This option should only be used if you do not want to save the changes you have
made to the Setup program. If you have made changes to fields other than system
date, system time, and password, the system will ask for confirmation before exit­ing.

Exit Menu

4. BIOS SETUP

ASUS P4T User’s Manual 75

4. BIOS SETUP

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the
Setup menus. When this option is selected or if <F5> is pressed, a confirmation is
requested. Select [Yes] to load default values. You can now select Exit Saving
Changes or make other changes before saving the values to the non-volatile RAM.

Discard Changes

This option allows you to discard the selections you made and restore the values you
previously saved. After selecting this option, a confirmation is requested. Select
[Yes] to discard any changes and load the previously saved values.

Save Changes

This option saves your selections without exiting the Setup program. You can then
return to other menus and make changes. After selecting this option, all selections
are saved and a confirmation is requested. Select [Yes] to save any changes to the
non-volatile RAM.

4. BIOS SETUP

Exit Menu

ASUS P4T User’s Manual76

5. SOFTWARE SETUP

5.1 Install Operating System

You should always use the latest operating system and updates when using new
hardware to ensure full compliancy . You may use any version of Windows 98/2000/
Millenium, but for Windows 95, you must use OSR 2.0 or later. For Windows NT

4.0, you must use Service Pack 3.0 or later.

5.2 Start Windows

When you start Windows 98 for the first time after installing your motherboard,
Windows will detect all plug-and play devices. Follow the Add New Hardware W iz­ard to install all necessary device drivers. When prompted to restart, select No and
then follow the setup procedures in this section.

NOTE: Because there are various motherboard settings, options, and expansion
cards, the following can only be used as a general reference and may not be an exact
reflection of your system.

Windows 98

Windows 98

5. S/W SETUP

5. S/W SETUP

77ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.3 P4T Motherboard Support CD

NOTE: The support CD contents are subject to change at any time without notice.
T o begin using your support CD disc, just insert it into your CD-ROM drive and the

support CD installation menu should appear. If the menu does not appear, double­click or run E:\ASSETUP.EXE (assuming that your CD-ROM drive is drive E:).

5.3.1 Installation Menu

• INF Update Utility for Intel 850 Chipset: Installs INF files in W indows for the

• Intel Ultra ATA Storage Driver: Installs Intel’s storage driver.

• Intel LDCM Administrator Setup: Installs software to monitor PC systems on

• Intel LDCM Client Setup: Installs software to monitor the Client system. The

• ASUS BIOS Flash Utility for LDCM: Installs a utility that can remotely flash

5. S/W SETUP

Windows 98

• ASUS PC Probe Vx.xx: Installs a utility to monitor your computer’s fan, tem-

• ASUS Update Vx.xx: Installs a program to help you update your BIOS or down-

• Microsoft DirectX Driver: Installs Microsoft DirectX driver.

• YAMAHA Soft Synthesizer S-YXG50: Installs the Yamaha SoftSynthesizer

• PC-cillin 98 Vx.xx: Installs the PC-cillin virus protection software. View the

following items: System and Graphics, LPC Interface, SM Bus, PCI Bridge,
Bus Master IDE, USB Host, and Controllers.

the network within the same bridge address with the Client software installed.
The administrator should install both Administrator and Client software.

LANDesk Client Manager must be installed to use the hardware manager features.

a client PC’s BIOS when used in conjunction with Intel LDCM Administrator.

perature, and voltages.

load a BIOS image file.

for playing MIDI files through software. Refer to the online help for more
information.

online help for more information.

78

ASUS P4T User’s Manual

5. SOFTWARE SETUP

(TO SEE THE FOLLOWING ITEMS, CLICK RIGHT ARROW ON THE LOWER-

RIGHT CORNER OF THE MAIN MENU)

• Adobe Acrobat Reader Vx.x: Installs the Adobe Acrobat Reader software nec-

essary to view user’s manuals saved in PDF format. Updated or other language
versions of this motherboard's manual is available in PDF format at any of our
web sites.

• Cyberlink Video and Audio Applications: Installs Cyberlink PowerPlayer SE,

PowerDVD Trial, and Cyberlink VideoLive Mail.

• Show Motherboard Information: Allows you to view information about your

motherboard, such as product name, BIOS version, and CPU.

• Browse Support CD: Allows you to view the contents of the CD.

• ReadMe: Allows you to view the support CD file list and contact information.

• Exit: Exits the CD installation menu.

(TO RETURN TO THE MAIN MENU, CLICK LEFT ARROW ON THE LOWER-

RIGHT CORNER OF THE SECONDAR Y MENU)

ASUS P4T User’s Manual

Windows 98

5. S/W SETUP

79

5. SOFTWARE SETUP

5.4 INF Update Utility for Intel 850 Chipset

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Click here.

(5) To install other drivers/

programs, click here and
then click Finish.

(4) Click here.

80

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.5 Intel Ultra ATA Storage Driver

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

(3) Click here only after

you have read the
license agreement.

(5) Click here.

(4) Click here.

(6) To install other drivers/

programs, click here and
then click Finish.

Windows 98

5. S/W SETUP

ASUS P4T User’s Manual

81

5. SOFTWARE SETUP

5.6 Intel LDCM Administrator Setup

System Requirements

• Intel® Pentium® microprocessor or higher.

• Operating system: Microsoft Windows 95 (can be OEM Service Release 2), or

Windows 98, or Windows NT 4.0 (Service Pack 4 or later).

• Microsoft Internet Explorer 4.01 or higher.

• Memory: 16 MB of RAM for W indows 95/98; 24 MB of RAM for W indows NT

(32 MB recommended).

• Disk storage space: 100 MB of available hard disk space to install; 40-100 MB
of available hard disk space to run (depending on cluster size).

• Hardware system: DM or SM BIOS is required for full LDCM functionality.

• Protocols: IP (Winsock-enabled) communication protocol loaded on the client.

An IP stack is required on the client, regardless of whether the client accesses
the network.

• Monitor resolution of 600x800, 256 colors or greater .

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

NOTE: LDCM will not run if another hardware monitoring utility, such as ASUS
PC Probe, is installed. To uninstall any program, see 5.16 Uninstalling Programs.

5. S/W SETUP

Windows 98

(1) Click here.

(2) Click here.

82

(3) Click here only after you

have carefully read the
license agreement.

ASUS P4T User’s Manual

(4) Click here.

5. SOFTWARE SETUP

(8) Enter username and password,

(7) Click here.

and other options, and then
click here.

(6) Click here.(5) Click here.

(9) Click here.

NOTE: This warning appears only if you don’t

have the Acrobat Reader installed. See 5.14
Adobe Acrobat Reader Vx.x on how to install

the Acrobar Reader.

(10) To install other drivers/

programs, click here and
then click Finish.

Windows 98

5. S/W SETUP

ASUS P4T User’s Manual

83

5. SOFTWARE SETUP

5.7 Intel LDCM Client Setup

System Requirements

• Intel® Pentium® microprocessor or higher.

• Operating system: Microsoft Windows 95 (can be OEM Service Release 2), or

Windows 98, or Windows NT 4.0 (Service Pack 4 or later).

• Microsoft Internet Explorer 4.01 or higher.

• Memory: 16 MB of RAM for W indows 95/98; 24 MB of RAM for W indows NT

(32 MB recommended).

• Disk storage space: 100 MB of available hard disk space to install; 40-100 MB
of available hard disk space to run (depending on cluster size).

• Hardware system: DM or SM BIOS is required for full LDCM functionality.

• Protocols: IP (Winsock-enabled) communication protocol loaded on the client.

An IP stack is required on the client, regardless of whether the client accesses
the network.

• Monitor resolution of 600x800, 256 colors or greater .

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

NOTE: LDCM will not run if another hardware monitoring utility, such as ASUS
PC Probe, is installed. To uninstall any program, see 5.16 Uninstalling Programs.

5. S/W SETUP

Windows 98

(1) Click here.

(2) Click here.

84

(3) Click here.

ASUS P4T User’s Manual

(4) Click here.

5. SOFTWARE SETUP

(5) Click here.

(7) Click here.

(6) Click here.

(8) Click here.

(9) Click here.

(10) Click here.

(11) To install other drivers/

programs, click here and
then click Finish.

NOTE: This warning appears only if you don’t

have the Acrobat Reader installed. See 5.14
Adobe Acrobat Reader Vx.x on how to install

the Acrobar Reader.

Windows 98

5. S/W SETUP

ASUS P4T User’s Manual

85

5. SOFTWARE SETUP

5.8 ASUS BIOS Flash Utility for LDCM 6.0

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Click here.

(4) Click here.

86

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.9 ASUS PC Probe Vx.xx

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

NOTE: ASUS PC Probe will not run if another hardware monitoring utility is in­stalled. To uninstall any program, see 5.16 Uninstalling Programs.

(1) Click here.

(2) Click here.

(3) Click here.

(5) Click here. (6) Click here.

(8) Click Next and when

(7) Click here.

(4) Click here.

the Setup Complete box
appears, click Finish to
complete setup.

Windows 98

5. S/W SETUP

ASUS P4T User’s Manual

87

5. SOFTWARE SETUP

5.10 ASUS Update Vx.xx

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Click here.

(5) Click here.

(4) Click here.

88

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.11 Microsoft DirectX Driver

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

(4) Click here.

(3) Click here.

ASUS P4T User’s Manual

Windows 98

5. S/W SETUP

89

5. SOFTWARE SETUP

5.12 YAMAHA S-YXG50 SoftSynthesizer

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Enter the information

requested and click here.

(5) Click here. (6) Click here.

(7) To install other drivers/

programs, click here
and then click OK.

(4) Click here.

90

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.13 PC-Cillin 98 Vx.xx

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

(3) Click here only after you have

read the License Agreement.

(5) Click here.

(8) Insert a floppy disk and then click

here. Once the Emergency Clean
disk is created, click OK.

(4) Setup will proceed with

the installation if no
viruses are found. Click
here to start installation.

(6) & (7) Select the preferred features by

clicking the appropriate buttons.

(9) To install other drivers/

programs, click here and
then click Finish.

Windows 98

5. S/W SETUP

ASUS P4T User’s Manual

91

5. SOFTWARE SETUP

5.14 Adobe Acrobat Reader Vx.x

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Click here only after you have

read the License Agreement.

(5) Click here and then

click Finish to restart.

(4) Click here.

92

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.15 Install Cyberlink Video and Audio
Applications

5.15.1 System Requirements

• Pentium-100MHz PC compatible

• Microsoft Windows 95/98/NT/2000

• Hard disk drive with at least 10MB of free space

• 4x speed or above CD-ROM drive

• Sound card with a Windows wave audio driver

• 256 (or above) color VGA card is required. A VGA card with

• DirectDraw support

• 8MB system memory

5.15.2 Cyberlink Contact Information

ASUS P4T User’s Manual

Windows 98

5. S/W SETUP

93

5. SOFTWARE SETUP

5.15.3 Installation Procedures

Insert the Support CD that came with your motherboard into your CD-ROM drive
or double-click the CD drive icon in My Computer to bring up the setup screen.

(1) Click here.

(2) Click here.

5. S/W SETUP

Windows 98

(3) Click here.

(5) Click here to install

PowerDVD.

(4) Click here and follow the

onscreen instructions to
complete installation.

(6) Click here and follow the

onscreen instructions to
complete installation.

94

(7) Click here and follow the

onscreen instructions to
complete installation.

ASUS P4T User’s Manual

5. SOFTWARE SETUP

5.16 Uninstalling Programs

Add/Remove Programs is a basic component within Windows. You may use this
function if a program does not provide its own uninstallation program.

(1) Double-click here to open

the Add/Remove Programs
Properties dialog box.

(2) Select the program to

remove and click Add/
Remove.

Windows 98

5. S/W SETUP

(3) Click here.

ASUS P4T User’s Manual

95

5. SOFTWARE SETUP

(This page was intentionally left blank.)

5. S/W SETUP

Windows 98

96

ASUS P4T User’s Manual

6. SOFTWARE REFERENCE

6.1 ASUS PC Probe

ASUS PC Probe is a convenient utility to continuously monitor your com­puter system’s vital components, such as fan rotations, voltages, and tem-
peratures. It also has a utility that lets you review useful information about
your computer, such as hard disk space, memory usage, and CPU type, CPU
speed, and internal/external frequencies through the DMI Explorer.

6.1.1 Starting ASUS PC Probe

When ASUS PC Probe starts, a splash screen appears allowing you to select
whether to show the screen again when you open PC Probe or not. To by­pass this startup screen, clear the Show up in next execution check box.

ASUS PC Probe

6. S/W REFERENCE

To open ASUS PC Probe, click the Windows Start button, point to Pro­grams, and then ASUS Utility, and then click Probe Vx.xx.

The PC Probe icon
that ASUS PC Probe is running. Clicking the icon will allow you to see the
status of your PC.

will appear on the taskbar’s system tray indicating

ASUS P4T User’s Manual 97

6. SOFTWARE REFERENCE

6. S/W REFERENCE

ASUS PC Probe

6.1.2 Using ASUS PC Probe

Monitoring

Monitor Summary

Shows a summary of the items being
monitored.

Temperature Monitor

Shows the PC’s temperature (for
supported processors only).

(Move the slider up to increase the

threshold level or down to decrease

Temperature Warning

threshold adjustment

the threshold level)

Fan Monitor

Shows the PC’s fan rotation.

Fan Warning

threshold adjustment

(Move the slider up to increase the

threshold level or down to decrease

the threshold level)

Voltage Monitor

Shows the PC’s voltages.

ASUS P4T User’s Manual98

6. SOFTWARE REFERENCE

Settings

Lets you set threshold levels and poll­ing intervals or refresh times of the PC’s
temperature, fan rotation, and voltages.

CPU Cooling System Setup

Lets you select when to enable

software CPU cooling. When

When CPU Overheated is

selected, the CPU cooling

system is enabled whenever the

CPU temperature reaches the

threshold value.

History

Lets you record the monitoring activ­ity of a certain component of your PC
for future reference.

ASUS PC Probe

6. S/W REFERENCE

Fan Control

Lets you enable/disable Smart Fan Con­trol. Smart Fan Control adjusts the fan
speed automatically based on the current
CPU temperature and predefined thresh­old.

Information

Hard Drives

Shows the used and free space of the
PC’s hard disk drives and the file allo-
cation table or file system used.

ASUS P4T User’s Manual 99

6. SOFTWARE REFERENCE

6. S/W REFERENCE

ASUS PC Probe

Memory

Shows the PC’s memory load, memory
usage, and paging file usage.

Device Summary

Shows a summary of devices in your PC.

DMI Explorer

Shows information pertinent to the PC,
such as CPU type, CPU speed, and in­ternal/external frequencies, and memory
size.

Utility

Lets you run programs outside of the
ASUS Probe modules. T o run a program,
click Execute Program. NOTE: This
feature is currently unavailable.

ASUS P4T User’s Manual100
