AstroStart R SS-5225 User Manual

2-WAY REMOTE CONTROL

®

ENGINE STARTER

USER MANUAL

MODEL RSS-5225

For all hybrid, gas- and diesel-powered

vehicles.

PATENT NOS

CAN 1.130.426

USA 4.345.554 - 5.614.883

- 5.617.819 - 5.673.017

AND OTHER PATENTS PENDING

All rights reserved © Directed Electronics Canada Inc. 2010

2-WAY SST 5-button REMOTE STARTER

with LCD display.

ONSULT SAFETY PRECAUTION SECTION

C

BEFORE USING THIS PRODUCT

S

OME FEATURES MAY REQUIRE

ADDITIONAL MATERIAL (NOT INCLUDED

(FRANÇAIS AU VERSO)

.

).

February 2010

5225

GOVERNMENT REGULATIONS

This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is authorized only on a no-interference, no-protection basis; in
other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device
must accept any radio interference that may be received, even if this interference could affect the operation of the device.

This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and
(2) this device must accept interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio-frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be
determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
 Consult the dealer or an experienced radio / TV technician for help.

Warning:

Changes or modifications not expressly approved by Directed Electronics Canada Inc. could void the user's authority to operate the equipment.

CANADA

188, St. Francois-Xavier

Delson, Quebec

J5B 1X9

www.astrostart.com

1

THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!

Like you, Directed Electronics Canada Inc. is concerned with the environment.

This is why we suggest using the two-minute runtime

when you remote-start your vehicle to warm up engine fluids.

We take this opportunity to remind you to properly defrost your windows

and remove all the snow from your vehicle before driving on public roads.

Rolling igloos are extremely dangerous!

We wish you an excellent journey with your remote engine starter!

USER GUIDE FOR RSS-5225 REMOTE ENGINE STARTER.

The RSS-5225 is a Bidirectional remote engine-start system. This means that it can both command the vehicle and return an acknowledgment of its status.
An optional alarm kit (P/N ALA-OP) can be added to the system. If this is the case, functions inherent to the alarm system described in this manual will be

attributed to it. The functions relative to the safety system described in this manual apply only to the remote starter to which an alarm kit has been added. The
RSS-5225 offers a keyless entry feature allowing the user to operate the door locks as well as to access the trunk of the vehicle. These features are optional and
may require additional parts and/or wiring during installation.

Table of contents

SAFETY PRECAUTIONS ____________________________________________________________________________ 3

PREPARING SYSTEM --------------------------------------------------------------------------------------------------------------------------------------- 3

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES -------------------------------------------------------------------------------------- 4
THE 2-WAY REMOTE CONTROL _____________________________________________________________________ 5
THE BATTERY ____________________________________________________________________________________ 5

LOW BATTERY ---------------------------------------------------------------------------------------------------------------------------------------------- 5
CONFIRMATIONS EMITTED BY THE REMOTE __________________________________________________________ 7

LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING --------------------------------------------------------------------------- 8

START COMMANDS _______________________________________________________________________________ 9

STARTING THE ENGINE ------------------------------------------------------------------------------------------------------------------------------------ 9

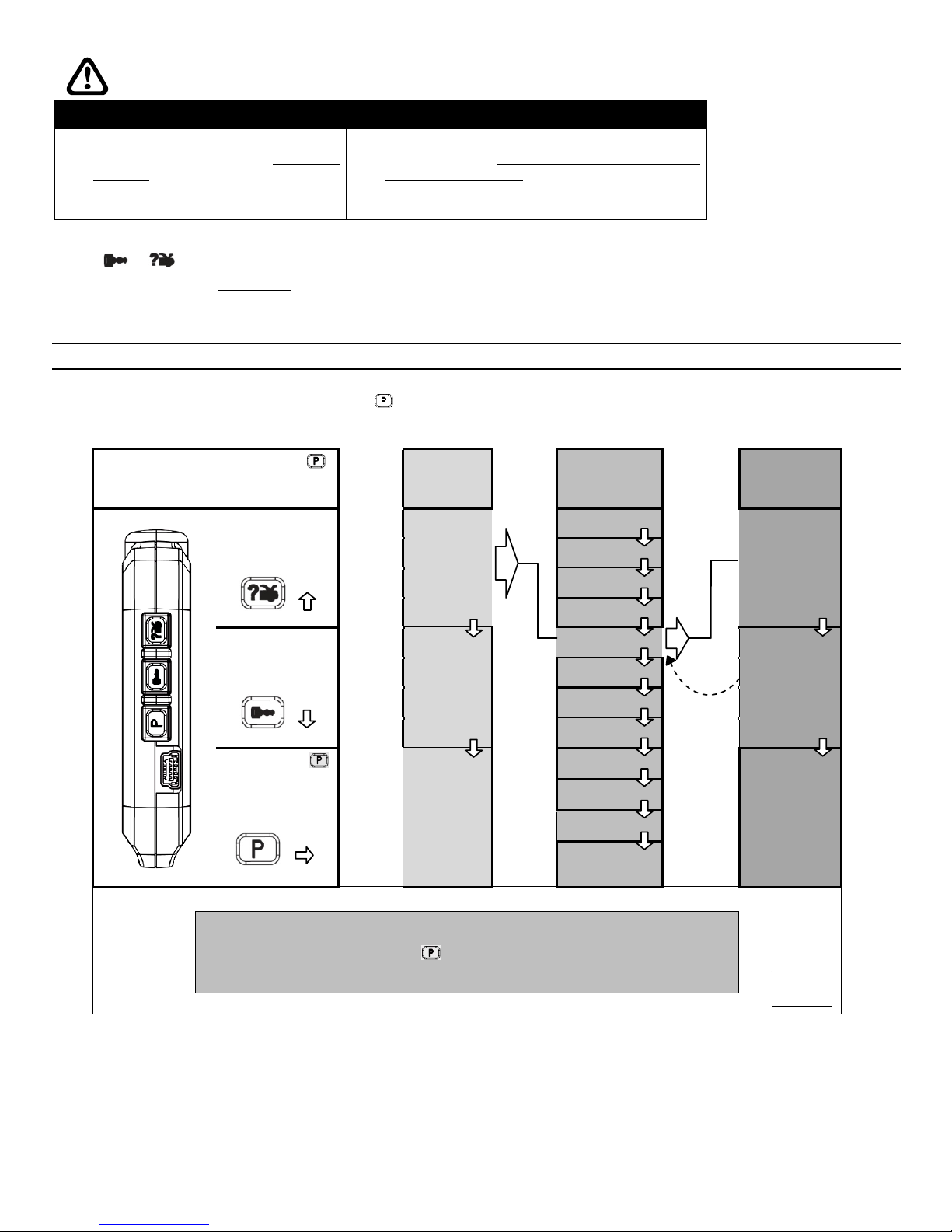

SETTING THE REMOTE CONTROL ---------------------------------------------------------------------------------------------------------------------- 10

PAGER ------------------------------------------------------------------------------------------------------------------------------------------------------ 11

ADVANCED FEATURES ----------------------------------------------------------------------------------------------------------------------------------- 11

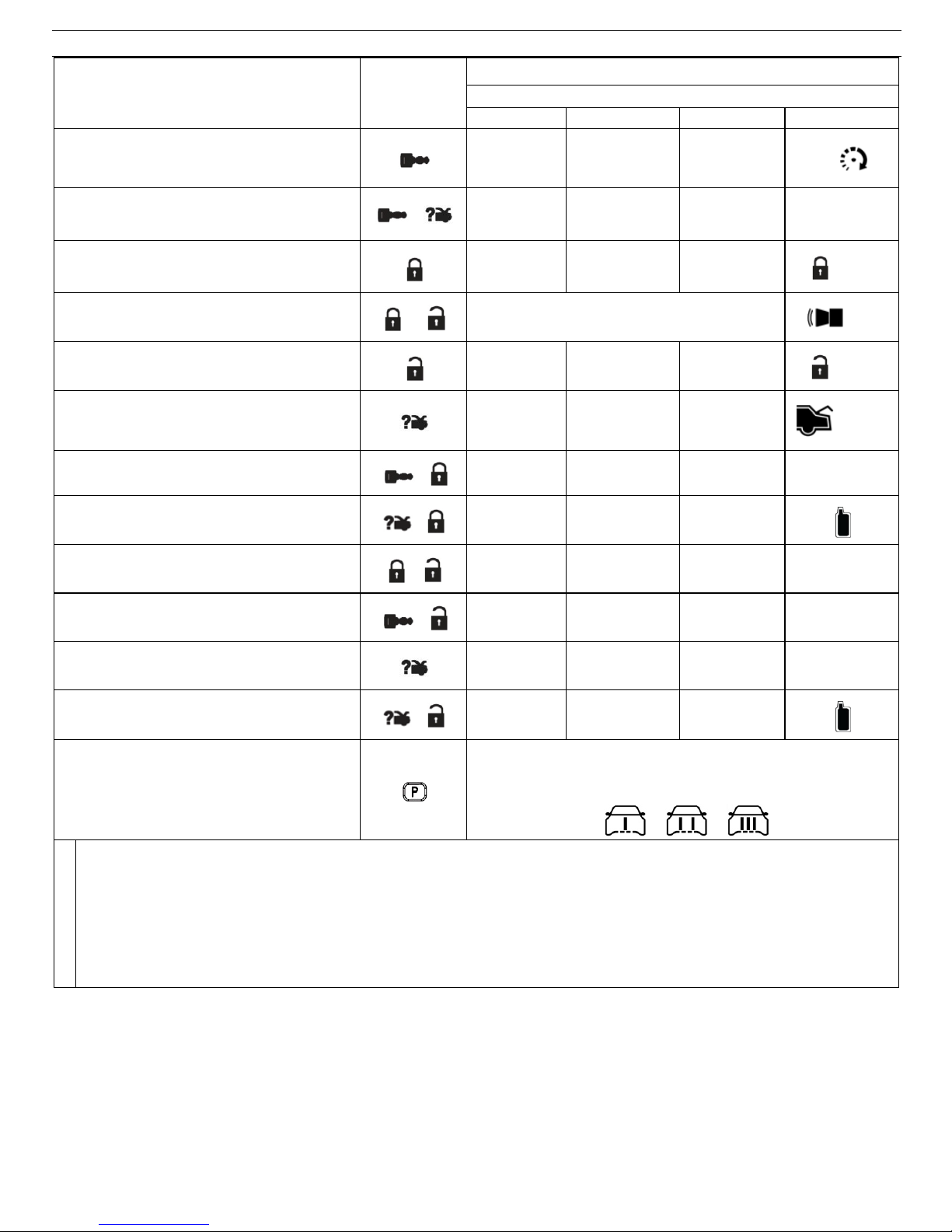

TABLE OF COMMANDS ----------------------------------------------------------------------------------------------------------------------------------- 13

SECURITY SYSTEM ---------------------------------------------------------------------------------------------------------------------------------------- 14

DETERRENTS ___________________________________________________________________________________ 14

ZONE CODES ----------------------------------------------------------------------------------------------------------------------------------------------- 16

SECONDARY FUNCTIONS _________________________________________________________________________ 17

OTHER COMMANDS --------------------------------------------------------------------------------------------------------------------------------------- 17

UTILITY COMMANDS------------------------------------------------------------------------------------------------------------------------------------ 18
START FAIL CODES ______________________________________________________________________________ 19
CODE LEARNING OF ADDITIONAL TRANSMITTER(S) __________________________________________________ 19
SAFETY CHECKS ________________________________________________________________________________ 19

HOOD SWITCH --------------------------------------------------------------------------------------------------------------------------------------------- 19

GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES ------------------------------------------------------------------ 20

GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES ---------------------------------------------------------------------- 20
REPLACING OR BOOSTING THE VEHICLE BATTERY __________________________________________________ 20
GLOSSARY _____________________________________________________________________________________ 21

2

SAFETY PRECAUTIONS

Before using this product, please carefully read the following safety precautions.

GENERAL RULES

• Never perform a remote start when a person or animal is inside the vehicle.

• Do not allow

• Immediately report any malfunction to the AstroStart dealer that performed the installation.

• Under no circumstance can this product or its use be modified.

• Always turn off the main switch when the vehicle is parked in an enclosed, unventilated area or when in for servicing.

• Always turn off the main switch when not using the remote starter for extended periods.

• Keep remote controls away from children

• Have the engine tuned regularly to ensure optimal performance of your remote starter.

• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.

• Regularly check safety features that stop engine (see SAFETY CHECKS on page 19).

• Make sure you comply with all local regulations, which may prohibit leaving your engine running when the vehicle is unattended in a public place.

• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system.

• Always advise service personnel that your vehicle is equipped with a remote starter.

• We strongly recommend

• All users of the vehicle should be aware

• Make sure that the warning sticker is present on the driver's window.

SPECIFIC rules FOR MANUAL TRANSMISSION VEHICLES

• Make sure that the parking brake is operational, i.e. it prevents the vehicle from moving.

• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the liftgate or rear hatch) or in the case of a

convertible vehicle, it is strongly recommended
from starting should any activity be detected near the gearshift.

any person or animal to remain inside the vehicle when the engine is running under remote starter control (continuous mode).

.

that you have your remote starter checked annually. Contact a dealer in your area.

of the safety precautions and operation procedures.

to have a motion detector (microwave) installed with the system. This device prevents the engine

PREPARING SYSTEM

When you exit the vehicle, you need to prepare the remote starter for its next use.

• If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a valid safety sequence.

• If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P" (Park) position.

• Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also turn on your climate control system).

• Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be sent to the vehicle when, for example,

snow prevents the wipers from moving.

• Make sure that the headlights are turned OFF.

• Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock automatically.

3

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES

Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in the neutral position when you exit the
vehicle. This series of actions is called a "Safety sequence" and is aimed at preventing remote starting in unsafe situations.
Should the rear hatch, liftgate or any door be opened at any time, the intrusion will be detected and the engine will not start. In such cases, the sequence must be
repeated to allow for an eventual remote start.

The system offers two execution modes for the sequence. These options must be set at the time of installat ion. The first mode is initiated by the parking brake
and the other by the remote control.

The safety sequence must be performed as follows.

Sequence activated by the parking brake .

1. While the engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move the gearshift lever to neutral.

3. Apply the parking brake
Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice. If set f or two actuations, pause one
second between the two.

4. Remove the key from the ignition (the system keeps the engine running).

5. Exit the vehicle.

6. Within 60 seconds, close all doors.

7. The system will stop the engine (except if Turbo Mode or Continuous Mode is active). The parking lights blink once (1) to confirm the sequence is valid
(the vehicle is ready for a remote start command).

Sequence activated by the remote control

1. While the engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move the gearshift lever to neutral.

3. Apply the parking brake.

4. Press the button on your remote control.

5. Remove the key from the ignition (the system keeps the engine running).

6. Depending on the programmed option:

Within 60 seconds, exit the vehicle,

close back all the doors then, using

the remote, send the STOP command.

Note that the Turbo mode is

not available with this option.

The parking lights will blink once to confirm that the sequence is valid (the vehicle is ready for a remote start command).

NOTES: If you release the brake pedal and press it once more during or after the execution of the safety sequence, the safety sequence will be invalidated and
any remote start will not be possible.

If the engine stops when the key is removed from the ignition, the safety sequence is invalid. Perform a new safety sequence. If the problem persists, consult
your installer.

Once Twice

.

Within 60 seconds, exit the vehicle

then close back all the doors.

The system will stop the engine
except if either the Turbo mode

or the continuous mode is activated.

4

THE 2-WAY REMOTE CONTROL

The remote control can control three separate vehicles. A maximum of four remote controls can be assigned to a vehicle. See your dealer for additional remote
controls.

Front view Side view

Antenna

LCD

screen

Lock button Unlock button

USING YOUR REMOTE CONTROL

To send a command, press for one second on the appropriate button. The remote control beeps when a button is pressed (if this option is on). A command may
not be sent if the button is not pressed long enough.

¾ Advanced: Your remote control can command three separate vehicles (additional systems required). To select a different vehicle, hold the “P”

button ( ), located on the side of the remote, for 1.5 seconds.

¾ Advanced: Your system may be programmed to distinguish between two groups of remote controls (maximum two remotes per group). These

groups let you activate predefined settings (seat, mirror and other) when unlocking certain vehicles (additional optional equipment required).

The range of your remote control can be affected by a weak battery, interference from nearby metal structures, “hydro” poles, electronic devices (with magnetic
fields), or crowded parking lots. If no confirmation is received in a given location, move away from the sources of interference and activate the "Status" command
( on the side of the remote). The start module will inform you of the status of door locks, the alarm and of the engine.

Note that the communication between the vehicle and the transmitter operates in only one direction at a time. This is why it is recommended to wait for
confirmations. Otherwise, communications could be cancelled out.

OUT OF RANGE

If the vehicle is out of range, the remote will emit a soft chirp after three (3) seconds and will show the “X” icon to indicate that the command has not been
received.

Side buttons Mini-USB

Port

Programming

Remote Start

Status / Trunk

FIG 1

THE BAT T ERY

Your remote is powered by an internal rechargeable battery that can only b e serviced by an authorized Directed dealer. Due to transit and storage time prior to your
purchase, the battery charge may have depleted. To ensure proper operation, check the ba ttery level and connect the battery charger if not fully charged. See the
Battery Information and Status Screen Icons sections for more information about the battery.

LOW BATTERY

Once the low battery alerts begin (the text field flashes low bat and the remote beeps), they will continue to command the system for a few days but should be
charged at the earliest opportunity.

5

CHARGING THE REMOTE CONTROL

1. Plug the AC adapter into a 110V AC outlet. Insert the mini-USB connector into the mini-USB port located on the side of the rem ote control (see figure 1 ,
page 5). The text field will display “CHARGE” to indicate that the remote control is charging (The remote remains opera tional while charging. It can
command the system).

2. Once fully charged, the text field will display “FULL”.

3. The remote control is then ready for use. Disconnect the mini-USB end from the remote control first and then the AC adapter from the AC outlet.

Note

Warning!

BATTERY LIFE

The remote control has many features that make it one of the most unique remote controls on the market today, including superior long range communication.
The default feature settings provide for excellent battery charge duration. However, to maximize this duration between charges, the following suggestions will
help:

• Turning Paging off. The remote will not wake up to check for messages with Paging off in the Setup Remote menu.

• Turn Beeping off. The button beeps are off by default, but they can be turned on in the remote setup menu if desired. However, the melodies are

BATTERY DISPOSAL

Caution! The remote will not receive alert messages from the system.

unaffected by the beeps settings and will still play normally.

Directed Electronics cares about the environment. If you need to dispose of the battery, please do so in accordance with your
municipal requirements for battery disposal, or return it to Directed Electronics at:

(Shipping and/or handling costs are the sole responsibility of the owner/sender and will not

If the battery is excessively depleted when the charger is connected, functionality may be
delayed while it charges to the minimum voltage required to operate the display, after
which normal ch argi ng r es ume s.

NEVER connect the supplied AC adapter to products other than the remote control. It
is a high current device designed specifically for rapid charging and may cause
severe damage or explosion when connected to any other products.

Charging the battery when the temperature is below 0°C (32°F) or above 45°C
(113°F) may cause severe battery damage and/or reduce battery life. Avoid placing
the remote control in areas exposed to extreme cold or heat (direct sunlight) when
charging the battery.

Directed Electronics Canada Inc.

188, St. François-Xavier street,

Delson, Quebec

J5B 1X9

be covered by Directed Electronics).

6
