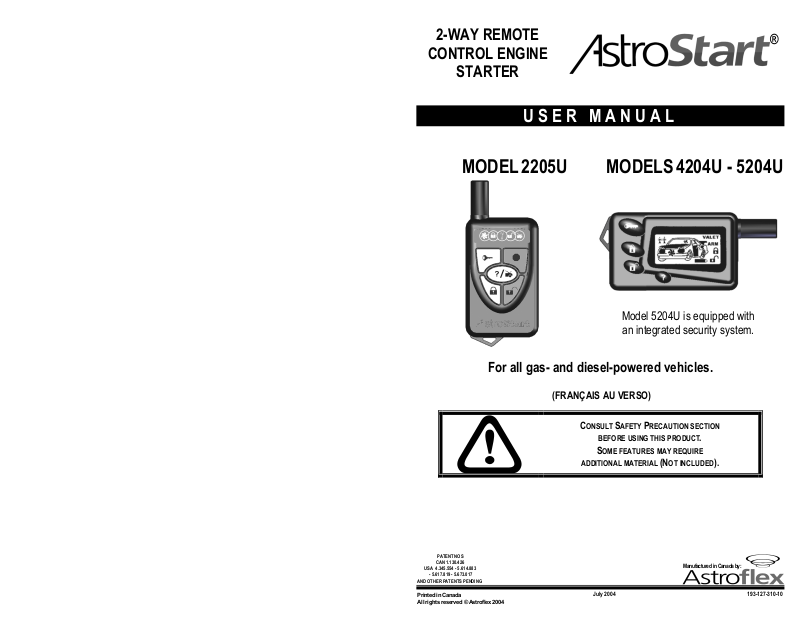

2-WAY REMOTE |
® |
CONTROL ENGINE |
|
STARTER |
|
U S E R M A N U A L
MODEL 2205U MODELS 4204U - 5204U
Model 5204U is equipped with an integrated security system.
For all gasand diesel-powered vehicles.
(FRANÇAIS AU VERSO)
CONSULT SAFETY PRECAUTION SECTION
BEFORE USING THIS PRODUCT.
SOME FEATURES MAY REQUIRE
ADDITIONAL MATERIAL (NOT INCLUDED).
PATENT NOS |
|
|
|
|
CAN 1.130.426 |
|
Manufactured in Canada by: |
|
|
USA 4.345.554 - 5.614.883 |
|
|
|
|
- 5.617.819 - 5.673.017 |
|
|
|
|
AND OTHER PATENTS PENDING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Printed in Canada |
July 2004 |
193-127-310-10 |
||
All rights reserved ©Astroflex 2004 |
|
|
|
|
GOVERNMENT REGULATIONS
This device complies with the requirements of Industry Canada (IC) - Management of Radio-frequencies, as specified in document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful interference to services
authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1)this device may not cause harmful interference and
(2)this device must accept interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from the one the receiver is connected to. Consult the dealer or an experienced radio / TV technician for help.
Warning:
Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the equipment.
|
Inc. |
|
|
|
|
E L E C T R O N I C C O R P . |
|||
1164, Route 220 |
||||
516A Elm Street |
||||
St-Élie d’Orford (Québec) Canada |
M anchester, NH 03101 |
|||
J0B 2S0 |
USA |
|||
www.astroflex.com
THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!
Like you, Astroflex is concerned with the environment. This is why we suggest using the two-minute runtime
when you remote start your vehicle to warm up engine fluids.
We take this opportunity to remind you to properly defrost your windows and remove all the snow from your vehicle before driving on public roads.
Rolling igloos are extremely dangerous!
We wish you an excellent journey with your remote engine starter!
USER GUIDE FOR 2205U, 4204U AND 5204U REMOTE ENGINE STARTER.
These models are Bi-directional remote engine start systems. This means that they can communicate both ways and therefore return an acknowledgment to the transmitter and/or communicate the status of the vehicle.
Model 5204U includes an integrated safety system. Not only does it allow to start the vehicle from a distance, it can indicate the status of accesses to the vehicle and/or intrusion attempts. A second remote (unidirectional) is also supplied with this model.
An optional alarm kit (PN 310-120-503) can be added to model 2205U. If this is the case, functions inherent to the alarm system described in this manual will be attributed to it.
The functions relative to the safety system described in this manual apply only to models 5204U and 2205U to which an alarm kit has been added.
Both models offer a keyless entry feature allowing the user to operate the door locks as well as access to the trunk of the vehicle. These features are optional and may require additional material and/or wiring during installation.
Table of contents |
|
SAFETY PRECAUTIONS ____________________________________________________________________________ 2 |
|
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES --------------------------------------------------------------------------------------- |
3 |
PREPARING SYSTEM --------------------------------------------------------------------------------------------------------------------------------------- |
3 |
THE REMOTE CONTROLS __________________________________________________________________________ 4 |
|
TABLE OF COMMANDS ____________________________________________________________________________ 6 |
|
START COMMANDS ----------------------------------------------------------------------------------------------------------------------------------------- |
8 |
SECURITY SYSTEM ---------------------------------------------------------------------------------------------------------------------------------------- |
11 |
LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING ------------------------------------------------------------------------- |
15 |
OTHER COMMANDS --------------------------------------------------------------------------------------------------------------------------------------- |
16 |
CODE LEARNING OF ADDITIONAL TRANSMITTER(S) __________________________________________________ 19 |
|
SAFETY CHECKS ________________________________________________________________________________ 19 |
|
HOOD SWITCH --------------------------------------------------------------------------------------------------------------------------------------------- |
19 |
GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES------------------------------------------------------------------- |
19 |
GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES----------------------------------------------------------------------- |
20 |
REPLACING OR BOOSTING VEHICLE BATTERY ______________________________________________________ 20
1
SAFETY PRECAUTIONS
Before using this product, carefully read the following safety precautions.
GENERAL RULES
•Never perform a remote start when a person or animal is inside the vehicle.
•Do not allow any person or animal to remain inside the vehicle when the engine is running under remote starter control (continuous mode).
•Immediately report any malfunction to the AstroStart dealer that performed the installation.
•Under no circumstance can this product or its use be modified.
•Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.
•Always turn off the main switch when not using your remote starter for extended periods.
•Keep remote controls away from children.
•Have your engine tuned regularly to ensure optimum performance of your remote starter.
•Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.
•Regularly check safety features that stop engine (see SAFETY CHECKS on page 17.)
•Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is unattended in a public place.
•To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system.
•Always advise service personnel that your vehicle is equipped with a remote starter.
•We strongly recommend that you have your remote starter checked annually. Contact a dealer in your area.
•All users of the vehicle should be aware of the safety precautions and operation procedures.
•Make sure that the warning sticker is present on the driver's window.
SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES
•Make sure that the parking brake is operational, i.e. it can prevents the vehicle from moving.
•If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the liftgate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended to have a motion detector (microwave) installed with the system. This device prevents the engine from starting should any activity be detected near the gearshift.
2
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES
Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in neutral position when you exit the vehicle.
This series of actions is called a "Safety sequence" and is aimed at preventing any remote start in situations where remote starting the engine would not be safe.
Should the hatchback or any door be opened at any time, the intrusion will be detected and the safety sequence will be cancelled by the system, thus preventing a remote start. In such cases, the sequence must be repeated to allow for an eventual remote start.
The system offers two execution modes for the sequence. These options must be set at time of installation. The first mode is initiated by the parking brake and the other by the remote control.
The safety sequence must be performed as follows.
SEQUENCE ACTIVATED BY THE PARKING BRAKE
.
1.While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2.Move gearshift lever to neutral.
3. |
Apply the parking brake |
Once |
Twice |
Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice. If set for two actuations, pause one second between the two.
4.Remove key from ignition (the system keeps the engine running).
5.Exit the vehicle.
6.Within 60 seconds, close all doors.
7.The system will stop the engine and blink the parking brakes once to confirm the sequence is valid (vehicle is ready for a remote start command).
SEQUENCE ACTIVATED BY THE REMOTE CONTROL
1.While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2.Move gearshift lever to neutral.
3.Apply parking brake.
4.Press
button on your remote control.
5.Remove key from ignition (the system keeps the engine running).
6.Exit the vehicle.
7.Using the remote, send the stop command. The system will stop the engine and parking lights will blink once to confirm that the sequence is valid (vehicle is ready for a remote start command).
NOTES : If you release the brake pedal and depress it once more during or after the execution of the safety sequence, the safety sequence will be invalidated and any remote start will be impossible.
If the engine stops when the key is removed from the ignition, the safety sequence is invalid.
Perform a new safety sequence. If problem persists, consult your installer.
PREPARING SYSTEM
When you exit the vehicle, you need to prepare the remote starter for its next use.
•If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a valid safety sequence.
•If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P" position.
•Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also turn on your climate control system).
•Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be sent to the vehicle when, for example, snow prevents the wipers from moving.
•Make sure that the headlights are turned off.
•Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock automatically.
3
THE REMOTE CONTROLS
Each remote control can control two distinct remote starters.
A maximum of four remote controls can be assigned to your vehicle. See your dealer for additional remote controls.
NOTE: The range of your remote control can be affected by a weak battery, interference from nearby metal structures, hydro poles, or crowded parking lots.
USING YOUR REMOTE CONTROL
To send a command, press for two seconds on the appropriate button.
Command may not be sent if the button is not pressed long enough.
The remote control beeps when a button is pressed, then emits eight short beeps during the transmission, i.e. about one second after the button was pressed.
Your remote control can transmit on two different channels, allowing control of two separate vehicles. Only the “Panic” command is transmitted on both channels simultaneously.
5-button |
4-button |
6-button |
Bi-directional |
Bi-directional |
Unidirectional |
CHANNEL 1 |
CHANNEL 2 : |
To transmit a command |
To transmit a command on channel 2, press desired button, then as soon as a beep is |
on channel 1, press desired |
heard, release the button for a moment then press it again and hold it down for two |
button for two seconds. |
seconds. |
Remote controls shown could differ from that included in the kits.
BI-DIRECTIONAL REMOTES
As soon as a command is sent, the remote switches over to standby mode in order to receive and display confirmations sent by the command module installed in the vehicle.
These signals are transmitted only once and could be neutralized by radio or electromagnetic interferences generated by electronic devices in the vicinity.
If no confirmation is received in a given location, move away from electronic devices and activate the "Status" command (
). The start module will inform you of the status of door locks, alarm, and running of the engine.
Note that the communication between the vehicle and the transmitter operates in only one direction at a time. This is why it is recommended to wait for the confirmation before sending another command. Otherwise, the vehicle and the transmitter could transmit at the same time wich would block the command as well as the returned confirmation.
When the security system is enabled, the remote will always stand by, ready to receive information from the car, e.g. violation of a protected zone. When the security system is not enabled, the remote automatically switches to sleep mode to limit battery consumption in the remote.
Out of range
If the vehicle is out of range, the transmitter will emit a soft chirp after 5 seconds to indicate that the command has not been received by neither the module nor the transmitter.
The transmitter sends a command every hour in order to determine if it is possible to establish a communication with the vehicle. After two communications without answer, the transmitter vibrates twice to inform you that the vehicle is out of range.
The remote vibrates to indicate the communication has been re-established.
4
REPLACING THE BATTERY
The LCD of the 4-button remote has a battery icon telling you when to replace the battery. We strongly recommend keeping a replacement battery in your glove compartment.
The remote controls require one AAA battery. See your dealer for spare batteries.
To replace the battery, slide the latch sideways and remove the battery cover on the back of the remote control case, remove old battery and replace it with a new one.
Make sure the battery is placed the right way (see pictogram inside the cover).
CONFIRMATIONS EMITTED BY THE 4-BUTTON BIDIRECTIONAL REMOTE
An audible confirmation (piezo) and a visual confirmation (LCD display) are emitted each time a command is transmitted.
The following diagram shows the usefulness of each segment of the display.
Display confirmations will be visible for 4 seconds.
Descriptions in capital letters show confirmations pertaining to the security system’s functions.
Car identification
HOOD STATUS
PRE-SHOCK STATUS
TRUNK STATUS / OTHER SENSOR Valet mode status ALARM STATUS
SHOCK SENSOR STATUS
Lock commands status
Low Battery
DOORS STATUS
Engine running status
Ready to start / Ignition status
CONFIRMATIONS EMITTED BY THE 5-BUTTON BIDIRECTIONAL REMOTE
An audible confirmation (piezo) and a visual confirmation (LCD display) are emitted each time a command is transmitted.
The following diagram shows the usefulness of each LED of the display.
In most cases, confirmations remain visible for 5 seconds.
* CONFIRMATION OF ALARM ON RECEIVED ONLY AT TIME OF ARMING WHEN SYSTEM IS EQUIPPED WITH AN ALARM.
|
|
LED |
|
LEGEND |
|
|
|
SOLID |
|
FLASHING |
|
|
|
|
|
||
|
|
|
G |
GREEN |
G G |
|
|
|
R |
RED |
R R |
G |
|
|
|
READY FOR START |
|
R |
|
|
UNABLE TO START OR ENGINE STOP |
||
G G |
|
|
|
ENGINE RUNNING |
|
R R |
R R |
R R G G G G |
ALARM WITH ZONE IN VIOLATION |
||
R R |
R R |
R R |
|
PRE-SHOCK |
|
|
R |
|
DOOR LOCKED & ALARM ON* |
||
|
R R |
G G |
DOOR OPEN FOR MORE THAN 5 MINUTES |
||
|
|
G |
|
DOOR UNLOCKED |
|
|
|
G G |
|
VALET ON |
|
|
|
G |
OTHER FUNCTIONS / VALET OFF |
||
|
|
R |
NO CONFIRMATION SIGNAL RECEIVED |
||
|
|
G |
TRUNK COMMAND RECEIVED |
||
|
|
G G |
TRUNK OPEN FOR MORE THAN 5 MINUTES |
||
UNIDIRECTIONAL REMOTE
A unidirectional remote is included in the 5204U kit to accommodate an occasional driver. It has no display indicating the status of the security system or confirming the action of commands that are transmitted.
An audible confirmation (piezo) and a visual confirmation (LCD display) are emitted each time a command is transmitted.
The remote is powered by three lithium batteries CR-2016 or equivalent. It is strongly recommended to keep a set of replacement batteries in the glove compartment.
To change the batteries, simply remove screw on back of remote, remove worn batteries and insert fresh ones.
Ensure the batteries are correctly oriented. See illustration at right.
A pictogram in the bottom of the case shows correct battery orientation.
5
