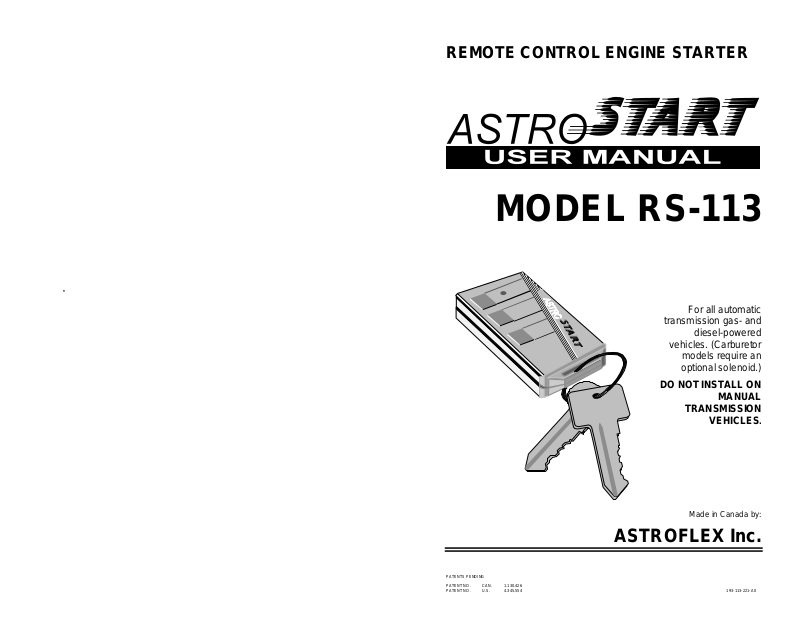

REMOTE CONTROL ENGINE STARTER
MODEL RS-113
For all automatic
transmission gas- and
diesel-powered
vehicles. (Carburetor
models require an
optional solenoid.)
DO NOT INSTALL ON
MANUAL
TRANSMISSION
VEHICLES
Made in Canada by:
ASTROFLEX Inc.
PATENTS PENDING
PATENT NO. CAN. 1.130.426
PATENT NO. U.S. 4.345.554 193-113-221-A0
.
INTRODUCTION
START
Thank you for choosing the
Starter is the result of intensive research by a company specializing in the design of
high-quality electronic automotive products.
years of reliable, trouble-free service. Its advanced microchip circuitry incorporates
billions of possible access codes which makes it practically impossible to interfere with
another remote control vehicle. Your Remote Starter offers the ultimate in safety, is
simple to use and has many features to make your life easier. Please read the following
instructions carefully so that you understand how your
advantage of all these features. Some of the functions described below may not be
applicable to your vehicle.
ASTRO
Remote Control Engine Starter. Your Remote
START
ASTRO
is designed to provide many
START
ASTRO
works and can take
SAFETY PRECAUTIONS
¾
Always turn off main switch when vehicle is parked in an enclosed, unventilated area
or is in for servicing.
¾
Always turn off main switch when not using your Remote Starter for extended periods
of time.
¾
Keep remote controls away from children.
¾
Have your engine tuned regularly to ensure optimum performance of your Remote
Starter.
¾
Make sure your windshield wipers are turned off before leaving vehicle.
¾
Check safety features regularly; they prevent your Remote Starter from operating
under certain conditions. (See “SAFETY CHECKS”.)
¾
Make sure you comply with all local regulations which may prohibit leaving y our engine
running when vehicle is unattended in a public place.
¾
Always advise service personnel that your vehicle is equipped with a Remote Starter.
¾
We strongly recommend that you have your Remote Starter checked annually.
Contact the dealer in your area.
2
BEFORE USING YOUR REMOTE STARTER
Before leaving your vehicle, set the various controls in order to use your Remote
Starter.
Set heating/air-conditioning to desired position. (When Remote Starter starts your
engine, it will also turn on your climate control system.)
Make sure:
windshield wipers are “
¾
gearshift is in
¾
PARK
OFF
”.
;
USING MAIN SWITCH
Main switch is usually installed under dashboard. It is
a toggle ON/
functions only.
It does not disable other
commands which remain
active.
OFF
switch that is used to cancel start
O
F
F
O
N
3
REMOTE CONTROL
Your remote control works off a small, long-life 12-volt alkaline battery (GP-23A) that
should last up to 6 months. Range of your remote control can be affected by a weak
battery, interference from nearby metal structures, hydro poles, or crowded parking lots.
With an electronic CODE LEARNING device, up to three additional remote controls can
be programmed for your vehicle. See your dealer for replacement batteries or additional
remote controls.
USING YOUR REMOTE CONTROL
(1-, 2- or 3-button remote)
To make sure that commands are transmitted properly, press desired button for 2
seconds. Indicator light will flash momentarily then remain on while transmitting
command. A command will not be transmitted properly if you do not press button long
enough (i.e., until indicator light goes out by itself).
Example: To start, press button "A” until indicator light goes out.
CONFIRMING COMMANDS
In most cases, your system will confirm that command has been received properly. This
will be done either by sounding horn (if horn was connected during installation) or
flashing parking lights. In this manual, confirmation signals are written in an abbreviated
form; for example:
(horn: 1, lights: 2) Means that horn will sound once and parking lights will flash twice.
4
RS-113 COMMAND CODES
Command 1 BT 2 BTS 3 BTS 4 BTS Confirmatio
Start/stop A A A 1A Lights
Activate Antitheft B 1B Lights
Lock B 1B Lights
Deactivate Antitheft C 1C Lights
Unlock C 1C Lights
Trunk release B&C 1B&C Lights
Sentinel mode B * A&B 1A&B Lights
Start only A&B * A&C 1A&C Lights, horn
Car finder A&B / A&C A&B / A&C Lights, horn
Controlled output A&B / A&C A&B / A&C Lights
Channels 2,3 and 4 on 4-button remote are not used on RS-113.
Confirmation of these commands can be programmed as
during installation. When programmed as
INACTIVE
ACTIVE
, there is no confirmation.
* Function “B” on 2-button remote control corresponds to command “A&B”.
* Function “A&B on 2-button remote control corresponds to command “A&C”.
Shaded areas correspond to options
that can be programmed during
installation. A maximum of two of
these commands can be selected;
see option list opposite. “Car finder”
and “Controlled output” functions
can be allocated to either of A&B or
A&C commands depending on
available options.
A&B
Sentinel
Sentinel
Sentinel
Controlled output
Controlled output
Car finder
Start only
Controlled output
Start only
Start only
Option 1 is programmed at factory. Ask your dealer if this option was changed during
installation and if so, check 9 appropriate box.
or
INACTIVE
A&C
Car finder
Car finder
n
9
START COMMANDS
STARTING AND STOPPING YOUR ENGINE
To start your engine, enter command from table (horn: 0, lights: 1). System
automatically sets ignition contact time depending on your vehicle. Parking lights will
stay on all the time engine is running.
To stop engine, enter same command.
5
Trigger input
Your Remote Starter is equipped with a negative trigger input. This input can
be connected to another remote control device or timer output. If this input is
connected, consult device manual or ask your technician which command is
associated with start/stop function. All start/stop functions controlled by this
input operate in same way as input controlled by remote control.
START ONLY
With horn confirmation.
Programmable as Active or Inactive during installation.
This command sounds the horn to confirm your vehicle has started when you cannot
see it. Enter command from table; if command has been received properly, you will get
a confirmation (horn: 1, lights: 1). Remote Starter will then send another message to
confirm that engine has started properly (horn: 2, lights: 1). Parking lights will remain on
all the time engine is running. You may repeat this command as often as you wish; it
does not stop engine.
CONTINUOUS MODE
Continuous Mode consists of sending a “Start” command while engine is already
running with key in ignition so that you can then remove ignition key.
This mode allows you to leave engine running when you leave vehicle for a short period
of time and also leaves heating/air-conditioning system on.
Enter a “Start” command while engine is running. Parking lights, engine and preset
accessories will stay on for programmed time. Remove key, exit vehicle and lock doors.
Steering column will be locked and all safety devices will remain active.
SENTINEL (LOW TEMPERATURE) MODE
Programmable as Active or Inactive during installation.
In Sentinel Mode, system can start your engine automatically when temperature falls
below -15ºC (5ºF). Engine will run for programmed time, after which Sentinel Mode will
wait 2½ hours and then start engine again if temperature is still below -15ºC (5ºF). All
actions that normally stop engine when it is started by remote control (applying brakes,
opening hood, etc.) have same effect in this mode.
6
To activate Sentinel Mode
Enter command from table (horn: 0, lights: 1).
Lights will flash once then, if temperature is below -15ºC (5ºF), engine will start
after a 4½-second pause. This pause lets you distinguish between a regular
start and an automatic (low temperature) start. If temperature is above -15ºC
(5ºF), Sentinel waits until it goes below -15ºC (5ºF) before starting. If system
cannot execute command (for example, hood is open), confirmation will be
different (horn: 0, lights: 3).
To deactivate this mode, enter command again (horn: 0, lights: 2).
UPON ENTERING YOUR VEHICLE ...
Do not apply brakes; this will turn off engine immediately.
¾
Insert ignition key and turn it to “ON” position.
¾
WARNING: DO NOT TURN IGNITION KEY TO “START” POSITION.
Drive as usual.
¾
WHAT WILL STOP YOUR ENGINE
For your safety, engine will not start or will stop if:
Remote control sends a stop message.
¾
Hood is open.
¾
Brakes are applied.
¾
Gearshift is not in “
¾
Engine exceeds 3000 rpm.
¾
Main switch is
¾
OFF
PARK
.
” or “
NEUTRAL
”.
ANTITHEFT (STARTER DISABLE)
Programmable as
Your Remote Starter is equipped with an ANTITHEFT system. This system consists of
an output that can control a relay to cut the starter circuit of your vehicle (optional
connections.)
The ANTITHEFT system activates automatically when ignition key is turned from “ON”
OFF
to “
” and stays off for at least one minute; it can also be activated manually by
sending “Activate ANTITHEFT” command (see table).
The ANTITHEFT system is deactivated for one minute when you send “Deactivate
ANTITHEFT” command (see table). If you do not start your vehicle during this oneminute period, system reactivates automatically to prevent anyone from starting your
vehicle, even with ignition key.
The wiring can be connected so that horn goes off if someone tries to start your vehicle
when it is in ANTITHEFT ACTIVE mode.
Active
or
Inactive
during installation.
7
OTHER COMMANDS
LOCKING AND UNLOCKING DOORS
If your vehicle is equipped with electric door locks, several functions can be operated by
remote control. These features are optional and may require purchasing additional
equipment. Consult your dealer for advice.
Following systems can be controlled:
door locks;
¾
opening trunk or unlocking tailgate;
¾
interior lights.
¾
Locking doors
Enter “Lock” command from table (horn: 0, lights: 1) or ((horn: 0, lights: 0) ❁
programmable during installation).
Doors are locked and parking lights flash once to confirm command has been
received. ❁
Unlocking doors
Enter “Unlock” command from table (horn: 0, lights: 2) or ((horn: 0, lights: 0)
❁ programmable during installation).
Doors are unlocked and parking lights flash twice to confirm command has
been received. ❁
Opening trunk and unlocking doors
This command opens trunk and unlocks doors (horn: 0, lights: 2) or ((horn: 0,
lights: 0) ❁ programmable during installation).
Enter “Trunk release” command from table. Trunk is opened, doors are
unlocked, and parking lights flash twice to confirm command has been
received. ❁
❁
If confirmation has been programmed as
no confirmation.
If you are not sure you have received confirmation, repeat command. System
will repeat confirmation as often as you wish (if confirmation is programmed
active.
as
8
)
inactive
during installation, there is
DOME LIGHT
Programmable as Active or Inactive during installation.
Dome light will turn on for 30 seconds every time “Unlock” command is sent. This 30-
second duration is cancelled when “Lock” command is sent or brakes are applied.
AUTOMATIC LOCK/UNLOCK
Programmable as Active or Inactive during installation.
This function locks doors when ignition key is in “ON” position, engine is running and
brakes are applied. Doors are unlocked when key is turned from “ON” to “OFF” or when
Continuous Mode is activated.
CAR FINDER
Programmable as Active or Inactive during installation.
This function sounds horn on and off and flashes parking lights to help you locate your
vehicle in a large parking lot or deter potential vehicle thieves or assailants by attracting
attention.
Enter command from table.
Car Finder Mode operates for one minute; you can, however, deactivate it before one
minute is up by repeating command or applying brakes.
CONTROLLED OUTPUT
Programmable as Active or Inactive during installation.
This command controls one of your vehicle’s accessories depending on which one was
connected during installation (headlights, defroster, etc.). For details, consult your
technician.
Enter command from table. Controlled output is activated for one second or one minute,
depending on initial programming. When output has been programmed for one minute,
you can deactivate it by repeating command.
ENGINE RUNTIME
Your engine will stop automatically after a preset time. Parking lights will stay on as long
as engine is running. Runtime is programmable during installation. Manufacturer preset
time is 15 minutes but you can have it changed to suit your needs.
9
IF ENGINE FAILS TO START
If your system cannot start your vehicle at first attempt, it will wait a few seconds and
then try again (it could try again twice depending on reason for failure to start), after
which it will shut down automatically and wait for new command.
SAFETY CHECKS
In order to maintain high safety standard, proceed with following routine checks every
month.
HOOD SWITCH
¾
Start your vehicle with Remote Starter.
¾
Open hood.
Engine should stop as soon as hood is opened.
If engine does not stop,
OFF
“
” until situation is rectified; contact your local service center.
DETECTING “PARK” or “NEUTRAL” GEARSHIFT POSITION
Your starter is designed to check gearshift position at all times. Your vehicle
will not start or will stop if gearshift is not in
If your vehicle requires key to be in ignition in order to release gearshift, your
vehicle is safe as long as keys are kept away from children.
If gearshift can be put into gear without key in ignition,
proceed with following minor routine checks:
Put gearshift into gear.
¾
Be ready to apply brakes.
¾
Start your vehicle with Remote Starter.
¾
Repeat these steps in “
¾
If starter engages within ninety (90) seconds,
position and leave it “
service center.
first
turn main switch to “
Drive
OFF
” until situation is rectified; contact your local
” and “
Reverse
OFF
” position and leave it
“PARK” or “NEUTRAL”.
”.
first
turn main switch to “
REPLACING OR BOOSTING VEHICLE BATTERY
If you have to replace or boost battery for any reason, first turn main switch “
leave it “
OFF
” until battery is replaced or fully charged.
Reversing polarity during this operation could permanently damage your Remote
Starter.
OFF
OFF
” and
”
10
LIFETIME LIMITED WARRANTY
1.
2. This Warranty excludes any other legal warranty, with the exception of provisions pertaining to public
3. This Warranty only applies in favor of the original purchaser; it does not apply to subsequent
4. This Warranty is valid for the life of the vehicle on which the product was originally installed, as long as
5. If the conditions mentioned in paragraphs 3) and 4) are met, the Warranty applies only to the control
6. All other accessories (such as the transmitter, switch, antenna, module DL-3 or DL-4, etc.) are only
7.
8. After two years from the date of the contract,
9. If the purchaser cannot provide proof of purchase, the Warranty is limited to two years from the
10. This Warranty only applies to the product itself and does not apply to any material damages other than
11.
12.
13. This Warranty constitutes the only warranty from
ASTROFLEX INC
workmanship or material for the period specified below.
order.
purchasers.
it remains installed on the said vehicle, with the exception of those components covered by a shorter
warranty.
module of the following products: TS-100, STS-100, STS-200, RS-101, RS-102, RS-103, RS-113, RS212, RS-213, RS-304, RS-414 and RS-504.
warranted for a period of one year from the date of the purchase contract; the batteries are not covered
by any warranty.
ASTROFLEX INC
accordance with the provisions in paragraph 5), free of charge during the first two years of the contract,
or (b) in accordance with the provisions in paragraph 6), free of charge during the first year of the
contract.
the product itself in accordance with the provisions in paragraph 5), for a charge not exceeding $30.00.
This amount must accompany the product to be repaired. The product will be ret ur ned, f r eight collect,
to the purchaser.
manufacturing date as confirmed by the product’s serial number. The purchaser of this
product shall return the product for warranty service, freight prepaid, to the address indicated on the
back of this document.
to the product itself.
ASTROFLEX INC
the product if any of the following conditions apply:
a) the installation was not done by the installer-distributor, and in accordance with the
b) the product was damaged after installation;
c) the purchaser used the product for a purpose other than stipulated in the user’s guide;
d) the purchaser repaired the product himself or had the product repaired by someone not
e) the product was repaired with parts not authorized by
ASTROFLEX INC
any other warranty is specifically excluded, including legal warranties, with the exception of provisions
pertaining to public order.
. warrants the manufactured product specified below against any defect in
shall repair or replace any part of the product or the product itself, either (a) in
ASTROFLEX INC
shall repair any part of the product or
ASTROSTART
does not warranty either the product itself or any damages that may be caused by
instructions from
authorized by
is not responsible for removal or reinstallation charges.
ASTROFLEX INC
ASTROFLEX INC
;
;
ASTROFLEX INC
ASTROFLEX INC
in regard to the original purchaser;
.
Note: Operation, specifications and design of our products are subject to change without notice.
This device complies with the requirements of the Department of Communications (DOC), Canada, as specified in
document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device
must not be used if it is determined that it causes harmful interference to services authorized by the DOC. In
addition, the user of this device must accept any radio interference that may be received, even if this interference
could affect the operation of the device.
DOC approval no.: 1854 K 1066
11
ASTROFLEX Inc.
Customer Service
1164 Route 220 Ste-Élie D’orford
(Québec) CANADA
J0B 2S0
Loading...
