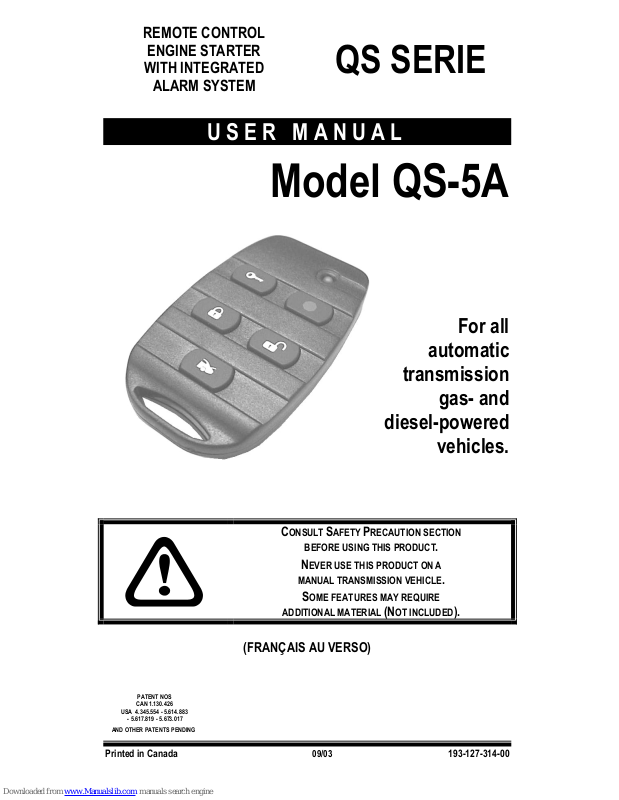

AstroStart QS-5A User Manual
Printed in Canada 09/03 193-127-314-00
PATENT NOS
CAN 1.130.426
USA 4.345.554 - 5.614.883
- 5.617.819 - 5.673.017
AND OTHER PATENTS PENDING
REMOTE CONTROL
ENGINE STARTER
WITH INTEGRATED
ALARM SYSTEM
QS SERIE
USER MANUAL
Model QS-5A
For all
automatic
transmission
gas- and
diesel-powered
vehicles.
(FRANÇAIS AU VERSO)
C
ONSULT SAFETY PRECAUTION SECTION
BEFORE USING THIS PRODUCT.
N
EVER USE THIS PRODUCT ON A
MANUAL TRANSMISSION VEHICLE.
SOME FEATURES MAY REQUIRE
ADDITIONAL MATERIAL (NOT INCLUDED).
GOVERNMENT REGULATIONS
This device complies with the requirements of Industry Canada (IC) - Management of
Radio-frequencies, as specified in document CNR-210. Its use is authorized only on a
no-interference, no-protection basis; in other words, this device must not be used if it is
determined that it causes harmful interference to services authorized by IC. In addition, the user of this
device must accept any radio interference that may be received, even if this interference could affect the
operation of the device.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television, which can be
determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio / TV technician for help.
Warning:
Changes or modifications not expressly approved by <manufacturer> could void the user's authority to
operate the equipment.
1164, Route 220
St-Élie d’Orford (Québec) Canada
J0B 2S0
516A Elm Street
Manchester, NH 03101
USA
1
Table of contents
SAFETY PRECAUTIONS _____________________________________________ 2
BEFORE USING YOUR REMOTE STARTER _____________________________ 2
THE REMOTE CONTROL _____________________________________________3
U
SING YOUR REMOTE CONTROL _________________________________________ 3
BATTERY REPLACEMENT ______________________________________________ 3
TABLE OF COMMANDS______________________________________________4
START COMMANDS___________________________________________________ 5
SECURITY SYSTEM ___________________________________________________8
LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING _____________ 13
OTHER COMMANDS _________________________________________________ 14
SAFETY CHECKS __________________________________________________17
H
OOD SWITCH _____________________________________________________17
G
EARSHIFT CHECK _________________________________________________ 17
REPLACING OR BOOSTING VEHICLE BATTERY ________________________ 17
2
SAFETY PRECAUTIONS
Before using this product, carefully read the following safety precautions.
• Immediately report any malfunction to the dealer that performed installation.
• Under no circumstance can this product or its use be modified.
• Always turn off main switch when vehicle is parked in an enclosed, unventilated area or is in
for servicing.
• Always turn off main switch when not using your Remote Starter for extended periods of time.
• Keep remote controls away from children.
• Have your engine tuned regularly to ensure optimum performance of your Remote Starter.
• Make sure your windshield wipers are turned off before leaving vehicle.
• Regularly check safety features that stop engine (see “SAFETY CHECKS” on page 17.)
• Make sure you comply with all local regulations, which may prohibit leaving your engine
running when vehicle is unattended in a public place.
• Always advise service personnel that your vehicle is equipped with a Remote Starter equipped
with a starter cut function.
• We strongly recommend that you have your system checked annually.
Contact the dealer in your area.
BEFORE USING YOUR REMOTE STARTER
Before leaving your vehicle, set the various controls in order to use your Remote Starter.
• Set heating/air-conditioning controls to desired position. (When the remote starter starts your
engine, it will also turn on your climate control system.)
• Turn your windshield wipers to the “OFF” position.
• Make sure gearshift is in “P”.
3
THE REMOTE CONTROL
Your remote control has been designed to fit the natural contours of your hands so that it is easier to use. It
works off three long-life lithium batteries.
It can control two vehicles separately. Up to four remote controls can be assigned to your vehicle. See
your dealer for replacement batteries or additional remote controls.
NOTE: The range of your remote control can be affected by a weak battery, interference from nearby metal
structures, hydro poles, or crowded parking lots.
USING YOUR REMOTE CONTROL
Your remote control can transmit on two different channels,
allowing control of two separate vehicles.
Only the “Panic” command is transmitted on both channels
simultaneously.
Each command being transmitted is confirmed by both an
audible and a visual signal (LED indicator).
CHANNEL 1 :
To transmit a command
on channel 1, press
desired button for two
seconds.
CHANNEL 2 :
To transmit a command on channel 2, press desired button, then
as soon as a tone is heard or LED flashes once, release the button
for a moment then press it again and hold it down for two seconds.
A command will not be executed if you do not press button long enough.
Only one command will be transmitted even if a button is pressed for more than two seconds except for the
Stop button, that will send a Panic command if hold more than 4 seconds.
The remote control supplied in the kit may differ from the one illustrated above.
BATTERY REPLACEMENT
Your remote works off three 3-volt lithium CR-2016 batteries or
equivalent.
We strongly recommend that you keep a replacement set in
your glove compartment.
To replace the batteries, remove screw on back of remote
case, remove old batteries and replace with new ones. Make
sure that batteries point the right way; see illustration opposite.
Start
Lock / Arm
Trunk
LED
Unlock / Disarm
Stop
Panic
4
TABLE OF COMMANDS
COMMANDS BUTTONS CONFIRMATION
(PICTOGRAM) HORN LIGHTS SIREN
PANIC
> 4
SEC.
30 / 60
SEC.
30 / 60
SEC.
30 / 60
SEC.
START / CONTINUOUS MODE
1
1
STOP
1
LOCK / ARM
1
1 / 3
1 / 3 / X
UNLOCK / DISARM
2 /
4
2 / 4 / X
TRUNK
3 3
ACTIVATE / DEACTIVATE SENTINEL MODE
2 / 3 / 4
ACTIVATE / DEACTIVATE UTILITY # 1
1
ACTIVATE / DEACTIVATE UTILITY # 2
1
RUNTIME ADJUSTMENT
1 - 4
PRESET TEMPERATURE ADJUSTMENT
1 - 4
CAR FINDER
7 3
DISPLAY REMOTE START FAIL CODES
1 - 19
DISPLAY ALARM ZONE CODES
1 – 8
THIS CONFIRMATION IS SENT ONLY IF START COMMAND IS REPEATED WHEN ENGINE IS ALREADY RUNNING
THIS COMMAND TERMINATES: RUNTIME, PANIC MODE AND ALARM CONDITION
WHEN CHIRPS OR ALARM IS DEACTIVATED
W
HEN "CONFIRMATION ON 2ND LOCK" IS ENABLED.
THESE CONFIRMATIONS ARE PROGRAMMABLE AS ACTIVE/INACTIVE DURING INSTALLATION.
1 = NO ZONE IS IN VIOLATION DURING ARMING 3 = AT LEAST ONE ZONE IS IN VIOLATION DURING ARMING
X = NO CHIRP WHEN VALET MODE IS ACTIVE OR WHEN ALARM IS PROGRAMMED AS DISABLED
TEMPORARY VALET MODE IS ACTIVATED IF COMMAND IS REPEATED DURING REARM CYCLE WHEN AALRM SET IN PASSIVE
REARMING AT THE INSTALLS
2 = NO ZONE WAS IN VIOLATION WHILE
ALARM WAS ARMED
4 = A
T LEAST ONE ZONE WAS IN VIOLATION
WHILE ALARM WAS ARMED
2 = DEACTIVATION 3 = SYSTEM NOT READY 4 = ACTIVATION
ONLY IF SYSTEM IS EQUIPPED WITH A SENSOR CAPABLE OF DETECTING TRUNK RELEASE (OPTIONAL).
CONFIRMATION
In all cases, your Remote Starter will confirm that command has been received properly.
This will be done by either sounding horn and/or siren or flashing parking lights. In this manual,
confirmation signals are written in an abbreviated form; for example:
(horn: 1, lights: 2) Means that horn will sound once and parking lights will flash twice.
Parking light confirmations are mandatory. Horn confirmations are optional (programmable) and require an
additional connection and equipment during installation.
Confirmations are explained in more detail under each command.
