AstroStart 2504A User Manual

REMOTE CONTROL

ENGINE STARTER

USER MANUAL

Model 2504A

For all gas- and

diesel-powered vehicles

This model may

be equipped with an

optional security system..

(FRANÇAIS AU VERSO)

ONSULT SAFETY PRECAUTION SECTION

BEFORE USING THIS PRODUCT.

OME FEATURES MAY REQUIRE

PATENT NOS

CAN 1.130.426

USA 4.345.554 - 5.614.883

- 5.617.819 - 5.673.017

AND OTHER PATENTS PENDING

JULY 2006 193-127-319-00

ADDITIONAL MATERIAL (NOT INCLUDED).

Manufactured in Canada by:

GOVERNMENT REGULATIONS

This device complies with the requirements of Industry Canada (IC) - Management of Radiofrequencies, as specified in document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in

authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and (2) this device must accept interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

Warning:

Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the equipment.

other words, this device must not be used if it is determined that it causes harmful interference to services

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio / TV technician for help.

ELECTRONICS.

6164 Chemin de Saint-Élie Sherbrooke, Qc, CANADA

J1R 0L1

ELECTRONIC CORP.

516A Elm Street

Manchester, NH 03101

USA

www.astroflex.com

THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!

Just like you are, Astroflex is concerned with the environment.

This is why we are suggesting you to use the two-minute runtime

when you remote-start your vehicle to warm up engine fluids.

You can set the runtime yourself using your transmitter.

We take this opportunity to remind you to properly defrost your windows

and remove all the snow on your vehicle before driving on public roads.

Rolling igloos are extremely dangerous!

We wish you an excellent journey with your remote engine starter!

USER GUIDE FOR 2504A REMOTE ENGINE STARTER

The 2504A is a remote engine starter system that provides unlock features allowing remote control of door and trunk locks. These features are optional and may require additional material and/or wiring during installation.

When it is interfaced with an optional safety system, not only does it allow to start the vehicle at a distance, it can sound an alarm and prevent engine from starting should someone try to steal your vehicle or its contents.

Table of contents

SAFETY PRECAUTIONS____________________________________________________________________________ 2

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES ---------------------------------------------------------------------------------------------------------------3

PREPARING SYSTEM -------------------------------------------------------------------------------------------------------------------------------------------------------------3

THE REMOTE CONTROL ___________________________________________________________________________ 4

SELECTING TRANSMISSION CHANNEL -----------------------------------------------------------------------------------------------------------------------------------------4

BATTERY REPLACEMENT --------------------------------------------------------------------------------------------------------------------------------------------------------4

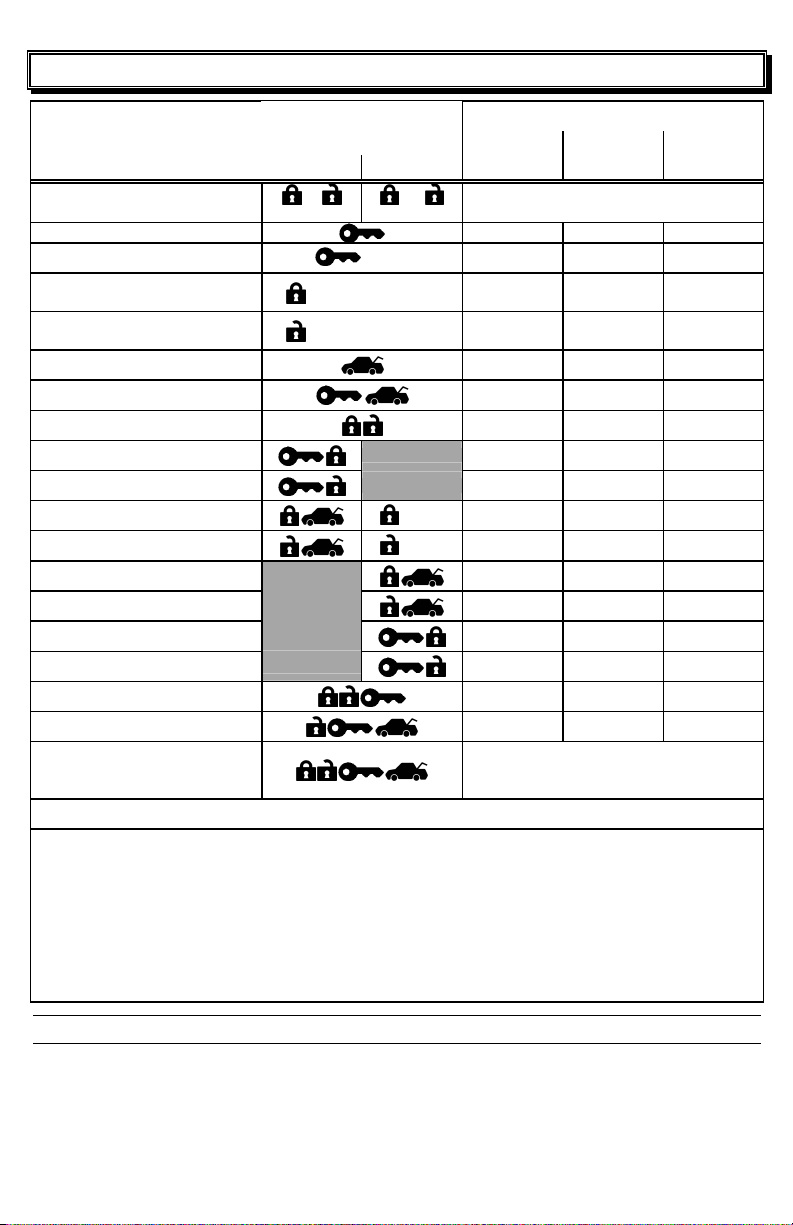

TABLE OF COMMANDS ____________________________________________________________________________ 5

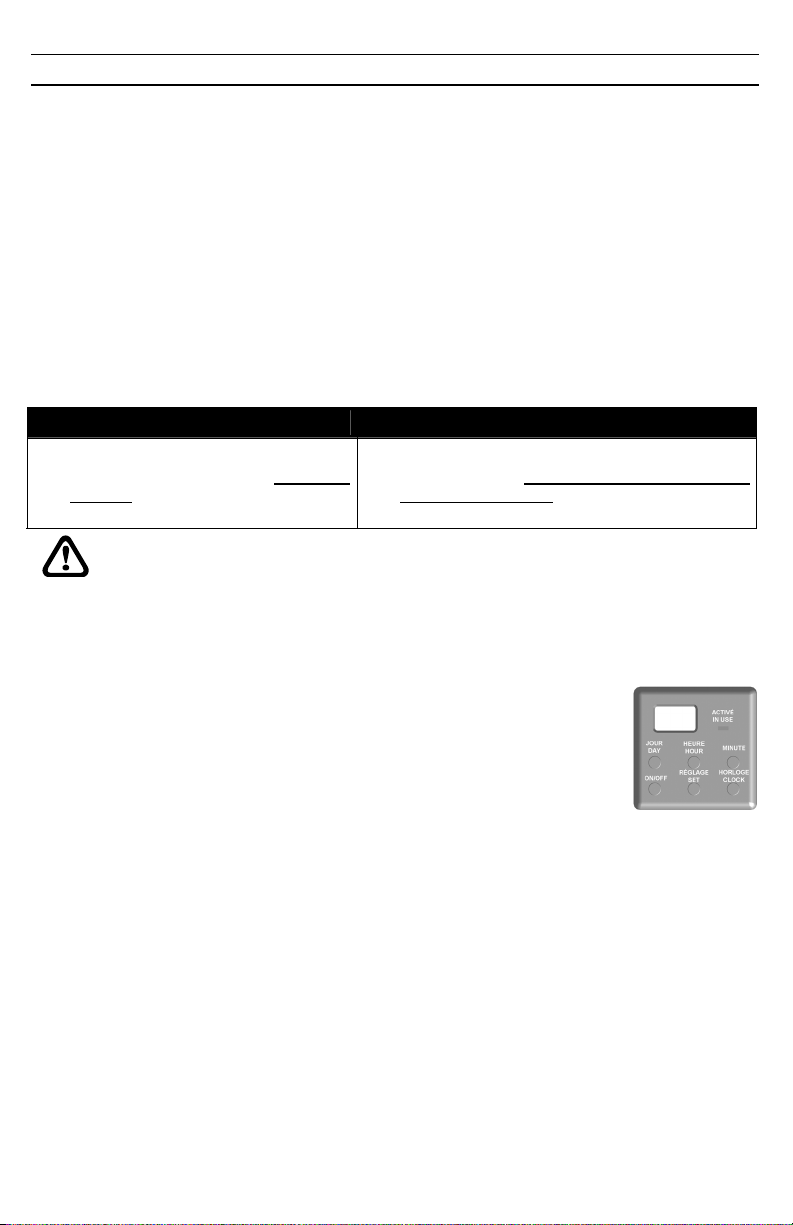

START COMMANDS ---------------------------------------------------------------------------------------------------------------------------------------------------------------6 SECURITY SYSTEM (OPTIONAL) ---------------------------------------------------------------------------------------------------------------------------------------------9 LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING --------------------------------------------------------------------------------------------------13 OTHER COMMANDS -------------------------------------------------------------------------------------------------------------------------------------------------------------15

CODE LEARNING OF ADDITIONAL TRANSMITTER(S) __________________________________________________ 17 SAFETY CHECKS ________________________________________________________________________________ 17

HOOD SWITCH ------------------------------------------------------------------------------------------------------------------------------------------------------------------ 17 GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES ------------------------------------------------------------------------------------------- 18 GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES ----------------------------------------------------------------------------------------------- 18

REPLACING OR BOOSTING VEHICLE BATTERY ______________________________________________________ 18

SAFETY PRECAUTIONS

Before using this product, carefully read the following safety precautions.

GENERAL RULES

• Never perform a remote start

• Do not allow

control (continuous mode).

• Immediately report any malfunction to the AstroStart dealer that performed the installation.

• Under no circumstance can this product or its use be modified.

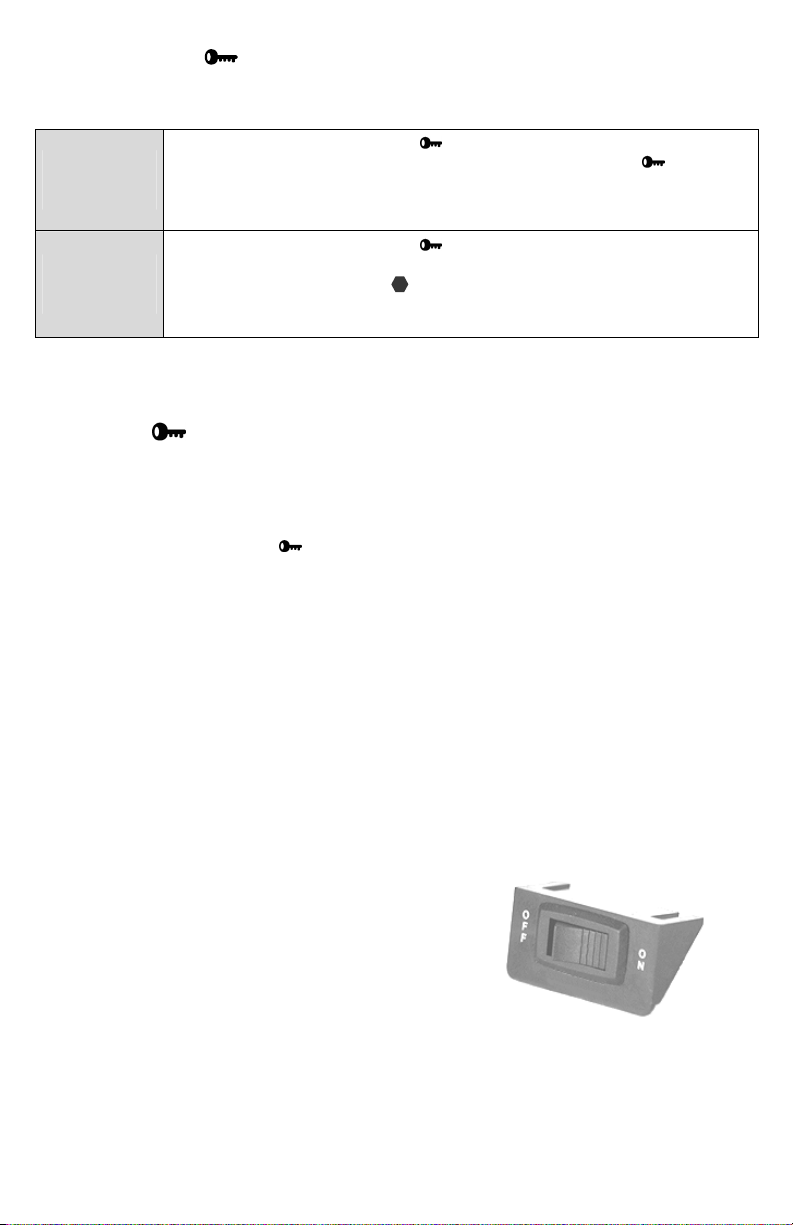

• Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.

• Always turn off the main switch when not using your remote starter for extended periods.

• Keep remote controls away from children

• Have your engine tuned regularly to ensure optimum performance of your remote starter.

• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.

• Regularly check safety features that stop engine (see "Safety Checks" on page 17.)

• Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is

unattended in a public place.

• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system.

• Always advise service personnel that your vehicle is equipped with a remote starter.

• We strongly recommend

• All users of the vehicle should be aware

• Make sure that the warning sticker is present on the driver's window.

SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES

• Make sure that the parking brake is operational, i.e. it can prevent the vehicle from moving

• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the

liftgate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended to have a motion detector (microwave) installed with the system. This device prevents the engine from starting should any activity be detected near the gearshift.

any person or animal to remain inside the vehicle when the engine is running under remote starter

when a person or animal is inside the vehicle.

that you have your remote starter checked annually. Contact a dealer in your area.

of the safety precautions and operation procedures.

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES

Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in neutral position when you exit the vehicle. This series of actions is called a "safety sequence" and is aimed at preventing any remote start in situations where remote starting the engine would not be safe. Should the hatchback or any door be opened at any time, the intrusion will be detected and the safety sequence will be cancelled by the system, thus preventing a remote start. In such cases, the sequence must be repeated to allow for an eventual remote start. The system offers two execution modes for the sequence. These options must be set at time of installation. The first mode is initiated by the parking brake and the other by the remote control.

The safety sequence must be performed as follows.

Sequence activated by the parking brake

1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move gearshift lever to neutral.

3. Apply the parking brake Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice. If set for two actuations, pause one second between the two.

4. Remove key from ignition (the system keeps the engine running).

5. Exit the vehicle.

6. Within 60 seconds, close all doors.

7. The system will stop the engine except if Turbo Mode or Continuous Mode is active and blink the parking brakes once to confirm the sequence is valid (vehicle is ready for a remote start command).

Sequence activated by the remote control

1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move gearshift lever to neutral.

3. Apply parking brake.

4. Press

button on your remote control.

5. Remove key from ignition (the system keeps the engine running).

6. Exit the vehicle and close all the doors.

End of sequence by shutting doors

The system will stop the engine except if

Turbo Mode or Continuous Mode is on.

The parking lights will blink once to confirm that the sequence is valid (vehicle is ready for a remote start

command). * The end of sequence option is set at time of installation.

NOTES: If you release the brake pedal and depress it once more during or after the execution of the safety sequence, the safety sequence will be invalidated and any remote start will be impossible.

If the engine stops when the key is removed from the ignition, the safety sequence is invalid. Perform a new safety sequence. If problem persists, consult your installer.

Once Twice

End of sequence by stop command

Press on the

button of the remote.

The system will stop the engine. Note that the

Turbo Mode is unavailable with this option.

PREPARING SYSTEM

When you exit the vehicle, you need to prepare the remote starter for its next use.

• If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a valid safety sequence.

• If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P" position.

• Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also turn on your climate control system).

• Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be sent to the vehicle, i.e. when heavy snow immobilizes the wipers.

• Make sure that the headlights are turned off.

• Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock

automatically.

THE REMOTE CONTROL

Your remote control can transmit on two different channels, allowing control of two separate vehicles. Up to four remote controls can be assigned to your vehicle. NOTE: The range of your remote control can be affected by a weak battery, interference from

nearby metal structures, hydro poles, or crowded parking lots. Only the "Panic" command is transmitted on both channels when a single command is sent

(alternating transmission channels). The transmitter provides audible (piezo) and visual (LED The LED lights-up red when it transmits on channel one or green when it transmits on channel two. The remote shown may differ from the one included in the kits.

SELECTING TRANSMISSION CHANNEL

CHANNEL 1 CHANNEL 2

) confirmation.

Press desired button for two

seconds.

A command will not be executed if you do not press button long enough except for the 2504 remote that immediately transmit when either the lock or unlock button is pressed. In that case, the command is sent at reduced power.

Only one command is transmitted even when a button is pressed for more than two seconds, except for the "Panic" command, which is repeated as long as button is pressed.

Your system may be programmed in such a way that it can distinguish between two groups of remote controls (maximum: two remotes per group). These groups let you activate predefined settings (seat, mirror and other) when unlocking certain vehicles (additional optional equipment required).

Momentarily press the «» button, then as soon as a

tone is heard or that the red LED lights-up, press the

desired button and hold it down for two seconds.

BATTERY REPLACEMENT

Your remote works off two 3-volt lithium CR-2016 batteries or equivalent. To replace the batteries, use a coin to snap open the remote casing via the slot on

the side of the remote, remove old batteries and replace them with new ones. Make sure to properly replace the insulating strap around both batteries and to properly orient the batteries; see illustration opposite.

Close the casing by applying a pressure on both parts while these are properly aligned.

(2) CR-2016
