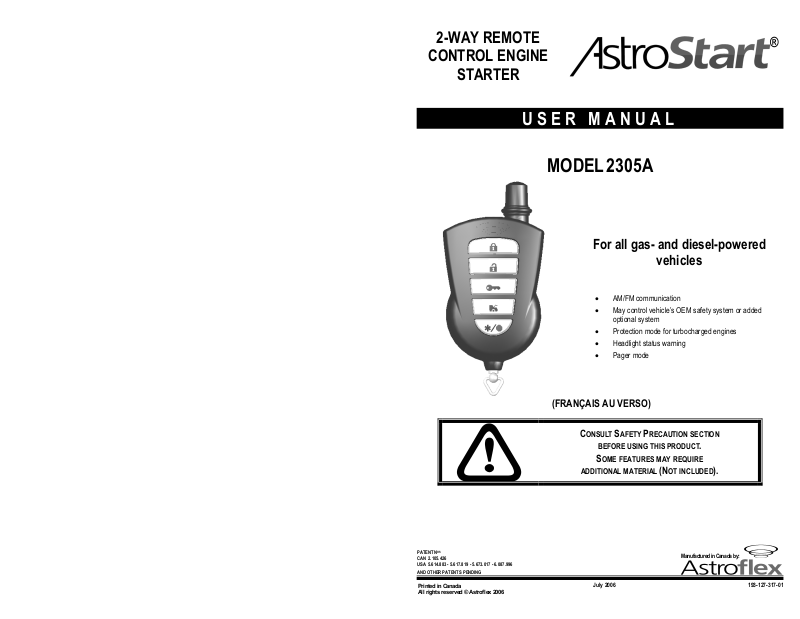

AstroStart 2305A User Manual
2-WAY REMOTE
CONTROL ENGINE
STARTER
USER MANUAL
MODEL 2305A
For all gas- and diesel-powered
• AM/FM communication
• May control vehicle’s OEM safety system or added
optional system
• Protection mode for turbocharged engines
• Headlight status warning
• Pager mode
vehicles
®
PATENT NOS
CAN 2.105.426
USA 5.614.883 - 5.617.819 - 5.673.017 - 6.087.996
AND OTHER PATENTS PENDING
Printed in Canada
All rights r eserved © Astroflex 2006
July 2006 193-127-317-01
(FRANÇAIS AU VERSO)
C
ONSULT SAFETY PRECAUTION SECTION
ADDITIONAL MATERIAL (NOT INCLUDED).
BEFORE USING THIS PRODUCT.
S
OME FEATURES MAY REQUIRE
Manufactured in Canada by:
GOVERNMENT REGULATIONS
This device complies with the requirements of Industry Canada (IC) - Management of Radio Frequencies,
as specified in document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in
authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this
interference could affect the operation of the device.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct
the interference by one or more of the following measures:
Warning
Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the
equipment.
other words, this device must not be used if it is determined that it causes harmful interference to services
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
Consult the dealer or an experienced radio / TV technician for help.
:
ELECTRONICS.
6164 Chemin de Saint-Élie
Sherbrooke, Qc, CANADA
J1R 0L1
ELECTRONIC CO RP.
516A Elm Street
Manchester, NH 03101
USA
www.astroflex.com
THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!
Like you, Astroflex is concerned with the environment.
This is why we suggest using the two-minute runtime
when you remote start your vehicle to warm up engine fluids.
We take this opportunity to remind you to properly defrost your windows
and remove all the snow from your vehicle before driving on public roads.
Rolling igloos are extremely dangerous!
We wish you an excellent journey with your remote engine starter!
USER GUIDE FOR 2305A REMOTE ENGINE STARTER
The 2305A remote starter is a bi-directional remote engine start system. This means that it can communicate both ways and
therefore return an acknowledgment to the transmitter and/or communicate the status of the vehicle.
It offers a keyless entry feature allowing the user to operate the door locks as well as access to the trunk of the vehicle.
These features are optional and may require additional material and/or wiring during installation.
An optional alarm kit (P/N 310-120-503) can be added to the control module to warn you of the access status of the vehicle
and/or and intrusion.
The functions relative to the safety system described in this manual apply only when the alarm kit has been added.
Table of contents
SAFETY PRECAUTIONS____________________________________________________________________________ 2
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES--------------------------------------------------------------------------------------- 3
PREPARING SYSTEM ---------------------------------------------------------------------------------------------------------------------------------------3
THE REMOTE CONTROL ___________________________________________________________________________ 4
PAGER -------------------------------------------------------------------------------------------------------------------------------------------------------5
RANGE SETTING-------------------------------------------------------------------------------------------------------------------------------------------5
TABLE OF COMMANDS ____________________________________________________________________________ 6
START COMMANDS -----------------------------------------------------------------------------------------------------------------------------------------8
SECURITY SYSTEM---------------------------------------------------------------------------------------------------------------------------------------- 11
LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING ------------------------------------------------------------------------- 15
OTHER COMMANDS ---------------------------------------------------------------------------------------------------------------------------------------16
CODE LEARNING OF ADDITIONAL TRANSMITTER(S) __________________________________________________ 20
SAFETY CHECKS ________________________________________________________________________________ 21
HOOD SWITCH ---------------------------------------------------------------------------------------------------------------------------------------------21
GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES ------------------------------------------------------------------ 21
GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES----------------------------------------------------------------------- 22
REPLACING OR BOOSTING VEHICLE BATTERY ______________________________________________________ 22
1
SAFETY PRECAUTIONS
Before using this product, carefully read the following safety precautions.
GENERAL RULES
• Never perform a remote start
• Do not allow
starter control (continuous mode).
• Immediately report any malfunction to the AstroStart dealer that performed the installation.
• Under no circumstance can this product or its use be modified.
• Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.
• Always turn off the main switch when not using your remote starter for extended periods.
• Keep remote controls away from children
• Have your engine tuned regularly to ensure optimum performance of your remote starter.
• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.
• Regularly check safety features that stop engine (see SAFETY CHECKS on page 21.)
• Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is
unattended in a public place.
• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check
and/or tune the remote starting system.
• Always advise service personnel that your vehicle is equipped with a remote starter.
• We strongly recommend
• All users of the vehicle should be aware
• Make sure that the warning sticker is present on the driver's window.
SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES
• Make sure that the parking brake is operational, i.e. it can prevent the vehicle from moving
• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the
liftgate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended to have a motion
detector (microwave) installed with the system. This device prevents the engine from starting should any activity
be detected near the gearshift.
any person or animal to remain inside the vehicle when the engine is running under remote
when a person or animal is inside the vehicle.
.
that you have your remote starter checked annually. Contact a dealer in your area.
of the safety precautions and operation procedures.
.
2
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES
Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in
neutral position when you exit the vehicle.
This series of actions is called a "Safety sequence" and is aimed at preventing any remote start in situations where remote
starting the engine would not be safe.
Should the hatchback or any door be opened at any time, the intrusion will be detected and the safety sequence will be
cancelled by the system, thus preventing a remote start. In such cases, the sequence must be repeated to allow for an
eventual remote start.
The system offers two execution modes for the sequence. These options must be set at time of installation. The first mode
is initiated by the parking brake and the other by the remote control.
The safety sequence must be performed as follows.
Sequence activated by the parking brake
1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2. Move gearshift lever to neutral.
3. Apply the parking brake
Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice.
If set for two actuations, pause one second between the two.
4. Remove key from ignition (the system keeps the engine running).
5. Exit the vehicle.
6. Within 60 seconds, close all doors.
7. The system will stop the engine except if Turbo Mode or Continuous Mode is active and blink the parking brakes
once to confirm the sequence is valid (vehicle is ready for a remote start command).
Sequence activated by the remote control
1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2. Move gearshift lever to neutral.
3. Apply parking brake.
4. Press
button on your remote control.
5. Remove key from ignition (the system keeps the engine running).
6. Exit the vehicle and close all the doors.
End of sequence by shutting doors
7.
The system will stop the engine except if
Turbo Mode or Continuous Mode is on.
The parking lights will blink once to confirm that the sequence is valid (vehicle is ready for a remote start
command). * The end of sequence option is set at time of installation.
NOTES: If you release the brake pedal and depress it once more during or after the execution of the safety sequence, the
safety sequence will be invalidated and any remote start will be impossible.
If the engine stops when the key is removed from the ignition, the safety sequence is invalid. Perform a new safety
sequence. If problem persists, consult your installer.
.
Once Twice
*
End of sequence by stop command
Press on the
button of the remote.
The system will stop the engine. Note that the
Turbo Mode is unavailable with this option.
*
PREPARING SYSTEM
When you exit the vehicle, you need to prepare the remote starter for its next use.
• If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a
valid safety sequence.
• If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P"
position.
• Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also
turn on your climate control system).
• Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be
sent to the vehicle when, for example, snow prevents the wipers from moving.
• Make sure that the headlights are turned off.
• Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock
automatically.
3
THE REMOTE CONTROL
A maximum of four remote controls can be assigned to your vehicle. See your dealer for additional remote controls.
NOTE: The range of your remote control can be affected by weak batteries, interference from nearby metal structures,
hydro poles, or crowded parking lots.
USING YOUR REMOTE CONTROL
To send a command, press for two seconds on the appropriate button.
Command may not be sent if the button is not pressed long enough.
The remote control beeps when a button is pressed, then emits ten short beeps
during the transmission.
Your remote control can transmit on two different channels, allowing control of
two separate vehicles. Only the “Panic” command is transmitted on both
channels simultaneously.
An audible confirmation (piezo) is emitted along with a visual confirmation (LED
indicator) each time a command is sent.
The remote control pictured may differ from that included in the kit.
Your system may be programmed in such a way that it can distinguish between
two groups of remote controls (maximum: two remotes per group). These groups
let you activate predefined settings on certain vehicles (seat, mirror and other),
for example, when unlocking (additional optional equipment required).
TRANSMISSION OF A COMMAND
CHANNEL 1
To transmit a command
on channel 1, press desired
button for two seconds.
As soon as a command is sent, the remote switches over to standby mode in order to receive and display confirmations
sent by the command module installed in the vehicle.
These signals are transmitted only once and could be neutralized by radio or electromagnetic interferences generated by
electronic devices in the vicinity.
If no confirmation is received in a given location, move away from electronic devices and activate the "Status" command
(
then ). The start module will inform you of the status of door locks, alarm, and running of the engine (See Table of
commands on page 6).
Note that the communication between the vehicle and the transmitter operates in only one direction at a time. This is why it
is recommended to wait for the confirmation before sending another command. Otherwise, the vehicle and the transmitter
could transmit at the same time wich would block the command as well as the returned confirmation.
Out of range
If the vehicle is out of range, the transmitter will emit a soft chirp after 3 seconds and all the buttons will flash except those
that where pressed to send the commande to indicate that the command has not been received by neither the module nor
the transmitter.
CONFIRMATIONS EMITTED BY THE REMOTE
Each time a command is transmitted, the system returns a confirmation acknowledging the command was received.
The confirmation consists of the blinking of the LEDs used to transmit the command.
CHANNEL 2
To transmit a command on channel 2, press desired button, then as soon as a beep is
heard, release the button for a moment then press it again and hold it down for two
seconds. The remote beeps twice to confirm transmission on channel 2.
4
REPLACING THE BATTERY
When the sound becomes low-piched on a audio confirmation this means that the batteries
need to be replaced.
The remote control requires two 3-volt lithium batteries (CR-2430 or equivalent).
We strongly recommend keeping a set of replacement batteries in your glove
compartment.
To replace the battery, remove the screw on the back cover of the remote control,
remove old batteries and replace them with new ones.
Make sure batteries are placed in the right direction (see pictogram opposite).
PAGER
The 2305A remote is equipped with a function called ‘Pager’. It has two purposes: send to all remote controls related to the
system a general call asking those who carry them to get to the vehicle or to perform a task previously established. The
other function is to locate a misplaced remote control.
Paging from the vehicle
To send a general call, the user must press the ‘Valet’ switch and hold it for 3 seconds while engine is stopped
not in the ignition
button hided under the dash board).
Parking lights on the vehicle blink once to confirm the call was sent.
All remote controls (maximum: 4) located within the radio frequency range of the vehicle will begin to chirp. To silence the
remote control, press any button.
Paging from a remote
Press the
The remote control which is being called will begin to chirp if it is located within the radio frequency range of the emitting
remote control. To silence the remote control, press any button.
Note : In order for a remote control to receive a call from another remote, it is essential
that is being called
Proceed as follows to enter the access code of the ‘B’ remote control in the ‘A’ remote control’s memory.
On remote ‘A’: Press on the
the remote emits a series of rapid beeps.
On remote ‘B’: Press on the
If sequence is correct: the ‘A’ remote will emit a tone, then the
Reverse sequence order to enter access code of ‘A’ remote in ‘B’ remote’s memory.
, or while engine is remote started (see ‘Valet Mode’ on page 14)(The valet switch is a small red push
button (2 sec.) and then, within 10 seconds, the button (2 sec.).
that the access code of the remote
has been memorized by the remote making the call.
button (2 sec.) then, within 10 seconds, press the and buttons simultaneously until
button (2 sec.) then, within 10 seconds, press momentarily on the button (2 sec.).
button will blink once.
and key is
RANGE SETTING
This fonction prevents from unlocking the doors or releasing the trunk should a command be transmitted accidently while
you are away from the vehicle.
When the remote is set in "Reduced" mode, you must be close to the vehicle for the system to perform the command. This
function only affects the "Unlock" and the "Trunk" commands.
Press the
simultaneously (2 sec.) to select the next of the 3 available
options, the table indicates the range according to the numbers
of blinks obtained.
button (2 sec.) then the and buttons
NUMBER OF FLASH
2 2
1 -
1 1
R
ANGE
NORMAL, NORMAL
REDUCED, NORMAL
REDUCED, REDUCED
5
TABLE OF COMMANDS
CONFIRMATION
COMMANDS
START / CONTINUOUS MODE
STOP
ACCESS TO COMMAND GROUP #2
LOCK / ARMING *
UNLOCK / DISARMING *
TRUNK
PANIC
CAR FINDER
GROUP 1
SENTINEL
RUNTIME
VALET MODE
UTILITY 1
UTILITY 2
STATUS
STOP
ACCESS TO COMMAND GROUP #1
KEYPAD (REMOTE CONTROL)
MUTE (REMOTE CONTROL)
PAGER
REMOTE PROGRAMMING
RANGE SETTING
GROUP 2
START TEMPERATURE
DISPLAY START FAIL CODES
DISPLAY ALARM CODES *
UTILITY 3
UTILITY 4
ACTIVATE
CANCEL
ACTIVATE 4 1X 1
CANCEL
ACTIVATE 1X 1
CANCEL
ACTIVATE 1X 1
CANCEL
STARTING POSSIBLE
STARTING DISABLED
UNLOCK
ACTIVATE
CANCEL
LOCK
BUTTONS
> 4 sec.
> 2 sec.
> 4 sec.
> 4 sec.
> 4 sec.
> 2 sec.
LEGEND :
= BLINKING LED 0 – NUMBER OF CHIRPS OR BEEPS
= MELODY OR TONE, REPLACED BY VIBRATIONS IN MUTE MODE, EXCEPT FOR PANIC AND PAGER COMMANDS
0
= REFERS TO A COMMENT IN TABLE ON FOLLOWING PAGE “ – “ = NO CONFIRMATION
REMARKS:
* ITEMS FOLLOWED BY AN ASTERISK (*) APPLY ONLY TO COMMAND UNITS EQUIPPED WITH A SECURITY SYSTEM.
O ZONE IS IN VIOLATION DURING ARMING. 2 = NO ZONE WAS IN VIOLATION WHILE ALARM WAS ARMED. 3 = AT LEAST ONE ZONE IS IN VIOLATION
1 = N
DURING ARMING
IS PROGRAMMED AS DISABLED
. 4 = AT LEAST ONE ZONE WAS IN VIOLATION WHILE ALARM WAS ARMED. X = NO CHIRP WHEN VALET MODE IS ACTIVE OR WHEN ALARM
VEHICLE REMOTE CONTROL
LIGHTS SIREN * BUTTON (LED) BEEP
1 -
1 - 1
- -
1 / 3* 1 / 3 / X * 1
2 / 4* 2 / 4 / X * 2
3 / 1 - 1
SEC. -
30 / 60
3 - 1
4
3
2
1 - 4 -
2
1 -
1 -
- -
1 - 1X
- - - -
- -
- -
- - 16X 16
See Pager on page 5.
See Range setting on page 5.
1 - 4 - 1X 1-4
1 - 20 - 1X 1-20
1 - 8 - 1x 1-8
1 - 1X 1
1 - 1X 1
1X A 1
2X B 2
10X C
1
X D 1-20
X /2X 1 /2
-
-
1X 1
2
1
X
X 2
2
2x
2x
X
(10 sec.) -
X 1
X 2
X 1
X 2
2
2
2X 2
2X 2
1-4
1
2
1
-
6
Loading...
