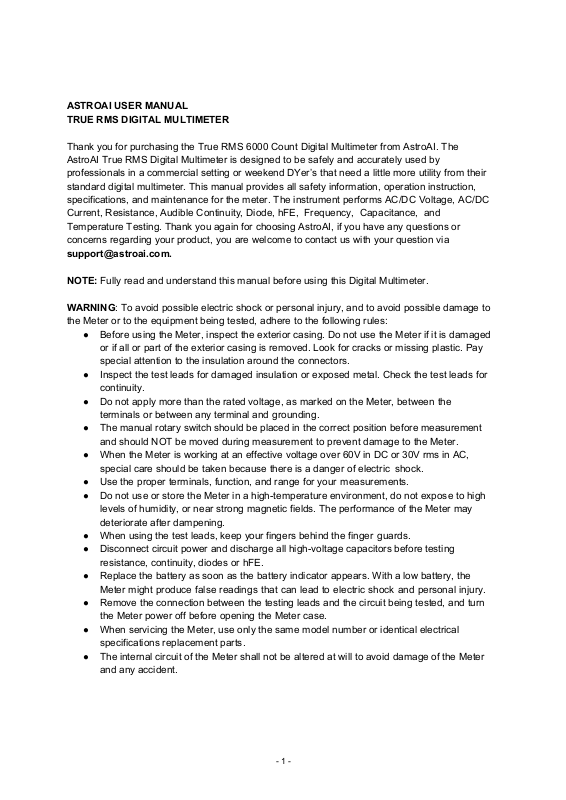

TRUE RMS DIGITAL MULTIMETER
Thank you for purchasing the True RMS 6000 Count Digital Multimeter from AstroAI. The AstroAI True RMS Digital Multimeter is designed to be safely and accurately used by professionals in a commercial setting or weekend DYer’s that need a little more utility from their standard digital multimeter. This manual provides all safety information, operation instruction, specifications, and maintenance for the meter. The instrument performs AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Diode, hFE, Frequency, Capacitance, and Temperature Testing. Thank you again for choosing AstroAI, if you have any questions or concerns regarding your product, you are welcome to contact us with your question via support@astroai.com.
NOTE: Fully read and understand this manual before using this Digital Multimeter.
WARNING: To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment being tested, adhere to the following rules:
●Before using the Meter, inspect the exterior casing. Do not use the Meter if it is damaged or if all or part of the exterior casing is removed. Look for cracks or missing plastic. Pay special attention to the insulation around the connectors.
●Inspect the test leads for damaged insulation or exposed metal. Check the test leads for continuity.
●Do not apply more than the rated voltage, as marked on the Meter, between the terminals or between any terminal and grounding.
●The manual rotary switch should be placed in the correct position before measurement and should NOT be moved during measurement to prevent damage to the Meter.
●When the Meter is working at an effective voltage over 60V in DC or 30V rms in AC, special care should be taken because there is a danger of electric shock.
●Use the proper terminals, function, and range for your measurements.
●Do not use or store the Meter in a high-temperature environment, do not expose to high levels of humidity, or near strong magnetic fields. The performance of the Meter may deteriorate after dampening.
●When using the test leads, keep your fingers behind the finger guards.
●Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes or hFE.
●Replace the battery as soon as the battery indicator appears. With a low battery, the Meter might produce false readings that can lead to electric shock and personal injury.
●Remove the connection between the testing leads and the circuit being tested, and turn the Meter power off before opening the Meter case.
●When servicing the Meter, use only the same model number or identical electrical specifications replacement parts.
●The internal circuit of the Meter shall not be altered at will to avoid damage of the Meter and any accident.
- 1 -
●Clean using a soft cloth and mild detergent for the surface of the Meter. Do not use abrasive materials or solvents to prevent the surface of the Meter from corrosion and damage.
●Turn the Meter off when not in use and take out the battery when it is not going to be used for an extended period of time. Regularly check the battery as it may leak when it has not been used for some time. Replace the battery as soon as leaking appears. A leaking battery will damage the Meter.
|
AC (Alternating Current) |
|
Low Battery |
|
|
|
|
|
|
|
|
|
|
|
|
DC (Direct Current) |
|
Diode |
|
|
|
|
|
|
|
AC and DC |
|
|
Fuse |
|
|
|
|
|
|
Earth Ground |
|
|
Continuity Test |
|
|
|
|
|
|
Double Insulated |
|
|
Warning |
|
|
|
|
|
AUTO |
Auto Range |
|
|
Dangerous Voltage may be present |
|
|
|
|
|
|
|
|
|
|
|
Complies with EU directives |
|
|
|
|
|
|
|
|
SPECIFICATIONS |
|
|
|
|
Digital Display |
5 ¾ , 5999 |
|
|
|
|
|
|
||
Sampling Speed |
2 times per second |
|
||
|
|
|
|
|
LCD Size |
|
64 x 42mm |
|
|
|
|
|
||
Range Selection |
Auto or Manual |
|
||
|
|
|
||
Polarity Indication |
Yes |
|
||
|
|
|
||
Overload Indication |
Yes |
|
||
|
|
|
||
Low Battery Indication |
Yes |
|
||
|
|
|
|
|
- 2 -
Operating Environment |
32°F~104°F (0°C~40°C); <80% RH |
|
|
Storage Temperature |
14°F~122°F (-10°C~50°C); <85% RH |
|
|
Power |
1 x 9V 6F22 Battery Included |
|
|
Dimensions |
190x90x35mm |
|
|
Weight |
Approx 357g |
|
|
|
|
Temperature Test |
Yes |
|
|
Transistor Test |
Yes |
|
|
Diode Test |
Yes |
|
|
Continuity Test |
Yes |
|
|
External Current Test |
Yes |
|
|
Capacitance |
Yes |
|
|
Frequency |
Yes |
|
|
|
|
Safety/Compliances |
EN 61010-1 CAT III 600V, CATII 1000V |
|
|
DC Voltage |
600mV6 ±(0.8%+5), V/60V/600V ±(0.8%+3), 1000V ±(1%+5) |
|
|
AC Voltage |
600mV ±(1.2%+8); 6V/60V/600V ±(1.2%+6); 750V ±(1.2%+8) |
|
|
Temperature |
-40°C~1370°C; -40°F~2000°F (1-5%+4 depending on temp) |
|
|
DC Current |
600μA/6000μA/60mA/600mA ±(0.8%+5); 6A/10A ±(1.5%+3) |
|
|
Transistor hFE |
PNP & NPN (lb≈2μA; Vce≈1V) |
|
|
Resistance |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(1.5%+3); 60MΩ ±(1.5%+5) |
|
|
Capacitance |
60nF/600nF/6μF/60μF/600μF/60mF |
|
|
Frequency |
0~60MHz ±(1%+5) |
Accuracy is guaranteed for 1 year when stored at 73°F ±9°F
- 3 -

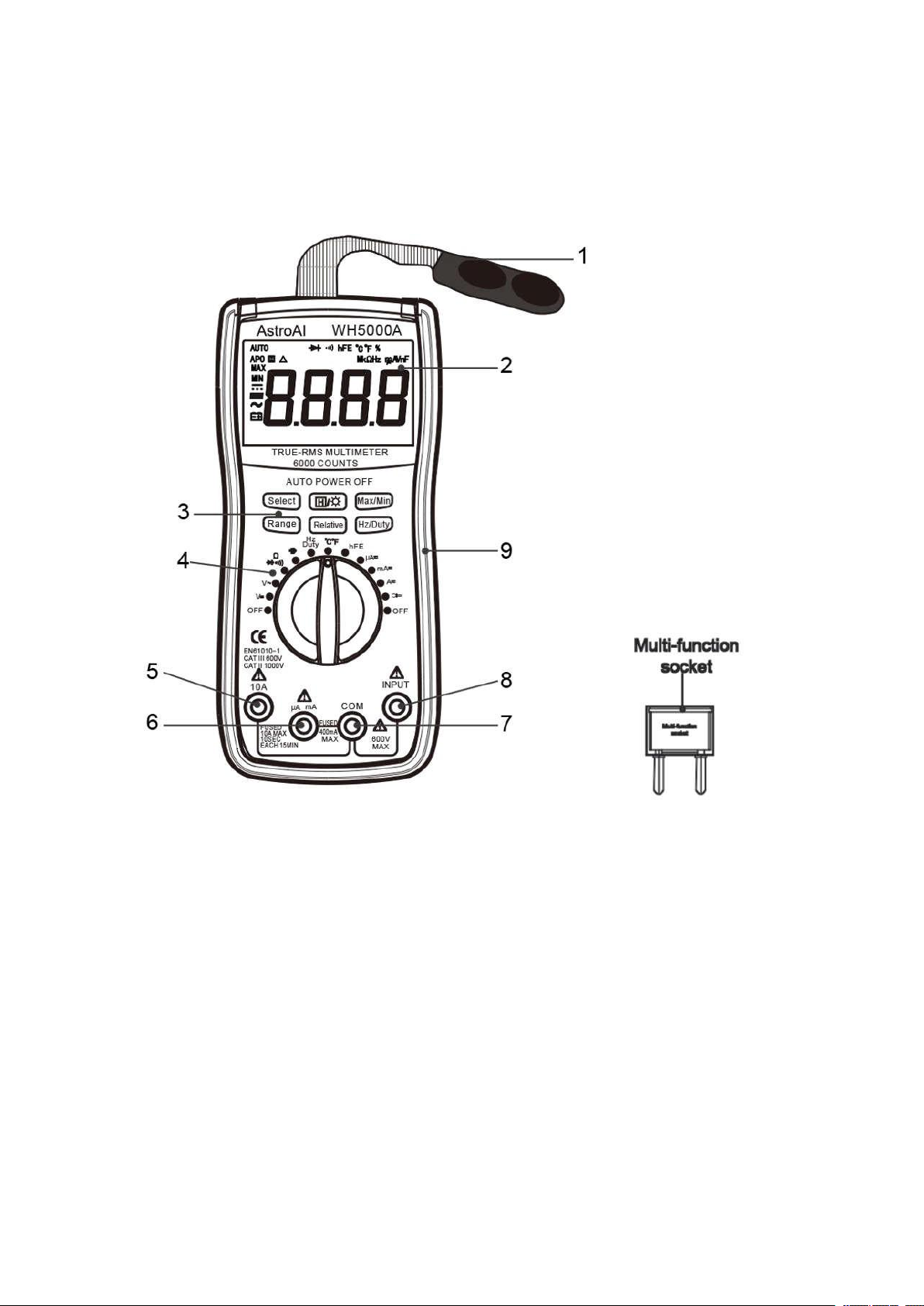

1.Magnetic Hanger
2.LCD Screen
3.Function Buttons
4.Rotary Function Switch
5.10A Terminal
6.μA/mA Terminal
7.COM Terminal
8.INPUT Terminal
9.Silicone Sleeve
10.Multi-Function Socket
- 4 -
% |

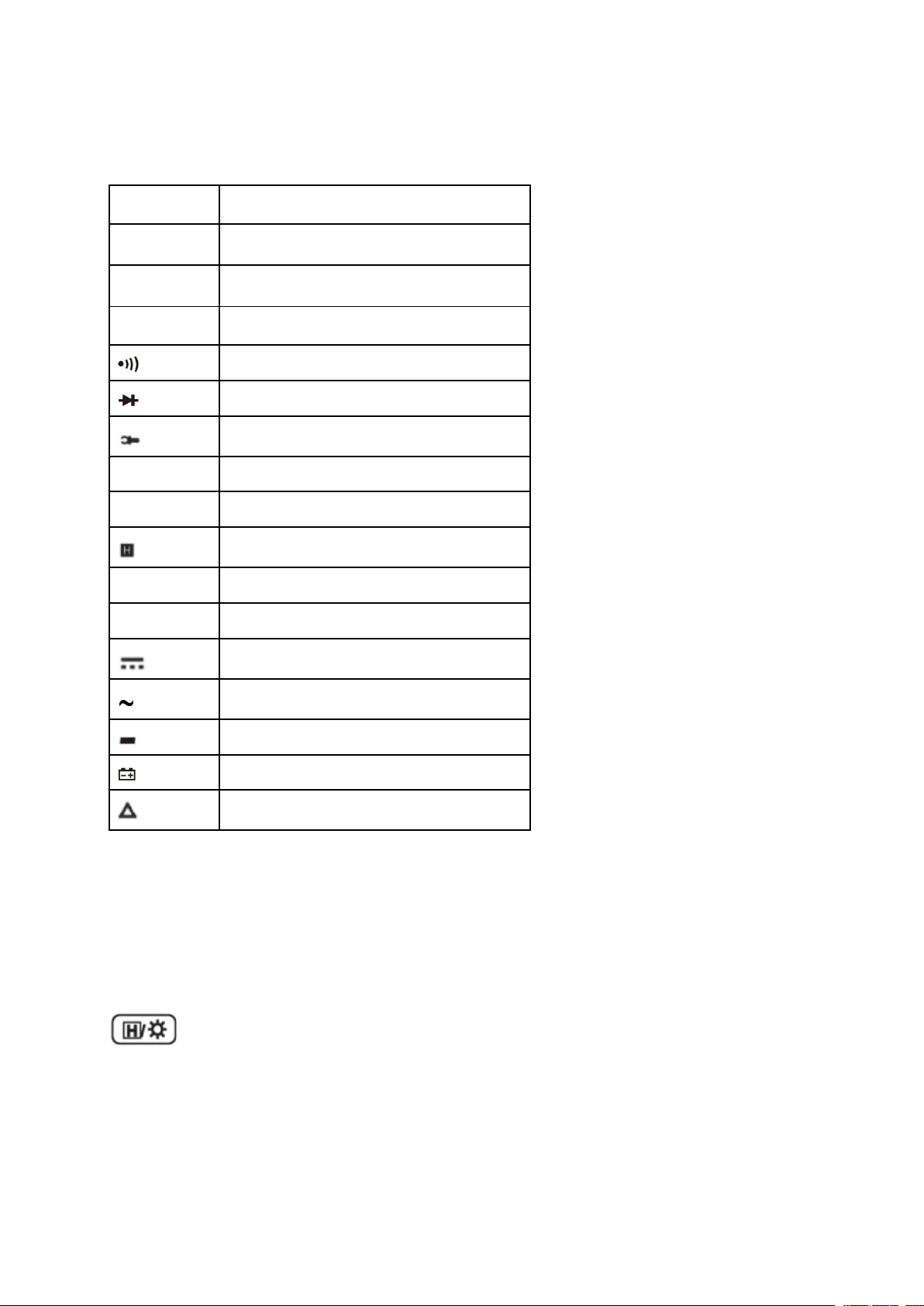

Duty Cycle |
|
|
|
Fahrenheit Temperature |
|
|
|
Celsius Temperature |
|
|
hFE |
Transistor hFE |
|
|
|
Continuity Test |
|
|
|
Diode Test |
|
|
|
External Current Test (Clamp) |
|
|
AUTO |
Autorange Mode |
|
|
APO |
Automatic Power-Off |
|
|
|
Data Hold |
|
|
MAX |
Maximum Reading |
|
|
MIN |
Minimum Reading |
|
|
|
DC |
|
|
|
AC |
|
|
|
Negative Reading |
|
|
|
Low Battery, Replace Immediately |
|
|
|
Relative Mode |
|
|
GETTING TO KNOW YOUR DEVICE Select Button
When using the rotary switch to select a multimeter function, use the Select Button to further select the function. This applies only to multifunction settings like the temperature and test functions.
Hold and backlight function button. When taking a measurement, press this button to hold the data for easier recording. Press the button again to remove the hold function.
Press and hold this button to turn on the backlight on the LCD screen.
