ASTECH LDM41A, LDM42A User Manual

Download
Page 1
Manual

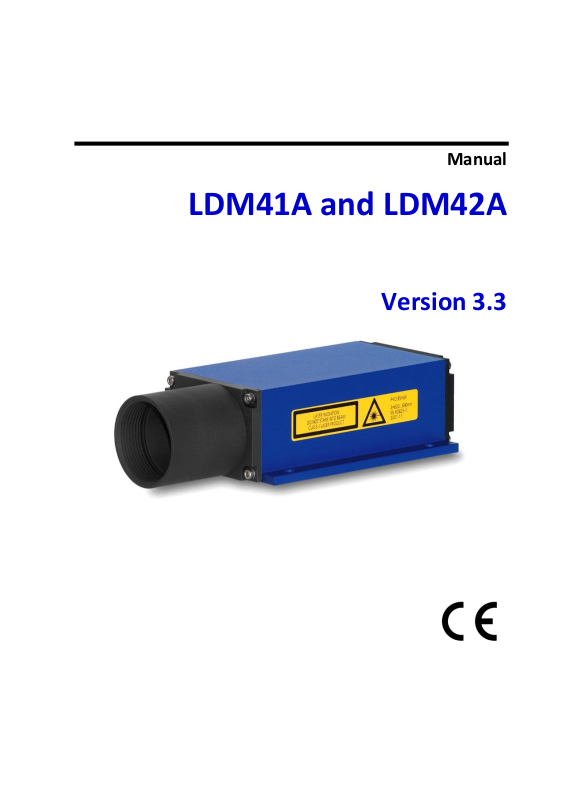

LDM41A and LDM42A
Version 3.3
Page 2
Manual Version
Date
Changes
3.3
16.03.2015
New design
Dear User,
You are advised to carefully read this User Manual before powering on the LDM41A and LDM42A Laser distance measuring sensor for the first time.
This is necessary to ensure that you will be able to utilize all the capabilities and features which your new acquisition provides.
This technology is subject to continuously ongoing development.
Editorial deadline: March 2015
Firmware version: ≥7.05 and 8.06
Manual version: V 3.3
FIle: Manual_LDM41-42A_EN_V3.3.docx
Note:
Proper care has been used in compiling this document. No liability will be accepted in the event of damage resulting from failure to comply with the information contained herein.
Revisions history
ASTECH GmbH, Schonenfahrerstr. 5, D-18057 Rostock
Internet www.astech.de E-Mail [email protected]
Telefon +49 (0)381 / 44073-0 Telefax +49 (0)381 / 44073-20
Page 3
LDM41A and LDM42A Manual Content

I. Content

1 General ....................................................................................................... 7
2 Safety Instructions ..................................................................................... 9
2.1 General Safety Instructions ............................................................... 9
2.2 Intended & Conforming Use ............................................................. 9
2.3 Nonconforming use ........................................................................... 9
2.4 Laser Classification .......................................................................... 10
2.5 Electric Supply ................................................................................. 11
2.6 Important Operating Advice ........................................................... 11
3 Technical Data .......................................................................................... 12
4 Mechanical Mounting Conditions ............................................................ 14
5 Electrical Connection ............................................................................... 16
5.1 Connector Terminal......................................................................... 16
5.2 Interface Cable ................................................................................ 17
5.3 Shield and Grounding ...................................................................... 19
5.4 Termination of RS232 ...................................................................... 20
6 Limiting Values for Voltages .................................................................... 21
7 Start up .................................................................................................... 22
8 Commands and Parameter ...................................................................... 24
8.1 General ............................................................................................ 24
8.2 DT – distance tracking ..................................................................... 28
8.3 DS – distance tracking (<7 m) .......................................................... 28
8.4 DW – distance tracking with target board (10 Hz) .......................... 28
8.5 DX – distance tracking with target board (50 Hz) ........................... 29
8.6 DF – distance measurement with external trigger .......................... 29
8.7 DM – distance measurement .......................................................... 30
8.8 TP – internal temperature [°C] ........................................................ 30
8.9 SA – display/set average value [1..20] ............................................ 30
8.10 SD – display/set display format [d/h/s}] ......................................... 30
8.11 ST – display/set measure time [0..25] ............................................. 31
8.12 SF – display/set scale factor ............................................................ 32
8.13 SE – display/set error mode [0/1/2] ................................................ 33
ASTECH GmbH Page 3
Page 4
8.14 AC – display set ALARM center ....................................................... 33
8.15 AH – display/set ALARM hysterese ................................................. 34
8.16 AW – display/set ALARM width ...................................................... 34
8.17 HO – display/set Temperature for heating on ................................ 34
8.18 HF – display/set Temperature for heating off 20 ............................. 35
8.19 RB – display/set distance of I
8.20 RE – display/set distance of I
= 4 mA ......................................... 35
OUT
= 20 mA ........................................ 35
OUT
8.21 RMx y z – display/set remove measurement.................................. 35
8.22 TDx y – display/set trigger delay trigger level ................................. 36
8.23 TMx y – display/set trigger mode trigger level ............................... 37
8.24 BR – display/set baud rate [2400..38400] ...................................... 38
8.25 AS – display/set autostart command .............................................. 38
8.26 OF – display/set distance offset ...................................................... 39
8.27 SO – set current distance to offset ................................................. 39
8.28 LO – Laser on................................................................................... 39
8.29 LF – laser off .................................................................................... 39
8.30 PA – display settings ....................................................................... 39
8.31 PR – reset settings .......................................................................... 40
9 Interface Connection ............................................................................... 41
9.1 Serial Interface RS232 ..................................................................... 41
9.2 Serial Interface RS422 ..................................................................... 42
9.3 Output Format on the serial interface ............................................ 42
9.4 Digital Switching Output (Alarm) .................................................... 43
9.5 Analog Output ................................................................................. 45
9.6 Trigger Input ................................................................................... 47
10 List of Commands .................................................................................... 48
11 Error Codes .............................................................................................. 50
12 PC Interface Cable (Option) ..................................................................... 51
13 EG Declaration of Conformity .................................................................. 52
14 Part Numbers........................................................................................... 53
Page 5
LDM41A and LDM42A Manual Content

II. List of Figures

Figure 1 : Measurement principle ...................................................................... 7
Figure 2 : Warning Sign Laser Radiation Class 2 ............................................... 10

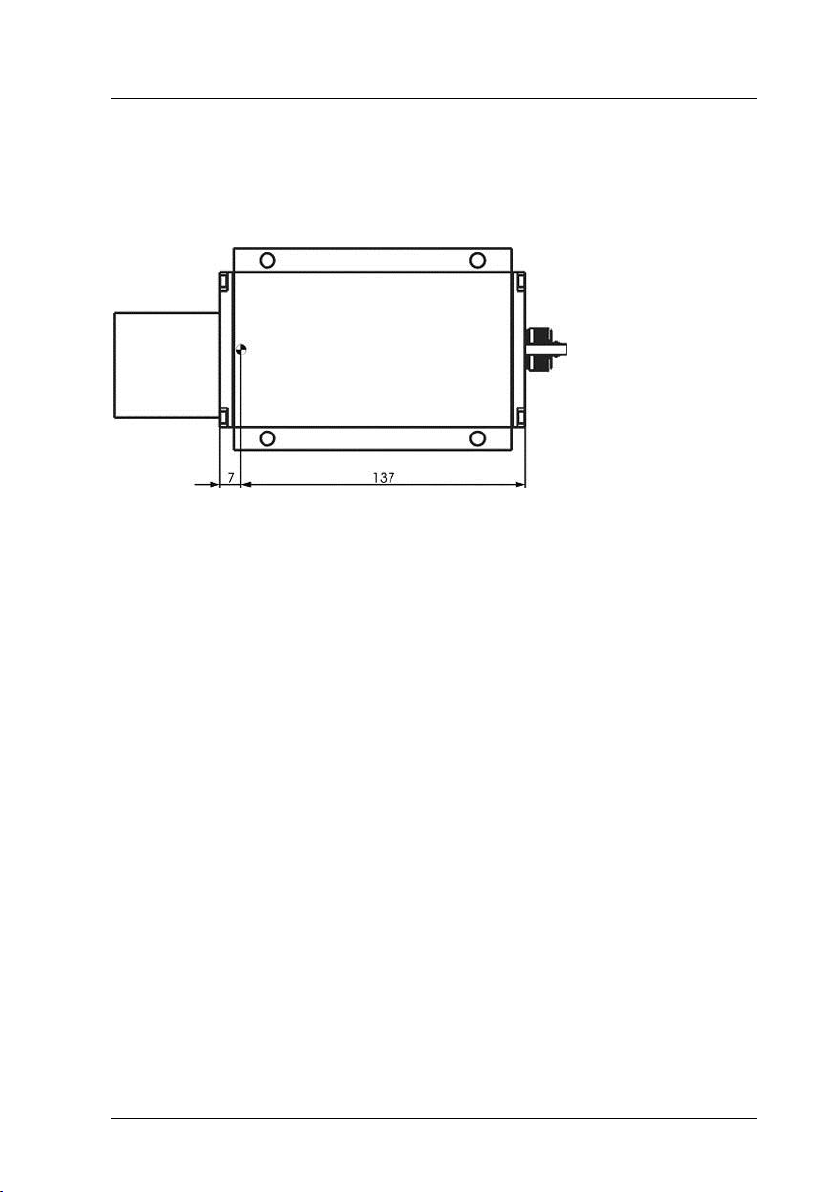

Figure 3 : Dimensional drawing ........................................................................ 14

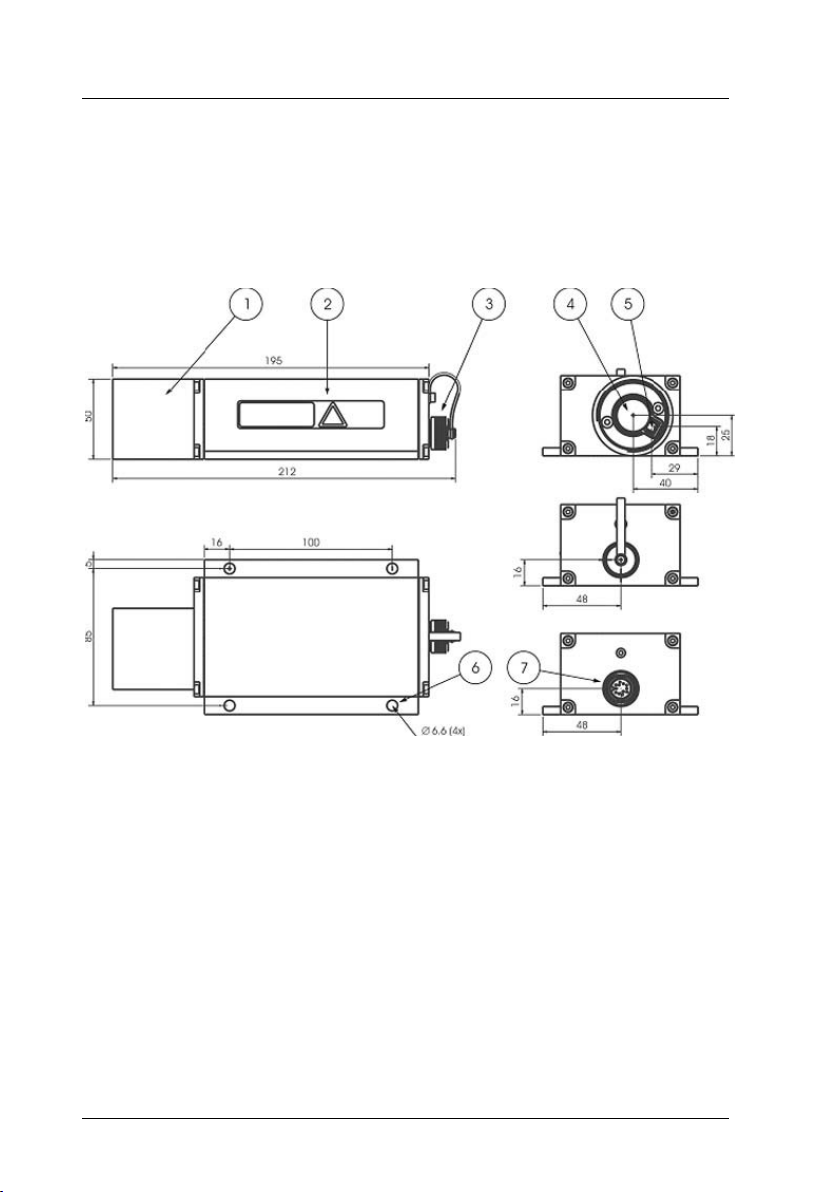

Figure 4 : Offset against zero-edge ................................................................... 15

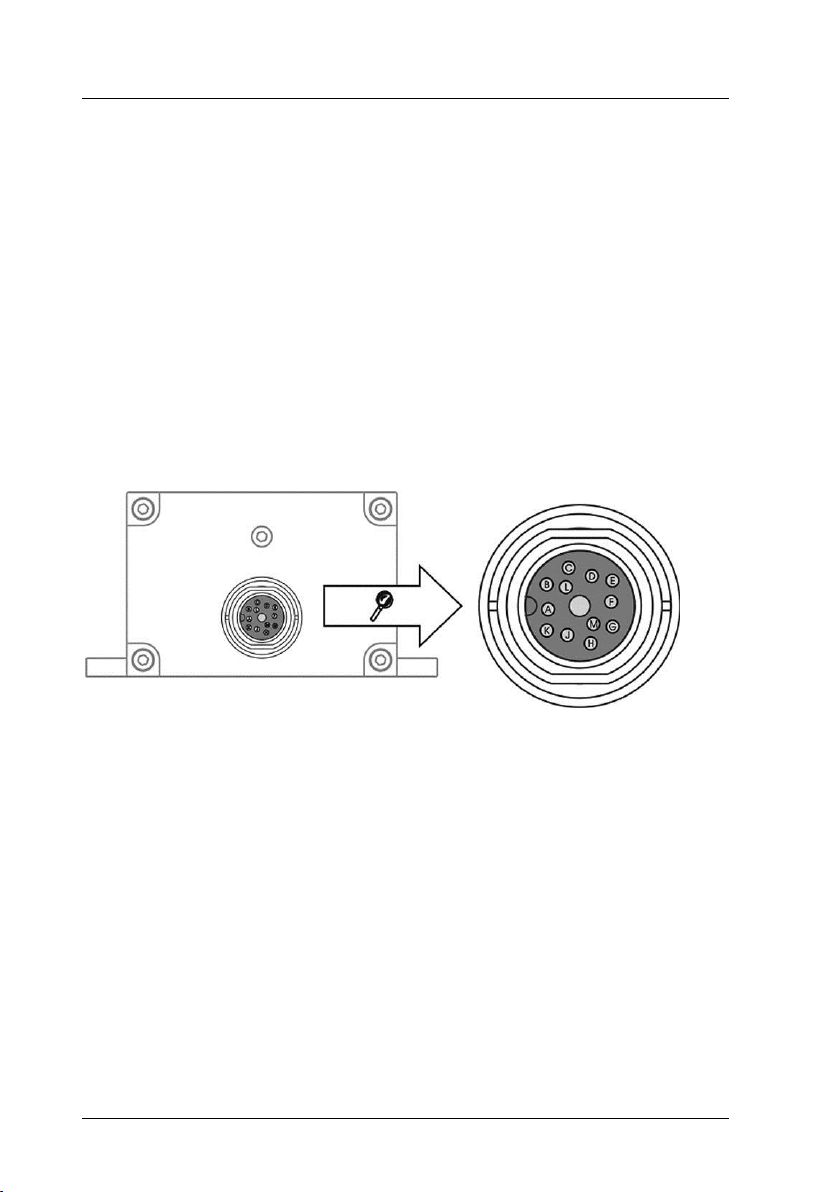

Figure 5 : View of LDM41A and LDM42A pole assignments ............................. 16

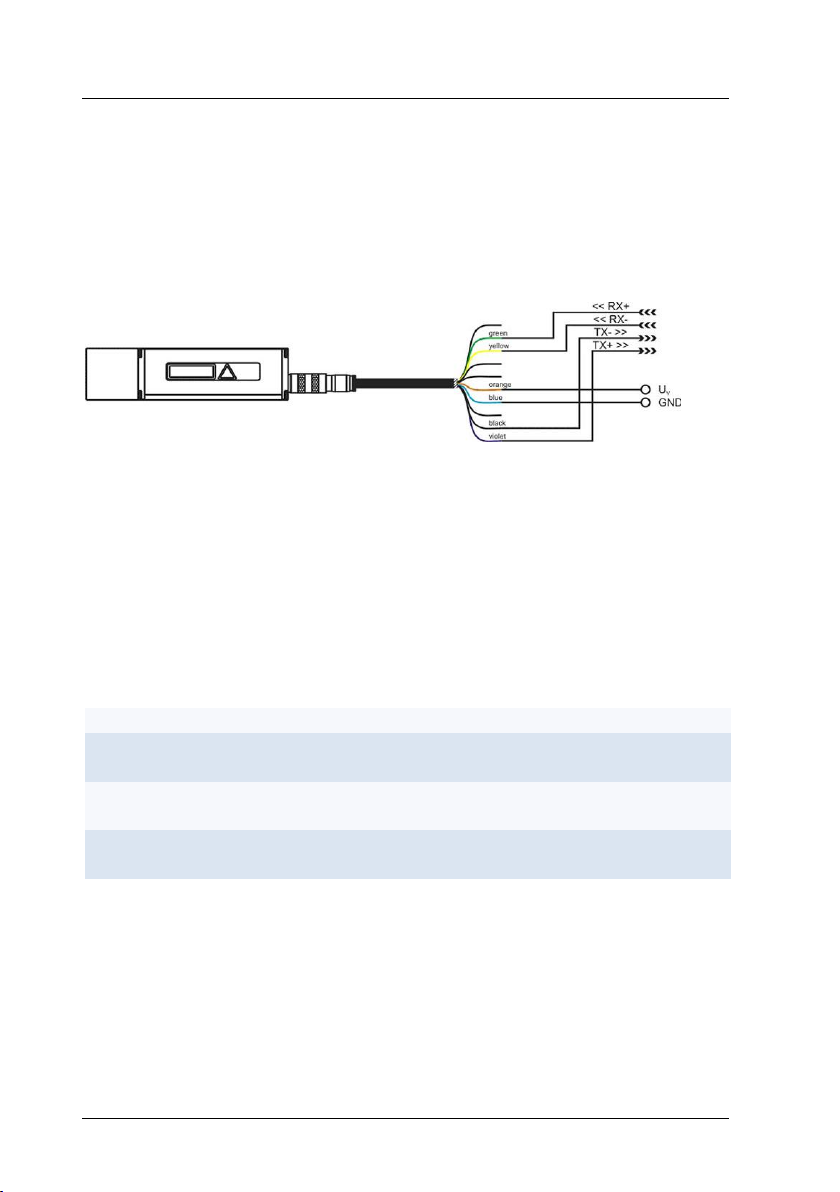

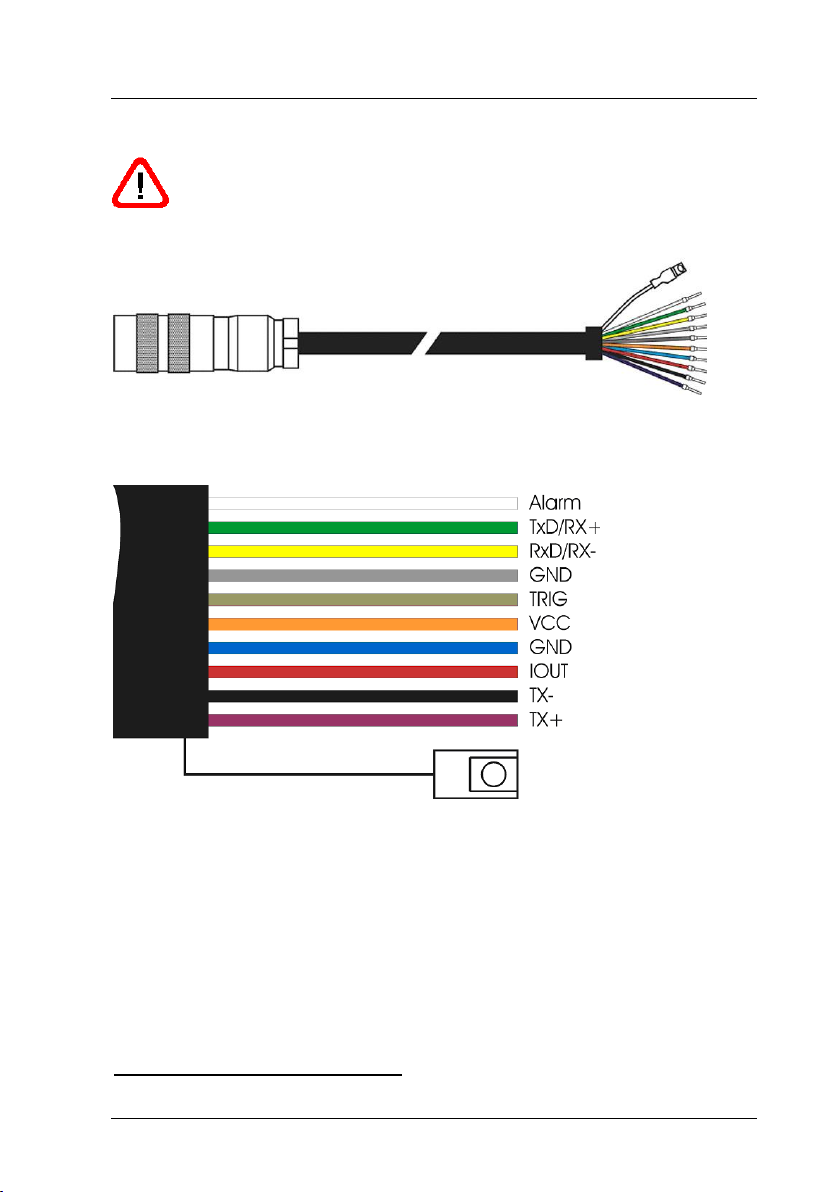

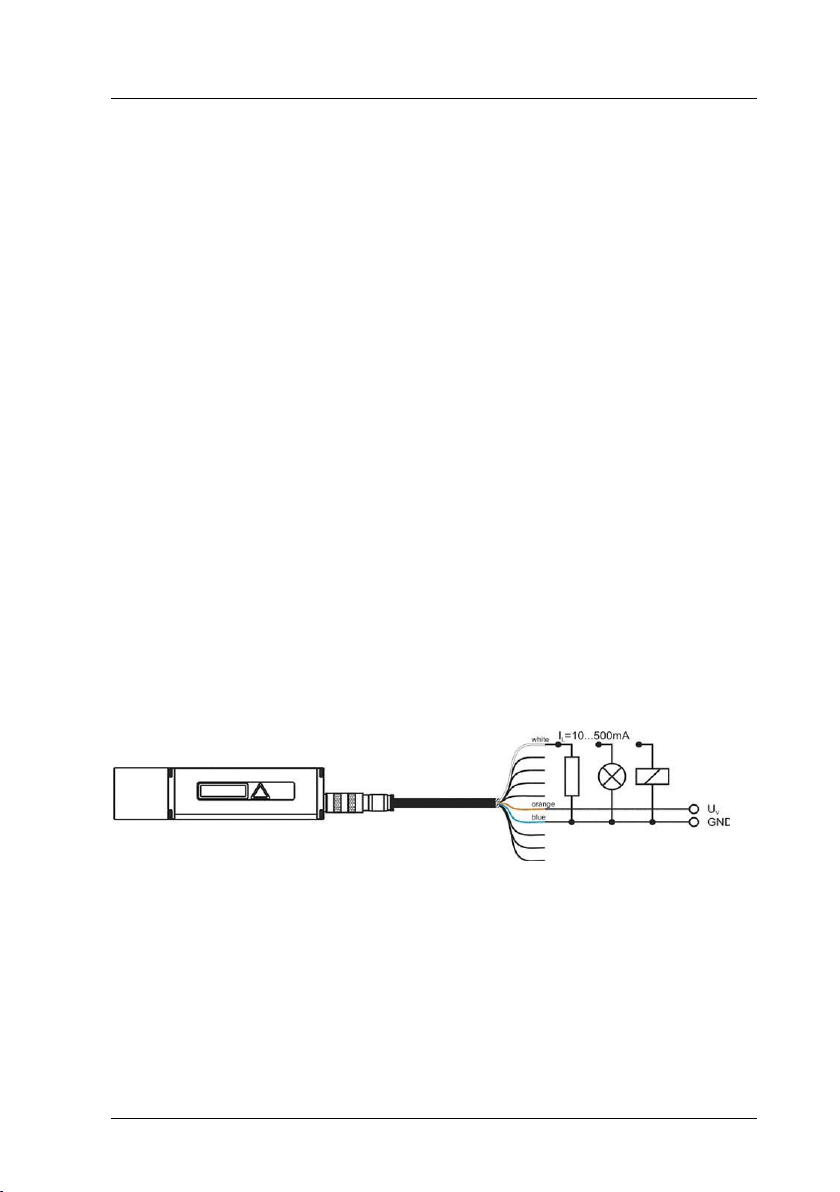

Figure 6 : Interface cable with connector ......................................................... 17

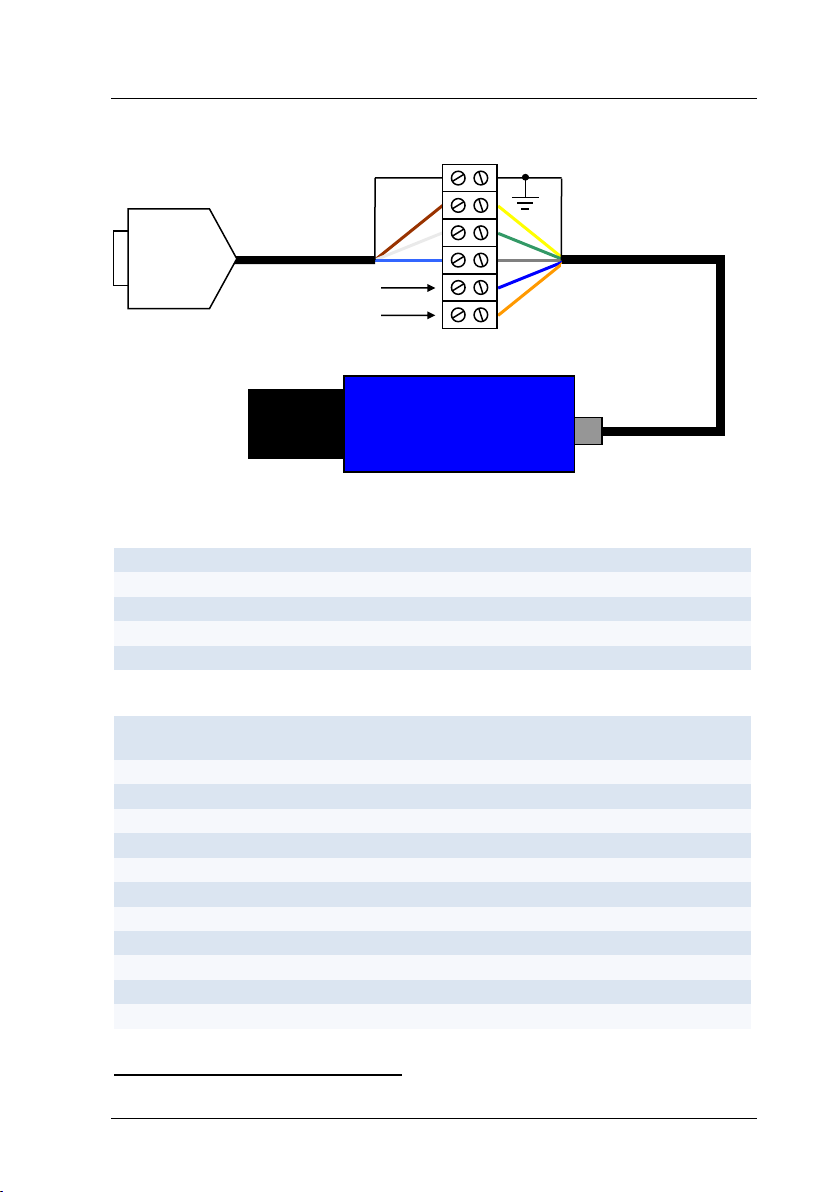

Figure 7 : Interface cable color codes ............................................................... 17
Figure 8 : Isolated Mounting ............................................................................. 19

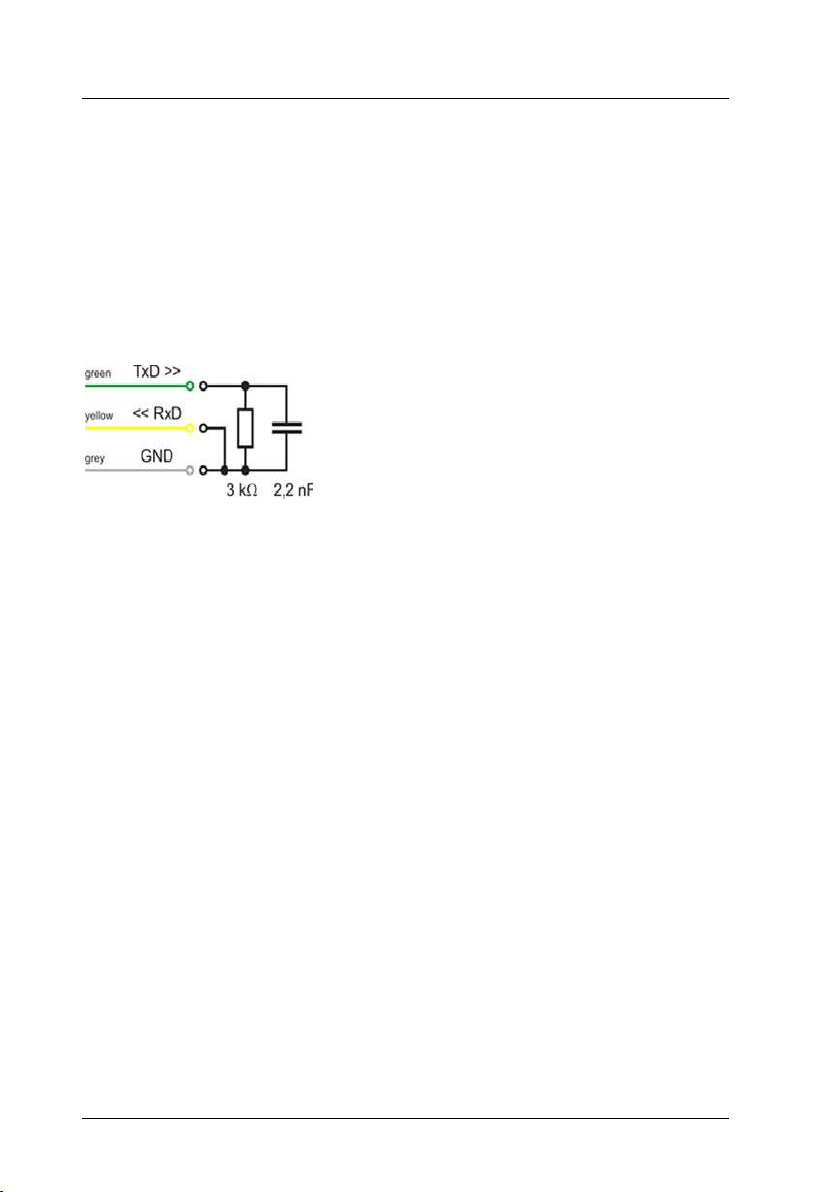

Figure 9 : Recommended terminations wiring for work with open RS-232 ..... 20

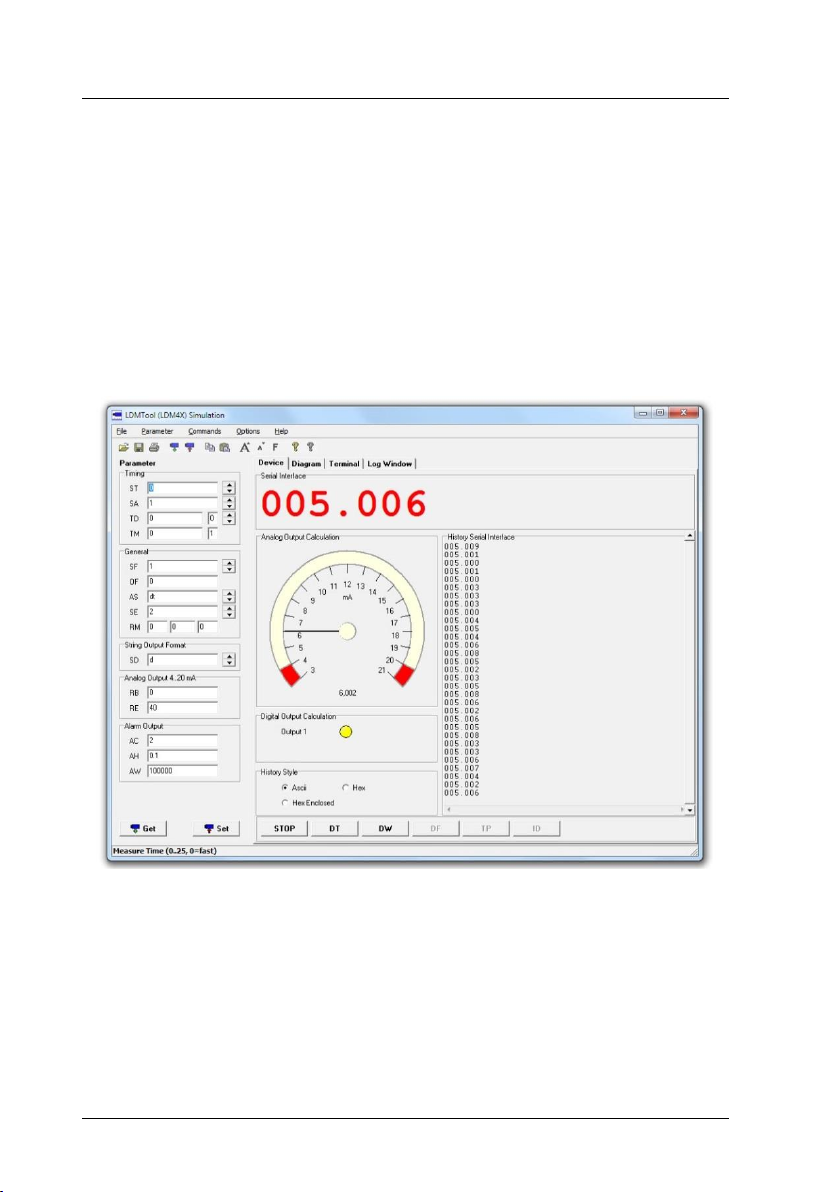

Figure 10 : Program LDMTool ........................................................................... 22
Figure 11 : Help text Firmware V7.x ................................................................. 24
Figure 12 : Help text Firmware V8.x ................................................................. 25
Figure 13 : Trigger level = 1 ............................................................................... 38
Figure 14 : Trigger level = 0 ............................................................................... 38
Figure 15 : Diagram of RS232 wiring at 9-position D-Sub cable jack ................ 41
Figure 16 : Diagram of RS232 wiring at 25-pole D-Sub cable jack .................... 41
Figure 17 : RS232 wiring diagram ..................................................................... 42
Figure 18 : Wiring diagram of digital switching output .................................... 43

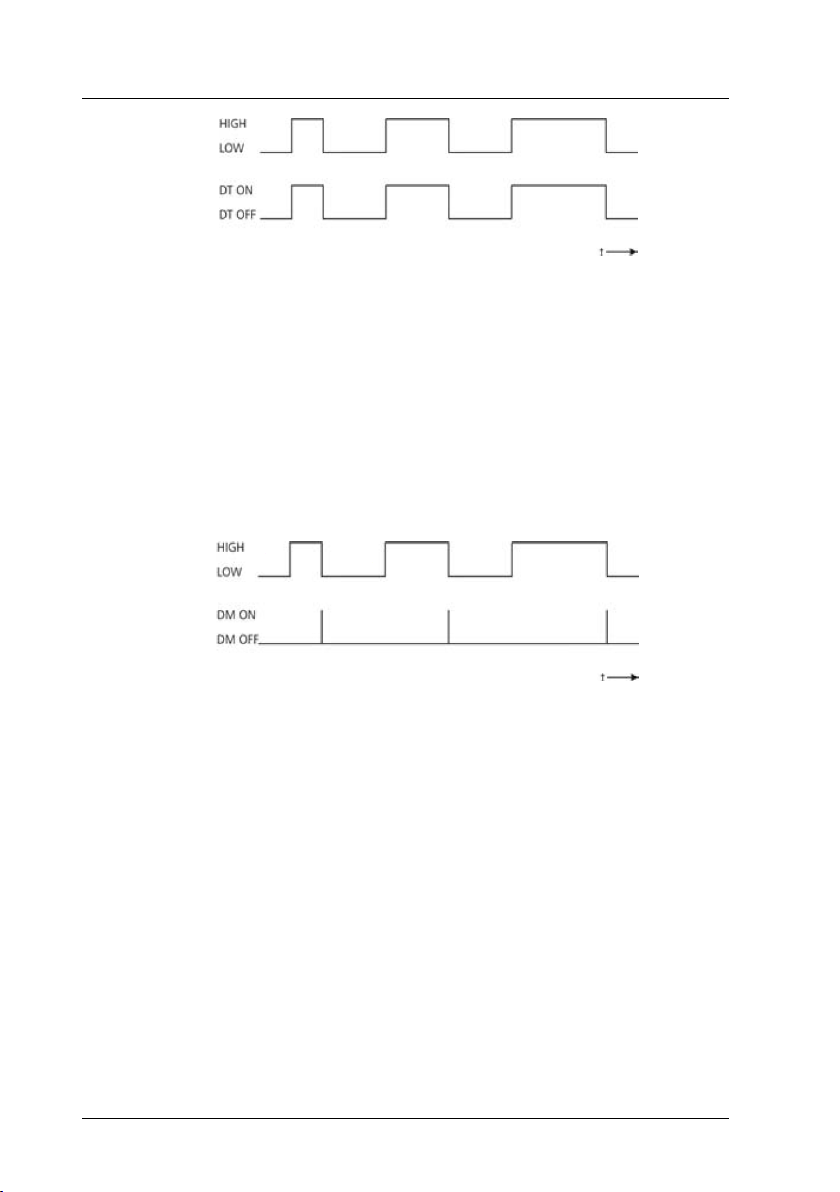

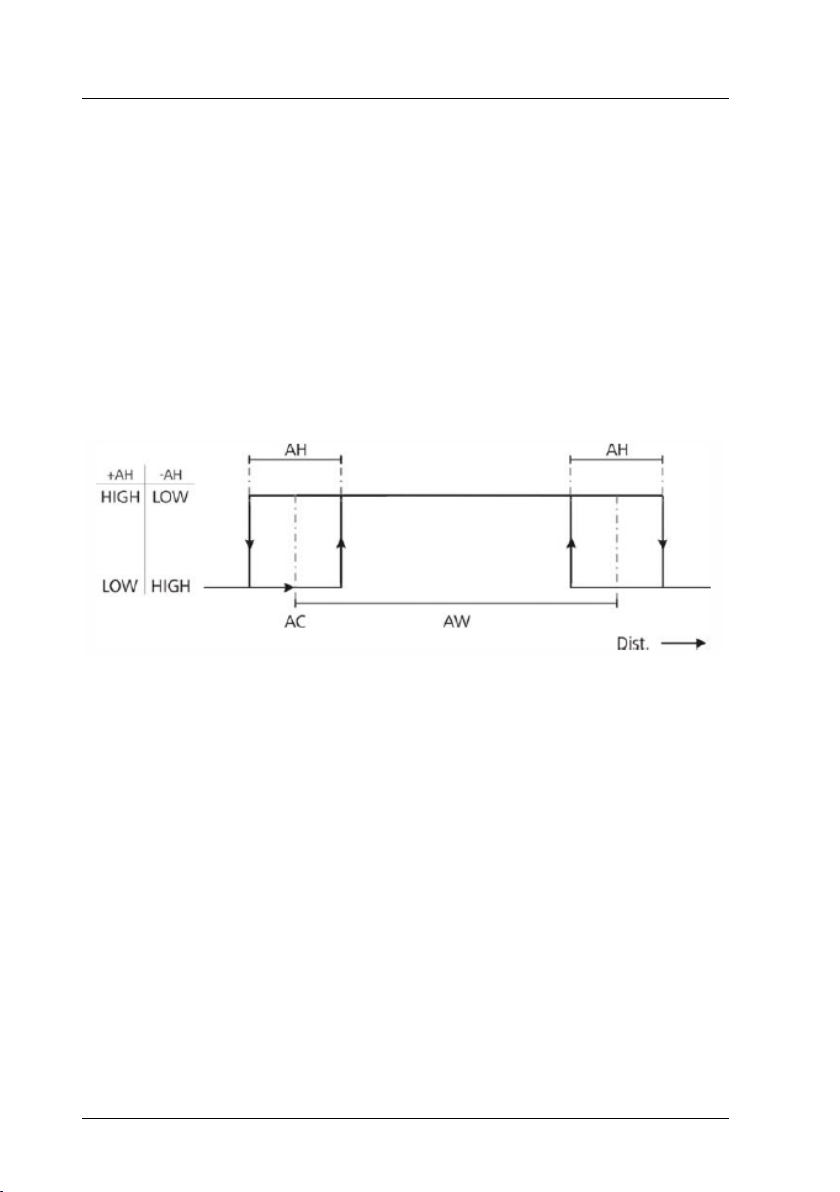

Figure 19 : Digital switching output behavior ................................................... 44
Figure 20 : Wiring diagram of analog output .................................................... 45
Figure 21 :Output current diagram for RE > RB and RE < RB ............................ 46
Figure 22 : Wiring diagram of trigger input ...................................................... 47
Figure 23 : RS232 cable with power supply for LDM41A and LDM42A ............ 51
ASTECH GmbH Page 5
Page 6

III. List of Tables

Table 1 : Technical data .................................................................................... 12
Table 2 : Pin assignment connector and interface cable .................................. 18
Table 3 : Input voltages .................................................................................... 21
Table 4 : Output voltages ................................................................................. 21
Table 5 : Commands of the LDM41A and LDM42A .......................................... 26
Table 6 : Output format.................................................................................... 30
Table 7: Examples for Scale factor ................................................................... 33
Table 8 : Meaning of SE .................................................................................... 33
Table 9 : List of commands ............................................................................... 48
Table 10 : Error Codes ...................................................................................... 50
Table 11 : Pin assignment SUB-D 9 F ................................................................ 51
Table 12 : Pin assignment LDM41A and LDM42A ............................................ 51
Table 13 : Part Numbers ................................................................................... 53
Page 7
LDM41A and LDM42A Manual General

1 General

The LDM41A and the LDM42A are Laser sensors to measure distances from
0.1 m to more than 100 m with pinpoint accuracy.
A given target can be clearly identified with the help of a red Laser sighting point. In terms of operating reach, the LDM41A and the LDM42A performs depending on the reflectance, morphology and qualities of the target to be measured.
The sensor works based on comparative phase measurement. It emits modulated Laser light which is diffusely reflected back from the target with a certain shift in phase to be compared with a reference signal. From the amount of phase shift, a required distance can then be determined with millimeter accuracy.

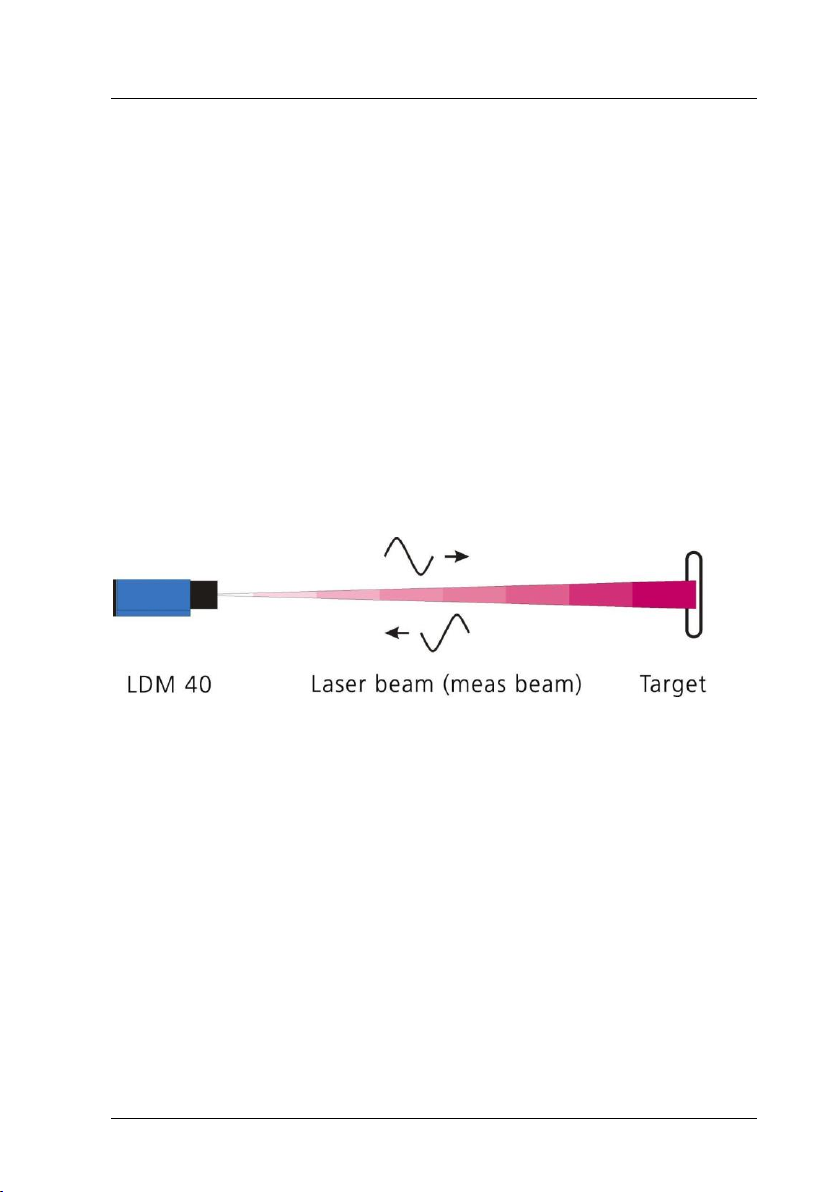

Figure 1 : Measurement principle
A distance measuring cycle can be triggered in three different ways:
By sending a command from the PC or another equivalent control
unit
By making appropriate prior parameter settings for the auto start
command and applying supply voltage
By external triggering (in remote-trigger mode).
For a more detailed description of these three trigger options, you should consult chapter 8, Commands and Parameter of this User Manual.
ASTECH GmbH Page 7
Page 8
1
2
1
2
3
Special performance features are:
Provides high accuracy and great reach under extreme outdoor
temperatures.
Works in a wide range of operating voltages from 10 V= to 30 V= from an
on-board vehicle supply point, an industrial direct voltage supply net or a DC power pack.
Features consistently low power consumption of <1.5 W
(without I
Alarm
)
Up to 30 m reach for distance measurement, with potential for more than
100 m reach if additional reflectors
are mounted onto the target
(depending on reflectance and environmental conditions).
Visible Laser beam for easier sighting. RS232 interface port for input of measuring functions and commands from,
and output of measured values to, a PC or a laptop.
Switching output and analog output are separately programmed. Switching output with adjustable limit and hysteresis. Measured values can be displayed in meters, decimetres, centimetres, feet
and inches due to.
Option for remote triggering of a measurement from an external trigger
device.3
inactive internal heating for devices with internal heating (LDM41-42A /h) e.g. 3M, self adhesive foil white non glossy or foil 3290 for longer distances Trigger function is not available for devices with internal heating (LDM41-42A /h)
Page 9
LDM41A and LDM42A Manual Safety Instructions

2 Safety Instructions

2.1 General Safety Instructions

These safety and operating instructions should be carefully read and followed during practical work with the LDM41A and the LDM42A.
There is danger of Laser radiation or electrical shock. For necessary
repair work, the LDM41A and the LDM42A may not be opened by
anyone other than Manufacturer personnel. Unauthorized intervention into the inner product space will void any warranty claims.
Compliance with all specified operating conditions is necessary.
Failure to observe advisory notes or nonconforming product usage may cause physical injury to the user or material damage to the LDM41A and the LDM42A.
Cable connectors must not be plugged or unplugged under voltage. Remember to turn voltage supply off before you begin working on cable connections.

2.2 Intended & Conforming Use

Measurement of distances Special measuring functions Compliance with prescribed temperatures for operation/storage Operation at correct voltage level Application of specified signal levels to the appropriate data lines

2.3 Nonconforming use

Do not operate the LDM41A and the LDM42A in any other way than
described under "Intended & Conforming Use" above and only in a proper working condition
Safety devices must not be defeated or otherwise rendered
ineffective
Information and warning signs must not be removed
ASTECH GmbH Page 9
Page 10
Repair work on the LDM41A and the LDM42A must not be carried
out by anyone other than authorized personnel.
Refrain from using the LDM41A and the LDM42A without certified
protection in an explosive environment
Measurement with the LDM41A and the LDM42A pointed at the
sun or other strong light sources may produce faulty results
Measurement of targets with poor surface reflectance in a strongly
reflecting environment may also result faulty measurements.
Measurement of strongly reflecting surfaces may deliver faulty
results.
Measurement performed through transparent optical media, for
example glass, optical filters, Plexiglas, etc. may equally produce incorrect results.
Measurement on translucent objects (materials allow light to pass
through, but are not transparency, e.g. polystyrene, wax, different plastics etc.) can give a too large measured value, since also light is reflected by deeper layers
Rapidly changing measuring conditions are likely to falsify the result
of measurement

2.4 Laser Classification

The LDM41A and the LDM42A are Class 2 laser product, ≤1 mW as stipulated in EN60825-1:2007, Class 2.
Caution: There is Class 2 Laser radiation. Do not stare into beam!
Figure 2 : Warning Sign Laser Radiation Class 2
The Laser power is limited to maximum 1 mW. The Laser radiation is visible. A short-term exposure (duration up to 0.25 s) is harmless to the eye.
Page 11
LDM41A and LDM42A Manual Safety Instructions
Users are instructed by Laser warning sign (see Figure 2) to do not stare into the beam. They have to protect themselves by turn the head and/or closing the eyes and by avoid a long look into the beam.
Do not direct the Laser beam onto persons.
The sensor can use without any additional safety protection.

2.5 Electric Supply

Use only 10 V to 30 V DC (direct voltage) for LDM41A and LDM42A operation. Use only the specially designated connector terminal for voltage supply.
Specified signal levels must not be exceeded, in order to guarantee correct data communication.

2.6 Important Operating Advice

To make full use of the system’s inherent performance capabilities and
achieve a long service life, you should always follow these operating rules:
Do not turn the module on if there is fogging or soiling on its optical
parts
Do not touch any of the module's parts with bare hands. Proceed with care when removing dust or contamination from
optical surfaces!
Prevent shock impacts during transport and use of the LDM41A and
LDM42A
Prevent overheating of the LDM41A and LDM42A. Prevent major temperature variances during LDM41A and LDM42A
operation
In accordance with IP65 internal protection standards, the LDM41A
and the LDM42A is designed to be splash proof and dustproof.
Read these safety and operating insturctions with due care and
follow them in practical use.
ASTECH GmbH Page 11
Page 12
Measurement range4
0.1 m up to 30 m with natural surfaces, depending on target reflectance or reflectors more than 100 m achievable5
Measuring accuracy6
2 mm under defined measuring conditions7 3 mm (+15 °C up to +30 °C) 4 mm in DS mode <0.5 m (+15 °C … 30 °C)
5 mm (-10 °C up to +50 °C)
Resolution8
0.1 mm, user scalable, standard 1 mm
Reproducibility
0.5 mm
Measuring time
0.24 to 6 s setup or auto Mode DT
0.1 s (10 Hz) mode DW at white surface 20 ms (50 Hz) mode DX at white surface (only LDM42A)
Target motion speed
≤4 m/s in DX-Mode (LDM42A only)
Acceleration
≤2,5 m/s² in DX-Mode (LDM42A only)
Operating temperature
-10 °C up to +50 °C
-40 °C up to +50 °C (only with –h option)
Storage temperature
-40 °C up to +70 °C
Supply voltage
10 V ... 30 V DC (protected against polarity reversal)9
Power consumption
Depending on operation mode < 0.4 W in Standby < 1.5 W for distance tracking < 24 W with heating active (only with –h option)
Data interface
RS232 or RS422, baud rate 9600 (2400..38400),
4
5
6
7
8
9

3 Technical Data

Table 1 : Technical data
dependent on target reflectance, stray light influences and atmospheric conditions e.g. 3M, self adhesive foil white non glossy statistic spread 95 % for measurement at a planar white target surface in continues movement or still standing, +15
up to +30 °C
dependent on target reflectance, stray light influences and atmospheric conditions
Please use only 24V DC For devices with heating (LDM41A-h and LDM42A-h) The heater is
connected directly to the power supply.
Page 13
LDM41A and LDM42A Manual Technical Data
ASCII, Format 8N1 (fix)
Digital output
„high-side-switch“, programmable switching threshold and hysteresis, rated for max. load of
0.5 A, HIGH = UB - 2 V, LOW < 2 V
Analog output
4 mA ... 20 mA current output, Adjustable distance range limits, programmable on error event 3 mA oder 21 mA, Load resistance ≤ 500 Ω, Accuracy ± 0,15 %, Temperature drift< 50 ppm/K
Digital input10
External trigger, trigger pulse 3 up to 24 V, pulse length≥ 1 ms, start of measurement 5 ms + trigger delay, trigger slope and delay can be set (0 ms ... 9999 ms),
EMC
EN 61326-1
Shock resistance
10 g / 6 ms Persistence shock DIN ISO 9022-3-31-01-1
Laser Class
Laser class 2, under EN60825-1:2007, Class 2
Wave length
650 nm (red visible)
Laser divergence11
0.6 mrad
Laser angle tolerance
Better than ± 1° to the ground plane
Average service life
100,000 h at 60 °C Laser temperature (intern)
Connector
12-pol. M18-male socket, Binder Serie 423
Dimensions (LxWxH)
212 mm x 96 mm x 50 mm
Mounting
100 mm x 85 mm, 4 x M6 holes
Weight
approx. 760 g
Protection class
IP 65 (spatter water and dust protection)
10
11
trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h) at 10 m distance the beam diameter is 6 mm, at a distance of 50 m it is 3 cm and at a distance of
100 m it is 6 cm
ASTECH GmbH Page 13
Page 14

4 Mechanical Mounting Conditions

The casing consists of a rugged, corrosion-resistant extruded aluminum profile with front-side and rear-side covers also in corrosion-resistant design. Four mounting holes are provided in the base plate for mechanical attachment of the LDM41A and LDM42A.
1 Equalizer tube at front cover 2 Casing 3 Protective cap for flange-mount connector 4 Receiver optics 5 Sender optics 6 Mechanical mounting holes (4x) 7 12-pole M18-flange-mount connector (Binder Serie 723)
Figure 3 : Dimensional drawing
To protect the sensor’s optical surfaces from dust, physical contact,
mechanical impacts, etc., the casing has a protection tube attached to it. Optionally different protection windows and optical filters are available.
Page 15
LDM41A and LDM42A Manual Mechanical Mounting Conditions
Please note that measurement cannot be guaranteed to function correctly if the equalizer tube is removed by unqualified action!
The interface connector is located on the back cover. Interface cables with different length are available (standard 2 m, optionally 5 or 10 m).
Figure 4 : Offset against zero-edge
The LDM41A and LDM42A’s zero-point is located 7 mm behind the outer surface of the front cover or 137 mm before the back cover outside face respectively. This zero-point has been introduced for constructional design
reasons. It can be compensated with the help of parameter “OF“ (see section
8.26 OF – display/set distance offset)
ASTECH GmbH Page 15
Page 16

5 Electrical Connection

5.1 Connector Terminal

Located on the back cover is a connector terminal. A 12-pole round-type (flange-mount) series 723 connector from Binder has been selected for this purpose. It is sealed against the casing to comply with IP 65 requirements. This connector type guarantees optimized screening and a high IP degree.
The required counterpart is a cable jack (series 423 from Binder) with grading ring.
Interface cables with different length are available (standard 2 m, optionally 5 or 10 m). Under RS232 C or RS422 norm it’s possible to extend the length with a high quality screened cable.
Figure 5 : View of LDM41A and LDM42A pole assignments
Page 17
LDM41A and LDM42A Manual Electrical Connection
12
Shield

5.2 Interface Cable

Caution: The cable end is exposed! The user is responsible to take precautions that will prevent any kind of shorts! The cable shield has to be connecting to earth with low resistance.
Figure 6 : Interface cable with connector

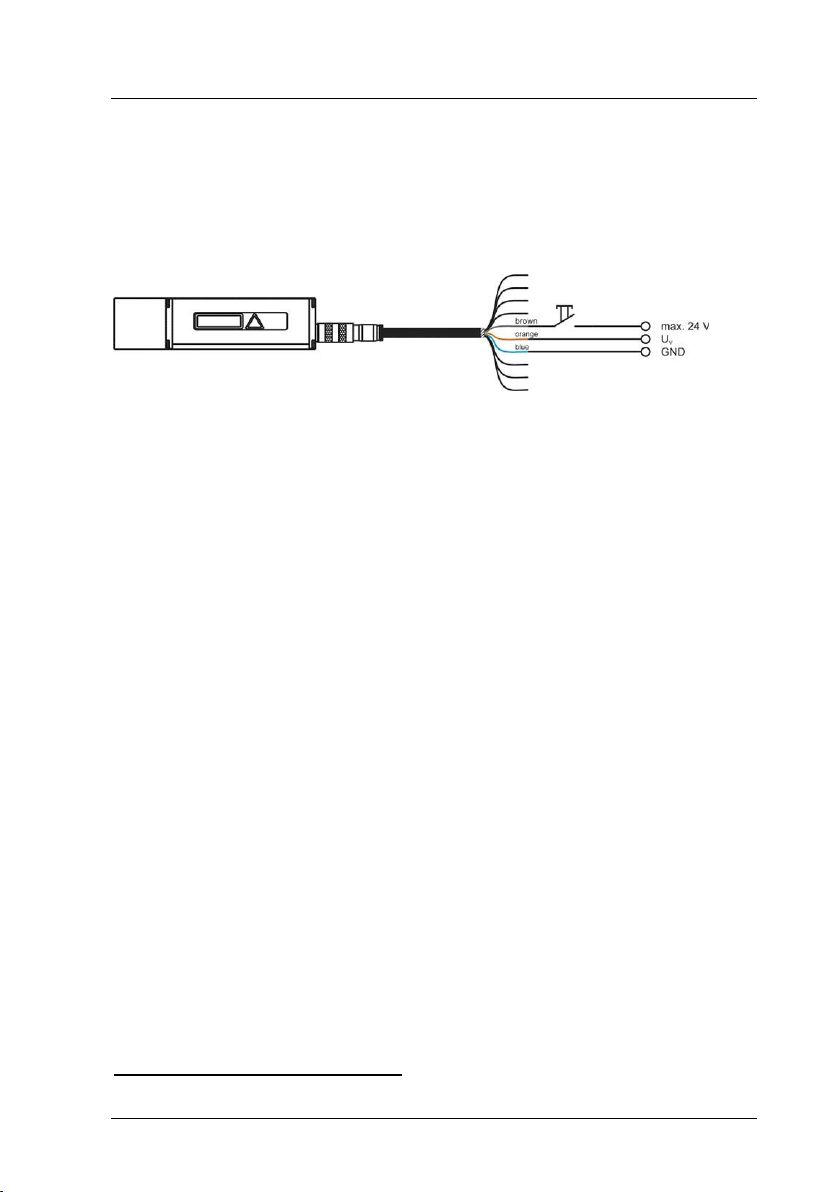

Interface cable wiring assignments are as follows12:
Figure 7 : Interface cable color codes
TRIG is not connected in devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 17
Page 18
Pin
Color
Assignment
Function RS232
Function RS422
A
Green
TxD / RX+
RS232 send data
RS422 receive data+
B
Yellow
RxD / RX-
RS232 receive data
RS422 receive data-
C13
Brown
TRIG
External trigger input
External trigger input
D
Red
IOUT
Analog output
Analog output
E
Black
TX-
RS422 Send data -
RS422 Send data -
F
Violet
TX+
RS422 Send data +
RS422 Send data +
G14
orange
VCC
Supply voltage
Supply voltage
H
White
ALARM
Digital switching output
Digital switching output
J
Grey
GND
Ground potential
Ground potential
L
blue
GND
Ground potential
Ground potential
13
14
Table 2 : Pin assignment connector and interface cable
GND wires are connected to an internal collective ground point. They provide the reference potential for all voltage values quoted below.
Caution: If input signals are applied to an output port, this may damage the LDM41A and LDM42A!
Do not connect the current output IOUT (red) to the power supply (10 ... 30 V). This will destroy the interface board!
For data communication via RS232, you are recommended to use cable 4 (grey, GND) for signal ground and cable 7 (blue, GND) for supply ground!
The limiting values of voltages, load rates and logic levels are in accordance with RS232 and RS232 standard requirements.
All outputs are protected against steady short-circuit currents.
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h) In case of interface cable with length of 10m the color of pin G, VCC can also be pink.
Page 19
LDM41A and LDM42A Manual Electrical Connection

5.3 Shield and Grounding

The cable shield must be grounded with low resistance. For cable extension use only high quality shielded cable e.g. type „10XAWG224CULSW “.
Carrier base and control box should be having equal potential. Potential differences are reason for electrical current and can cause EMC problems (no correct measurement function or switch off/on of the gauge necessary).
If no potential equalization is possible, mount the LDM41A and LDM42A isolated (3) from the carrier base (use Nylon screwing and washers).
Use screened cable, e.g. “10XAWG224CULSW“, remember to extend also the cable screen (1). Connect screen to power supply reference potential GND on cable end (2).
For integration with vehicles use also this isolated mounting.

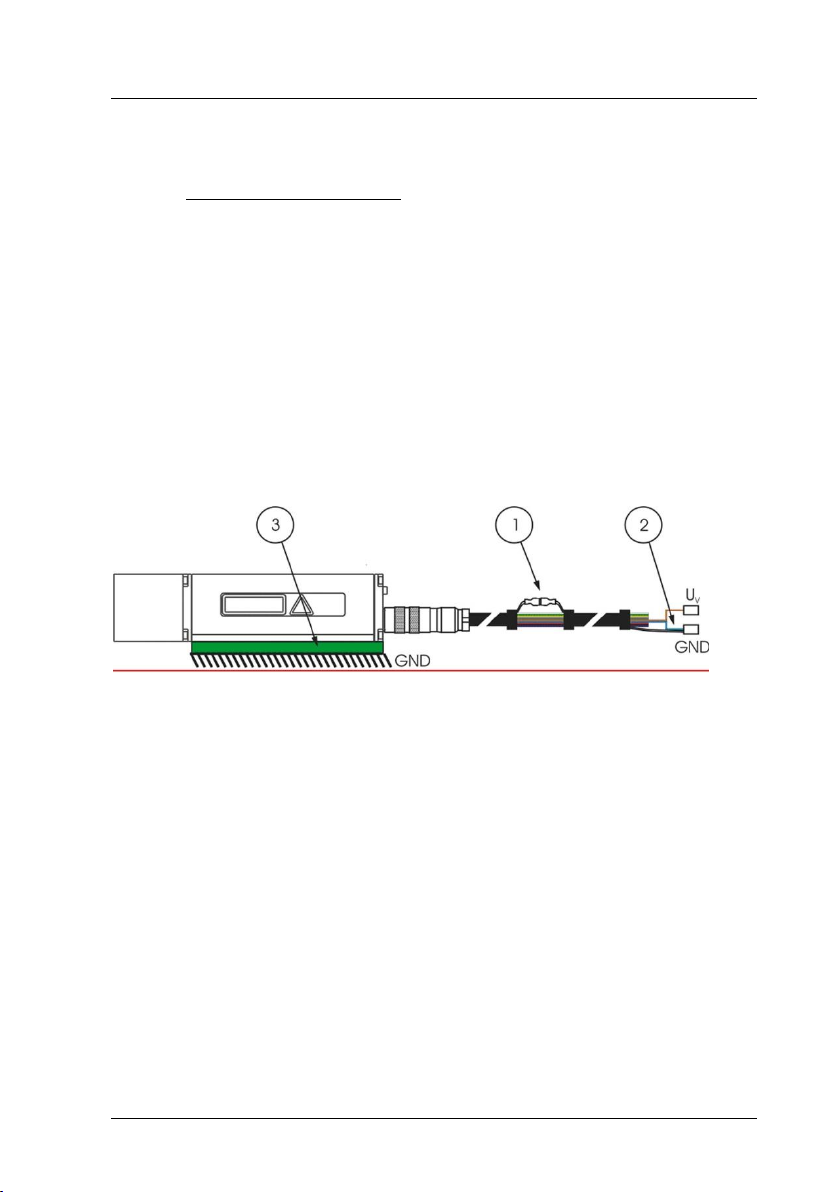

Figure 8 : Isolated Mounting
ASTECH GmbH Page 19
Page 20

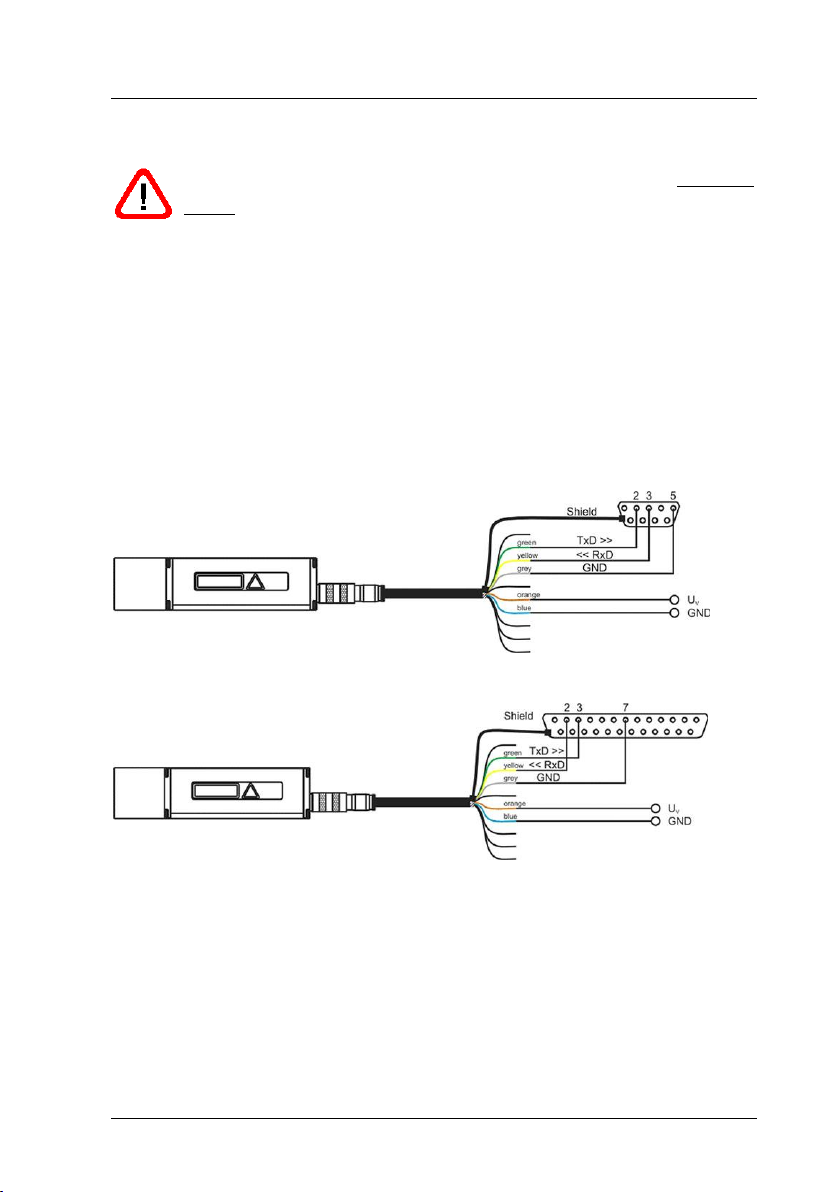

Figure 9 : Recommended terminations wiring for work with open RS-232

5.4 Termination of RS232

RxD and TxD data lines should be kept as short as possible in all cases, because they tend to have an interference emitting and interference receiving effect, notably, when in open state. Especially in environments with strong spurious radiation there may be faults that may in some cases require a reset (turning the LDM41A and LDM41A off and on again). In cases where no RS232 interface communication is required after parameterization, you should provide for a termination wiring as shown in Figure 9.
Make sure you leave no data line end opne. It will be highly sensitive to interferences (EMC).
A terminator circuit should be installed when the RS232 is unconnected. This circuit must be
provided by the customer (see diagram on the left)
Please keep the RS232 norm. The maximal cable length of the RS232 is 15 m. Use alternatively a RS232 connection (use shielded twisted pair cable,
maximum 300 m, termination resistor 100 Ω).
Page 21
LDM41A and LDM42A Manual Limiting Values for Voltages
Terminal point
Voltage
Comment
VCC
30 V
Pole-reversal-protected
TxD
±13.2 V
Short-circuit-proof
RxD
±25 V
Short-circuit-proof
TX+
±14 V
Short-circuit-proof
TX-
±14 V
Short-circuit-proof
RX+
±14 V
Short-circuit-proof
RX-
±14 V
Short-circuit-proof
TRIG15
±25 V
Short-circuit-proof
Terminal point
Voltage
Comment
TxD
±5.4 V
± 5 V at 3 k load
TX+, TX-
2 V
differentially at 2 x 50 load
Alarm
VCC – 2 V
Level depending on VCC
15

6 Limiting Values for Voltages

Input voltages:
Table 3 : Input voltages
Output voltages:
Table 4 : Output voltages
All outputs are sustained-short-circuit-proof to ground (GND).
Caution: Do not connect the current output IOUT (red) to the power supply (10 ... 30 V). This will destroy the interface board!
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 21
Page 22

7 Start up

Make sure that all cable ends are protected against short circuit effects before you turn on power supply!
Connect cable terminals as required for the particular operating mode. To prevent short circuits, you should seal unused cable ends!
For starting up, a PC with RS232 or RS232 data interface and a terminal program are required. We recommend the Windows program LDMTOOL Version 3.0 or higher.
Figure 10 : Program LDMTool
As part of preparative actions, the LDM41A and LDM42A must be properly installed in the designated working site, oriented onto the target and kept in a stable position. The target to be measured should preferentially have a homogeneous, bright surface.
Page 23
LDM41A and LDM42A Manual Start up
16
Caution: Do not use any retro reflectors!
Alignment of the LDM41A and LDM42A is facilitated by a Laser beam16 that is visible and can easily be turned on at the PC.
Operating voltage supply must be connected to the corresponding ends of the interface cable. A pole-reversal protection is integrated to prevent the destruction of electronic components.
depending on ambient light and target conditions
ASTECH GmbH Page 23
Page 24

8 Commands and Parameter

8.1 General

The LDM41A and LDM42A can be parameterized very easy with the PC. The PC must be equipped with a serial interface RS232 and/or RS422 according to the attached LDM41A and LDM42A. The use of USB to serially converters is also possible. An optionally programming cable is necessary (see chapter 12, PC Interface Cable (Option)). On the PC a terminal program must be installed (LDMTOOL or HyperTerminal). By selecting ID[Enter] command, you may call up the menu with available setup commands (DX[Enter] only LDM42A):
LDM4x, s/n xxxxxx, V 7.x
DT[Enter].....................distancetracking
DS[Enter].....................distancetracking 7m
DW[Enter].....................distancetracking with cooperetive target(10Hz)
DX[Enter].....................distancetracking with cooperetive target(50Hz)
DF[Enter].....................distance measurement with external trigger
DM[Enter].....................distance measurement
TP[Enter].....................internal temperature [C]
SA[Enter] / SAx[Enter]........display/set average value [1..20]
SD[Enter] / SDd[Enter]........display/set display format [d/h/s]
ST[Enter] / STx[Enter]........display/set measure time [0..25]
SF[Enter] / SFx.x[Enter]......display/set scale factor
SE[Enter] / SEx[Enter]........display/set error mode [0/1/2]
0..Iout=const., ALARM=const.
1..Iout: 3mA @RE>RB, 21mA @RE<RB, ALARM: OFF@AH>0, ON@AH<0
2..Iout: 21mA @RE>RB, 3mA @RE<RB, ALARM: ON@AH>0, OFF@AH<0
AC[Enter] / ACx.x[Enter]......display/set ALARM center
AH[Enter] / AHx.x[Enter]......display/set ALARM hysterese
AW[Enter] / AWx.x[Enter]......display/set ALARM width
RB[Enter] / RBx.x[Enter]......display/set distance of Iout=4mA
RE[Enter] / REx.x[Enter]......display/set distance of Iout=20mA
RM[Enter] / RMx y.y z[Enter]..remove measurement
TD[Enter] / TDx y[Enter]......display/set trigger delay [0..9999ms]
trigger level [0/1]
TM[Enter] / TMx y[Enter]......display/set trigger mode [0/1] trigger
level [0/1]
BR[Enter] / BRx[Enter]........display/set baud rate [2400..38400]
AS[Enter] / ASd[Enter]........display/set autostart command [DT/DS/
DW/DX/DF/DM/TP/LO/ID]
OF[Enter] / OFx.x[Enter]......display/set distance offset
SO[Enter].....................set current distance to offset
(offset = - distance)
LO[Enter].....................laser on
LF[Enter].....................laser off
PA[Enter].....................display settings
PR[Enter].....................reset settings
Figure 11 : Help text Firmware V7.x
Page 25
LDM41A and LDM42A Manual Commands and Parameter
LDM42, SN xxxxx, V 8.02
DT[Enter].....................distance tracking
DS[Enter].....................distance tracking 7m
DW[Enter].....................distance tracking with cooperative target
(10Hz)
DX[Enter].....................distance tracking with cooperative target
(50Hz)
DM[Enter].....................distance measurement
TP[Enter].....................internal temperature [C]
SA[Enter] / SAx[Enter]........display/set average value [1..20]
SD[Enter] / SDd[Enter]........display/set display format [d/h/s]
ST[Enter] / STx[Enter]........display/set measure time [0..25]
SF[Enter] / SFx.x[Enter]......display/set scale factor
SE[Enter] / SEx[Enter]........display/set error mode [0/1/2]
0..Iout=const., ALARM=const.
1..Iout: 3mA @RE>RB, 21mA @RE<RB, ALARM: OFF@AH>0, ON@AH<0
2..Iout: 21mA @RE>RB, 3mA @RE<RB, ALARM: ON@AH>0, OFF@AH<0
AC[Enter] / ACx.x[Enter]......display/set ALARM center
AH[Enter] / AHx.x[Enter]......display/set ALARM hysteresys
AW[Enter] / AWx.x[Enter]......display/set ALARM width
HO[Enter] / HOx[Enter]........display/set temperature of heating on [ -40*C
... +70*C]
HF(Enter] / HFx[Enter]........display/set temperature of heating off[ -40*C
... +70*C]
RB[Enter] / RBx.x[Enter]......display/set distance of Iout=4mA
RE[Enter] / REx.x[Enter]......display/set distance of Iout=20mA
RM[Enter] / RMx y.y z[Enter]..remove measurement
BR[Enter] / BRx[Enter]........display/set baud rate [2400..38400]
AS[Enter] / ASd[Enter]........display/set autostart command
[DT/DS/DW/DX/DM/TP/LO/ID]
OF[Enter] / OFx.x[Enter]......display/set distance offset
SO[Enter].....................set current distance to offset
(offset = -distance)
LO[Enter].....................laser on
LF[Enter].....................laser off
PA[Enter].....................display settings
PR[Enter].....................reset settings
Figure 12 : Help text Firmware V8.x
In preparation of a measurement so the sensor can be adapted by intelligent parameterize optimally to the measuring conditions and the measuring task.
All valid settings will be preserved on turning the LDM41A and LDM42A off! They can only be replaced with new value entries or changed back to their standard values by running an initialization routine.
Command entries are not case-sensitive. This means that small and capital lettering can be used for commands.
ASTECH GmbH Page 25
Page 26
Command
Description DT
Start distance tracking
DS
Start distance tracking (< 7 m)
DW
Start distance tracking on white target at 10 Hz
DX
Start distance tracking on white target at 50 Hz (nur LDM42A)
DF17
Start remote triggered single distance measurement
DM
Start single distance measurement
TP
Queries inner temperature
SA
Queries/sets floating average value(1...20)
SD
Queries/set output format (dez/hex/sig)
ST
Queries/set time to measure(0...25)
17
Any command must be terminated by a hexadecimal 0Dh (carriage return) character.
Where decimal digits are to be entered, they must be separated by period (2Eh).
For command parameter entries, one must distinguish between parameter settings and parameter queries.
Querying is achieved with a command in simple format, e.g. (for alarm center parameters):
AC[Enter]
For parameter setting, a new value must be added after the command with no delimitation sign in between, for example:
AC20.8[Enter]
In the given example, the alarm center will be set to 20.8.
The following is a short overview of the commands:
Table 5 : Commands of the LDM41A and LDM42A
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
Page 27
LDM41A and LDM42A Manual Commands and Parameter
SF
Queries/set scale factor
SE
Queries/set Error Mode (0, 1, 2)
AC
Queries/set alarm center
AH
Queries/set alarm hysteresis
AW
Queries/set alarm width
HO18
Queries/set temperature for heating on
HF18
Queries/set temperature for heating off
RB
Queries/set beginning of range (4 mA)
RE
Queries/set end of range(20 mA)
RM
Queries/set removal measurement parameters
TD
Queries/set trigger delay and level
TM
Queries/set trigger mode and level
BR
Queries/set baud rate
AS
Queries/set auto start
OF
Queries/set offset
SO
Sets current distance as offset
LO
Turns Laser on
LF
Turns Laser off
PA
Displays all parameter values
PR
Resets all parameters to standard values (don't use)
18
Only for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 27
Page 28

8.2 DT – distance tracking

Input parameter SA, SD, SE, SF, ST, OF Output RS232/RS422, digital switching output, analog output
DT mode can be chosen for distance measurement of different kinds of surfaces (varying reflectance). In this type of distance tracking mode, the LDM41A and LDM42A uses internal algorithms to continuously evaluate the quality of the Laser radiation signal that is coming back. This may cause longer measuring times in the case of poor reflectance or sudden jumps in distance.
The minimum time to measure is 240 ms, the maximum time is 6 s. If the measuring signal fails to reach a specified quality within six seconds, an error message is output.
The time to measure may also be limited by setting the ST parameter to a desired value. ESC stops the measurement.

8.3 DS – distance tracking (<7 m)

Input parameter SA, SD, SE, SF, ST, OF Output RS232/RS422, digital switching output, analog output
Operation in DS mode makes sense where different types of surfaces have to be measured at close range up to 7 m. Compared to DT measuring mode, it allows a higher measurement rate. Within the range from 0.1 m to 0.5 m, measuring accuracy is restricted (± 4 mm). Measuring time (time to measure) can be limited via ST parameter settings.
ESC stops the measurement.

8.4 DW – distance tracking with target board (10 Hz)

Input parameter SA, SD, SE, SF, OF Output RS232/RS422, digital switching output, analog output
DW mode performs at a steady measuring rate of 10 Hz. As a necessary precondition for measured values to be stable, a white target board must b e placed at the selected object. There must be no sudden jumps in distance greater than 16 cm within the measuring field! ESC stops the measurement.
Page 29
LDM41A and LDM42A Manual Commands and Parameter
19
19

8.5 DX – distance tracking with target board (50 Hz)

Input parameter SA, SD, SE, SF, OF Output RS232/RS422, digital switching output, analog output
DX mode performs at a steady measuring rate of 50 Hz (only LDM42A). As a necessary precondition for measured values to be stable, a white target board must be placed at the selected object.
This measurement mode is intended in the first place for objects performing homogeneous motion up to 4m/s. For higher rates of measurement, preceding measured values will be included in the process to calculate a currently measured value. There must be no sudden jumps in distance greater than 16 cm within the measuring field!
Caution: To prevent transmission problems, please use 9600 baud as the minimal baud rate for DX Mode!

8.6 DF – distance measurement with external trigger

Input parameter SD, SE, SF, ST, OF, TD, ST, SA, RM Output RS232/RS232, digital switching output, analog output
DF mode allows a measurement that is triggered by an external trigger pulse.
Initially, after selecting this mode, the operator does not receive any response. As soon as the trigger pulse has been detected, the LDM41A and LDM42A will send data and switches to digital and/or analog output.
Settings for trigger delay (delay) and trigger slope can be defined via parameter TD (see 8.22 TDx y – display/set trigger delay trigger level).
With ST=1 the maximum trigger frequency should not exceed 3.5 Hz.
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 29
Page 30
Parameter
Output
Format
d
decimal
xxx.xxx<CR><LF> x=0…9
h
hexadecimal
<SPACE>xxxxxx<CR><LF> x=0...F
s
decimal with signal quality
xxx.xxx<SPACE>yyyyyy<CR><LF> x=0…9; y=0…9

8.7 DM – distance measurement

Input parameter SD, SE, SF, ST, OF Output RS232/RS232, digital switching output, analog output
DM mode triggers a single measurement (single shot)
8.8 TP – internal temperature [°C]
TP queries the value of the inner LDM41A and LDM42A temperature.
Note: In tracking mode, the inner temperature may exceed the surrounding temperature level by as much as 10 K.

8.9 SA – display/set average value [1..20]

SA allows you to calculate a floating average value from 1 to 20 measured values. Calculation is based on this formula:
Average value:   
Standard setting is 1 (no average).

󰇛󰇜

8.10 SD – display/set display format [d/h/s}]

SD selects the output format of measured value data. There are three modes available:
Table 6 : Output format
SD affects all commands that output a distance value.
An output value is calculated from a given measured distance value (in mm), multiplied by the scale factor SF.
Page 31
LDM41A and LDM42A Manual Commands and Parameter
Negative distance values are output in two’s complement notation.
The value for the signal quality varies between 0 and 1024. 0 means a bad signal quality while 1024 indicates a very good signal quality.
Examples:
Distance = 4,996 m, SF1
dec: 004.996<CR><LF>
hex: <SPACE>001384<CR><LF>
(= 4996 mm × SF1)
dec+sig: 004.996_000005<CR><LF>
(bad signal quality)
dec+sig: 004.996_000985<CR><LF>
(good signal quality)
Distance = 4,996 m, SF10
dec: 049.960<CR><LF>
hex: _00C328<CR><LF>
(= 49960 = 4996 mm × SF10)
dec+sig: 049.960_000005<CR><LF>
Error case
dec/hex: E15<CR><LF>
(see 11 Error Codes)

8.11 ST – display/set measure time [0..25]

Measuring time is directly conditional on the selected measuring mode. As a general rule, one may say: the poorer the reflectance of the surface of a particular target, the more time the LDM41A and LDM42A will require to determine the distance with specified accuracy. For example, if error message E15 is output because of poor reflectance and insufficient time to measure, this latter setting must be increased.
ASTECH GmbH Page 31
Page 32
The available value range for measuring time is 0 to 25. Basically, the greater the time setting is the more time will be available for measurement and the lower the resulting measuring rate.
An exception there from is zero-value. In this case, the LDM41A and LDM42A automatically picks the smallest possible time value for measurement!
The LDM41A and LDM42A comes factory-set with ST = 0.
ST is effective in the DT, DF and DM mode of operation.
The measuring time setting option can also be used to modify the measuring rate, for example, in order to restrict the data volume or for synchronization purposes. Measuring time can only be set as an approximate value, because the underlying principle of measurement is subject to certain variances that cannot be accounted for:
DT measuring mode → measuring time= ST x 240 ms (except ST = 0)
DS measuring mode → measuring time = ST x 150 ms (except ST = 0)
Example:
The target distance is 25 m, but the target’s reflectance is not ideal. With a
measuring time setting of ST 2, E15 will be output following measurement. The user must increase the time (ST > 2) or set auto (ST 0) to measure in this case!
One should work in DW or DX measuring mode where stable measuring times are required.

8.12 SF – display/set scale factor

SF multiplies a calculated distance value with a user-selectable factor for changes in resolution or outputs in a different unit of measure. The scale factor may also be negative. Standard setting is 1.
The scale factor influence the output of measurement results, Offset (OF), Alarm Centre (AC), Alarm Hysteresis (AH), Range Begin (RB) and Range End (RE)!
Page 33
LDM41A and LDM42A Manual Commands and Parameter
Scale factor
Resolution
Output
Output Unit
SF1
1 mm
012.345
m
SF10
0.1 mm
123.450
dm
SF1.0936
0.01 yard
013.500
yard
SF3.28084
0.01 feet
040.501
feet
SF0.3937
1 inch
004.860
100 inch
SF-1
1 mm
-12.345
m
SE
Digital switching output (Alarm)
Analog output (4 -20 mA)
0
ALARM of latest valid measurement
Outputs current of last valid measurement
1
Positive alarm hysteresis = LOW Negative alarm hysteresis = HIGH
RE >RB: Current =3 mA RE <RB: Current =21 mA
2
Positive alarm hysteresis = HIGH Negative alarm hysteresis = LOW
RE >RB: Current =21 mA RE <RB: Current =3 mA
Table 7: Examples for Scale factor
Note: Following a change in the scale factor, the settings for digital and/or analog output and offset must be matched accordingly!

8.13 SE – display/set error mode [0/1/2]

SE (error mode) allows you to configure the behaviour of the digital switching output (alarm) and/or the analog output following an error message (E15, E16, E17). Depending on the particular LDM41A and LDM42A application environment, error messages have to be handled in different ways.
Available setting options are 0, 1 and 2 with the following effects in the case of an error:
Table 8 : Meaning of SE

8.14 AC – display set ALARM center

AC sets the beginning of the distance range, for which the switching output will be turned active. The length of this active range can be set using the AW parameter.
ASTECH GmbH Page 33
Page 34
20
20

8.15 AH – display/set ALARM hysterese

AH allows you to make parameter settings for the switching hysteresis at the beginning and the end point of the active range of the switching output.
AH must be selected so it is properly matched to the currently valid scale factor (SF).
The mathematical sign of AH can be used to set an active state logic level:
Positive sign (“+”): active range is HIGH-active.
Negative sign (“-“): active range is LOW-active.
No sign setting means positively-signed (see 9.4 Digital Switching Output (Alarm)).

8.16 AW – display/set ALARM width

AW pa ets the length of the active range, beginning at AC.
AW settings must be made in agreement with the currently valid SF scale factor.
AW is always equal or greater than “0” (zero).
AW is always equal or greater than |AH| (the amount of AH).
Standard setting is 100000 – means off.

8.17 HO – display/set Temperature for heating on

HO displays/sets the temperature value at which the internal heating is switched on. The values can be varied between -40°C and 70°C.
Standard setting is 3°C.
Only for devices with internal heating (LDM41A-h and LDM42A-h)
Page 35
LDM41A and LDM42A Manual Commands and Parameter
8.18 HF – display/set Temperature for heating off
20
HF displays/sets the temperature value at which the internal heating is switched off. The values can be varied between -40°C and 70°C. Standard setting is 12°C.
8.19 RB – display/set distance of I
OUT
= 4 mA
RB (Range Begin) defines the point of a distance range at which the analog output will begin to deliver varying distance readings.
At a distance of RB, the output current will be 4 mA.
RB must be selected so it is properly matched to the currently valid scale factor (SF) setting.
RB can be smaller or greater than RE! (see 9.5 Analog Output) In the event of a fault, the output value will correspond to the current that was set via parameter SE.
8.20 RE – display/set distance of I
= 20 mA
OUT
RE (Range End) defines the point of a distance range at which the analog output will cease to deliver varying distance readings.
At a distance of RE, a current of 20 mA will be output.
RE must be selected so it is properly matched to the currently valid scale factor (SF) value. RE can be greater or smaller than RB!
In the event of a fault, the output value will correspond to the current that was set via parameter SE.

8.21 RMx y z – display/set remove measurement

Standard setting: 0 0 0
RM is intended to facilitate settings for a range of expected distance values.
Values which are found to be outside of this expected range will be corrected
until matching the most recently valid measured values.
RM is only effective in DT mode.
ASTECH GmbH Page 35
Page 36
21
21
It consists of three parameters which are separated by space (20h).
x designates the number of preceding measured values that will be
evaluated in the case of non-conforming measurement. A maximum of ten preceding measured values can be evaluated.
y defines the range of permissible values. If this range is exceeded in
negative or positive direction, the respective measured value will be corrected accordingly.
z stands for the number of values that are out of the permissible value
range (out of tolerance values). In the event of out-of-tolerance values arriving in succession, the most recently corrected value will be included in the correction process for the next out-of-tolerance value. The maximum allowed number of out-of-tolerance values is
100.
Important: The use of RM parameter settings should be restricted to suitable applications only. Improper use of the parameter may create safety hazards!

8.22 TDx y – display/set trigger delay trigger level

TD consists of two sub parameters, of the actual delay value, i.e. the delay time, and the trigger level.
Trigger delay corresponds to the time from arrival of the trigger signal to the starting point of a measurement. It may be set to any value between 0 and 9999 ms. With the help of the trigger level one may define if measurement is to begin on a rising or a falling pulse slope.
Trigger delay and trigger level must be separated by space (20h) in the entry line. Standard setting: 0 0.
x Delay time between trigger signal and start of measurement, delay
can be set from 0 to 9999 ms.
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
Page 37
LDM41A and LDM42A Manual Commands and Parameter
22
22
y 0 for HIGH → LOW-slope 1 for LOW → HIGH-slope
Example:
TD1000_0[Enter]
In the given example, the delay has been set to 1000 ms and the trigger slope to "rising" (LOW-to-HIGH transition)

8.23 TMx y – display/set trigger mode trigger level

TM provides parameter setting options for the auto-start trigger function which allows external triggering of the auto-start command that was set via parameter AS. Triggering is accomplished via the external trigger input. All starting modes which are selectable via AS can be launched and stopped by external triggering. These are: DS/DT/DW/DX/DF/DM/TP/LO/ID.
TM consists of two parameters which are separated by space (20h). x 0... Trigger function turned off
1... Trigger function turned on
y 0 ... measurement is triggered on trigger line at L-level (HIGH → LOW slope) 1 ... measurement is triggered on trigger line at H-level (LOW → HIGH slope)
Standard setting is TM0 1.
For triggering, the trigger level must be permanently applied!
Examples:
a) ASDT TM1 1 Trigger signal = H → DT is performed Trigger signal = L → DT is stopped
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 37
Page 38
Figure 13 : Trigger level = 1
b) ASDM TM1 0 Trigger signal=H → no change in state
Trigger signal=L → DM active, i.e. one measurement is triggered
Figure 14 : Trigger level = 0

8.24 BR – display/set baud rate [2400..38400]

Available baud rate settings are: 2400, 4800, 9600, 19200, 38400. Faulty entries will be rounded to the nearest baud rate. A fixed data format of eight data bits, with no parity and one stop bit is used. Standard setting is 9600 baud.

8.25 AS – display/set autostart command

AS (auto start) defines which function will be carried out when power becomes available to the LDM41A and LDM42A.
Possible entries are those delivering a measured value on the output side, an ID command or the command for turning the Laser on (LO).
Page 39
LDM41A and LDM42A Manual Commands and Parameter
For example, if ASDT has been parameterized, the LDM41A and LDM42A will begin with distance tracking on turning on power.

8.26 OF – display/set distance offset

With the help of OF (offset) the user may define a zero-point for his/her application. For details on the position of the module’s zero-point, refer to section 4.
OF must be selected so it is properly matched to the currently valid scale factor setting (SF).
OF may also take on negative values. Standard setting: 0

8.27 SO – set current distance to offset

SO performs a distance measurement and saves the measured reading as an offset value with inverted mathematical sign (OF).

8.28 LO – Laser on

LO turns the Laser on. This function can be used for orientation or functional testing of the LDM41A and LDM42A. After the command LO it’s necessary to send LF! Don’t use LO because this. Please use instead of LO the command DT to turn the Laser on.

8.29 LF – laser off

LF turns the Laser off.

8.30 PA – display settings

PA lists all parameters in a table.
ASTECH GmbH Page 39
Page 40

8.31 PR – reset settings

PR resets all parameters (except baud rate). After this a new configuration of the LDM41A and LDM42A is necessary
average value[SA].................1
display format[SD]................d
measure time[ST]..................0
scale factor[SF]..................1
error mode[SE]....................1
ALARM center[AC]..................1000
ALARM hysterese[AH]...............0.1
ALARM width[AW]...................100000
distance of Iout=4mA [RB].........1000
distance of Iout=20mA [RE]........2000
remove measurement [RM]...........0 0 0
trigger delay, trigger level[TD]..0 0 trigger mode, trigger level[TM]...0 1
baud rate[BR].....................9600
autostart command[AS].............ID
distance offset[OF]...............0
Use instead of PR the "Set Standard" command from Windows program LDMTool.
Page 41
LDM41A and LDM42A Manual Interface Connection

9 Interface Connection

The LDM41A and LDM42A provide one serial port type RS232 or RS232 depending on the version (see label). For devices with RS232, the RS232 transmission lines (TX +, TX-) are also available.

9.1 Serial Interface RS232

Initially, RS232 communication interfaces purely functioned as PC communication ports. They have become the established standard tool for serial data transmission over short cable lengths. With greater transmission lengths, the interface is highly susceptible to interferences, notably, in the vicinity of strong electromagnetic noise emitters.
Therefore, it should only be used for LDM41A and LDM42A configuration.
Figure 15 : Diagram of RS232 wiring at 9-position D-Sub cable jack
Figure 16 : Diagram of RS232 wiring at 25-pole D-Sub cable jack
The commands of the serial interface are described in chapter 8 starting page
24. The data output format is determined by parameter SD (display format), see page 30.
ASTECH GmbH Page 41
Page 42
Parameter
Output
Format
d
decimal
xxx.xxx<CR><LF> x=0…9
h
hexadecimal
<SPACE>xxxxxx<CR><LF> x=0...F
s
Decimal with signal quality
xxx.xxx<SPACE>yyyyyy<CR><LF> x=0…9; y=0…9

9.2 Serial Interface RS422

For configuration purposes and permanent data transmissions over a greater length, the RS422 can be used. This type of interface is insusceptible to interference and noise influences and qualifies for industrial use. Where twisted cable pairs are involved, transmissions lengths up to 300 m can be handled.
Figure 17 : RS232 wiring diagram
Since a standard PC typically includes no RS422 communication port, you require an RS422 interface card or an RS422-to-RS232 converter for communication.

9.3 Output Format on the serial interface

The output format on the serial interface is selected by the command SD. There are three modes available:
SD affects all commands that output a distance value.
An output value is calculated from a given measured distance value (in mm), multiplied by the scale factor SF.
Negative distance values are output in two’s complement notation.
The value for the signal quality varies between 0 and 1024. 0 means a bad signal quality while 1024 indicates a very good signal quality.
Page 43
LDM41A and LDM42A Manual Interface Connection
Examples:
Distance = 4,996 m, SF1
dec: 004.996<CR><LF> hex: <SPACE>001384<CR><LF>
(= 4996 mm × SF1)
dec+sig: 004.996_000005<CR><LF>
(bad signal quality)
dec+sig: 004.996_000985<CR><LF>
(good signal quality)
Distance = 4,996 m, SF10
dec: 049.960<CR><LF> hex: _00C328<CR><LF>
(= 49960 = 4996 mm × SF10)
dec+sig: 049.960_000005<CR><LF>
Error case
dec/hex: E15<CR><LF>
(see page 50, chapoter 11, Error Codes)

9.4 Digital Switching Output (Alarm)

With the help of a user-selectable distance threshold, the switching output can be set to monitor objects or conditions for positive or negative overstep.
Figure 18 : Wiring diagram of digital switching output
For example, using the digital switching output, an object which was selected for measurement can be monitored for excision of a threshold value. To do this, parameter settings for a measurement window are required. Settings for this window can be made via the three parameters: Alarm Center (AC), Alarm Hysteresis (AH) and Alarm Width. The range which will be subject to monitoring begins at AC and ends at AC+AW. Switching transitions can be set via parameter AH.
ASTECH GmbH Page 43
Page 44

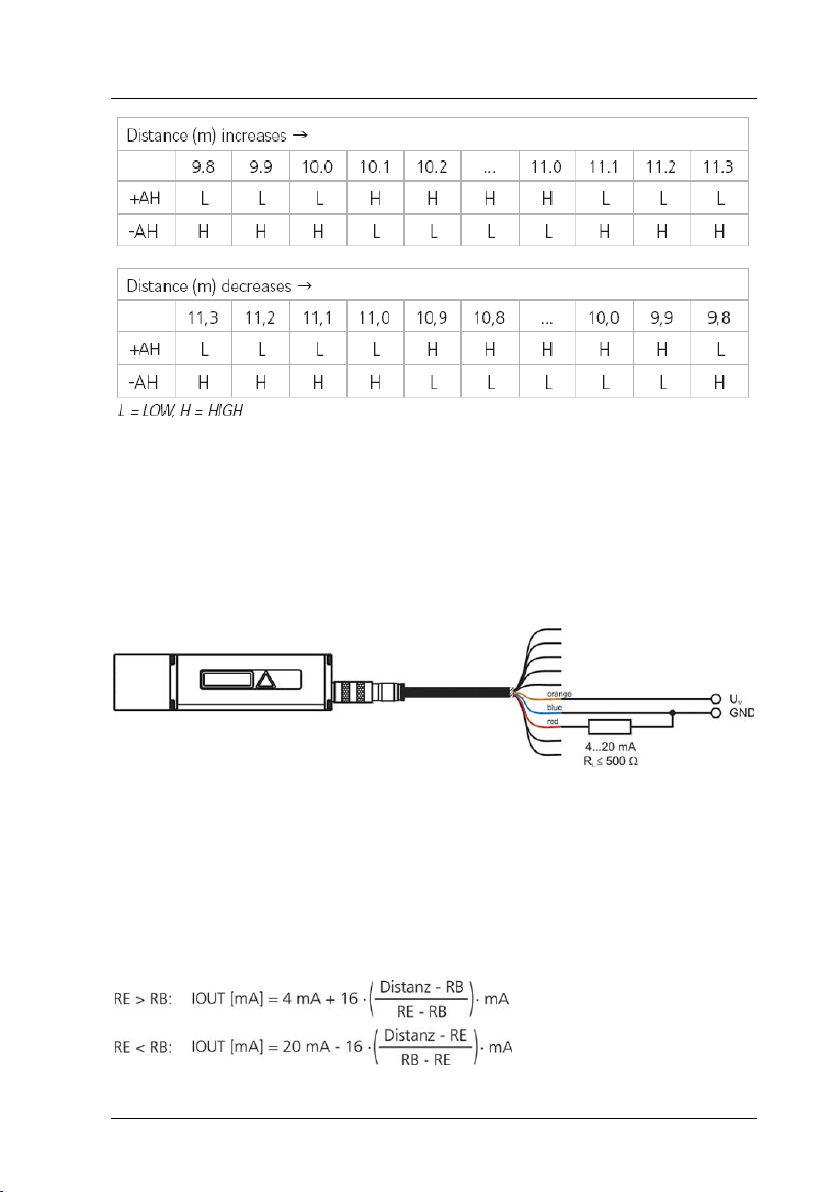

The logic state of the switching output follows from the mathematical sign of AH.
In the case of a positive AH, the output switches
- with increasing distance:
from LOW to HIGH if the distance is greater than (AC ±AH/2) from HIGH to LOW if the distance is greater than (AC+AW+AH/2)
- with decreasing distance:
from LOW to HIGH if the distance is smaller than (AC +AW-AH/2) from HIGH to LOW the distance is smaller than (AC-AH/2)
In the case of a negative AH, the output switching pattern will be inverse.
Figure 19 : Digital switching output behavior with positive and negative hysteresis
Example:
A moving object is assumed to be monitored within a window of 10 m to 11 m with a hysteresis of 0.2 m.
AC10 AH0.2 AW1
Page 45
LDM41A and LDM42A Manual Interface Connection
How the switching output is to behave on occurrence of an error message
(E15, E16, E17, E18) can be defined by making suitable settings under “SE“ (see 8.13, SE – display/set error mode [0/1/2])

9.5 Analog Output

The purpose of the analog output is to allow transmission of analog measured values via a 4..20mA interface.
Figure 20 : Wiring diagram of analog output
The current is proportional to the measured target distance. This applies within a distance interval that is marked by the two limiting parameters
“Range Begin“ (RB) and “Range End“ (RE), where RE may be greater or smaller
than RB (see 8.17 and 8.20)
The output current value is calculated according to this equation:
ASTECH GmbH Page 45
Page 46
Distance = RB
Distance = RE
RE > RB
4 mA
20 mA
RB > RE
20 mA
4 mA
RB
RE
0 m
2 m
4 m
6 m
8 m
10 m
11 m
2 m
10 m
4 mA
4 mA
8 mA
12 mA
16 mA
20 mA
20 mA
Current out of distance range:
Example:

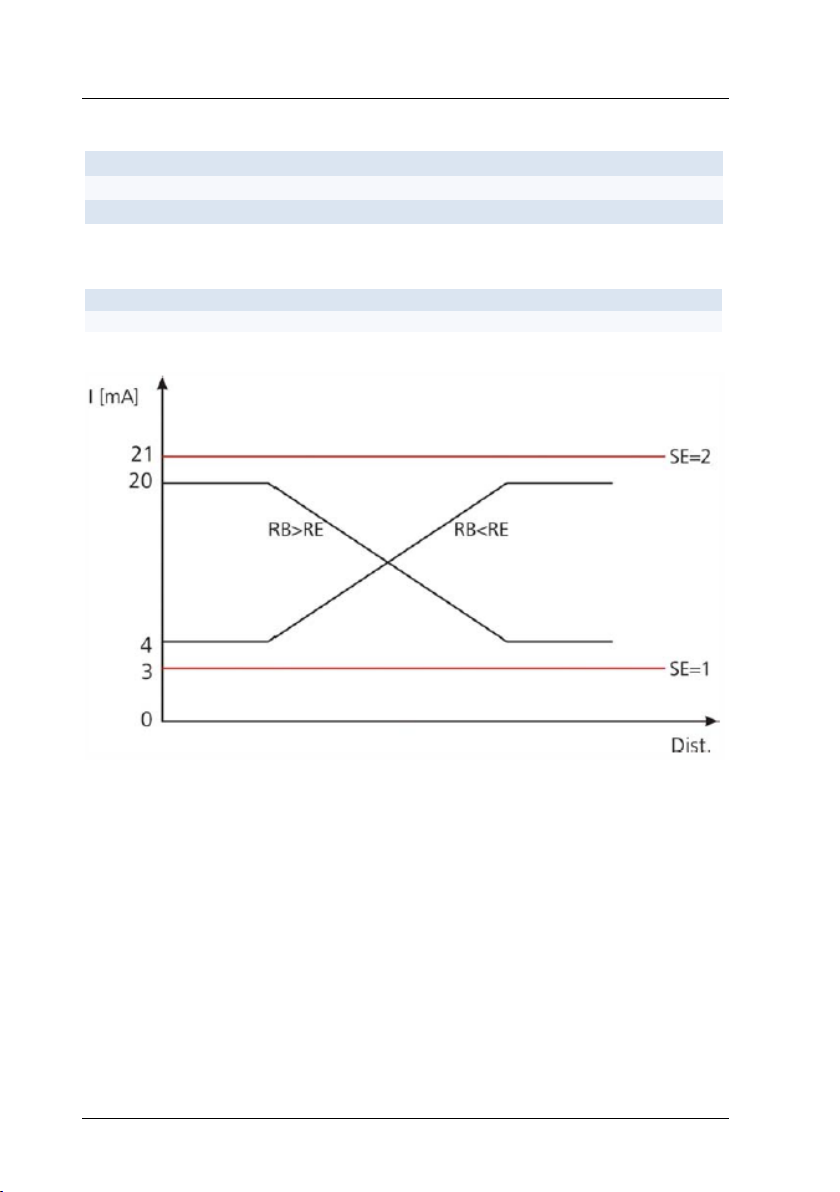

Figure 21 :Output current diagram for RE > RB and RE < RB
To match analog output behaviour in the event of an error message (E15, E16, E17, E18), appropriate settings can be made under “SE“(see 8.13, SE – display/set error mode [0/1/2])
Page 47
LDM41A and LDM42A Manual Interface Connection
23
23

9.6 Trigger Input

The trigger input is intended for triggering a distance measurement with an external signal that is applied as a voltage pulse between 3 V and 24 V. This input is used only in trigger mode DF (DF – distance measurement with external trigger)!
Figure 22 : Wiring diagram of trigger input
It is for the user to specify a desired delay time and a pulse slope to be selected for synchronization (see 8.22, TDx y – display/set trigger delay trigger level). The distance measurement will always be started with a delay of 5 ms in addition with the programmed trigger delay time.
Having done this, the LDM41A and LDM42A has to be switched to trigger mode (see 8.6, DF – distance measurement with external trigger).
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 47
Page 48
Command
Description
DT
Starts distance tracking
DS
Starts distance tracking (< 7 m)
DW
Starts distance tracking on white target at 10 Hz
DX
Starts distance tracking on white target at 50 Hz (only LDM42A)
DF24
Starts remote-triggered single distance measurement (single shot)
DM
Starts single distance measurement (single shot)
TP
Queries inner temperature
SA
Queries / sets floating average value (1...20)
SD
Queries / sets output format (dec/hex/sig)
ST
Queries / sets time to measure (0...25)
SF
Queries / sets scale factor
SE
Queries / sets error mode (0, 1, 2)
AC
Queries / sets alarm center
AH
Queries / sets alarm hysteresis
AW
Queries / sets alarm with
HO25
Queries / sets temperature for heating on
HF25
Queries / sets temperature for heating off
RB
Queries / sets beginning of range (4 mA)
RE
Queries / sets end of range (20 mA)
RM
Queries / sets removal measurement parameters
TD
Queries / sets trigger delay and level
TM
Queries / sets trigger mode and level
BR
Queries / sets baud rate
AS
Queries / sets auto start
24
25

10 List of Commands

Table 9 : List of commands
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h) Only for devices with internal heating (LDM41A-h and LDM42A-h)
Page 49
LDM41A and LDM42A Manual List of Commands
Command
Description
OF
Queries / sets offset
SO
Sets current distance as offset
LO
Turns Laser on (do not use, please use DT)
LF
Turns Laser off
PA
Displays all parameter values
PR
Resets all parameters to standard values (don’t use)
ASTECH GmbH Page 49
Page 50
Code
Description
Action
E15
Reflexes are too weak, or distance from LDM (front edge) to target is less than 0.1 m
Use white target board26 or increase distance to target
E16
Reflexes are too strong
Use white target board or filter
E17
Too much steady light (e.g. sun) or reflexes are too strong
Use aperture or filter or white target board
E18
DX mode (only LDM42A): reflexes too weak, or distance from LDM (front edge) to target is less than
0.1 m
Use white target board or increase distance to target
E23
Inner temperature below – 10°C
Heading necessary
E24
Inner temperature above + 60°C
Cooling necessary
E31
EEPROM checksum error
Necessary to repair
E51
Failed to set avalanche voltage
Necessary to repair
E52
Excessively high Laser current / Laser defect
Necessary to repair
E53
Division by 0
SF must be unequal of zero or necessary to repair
E54
Hardware error, PLL range
Necessary to repair
E55
Other hardware error
Necessary to repair
E61
Invalid command
Correct input
E62
Wrong parameter, wrong command
Check data transmission
E63
SIO overflow
Check data transmission
E64
SIO framing error
Check data transmission
26

11 Error Codes

Table 10 : Error Codes
e.g. 3M, self adhesive foil matte white
Page 51
LDM41A and LDM42A Manual PC Interface Cable (Option)
Nr. SUB-D 9 F
Color code
Designation SUB-D 9 F (PC COM)
Shield
-
Cable shield
3
brown
TxD
2
white
RxD 5 blue
GND
Pin LDM41A and LDM-42A
Color code
Designation LDM41A and LDM42A / RS232
Shield
-
Cable shield
A
green
TxD / RX+
B
yellow
RxD / RX-
C27
brown
TRIG
D
red
IOUT
E
black
TX- F purple
TX+
G
orange
VCC
H
white
ALARM
J
grey
GND
L
blue
GND
27
GND
+24V
SUB-D 9 F

12 PC Interface Cable (Option)

Figure 23 : RS232 cable with power supply for LDM41A and LDM42A Table 11 : Pin assignment SUB-D 9 F
Table 12 : Pin assignment LDM41A and LDM42A
RS232 Kabel: TXD and RXD are necessary to cross
Trigger function is not available for devices with internal heating (LDM41A-h and LDM42A-h)
ASTECH GmbH Page 51
Page 52

13 EG Declaration of Conformity

In accordance with the
Directive of Electromagnetic Compatibility 2004/108/EG
The company ASTECH Angewandte Sensortechnik GmbH in Schonenfahrerstr. 5, 18057 Rostock / Germany herewith declare, represented by the signatory, that the following designated product
Laser Distance Measurement Sensor
LDM41A / LDM42A
agree with the following harmonized standard:
IEC 61326-1
Electromagnetic interference and electromagnetic compatibility (EMC)
*including radio interference
Rostock, 21. September 2010
ASTECH Angewandte Sensortechnik GmbH
Jens Mirow
General Manager
Page 53
LDM41A and LDM42A Manual Part Numbers
Part-No.
Name
10-2000-00
LDM41A
10-2000-01
LDM41A-RS232
10-2001-00
LDM42A
10-2001-01
LDM42A-RS232
10-2010-00
LDM41A-h with heating
10-2010-01
LDM41A-RS232-h with heating
10-2011-00
LDM42A/h with heating
10-2011-01
LDM42A-RS232-h with heating
10-2020-00
LDM41A with pressure equalizing element
10-2020-01
LDM41A-RS232 with pressure equalizing element
12-2006-00
Protection window Standard for LDM4x-Serie
12-2006-01
Protection window Quartz glass for LDM4x-Serie
12-2006-02
Protection window Sapphire glass for LDM4x-Serie
12-2030-00
Gray filter 2-fach for LDM4x-Serie
12-2030-01
Gray filter 4-fach for LDM4x-Serie
12-2010-00
Reflection foil matte/white, A4
12-2011-00
Highly reflective foil silver, A4
12-2015-00
Protection tube for pressure air for LDM4x-Serie
15-2000-00
Connection cable LDM41A and LDM42A, 2m
15-2000-01
Connection cable LDM41A and LDM42A, 5m
15-2000-02
Connection cable LDM41A and LDM42A, 10m
15-2000-03
Connection cable LDM41A and LDM42A, 15m
15-2000-04
Connection cable LDM41A and LDM42A, 20m
15-2000-05
Connection cable LDM41A and LDM42A, 30m
15-2000-06
Connection cable LDM41A and LDM42A, 50m
15-2001-00
RS232-Kabel D-SUB9F/Lüsterkl., 2m for LDM-Serie
11-0006-00
ASTECH USB Stick (Documentation and Software)
16-2000-01
Printed Manual LDM41A and LDM42A, A5, DE
16-2000-02
Printed Manual LDM41A and LDM42A, A5, EN
17-2000-00
License number for PC-Software LDMTOOL for LDM3x und LDM4x

14 Part Numbers

Table 13 : Part Numbers
Note: Several single sensors are also available as packages including sensor and cable, manual and CD (sets). Additionally are other protection enclosures with and without a thermostat available.
ASTECH GmbH Page 53
Page 54
Page 55
LDM41A and LDM42A Manual Notice
ASTECH GmbH Page 55
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
