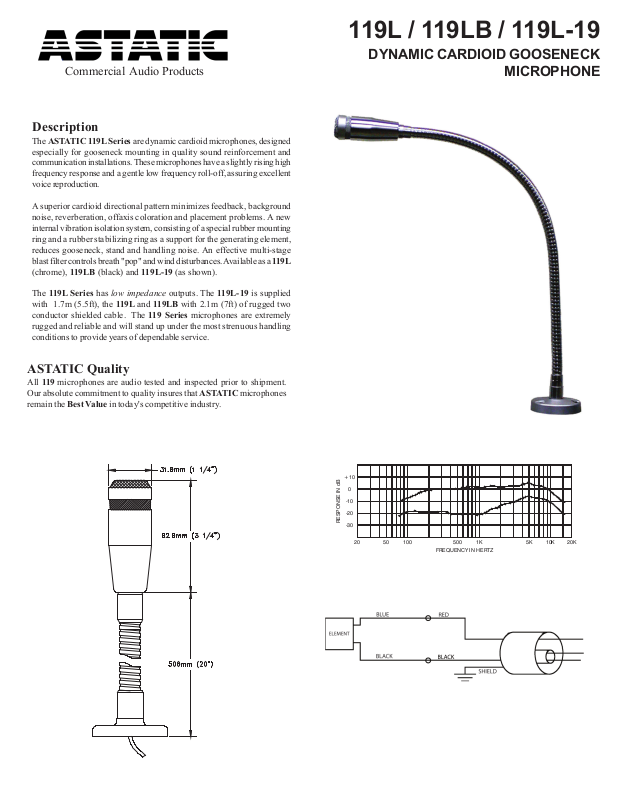

Astatic 119L-19, 119L, 119LB User Manual

Commercial Audio Products

Description

The ASTATIC 119L Series are dynamic cardioid microphones, designed
especially for gooseneck mounting in quality sound reinforcement and
communication installations. These microphones have a slightly rising high
frequency response and a gentle low frequency roll-off, assuring excellent
voice reproduction.

A superior cardioid directional pattern minimizes feedback, background
noise, reverberation, offaxis coloration and placement problems. A new
internal vibration isolation system, consisting of a special rubber mounting
ring and a rubber stabilizing ring as a support for the generating element,
reduces gooseneck, stand and handling noise. An effective multi-stage
blast filter controls breath "pop" and wind disturbances. Available as a 119L
(chrome), 119LB (black) and 119L-19 (as shown).

The 119L Series has low impedance outputs. The 119L-19 is supplied
with 1.7m (5.5ft), the 119L and 119LB with 2.1m (7ft) of rugged two
conductor shielded cable. The 119 Series microphones are extremely
rugged and reliable and will stand up under the most strenuous handling
conditions to provide years of dependable service.

119L / 119LB / 119L-19

DYNAMIC CARDIOID GOOSENECK

MICROPHONE

ASTATIC Quality

All 119 microphones are audio tested and inspected prior to shipment.
Our absolute commitment to quality insures that ASTATIC microphones
remain the Best Value in today's competitive industry.

+10

0

-10

-20

RESPONSE IN dB

-30

5001005020

FREQUENCY IN HERTZ

1K

5K 10K 20K

Specifications

Generating Element:

Dynamic

Polar Pattern:

Unidirectional (Cardioid)

Frequency Response:

80 Hz - 15 KHz

Output Level: @ 1000 Hz

Open Circuit Voltage:

-77 dB (0 dB=1 volt/microbar)

-60 dB (0 dB=1 mv/10 microbar)

1.4 mv/PA

Front To Back Ratio:

20 dB

Impedance:

Low, 500 ohms

Cable:

Two conductor, overall shielded permanently attached, rugged,
synthetic, jacketed cable.
119L, 119LB - 2.1m (7ft) / 119L-19 - 1.7m (5.5ft)

Dimensions:

See Drawing

Weight:

119L, 119LB - 227 grams (8oz)
119L-19 - 340 grams (12 oz.)

Housing:

Die cast Zinc

Finish:

119L - Plated satin chrome
119LB - Black

Phasing

Positive Pressure (movement of diaphragm inward)
will generate a positive voltage on the red cable lead with respect to
the black cable lead.

SPECIFICATIONS FOR 119L / 119LB / 119L-19

Architects' and Engineers' Specification

The microphone shall be an ASTATIC 119L, 119LB or 119L-19. The
microphone shall be a dynamic moving coil type with a diaphragm made of
polyester. The frequency response shall be 80 Hz to 15 KHz. The
microphone shall have a cardioid polar pattern.

The output level of the 119L Series (500 ohms) shall be -60 dB (0 dB = 1
mW/10 microbar); -77 dB (0 dB = 1 volt/microbar); 1.4 mV/Pa. The
microphone will feature an internal shock mounted element to reduce
gooseneck and handling noise. The microphone will be wired for balanced
line operation. The microphone will have a zinc die cast and brass housing
and be finished in satin chrome (119L), and black (119LB). The 119L-19
microphone will be fitted with a 508mm (20") chrome flexible gooseneck
and mounting flange. The 119L and 119LB shall have a permanently
attached 2.1 M (7ft) two conductor overall shielded synthetic jacketed
cable. The 119L-19 shall have a permanently attached 1.7M (5 1/2') two
conductor overall shielded synthetic jacketed cable.

The overall dimensions shall be 31.8mm (1 1/4") in diameter; 103.2mm (4
1/16") long and for the 119L-19 plus 508mm (20") for the gooseneck and
flange. The weight shall be 340 grams (12 oz.) including gooseneck for the
119L-19 and 227 grams (8 oz.) for the 119L and 119LB.

The ASTATIC Model 119L, 119LB or 119L-19 is specified.
