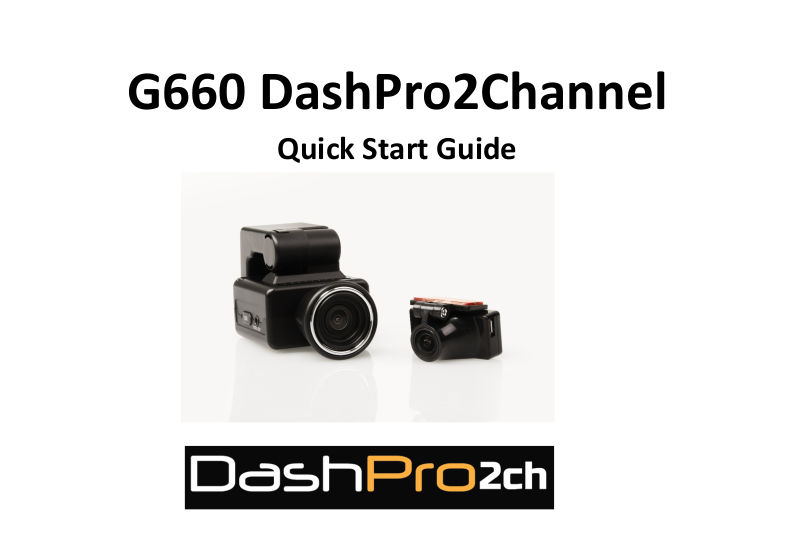

Page 1
G660 DashPro2Channel
Quick Start Guide
Page 2
CarCam details
Product Components
Mount (external GPS)
12
11
Video Input
Camera Lens
8
10
DC Power Input
9
GPS Input
USB
1
Speaker
3
※ The actual product is subject to change without prior notice for performance and quality improvements.
2
VIDEO Output
4
Cancel
Micro SD Slot
7
5
LED
Record
6
Page 3
Installation
Caution upon Installation
• Please don’t move CarCam once installed. Change the double sided tape if CarCam need to be re-attached.
• Do not install or use CarCam outside of the vehicle.
Make sure to check local traffic laws and regulations before using. Attach CarCam in a place where the driver’s view is not blocked.
Position of Installation
• Position: recommended area of installation
•After attaching the CarCam to the recommended installation area, use
the product handles to adjust the camera so that it is horizontal and
facing the front.
•Once power is on, the product LED will turn on and "Start recording”
voice guidance is provided and recording will start.
Page 4
Installation
Connecting CarCam to the vehicle’s windshield
Connect the CarCam to the mount
Place the groove at the top side of the main
unit against the groove area on the mount and
push until a “click” sound is heard.
Insert Micro SD card
When inserting memory cards, check to
see that the correct side of the card is
facing up before inserting into the slot.
Remove backing of double-sided
tape
Remove the backing of double-sided tape
attached to the mount.
Connect the CarCam to windshield
Attach CarCam at an appropriate position,
adjust the angle of lens so that the camera
is facing front. Make sure that there is no
obstruction in front of the lens.
Connect power cable to CarCam
Organize power cable, connect
cigarette lighter socket
Use the cable organizer to organize power
line and connect to cigarette lighter socket.
Turn on engine
After turning on the ignition, check to see
whether the device LED turns on.
Recording will start once the LED turns on
and "Start recording.” voice guidance is
provided.
• Attaching the device in a position that interferes with driver’s view or
with vehicle operations could result in accidents.
• Firmly attach the device so that it does not move or fall off while
driving.
