Safety Notice
For safe and efficient use of this product,
please strictly abide by the rules, otherwise
you will void your warranty and/or damage
the device.
Do not put the product under the direct sunlight,
or expose it to an extra high or low temperature
environment. Failure to do this may cause
distortion of the product and damage of the
electronic components and battery.
Do not put or use it in a humid environment. Do
not expose your new EZ Reader to water or any
liquid or excessive dampness as this will cause
the malfunction of operation of the internal
circuits.
Do not violently shake the product or drop it as
this will cause the damage of the product and its
electronic components.
Do not heavily press the display panel or put
objects on the display. We are not responsible
for improper carrying or storage during travels.
Do not put the product in a dusty, dirty place.
Use common sense! This is a fine instrument
and should be treated as such.
Do not use chemical solvents to clean the
surface of the product. Please use a soft cloth to
wipe up the dust from the surface of the screen
or the cover. You can use a little distilled water
on a clean cloth to remove the dirt on the screen
or the cover.
Do not disassemble the product. There are no
user serviceable parts. You will void your
warranty and damage the device!
Please pay attention to store the product or its
accessories in a safe place, where children or
pets cannot reach it!
2
Do not put the product near a magnetic field or
improper current.
Please use the authorized accessories, do not
use unmatched components.
Battery:
* Do not use the rechargeable battery if there
is visible surface damage.
* If the battery leaks liquid, please clean the
product and call toll free customer support
number for replacement of new battery within
warranty period. Battery acid can be harmful to
you also, so use considerable caution!
* Please properly recycle of the old batteries.
Do not just throw into the garbage!! This is the
law!! This product saves energy!! Please
assume stewardship for the earth!
This product is CE approved.
3
N
N
N
g
Your ASTAK EZ Reader
Indicator
Previous Pa
umber key
~
5 /Bookmark
○
Bookmark/
Screen
ext Page
e
1
○
6
○
Go to index/
Zoom/
7
○
8
○
Previous Page/
ext Page/
OK /Menu
Exit
0
○
9
○
Front View
4
y
d
p

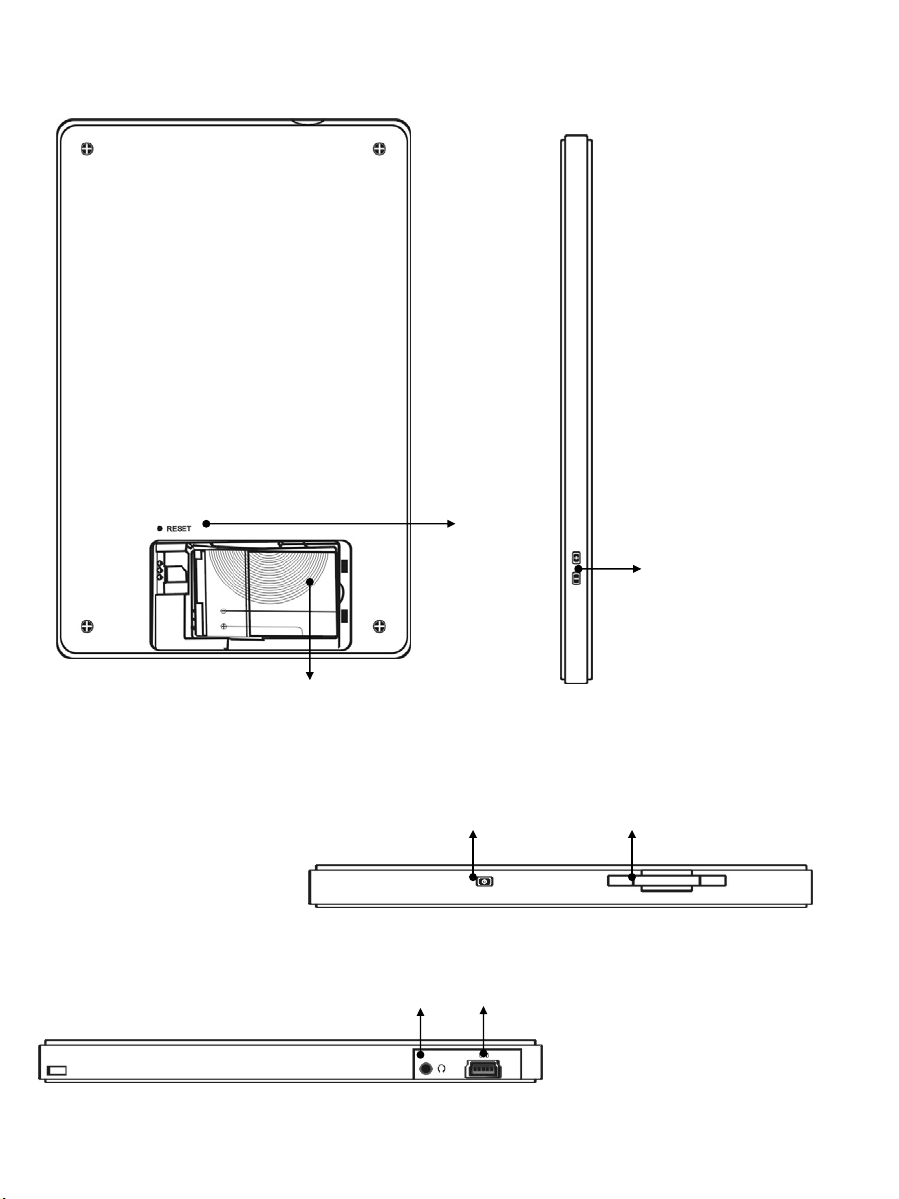

Back View
Side View
Reset
Volume Up (+)
/ Down(-)
Rechargeable
Batter
Power On/Off
SD Car
Slot
To
View
USB PortHeadset Jack
Bottom View
5
Read the cautions below very carefully and
fully! This is a fine instrument and you do not
yet know HOW to keep it working beautifully!
LEARN what to do!
Start using your EZ Reader
Installing Battery
Open the battery cover on the back of the
device.
Install the battery!
according to the
instructions on the
battery slot.
Place battery as illustrated!
Charging the battery
6
* The Power supply of this product is used for
rechargeable battery.
* The battery should be charged at least twelve
hours when first utilized. It's better to recharge
it after its power is completely drained to
encourage the battery to charge fully each time!
Please do the above-mentioned process at least
during the first three times of use.
* It can be charged by USB cable
1 . Use one
○
port of the USB cable to connect to the PC, the
other port connects to the device. It takes
approximately three hours to charge the battery
fully. The orange light will flash while the
battery is charging and green light will shine
steady when the battery is fully charged.
* It can be also charged by power adapter. ②
Connect the device with the power adapter, and
plug the power adapter in the socket (please see
the voltage scope on the adapter). It takes
approximately three hours to charge the battery.
The orange light will flash while the battery is
charging and green light will shine steady when
7
the battery is fully charged.
* Do not remove the battery while charging.

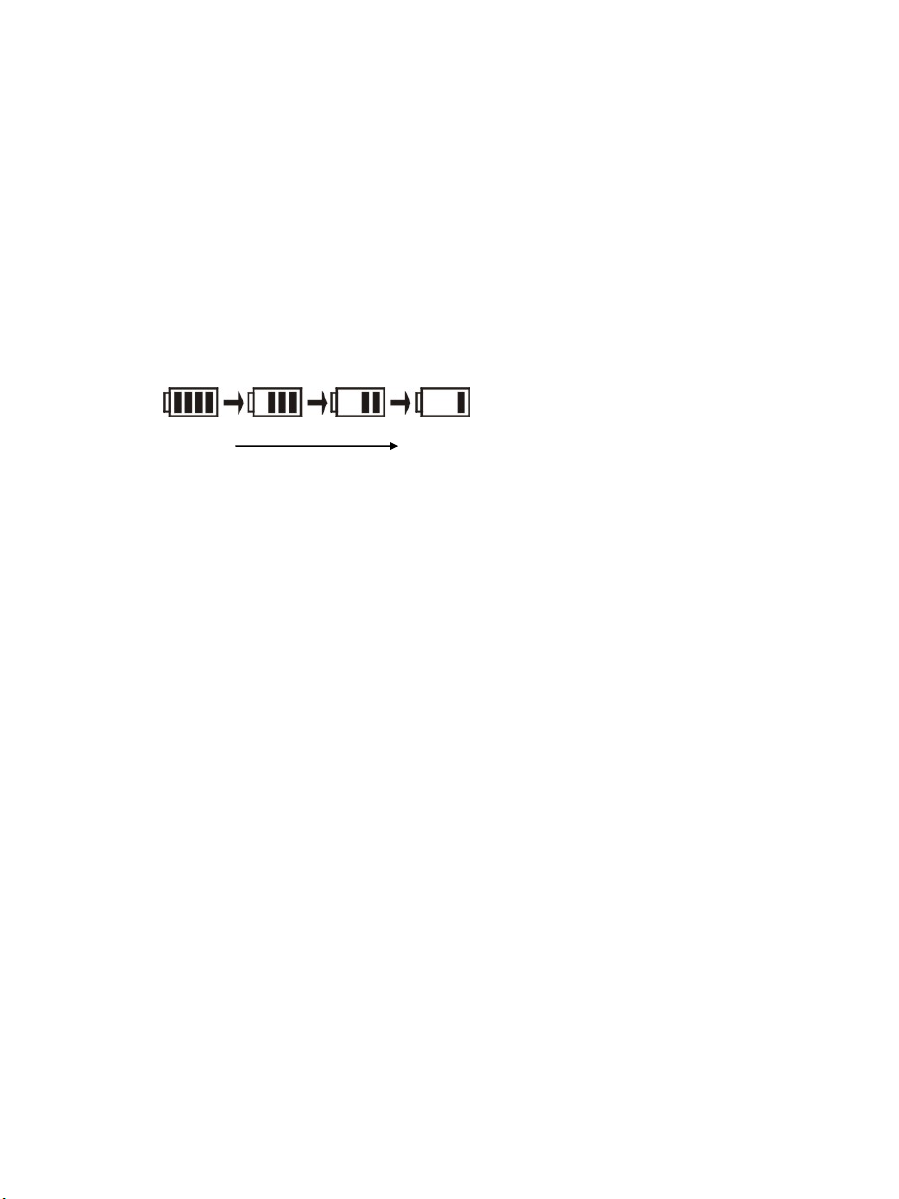

* The battery capacity icon is on the bottom
right corner. When the icon shows one grid
volume or system informs low battery volume:
please recharge the battery.
Full Low(please recharge)
* The device can be used while charging, but
the charging time will be increased.
* When the battery is charged at beginning
period, if the indicator is still red, this means the
power is not enough for startup, please
disconnect USB cable and then reconnect it.
* Do not use unauthorized battery and/or
charger. This is critical! Many chargers look
alike but operate on different voltage or
amperage!
* Do not remove the battery while charging is in
progress.
* Make positive you insert the battery with the
8
,
correct polarity into the polarized contacts. You
can damage the battery and/or device otherwise
and void your warranty or start a fire.
Installing SD card
Insert the SD
card with the
label facing up
and forward
After you insert SD card,
bookshelf interface will
be automatically
displayed. To remove the
SD card, push in the SD
card until you hear a
click
then release it.
Insert the SD card carefully and properly! Do
not attempt to force it in! Reverse the card in
the slot if it does not go in easily. It should
insert easily and lock itself into place if done
right!
9

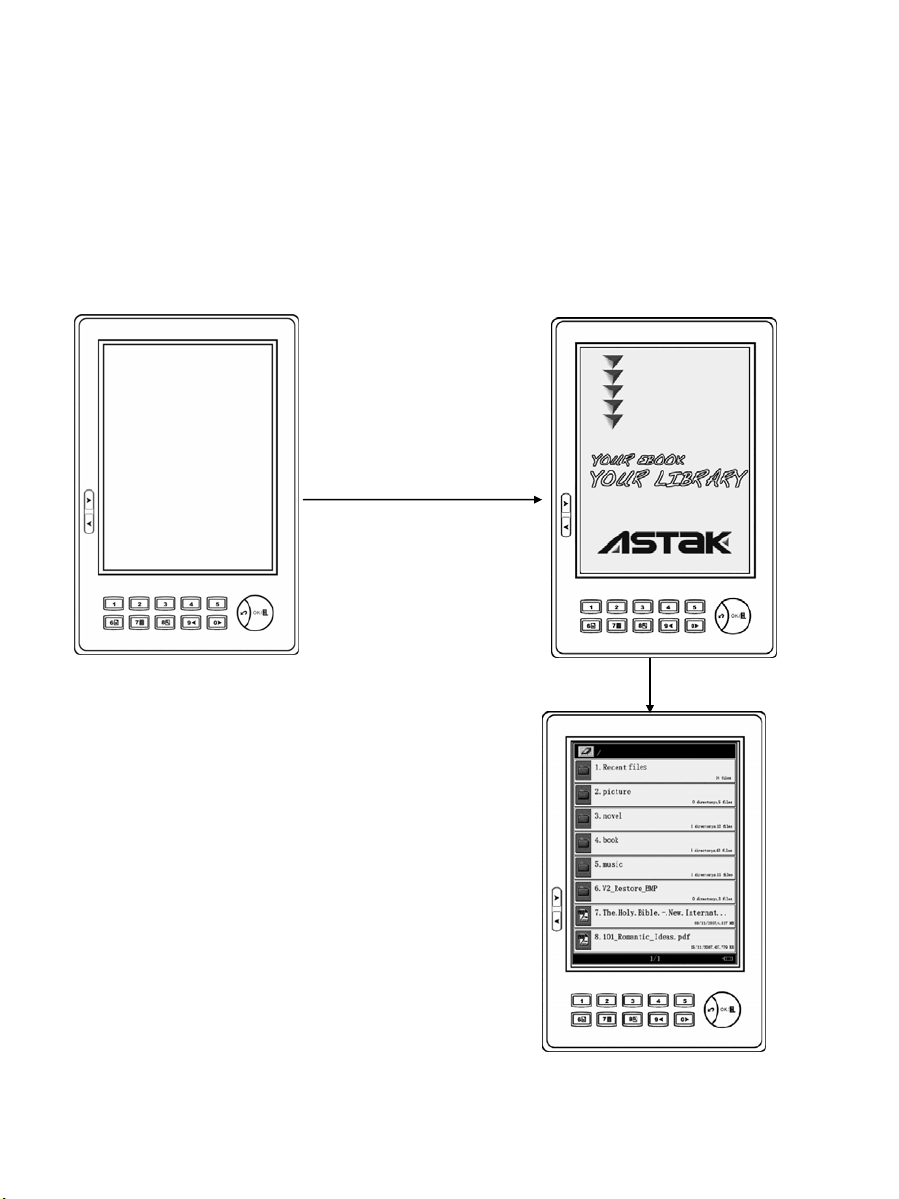

Switch On/Off
Switch on：
Press and hold on/off button to power on.
(Silver button on top of device).
Press
Power On/Off
off
Bookshelf Home Page
10
Switch off：
Press and hold the on/off button for about three
seconds to turn the power off.
Press and Hold
Power On/Off
Any Interface
Power off
11
y
Keyboard Lock
Press on/off button shortly, lock/unlock
keyboard.
Power
On/Off
An
interface Lock keyboard
12
Downloading books is easy!
The Astak-approved website is:
www.mobiebook.com
Use the web browser on your desktop or
notebook computer to go to this site! There
you will find all the latest and greatest books in
the Mobipocket format that your EZ Reader
requires.
Whether you like The Classics or Comedy or
Drama or Action/Adventure… you can
download easily from this website into any
dedicated file on your computer such as “My
Books” (as a suggestion).
Note: Check to make certain that your computer
has a relatively newer operating system that
will work for such downloading. Most will
without any trouble! Check with the website
for Apple Compatibility.
13
Moving books and music from your
computer to the EZ Reader
With your computer “on”, connect your EZ
Reader via USB cable to your computer. Turn
on the EZ Reader and press “OK” button. This
should bring up a “What do you want Windows
to do” dialogue box. Choose “Open Folder to
View Files”. This should bring up all of the
folders that you have on your SD card or in your
device embedded memory.
After this window is opened, everything is just
“Copy” and “Paste”. Minimize the Opened EZ
Reader screen on the computer, open “My
Books” or “My Music” or “My Pictures”…
click on what you want in the EZ Reader…
right click and choose “Copy”… and then drop
it into the EZ Reader file screen you just
minimized by hitting “Paste”.
14
Make sure your music you load is MP3
formatted and your pictures are JPEG only of
less than 1GB.
That is about all there is to it! The download
from the EZ Reader Screen on your computer to
your EZ Reader is effectively “automatic”.
For “encrypted, DRM, and other formatted
books…look for information on:
www.moiebook.com
Search
Searching by page

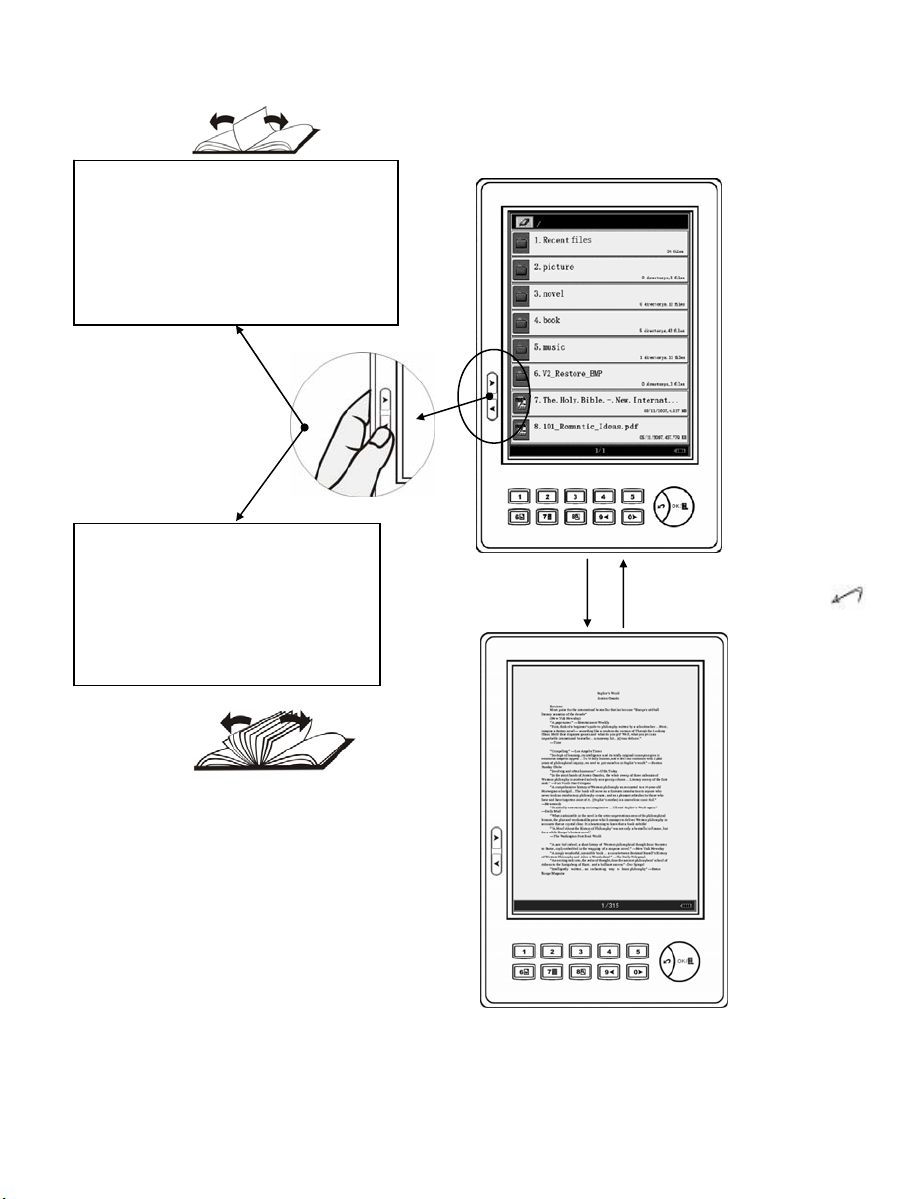

Under the bookshelf interface, each page
displays up to eight titles. Press page turning
button to go to previous or next page; or press
and hold down the page turning button to turn
ten pages at one time. User can use the number
keys (①~⑧) to select the title for reading.
15
Quick press to
move to previous
or next bookshelf
Press and hold to
turn 10 pages at
one time
Press ①~⑧
Main Bookshelf
Press Exit (
Text
)
16
r
Search by sorting
User can save the books of the same type in the
same folder. The device can support multi-level
folders. Press the number keys (①~⑧) to enter
into the sub-folder.
Press ①~⑧
Press Exit ( )
Main folder Sub-folde
17

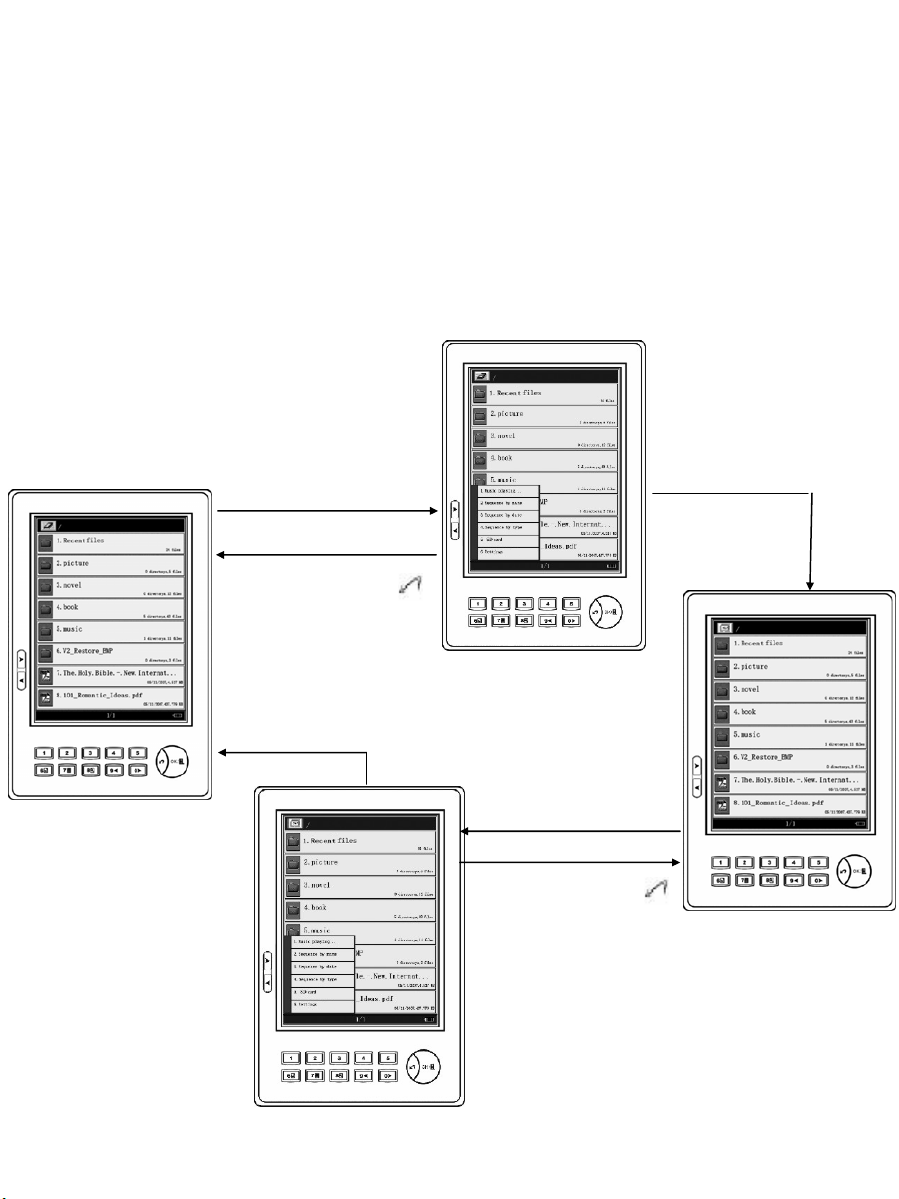

Search by order
Under bookshelf interface, press “OK” to
display the menu, press number keys ②~④ to
choose the order methods.
Press OK
Press Exit ( )
18

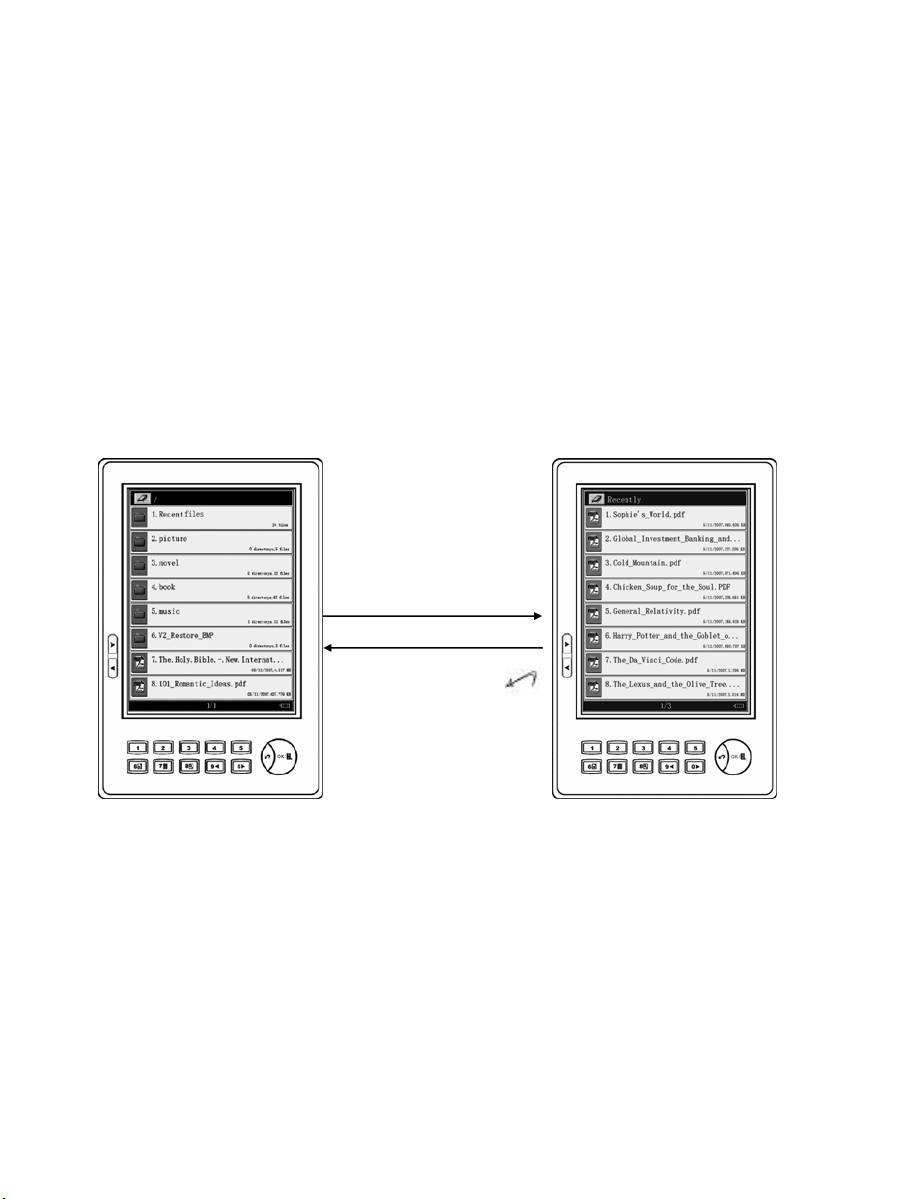

Recent File Reading
Recently Reading: the books which have been
recently read can be saved in the “Recent File”
folder.
In the home page of the main bookshelf, press
number key ① to enter into The “Recent File”
folder.
Home page of
main bookshelf
Press ①
Press Exit (
“Recent File” Folder
19
)
r
d

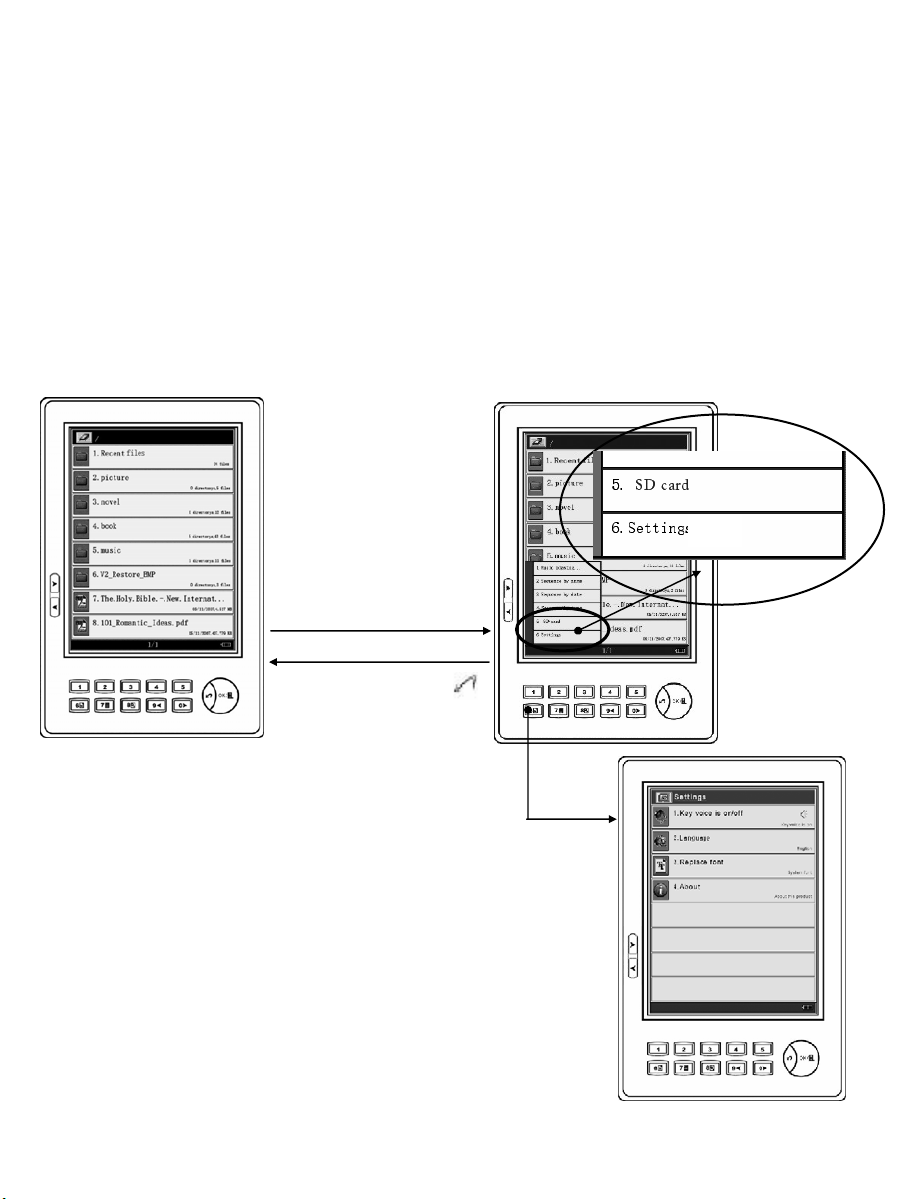

Switch between Bookshelves
Under bookshelf interface, press OK to show
menu; pressing number key ⑤ can switch
between the bookshelves of SD card and
internal bookshelves.
Press Numbe
key⑤
Press OK
Internal
Bookshelf
Press Exit ( )
Press Number key ⑤
Press OK
Press Exit (
20
)
Bookshelf in
SD car
N
Reading EZ Reader
Page Turning
Page turning by sequence
Under text interface, press page turning button
or number key ⑨ (previous) and
turn pages by sequence.
Press ► or ◄ one
time to display the
previous or next
page
Press and hold
to turn 10
pages at one
time
0 (next) to
○
Previous
ext
21

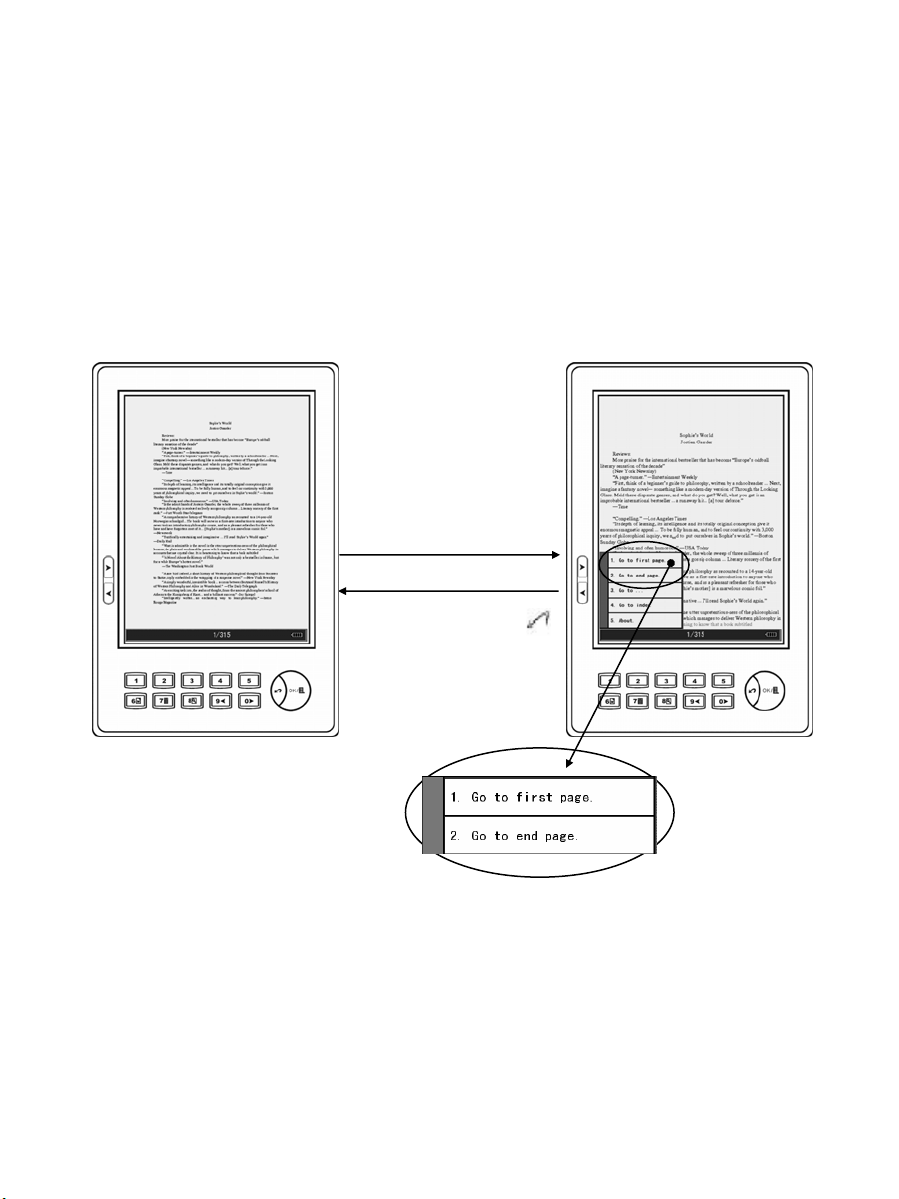

First/Last Page
Under text interface, press OK to display the
menu, then press ① to display the first page;
press ② to display the last page. (Images file
doesn’t support this function.)
Press OK
Press Exit (
)

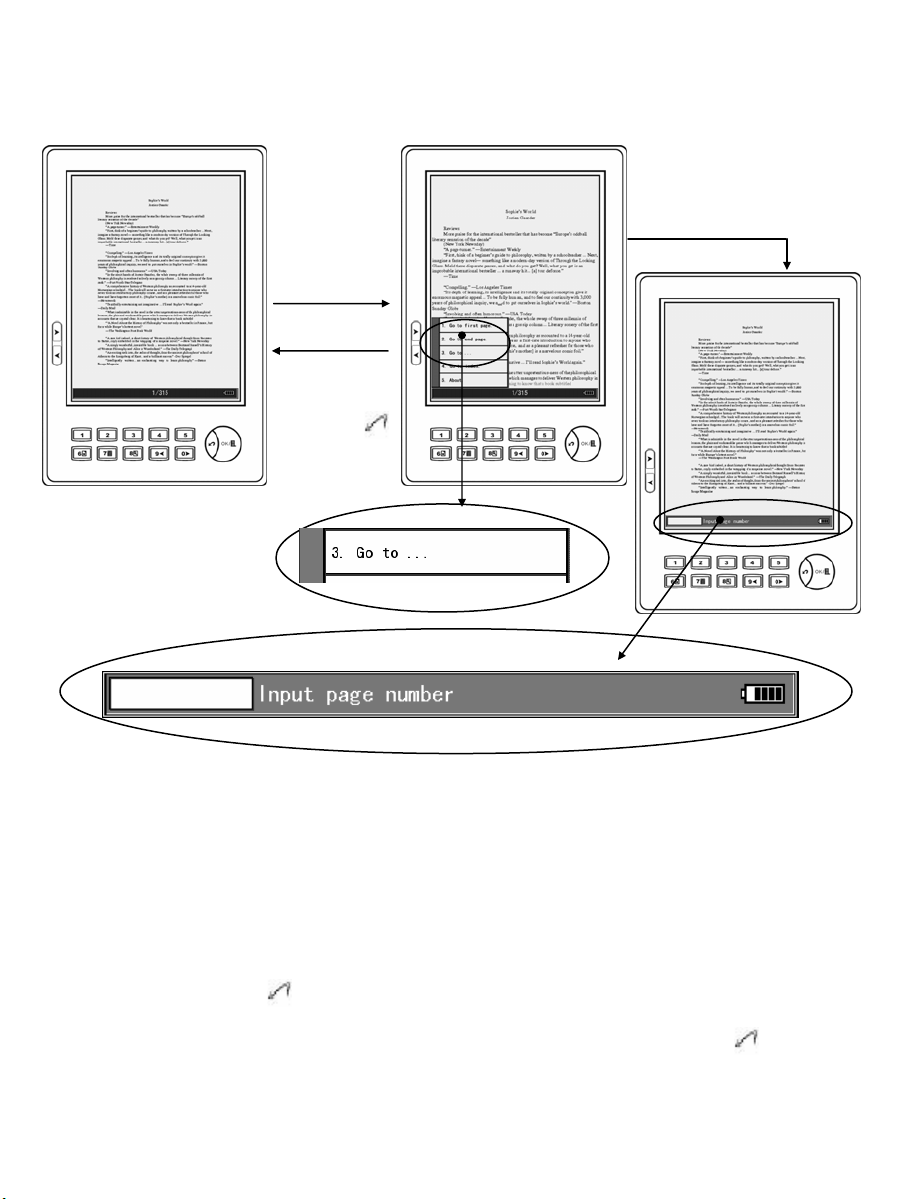

Page Jump
Under text interface, press OK to display the
menu, then press ③ to enter into the jump page
function. (Images file doesn’t support this
22
N
()
function.)
umber key ③
Press
Press
OK
Press
Exit (
0~⑨ to enter the page number and
○
)
press OK to jump page.
During the process of entering the page number,
press “exit” (
) to delete the entered number. If
no page number is entered, press “exit” (
quit this function.
23
) to
N
Zoom In/Out
Three levels of zoom in/out are supported:
Normal, Full screen, Double.
When it is in Double mode, the text will be
automatically changed to horizontal.
Zoom in/
8
○
Zoom out/
8
○
ormal Full
Zoom in/
8
○
Double
24
Bookmark

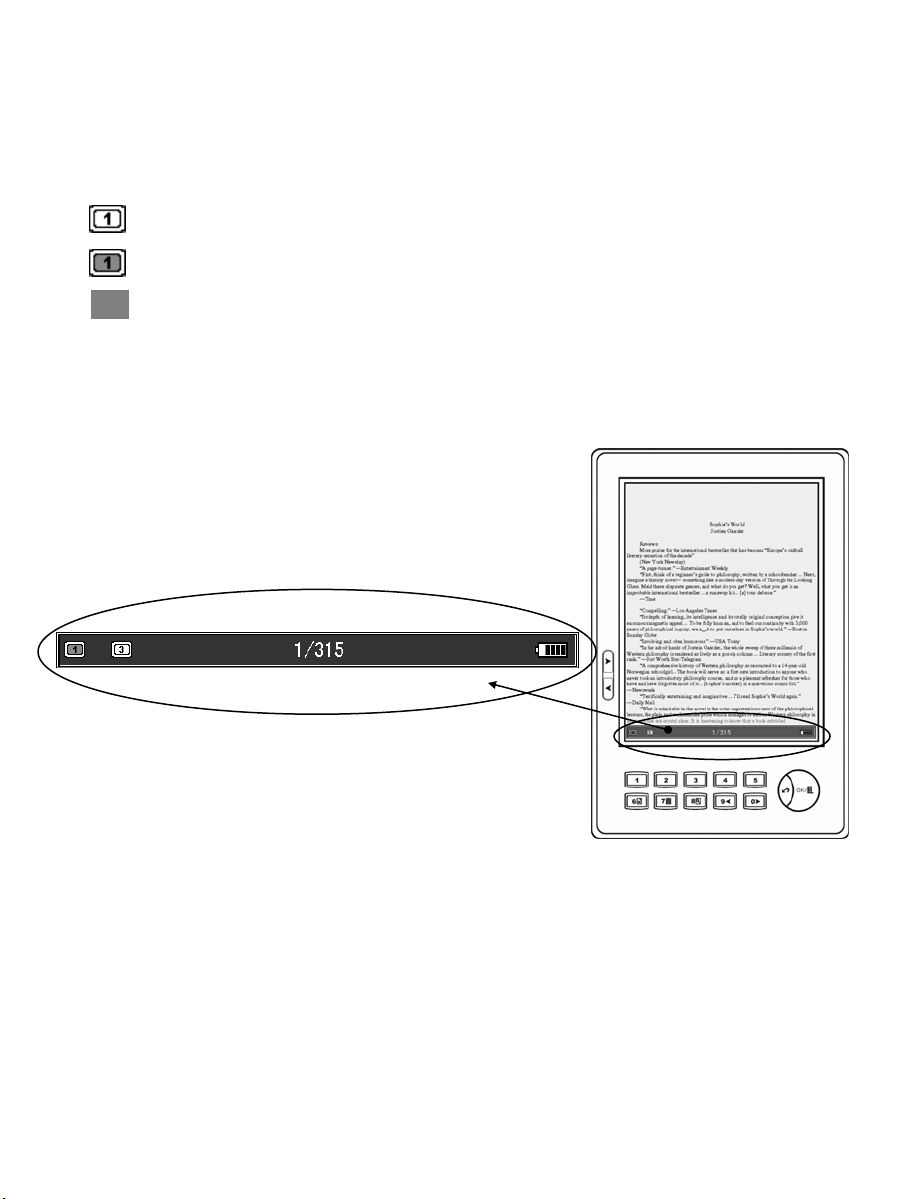

Bookmark operation：
The current page without bookmark
The current page with bookmark
If the number keys aren’t used as
bookmark, the icon of the number key
won’t show in the status bar.
Add Bookmark:
Press number keys ① ~ ⑤ to directly add
bookmarks.
25
Replace Bookmark:
If the current number key you want to use as the
bookmark is already used, you may press and
hold the current number key for 3 seconds, then
the previous page with bookmark will be
replaced by the current page.
Clear Bookmark:
Go back to the page with bookmark; press the
number key to clear the bookmark.

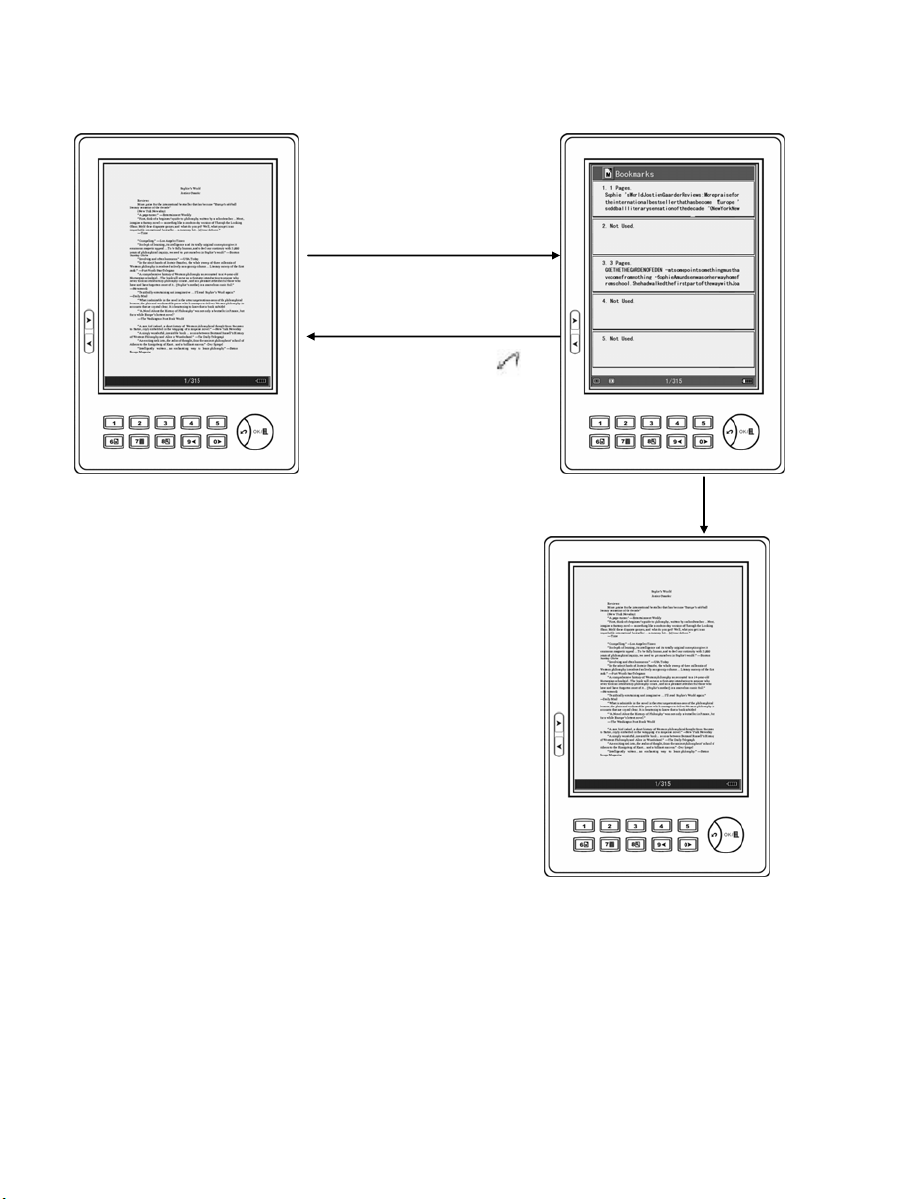

Check Bookmark:
Hold and press number key
6 for 3 seconds
○
to enter into checking bookmark status, then all
the details of the bookmark will be listed.
Press number keys ①~⑤ to jump to the page
with bookmark.
26
N
Press and Hold
umber key
6
○
Press Exit
( )
Press①~⑤
27
Index
Under the text interface, press “Go to index/⑦”
button to enter into the index interface. The
system can support multi-level index. Press
number keys ①~⑧ to enter into the index of
next level, if the current index is the last level
index, press the number key to go to the chapter
of the book or press Exit to return to previous
level index. (TXT, HTML, Images file doesn’t
support this function.)
Press Go
to Index/⑦
Press Exit ( )
Text Index
28
Under the text interface, press OK to display the
menu, and select “Go to index” by pressing the
number key ④.
Press OK
Press Exit (
)
PressNumber key ④
29
Information of Book
Under the text interface, press OK to display the
menu, and select the “About” by pressing the
number key ⑤, then all the information of the
book will be displayed, which include ISBN,
author, file name, publisher, publishing date,
copyright, price etc. (Different book may have
different items.)
Press OK
Press Exit (
)
Press Number key ⑤
30
Adjust the contrast and brightness of
pictures
When browsing pictures, the contrast and
brightness can be adjusted, press ‘OK’ and use
‘ ’to switch between contrast and
brightness, the icon will be changed as well.
OK
31
Press number key ①~⑧ to adjust contrast or
brightness directly, press number key
(down) and number key
levels, press ‘OK’ to finish configuration.
0or
○
0 (up) to configure
○
①~⑧
9
○
9
○
MP3

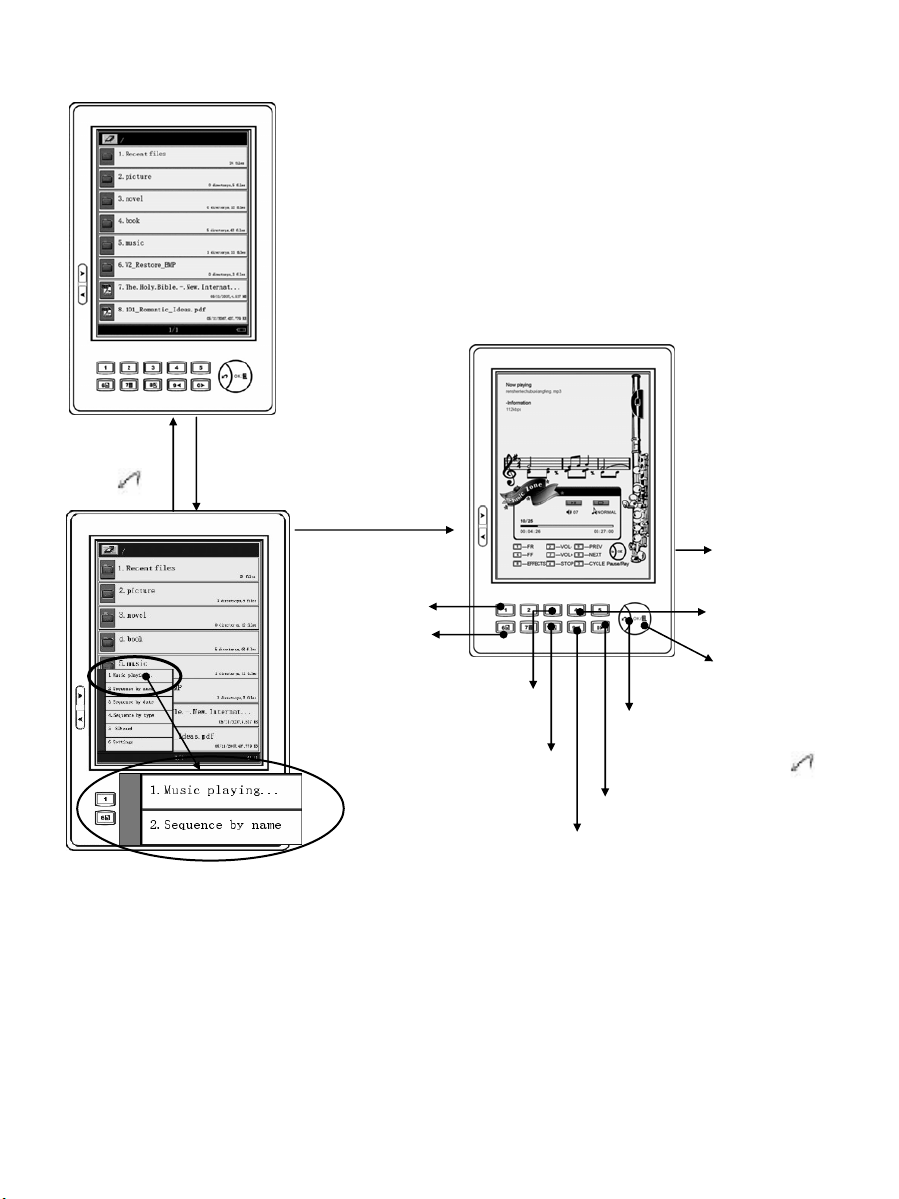

Under the bookshelf interface, press the
corresponding number key to play the MP3 file.
During the playing process, press OK to display
the menu, and then press the number key 1 to
enter into Music Play function.
The Music Play function will display all
information of the current MP3, including title,
32
N
(
)
K
④
○
R
N
○
baud rate, playing time etc.
Press
Exit
Press O
umber
Vo l u m e
Note: This unit plays stereo music, and it takes a
3.5mm jack for either ear buds or headphones.
We recommend a good pair (perhaps
noise-canceling type) as this unit has great
sound.
key
○
8 Sound Effect
○
1
○
1F
6 FF
③Cycle
Pause/Play
Back to
Bookshelf
ext Song
Previous Song
up/down
Stop
( )
0
○
9
○
OK
33
System Setting
Under the bookshelf interface, press OK to
display menu, press number key
6 to enter
○
into the system setting function, which includes
sound key setting, language setting, replacing
font and product information.
Press OK
Press Exit ( )
Press Number key
6
○
34

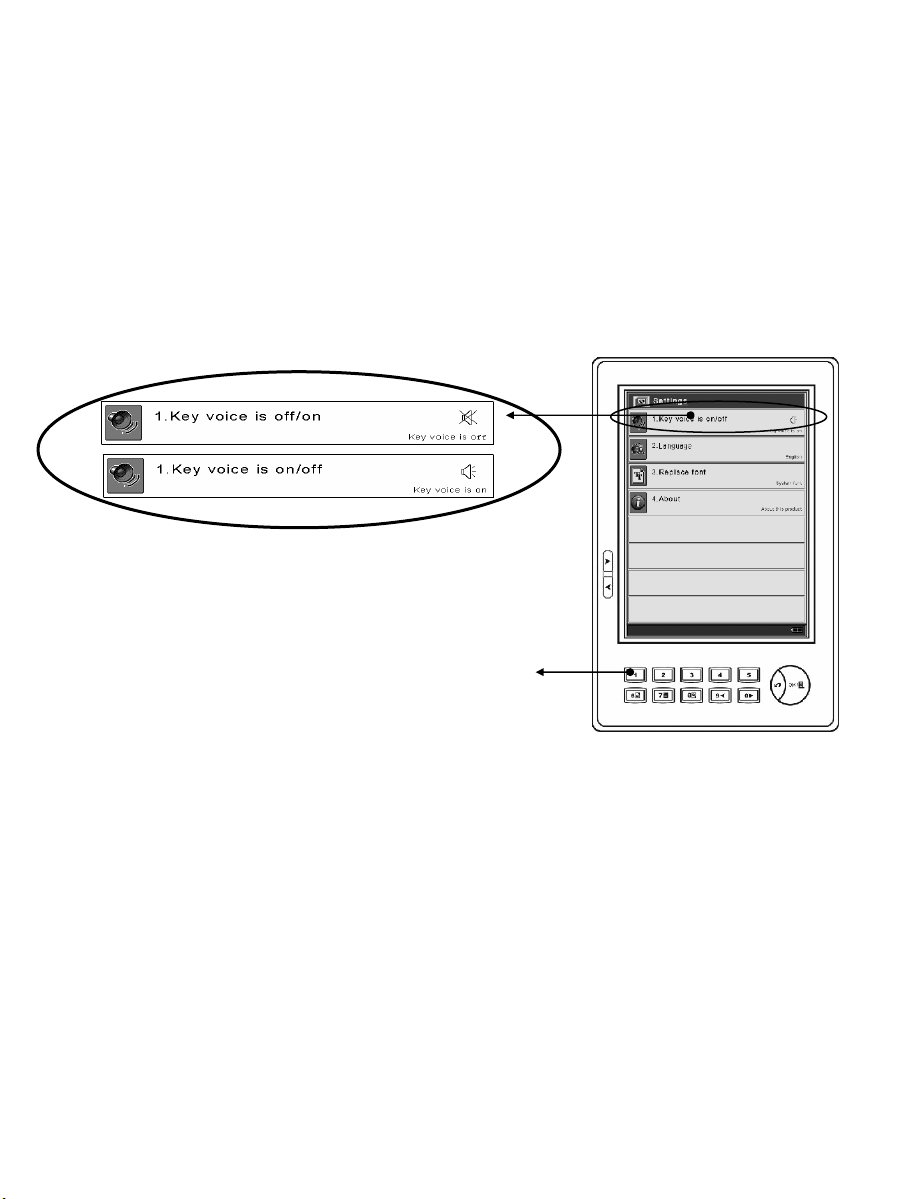

Key Sound
Under the system setting interface, press
number key
of the key.
Turn On/ Turn Off Sound
1 to turn on/ turn off the sound
○
35
N
Language Setting
Under the system setting interface, press
number key ② to enter into language selection
interface, select language by pressing the
opposite number key.
Press
umber key ②
Press Exit ( )
36
N
Replacing Font
Under the interface of system setting, press
number key ③ to enter into the “replace font”
interface, and select the key to choose font.
(The TTF files are saved in the font folder of the
root index of SD card.)
Press
umber key ③
Press Exit ( )
37
N
System Information
Under the system setting interface, press
number key ④ to check the information of
system version.
Press
umber key ④
Press Exit ( )
38

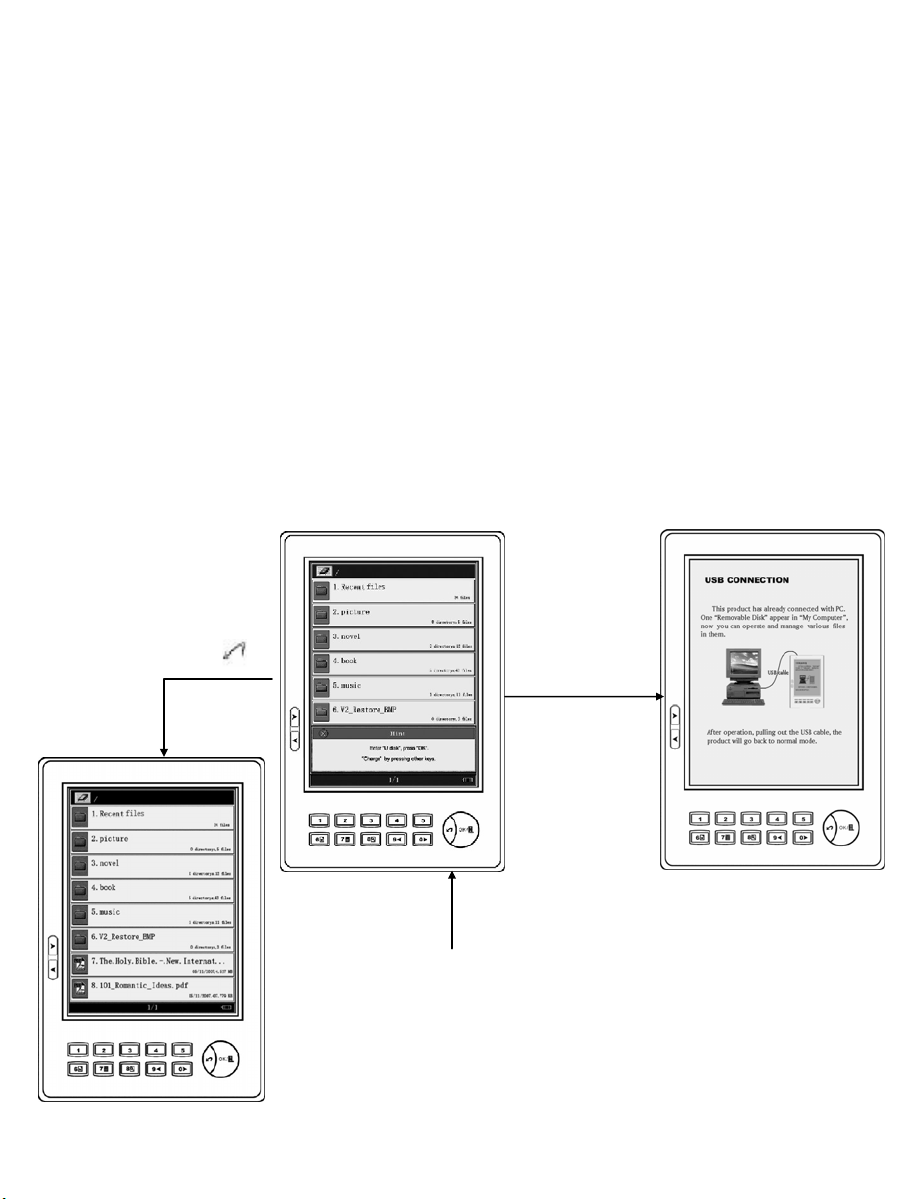

USB Connection
The device can directly connect to the computer
by the USB cable which supports the plug and
play function. After connection, the
“Removable disk” will automatically display in
the “My Computer”. (Note: before
disconnecting the USB cable, the operations of
book reading will not work.) See the following
picture:
Press Exit ( )
Press OK
Connect Insert USB cable
39
How to confirm copying the data to the SD
card
Under the Windows system, the data may not
immediately copy to the SD card, the data will
be firstly copied to the cache, therefore it needs
to be confirmed.
Confirmation Method: When the indicator
doesn’t flash, click the “Removable disk” with
the right button of the mouse, select “Eject” of
the menu (In Windows2000 or Windows XP,
need to select “pull out or eject hardware”),
then pull out the USB cable.
：
Stop USB Mass Storage Device-Removable Disk (J:)
16 16
After unplugging the USB cable, it will go back
to the bookshelf interface, and then you may
read the books with the SD card.
40
Troubleshooting
If the EZ Reader does not function, please try
the flowing ways to solve the problem.
、
1 Press and hold the power button for three
seconds, turning the power off, and then switch
on the product again.
、
2 Reset the product by pressing reset button
or press and hold the power button for 10 full
seconds.
41
Specifications
Hardware CPU: Samsung Arm9 200MHz
Screen ePaper (E-Ink technology)
6 Inches 600*800 pixel 4 grayscale
Dimensions 7.2 inch (L) x 4.7 inch (W) x 0.3 inch (H)
Operating System Linux OS
Format Natively
Support
PDF, DOC, RTF, HTML, TXT, MP3, WOL, CHM,
RAR/ZIP, FB2, Djvu, Epub, BMP, JPG, LIT, PRC，
PDB
Storage NAND FLASH
Memory SDRAM:32MB, Internal 2MB NOR FLASH
I/O 3.5mm stereo audio jack for headset
USB 1.1 Port
SD card slot ( support up to 4GB )
Weight 7.8 oz (include battery)
Battery Li-ION 950mAh
Operation
32ºF to 104ºF
Temperature
Storage
Temperature
-4ºF to 131ºF
42
After-sales Service Guide
Terms of Limited Warranty Service:
Under the terms of Limited Warranty Service,
Astak will provide free repair or replace (our
choice) for any parts or labor problems that
were caused by mis-manufacturing problems.
The Warranty period of 12 months on the
product starts on the original date of purchasing
as clearly shown on the sales invoice.
Accessories are warranted 3 months! Service
is without charge for: limited repair and/or
replacement (not including the fault and
damage caused by wear, improper care or use,
artificial factors by customer and appearance
problems, etc.)
You must have the original invoice (valid
receipt)! If you have any questions, please
contact Astak service department by calling
toll-free to:
43
1-866-368-8788 or by sending an email to:
rmaebook@astak.com. Product returned to us
without an RMA (Retuned Merchandise
Authorization) will not be processed! You are
responsible for safe shipment.
Any charges or repair bills before the product
arrives will be at the sole expense of customer.
What this Warranty Does not Cover:
* Damage resulting from vibration, collision,
abuse, water (liquid) damage, and misuse;
* Storing under improper conditions; exposing
in unsuitable environment such as high
humidity, higher or lower temperature;
immersed by liquid; caused by undue force and
other factors.
* Failures resulting from unauthorized repair or
attempts to repair, improper connection, misuse
(including but not limited to use of any backup
component, other than that authorized by
Astak) , neglect, abuse, tampering, modification
44
and incorrect installment, error operation by
customer, or other factors surpassing reasonable
usage and control, abrasion, crushing or
evidence of dropping.
* We do not receive notice of failure or quality
problem of the product from customer within
the warranty period.
* Deleted, damaged, altered or forged series
number of the product.
* If the warranty period expires, the expenses of
maintenance and service will be charged
according to the general service policy of Astak,
and provide a 90 days warranty period after the
paid repair
Benefits provided by this warranty depend on
all rights and compensation due by and of the
compulsory laws of the USA.
There will be no advanced notice for any
change of any terms of warranty, product
45
functions and specifications.
Special Note: Astak is not responsible for the
loss of SD cards or purchased books or music
that may occur during repairs. KEEP YOUR SD
CARD when you send the unit for repairs (only
with approved RMA). We strongly suggest you
save your books and music on a computer
before sending for repairs!
46
Loading...
