Astak CM IP700 Users Manual

H.264 WIRELESS NETWORK CAMERA

CM-IP700

Setup and

Advanced User Guide

NETWORKING AND SURVEILLANCE PRODUCTS

Setup and Advanced User Guide

© Astak, Inc.

1911 Hartog Drive

San Jose, CA 95131

Tel : [phone] Fax : [phone]

Table of Contents

Getting familiar with your new ASTAK product .........................1

Packing list...................................................................................... 2

System Overview............................................................................2

Usage Suggestions.. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .......................... ............... 2

Product Certifications...................................................................... 3

Warning........................................................................................... 3

Care and Maintenance . .. .. .. ... .. .. .......................... .......................... .. 3

Setting up your ASTAK network camera................................... 4

Register your camera...................................................................... 5

Create a new account..................................................................... 5

Register and configure your camera............................................... 5

Configuring for Wireless Networks......... .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. 6

Logging in to your camera............................................................... 7

Accessing your camera...........................................................10

Internet Explorer ...........................................................................11

Accessing through the Yoics desktop ..................... ... .. .. .. .. ........... 11

Access by local IP.................................... .. ... .. .. .. .. ........................ 11

Using your camera..................................................................13

Home ............................................................................................13

View size.................................................................................................14

SD Card..................................................................................................14

Capture...................................................................................................14

Record ....................................................................................................14

Playback .................................................................................................15

Camera controls......................................................................................15

Audio controls.........................................................................................16

Media............................................................................................ 16

Image settings.........................................................................................17

Video settings .........................................................................................18

Advanced...................................................................................... 19

Network...................................................................................................19

Remote Access................................................................................... ....20

DDNS Settings........................................................................................21

User ........................................................................................................22

Email.......................................................................................................22

Alarm.......................................................................................................23

Schedule.................................................................................................24

Motion Detection.....................................................................................25

FTP.........................................................................................................26

Auto Capture...........................................................................................26

System Tab............................................... .... .... .... .... .... ....... .... .... ... .... ....27

Time Settings....................................................................... .... .... ... .... ....27

Initialize...................................................................................................28

Device Information..................................................................................29

GENERAL OVERVIEW

r

Getting familiar with your
new AST AK product

This section will familiarize you with your new ASTAK product,
to ensure easy setup and usage of your wireless network camera.

hank you for purchasing this ASTAK product. This manual will explain how
to use your new camera and will provide installation and operation instructions.

T

Please read this manual carefully before operating your product and please
save this manual for future reference.

Chapte

1

The IP-700 Network Camera is a web-based camera, which does not need to be
connected to a computer to operate. It is an independent monitoring system with a
built-in CPU and webserver, which enables it to deliver high-quality images from any
location where you have either wired or wireless network connectivity. You can
monitor and remotely control the IP-700 Network Camera from any internet
connected browser, even the one on your iPhone.

1

GENERAL OVERVIEW

Packing list

In addition to this user guide and the Quick Setup guide, your package should include
the following six components. Before beginning setup, please check that all parts are
included. If any parts are missing, please contact your reseller or dealer.

Camera Mounting bracket AC adapter

Ethernet cable Software CD Wi-Fi Antenna

* Actual components may be slightly different from what is pictured above.
* The packaging is subject to change without notice.

System Overview

Usage Suggestions

 At home: baby monitoring, family security;
 At companies or offices: remote monitoring, anti-theft;
 In public places: hotels, shops, railway stations, airports, etc.

2

GENERAL OVERVIEW

Product Certifications

This product complies with the radio frequency safety standards and recommendations
set by the FCC. This product is FCC & CE certified.

Warning

1. Do not use this product to invade others’ privacy or monitor others if they

have not agreed to be monitored.

2. Do not place this product near any medical equipment. The radio waves used

by this camera are likely to interfere with the performance of medical
equipment.

3. Do not use this product to do anything illegal. Illegal usage of this product

voids the warranty. Astak, Inc and Team Research, Inc will not assume any
responsibility for the illegal use of this camera.

Care and Maintenance

1. Keep this product in a ventilated place.

2. Do not strike or hit this product.

3. Do not put this product in very dry or dusty areas.

4. Do not put this product near magnetic objects.

5. Do not put this product in damp places nor places with large fluctuations in

temperature.

6. Keep this product away from heat sources, such as electric heaters.

7. Do not use this product next to strong corrosive chemicals.

8. Do not let this product come into contact with liquids or rain.

9. Do not use this product near metals or else the wireless signal will be affected.

10. Please follow your local government's environmental protection policies.

11. Please disconnect the power when not using this product for a long time.

12. Do not attempt to dismantle or repair this product because that will void the

warranty.

13. Keep packaging materials and camera away from babies and young children.

14. Do not plug the AC adapter into a power outlet if it is wet, or if your hand is

wet.

15. After usage, the AC adapter will heat up, so do not put it on heat-sensitive

surfaces.

3

AUTOMATIC CONFIGURATION

r

Setting up your AST AK
network camera

This section will guide you through the initial setup of your
Network Camera.

nce you’ve unpacked your camera and verified that all items on the packing
list were included in your package, take the following steps.

O

Chapte

2

1. Connect the wireless antenna (wi-fi version only)

2. Plug the Ethernet (network) cable into the camera and the other end into your

router.

3. Plug the AC power adapter into your camera, then into a 110V wall outlet.

AC P ower

Network

(router)

4

AUTOMATIC CONFIGURATION

Register your camera

Once you’ve connected your camera to your network and to AC power, you’re ready
to register and auto-configure your camera. Your ASTAK camera, features Yoics, the
easiest way to configure your network device.

If you already have a Yoics account, simply enter your user name and password to
login.

Create a new account

If you don’t have a Yoics ID, simply select Register to setup a new account.

Register and configure your camera

Once you’ve logged in, you’ll be
directed to the Yoics web interface.
Yoics will automatically detect your
new ASTAK camera and you should
see a pop-up window asking if you
want to register you new product.
Just click Complete Registration.

Note: If the auto-detection pop­up doesn’t come up, please log out

and try again in a couple of
minutes. Depending on your
network connection, it may take up
to 5 minutes for your camera to be
detected.

5

AUTOMATIC CONFIGURATION

Once you clicked Complete
Registration you will be shown the
Register New Device Window.

Simply give your camera a name of
your choice.

That’s it. Your camera is now
registered and configured.
Simply login to yoics.com from
any browser to view your camera,
see Chapter 3 for more
information.

Configuring for Wireless Networks

If you have purchased the wi-fi version of the ASTAK camera, the following
instructions detail how to configure your settings to configure your camera for your
network.

Once you’ve logged in to the Yoics web access screen, simply click on your camera’s
name.

6

AUTOMATIC CONFIGURATION

Logging in to your camera

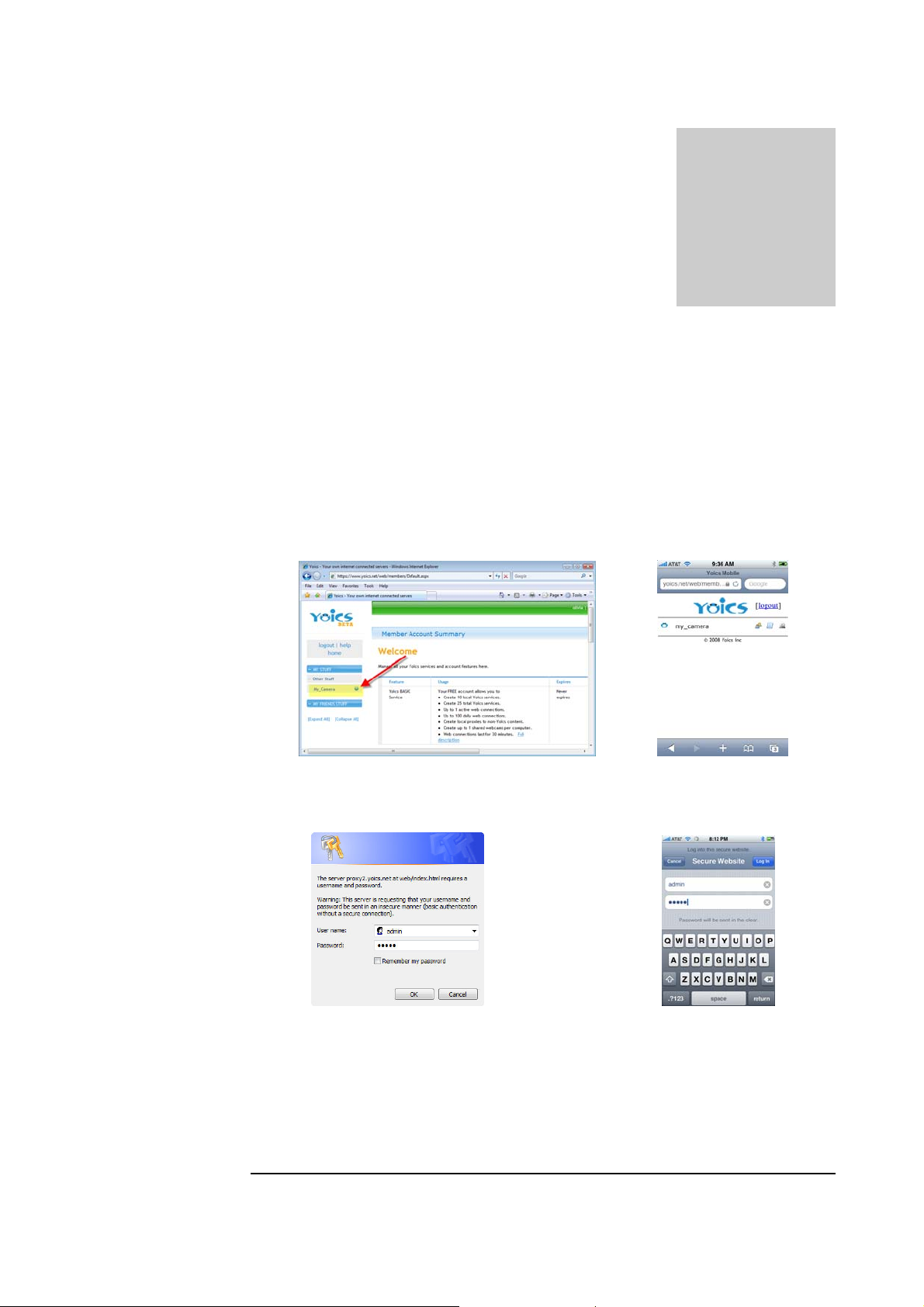

Clicking on the name will bring up your camera.
Since this is the first time that you’re accessing
your camera, you will get a login screen. The
default user name and password are: admin |
admin

Once your camera interface comes up, select the Advanced tab.

7
