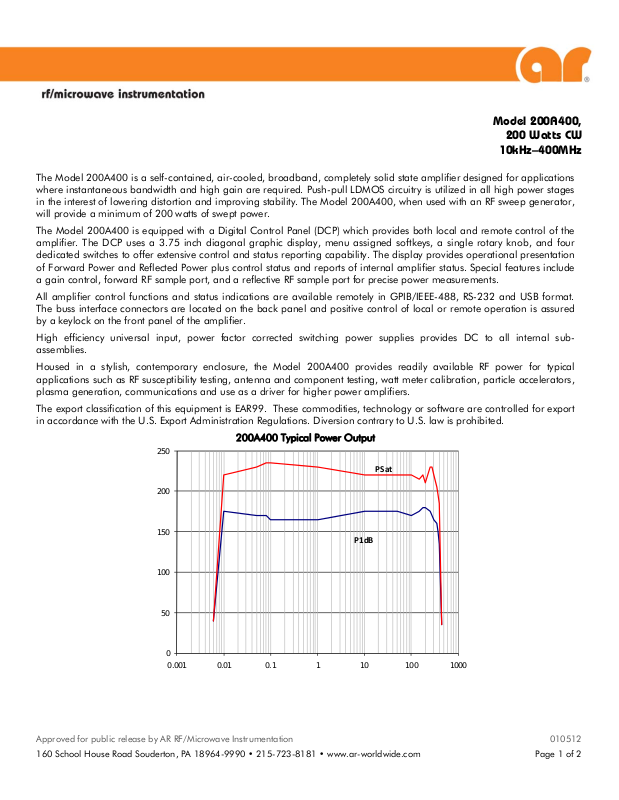

Associated Research 200A400 Data Sheet

Model 200A400,
200 Watts CW
10kHz–400MHz
The Model 200A400 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The DCP uses a 3.75 inch diagonal graphic display, menu assigned softkeys, a single rotary knob, and four dedicated switches to offer extensive control and status reporting capability. The display provides operational presentation of Forward Power and Reflected Power plus control status and reports of internal amplifier status. Special features include a gain control, forward RF sample port, and a reflective RF sample port for precise power measurements.
All amplifier control functions and status indications are available remotely in GPIB/IEEE-488, RS-232 and USB format. The buss interface connectors are located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.
High efficiency universal input, power factor corrected switching power supplies provides DC to all internal sub­assemblies.
Housed in a stylish, contemporary enclosure, the Model 200A400 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, particle accelerators, plasma generation, communications and use as a driver for higher power amplifiers.
The export classification of this equipment is EAR99. These commodities, technology or software are controlled for export in accordance with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited.
200A400 Typical Power Output
250
PSat
200
150
100
50
0
0.001 0.01 0.1 1 10 100 1000
Approved for public release by AR RF/Microwave Instrumentation 010512
160 School House Road Souderton, PA 18964-9990 • 215-723-8181 • www.ar-worldwide.com Page 1 of 2
P1dB
RATED OUTPUT POWER ............................................... 200 watts, 10kHz-250MHz
200-175 watts, 250MHz-400MHz (derated slope of .167W/MHz)
INPUT FOR RATED OUTPUT .......................................... 1.0 milliwatt maximum
POWER OUTPUT @ 3 dB compression ......................... 175 watts, 10kHz-250MHz
175-150 watts, 250MHz-400MHz (derated slope of .167W/MHz)
POWER OUTPUT @ 1 dB compression .......................... 150 watts, 10kHz-250MHz
150-125 watts, 250MHz-400MHz (derated slope of .167W/MHz)
FLATNESS ..................................................................... 3.5 dB maximum
FREQUENCY RESPONSE ............................................... 10 kHz–400 MHz instantaneously
GAIN (at maximum setting) ........................................... 53 dB minimum
GAIN ADJUSTMENT (continuous range) ......................... 20 dB minimum
INPUT IMPEDANCE ....................................................... 50 ohms, VSWR 1.5:1 maximum
OUTPUT IMPEDANCE ................................................... 50 ohms, nominal
MISMATCH TOLERANCE ............................................... 100% rated power without foldback up to 6.0:1 mismatch, above which may
MODULATION CAPABILITY ........................................... Will faithfully reproduce AM, FM, or pulse modulation appearing on the input
HARMONIC DISTORTION ............................................. Minus 20 dBc maximum at 150 watts
THIRD ORDER INTERCEPT POINT .................................. 65 dBm typical
RF POWER DISPLAY ...................................................... 0–350 watts full scale
PRIMARY POWER .......................................................... 180–264 VAC
47–63 Hz, 1250 watts maximum @ 0.99 P.F. typical
CONNECTORS
RF input ................................................................. See Model Configurations
RF output ............................................................... See Model Configurations
Forward Sample ..................................................... BNC female on front panel (coupling factor 60 dB typical; data supplied)
Reverse Sample ...................................................... BNC female on front panel (coupling factor 60 dB typical)
Safety Interlock ....................................................... 15 pin female Type D on rear panel
REMOTE CONTROL
IEEE-488 ............................................................ 24-pin female on rear panel
RS-232 .............................................................. 9 pin female Type D on rear panel
USB ................................................................... Type B female
COOLING .................................................................... Forced air (self contained fans)
WEIGHT, maximum ...................................................... 45.8 kg (101 lbs)
SIZE (W x H x D) ............................................................ 50.3 x 34 x 56.9 cm (19.8 x 13.4 x 22.0 in)
EXPORT CLASSIFICATION ............................................. EAR99
MODEL NUMBER RF INPUT RF OUTPUT 200A400 Type N female, front Type N female, front 200A400M1 Type N female, rear Type N female, rear
SPECIFICATIONS, MODEL 200A400
limit to 100W reflected power. Will operate without damage or oscillation with any magnitude and phase of source and load impedance.
signal
MODEL CONFIGURATIONS
Page 2 of 2
